Dacor Renaissance RNIHL30 User manual

Installation Instructions
Renaissance®Integrated Hood Liner
Models RNIHL30, RNIHL36, and RNIHL48
Part No. 109394 Rev. A

1
Installation Instructions.................................................... 5
Installing the RNIHL (Hood Liner) .................................... 5
Installing the RNIVS (Ventilation System)........................ 6
Verifying the Correct Setup .............................................. 7
Warranty Card.................................................................... 9
Warranty Information........................................Back Cover
Table of Contents
Before You Begin...
Before You Begin... ........................................................... 1
Important Safety Instructions .......................................... 2
Important Information About Safety Instructions.............. 2
General Safety Precautions ............................................. 2
Preparation and Setup...................................................... 3
Planning the Installation................................................... 3
Product Specifications...................................................... 4
All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications.
Important:
• Installer: In the interest of safety and to minimize problems, read this Installation Instruction manual
carefully and completely before you begin the installation. Leave these installation instructions with
the user.
Also, write the model and serial number of the appliance(s) you are installing below so the user can
reference it in the future. This information is found on the data plate(s).
• User: Keep this Installation Instructions manual for future reference and for the local electrical
inspector’s use.
If you have questions or problems with installation, contact your Dacor dealer or the Dacor Customer
Service Team. For repairs to Dacor products under warranty, call the Dacor Distinctive Service line.
Whenever you call, have the model and serial number of the product(s) ready.
Dacor Customer Service
Phone: [phone], extension 2813 (U.S.A. and Canada)
Monday — Friday 6:00 a.m.to 5:00 p.m.Pacific Time
Website: www.dacor.com
Dacor Distinctive Service (repairs under warranty only)
Phone: [phone], extension 2822 (U.S.A. and Canada)
Monday — Friday 6:00 a.m.to 5:00 p.m.Pacific Time

2
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
2. Before servicing or cleaning unit, switch power OFF
at service panel and lock the service disconnecting
means to prevent power from being switched
on accidentally. When the service disconnecting
means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the
service panel. Exception: The additional safety
instructions do not apply to a ceiling-suspended
fan.
TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
1. Never leave surface units unattended at high
settings. Boilovers cause smoking and cause
greasy spillovers that could ignite. Heat oils slowly
on low or medium settings.
2. Always turn hood ON when cooking at high heat or
when cooking flaming foods.
3. Clean ventilating fans frequently. Grease should not
be allowed to accumulate on fan or filter.
4. Use proper pan size. Always use cookware
appropriate for the size of the heating element.
TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie
sheet, or metal tray, then turn the burner OFF. BE
CAREFUL TO PREVENT BURNS. If the flames
do not go out immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be
burned.
3. DO NOT USE WATER, including wet dishcloths or
towels - a violent steam explosion will result.
4. Use an extinguisher ONLY if:
a) You know you have a Class ABC extinguisher,
and you already know how to operate it.
b) The fire is small and contained in the area where
it started.
c) The fire department is being called.
d) You can fight the fire with your back to an exit.
*From “Kitchen Fire Safety Tips” published by NFPA.
General Safety Precautions
Important Safety Instructions
Important Information About
Safety Instructions
• The Important Safety Instructions and warnings in
these instructions are not meant to cover all possible
problems and conditions that can occur. Use common
sense and caution when installing, maintaining, or
operating this or any other appliance.
• Always contact the Dacor Customer Service Team
about problems and conditions that you do not
understand.
Safety Symbols and Labels
These alerts are meant to bring attention to important areas
in the manual. Whenever you see these symbols or labels,
read the message carefully before continuing.
DANGER
Immediate hazards that WILL result in severe personal
injury or death.
WARNING
Hazards or unsafe practices that COULD result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that COULD result in minor
personal injury or property damage.

3
Preparation and Setup
Planning the Installation
• Read and follow the complete RNIVS Installation
Instructions manual to correctly install your custom
hood ventilation system.
• Follow all electrical requirements specified in the
RNIVS Installation Instructions.
• The Renaissance®RNIHL Series Hood Liner has no
electrical parts.
• Plan the installation so that all minimum clearances are
met or exceeded.
• The RNIVS is attached using the lock washers and
bolts provided with the RNIHL liner. Quantity varies
according to the RNIHL liner model.
• The RNIHL liner is designed for vertical exhaust duct
(VED) configurations only.
The Renaissance®series (RN) Integrated Hood Liner
(RNIHL) is made from of non-combustible stainless steel.
Its dimensions and design make it an excellent component
for any custom hood.
These liners fit the Renaissance®Integrated Ventilation
Systems (RNIVS) shown in the table below.
Compatibility
Liner Model Renaissance®RNIVS Model
RNIHL30 RNIVS1 RNIVSR1
RNIHL36 RNIVS1 RNIVSR1
RNIHL48 RNIVS2 RNIVSR2
See the RNIVS Installation Instructions manual for details
and specifications.
For general cooking ventilating use only. Do not use to
exhaust hazardous or explosive materials and vapors.
hood canopy
Renaissance
RNIVS Model# Weight
RNIVS1 28 lb. (12.70 kg)
RNIVS2 44 lb. (20 kg)
RNIVSR1 23.35 lb. (10.60 kg)
RNIVSR2 37.4 lb. (17 kg)
Renaissance
RNIHL Model# Weight
RNIHL30 5 lb. (2.3 kg)
RNIHL36 5.5 lb. (2.5 kg)

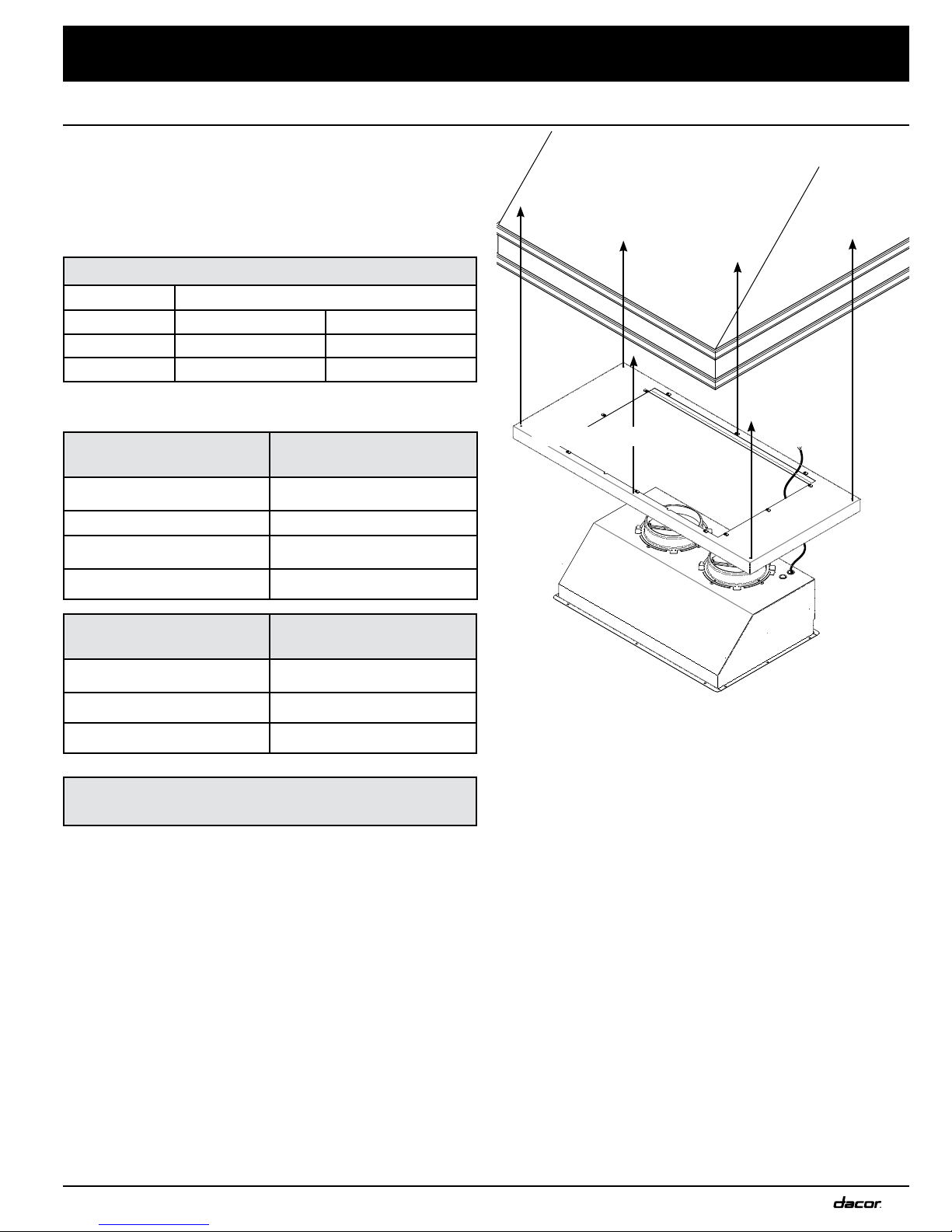

RNIHL48 7 lb. (3.18 kg) Planning a Hood Liner Installation
RNIVS2
RNIHL2 Hood Liner

4
Preparation and Setup
Product Specifications
Height
Width
Depth
RNIHL
Hood Liner Width Height Depth Weight
RNIHL30 27 in
68.58 cm
2 in
5.08 cm
21 in
53.34 cm
5 lb.
2.3 kg
RNIHL36 33 in
83.82 cm
2 in
5.08 cm
21 in
53.34 cm
5.5 lb.
2.5 kg
RNIHL48 45 in
114.3 cm
2 in
5.08 cm
21 in
53.34 cm
7 lb
3.18 kg
Installed with a Renaissance®
Integrated Ventilation System (Model Series RNIVS)
Renaissance®Integrated
RNIVS
RNIHL
Depth
Width
RNIHL Hood Liner
+ RNIVS Int. Vent
System
Width
Height:
RNIVS +
RNIHL
Height:
Duct
Collar
Depth
RNIHL30 +
RNIVS1 & RNIVSR1
27 in
68.58 cm
10 3/4 in
27.31 cm
1 7/8 in
4.76 cm
21 in
53.34 cm
RNIHL36 +
RNIVS1 & RNIVSR1
33 in
83.82 cm
10 3/4 in
27.31 cm
1 7/8 in
4.76 cm
21 in
53.34 cm
RNIHL48 +
RNIVS2 & RNIVSR2
45 in
114.3 cm
10 3/4 in
27.31 cm
1 7/8 in
4.76 cm
21 in
53.34 cm
Duct Collar
Height
Tolerance: +1/16”, -0” (+0.32, -0 cm)
Hood Liner (Model Series RNIHL)

5
Installation Instructions

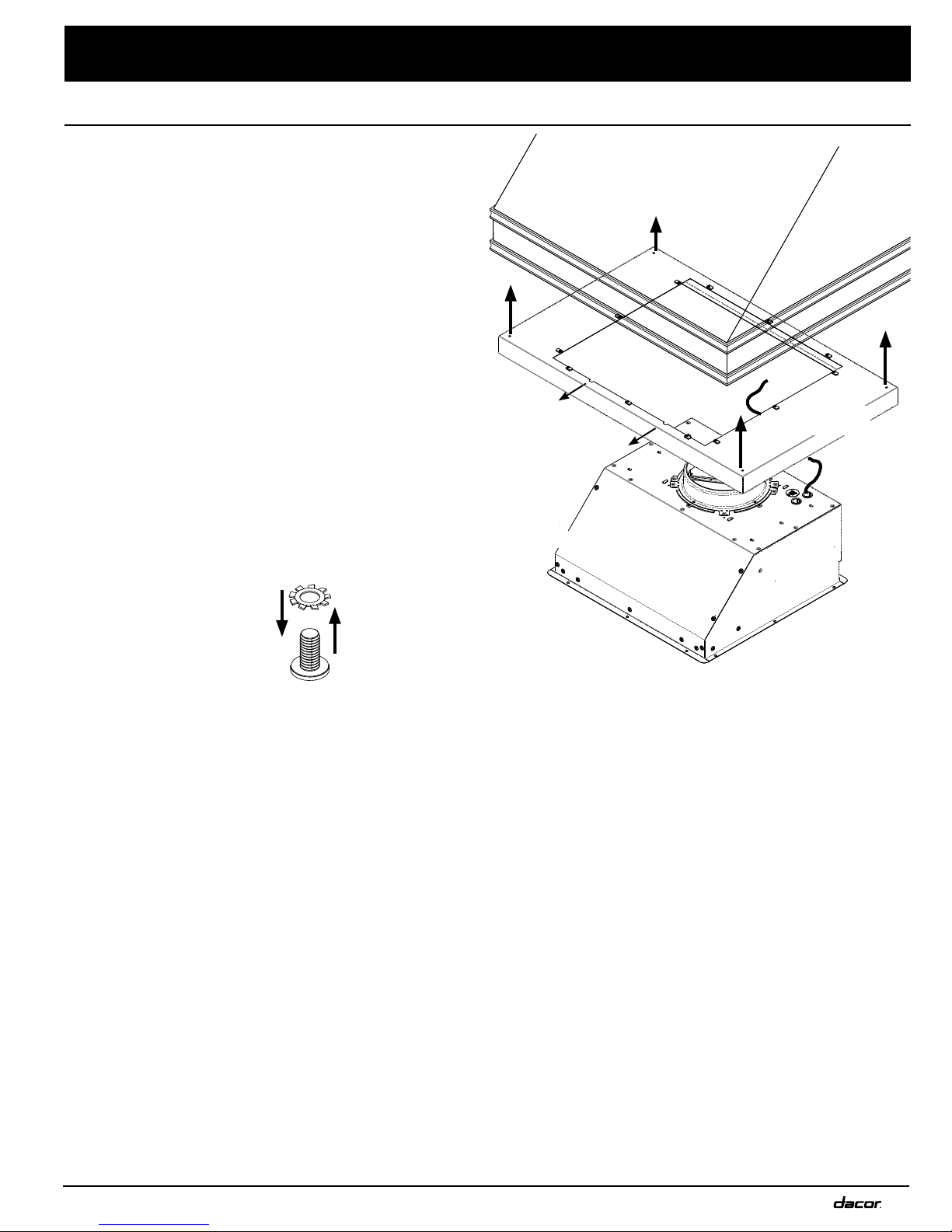

Installing the RNIHL (Hood Liner)
The hood canopy must already be mounted and ready
for the ventilation system to be installed. But before the
ventilation system is installed, the hood liner is fitted
inside.
Refer to the following images when installing the hood
liner.
To Install the RNIHL Hood Liner:
1. Position the RNIHL with the half-circle cutouts
pointing forward.
2. Mount the RNIHL with mounting screws (not
provided) at the corners of the liner. See #2 in the
image at right.
Make sure the RNIHL is securely fastened to the
hood canopy. The RNIHL will hold the weight of the
RNIVS.
hood canopy
cutouts
#2
#2
#2
#2
RNIVS
lock washer
bolt
Installing the RNIHL Hood Liner Inside a
Hood Canopy
cutouts
hood liner
RNIHL
Mounting Hardware

6

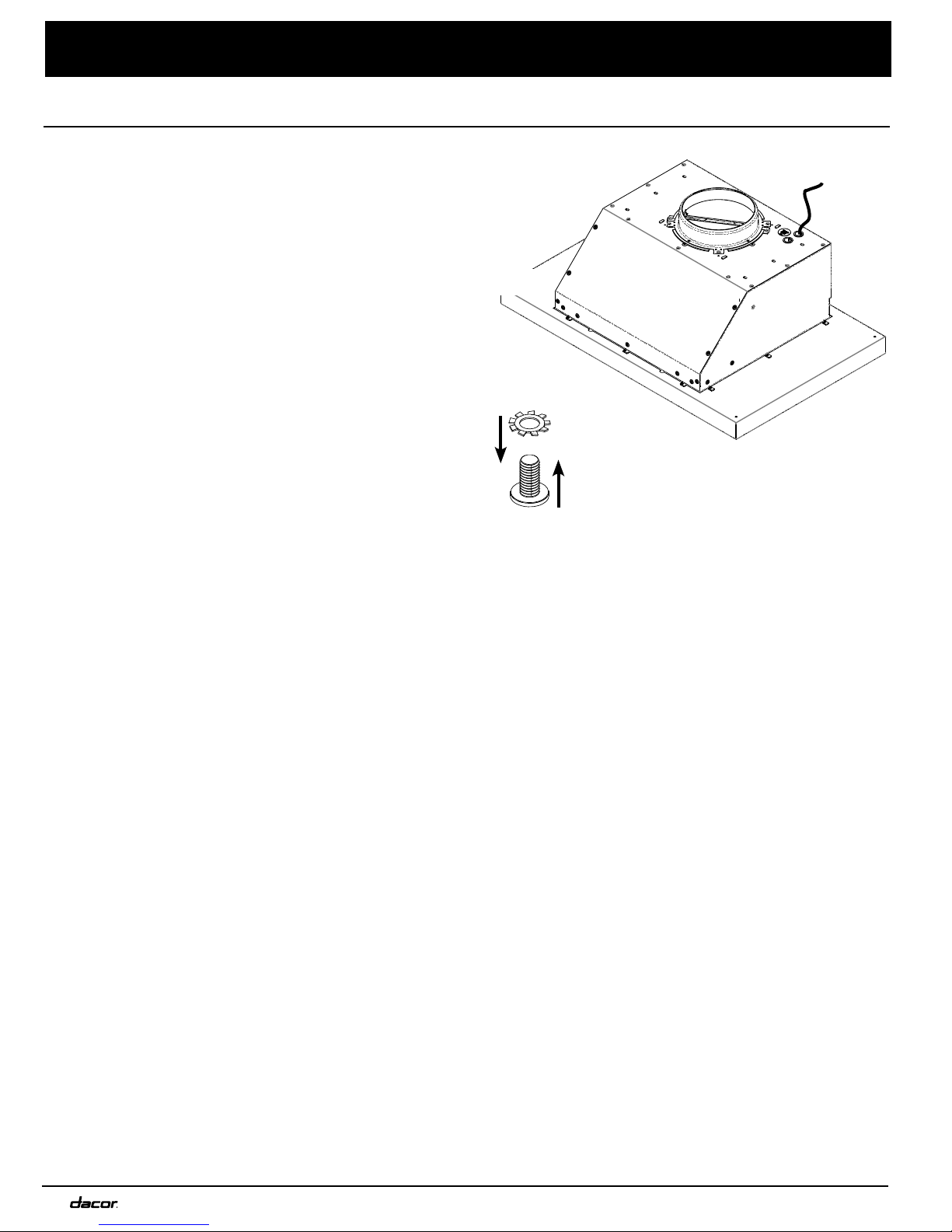

Installing the RNIVS (Ventilation System)
1. Feed the electrical wires through the hood liner
opening (refer to previous image RNIHL Installation
Procedure ).
2. Push the RNIVS through opening of the RNIHL until
it stops.
3. Attach the RNIVS to the RNIHL using all the lock
washers and bolts (see images at right). This
hardware is provided.
4. The installed RNIVS will sit atop the RNIHL. The
assembled parts will look like the image on the right.
Make sure the RNIHL is securely fastened to the
hood canopy. The RNIHL will hold the weight of the
RNIVS.
The hood liner must be secured inside the hood canopy
and ready for the ventilation system to be attached.
Refer to the image at right while installing the ventilation
system.
To Install the RNIVS:
Installation Instructions
RNIHL RNIVS
RNIVS Installed on an RNIHL
lock washers
bolts

7
Installation Instructions

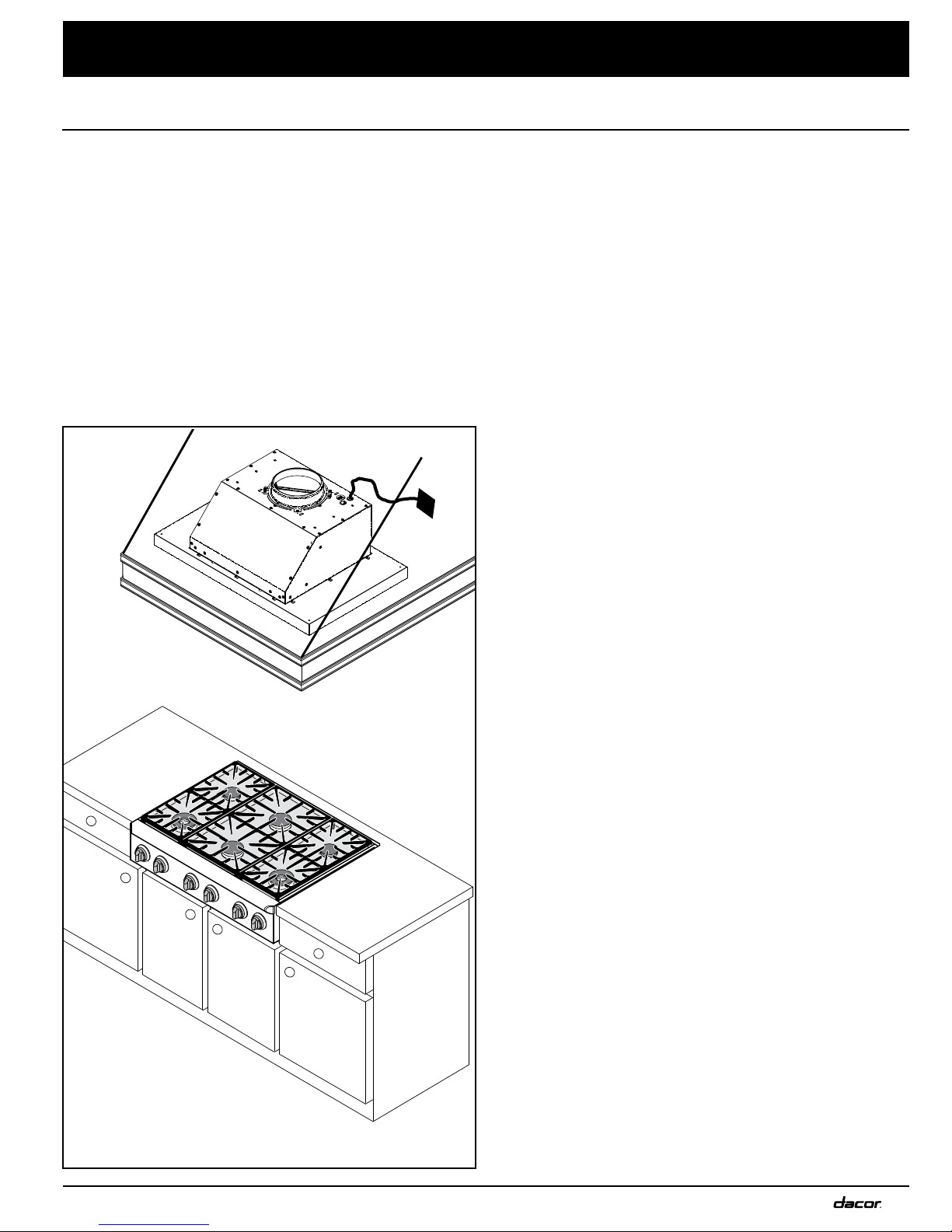

Verifying the Correct Setup
Refer to the RNIVS Installation Instructions manual and follow the steps in “Verifying the Correct Setup.”
NOTE: If the blower or lights do not function correctly, follow these troubleshooting steps:
1. Verify that power is being supplied to the RNIVS.
2. Check that the electrical connections have been wired correctly.
3. If the unit still does not work, contact Dacor Distinctive Service at [phone], extension 2822.
Do not attempt to repair the unit yourself. Have the model and serial numbers available when you call.
Dacor is not responsible for the cost of correcting problems caused by a faulty installation.
Correct Placement & Setup

fold here
DACOR
ATTN WARRANTY PROCESSING DEPT
PO BOX 90070
CITY OF INDUSTRY CA 91715-9907
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
BUSINESS REPLY MAIL
FIRST-CLASS MAIL CITY OF INDUSTRY CAPERMIT NO 1600
POSTAGE WILL BE PAID BY ADDRESSEE

Web site: www.dacor.com
Corporate phone: [phone]
WARRANTY INFORMATION
IMPORTANT:
Your warranty will not be activated until you activate it online or return this form to Dacor. If you have purchased more
than one Dacor product, please return all forms in one envelope or activate the warranty for each product online.
Please rest assured that under no conditions will Dacor sell your name or any of the information on this form for mailing list purposes. We
are very grateful that you have chosen Dacor products for your home and do not consider the sale of such information to be a proper way
of expressing our gratitude!
Your willingness to take a few seconds to fill in the section below will be sincerely appreciated. Thank you.
1. How were you first exposed to Dacor products? (Please check one only.)
 A. T.V. Cooking Show  F Builder
B. Magazine G. Architect/Designer
C. Appliance Dealer Showroom H. Another Dacor Owner
D. Kitchen Dealer Showroom I. Model Home
E. Home Show J. Other
2. Where did you buy your Dacor appliances?
 A. Appliance Dealer  D. Builder
B. Kitchen Dealer  E. Other
C. Builder Supplier
3. For what purpose was the product purchased?
A. Replacement only C. New Home
B. Part of a Remodel D. Other
4. What is your household income?
A. Under $75,000 D. $150,000 – $200,000
B. $75,000 – $100,000 E. $200,000 – $250,000
C. $100,000 – $150,000 F. Over $250,000
5. What other brands of appliances do you have in your kitchen?
A. Cooktop C. Dishwasher
B. Oven D. Refrigerator
6. Would you buy or recommend another Dacor product?
Yes No
Comments:
Owner’s Name:
Street:
City: State: Zip:
Purchase Date: Email: Telephone:
Dealer:
City: State: Zip:
(Please Print or Type)
Last
First Middle
cut herecut here
Please visit www.dacor.com to activate your warranty online.
Thank you very much for your assistance. The information you have
provided will be extremely valuable in helping us plan for the future
and giving you the support you deserve.
