DAELIM VS125 User manual

영문-메뉴얼표지 2005.12.29 3:57 PM 페이지1

●OPERATOR AND PASSENGER
This motorcycle is designed to carry the operator and one passenger.
●ON-ROAD USE
This motorcycle is designed to be used only on the road.
●READ THIS OWNER'S MANUAL CAREFULLY
Pay special attention to statements preceded by the following words:
Indicates a strong possibility of severe personal injury or death if instructions are not followed.
Indicates a possibility of personal injury or equipment damage if instructions are not followed.
Gives helpful information.
This manual should be considered a permanent part of the motorcycle and should remain with the motorcycle when resold or otherwise
transferred to a new owner or operator.
IMPORTANT NOTICE
영문-메뉴얼작업 2005.12.29 4:55 PM 페이지1

1
CONTENTS
SPECIFICATION...................................................................... 3
OPERATIONINSTRUCTION............................................ 4
SAFETY PRECAUTIONS.................................................. 4
PRIOR TO STARTING VEHICLE........................................ 5
CORRECT ATTIRE ............................................................. 6
OPERATION........................................................................ 7
CARGO................................................................................ 7
MODIFICATION................................................................... 8
ATTACHMENT .................................................................... 8
MUFFLER............................................................................ 8

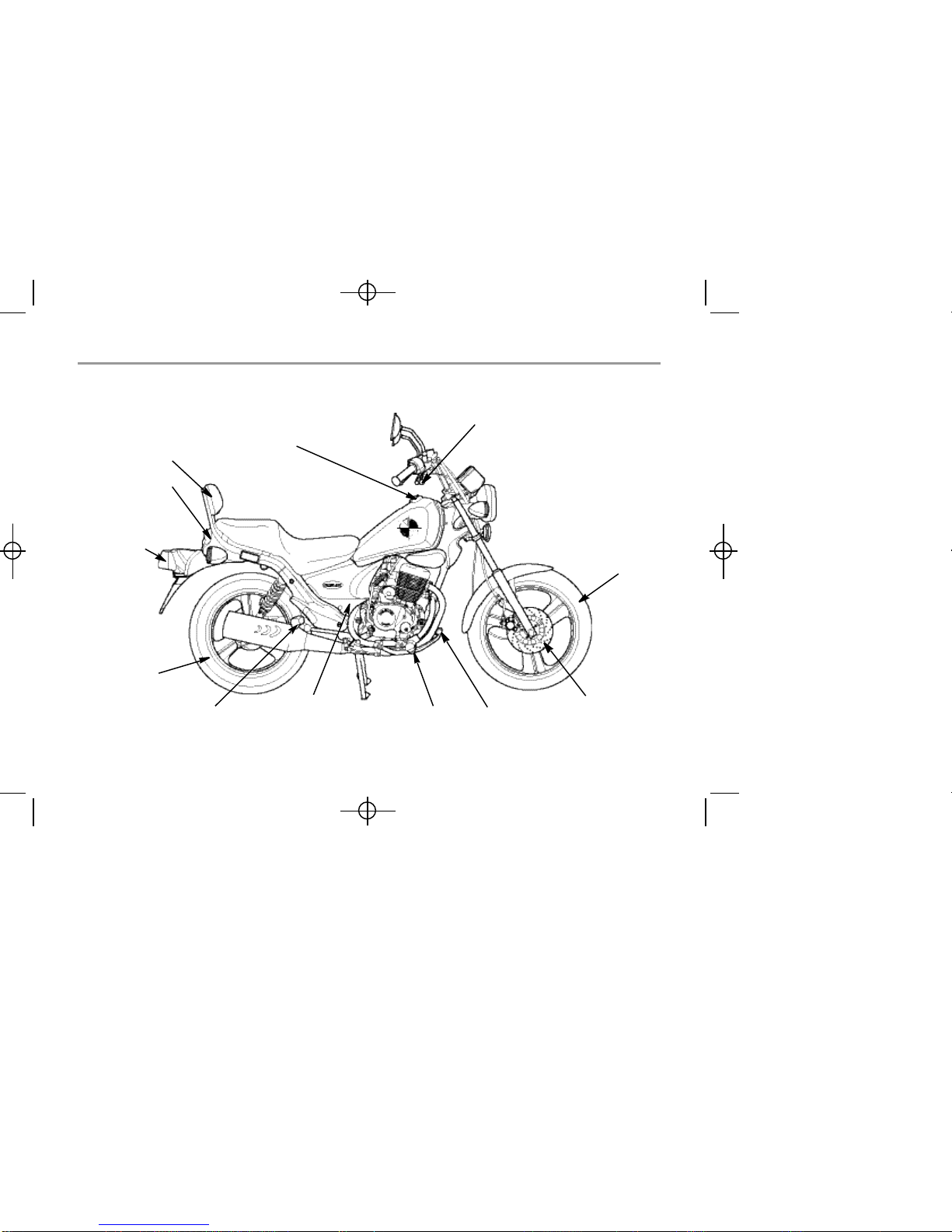

PARTS LOCATION.............................................................. 9
METER READING AND USAGE................................... 12
METER .............................................................................. 12
TACHOMETER.................................................................. 12
FUEL GAUGE.................................................................... 12
INDICATOR LAMPS.......................................................... 13

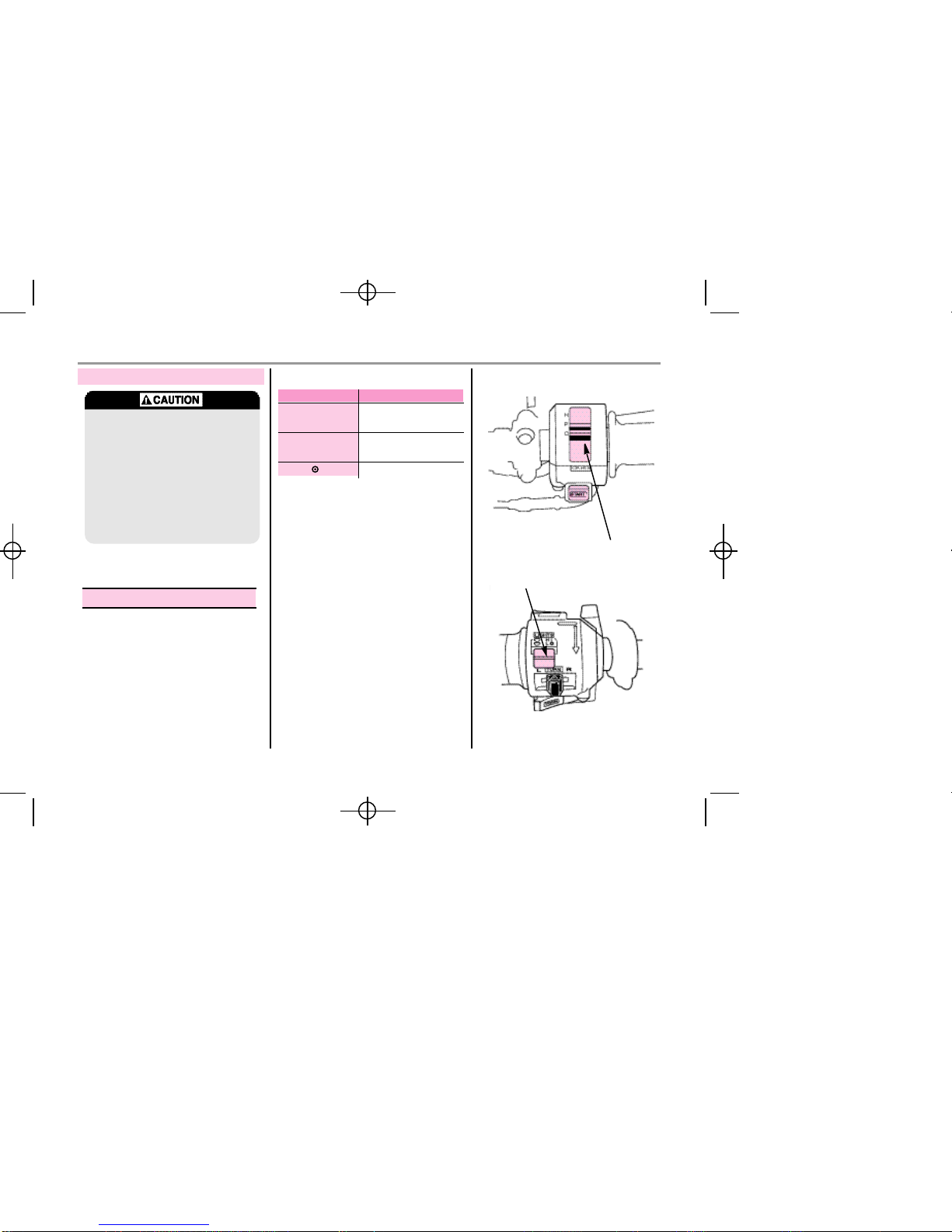

SWITCH OPERATION...................................................... 13
MAIN SWITCH....................................................................13
HEADLIGHT·POSITION LAMP....................................... 14
STARTER BUTTON .......................................................... 15
HORN BUTTON................................................................. 15
WINKER SWITCH ............................................................. 15
PASSING LIGHT SWICH .................................................. 15
EQUIPMENT USAGE........................................................ 16
STEERING WHEEL LOCK................................................ 16
TOOL BOX......................................................................... 16
FUEL.................................................................................. 16
CORRECT DRIVING OPERATION.............................. 17
STARTING THE ENGINE.................................................. 18
IF ENGINE CANNOT BE STARTED................................. 19
GEAR SHIFTING ............................................................... 19
OPERATION...................................................................... 20
HOW TO USE BRAKE....................................................... 20
PARKING........................................................................... 20
SELF INSPECTIONS BEFORE OPERATION.......... 21
INSPECTION OF CONCERNED AREA ............................ 21
BRAKES............................................................................ 22
TIRES ................................................................................ 24
BATTERY .......................................................................... 25
THROTTLE OPERATION.................................................. 26
CLUTCH ............................................................................ 27
영문-메뉴얼작업 2005.12.29 4:55 PM 페이지1

2
DRIVE CHAIN...................................................................28
ENGINE OIL LEVEL CHECK.............................................28
CHANGING ENGINE OIL.................................................. 29
LIGHTS AND WINKER ......................................................30
BACK MIRROR..................................................................30
LICENSE PLATE ............................................................... 30
FRAME AND ENGINE NUMBERS.................................... 30
MAINTENANCE..................................................................31
MAINTENANCE SCHEDULE ............................................32
MAINTENANCE PRECAUTIONS...................................... 34
AIR CLEANER ELEMENT................................................. 35
IDLE SPEED ADJUSTMENT.............................................35
WHEEL DISASSEMBLE.................................................... 36
SIDE STAND .....................................................................37
SPARK PLUG ....................................................................38
FUSE REPLACEMENT ..................................................... 39
CABLE RUBBER PART.....................................................40
CLEANING......................................................................... 40
STORAGE GUIDE............................................................. 41
SAFE DRIVING....................................................................... 42
PREPARATION BEFORE DRIVING............................ 42
DRIVING METHOD............................................................ 44
DRIVING POSITION...........................................................44
PRECAUTION WHEN DRIVING....................................... 43
STARTING......................................................................... 45
TURNING METHOD...........................................................46
PRINCIPLE OF TURN ....................................................... 46
EFFECT OF SPEED.......................................................... 46
3 POSITIONS OF TURNING............................................. 47
TURNING METHOD.......................................................... 48
PRECAUTION WHEN TURNING...................................... 49
BRAKING METHOD.......................................................... 50
BASIC PRINCIPLE OF BRAKE(FRICTION FORCE)........ 50
RESTRAINT OF BRAKE EFFECT (INERTIA).................. 50
BRAKING METHOD .......................................................... 51
COMPARISION OF BRAKING DISTANCE........................51
IMPACT WHEN COLLISION..............................................51
WIRINGDIAGRAM................................................................ 52
영문-메뉴얼작업 2005.12.29 4:55 PM 페이지2

3
SPECIFICATION
LENGTH×WIDTH×HEIGHT(mm)
WHEEL BASE(mm)
GROUND CLEARANCE(mm)
SEAT HEIGHT(mm)
WEIGHT(kgf)
PASSENGER
ENGINE TYPE
PISTON DISPLACEMENT(cc)
BORE AND STROKE(mm)
STARTING SYSTEM
TRANSMISSION TYPE
2,110×795×1,160
1,357
167
732
127
2
AIR COOLED
4 STORKE 4 VALVE
124.1
56.5×49.5
START MOTOR / KICK
5 STEPS RETURN
IGNITION SYSTEM
BATTERY CAPACITY
FUEL CAPACITY(ℓ)
C.D.I
12V 9AH
10.5
90 / 90 - 18
110 / 90 - 16
TELESCOPIC
SWING ARM
HYDRAULIC DISK
DRUM BRAKE
CR8EH-9
15A
ITEM DATA ITEM DATA
FR.
RR.
FR.
RR.
FR.
RR.
SPARK PLUG
FUSE(A)
TIRE SIZE
SUSPENSION
BRAKE
영문-메뉴얼작업 2005.12.29 4:55 PM 페이지3

This manual describes matters pertaining to correct operation,
safe operation and simple maintenance of the vehicle you
purchased.
To ensure more comfortable and safer operation, make sure to
read this manual carefully prior to operation.
●The photographs and drawings shown in this manual may
differ from those of actual vehicles due to changes in vehicle
specifications and modifications made.
●This motorcycle is designed for 2 riders including the
operator.
●Careful driving and the wearing of proper attire and safety
equipment are the most important factors in the safe operation
of the vehicle. Please obey traffic regulations and do not be
hurried and careless.
●Many new vehicle owners operate their newly purchased
vehicles with great care and attention to safety factors.
However, after becoming accustomed to the operations are
often discarded, which can lead to accidents. Please don't let
this happen to you and always approach the operation of your
vehicle with the safety considerations needed.
When operating the motorcycle, always keep in mind and
obey the notes of precaution printed on the “ Safety
Precaution Label ” attached to the motorcyle.
4
OPERATION INSTRUCTION
SAFETY PRECAUTIONS
●Do not use polluted gasoline.
Otherwse it cause rust inside the fuel tank, and
close the supply of fuel to the carburetor, leading
to an improper engine starting or may cause
serious damage to an engine.
●Do use genuine oil to protect and extend vehicle
life.
●As far as any defect caused by contaminated
gasoline or oil, no warranty shall be assured.
●Be sure to wear helmet at all time.
●Be sure to put on gloves at all time.
●Observe the speed regulations.
●Beware ofmufflerafterdrivingasitisstillhottobe
burnt.Especiallyneverchildrentouch on it.
●For safety, do not change, alteration or modification
the vehicle.
●Regularly conduct specified maintenance inspections.
<Maintenance Inspection Points>
Brakes, Tires, Oil, Lights, Horn, Instruments
영문-메뉴얼작업 2005.12.29 4:55 PM 페이지4

5
PRIOR TO STARTING VEHICLE
●Using one hand or no hands while driving may cause
an accident resulting in severe injury.
●For safety, Be prohibited the riding with children as
passengers (as above photo)
Otherwise, this may cause severe injury.
●Don’t drive with one hand, Hold the handle
tightly with both hands.
●When carrying goods, securely fasten them.
●Read user's manual carefully.
●Conduct maintenance checks prior to operation.
●Always maintain motorcycle in clean status and carry out
specified maintenance checks.
●Make sure to stop engine and stay away from fire when fueling.
●Exhaust gas contains harmful substance such as carbon
monoxide. Start engine in well-ventilated places.
영문-메뉴얼작업 2005.12.29 4:55 PM 페이지5

6
Be sure w ea r he l m e t a t a l l
t i m e and t he he l m e t ch i n
st r ap secure l y f as t ened .
A l w ays pu t on g l oves .
W ear sh i rts or j acke t s w i th
tight
Choose f i t ti ng and l o w -hee l ed shoes
CORRECT ATTIRE
●Not wearing a helmet increases the chance of serious
injury or death in a crash.
●Be sure you and your passenger always wear a helmet,
eye protection and other protective apparel when you
ride.
●Always make sure to wear helmet for safety. Wear gloves and
safety goggles.
●Do not wear uniforms which might hinder operation. It is
dangerous if the uniform is caught by brake lever or by the
rotating part of drive chain.
●Do not wear slippers which might obstruct brake operation or
transmission gear operation.
●Many automobile/motorcycle accidents happen because the
automobile driver does not “see” the motorcyclist.
Make yourself conspicuous to help avoid the accident that
wasn’t your fault :
- Wear bright or reflective clothing.
- Don’t ride in another motorist’s “blind spot”.
영문-메뉴얼작업 2005.12.29 4:57 PM 페이지6

7
OPERATION CARGO
●Pay attention not to overload goods and fasten it
tightly whiling driving.
●Overloading or improper loading may cause
a crash and severe injury.
●Do not attach large or heavy items (such as a
sleeping bag or tent) to the handle bars or fork.
Unstable handling or slow steering response may
result.
S ecure l y fas t en t he m
●Operators should naturally fix bodies to keep smooth driving.
●Please check whether or not you are unnaturally strained and
strung up.
●Driving pose has a great influence on safe operation.
Please always maintain the center of your body in the middle
of seat. Especially do not sit at the rear seat because it may
lessen the weight of front wheel and cause trembling steering
wheel.
●A passenger should hold on to the vehicle or the operator
with both hands and keep both feet on the pillion step bar.
●When wanting to turn, slightly lean to body toward the
direction of the turn. It is unsafe if the body is not moved in
union with the vehicle.
●Curvy roads and poor, unpaved roads constantly change in
surface quality. Driving on these roads can be unsafe if
certain safety precautions are not followed.
●In order to safely drive through these driving conditions,
anticipate coming road conditions, slow down to at least half
the normal speed, and relax your shoulders and wrists while
securely holding the handles.
●Driving with one or both hands not holding the handles
cause severe injury or death of the driver resulted from the
turnover of the vehicle.
●When carrying cargo, you must keep in mind that operating
the motorcycle, especially when turning, will be different.
●Make sure not to overload the motorcycle with goods as this
can make the motorcycle unstable during operation.
영문-메뉴얼작업 2005.12.29 4:58 PM 페이지7

8
●Modification of vehicle structure of function deteriorates
manipulatability or causes exhaust noise to become louder
shortening the vehicle life. These modifications are not only
prohibited by law but also are the acts harmful to other people.
●Except designated attachment by DAELIM MOTOR CO.,
LTD., don't attach any extra lighting device, otherwise it cause
premature discharging of battery.
●Carefully inspect the accessory to make sure it does not
obscure any lights, reduce ground clearance and banking angle,
or limit suspension travel, steering travel or control operation.
●Do not add electrical equipment that will exceed the
motorcycle’s electrical system capacity. A blown fuse could
cause a dangerous loss of lights or engine power.
●This motorcycle was not designed to pull a sidecar or trailer.
Handling may be seriously impaired of so equipped.
●Pay particular attention to fellow passenger so that he or she
can prevent getting burnt by the hot muffler during travel.
A TT ACHMENT
MUFFLER
●Beware of muffler after driving as it is still hot to
be burnt. Eapecially never children touch on it.
●Pay attention to park where pedestrian zoon.
●If haystack or vinyl is stuck to the muffler,it might
be fired
●Modifications : no warranty shall be assured.
MODIFICATION
영문-메뉴얼작업 2005.12.29 4:58 PM 페이지8
