Daewoo electricals HEA1200 User manual

This product is only suitable for well insulated spaces or occasional use.

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed. These instructions should be saved for future
reference:
Read and familiarise yourself with all operating instructions before using
this Stove Effect Heater.
Before plugging your unit into the mains, visually check that the unit is
intact and has not suffered any transit damage.
WARNING: In order to avoid overheating, do not cover the heater.
Ensure appliance is situated in an open area, do not allow it to come in
contact with Cupboards, Curtains, wall coverings, clothing or other
flammable materials.
Do not install the appliance directly below an electrical socket.
Do not use this heater with a programmer, timer, separate remote-control
system or any other device that switches the heater on automatically, since
a fire risk exists if the heater is covered or positioned incorrectly.
Do not use this heater with an extension cable.
Check that the voltage indicated on the data plate corresponds with that of
the local network before connecting the appliance to the mains power
supply.
Close supervision is required when using this appliance near children.
Never leave this appliance within reach of children.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
Children of less than 3 years should be kept away unless continuously
supervised. Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed or installed in
its intended normal operating position and they have been given
supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children aged from 3 years and less
than 8 years shall not plug in, regulate and clean the appliance or perform
user maintenance.
CAUTION—some parts of this product can become very hot
and cause burns. Particular attention has to be given where children
and vulnerable people are present.
Do not use the Stove Effect Heater in the immediate surroundings of a

bath, shower or a swimming pool.
Do not use this heater in small rooms when they are occupied by persons
not capable of leaving the room on their own, unless constant supervision
is provided.
Do not immerse the appliance or its cord in water or any other liquids.
Do not leave the appliance unattended during use.
Do not leave the appliance unattended whilst connected to the mains
supply.
Always use this appliance on a solid, level, non-flammable surface.
Do not use this appliance outdoors.
It is imperative to unplug the power cord after the appliance has been
used, before it is cleaned and whilst being repaired.
Repairs to electrical appliances should only be performed by a qualified
electrician. Improper repairs may place user at serious risk.
Do not operate this appliance with a damaged plug or cord, after a
malfunction or after being dropped or damaged in any way.
Regular, periodic checks should be carried out on the mains cable to
ensure no damage is evident. Should there be any signs of damage the
appliance should not be used.
If the power cable is damaged, it should only be replaced by the
manufacturer or a suitable qualified after-sales-service in order to avoid a
hazard
Do not allow the mains cable to hang over sharp edges or come in contact
with hot surfaces.
Do not run the mains cable under carpets, rugs, etc.
Allow the unit to cool before storage.
Before cleaning, disconnect the appliance from the mains supply and allow
to cool.
Never place the appliance near to flammable material or high pressure
containers. (e.g., Paper, wood, petrol, solvents, spray canisters etc.)
This appliance is intended for household use only and should not be used
for industrial purposes.
Do not use any accessories or attachments with this appliance other than
those supplied or recommended by supplier.
Do not use this appliance for anything other than its intended use.
Do not push objects into any openings as damage to the appliance and/or
electric shock may occur.
The appliance should not be installed in areas which have a fire-risk, such
as garages, stables or wooden sheds; this is applicable also for rooms in
which highly inflammable gasses or dust can develop. Danger of fire!!
Unplug after each use. Grasp the plug, not the cord.
THIS APPLIANCE MUST BE EARTHED

NBDuring the first few minutes of initial use, you may notice a
slight odour and a little smoke. This is normal and will quickly
disappear, It is the coating applied to the heating elements to prevent
any corrosion during transit.
Description of Parts
1. Thermostat Control
2. On/Off Switch
3. 1000w Heat Switch
4. 1000w Heat Switch
5. Flame Brightness Control
Before the first time you use your Stove Effect Heater
Please read these operating instructions thoroughly and keep them in a
safe place for future reference.
Remove all packing materials and discard responsibly.
Operating Instructions –heat setting
Place the heater on a solid, level non-flammable surface.
To reveal the controls open the control panel door below the flame effect
door.

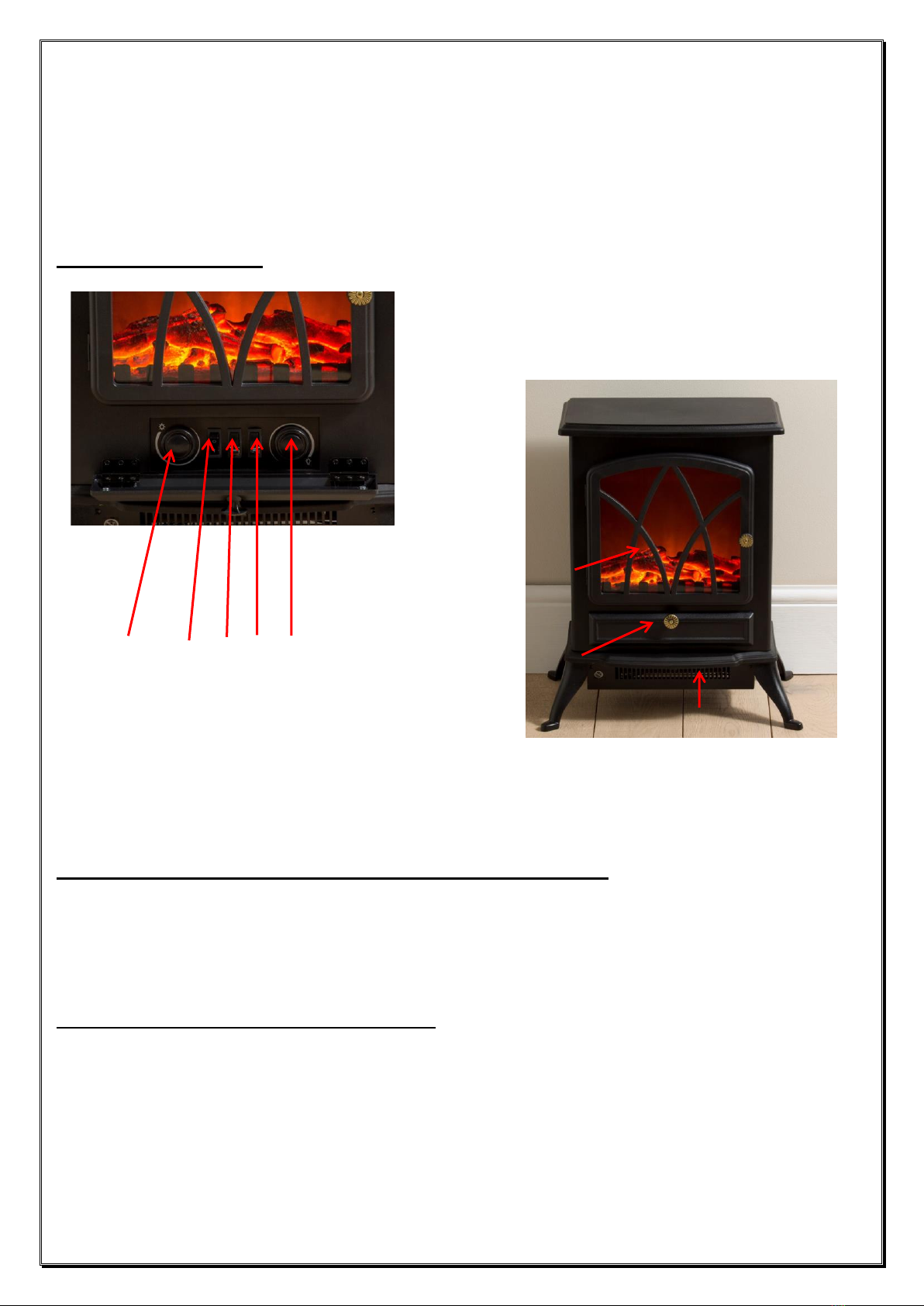

Ensure that all control switches are in the off position as in the image
above.
1 2 3 4 5
Flame Effect Door
Control Panel Door
Heat Outlet

Insert the mains plug into the mains socket.
For the low heat setting, press the 1000w heat switch (3) and the fan
switch (2).
For the high heat setting, press both the 1000w heat switches (3 & 4) and
the fan switch (2).
Rotate the thermostat control (1) clockwise to increase the room
temperature and anticlockwise to decrease the room temperature as
desired.
The lights in the switches will illuminate and extinguish indicating that the
set temperature is being maintained.
NBthe fan switch (2) must be pressed in order for the heat function to
operate.
Hint on setting the correct temperature
Set the heater to the desired heat setting as above.
Rotate the Thermostat to the maximum position and allow the room to
warm up. Once the desired room temperature has been reached turn the
Thermostat anticlockwise until the heater just clicks off then turn it back up
clockwise very slightly. The Thermostat will now maintain the room
temperature, if necessary, further increasing or decreasing the thermostat
control may be required to ‘fine tune’ the ideal room temperature.
Using The Flame Effect
Press the on/off switch (2) to operate the flame effect, rotate the flame
brightness control (5) to vary the brightness of the effect. NB the flame
effect can be used separately from the fan and heating functions.
The flame effect is from a long life LED light source and there is no need to
change any lamps
Care and Use of your Stove Effect Heater
1.Always disconnect the stove effect heater from the mains power supply
and allow to cool before cleaning.
2.Clean outside of the heater with a clean damp cloth. Never clean with
harsh or abrasive cleaners.
3.Do not submerge any part of the stove effect heater in water or any other
liquids.

Safety Cut –Out
Warning:This appliance is fitted with a built in safety cut-out, if the
cut-out is activated the unit stops working, unplug the heater from the
mains and check that the air intake area is not blocked or covered.
Leave for an hour to cool and reset before plugging back into the mains.
Technical Data
Voltage : 220-240V ~ 50Hz
Rated power : 2000 W
Model Number :HEA1200
Electrical Connections
This appliance is fitted with a fused three-pin plug to BS 1363. If the plug
has to be removed, it should be cut off and carefully disposed of
immediately. To avoid a possible shock hazard, do not insert the discarded
plug into a mains socket.
Fitting a new plug

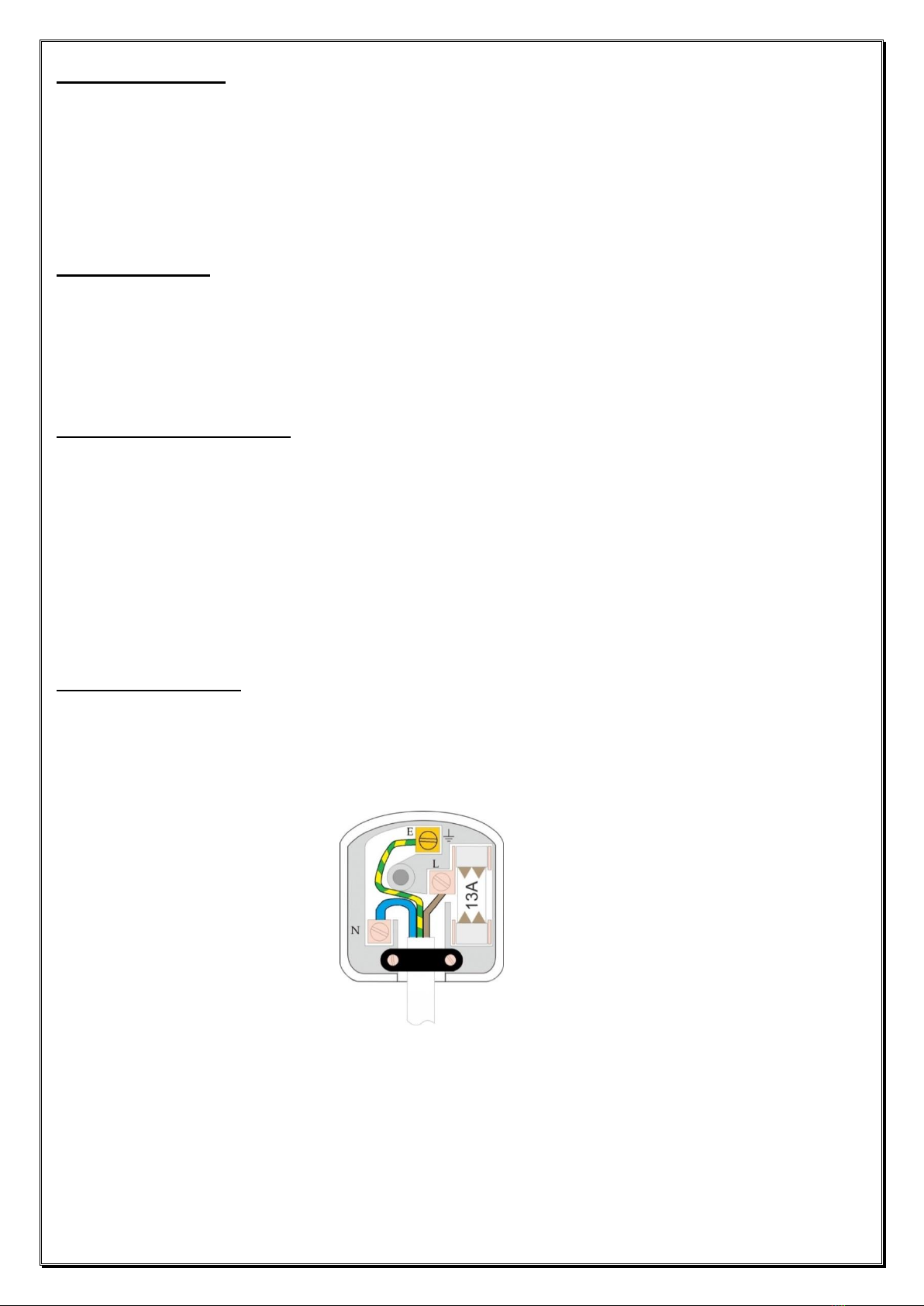

The mains lead must be connected as shown below. The wires are coloured
with the following code - Brown wire = Live (L), Blue wire = Neutral (N),
Green & Yellow = Earth (E).
The Blue wire must be connected to the terminal marked N or coloured Black.
The Brown wire must be connected to the terminal marked L or coloured Red.
Connect
Brown to
Live (L)
Connect
Green &
Yellow to
Earth (E)
Connect
Blue to
Neutral (N)
Ensure the outer sheath of the mains
lead is securely held by the cable clamp

The Green and Yellow wire must be connected to the terminal marked E or
coloured Green.
Check that there are no cut or stray strands of wire inside the plug.
Use a 13 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
If you are in any way unsure which plug or fuse to use, always refer to a qualified
electrician.
After replacing or changing a fuse on a moulded plug, the cover must be refitted to
the plug; the appliance must not be used without a fuse cover.

Model
HEA1200
Item
Symbol
Value
Unit
Item
Unit
Heat output
Type of heat input, for electric storage local space
heaters only (select one)
Nominal heat
output
Pnom
2.0
KW
manual heat charge control, with
integrated thermostat
Not applicable
Minimum
heat output
(indicative)
Pmin
1.0
KW
manual heat charge control with room
and/or outdoor temperature feedback
Not applicable
Maximum
continuous
heat output
Pmax,c
2.0
KW
electronic heat charge control with room
and/or outdoor temperature feedback
Not applicable
Auxiliary electricity consumption
fan assisted heat output
Not applicable
At nominal
heat output
elmax
0,012
(fan
motor)
KW
Type of heat output/room temperature control (select
one)
At minimum
heat output
elmin
0,012
(fan
motor)
KW
single stage heat output and no room
temperature control
[no]
In standby
mode
elSB
0,0
KW
Two or more manual stages, no room
temperature control
[no]
with mechanic thermostat room
temperature control
[yes]
with electronic room temperature control
[no]
electronic room temperature control plus
day timer
[no]
electronic room temperature control plus
week timer
[no]
Other control options (multiple selections possible)
room temperature control, with
presence detection
[no]
room temperature control, with open
window detection
[no]
with distance control option
[no]
with adaptive start control
[no]
with working time limitation
[no]
with black bulb sensor
[no]
ERP Data
