Daewoo SDA1561 User manual

Important Safeguards
When using electrical appliances, basic safety precautions
should always be followed. These instructions should be
saved for future reference:
• Read and familiarise yourself with all operating instructions
before using this blender
• Before plugging your unit into the mains, visually check that
the unit is intact and has not suffered any transit damage.
• Do not use this blender with an extension cable.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before connecting
the appliance to the mains power supply.
• Close supervision is required when using this appliance near
children.
• Never leave this appliance within reach of children. Keep the
appliance and its cord out of reach of children.
• This appliance shall not be used by children.
• Appliances can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have given supervision or
instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Children shall not play with the appliance.
• Children less than 3 years should be kept away unless
continously supervised.
• Do not immerse the appliance or its cord in water or any
other liquids.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to
the mains supply.
• Always use this appliance on a solid, level, non-ammable
surface.
• Do not use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance
has been used, before it is cleaned and whilst being repaired.
• Repairs to electrical appliances should only be performed

by a qualied electrician. Improper repairs may place user at
serious risk.
• Do not operate this appliance with a damaged plug or cord,
after a malfunction or after being dropped or damaged in any
way.
• Regular, periodic checks should be carried out on the power
cord to ensure no damage is evident. Should there be any
signs of damage the appliance should not be used.
• If the power cord is damaged, it should only be replaced by
the manufacturer or a suitable qualied after-sales-service in
order to avoid a hazard.
• Do not allow the power cord to hang over sharp edges or
come in contact with hot surfaces.
• Allow the unit to cool before storage.
• Always disconnect the carving knife from the supply if it is left
unattended and before assembling, disassembling or
cleaning.
• This appliance is intended for household use only and should
not be used for industrial purposes.
• Do not use any accessories or attachments with this
appliance other than those supplied or recommended by the
supplier.
• Do not use this appliance for anything other than its intended
use.
• Do not push objects into any openings as damage to the
appliance and/or electric shock may occur.
• Switch off the appliance and disconnect from the supply
before changing accessories or approaching parts that move
in use.
• Grasp the plug, not the cord.
• Do not touch the blades whilst the blender is connected to the
mains.
• Wash the blades in warm soapy water, rinse and dry
thoroughly.
• CAUTION: the blades on this blender are very sharp;
extreme caution should be taken when cleaning.

1. Measuring cup
2. Jug lid
3. Glass jug
4. Water proof seal
5. Blade assembly
6. Blade base
7. Motor housing
8. Pulse and 5 speed dial
1
2
5
4
3
Description of parts
6
7
8
9
10
11
9. Grinder cover
10.Grinding blade
11. Grinder unit

Please read these operating instructions thoroughly and keep
them in a safe place for future reference.
Remove all packing and dispose of responsibly.
It is recommended to wash all parts except the motor housing in
warm soapy water, rinse and dry thoroughly.
Never immerse the motor in water or other liquids.
CAUTION: the blades inside the jug are removable and are
very sharp; extreme caution should be taken whilst cleaning
the inside of the jug.
•
CAUTION: Always assemble the blender before connecting
to the mains supply. Do not operate the blender until it is
fully assembled.
1. Turn the glass jug (3) upside down onto a soft cloth.
2. Place the waterproof seal (4) onto the neck of the glass jug.
3. Place the blade assembly (5) into the neck of the glass jug.
4. Place the blade base (6) onto the neck of the glass jug and
turn clockwise until it is tight.
5. Place the motor housing (7) onto a at stable surface.
6. Place the jug (3) onto the motor housing (7).
7. Place the measuring cup (1) into the jug lid (2) and turn
clockwise to lock into place.
8. Place the lid (2) with the measuring cup (1) onto the glass jug
(3).
Before using the blender for the rst time
Assembling the blender

Note: Always remove the jug when adding liquid to prevent
spillages onto the base unit. It is recommended to ll the jug
(food and liquid) to no more than 1/3 - 2/3 of the amount of the
jug’s capacity. Do not exceed the maximum capacity of the jug
(1000ml) on the jug. When blending large quantities to max level,
it is advised to place one hand on top of the lid this will prevent
the lid from popping out due to excessive pressure.
• To prepare for blending,
cut the food into chunks
approximately 15mm square
and place them into the Jug
(3), add the required amount
of liquid using the measuring
scale on the jug. Place the Lid
(2) onto the Jug (3).
• Make sure the speed dial is in
the ‘0’ position and insert the
mains plug into the socket.
Using the blender
• To start blending, turn
the speed dial to the
desired setting between 1
and 5. The speed can be
changed at any time during
blending. If you wish to add
more ingredients, switch
the dial to ‘0’ and turn the
measuring cup (1)
anti-clockwise and remove it.
Add the ingredients through
the hole in the lid and replace
the measuring cup (1) Do not operate for more than 30
seconds and allow the blender to rest for 1 minute between
cylces. Repeat until the desired results are reached, to nish

blending turn the dial to ‘0’.
• Once the ingredients are blended, return the speed dial to ‘0’
and remove the mains plug. Hold the motor housing, grasp
the jug handle and lift upwards off the base, remove the lid
and pour out the contents.
Note: Do not allow the blender to work with thick mixtures or
heavy foods which will not let the motor run freely. If the motor
does not run freely, stop the blender and add liquid or reduce the
contents of the jar.
When blending ice,
1. Take the ice from the freezer and allow it to rest on the work
top for ve minutes.
2. Fill the jug about a third way with ice cubes. Leave plenty of
free space in the blender so the ice cubes can move around.
Add a little water of fruit juice to speed up the process, this
also helps to prevent any damage to the motor.
3. Place the lid on the jug and pulse the the blender ve to
seven times in quick, two-second bursts. If the ice sticks to
sides remove the jug and shake it for 15 to 30 seconds.
4. Once you are satised the motor will not struggle, set
the blender to a medium setting (2 or 3) until the desired
consistency is reached.
CAUTION:
• DO NOT PROCESS BOILING LIQUIDS OR HOT
INGREDIENTS. ALLOW TO COOL BEFORE PLACING
THEM IN THE GLASS JUG.
• Do not operate when the blender is empty.
• Do not operate without liquid.
• Do not blend and crush dry fruit.
• Do not ll the glass jug above the max level on the jug.
Some mixtures increase in volume during blending and
create pressure in the jug.

1. Put the ingredients into the grinder unit, do not exceed the
‘max’ level. Put the cover on and turn clockwise to lock.
2. Line up the red arrow on the grinder unit and the red arrow on
the motor housing and place the assembled grinder unit on to
the motor housing.
3. Turn the speed dial to the desired speed between 1-5 (lowest
to highest). Do not run for more than 30 seconds.
Note: the grinder unit is light in weight, in order for the unit
to make contact with the interlock gently press down on the
cover of the grinder.
4. Allow the motor to completely stop running before removing
the assembled grinder unit from the motor housing.
5. Turn the assembled grinder unit upside down to allow the
ingredients to fall into the cover, turn anti-clockwise to remove
the grinder unit.
CAUTION: to prevent water from entering the motor
housing only grind dry ingredients, do not add water or
other liquids.
Using the grinder

CAUTION: the blades inside the jug are removable and
are very sharp; extreme caution should be taken whilst
assembling, dis-assembling or cleaning.
1. Always unplug from the mains socket before cleaning.
2. Do not remove the jug untill the blade assembly has
completely stopped.
3. Do not immerse the motor housing in water, wipe with a soft
cloth.
4. To dis-assemble the jug, turn the jug upside down (3), turn the
blade base (6) anti-clockwise and remove.
5. Carefully remove the blade assembly (5), and the water proof
seal (4) from the jug (3).
6. Wash all parts in warm soapy water, rinse and dry thoroughly.
7. Store in a cool dry place.
8. Store away from children.
Technical Data
Voltage :220-240V ~ 50/60Hz
Rated power :500 W
Capacity :1.5L
Model :SDA1561
Protection Class :Class I
Care and use

Electrical Connections
This appliance is tted with a fused three-pin plug to BS 1363.
If the plug has to be removed, it should be cut off and carefully
disposed of immediately. To avoid a possible shock hazard, do
not insert the discarded plug into a mains socket.

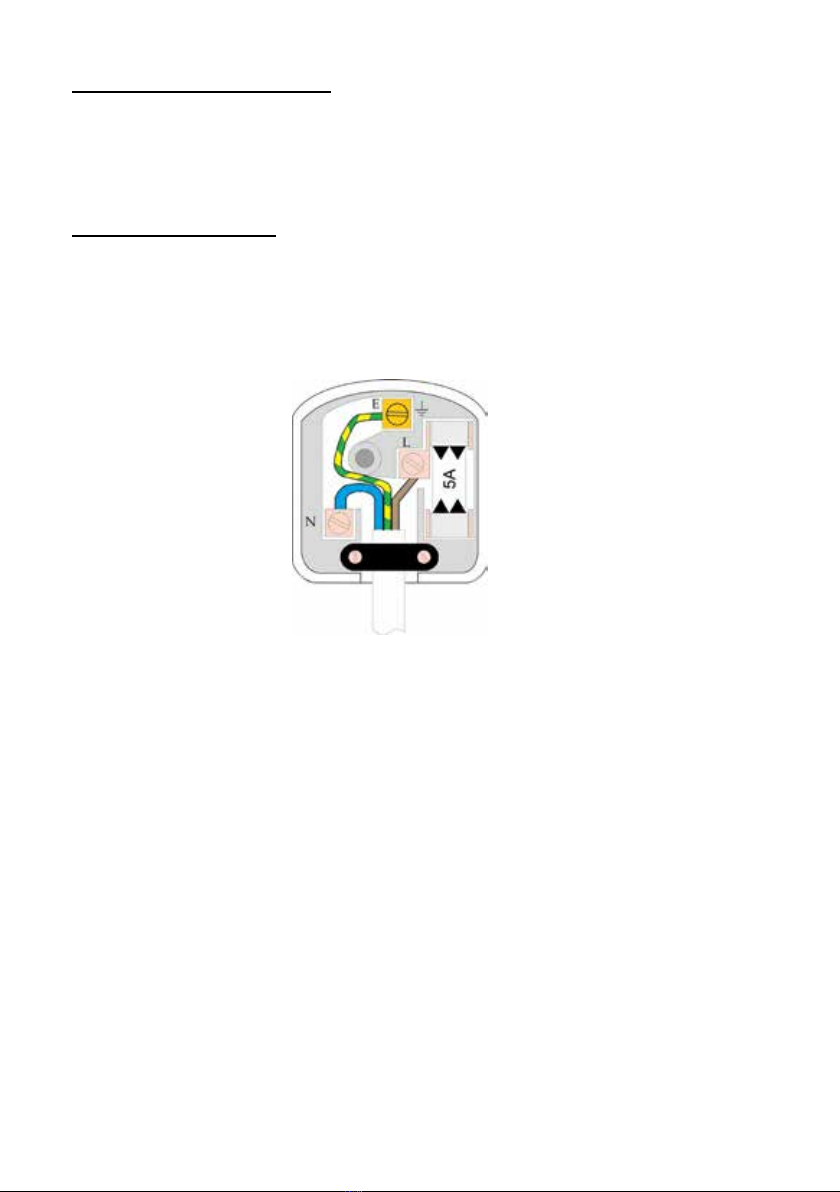

Fitting a new plug
If for any reason you need to t a new plug, the exible mains
lead must be connected as shown below. The wires in the mains
lead tted to this appliance are coloured in accordance with the
following code:
Connect Green
& Yellow to
Earth (E)
Connect Blue to
Neutral (N)
Connect Brown
to Live (L)
• The Blue wire must be connected to the terminal marked N or
coloured Black.
• The Brown wire must be connected to the terminal marked L
or coloured Red.
• The Green and Yellow wire must be connected to the terminal
marked E or coloured Green.
• Check that there are no cut or stray strands of wire inside the
plug.
• Use a 5 Amp BS 1362 fuse, only use BSI or ASTA approved
fuses.
• If you are in any way unsure which plug or fuse to use, always
refer to a qualied electrician.
• After replacing or changing a fuse on a moulded plug, the
cover must be retted to the plug; the appliance must not be
used without a fuse cover.
Ensure the outer sheath of
the mains lead is securely
held by the cable clamp
Daewoo Electricals is a registered trademark.
Produced and imported under licence by ESG Ltd
ESG Ltd
Manchester M3 1JS
www.esgltd.com
GUARANTEE
This product is guaranteed for 2 years from the date of original purchase. If any defect should occur due to
faulty materials or workmanship, please return it to the store it was purchase from.
You will need to have your receipt of purchase to hand. The guarantee is subject to the following provisionst:
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
• It is only valid within boundaries of the country of purchase.
• The product must be correctly installed and operated in accordance with the instructions
contained in the user manual.
• The product must be used solely for domestic purposes.
• The guarantee will be rendered invalid if the product is re-sold or has been damaged by
inexpert repair.
• The manufacturer disclaims any liability for incidental or consequential damages.
• The guarantee is in addition to, and does not diminish, your statutory or legal right.

Daewoo Electricals is a registered trademark.
Produced and imported under licence by ESG Ltd
ESG Ltd
Manchester M3 1JS
www.esgltd.com
GUARANTEE
This product is guaranteed for 2 years from the date of original purchase. If any defect should occur due to
faulty materials or workmanship, please return it to the store it was purchase from.
You will need to have your receipt of purchase to hand. The guarantee is subject to the following provisionst:
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
• It is only valid within boundaries of the country of purchase.
• The product must be correctly installed and operated in accordance with the instructions
contained in the user manual.
• The product must be used solely for domestic purposes.
• The guarantee will be rendered invalid if the product is re-sold or has been damaged by
inexpert repair.
• The manufacturer disclaims any liability for incidental or consequential damages.
• The guarantee is in addition to, and does not diminish, your statutory or legal right.
