USER'S MANUAL
DASL-MS34
LED Solar motion sensor light
OFF 1 2 3

1
INDEX
1. INSTALLATION ......................................................................................................................................... 2
2. WORKING MODES ................................................................................................................................. 2
3 . ATTENTIONS ............................................................................................................................................ 2
4 . PRODUCT INSTRUCTION ....................................................................................................................... 2
5. SPECIFICATIONS .................................................................................................................................... 3
6. EXPLODED VIEW AND SPARE PART LIST ............................................................................................. 4
WARRANTY ................................................................................................................................................. 5

2
EN
3
Please read this manual carefully before use.

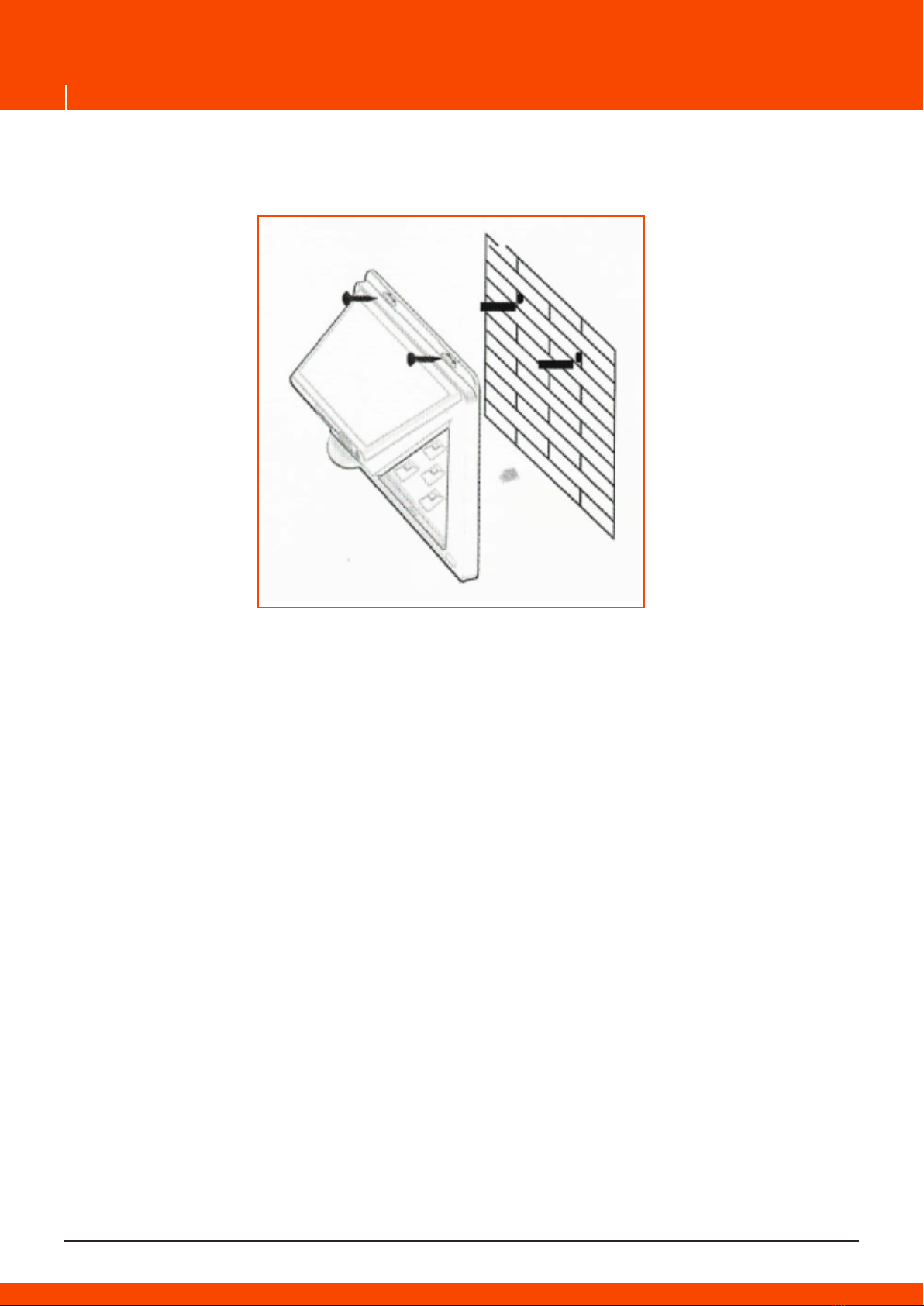

1. INSTALLATION
2. WORKING MODES
OFF: device does not work, into the micro power consumption.
Mode 1: light off during the day, when no people in the night, the light will keep off, when people
pass by, light high bright for 15/30 seconds.
Mode 2: light off during the day, light DIM bright in the night, when people pass by, light high bright
for 15/30 seconds.
Mode 3: light off during the day time, the light will keep DIM bright all the time no matter people
pass by or not in the night.
3. ATTENTIONS
1. Please put the lamp under the sun for several hours before the first time you use it.
2. To collect as much as power, please put the solar panel towards the sun as much as possible.
3. When the light is flicking, it means low battery.
4. The light will not turn on while the solar panel is charging under the sun during the day time.
5. If the touch switch does not work, please put the lamp isolated more than 20 seconds, after 20
seconds, the touch switch will automatically return to normal.
4. PRODUCT INSTRUCTION
Product Name: Solar Motion Sensor Light
Power Supply: Solar
Material: ABS+PC
Application: Garden, Yard, Park, Road, Indoor/ Outdoor
5. SPECIFICATIONS
Solar panel: Polycrystal 5.5 V 0.55 W
Battery: 1*2200 mAh, 18650 Lithium battery 3.7 V
Lighting source: 34*White SMD 5 W
Durable time: up to 8 hours with fully charging.
Lumen: 300
Switch: TouchPad technology, operating mode: OFF/1/2/3
PIR: PIR montion sensor, 120 degree wide angle detection, detection range 8-10m.
Function:
1.PIR sensor+light control: at ninght, when motion, lighting, when no motion, no lighting.
2.PIR sensor+dimmable+light conrol: at night, when motion, all lighting, when no motion, micro lighting.
3. Light control: al night, all lighting, at day, no lighting.
4. OFF.

3
OFF 1 2 3
OFF 1 2 3
OFF 1 2 3
OFF 1 2 3
1
3
4
2
5
158.4 mm
105.2 mm
Please read this manual carefully before use.
1. INSTALLATION
2. WORKING MODES
OFF: device does not work, into the micro power consumption.
Mode 1: light off during the day, when no people in the night, the light will keep off, when people
pass by, light high bright for 15/30 seconds.
Mode 2: light off during the day, light DIM bright in the night, when people pass by, light high bright
for 15/30 seconds.
Mode 3: light off during the day time, the light will keep DIM bright all the time no matter people
pass by or not in the night.
3. ATTENTIONS
1. Please put the lamp under the sun for several hours before the first time you use it.
2. To collect as much as power, please put the solar panel towards the sun as much as possible.
3. When the light is flicking, it means low battery.
4. The light will not turn on while the solar panel is charging under the sun during the day time.
5. If the touch switch does not work, please put the lamp isolated more than 20 seconds, after 20
seconds, the touch switch will automatically return to normal.
4. PRODUCT INSTRUCTION
Product Name: Solar Motion Sensor Light
Power Supply: Solar
Material: ABS+PC
Application: Garden, Yard, Park, Road, Indoor/ Outdoor
5. SPECIFICATIONS
Solar panel: Polycrystal 5.5 V 0.55 W
Battery: 1*2200 mAh, 18650 Lithium battery 3.7 V
Lighting source: 34*White SMD 5 W
Durable time: up to 8 hours with fully charging.
Lumen: 300
Switch: TouchPad technology, operating mode: OFF/1/2/3
PIR: PIR montion sensor, 120 degree wide angle detection, detection range 8-10m.
Function:
1.PIR sensor+light control: at ninght, when motion, lighting, when no motion, no lighting.
2.PIR sensor+dimmable+light conrol: at night, when motion, all lighting, when no motion, micro lighting.
3. Light control: al night, all lighting, at day, no lighting.
4. OFF.

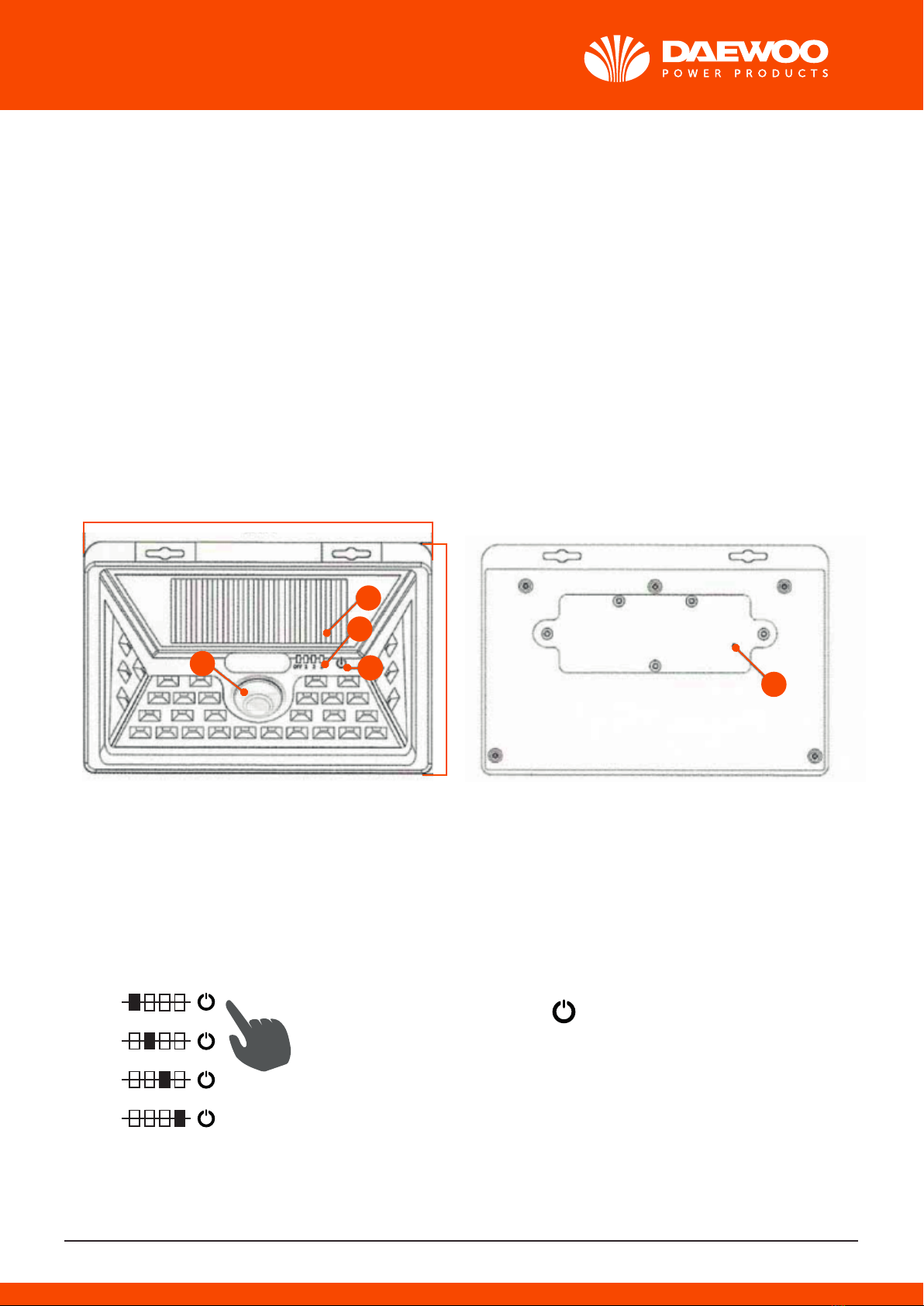

1. Solar panel: to collect sun light and charge battery.
2. PIR sensor: for motion sensor function.
3. Indicador Led: working mode display.
4. Touchpad: working mode switching.
5. Batter cover: replace the battery.
Finger close or touching the , working mode will be switched,
switching sequence such as left pic.
When there ir no operation more than 30 secs, te led will go out.

4
EN
17
1
2
3
4
5
19
9
1
11
12
13
14
15
20
16
6
7
8
18

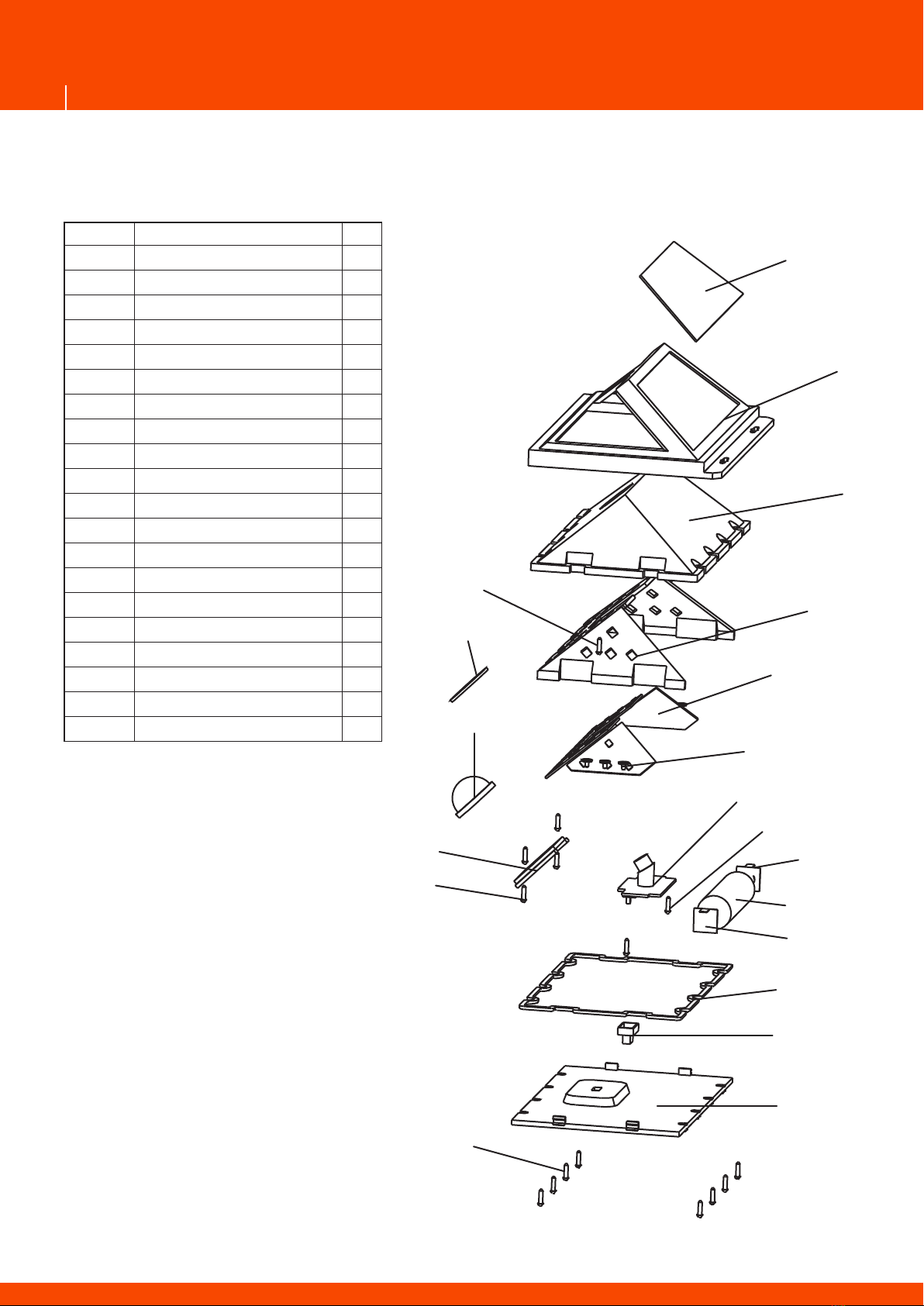

6. EXPLODED VIEW AND SPARE PART LIST
Item n˚
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Qty
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
2
6
4
2
8
Name
Solar panel
Upper cover
Transparente cover
LED board
Grilling
Sealing ring
Sensoring cap
Fixing plate
Slide switch board
Positive post
Battery
Negative post
Sealing ring
Rubber of switch
Back cover
Grilling screws
LED board screws
Transparente cover screws
Switch board screws
Cover creaws
