Daewoo 531X-3 User manual

XGA COLOR MONITOR
Model : 531X-3/532X-3
531B-3/532B-3
http://www.lucoms.com Nov., 2003
Service Manual
DAEWOO LUCOMS CO., LTD.

CONTENTS
SAFETY PRECAUTIONS 1
GENERAL SAFETY INFORMATION 2
SERVICING PRECAUTIONS 3
TECHNICAL INFORMATION 6
GENERAL INFORMATION 7
PIN CONNECTOR 8
CAUTIONS FOR ADJUSTMENT AND REPAIR 8
OPERATION AND ADJUSTMENT 9
ALIGNMENT PROCEDURE 12
TROUBLESHOOTING HINTS 15
BLOCK DIAGRAM 29
SCHEMATIC DIAGRAM 30
EXPLODED VIEW DIAGRAM 36
INFORMATION OF PART DESCRIPTION 37
ELECTRICAL PARTS LIST 38
1
SAFETY PRECAUTIONS
◆Safety Check
Care should be taken while servicing this analog color display because of the high voltages used in the deflection
circuits. These voltages are exposed in such areas as the associated flyback and yoke circuits.
◆Fire & Shock Hazard
• Insert an isolation transformer between the analog color display and AC power line before servicing the
chassis.
• When servicing, pay close attention to the original lead dress especially in the high voltage circuit area;
if a short circuit is found, replace all parts which have been overheated as a result of the short circuit.
• All the protective devices must be reinstalled per original design.
• Soldering must be inspected for possible cold solder points, frayed leads, damaged insulation, solder
splashes or sharp solder points. Be certain to remove all foreign materials.
◆Implosion Protection
Picture tube in this monitor employs integral implosion protection system, but care should be taken to
avoid damage and scratching during installation.
Only use same type replacement picture tubes.
◆X-Ray
IMPORTANT SAFETY NOTICE: There are special components used in this analog color display,
which are important for safety. These parts are shaded on the
schematic diagram and on the replacement parts list. It is essential
that these critical parts should be replaced with manufacturer’s
specified parts to prevent X-Ray, shock, fire or other hazards. Do
not modify the original design without getting written permission
from DAEWOO LUCOMS CO. or this will void the original parts
and labor warranty.
CAUTION: No modifications of any circuits should be attempted. Service work should be performed
only after you are thoroughly familiar with all of the following safety checks and servicing
guidelines.
WARNING: The only potential source of X-Ray is the picture tube. However when the high voltage
circuitry is operating properly, there is no possibility of an X-Ray problem. The basic
precaution which must be exercised is to keep the high voltage at the following factory
recommended level.
NOTE: It is important to use an accurate, periodically, calibrated high voltage meter.
• To measure the high voltage, use a high-impedance high-voltage meter.
Connect(-) to chassis and (+) to the CRT anode button.
• Turn the Contrast & Brightness Control fully counterclockwise.
• Measure the high voltage. The high voltage meter should indicate the following factory
recommended levels.
• If the upper meter indication exceeds the maximum level, immediate service is required to
prevent the possibility of premature component failure.
• To prevent X-Ray possibility, it is essential to use the specified picture tube.
• The normal high voltage is 25KV or below and must not exceed 29KV at zero beam current at
rated voltage.

32
Warning: This product includes critical mechanical and electrical parts which are essential for x ray
protection. For continued safety, replace critical components that are indicated in the service
manual with exact replacement parts given in the parts list.
Operating high voltage with this product is 29Kv at minimum brightness. Refer to service
manual for measurement procedures and proper service adjustments.
GENERAL SAFETY INFORMATION
◆Terms in the manual
CAUTION Statements identify conditions or practices that could result in damage to the equipment or
other property.
WARNING Statements identify conditions or practices that could result in personal injury or loss of
life.
◆Terms as marked on equipment
CAUTION Statements indicate a personal injury hazard not immediately accessible as one reads the
marking or a hazard which is properly included on the equipment itself.
WARNING Statements are clearly concerning indicated personal injury hazards.
◆Symbols in the manual
The symbols indicate where applicable cautionary or other information is to be found.
◆Symbols as marked on equipment
Protective GROUND terminal
◆High Voltage Warning And Critical Component Warning Label
The following warning label is on the CRT PWB shield case inside the unit.
SERVICING PRECAUTIONS
◆General Servicing Precautions
1. Always unplug the AC power cord from the AC power source before:
a. Removing or reinstalling any component, circuit board, module, or any other instrument assembly.
b. Disconnecting or reconnecting any electrical plug or other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic capacitor in the instrument.
d. Discharging the picture tube anode.
2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage
measuring device (DVM, FETVOM. etc.) equipped with a suitable high voltage probe. Do not test high
voltage by “drawing an arc”.
3. Discharge the picture tube anode only by: (a) first connecting one end of an insulated clip lead to the
degaussing or line grounding system shield at the point where the picture tube socket ground lead is
connected, and then (b) touching the other end of the insulated clip lead to the picture tube anode
button, using an insulating handle to avoid personal contact with high voltage.
4. Do not any spray chemicals on or near this instrument, or any of its assemblies.
5. Unless otherwise specified in this service manual, only clean electrical contacts by applying the
following mixture to the contacts with a pipe cleaner, cotton-tipped stick, or comparable nonabrasive
applicator: 10% (by volume) Aceton and 90% (by volume) isopropyl alchohol (90%-99% strength).
6. Do not damage any plug/socket B+ voltage interlocks with which instruments covered by this service
manual might be equipped.
7. Do not apply AC power to this instrument and/or any other of its electrical assemblies unless all the
solid-state device heat sinks are correctly installed.
8. Always connect the test instrument ground lead to the appropriate instrument chassis ground before
connecting the test instrument positive lead. Always remove the test instrument ground lead last.
9. Only use the test fixtures specified in this service manual with this instrument.
CAUTION: Before servicing instruments covered by this service manual, its supplements, and
addendum, please read and follow the SAFETY PRECAUTIONS of this manual.
NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any
of the safety precautions on page 1 of this manual, always follow the safety precautions.
Remember: Safety First.
CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors
may result in a explosion.
CAUTION: This is a flammable mixture. Unless specified in this service manual, lubrication of contacts is
not required.
CAUTION: Do not connect the test fixture ground strap to any heatsink in this instrument.

54
◆ Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity.
Such components are commonly called Electrostatically Sensitive (ES) Devices.
The typical examples of ES devices are integrated circuits, some field-effect transistors, and
semiconductor “chip” components. The following techniques should be used to help reduce the incidence
of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly,
wipe off any electrostatic charge on your body by touching any known earth ground. Alternatively,
obtain and wear a commercially available discharging wrist strap device which should be removed for
potential shock reasons prior to applying power to the unit under testing conditions.
2. After removing the electrical assembly equipped with ES devices, place the assembly on a conductive
surface such as aluminum foil to prevent electrostatic charge buildup or exposure to the assembly.
3. Only use a grounded-tip soldering iron to solder or unsolder ES devices.
4. Only use an anti-static type solder removal device. Some solder removal devices not classified as “anti-
static” can generate enough electrical charges to damage ES devices.
5.
Do not use freon-propelled chemicals. These can generate enough electrical charges to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are
ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together
by conductive foam, aluminum foil, or comparable conductive material).
7. Immediately before removing the protective material from the leads of replacement ES devices, touch
the protective material to the chassis or circuit assembly into which the device will be installed.
8. Minimize bodily movements when handling unpackaged replacement ES devices. (Otherwise harmful
motion such as the brushing together clothes fabric or the lifting your foot from a carpeted floor can
generate enough static electricity to damage ES devices).
◆ General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron with appropriate tip size and shape that will maintain
tip temperature between a 550°F-660°F (288°C-316°C) range.
2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean.
4. Throughly clean the surface to be soldered. Use a small wire-bristle (0.5 inch or 1.25cm) brush with a
metal handle. Do not use freon-propelled spray-on cleaners.
5. Use the following soldering technique:
a. Allow the soldering iron tip to reach normal temperature (550°F to 660°F or 288°C to 316°C)
b. Hold the soldering iron tip and solder strand against the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the component lead and the printed circuit foil,
and hold it there until the solder flows onto and around both the component lead and the foil.
d.
Closely inspect the solder area and remove any excess or splashed solder with a small wire-bristle brush.
CAUTION: Be sure that no power is applied to the chassis or circuit, and observe all other safety
precautions.
CAUTION: Work quickly to avoid overheating the circuit board printed foil.
FIGURE 1. USE SOLDERING IRON TO PRY LEADS
◆ IC Removal/Replacement
Some utilized chassis circuit boards have slotted (oblong) holes through which the IC leads are inserted
and then bent flat against the circuit foil. When holes are slotted, the following technique should be used
to remove and replace the IC. When working with boards using the familiar round hole, use the standard
technique as outlined in paragraphs 5 on the page under the title of general soldering guidelines.
◆ Removal
1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the
soldering iron tip as the solder melts.
2. Draw away the melted solder with an anti-static suction-type solder removal device (or with
desoldering braid before removing the IC.
◆ Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and solder it.
3. Clean the soldered areas with a small wire-bristle brush. (lt is not necessary to reapply acrylic coating
to the area).
◆ “Small-Signal” Discrete Transistor Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as possible to the component body.
2. Bend the ends of each of three leads remaining on the circuit board into a “U” shape.
3. Bend the replacement transistor leads into a “U” shape.
4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board
and crimp the “U” with long nose pliers to ensure metal-to-metal contact, then solder each connection.

7
This color monitor automatically scans all horizontal frequencies from 30KHz to 54KHz, and all vertical frequencies from
50Hz to 160Hz. This color monitor supports IBM PC, PC/XT, PC/AT, personal System/2 (PS/2), Apple Macintosh, and
compatible users crisp text and vivid color graphics display when using the following graphics adapters : (VGA, 8514/A,
Super VGA, VESA and XGA and Apple Macintosh Video Card). And so, this color monitor has a maximum horizontal
resolution of 1024 dots and a maximum vertical resolution of 768 lines for superior clarity of display.
By accepting analog signal inputs which level is zero to 0.7 Volts. This color monitor can display and unlimited palette of
colors depending on the graphics adapter and software being used.
◆ Abbreviations
6
◆ Power IC, Transistor or Devices Removal/Replacement
1. Heat and remove all solders from the device leads.
2. Remove the heatsink mounting screw (if applicable).
3. Carefully remove the device from the circuit board.
4. Insert new device in circuit board.
5. Solder each device lead and then clip off excess lead.
6. Replace heatsink.
◆ Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as possible to diode body.
2. Bend the two remaining leads perpendicularly to the circuit board.
3. Observing diode polarity, wrap each lead out of the new diode around the corresponding lead on the
circuit board.
4. Securely crimp each connection and solder it.
5. Inspect the solder joints of the two “original” leads on the circuit board copper side. If they are not
shiny, reheat them and apply additional solder if necessary.
TECHNICAL INFORMATION
GENERAL INFORMATION
ADJ Adjustment
AFC Automatic Frequency Control
CRT Cathode Ray Tube
Def Deflection
D.Y Deflection Yoke
FBT Flyback Transformer
H.SYNC Horizontal Synchronization
OSC Oscillator
P.S.U Power Supply Unit
PWA Printed Circuit Board Wiring Assembly
R.G.B Red, Green, Blue
V.SYNC Vertical Synchronization
531X 531B
CDT Size 15-inch
Diagonal visible image area 14-inch
Dot Pitch 0.28 mm
Synchronization Horizontal 30-70KHz 30 - 54 KHz
Vertical 50 - 160 Hz
Plug and Play VESA DDC Compatible
Power Saving EPA, VESA DPMS, Nutek Compliant
Power Source 100-240 Vac, 50/60Hz (Free Voltage)
Power Consumption 70 W
Dimension-W x H x D 360 x 377 x 389 mm
(set with stand)
Weight-unpacked(lbs/Kg) 25.4/11.5
Operating Temperature 10 ~ 40°C /50 ~ 104°F

98
Pin Signal
1 Red
2 Green
3 Blue
4 GND
5 GND
6 GND - Red
7 GND - Green
8 GND - Blue
9 +5Vdc (optional)
10 GND - H.Sync
11 GND - V.Sync
12 Bi-directional Data (SDA)
13 Horizontal Sync
14 Vertical Sync (VCLK)
15 Data Clock (SCL)
• Degaussing is always required when adjusting purity or convergence.
• The white balance adjustment has been done by a color analyzer in factroy. The adjustment procedure,
described in the service manual is made by a visual check.
• Allow 20 minutes warm-up time for the display before checking or adjusting only electrical
specification or function.
• Reform the leadwire after any repair work.
◆ Caution For Servicing
• In case of servicing or replacing CRT, high voltage sometimes remains in the anode of the CRT. Completely
discharge high voltage before servicing or replacing CRT to prevent a shock to the serviceman.
Arrangement of 15-pin D-sub connector
PIN CONNECTOR
CAUTIONS FOR ADJUSTMENT AND REPAIR
1
6
15
10
OPERATION AND ADJUSTMENT
Control Panel
•Increase the value of any selected function.
•While the OSD screen is off, you can adjust the screen
brightness according to each situation.
•Decrease the value of any selected function.
•Turns the OSD window on and off.
•Move curosr to the previous function on the OSD window.
•Move curosr to the next function on the OSD window.

1110
OSD Functions
ICON CONTROL FUNCTIONS
Hot Key
BRIGHTNESS
POWER LIGHT
CONTRAST
The screen will be bright
progressively by 10%
(PC/GAME/MOVIE Mode).
If you carry out general PC works
such as document edition on the
Movie mode, you may shorten the life
span of CRT. Thus, it is recommended
to verify the selected mode before use.
When there is no OSD, if you press this
CONTRAST button, you can adjust the
contrast directly.
When there is no OSD, if you press this
BRIGHTNESS button, you can adjust the
brightness directly.
Adjust the left and right margins for more convex or more concave
margins.
Adjust the trapezoid of the screen by moving the lines inward or
outward.
PINCUSHION
TRAPEZOID
Adjust the parallelogram when the screen is leaning left or right.
PARALLELOGRAM
Adjust the side balance when the sides of the screen are bowed
towards left or right.
PIN BALANCE
Choose different preset color temperatures or set your own
customized color parameters.(5000K is user mode)
COLOR TEMP
Adjust the red gain.
RED GAIN
Adjust the blue gain.
BLUE GAIN
Adjust the green gain.
GREEN GAIN
Degaussing keeps the monitor free from unwanted magnetism that
can result in color impurity.
DEGAUSS
Adjust the vertical picture moire cancellation.
V. MOIRE
Adjust the horizontal picture moire cancellation.
H. MOIRE
Reset the screen to the Factory Preset Display Settings.
RESET

13
ALIGNMENT PROCEDURE
◆ Standard Adjustment Conditions
1. Power source voltage : 100-240Vac 50/60Hz
2. Aging : Take at least 20 minutes warm-up time.
3. Signals
Video : Analog 0.7Vpp 75Ωterminal positive polarity
Synchronizing : TTL level Negative/Positive Separate
Deflection frequency
Horizontal Frequency : 30KHz - 54KHz(30~70KHz)
Vertical Frequency : 50Hz - 160Hz
◆ Pre-Adjustment
1. B+ Adjustment
Adjust 25KV dc between anode cap and ground at a cross hatch pattern of 54KHz(68KHz) by using
the factory mode.
◆ Method to launch the factory mode
Step 1. Turns off the monitor.
Step 2. Push the brightness up button and then push the power button at once.
◆ Main Adjustment
1. Setting the Controls
Set the value of items as following.
Contrast : Max.(OSD value up to MAX)
Brightness : Center(Set the OSD value to center)
2. H.size, V.size, H.center, V.center, Pin Balance, Pincushion, Trapezoid, Parallelogram.
Receive the cross hatch pattern of Factory preset mode.
H.size, V.size, H.center, V.center, Pin Balance, Pincushion, Trapezoid are adjusted at each mode.
In Factory, Auto Alignment was done at each mode. Therefore, Factory preset mode has it’s
own value according to each control.
3. Focus
(a) Set brightness control to center and contrast control to MAX.
(b) Receive all “H” character pattern of 1024 x 768(48KHz@60Hz) or 1024 x 768(68KHz@85Hz)
(c) Adjust the Focus control of FBT to obtain best Focus.
4. Geometric Distortion Adjustment.
(a) Receive the cross hatch pattern of factory preset mode.
(b) Pincushion, Trapezoid, Pin Balance, Parallelogram.
5. White Balance Adjustment
(a) Select 9300°K on the OSD Menu.
(b) Receive a full white pattern of 54KHz or 68KHz mode signal by using the signal generator.
(c) Set the brightness control to the maximum, the contrast control to the maximum.
(d) Cut off the FBT screen VR.
(e) Receive all the black patterns. The luminance of the screen should be 0.5~1.0 Ft-L by using Screen
VR.
(f) Select the R-BIAS, G-BIAS and B-BIAS on the control menu and adjust the +/– key to get the color
coordinates in x=0.281 ± 0.015, y=0.311± 0.015.
(g) Receive a full white pattern. Adjust the brightness value to the center.
(h) Select the R-GAIN and B-GAIN and adjust the +/– key to get the color coordinates in x=0.281 ±
0.015, y=0.311 ± 0.015.
(i) Adjust the ABL control to get the screen luminance to 30 Ft/L (a full white pattern over 30 Ft/L)
(j) Check if the x, y coordinates of color analyzer is in x=0.281±0.015, y=0.311±0.015.
If the color coordinates is out of range, adjust the R. G. B BIAS & GAIN to get the coorinates in
x=0.281, y=0.311. Make sure that the coordinates is in range.
(k) Select 6500°K on the OSD Menu and set the color coordinates in x=0.313, y=0.329 at the
maximum contrast control and center brightness control
(l) Check if a full white pattern is over 30Ft/L.
12
ICON CONTROL FUNCTIONS
Adjust the width (horizontal size) of the display.
H. SIZE
Adjust the position of the display horizontally (left or right) .
H. CENTER
Adjust the position of the display vertically (up or down).
V. CENTER
Adjust the height (vertical size) of the display.
V. SIZE

1514
TROUBLESHOOTING HINTS

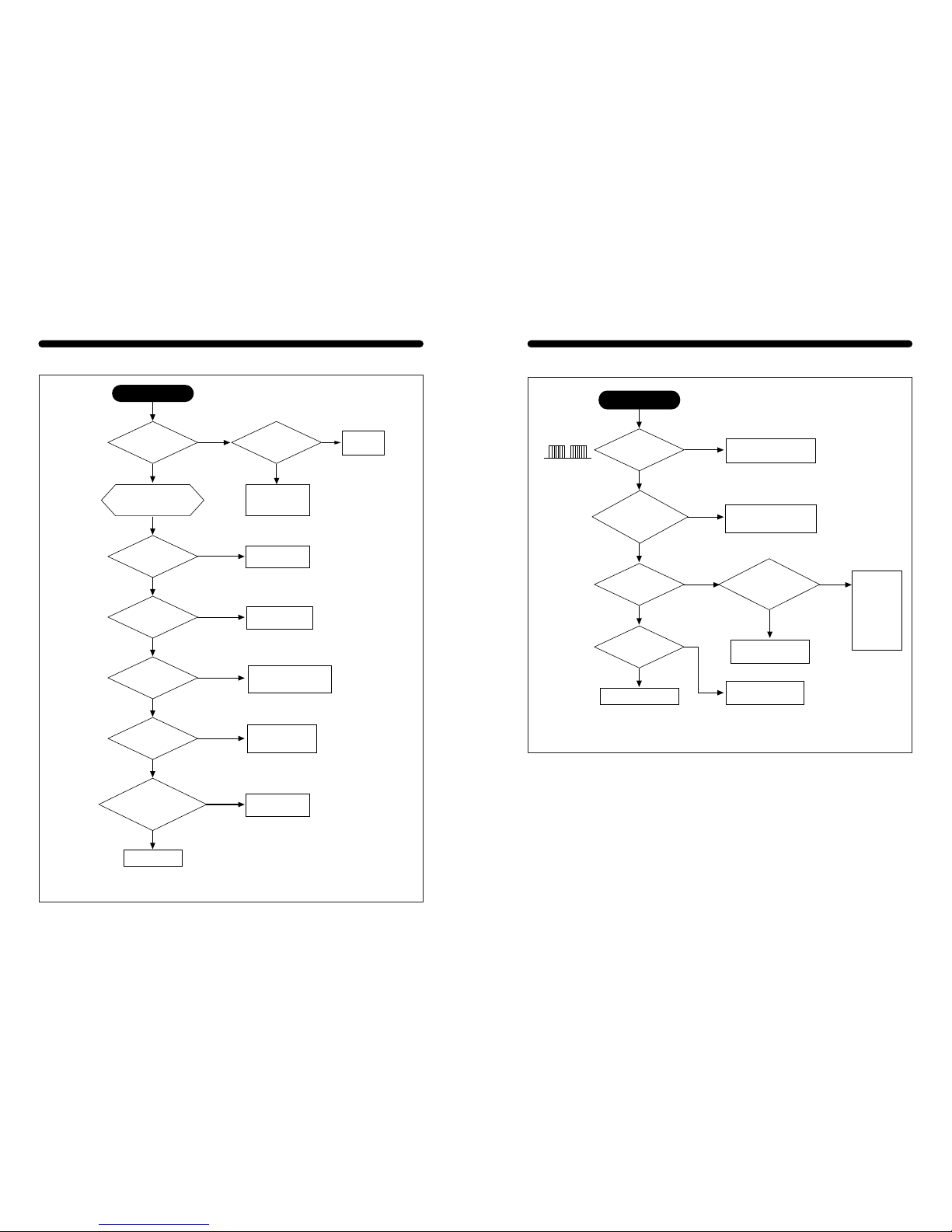

1. No Character
Change the Contrast &
Brightness control value to
maximum
No Raster Refer to
No Raster
Check the peripheral circuit
of CRT
Check the video output
circuit and its ambient circuit
Trouble in 5V line
of the Main PWA
Check the clamping pulse
circuit
Check the signal cable
No Character
Is whole
screen bright?
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
Yes
Yes
Rk, Gk, Bk
About 30~35Vpp
No
No
Is CRT
Cathode (Rk, Gk, Bk)
signal level
normal?
Is the
output signal of the
(pin 19,20,21) pre-amp
IC801(LM1238) normal?
Is blanking
pulse (pin 23 of IC801)
normal?
Is 5V line
normal?
Is input signal
normal?
Trouble in IC801 and
its ambient circuit
Are the Contrast &
Brightness Controls in
OSD menu
maximum?
6. Static Convergence Adjustment
(a) Apply a magenta cross hatch pattern on display.
(b) Adjust the focus from the best over all focus on the display.
Also adjust the brightness to the desired condition.
(c) Vertical red and blue lines are converged by varying the angle between the two tabs of the 4-pole
magnets.
(d) Horizontal red and blue lines are converged by varying the tabs together, keeping the angle between
them constant.
(e) Apply a yellow cross hatch pattern on display.
(f) Vertical green and red lines are converged by barying the angle between the two tabs of the 6-pole
magnets.
(g) Horizontal green and red lines are converged by varying the tabs together, keeping the angle
between them constant.

1716

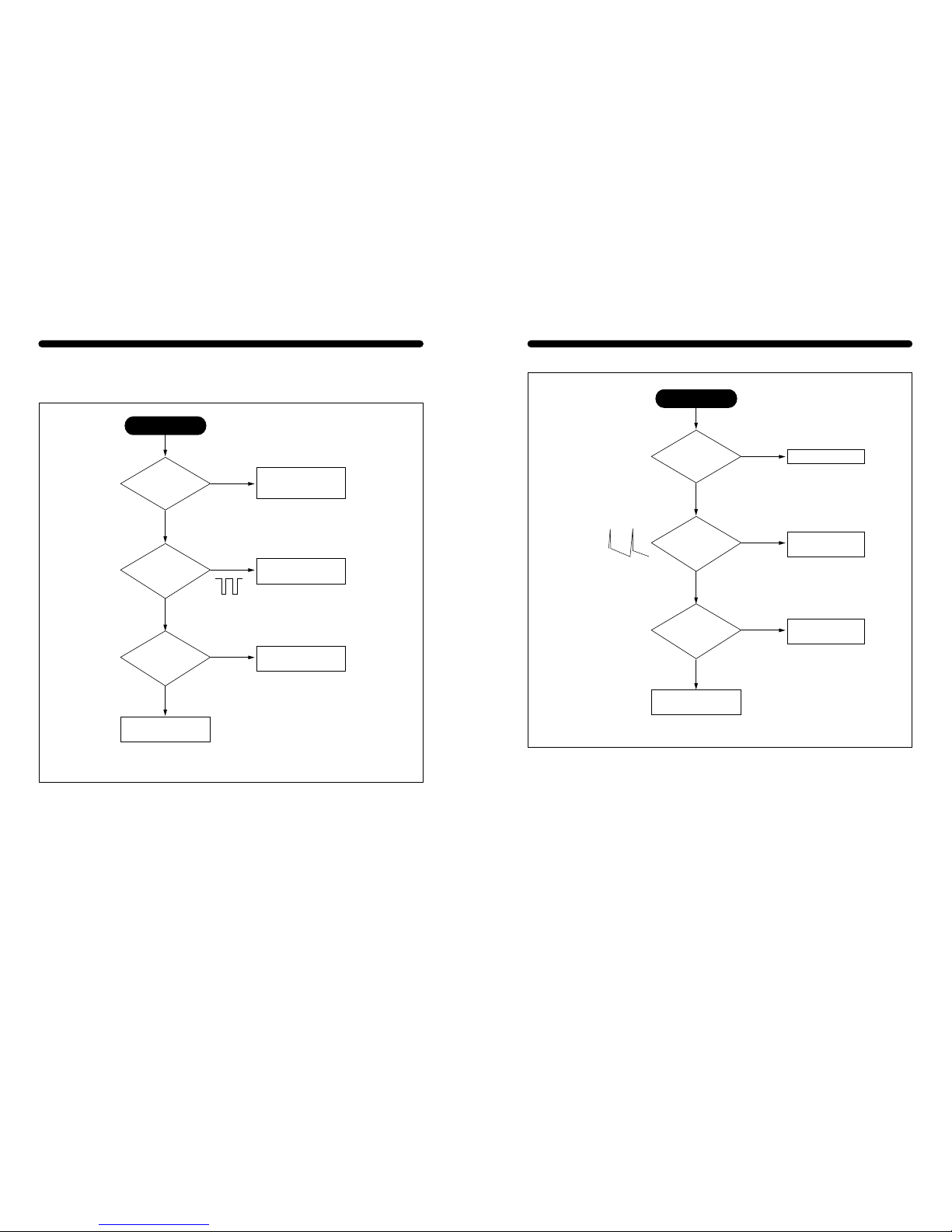

3. A Missing Color
Is input signal
normal?
One color is
missing
CRT
Cathode (Rk, Gk, Bk)
is normal?
Is video
output IC802
waveform normal?
Each grid (G1, G2)
voltage normal?
Is the
output of pre-amp
(IC801,LM1238)
pin 19,20,21 all
normal?
Check video signal
cable or video card.
Trouble in IC801 or its
ambient circuit
Trouble in
video output
IC802
or ambient
Trouble in 80Vdc
line
Trouble in G1,G2 line
Replace CRT
No
No
No No
No
Yes
Yes Yes
Yes
Yes
RK, GK, BK
About 40V p-p
0.7Vpp
2. No Raster
Trouble in
power supply
circuit
Trouble in power
supply circuit
Trouble in G1
line of main PWA
Trouble in FBT or its
pin4 ambient circuit
High Voltage
trouble in FBT
Trouble in 80Vdc
line of power
supply unit Refer to trouble
in P.S.U
Refer to trouble in
PSU.
Is CRT
heater red-hot? No
Yes
No
No
No
No
Yes
No
Yes
Yes
Yes
Yes
No
Is Heater
Voltage (CRT PWA)
about 6V?
Turn the Brightness
& Contrast control
to set Maximum
No Raster
Is whole
screen bright?
Check
G1 voltage about
-70V?
Is 80Vdc
line normal?
Does
the Brightness control
make screen
bright?
Is CRT
G2 (screen) voltage
about 480V?
Trouble in
CRT
Raster OK
Yes
Yes

1918
5. Horizontal Output Circuit
Is the
B+line voltage
over 50V?
Is the H-out
waveform of IC501
normal? Trouble in IC501
Trouble in Horizontal
output circuit
(No Raster
Yes
No
Is the Collector
wave form of
Q504 normal?
Yes
Yes
Yes
Trouble in Q505
No
No
No
Trouble in Q505 and
its ambient circuit.
3V
0V
50V
Is the Drain
waveform of
Q507 normal?
Trouble in 50V
Trouble in Q503, Q506
0V
0V
140V
4. Abnormal OSD Font
Is menu
key selected?
Is OSD Font
exist?
* If menu key selected.
Is the H/V
Blanking
signal normal?
Abnormal OSD Font
Check the
blanking
pulse circuit
Troubie in
IC801 or its
ambient circuit
One color is
missing
No
Yes
Yes
Yes
No
MODE B+ Voltage
31KHz 60Vdc
37KHz 70Vdc
43KHz 80Vdc
54KHz 105Vdc
60KHz 120Vdc
68KHz 145Vdc

2120
6-2. Vertical
Unstable
Is the
14V,-13V
line voltage is
correct? Refer to P. S. U
Is the
pulse of pin 5 of
the IC401
correct?
Trouble in
vertical D. Y
No
No
No
Yes
Yes
Is the output
of pin 23 of IC501
all normal? Check IC401 and
its ambient circuit
Yes
Check the IC501 and
its ambient circuit
50Vp-p
40V
-10V
6. Unstable Picture
6-1. Horizontal
Unstable
Is the
pulse of pin 1 of
the IC501
correct?
Trouble in IC501
or its ambient
circuit
Is the
pulse of pin 34 of
the IC201
correct?
Check IC501 and
its ambient circuit
No
No
No
Yes
Yes
Is the
input H.Sync
correct? Check IC201 and
its ambient circuit
Yes
Trouble in Signal Cable
or 15P D-Sub Connector
5Vpp

2322
8. Convergence
Is
convergence
on the center area
bad?
Is
convergence on the
fringe area bad?
Adjust static
convergence
Refer to
Adjustment
procedure of
convergence
Yes
Adjust D.Y
Location
Yes
No
Poor convergence
7. Focus
Monitor remains
unfocused
Check
Focus VR in
FBT
Is
focus
acceptable?
Trouble in Focus
circuit (FBT)
Yes OK
No

25
MODE B+ Voltage
31KHz 60Vdc
37KHz 70Vdc
43KHz 80Vdc
54KHz 105Vdc
60KHz 120Vdc
68KHz 145Vdc
24
9-2. Vertical Size
Is
changeable the
Waveform of
IC401 pin 1? Trouble in R407, C404
Check the IC501
and its ambient circuit
No
No
Trouble V.OSC/
Deflection Circuit
Refer to V.OSC/Deflection circuit
Yes
Is changeable the
DC level of pin
23 of the IC501?
Yes
Abnormal
V.Size
9 . Abnormal Picture
9-1. Horizontal Size
Trouble in L504,
C520 or their ambient
circuit
Trouble in Horizontal
output circuit
Check the B+ and
anode voltage of CRT.
Trouble in H.OSC/
Deflection Circuit
Refer to Horizontal Output circuit
Is
the DC level
of the base of Q517
changeable?
No
Yes
Is
the DC level
of IC501 pin 24
changeable ?
Yes Check IC501
pin 24
Is the
collector pulse
of Q505 correct?
Is the
cathode waveform
of D509
correct?
Abnormal
H.Size
=1100Vp-p
80-310Vpp
* Normally anode voltage
of CRT is approximately,
25 KV
* Scan B+ are as follow :
No
Yes
Yes No
* At first, adjust controls in the OSD Menu

2726
11. Power Supply Unit (P.S.U)
Is the
IC001
O.K? Replace IC001
No
Is
voltage of C133
50Vdc?
No
Is
voltage of D002
130V (270V)?
Trouble in switching
power transformer T001
or IC001 and its ambient
circuit
Trouble in diode
D001,D002,D003,D004
or peripheral device
No
Is the
waveform of T001
pin5 correct?
Trouble in T001
or D130
No
Trouble in P.S.U
Is
power switch
on? Switch on
No
Yes
Yes
Yes
Yes
Yes
Yes
Is
voltage of C130
80Vdc?
Trouble in T001 or D131
No
Is
fuse F001
O.K? Check the power cord outlet
and diode D001,D002,D003,D004
No
A
10. Side-Pincushion Circuit
Check the Base
waveform of the Q515
Yes
Pincusion distortion
is excessive or barrel
O.K
Select the
side-pincushion
icon in OSD menu,
and adjust acceptable
position.
Yes
Is the
pin 24 waveform of
IC501
correct?
No
No
Trouble in IC501

2928
BLOCK DIAGRAM
Is voltage
of C135
8Vdc? Trouble in D132
No
Is voltage
of C136 14Vdc? No
Yes
Yes
Yes
Is
voltage of C137
-13Vdc? Trouble in D134
or vertical part
P.S.U O.K
Trouble in D133
or horizontal part
No
A

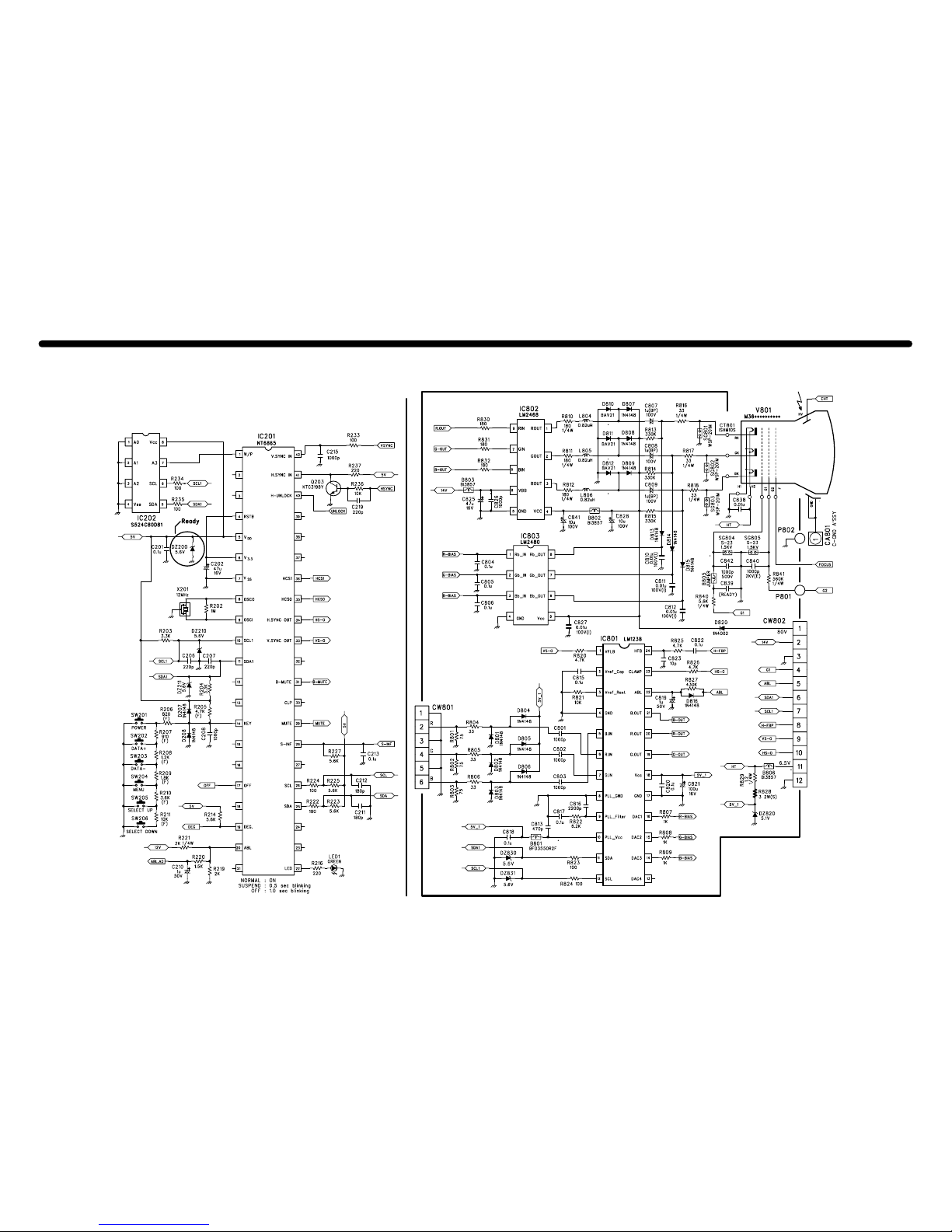

SCHEMATIC DIAGRAM
Power & Connection Section(531X-3)
30

Video Section(531X-3)
31

Horizontal Section(531X-3)
32

33
Power & Connection Section(531B-3)
