Daewoo ERF-331MM User manual

Refrigerators (Combis)
DAEWOO ELECTRONICS CO., LTD.
MODEL : ERF-331MM
ERF-361MM
ERF-361AM
ERF-391MM
ERF-391AM
ERF-411MM
ERF-411AM
*
*
*
*
*
*
*
✔ Caution
:
need
In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center(http://svc.dwe.co.kr).

2
1. SPECIFICATIONS
1. Specifications
1.2. Types of the approved safety standards
Model name ERF-331 ERF-361 ERF-391 ERF-411
Division MM AM MM AM MM AM MM
Refrigerant R-134a 80gr 90gr 90gr 90gr 90gr 90gr 90gr
Blowing agent C-PENTANE
Cooling system Fan cool system
Defrost system Automatic start & Automatic stop system
Compressor HPL25YG1-5
Rated voltage (w) AC220~240V / 50Hz
Rated input (W) 135 135 135 135 135 135 135
Lamp rated input (W) 15 15 15 15 15 15 15
Gross Freezer 99 93 93 93 93 114 114
capacity Refrigerator 201 223 223 253 253 254 254
(liter) Total 300 316 316 346 346 368 368
External Height 1706 1780 1780 1911 1911 2000 2000
dimension Width 596 600 600 600 600 600 600
(mm) Depth 624 618 618 618 618 618 618
Energy kwh/24h 1,26 1,29 1,28 1,30 1,29 1,33 1,32
consumption class B B B B B B B
Freezing capacity(kg/24h) 5.0 5.0 5.0 5.0 5.0 5.0 5.0
Star rating * *** * *** * *** * *** * *** * *** * ***
Climate class N N N N N N N
Net weight (kg) 61 69 69 75 75 79 79
Note) A : Electronic control type
M: Manual control type

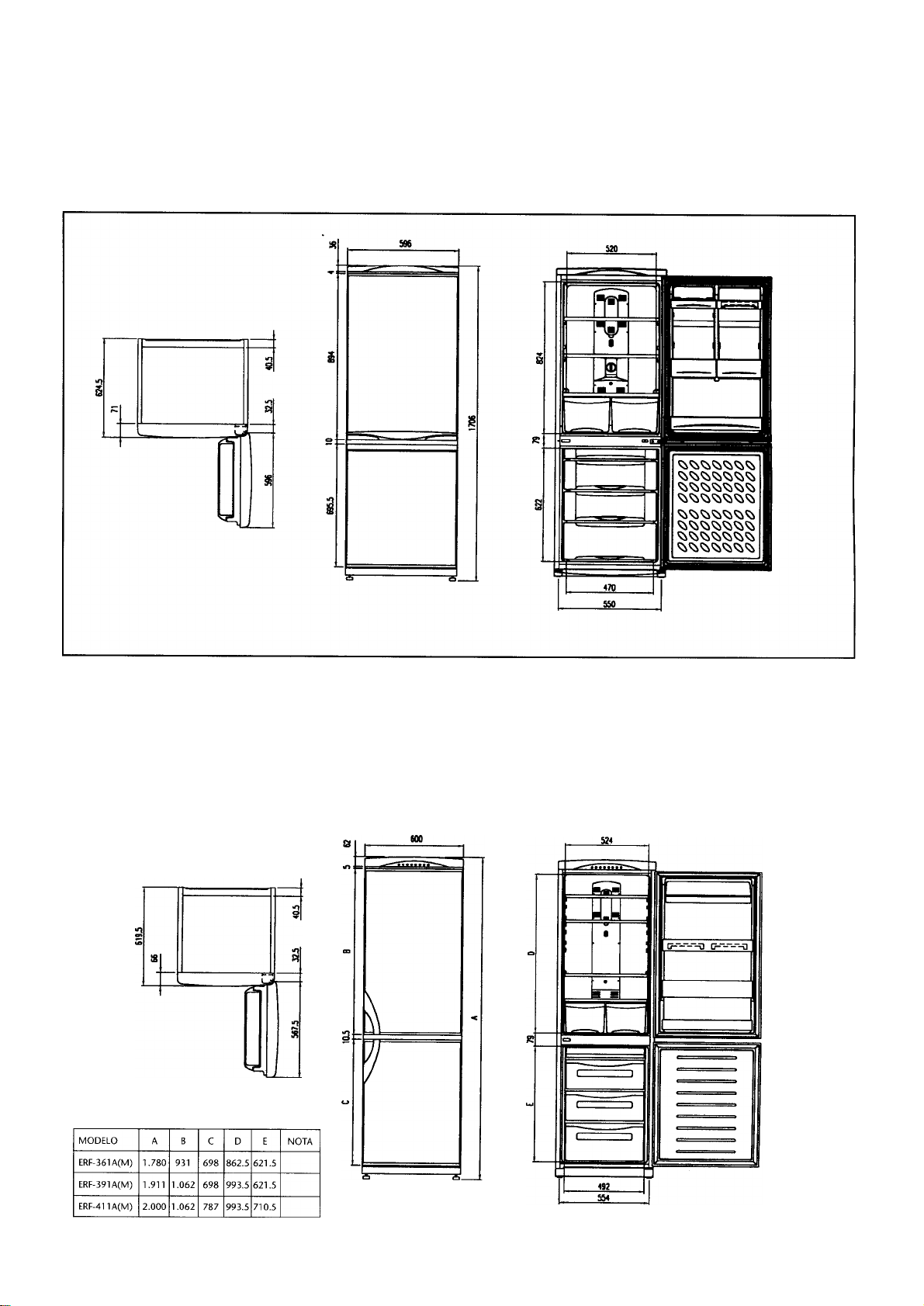

1. ERF-331 MM
2. ERF-361AM(MM), 391AM(MM), 411AM(MM)
3

4
3. WIRING DIAGRAMS
1. ERF-331MM
2. ERF-361MM, 391MM, 411MM
3. ERF-361AM, 391AM, 411AM

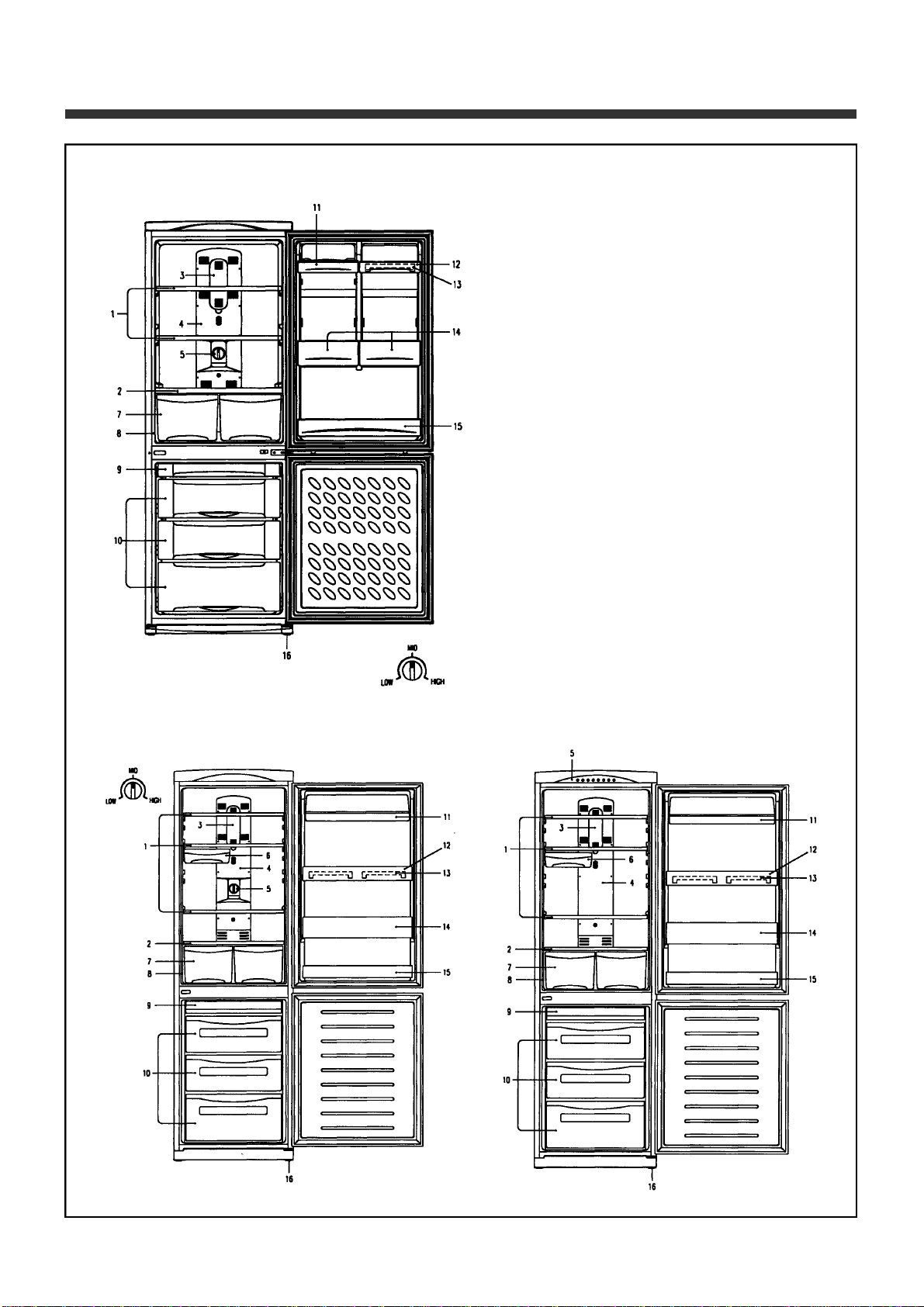

4. NAME OF PARTS
5
1. Shelves (The material of shelf can be changed
by model).
ERF-331, 361 series: 2 shelves.
ERF-391, 411 series: 3 shelves
2. Cover vegetable case (Tne material of shelf can
be changed by model).
3. Interior light for refrigerator compartment.
4. Multi air flow duct.
5. Refrigerator & freezer temperature control
knob.
6. Low temperature compartments (only ERF-
411A series).
7. Vegetable case. 1 box type or 2 boxes type
(For the case of 1 box type, the Part (15) must
be deleted).
8. Rating plate. It‘s attached in the refrigerator
compartment on the left-hand side next to the
vegetable case.
9. Ice cube tray.
10. Case for storing & freezing.
11. Butter pocket.
12. Egg pocket.
13. Egg tray.
14. Bottle pocket.
15. R door pocket.
16. Adjustable feet.
2. ERF-361MM, 391MM, 411MM 3. ERF-361AM, 391AM, 411AM
1. ERF-331MM

6
5. AIR FLOW DIAGRAM
Fresh food preserving case
(Chilled case)
Used for storing fish or
meat
Case vegetable
For storing fruits or
vegetables
* Standard Model
Air circulation in the
freezer compartment
Cold air flow comes
out from the front
hole and comes into
the lower hole in
louver

6. REFRIGERANT CYCLE DIAGRAM
7
PIPE CONN. B HOT PIPE WI-CON PIPE DRYER
CAPILLARY TUBE
COMPRESSOR
SUCTION PIPE CONN. SUCTION PIPE EVAPORATOR

8
7. MACHINE ROOM VIEW AND PART LIST
Nº PART NAME Nº PART NAME Nº PART NAME
A PIPE HOT 13-1 HARNESS RELAY AS 17 SCREW TRS 4X14
1 ABSORBER COMP. 13-1-1 HARNESS RELAY 18 SPECIAL WASHER R/C
2 COMPRESSOR 13-1-2 CAPACITOR RUN AS 19 SPECIAL NUT R/C
3 FIXTURE COMP. 13-1-3 CABLE TIE 20 SPECIAL WASHER
4 EVAPORATOR AS 13-2 BOX RELAY 21 SPECIAL MASHINE
5 PIPE Wi-CON AS 13-3 CABLE CLAMP 22 HARNESS EARTH
6 SPECIAL SCREW E 13-4 SCREW TAPPING 23 SPECIAL WASHER
7 PIPE CONN B 13-5 SWITCH P RELAY PTC 24 SCREW MASHINE
8 PIPE CHARGE 13-6 SWITCH P RELAY OL 25 CASE VAPORI
9 PIPE SUC. CONN 13-7 CODE POWER AS
10 DRYER AS 13-8 COVER ME HOUSING
11 ABSORBER PIPE B 14 REALY COVER
12 ABSORBER PIPE C 15 BAND REALY
13 BOX RELAY AS 16 CAP DRAINER

9
9. COMPONENTS SPECIFICATIONS
1. COMPRESSOR
ERF-331MM ERF-361AM ERF-361MM ERF-391AM ERF-391MM ERF-411AM ERF-411MM
Part name HPL25YG1-5
Part code 3956420481
Rated voltage 220/240V 50Hz
Starting type RSCR
Refrigerant R-134a
ERF-331MM ERF-361AM ERF-361MM ERF-391AM ERF-391MM ERF-411AM ERF-411MM
Part name PTH490D-AS330
Part code 3817907000
ERF-331MM ERF-361AM ERF-361MM ERF-391AM ERF-391MM ERF-411AM ERF-411MM
Part name 4TM213NHBYY
Part code 3817911200
ERF-331MM ERF-361AM ERF-361MM ERF-391AM ERF-391MM¡ERF-411AM ERF-411MM
Part name MP80040061
Specification 4µF,400VAC
Part code 3010938000
2. PTC
3. OLP
4. RUNNING CAPACITOR
ERF-331MM ERF-361AM ERF-361MM ERF-391AM ERF-391MM ERF-411AM ERF-411MM
Part name IS-2321 1DWBFO
Specification 220-240V, 50HZ, 2400RPM
Part code 3011604700
5. FAN MOTOR AS
ERF-331MM ERF-361AM ERF-361MM ERF-391AM ERF-391MM ERF-411AM ERF-411MM
Type Glass tube heater
Specification AC230V, 148W
Part code 3012807600
6. HEATER A AS
Specification

Component specifications
10
ERF-331MM ERF-361AM ERF-361MM ERF-391AM ERF-391MM ERF-411AM ERF-411MM
Type Pygmy
Specification AC230V, 15W (E14)
Part code 3013600700
7. LAMP
ERF-331MM ERF-361AM ERF-361MM ERF-391AM ERF-391MM ERF-411AM ERF-411MM
Type DSSD-6 1051
Specification 250V, 0,5A 250V, 0,25A
Part code 3011721300 3018111500
8. SWITCHLAMP
ERF-331MM ERF-361AM ERF-361MM ERF-391AM ERF-391MM ERF-411AM ERF-411MM
Type AJC-800
Specification AC250V, E14
Part code 3017903900
9. SOCKET LAMP
ERF-331MM ERF-361AM ERF-361MM ERF-391AM ERF-391MM ERF-411AM ERF-411MM
Type DF77S
Specification AC250V, 77 ºC
Part code 3017200420
10. FUSE TEMPERATURE
11. SWITCH BI-METAL
ERF-331MM ERF-361AM ERF-361MM ERF-391AM ERF-391MM ERF-411AM ERF-411MM
Type PST-3
Specification 250V, 50˜60Hz
Part code 3018120600

Component specifications
11
ERF-331MM ERF-361MM ERF-391MM ERF-411MM
Type JDT-MN7109D
Specification AC250V, 50/60Hz
Part code 3018117500
12. SWITCH D TIMER
ERF-331MM ERF-361MM ERF-391MM ERF-411MM
Type BU-260
Specification 250V, SA
Part code 3018302200
13. THERMOST AT
ERF-361AM ERF-391AM ERF-411AM
Type NBC-K43-D21
Specification R=0 ºC 30KΩ±3%
Part code 3012731800
14. SENSOR R AS
ERF-361AM ERF-391AM ERF-411AM
Type NBC-K43-D21
Specification R=0 ºC 30KΩ±3%
Part code 3012731400 (HARNESS SENSOR AS)
15. SENSOR D AS

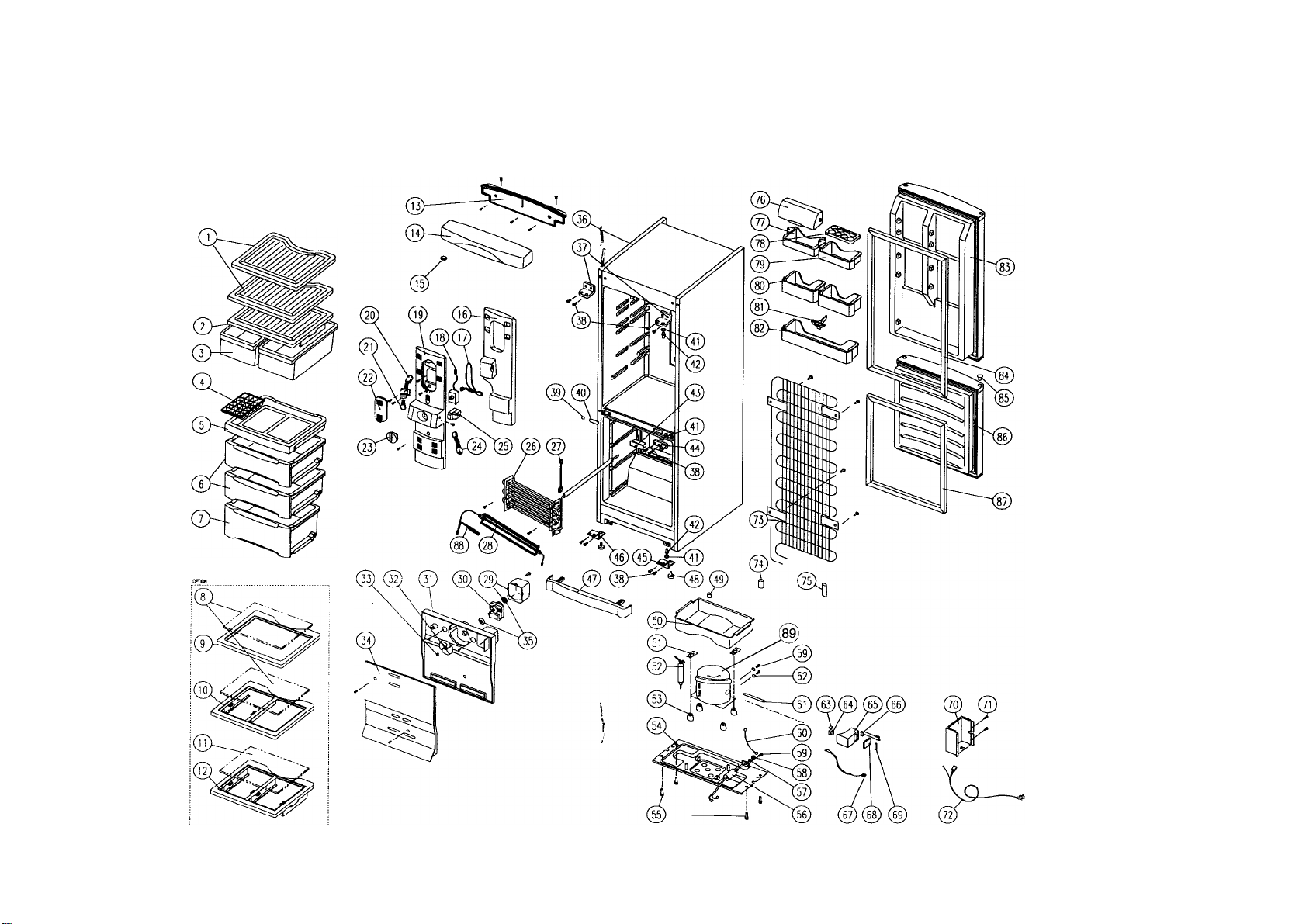

PLANO DE DESPIECE
1. ERF - 331MM
----- -- -

----------

13
1 SHELF R 3017823200 2 GPPS 391/411
2 COVER VEGTB CASE 3011453600 1 GPPS
3 CASE VEGTB 3011163400 2 GPPS
4 CASE ICING 3011163200 1 PP
5 CASE FD 3011163100 1 HIPS
6 CASE FB AS 3011164200 2 CASE+COVER
7 CASE FA AS 3011164100 1 CASE+COVER
8 PLATE SHELF GLASS 3014547700 1 GLASS t4.0 OPTION
9 FRAME GLASS SHELF 3012202400 1 HIPS OPTION
10 FRAME C/CASE COVER 3012202500 1 HIPS OPTION
11 PLATE V/CASE COVER GLASS 3014547800 1 GLASS t4.0 OPTION
12 FRAME V/CASE COVER 3012202600 1 HIPS OPTION
13 BASE CONTROL PANEL 3010318700 1 HIPS
14 PANEL CONTROL 3014228900 1 ABS
15 CAP CONTROL PANEL A 3010902800 1 SILICON RUBBER
16 INSULATOR MULTI DUCT 3013337600 1 F-PS (0.025)
17 HARNESS THERMOSTAT 3012731500 1
18 THERMOSTAT 3018302200 1 250V 6A
19 COVER MULTI DUCT 3011453000 1 HIPS t2.0
20 SOCKET LAMP AS 3017903900 1 ASSY
21 LAMP 3013600700 1 230V 15W
22 WINDOW LAMP 3015503300 1 GPPS
23 KNOB R 3013401410 1 HIPS
24 HARNESS TIMER 3012731600 1
25 SWITCH DEF TIMER 3018115700 1
26 EVAPORATOR AS 3017045700 1 EVA+SUC PIPE
27 SWITCH BI-METAL 3018120600 1 250V 5A
28 HEATER D AS 3012807600 1 GLASS HEATER+FUSE TEMP
29 BRACKET FAN MOTOR 3010615600 1 PP
30 MOTOR FAN AS 3011604700 1 IS-231 1DWBF0
31 LOUVER F B 3018911400 1 PP (411:HIPS)
32 FAN 3011801400 1 ABS /100
33 FIXTURE FAN RING 3012005400 1 SUS304 t0.5
34 LOUVER F A 3018911300 1 HIPS
35 BUSHING FAN MOTOR 3010901800 2 NR
36 ASSY CAB URT 3010086300 1 ASSY
37 HINGE *T 3012908100 2 P/O+ZN t3.2
38 SPECIAL BOLT C 3016004900 10 M5xP0.89xL16 SWCH22A
39 CAP SCREW 3010920200 1 PE-LD
40 CAP SCREW HOLE 3010920300 1 HIPS
41 SPECIAL WASHER HINGE 3016005500 3 S20C t1.0 13/7
42 SHAFT HI 3014903200 2
43 SWITCH DOOR 3018120500 1 DSD-6
44 HINGE *M 3012911800 1 ZNDC2, DIE CASTING
45 HINGE *U *L 3012912200 1 SPHC 3.2t
46 HINGE *U *L 3012912100 2 SPHC 3.2t
47 COVER CAB BRACKET 3011453300 1 PP
48 FOOT ADJUSTING AS 3012101800 2 PP+SPECIAL BOLT
49 CAP DRAIN HOSE 3010919700 1 NBR
50 CASE VAPORY 3011162600 1 PP
51 FIXTURE COMP 3012005300 2 SK5+ZN5-C t0.8
52 DRYER ASSY 3016802200 1 15Gr (t0.51)
53 ABSORBER COMP 3010101700 4 NR
54 BASE COMP 3010318600 1 SBHG t1.0
55 SPECIAL SCREW A 3016004300 4 M6.5xL20
56 CAPACITOR RUNNING 3010938000 1 4uF 400AC DNA
57 SPECIAL WASHER R/C 3016006400 1 A
1. Parts list (ERF-331MM)
NO PART NAME PART CODE MODEL DESCRIPTION REMARK
11. PART LIST

Part List
14
58 SPECIAL NUT R/C 3016006500 1 M8
59 SCREW MACHINE 7051401065 3 PAN 4x10 BSNI
60 HARNESS EARTH 3012735200 1 110mm
61 PIPE CHARGE 3014418200 1 DCUT1-/6xT0.6x100
62 SPECIAL WASHER 3016004700 4 /4.3 STAR earth:4
63 SWITCH P RELAY OL 3817911200 1 4TM213NHB
64 SWITCH P RELAY PTC 3817907000 1 33?(MURATA)
65 REALY BOX 3810506400 1
66 CABLE CLAMP 3818200300 1
67 HARNESS RELAY 3012731900 1
68 RELAY BOX COVER 3811401300 1
69 BAND RELAY 3816100400 1
70 COVER MECH HOUSING 3011454100 1 HIPS
71 SPECIAL SCREW 3016004800 2
72 CORD POWER AS 3011343300 1 CP 2PIN
73 WI-CON ASSY 3014434500 1
74 ABSORBER PIPE C 4016C08014 2 EPDM (18g) PIPE CONN
75 ABSORBER PIPE B 3010101900 1 IIR PIPE SUC
76 COVER BUTTER CASE 3011453500 1 GPPS
77 CASE BUTTER 3011163500 1 GPPS
78 CASE EGG 3011163600 1 PP
79 POCKET EGG 3019014100 1 HIPS
80 POCKET BOTTLE 3019014200 1 HIPS
81 GUIDE POCKET 3012510200 1 PP
82 POCKET R DOOR 3019014300 1 HIPS
83 ASSY R DOOR URT 3010086400 1 ASSY
84 GASKET R DOOR AS 3012306610 1 PVC+MAGNET
85 CAP DOOR BUSSHING 3010918300 1 PP
86 ASSY F DOOR URT 3010086500 1 ASSY
87 GASKET F DOOR AS 3012306510 1 PVC+MAGNET
88 TEMPERATURE FUSE 3017200420 1
89 COMPRESSOR 3956420481 1 HPL25Y61-5
NO PART NAME PART CODE MODEL DESCRIPTION REMARK

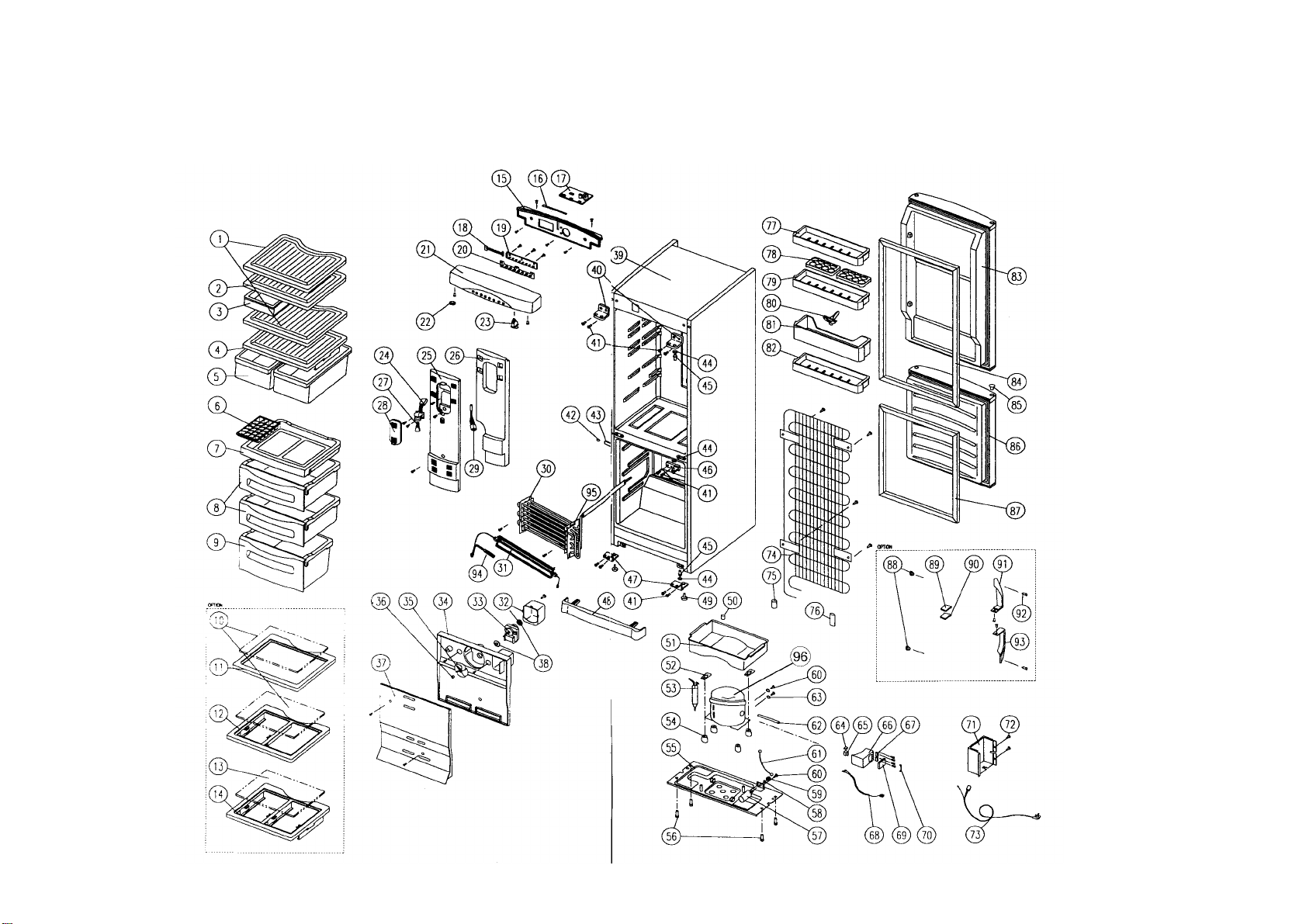

ERF-361AM, 391AM, 411AM
15

Part List
16
NO PART NAME PART CODE MODEL DESCRIPTION REMARK
361A 391A 411A
1 SHELF R 3017823200 1 2 2 GPPS 391/411
2 COVER CHILLED CASE 3011453400 1 1 1
3 CASE CHILD 3011163300 1 1 1 GPPS
4 COVER VEGTB CASE 3011453600 1 1 1 GPPS
5 CASE VEGTB 3011163400 2 2 2 GPPS
6 CASE ICING 3011163200 1 1 1 PP
7 CASE FD 3011115911 1 1 1 HIPS
8 CASE FB (411:CASE FC) 3011115310 2 2 - HIPS
3011115410 - - 2 HIPS
9 CASE FA 3011115202 1 1 1 HIPS
10 PLATE SHELF GLASS 3014547700 1 1 1 GLASS t4.0 OPTION
11 FRAME GLASS SHELF 3012202400 1 1 1 HIPS OPTION
12 FRAME C/CASE COVER 3012202500 1 1 1 HIPS OPTION
13 PLATE V/CASE COVER GLASS 3014547800 1 1 1 GLASS t4.0 OPTION
14 FRAME V/CASE COVER 3012202600 1 1 1 HIPS OPTION
15 BASE CONTROL PANEL PAGE 34 1 1 1 HIPS
16 CABLE TIE 4016N03281 1 1 1
17 PCB MAIN AS 3014397060 1 1 1
18 HARNESS F PCB 3012718300 1 1 1
19 PCB F AS 3014372130 1 1 1
20 WINDOWS LED 3015503400 1 1 1 SILICON RUBBER
21 PANEL CONTROL PAGE 34 1 1 1 ABS
22 CAP CONTROL PANEL A PAGE 34 1 1 1 SILICON RUBBER
23 SWITCH LAMP 3018111500 1 1 1 250V 0,25A
24 SOCKET LAMP AS 3017903900 1 1 1 ASSY
25 COVER MULTI DUCT 3011451900 1 - - HIPS t2.0
3011452100 - 1 1 HIPS t2.0
26 INSULATOR MULTI DUCT 3016637000 1 - - F-PS
3013337200 - 1 1 F-PS
27 LAMP 3013600700 1 1 1 230V 15W
28 WINDOW LAMP 3015503300 1 1 1 GPPS
29 SENSOR R AS 3012731800 1 1 1
30 EVAPORATOR AS 3017045600 1 1 1 EVA+SUC PIPE
31 HEATER D AS 3012807600 1 1 1 GLASS HEATER+FUSE TEMP
32 BRACKET FAN MOTOR 3010615600 1 1 1 PP
33 MOTOR FAN AS 3011604700 1 1 1 IS-231 1DWBF0
34 LOUVER F B 3018905500 1 1 - PP (411:HIPS)
3018905600 - - 1 PP (411:HIPS)
35 FAN 3011801400 1 1 1 ABS /100
36 FIXTURE FAN RING 3012005400 1 - - SUS304 t0.5
37 LOUVER F A 3018905300 1 1 - HIPS
3018905400 - - 1 HIPS
38 BUSHING FAN MOTOR 3010901800 2 2 2 NR
39 ASSY CAB URT 3010071001 1 - - ASSY
3010071011 - 1 - ASSY
3010071021 - - 1 ASSY
40 HINGE *T 3012908100 2 2 2 P/O+ZN t3.2
41 SPECIAL BOLT C 3016004900 10 10 10 M5xP0.89xL16 SWCH22A
42 CAP SCREW PAGE 34 1 1 1 PE-LD
43 CAP SCREW HOLE 3010920300 1 1 1 HIPS
44 SPECIAL WASHER HINGE 3016005500 3 3 3 S20C t1.0 13/7
45 SHAFT HI 3014903200 2 2 2
46 HINGE *M 3012908000 1 1 1 DIE CASTING
47 HINGE *U 3012908200 2 2 2 P/O+ZN t3.2
48 COVER CAB BRACKET PAGE 34 1 1 1 HIPS
49 FOOT ADJUSTING AS 3012101800 2 2 2 PP+SPECIAL BOLT
50 CAP DRAIN HOSE 3010919700 1 1 1 NBR
1. Parts list (ERF-361AM/391AM/411AM TYPE)

Specification
17
51 CASE VAPORY 3011162600 1 1 1 PP
52 FIXTURE COMP 3012005300 2 2 2 SK5+ZN5-C t0.8
53 DRYER ASSY 3016802200 1 1 1 15Gr (t0.51)
54 ABSORBER COMP 3010101700 4 4 4 NR
55 BASE COMP 3010318600 1 1 1 SBHG t1.0
56 SPECIAL SCREW A 3016004300 4 4 4 M6.5xL20
57 CAPACITOR RUNNING 3010938000 1 1 1 4uF 400AC DNA
58 SPECIAL WASHER R/C 3016006400 1 1 1 A
59 SPECIAL NUT R/C 3016006500 1 1 1 M8
60 SCREW MACHINE 7051401065 3 3 3 PAN 4x10 BSNI
61 HARNESS EARTH 3012735200 1 1 1 110mm
62 PIPE CHARGE 3014418200 1 1 1 DCUT1-/6xT0.6x100
63 SPECIAL WASHER 3016004700 4 4 4 /4.3 STAR earth:4
64 SWITCH P RELAY OL 3817911200 1 1 1 4TM213NHB
65 SWITCH P RELAY PTC 3817907000 1 1 1 33?(MURATA)
66 RELAY BOX 3810506400 1 1 1
67 CABLE CLAMP 3818200300 1 1 1
68 HARNESS RELAY 3012731900 1 1 1
69 RELAY BOX COVER 3811401300 1 1 1
70 BAND RELAY 3816100400 1 1 1
71 COVER MECH HOUSING 3011454100 1 1 1 HIPS
72 SPECIAL SCREW 3016004800 2 2 2
73 CORD POWER AS 3011343300 1 1 1 CP 2PIN
74 WI-CON ASSY 3014434500 1 1 -
3014434600 - - 1
75 ABSORBER PIPE C 4016008014 2 2 2 EPDM (18g) PIPE CONN
76 ABSORBER PIPE B 3010101900 1 1 1 IIR PIPE SUC
77 POCKET BUTTER 3019008720 1 1 1 HIPS
78 CASE EGG 3011163600 2 2 2 PP
79 POCKET EGG 3019008701 1 1 1 HIPS
80 GUIDE POCKET 3012510200 1 1 1 PP
81 POCKET BOTTLE A 3019008600 1 1 1 HIPS
82 POCKET R DOOR 3019013600 1 1 1 HIPS
POCKET BOTTLE B 3019009500 FOR SUPERIOR CLASS HIPS SUPERIOR
GUIDE BOTTLE SUPPORT B 3012508000 FOR SUPERIOR CLASS SUPERIOR POCKET R DOOR
3019008710 FOR SUPERIOR CLASS HIPS SUPERIOR
GUIDE BOTTLE SUPPORT C 3012508010 FOR SUPERIOR CLASS STEAL SUPERIOR
83 ASSY R DOOR URT PAGE 34 1 - - ASSY
PAGE 34 - 1 1 ASSY
84 GASKET R DOOR AS 3012306600 1 - - PVC+MAGNET
3012306800 - 1 1 PVC+MAGNET
85 CAP DOOR BUSSHING PAGE 34 1 1 1 PP
86 ASSY F DOOR URT PAGE 34 1 - - ASSY
PAGE 34 - 1 1 ASSY
87 GASKET F DOOR AS 3012306500 1 1 - PVC+MAGNET
3012306700 - - 1 PVC+MAGNET
88 CAP HANDLE PAGE 34 1 1 1 HIPS OPTION
89 COVER DOOR CAP *L PAGE 34 2 2 2 ABS OPTION
90 COVER DOOR CAP *R PAGE 34 2 2 2 ABS OPTION
91 HANDLE *T PAGE 34 1 1 1 PBT OPTION
92 SPECIAL SCREW D 3016004810 4 4 4 T2 FLT 4x16 PAINTING OPTION
93 HANDLE *U PAGE 34 1 1 1 PBT OPTION
94 TEPERATURE FUSE 3017200420 1 1 1
95 D-SENSOR 3012733910 1 1 1
96 COMPRESSOR 3956420481 1 1 1 HPL25Y61-5
NO PART NAME PART CODE MODEL DESCRIPTION REMARK
361A 391A 411A

ERF-361 MM, 391 MM, 411 MM
18

11. PART LIST
19
1 SHELF R 3017823200 1 2 2 GPPS 391/411
2 COVER CHILLED CASE 3011453400 1 1 1
3 CASE CHILD 3011163300 1 1 1 GPPS
4 COVER VEGTB CASE 3011453600 1 1 1 GPPS
5 CASE VEGTB 3011163400 2 2 2 GPPS
6 CASE ICING 3011163200 1 1 1 PP
7 CASE FD 3011115911 1 1 1 HIPS
8 CASE FB (411:CASE FC) 3011115310 2 2 - HIPS
3011115410 - - 2 HIPS
9 CASE FA 3011115202 1 1 1 HIPS
10 PLATE SHELF GLASS 3014547700 1 1 1 GLASS t4.0 OPTION
11 FRAME GLASS SHELF 3012202400 1 1 1 HIPS OPTION
12 FRAME C/CASE COVER 3012202500 1 1 1 HIPS OPTION
13 PLATE V/CASE COVER GLASS 3014547800 1 1 1 GLASS t4.0 OPTION
14 FRAME V/CASE COVER 3012202600 1 1 1 HIPS OPTION
15 BASE CONTROL PANEL PAGE 34 1 1 1 HIPS
16 PANEL CONTROL PAGE 34 1 1 1 ABS
17 CAP CONTROL PANEL A PAGE 34 1 1 1 SILICON RUBBER
18 SWITCH LAMP 3018111500 1 1 1 250V 0,25A
19 HARNESS LAMP SW 3012717020 1 1 1
20 INSULATOR MULTI DUCT 3013337100 1 - - F-PS
3013373000 - 1 1 F-PS
21 HARNESS THERMOSTAT 3012731500 1 1 1
22 THERMOSTAT 3018302200 1 1 1 250V 6A
23 COVER MULTI DUCT 3011452000 1 - - HIPS t2.0
3011452300 - 1 1 HIPS t2.0
24 SOCKET LAMP AS 3017903900 1 1 1 ASSY
25 LAMP 3013600700 1 1 1 230V 15W
26 WINDOW LAMP 3015503300 1 1 1 GPPS
27 KNOB R 3013401410 1 1 1 HIPS
28 HARNESS TIMER 3012731600 1 1 1
29 SWITCH DEF TIMER 3018115700 1 1 1
30 EVAPORATOR AS 3017045600 1 1 1 EVA+SUC PIPE
31 SWITCH BI-METAL 3018120600 1 1 1 250V 5A
32 HEATER D AS 3012807600 1 1 1 GLASS HEATER+FUSE TEMP
33 BRACKET FAN MOTOR 3010615600 1 1 1 PP
34 MOTOR FAN AS 3011604700 1 1 1 IS-231 1DWBF0
35 LOUVER F B 3018905500 1 1 - PP (411:HIPS)
3018905600 - - 1 PP (411:HIPS)
36 FAN 3011801400 1 1 1 ABS /100
37 FIXTURE FAN RING 3012005400 1 - - SUS304 t0.5
38 LOUVER F A 3018905300 1 1 - HIPS
3018905400 - - 1 HIPS
39 BUSHING FAN MOTOR 3010901800 2 2 2 NR
40 ASSY CAB URT 3010071031 1 - - ASSY
3010071041 - 1 - ASSY
3010071051 - - 1 ASSY
41 HINGE *T 3012908100 2 2 2 P/O+ZN t3.2
42 SPECIAL BOLT C 3016004900 10 10 10 M5xP0.89xL16 SWCH22A
43 CAP SCREW PAGE 34 1 1 1 PE-LD
44 CAP SCREW HOLE 3010920300 1 1 1 HIPS
45 SPECIAL WASHER HINGE 3016005500 3 3 3 S20C t1.0 13/7
46 SHAFT HI 3014903200 2 2 2
47 HINGE *M 3012908000 1 1 1 DIE CASTING
48 HINGE *U 3012908200 2 2 2 P/O+ZN t3.2
49 COVER CAB BRACKET PAGE 34 1 1 1 HIPS
50 FOOT ADJUSTING AS 3012101800 2 2 2 PP+SPECIAL BOLT
NO PART NAME PART CODE MODEL DESCRIPTION REMARK
361M 391M 411M
1. Parts list (ERF-361MM/391MM/411MM TYPE)

Part List
20
NO PART NAME PART CODE MODEL DESCRIPTION REMARK
361M 391M 411M
51 CAP DRAIN HOSE 3010919700 1 1 1 NBR
52 CASE VAPORY 3011162600 1 1 1 PP
53 FIXTURE COMP 3012005300 2 2 2 SK5+ZN5-C t0.8
54 DRYER ASSY 3016802200 1 1 1 15Gr (t0.51)
55 ABSORBER COMP 3010101700 4 4 4 NR
56 BASE COMP 3010318600 1 1 1 SBHG t1.0
57 SPECIAL SCREW A 3016004300 4 4 4 M6.5xL20
58 CAPACITOR RUNNING 3010938000 1 1 1 4uF 400AC DNA
59 SPECIAL WASHER R/C 3016006400 1 1 1 A
60 SPECIAL NUT R/C 3016006500 1 1 1 M8
61 SCREW MACHINE 7051401065 3 3 3 PAN 4x10 BSNI
62 HARNESS EARTH 3012735200 1 1 1 110mm
63 PIPE CHARGE 3014418200 1 1 1 DCUT1-/6xT0.6x100
64 SPECIAL WASHER 3016004700 4 4 4 /4.3 STAR earth:4
65 SWITCH P RELAY OL 3817911200 1 1 1 4TM213NHB
66 SWITCH P RELAY PTC 3817907000 1 1 1 33?(MURATA)
67 REALY BOX 3810506400 1 1 1
68 CABLE CLAMP 3818200300 1 1 1
69 HARNESS RELAY 3012731900 1 1 1
70 RELAY BOX COVER 3811401300 1 1 1
71 BAND RELAY 3816100400 1 1 1
72 COVER MECH HOUSING 3011454100 1 1 1 HIPS
73 SPECIAL SCREW 3016004800 2 2 2
74 CORD POWER AS 3011343300 1 1 1 CP 2PIN
75 WI-CON ASSY 3014434500 1 1 -
3014434600 - - 1
76 ABSORBER PIPE C 4016007014 2 2 2 EPDM (18g) PIPE CONN
77 ABSORBER PIPE B 3010101900 1 1 1 IIR PIPE SUC
78 POCKET BUTTER 3019008720 1 1 1 HIPS
79 CASE EGG 3011163600 2 2 2 PP
80 POCKET EGG 3019008701 1 1 1 HIPS
81 GUIDE POCKET 3012510200 1 1 1 PP
82 POCKET BOTTLE A 3019008600 1 1 1 HIPS
83 POCKET R DOOR 3019013600 1 1 1 HIPS
POCKET BOTTLE B 3019009500 FOR SUPERIOR CLASS HIPS SUPERIOR
GUIDE BOTTLE SUPPORT B 3012508000 FOR SUPERIOR CLASS STEAL SUPERIOR
SUPERIOR POCKET R DOOR 3019008710 FOR SUPERIOR CLASS HIPS SUPERIOR
GUIDE BOTTLE SUPPORT C 3012508010 FOR SUPERIOR CLASS STEAL SUPERIOR
84 ASSY R DOOR URT PAGE 34 1 - - ASSY
PAGE 34 - 1 1 ASSY
85 GASKET R DOOR AS 3012306600 1 - - PVC+MAGNET
3012306800 - 1 1 PVC+MAGNET
86 CAP DOOR BUSSHING PAGE 34 1 1 1 PP
87 ASSY F DOOR URT PAGE 34 1 - - ASSY
PAGE 34 - 1 1 ASSY
88 GASKET F DOOR AS 3012306500 1 1 - PVC+MAGNET
3012306700 - - 1 PVC+MAGNET
89 CAP HANDLE PAGE 34 1 1 1 HIPS OPTION
90 COVER DOOR CAP *L PAGE 34 2 2 2 ABS OPTION
91 COVER DOOR CAP *R PAGE 34 2 2 2 ABS OPTION
92 HANDLE *T PAGE 34 1 1 1 PBT OPTION
93 SPECIAL SCREW D 3016004810 4 4 4 T2 FLT 4x16 PAINTING OPTION
94 HANDLE *U PAGE 34 1 1 1 PBT OPTION
95 TEMPERATURE FUSE 3017200420 1 1 1
96 COMPRESSOR 3956420481 1 1 1 HPL25Y61-5
