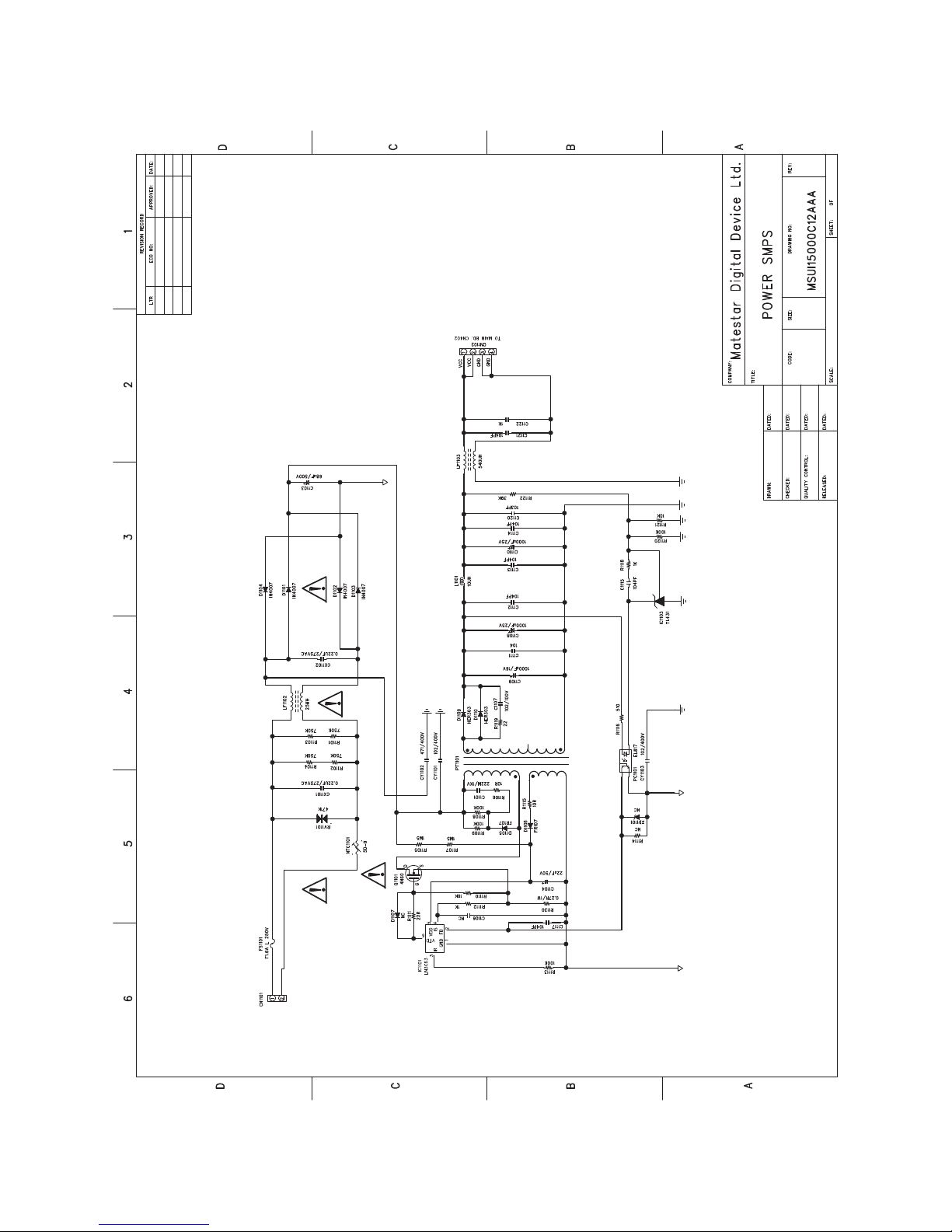

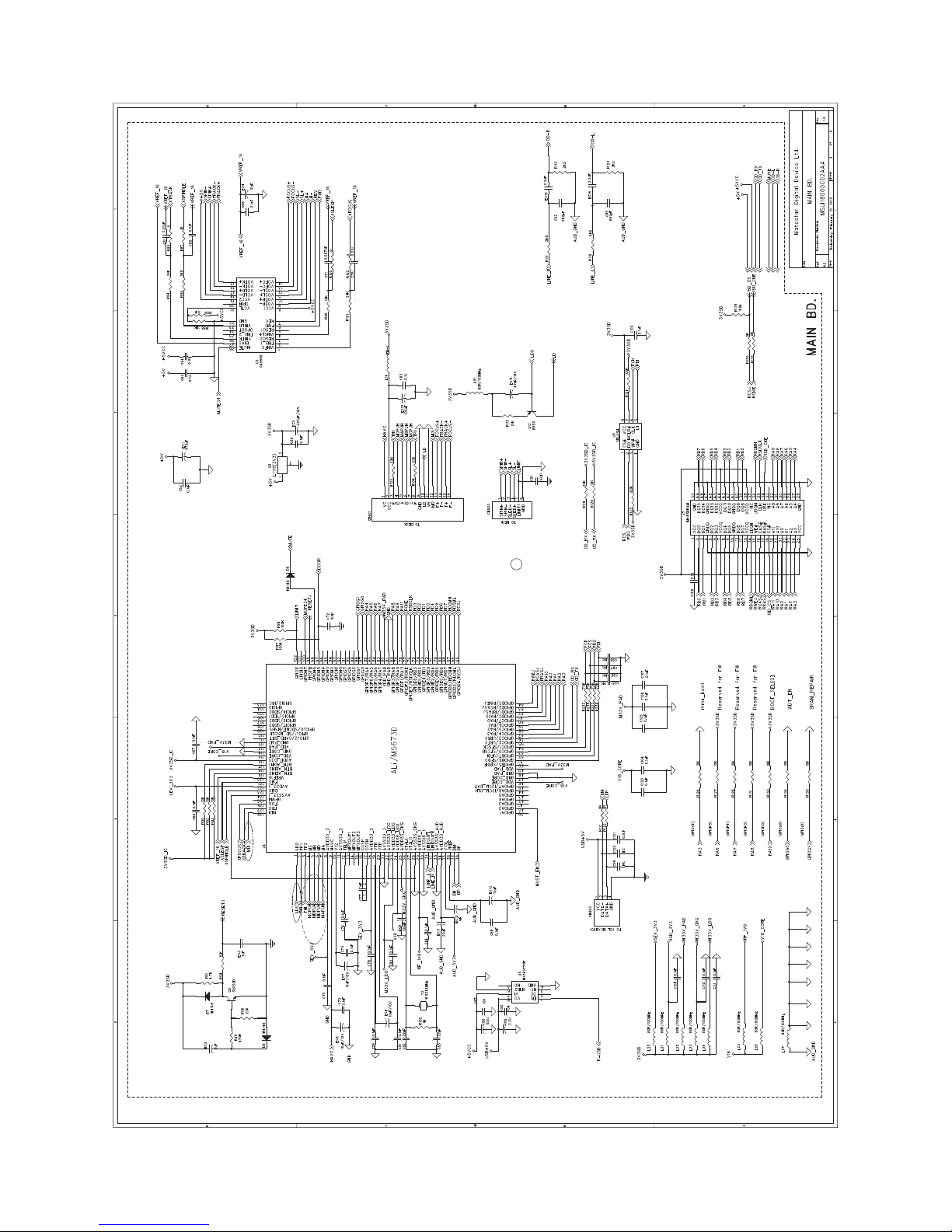

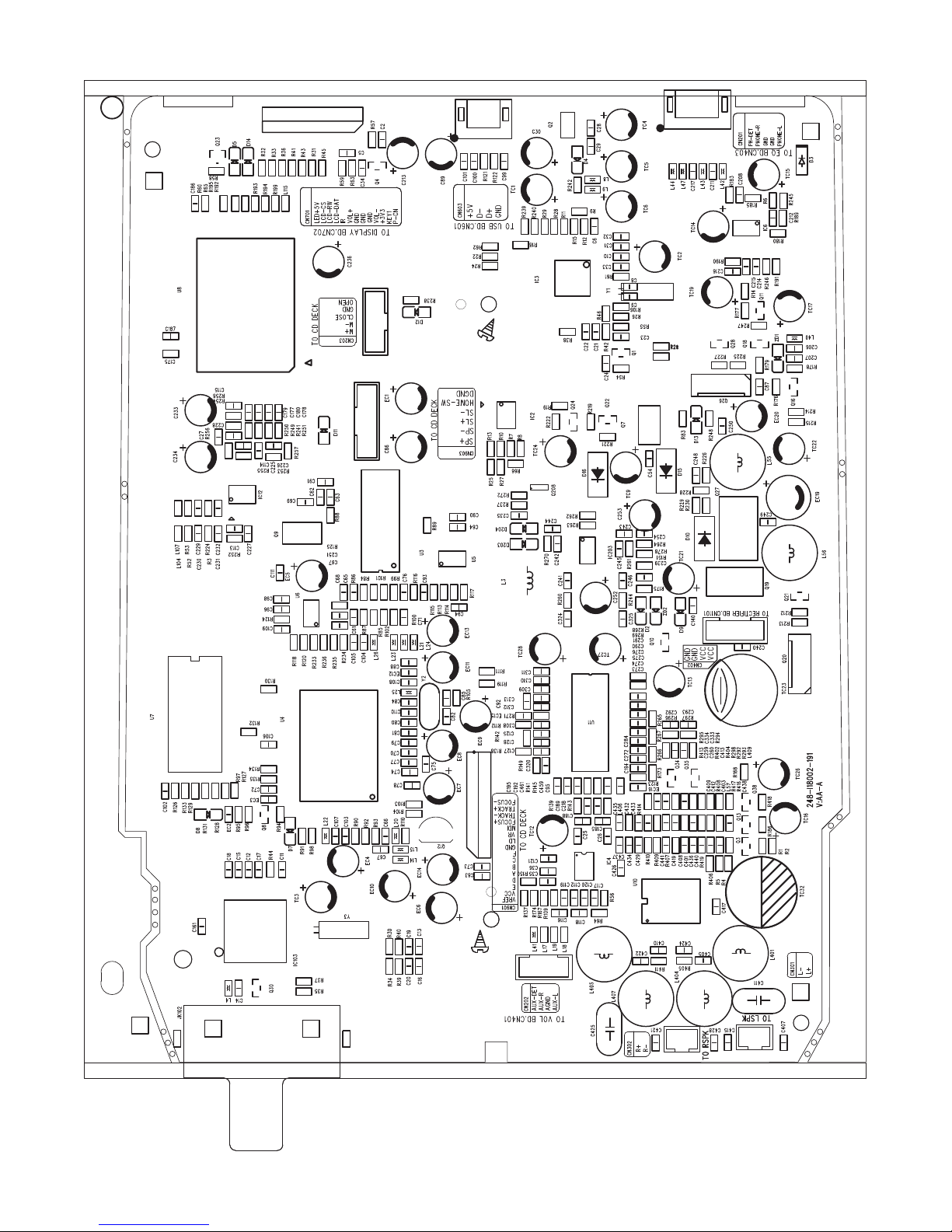

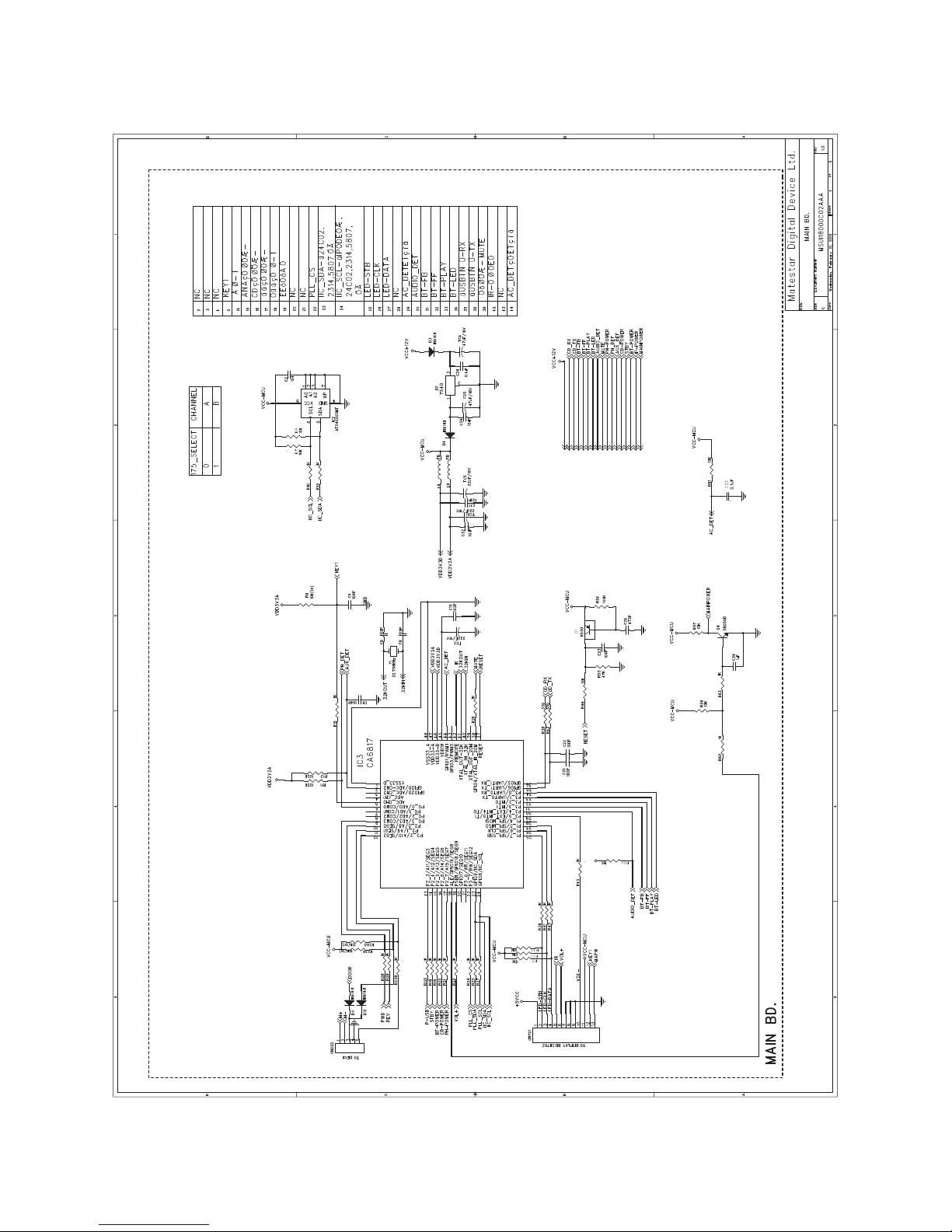

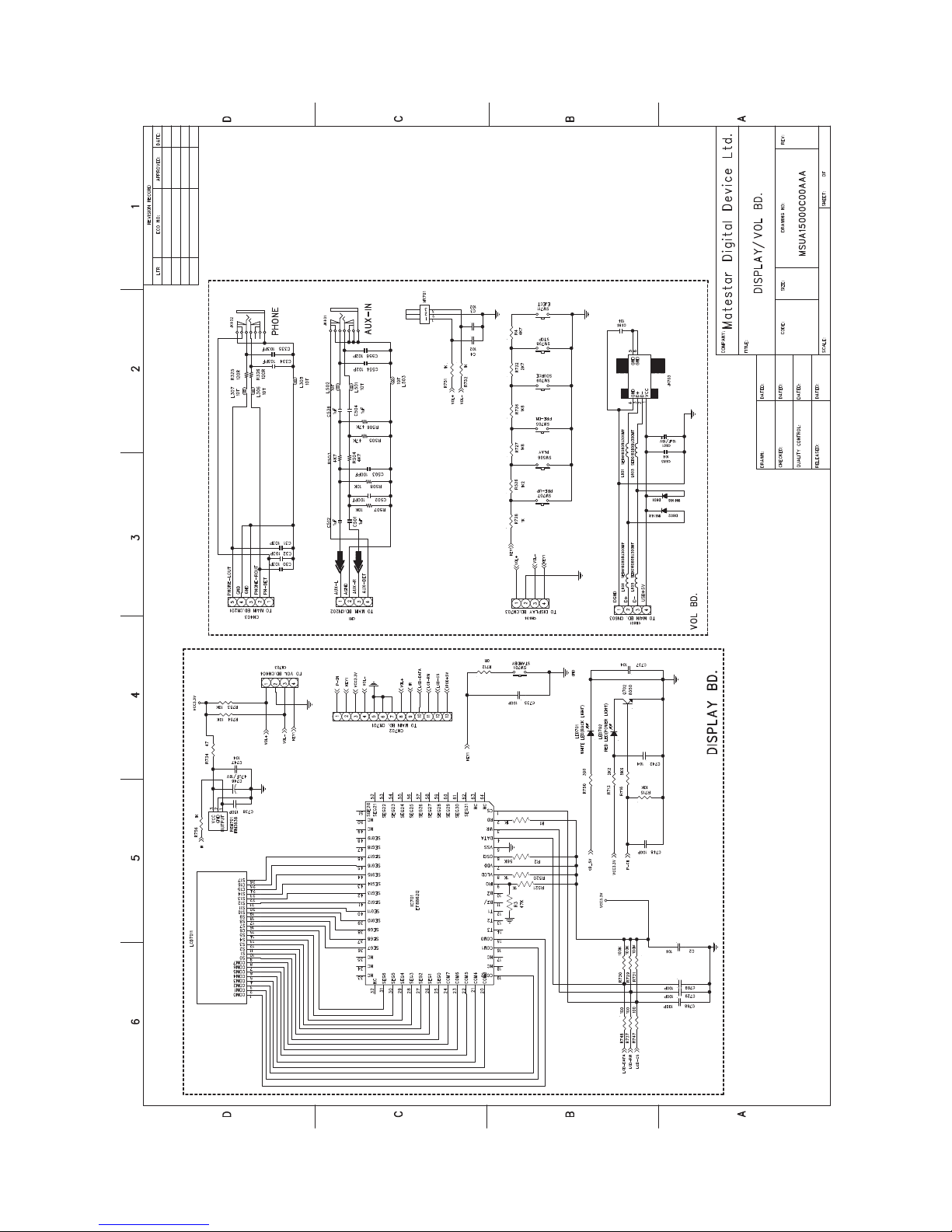

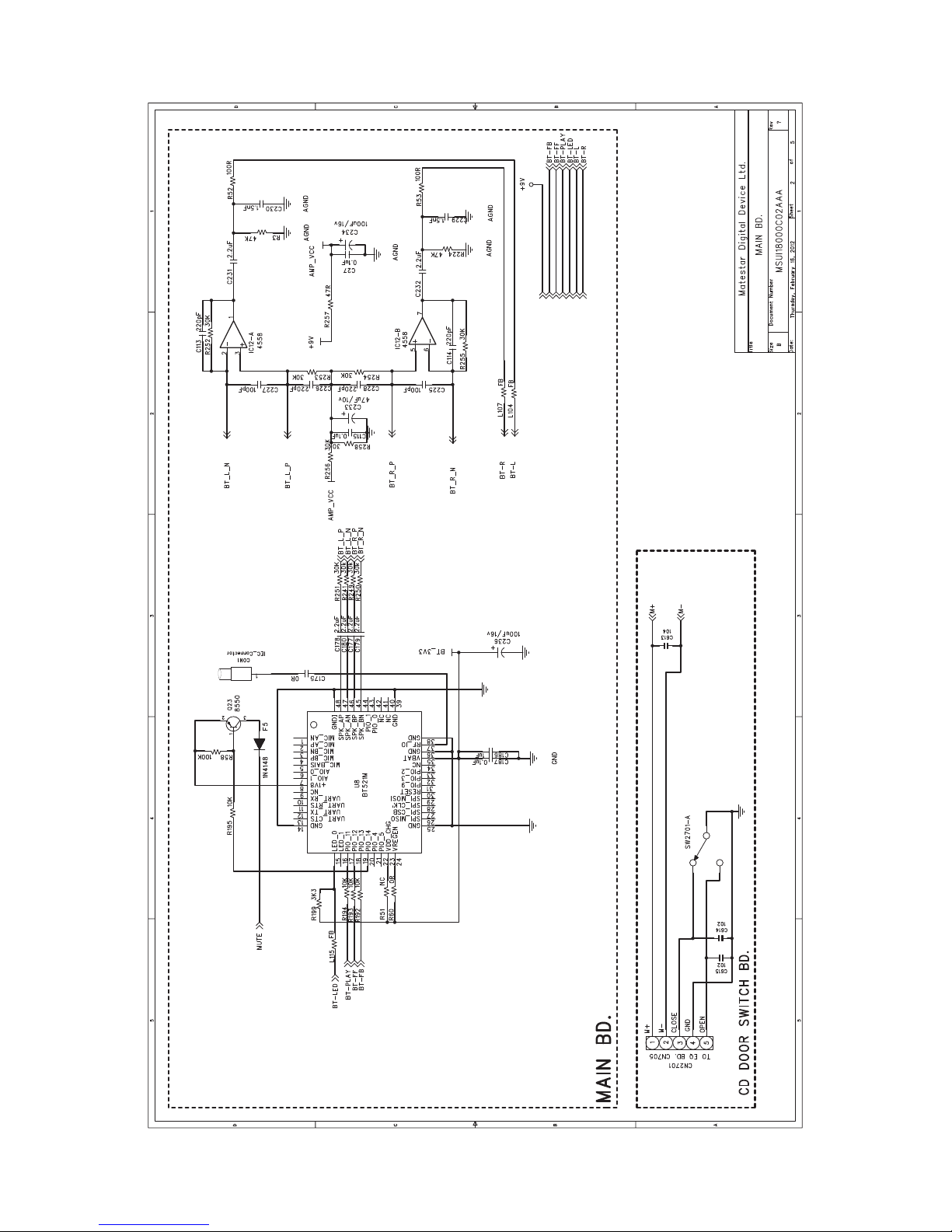

Daewoo MC?15UBW User manual

SERVICE MANUAL
SERVICE

MANUAL
CD/FM/USB/AUDIOIN/BLUETOOTH
MODELO:MC‐15UBW
Dic‐2013
DONGBUDAEWOOELECTRONICS

œŦŵŶųů
EE-PS-MC150001-00
MATESTAR DIGITAL DEVICE LTD.
PERFORMANCE SPECIFICATIONS
Date : 2013-8-20
Model MC-15UBW
Description : FM /BLUETOOTH
CD/MP3/USB/AUX
Micro Component System
Page : Total 5 Pages
GENERAL TEST CONDITION
Output Load : 8 Ohm non-reactive
Reference Output : 500 mW
Input Signal Source : 75 ohm dummy for FM
Modulation : 22.5 KHz Deviation 1 KHz for FM
75KHz Modulation for FM MPX
Remarks : AC 100-220V 50Hz/60Hz
( MATESTAR ) ( MATESTAR )
PREPA
Wang Daibin
APPROVED BY:__
Darren Wong
M
M
M
M
A
A
A
A
T
T
T
T
E
E
E
E
S
S
S
S
T
T
T
T
A
A
A
A
R
R
R
R
D
D
D
D
I
I
I
I
G
G
G
G
I
I
I
I
T
T
T
T
A
A
A
A
L
L
L
L
D
D
D
D
E
E
E
E
V
V
V
V
I
I
I
I
C
C
C
C
E
E
E
E
L
L
L
L
T
T
T
T
D
D
D
D
.

PERFORMANCE SPECIFICATIONS
MODEL NO : MC-15UBW
Frequency Modulation ( FM) Section
Test Item Unit Normal Limit #1 #2
F01 Tuning Range TP:87.5MHz LOW MHz 87.5 +/-0.1
TP:108MHz High MHz 108 +/-0.1
F02 Sensitivity TP:90.1MHz 90.1MHz dB/uv 20
28
at 30dB S/N TP:98.1MHz 98.1MHz dB/uv 20
28
(Mono) TP:106.1MHz 106.1MHz dB/uv 20
28
F03 3 dB Limit Sens TP:98.1MHz 98.1MHz dB 18
27
F04 Stereo Threshold TP:98.1MHz 98.1MHz dB 26
32
F05 Overload TP:98.1MHz 98.1MHz dB > =110
F06 Audio Response -6dB
TP:98.1MHz 98.1MHz Hz/KHz 60/4K5
150/3K5
F07 Separation (1K) TP:98.1MHz 98.1MHz dB 30
20
F08
Total Harmonic Distortion (60dB) Mono Re
22.5KHz % 1
3
Max Power 75KHz % 10
20
F09 Signal to Noise Ratio (Input 60dB) 98.1MHz dB 50
45
TP:98.1MHz STEREO dB 45
40
F10 Auto Search Threshold 98.1MHz dB 27
35
TP:98.1MHz
F11 Mod. Hum (AC) TP:98.1MHz 98.1MHz dB 45
40
F12 Min. Volume Hum & Noise mV 0.7
2
M
M
M
M
M
M
M
O
O
O
D
D
D
E
E
E
L
L
L
N
N
N
O
O
O
:
M
M
M
C
C
C
-
1
1
1
5
5
5
U
U
U
B
B
B
W
W
W
M
M
M
M
M

PERFORMANCE SPECIFICATIONS
MODEL NO : MC-15UBW
CDDA Section
Test Items Unit Normal Limit #1 #2
C01
10% Dist. Output Power ( 1kHz, 0dB)
W 7.5 
C02 Frequency Response (40Hz -16kHz/1kHz, 0dB) dB +/-4 +7/-10
C03
De-emphais Response (40Hz -16kHz/1kHz, 0dB)
dB +/-3 +-4
C04 Channel Balance (1kHz, 0dB) dB 1
3
C05 Channel Separation (1kHz, 0dB) dB 45
35
C06 T.H.D. +Noise (1kHz, 0dB) % 1 
C07 S/N Ratio (1kHz, 0dB) dB 60
50
C08 Flat (Bass off) 100Hz dB
10KHz dB
Classic (Bass off) 100Hz dB
10KHz dB
Jazz (Bass off) 100Hz dB
10KHz dB
Pop (Bass off) 100Hz dB
10KHz dB
Rock ( Bass off ) 100Hz dB
10KHz dB
C09 BASS ON TCD-785 100Hz dB
C10 Max. Hum "SONY YEDS7 NO23" mV 4
7
C11 Hum at Min Vol "SONY YEDS7 NO23" mV 1
2
* With exterenal 20kHz L.P.F. Test Disc "CBS SONY YEDS7"
MM
M
M
M
M
M
M
M
O
O
O
O
O
D
D
D
D
E
E
E
E
L
L
L
L
N
N
N
N
O
O
O
O
O
:
M
M
M
M
C
C
C
C
C
-
1
1
1
1
1
5
5
5
5
U
U
U
U
B
B
B
B
W
W
W
W

PERFORMANCE SPECIFICATIONS
MODEL NO : MC-15UBW
CD/MP3 Section
Test Items Unit Normal Limit #1 #2
M01 Frequency Response MCD-RF561C dB +3 -3
Ref. To 1KHz 0dB (TN:T402) dB +3 -3
dB +3 -3
M02 S/N Ratio (MCD-RF561C T402 to T407) dB 60
50
M03 Seperation (MCD-RF561C T408 L/ T410 R) dB 45
35
M04 Total H.D. (MCD-RF561C T402) % 1
3
M05 Total H.D. (MCD-F561A T421) % 1
3
M06 Channel Unbalance (MCD-RF561C T402) dB
3
M07 O/P Power at 10% THD (MCD-RF561C T402) W 7.5 
M08 Min Volume Noise (SP OUT) T407 mV
3.5
M09 Max. Volume Noise(Bass OFF) T407 mV
6
M11 Sampling Rate format 32/44.1/48KHz
16/22.05/24KHz
8/11.025/13KHz
M12 Maximum Folder ( Support )
M13 Maximum Files For Each Folder ( Support )
M14 All Total Files ( Support )
999
999
99
100Hz(T404)
10KHz(T405)
20KHz(T406)
1KHz
1KHz
1KHz(0dB)
1KHz(-10dB)
1KHz
1KHz
MCD-RF561C
MCD-RF561C
M10
Bitrate Support format (8~320 kbps & VBR)
(Support)
MCD-RF561C
TN.
T101,T201,T301,T401,T501,T601,T701
,T801,T901
MCD-RF561C
TN.
T101,T201,T301,T401,T501,T601,T701
,
T801,T901
MCD-RF561E
MCD-RF561H
MM
M
M
M
M
M
M
M
O
O
O
O
O
D
D
D
D
E
E
E
E
L
L
L
L
N
N
N
N
O
O
O
O
O
:
M
M
M
M
C
C
C
C
C
-
1
1
1
1
1
5
5
5
5
U
U
U
U
B
B
B
B
W
W
W
W

PERFORMANCE SPECIFICATIONS
MODEL NO : MC-15UBW
USB/AUX/BT
Test Items Unit Normal Limit #1 #2
U01 Frequency Response 100Hz(T404) dB +3 -3
(USB Copy From MCD-RF561C) 10KHz(T405) dB +3 -3
Ref. To 1KHz 0dB 20KHz(T406) dB +3 -3
U02 Signal to Noise Ratio (Unweighted) 1KHz dB 60 40
U03 Channel Seperation 1KHz dB 45 35
U04
Total Harmonic Distortion (Copy TCD-782)
1KHz(0dB) % 2
5
U05
Total Harmonic Distortion (Copy TCD-782)
1KHz(-10dB) %1
3
U06 Channel Unbalance (Copy TCD-782) 1KHz dB 0.5 3
U07 Output Power at 10% THD (Copy T112) 1KHz W 7.5 
U08 Min Volume Noise (SP OUT) (USB Copy) TCD-782 mV 3.5
U09
Max. Volume Noise (Bass Off) (USB Copy
TCD-782 mV
6
U10 Maximum Folder ( Support )
U11 Maximum Files For Each Folder ( Support )
U12 All Total Files ( Support )
AUX
Output Power at 10% THD ( IMP: 47K S/I: 1 KHz 500mV )
W 7.5 
BT Output Power at 10% THD( Ref. To 1KHz 0dB) W 7.5 
99
999
999
M
M
M
M
M
M
M
M
M
O
O
O
O
O
D
D
D
D
E
E
E
E
L
L
L
L
N
N
N
N
O
O
O
O
O
:
M
M
M
M
C
C
C
C
C
-
1
1
1
1
1
5
5
5
5
U
U
U
U
B
B
B
B
W
W
W
W

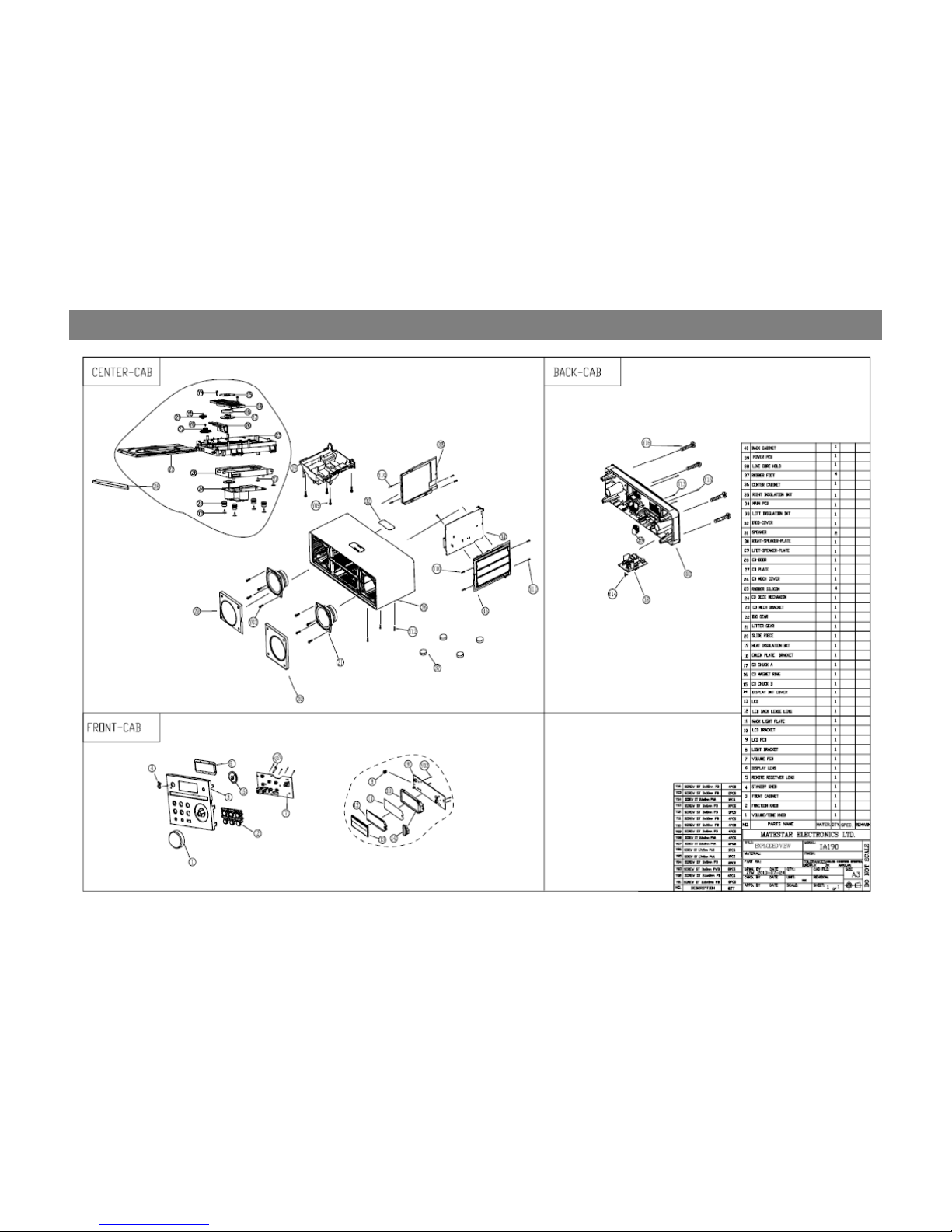

Explodedview

BOMཊ㓗ኅᔰ
Level Material Code Brief Description Unit
Quantity
Made
.1 151-230230-181 IA-100 POWER CORD PCS 1.0000
.1 154-359850-455 JZ3.5-365-11H SPEAKER(IA150) PCS 2.0000
.1 222-250150-120 FERRITE BEAD 25×15×12mm PCS 1.0000
.1 234-102245-250 2PINS "JST" 2.5mm RD-N1 HSG PCS 1.0000
.1 234-102245-400 2PINS "JST" 2.5mm #24 400mm HSG PCS 1.0000
.1 238-126080-602 SCREW 2.6×8mm PB PCS 2.0000
.1 238-126080-602 SCREW 2.6×8mm PB PCS 4.0000
.1 238-126080-602 SCREW 2.6×8mm PB PCS 8.0000
.1 238-126080-631 SCREW 2.6×8mm PWA PCS 2.0000
.1 238-126080-631 SCREW 2.6×8mm PWA PCS 2.0000
.1 238-126080-631 SCREW 2.6×8mm PWA PCS 4.0000
.1 238-130060-602 SCREW 3×6mm PB PCS 2.0000
.1 238-130080-602 SCREW 3×8mm PB PCS 4.0000
.1 238-130080-602 SCREW 3×8mm PB PCS 2.0000
.1 238-130080-602 SCREW 3×8mm PB PCS 3.0000
.1 238-130080-602 SCREW 3×8mm PB PCS 2.0000
.1 238-130080-632 SCREW 3×8mm PWB PCS 8.0000
.1 238-130100-602 SCREW 3×10mm PB PCS 3.0000
.1 238-130150-602 SCREW 3×15mm PB PCS 4.0000
.1 356-110003-091 MECHANISM DA11VF CD DECK PCS 1.0000
.1 360-055133-012 RF-300C-10500 MOTOR PCS 1.0000
.1 603-010001-000 LABEL PCS 1.0000
.1 603-010002-000 LABEL PCS 1.0000
.1 603-050001-000 LABEL PCS 3.0000
.1 603-090004-000 LABEL IA180 PCS 1.0000
.1 603-170049-000 IA180 BACK LABEL PCS 1.0000
.1 603-170050-000 IA180 BACK LABEL PCS 1.0000
.1 603-900267-000 LABEL IA180 PCS 1.0000
.1 604-340005-100 IA180 BT BLACK TZH-04 PCS 1.0000
.1 730-180001-010 IA180BT(B) WATSON COLOR BOX PCS 1.0000
.1 731-180000-010 INSTRUCTION MANUAL IA180 PCS 1.0000
.1 G210-01800-05 P.C.B. UX-G210 TUNER BD. PCS 1.0000
..2 248-020110-011 UX-G110/XE TUNER COB.BD PCS 1.0000
..2 301-300005-016 0 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 1.0000
..2 301-301005-016 10 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 1.0000
..2 301-431035-016 10 KOHM +-5% SMT RESISTOR PCS 1.0000
..2 301-434735-016 47 KOHM +-5% SMT RESISTOR PCS 1.0000
..2 302-402205-550 22PF/50V +-5% 0402 SMT C.CAP PCS 1.0000
..2 302-441041-150 0.1UF/50V +-10% 0402 SMT C.CAP PCS 1.0000
..2 310-004705-120 IC FOR SMT BGA SI4705-D60-GMR PCS 1.0000
.1 MIA18-DISP-EU0 P.C.B.IA180BT DISPLAY BD PCS 1.0000
..2 206-108330-001 DIODE RECEIVER SIR8330L PCS 1.0000
..2 217-060650-500 H=5.0mm W=6×6mm 2P SWITCH FOR TACT PCS 1.0000
..2 220-000125-026 DISPLAY FOR LCD RD-N1/IA100/IA150 PCS 1.0000
..2 227-080300-800 LED 3MM 㓒㓒ᲞӞ䮯㝊 PCS 1.0000
..2 227-080500-042 LED 5MM ⲭⲭ䎵儈Ӟ䮯㝊 PCS 1.0000
..2 232-130190-110 HEADER FOR FFC 13 PINS 1.0mm R PCS 1.0000
..2 233-041200-020 HEADER FOR 4 PINS 2.0mm R PCS 1.0000
..2 247-030180-003 IA180BT DISPLAY BD.PCB PCS 1.0000
..2 301-100005-014 RESISTOR SMT 1206 0 OHM +-5% 1/4W PCS 1.0000
..2 301-300005-016 0 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 1.0000
..2 301-311015-016 100 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 4.0000
..2 301-313915-016 390 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 1.0000
Page 1

BOMཊ㓗ኅᔰ
..2 301-321025-016 1 KOHM +-5% 1/16W 0603 SMT RESISTOR PCS 2.0000
..2 301-322225-016 2.2 KOHM +-5% 1/16W 0603 SMT RESISTOR PCS 1.0000
..2 301-325625-016 5.6 KOHM +-5% 1/16W 0603 SMT RESISTOR PCS 1.0000
..2 301-331035-016 10 KOHM +-5% 1/16W 0603 SMT RESISTOR PCS 4.0000
..2 301-335635-016 56 KOHM +-5% 1/16W 0603 SMT RESISTOR PCS 1.0000
..2 301-341045-016 100 KOHM +-5% 1/16W 0603 SMT RESISTOR PCS 3.0000
..2 302-161062-216 10UF/16V +-20% SMT C.CAP PCS 1.0000
..2 302-311015-550 100PF/50V +-5% 0603 SMT C.CAP PCS 6.0000
..2 302-341041-150 0.1UF/50V +-10% 0603 SMT C.CAP PCS 4.0000
..2 307-008050-030 TRANSISTOR FOR SMT S8050M-C SOT-23 PCS 1.0000
..2 310-008862-900 IC FOR SMT ET8862 PCS 1.0000
.1 MIA18-MIAN-EU0 P.C.B IA180BT MAIN BD PCS 1.0000
..2 004-061062-250 10 UF/50V +-20% ELECT CAP PCS 3.0000
..2 004-062262-250 22 UF/50V +-20% ELECT CAP PCS 13.0000
..2 004-064762-216 47 UF/16V +-20% ELECT CAP PCS 11.0000
..2 004-071072-216 100 UF/16V +-20% ELECT CAP PCS 5.0000
..2 004-072272-210 220 UF/10V +-20% ELECT CAP PCS 2.0000
..2 004-074772-210 470 UF/10V +-20% ELECT CAP PCS 2.0000
..2 004-074772-216 470 UF/16V +-20% ELECT CAP PCS 1.0000
..2 005-046841-199 0.68UF 100V +-10% MYLAR CAP˄・ᔿ㕆ᑖ˅ PCS 2.0000
..2 203-082216-202 2200 UF/16V +-20% ELECT CAP PCS 2.0000
..2 207-000772-250 TRANSISTOR 2SB772-P TO-126 PCS 2.0000
..2 207-008550-020 TRANSISTOR S8550-C TO-92 HFE120-200 PCS 1.0000
..2 210-007809-039 IC CD7809CS PCS 1.0000
..2 226-003300-001 CHOKE COIL 33uH CHOKE COIL PCS 1.0000
..2 226-003300-002 RLC1012-330M-LF 33 CHOKE COIL PCS 6.0000
..2 229-169344-205
CRYSTAL 16.9344 MHZ 20PF ±20PPM HC-49S 㓨㕆
PCS 1.0000
..2 229-327680-200 CRYSTAL 32.768 KHZ 12.5PF +-20PPM 3*8MM PCS 2.0000
..2 232-130190-110 HEADER FOR FFC 13 PINS 1.0mm R PCS 1.0000
..2 232-160190-310 HEADER FOR FFC 16 PINS 1.0mm V PCS 1.0000
..2 233-020200-025 HEADER FOR 2 PINS 2.5mm V PCS 2.0000
..2 233-041200-020 HEADER FOR 4 PINS 2.0mm R PCS 2.0000
..2 233-050200-020 HEADER FOR 5 PINS 2.0mm V PCS 1.0000
..2 233-051200-020 HEADER FOR 5 PINS 2.0mm R PCS 1.0000
..2 233-060200-020 HEADER FOR 6 PINS 2.0mm V PCS 1.0000
..2 235-130070-210 CABLE FOR FFC 13 PINS 70mm 1.0mm B PCS 1.0000
..2 235-160220-110 CABLE FOR FFC 16 PINS 1.0mm 220mm A PCS 1.0000
..2 242-000010-001 ཙ㓯ᨂᓗIF-01 PCS 1.0000
..2 244-104265-100 4PINS "JST" 2.5mm 100mm 26# HSG PCS 1.0000
..2 244-205180-100 5PINS "JST" 2.0mm RD-N1 HSG PCS 1.0000
..2 244-406280-150 6PINS 2.0mm 150mm 28# HSG PCS 1.0000
..2 247-030180-002 IA180BT MAIN BD PCB PCS 1.0000
..2 301-300005-016 0 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 10.0000
..2 301-301005-016 10 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 5.0000
..2 301-301505-016 15 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 1.0000
..2 301-302205-016 22 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 3.0000
..2 301-303305-016 33 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 2.0000
..2 301-304705-016 47 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 1.0000
..2 301-311015-016 100 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 8.0000
..2 301-313315-016 330 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 4.0000
..2 301-314715-016 470 OHM +-5% 1/16W 0603 SMT RESISTOR PCS 1.0000
..2 301-321025-016 1 KOHM +-5% 1/16W 0603 SMT RESISTOR PCS 29.0000
..2 301-322025-016 2 KOHM +-5% 1/16W 0603 SMT RESISTOR PCS 6.0000
..2 301-322225-016 2.2 KOHM +-5% 1/16W 0603 SMT RESISTOR PCS 2.0000
..2 301-323325-016 3.3 KOHM +-5% 1/16W 0603 SMT RESISTOR PCS 2.0000
..2 301-323925-016 3.9 KOHM +-5% 1/16W 0603 SMT RESISTOR PCS 3.0000
Page 2
