Daewoo XL-115 User manual

Service Manual
MINI COMPONENT SYSTEM
Model :
DAEWOO ELECTRONICS CO., LTD.
XL-115

Table of Contents
- 1 -
SAFETY PRECAUTIONS......................................................................................... 2
ADJUSTMENTS....................................................................................................... 4
EXPLODED VIEW AND PARTS LIST ...................................................................... 5

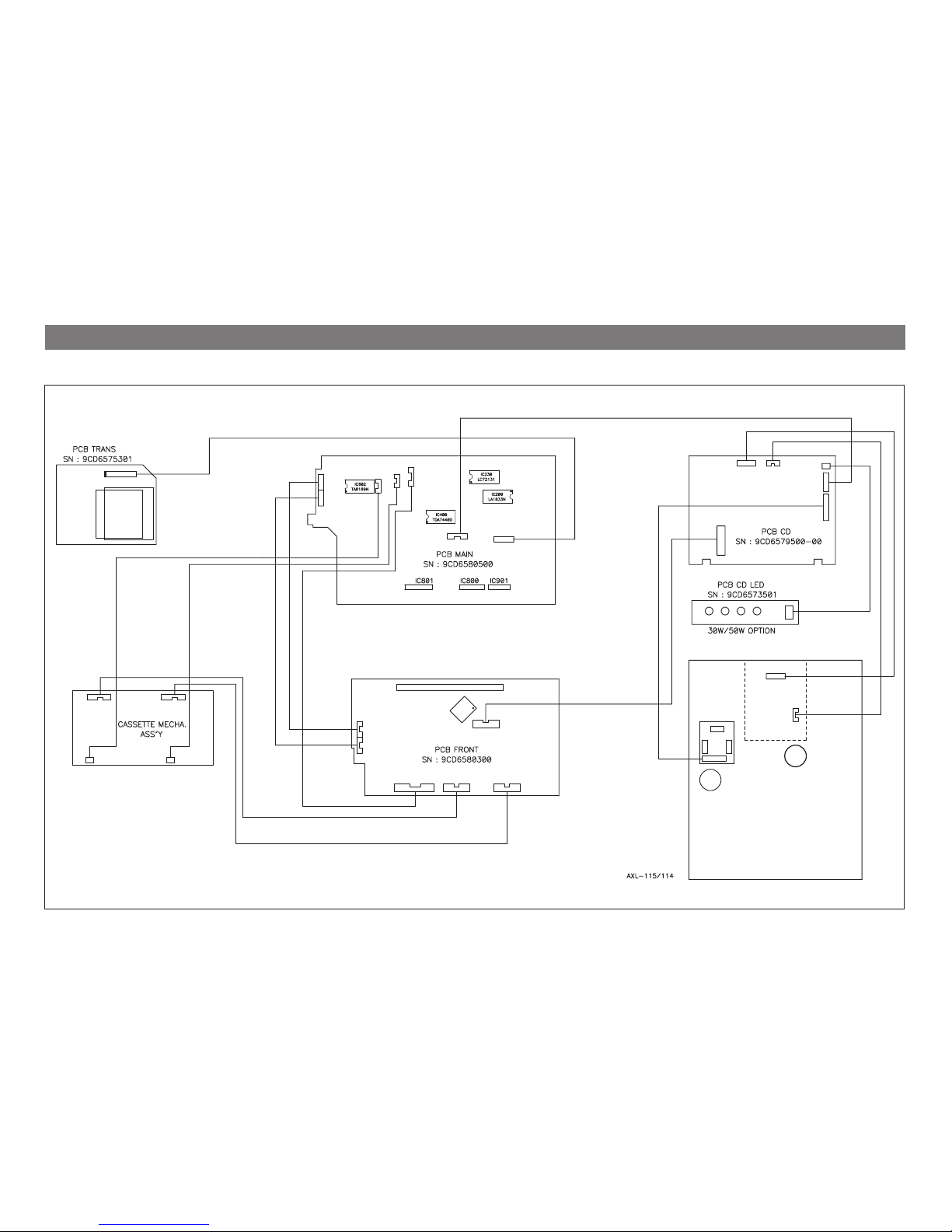

WIRING DIAGRAM................................................................................................... 7

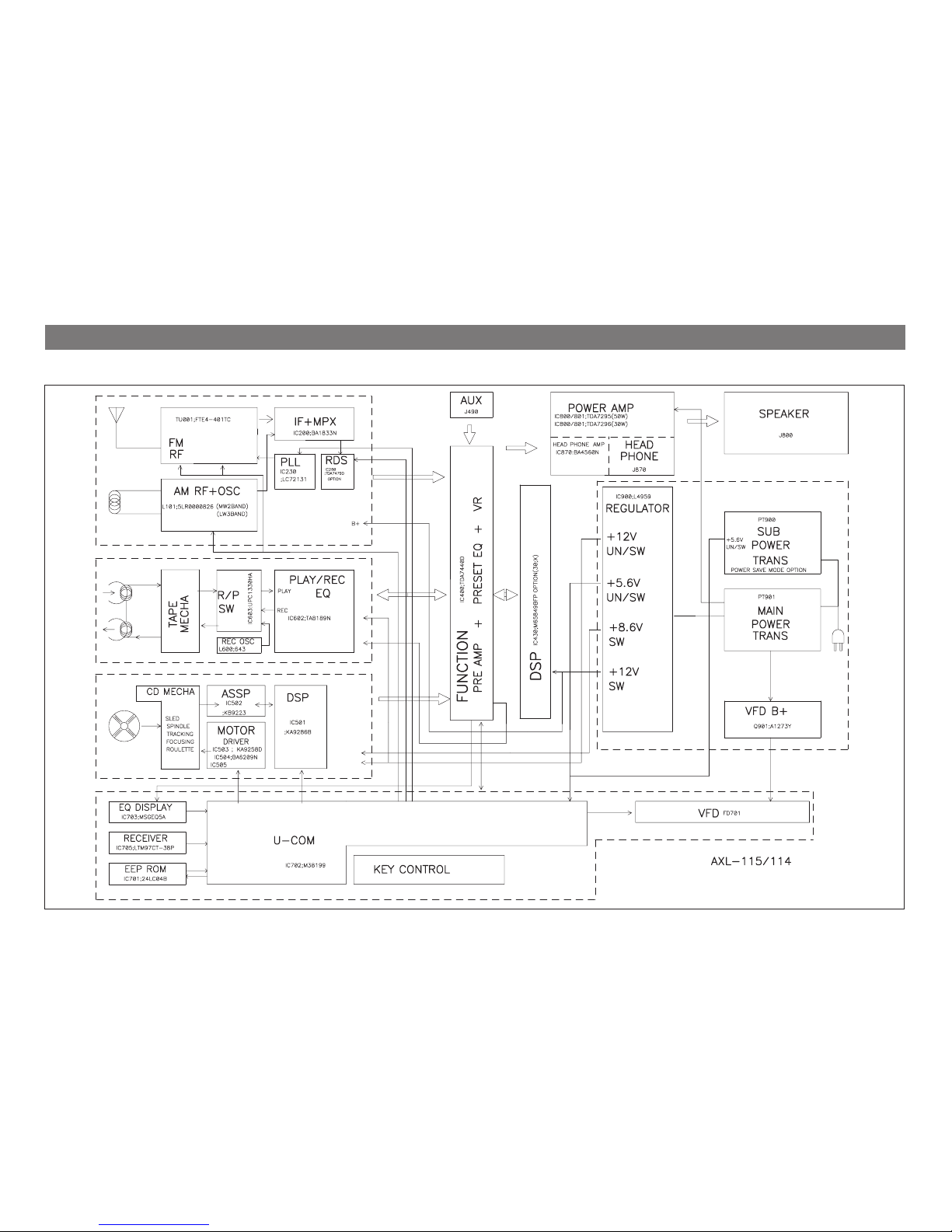

BLOCK DIAGRAM.................................................................................................... 8

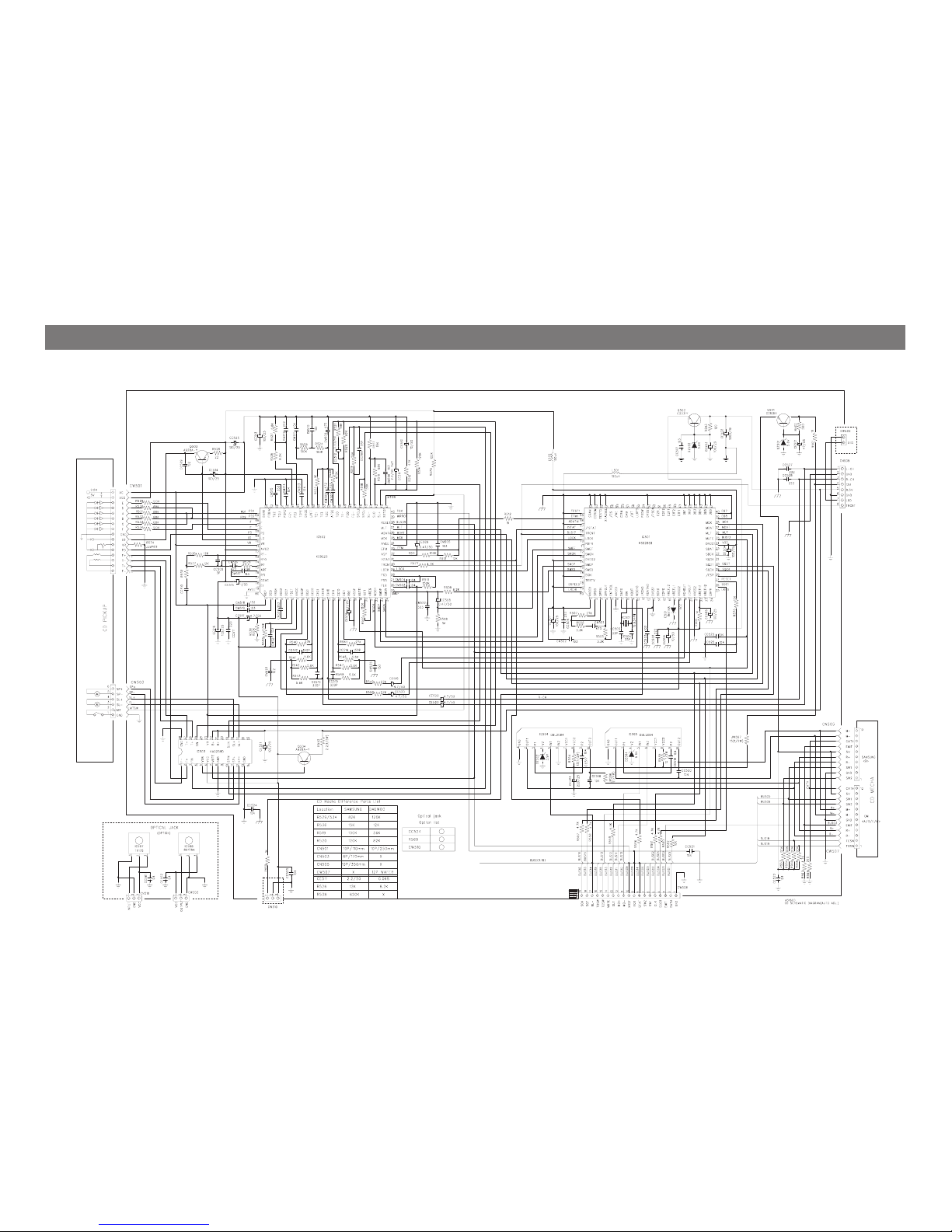

SCHEMATIC DIAGRAM ........................................................................................... 9
POWER / AMP /TUNER / TAPE................................................................................................................................. 9
CD .....................................................................................................................................................10
CONTROL ........................................................................................................................................ 11

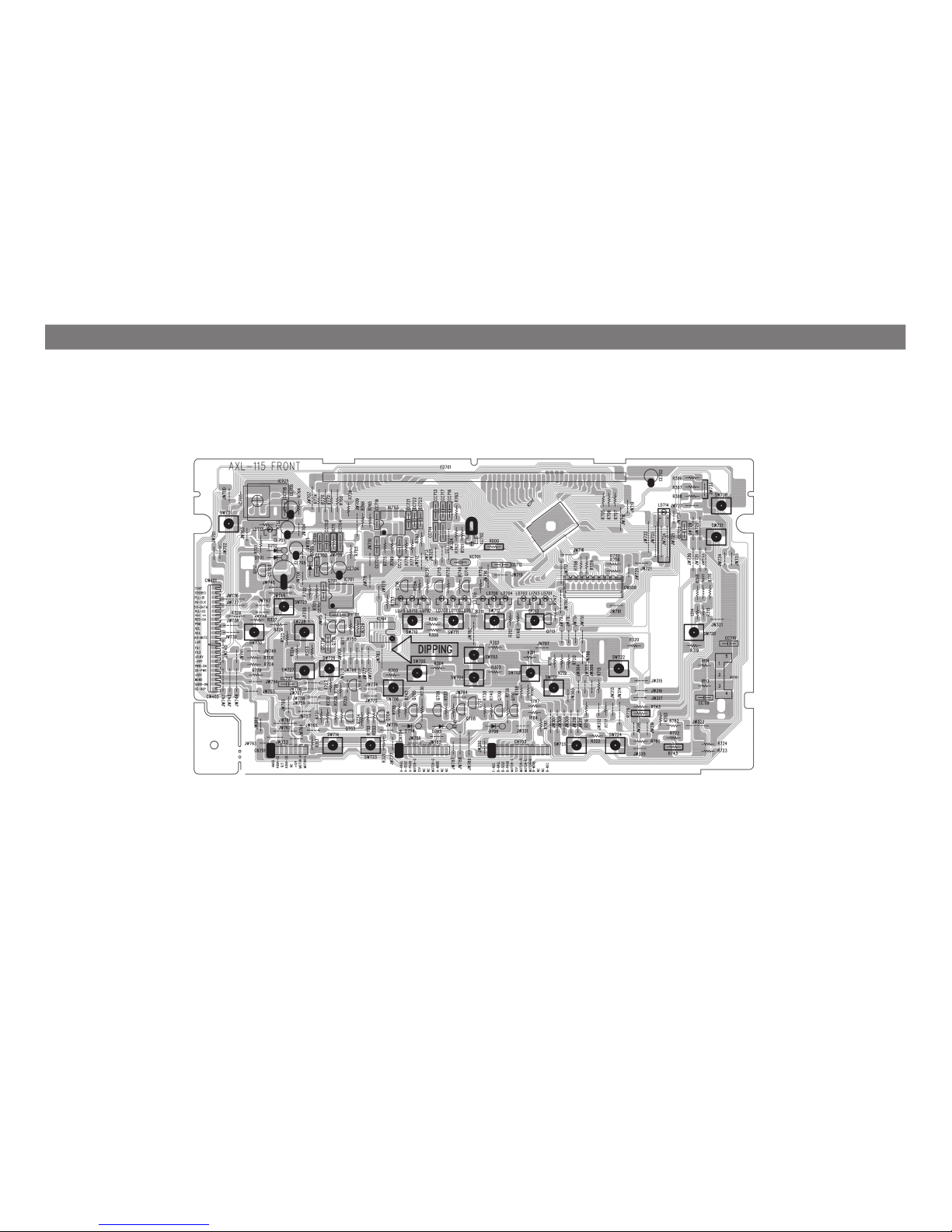

PCB PATTERN LAYOUT ........................................................................................ 12
ELECTRICAL PART LIST ....................................................................................... 16
MINI COMPONENT SYSTEM
XL-115

Safety Precautions
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION : TO REDUCE THE RISK IF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE"
WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE APPLIANCE.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
LASER SAFETY
THIS UNIT EMPLOYS A LASER. ONLY QUALIFIED SERVICE PERSONNEL
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY.
CAUTION : USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION : POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON-
DANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
Important Safety Instructions
- All the safety and operating instructions should be read before
the appliance is operated.
- The safety and operating instructions should be retained for
future reference.
- All warnings on the appliance and in the operating instructions
should be adhered to.
- All operating and use instructions should be followed.
1. Water and Moisture - The appliance should not be
used near
water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool,
and the like. 2. Carts and Stands - The appliance
should be used only with a cart or
stand that is recommended by th
manufacturer.
3. An appliance and cart combination
should
be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and
cart combination to overturn.
4. Wall or Ceiling Mounting - The appli-
ance
should be mounted to a wall or
ceiling
only as recommended by the manufacturer.
5. Ventilation - The appliance should be situated so
that its
location or position does not interfere with
its proper
ventilation. For example, the appliance
should not be situated
on a bed, sofa, rug, or
similar surface that may block the
ventilation
openings; or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
6. Heat - The appliance should be situated away from heat
sources such as radiators, heat registers,
stoves, or other
appliances (including amplifiers) that
produce heat.
7. Power Sources - The appliance should be
connected to a
power supply only of the type
described in the operating
instructions or as marked
on the appliance.
8. Grounding or Polarization - The precautions that
should be
taken so that the grounding or
polarization means of an
appliance is not defeated.
9. Power - Cord Protection - Power-supply cords
should be
routed so that they are not likely to be
walked on or pinched
by items placed upon or
against them, paying particular
attention to cords at
plugs, convenience receptacles, and the
point where
they exit from the appliance.
10.Protective Attachment Plug - If the appliance is equipped with
an attachment plug having overload
protection. This is a
safety feature.
See Instruction Manual for replacement or
resetting of
protective device. If replacement of the plug is
required, be sure the
service technician has used a
replacement plug
specified by the manufacturer that has the
same overload protection as the original plug.
11.Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
12.Power Lines - An outdoor antenna should be located
away
from power lines.
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN
PORTABLE CART
Figure 2
- 2 -

Safety Precautions
13.Outdoor Antenna Grounding - If an outside antenna is
connected to the receiver be sure the antenna
system is
grounded so as to provide some protection against voltage
surges and built-up static
charges. Article 810 of the National
Electrical Code,
ANSI/NFPA 70, provides information with
regard to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna-dis
charge unit, size of grounding conductors,location of antenna-
discharge unit, connection to grounding electrodes and
requirements for the grounding electrode. See Figure 1.
14.Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left
unused for a long period
of time.
15.Object and Liquid Entry - Care should be taken so
that objects
do not fall and liquids are not spilled into the enclosure through
openings.
16.Damage Requiring Service - The appliance should
be
serviced by qualified service personnel when:
a) The power-supply cord or the plug has been
damaged; or
b) Objects have fallen, or liquid has been spilled
into the
appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate
normally or
exhibits a marked change in
performance; or
e) The appliance has been dropped, or the
enclosure
damaged.
17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.
All other servicing
should be referred to qualified service
personnel.
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA LEAD
INWIRE
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
GROUNDINGCONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
EXAMPLE OF ANTENNA
GROUNDING
NEC - NATIONAL ELECTRICAL CODE
- 3 -

- 4 -
Adjustments
1. TAPE SECTION
Test Tape be used
HEAD ADJUSTMENT (AZIMUTH)
1. 10KHz test tape(example: MTT-114N) must be used for this adjustment.
2. Connect to VTVM or oscilloscope to the headphone jack or speaker terminal.
3. Press the play button.
4. Adjust the azimuth by using a screw driver to maintain the max. L&R output voltage.
5. Adjust tape A(1), tape B(2) respectively, Please secure the azimuth position by using locking paint.
RECORDING BIAS OSCILLATOR FREQUENCY ADJUSTMENT
1. Connect the frequency counter to TP603, GND.
2. Press the REC button.
3. Adjust L603 to obtain 80 KHz ± 100Hz
Tape Contents Use
MTT-111N 3 KHz Tape Speed Adjustment
MTT-114N 10 KHz Head Azimuth Adjustment
MTT-5511 Blank Record Frequency Property
VTVM
Scope
R-CH
L-CH
47 kohm
47 kohm
Input Level
Measurement
Point
Input Point
Output Level
Measurement
Point
TAPE ALIGNMENT CHART
Step Item Reference Value Test Tape Adjust Point Test Point Note FIG.
1Tape Speed
Adjustment
Normal
3,015~3,025Hz MTT-111N RV601 Line Out L/R
Channel Confirm Wow & Flut- ter is within 0.35% FIG.1
3,000~3,010Hz MTT-111N RV601 Line Out L/R
Channel
Confirm Tape Speed
of end position after
adjustment at tape
start position
FIG.1
High 5,820~6,180Hz MTT-111N - - - - - - Shorted TP601,
TP602
Confirm High speed
after normal speed
adjustment FIG.1
2Azimuth Adjustment Maximum Level
Phase:Within90° MTT-114N Head Screw Line Out L/R
Channel FIG.2,3,4
3Recording Bias Oscilla-
tor Frequency Adjust-
ment 80 KHz±0.5 MTT-5511 L603 TP603,GND Adjust with frequency
counter connected. FIG.1
FIG. 1 : Tape Speed & Record Bias Oscillator
Frequency Adjust Circuit
Test Tape : MTT-111N(3kHz)
MTT-5511(Blank) Frequency Counter
Output Level
Measurement Point
Set
FIG. 2 : Tape Azimuth Adjust Location
(Record/Playback Head)
FIG. 3 : Tape Azimuth Adjust Head Screw & Waveform FIG. 4 : Tape Azimuth Adjust Circuit & Waveform
Forward
Side Reverse
Side
Adjust with Frequency
Counter Connected
L-CH
Peak
R-CH
Peak
Screw
Angle
Output Level
within
1 dB
within
1 dB
L-CH
Peak R-CH Peak Screw Angle
VH
Oscilloscope
L-CH
Output Level
Measurement Point
Set
Test Tape
MTT-114N
(10kHz)
Screen Pattern
In Phase 45 90 135 180
Good Wrong

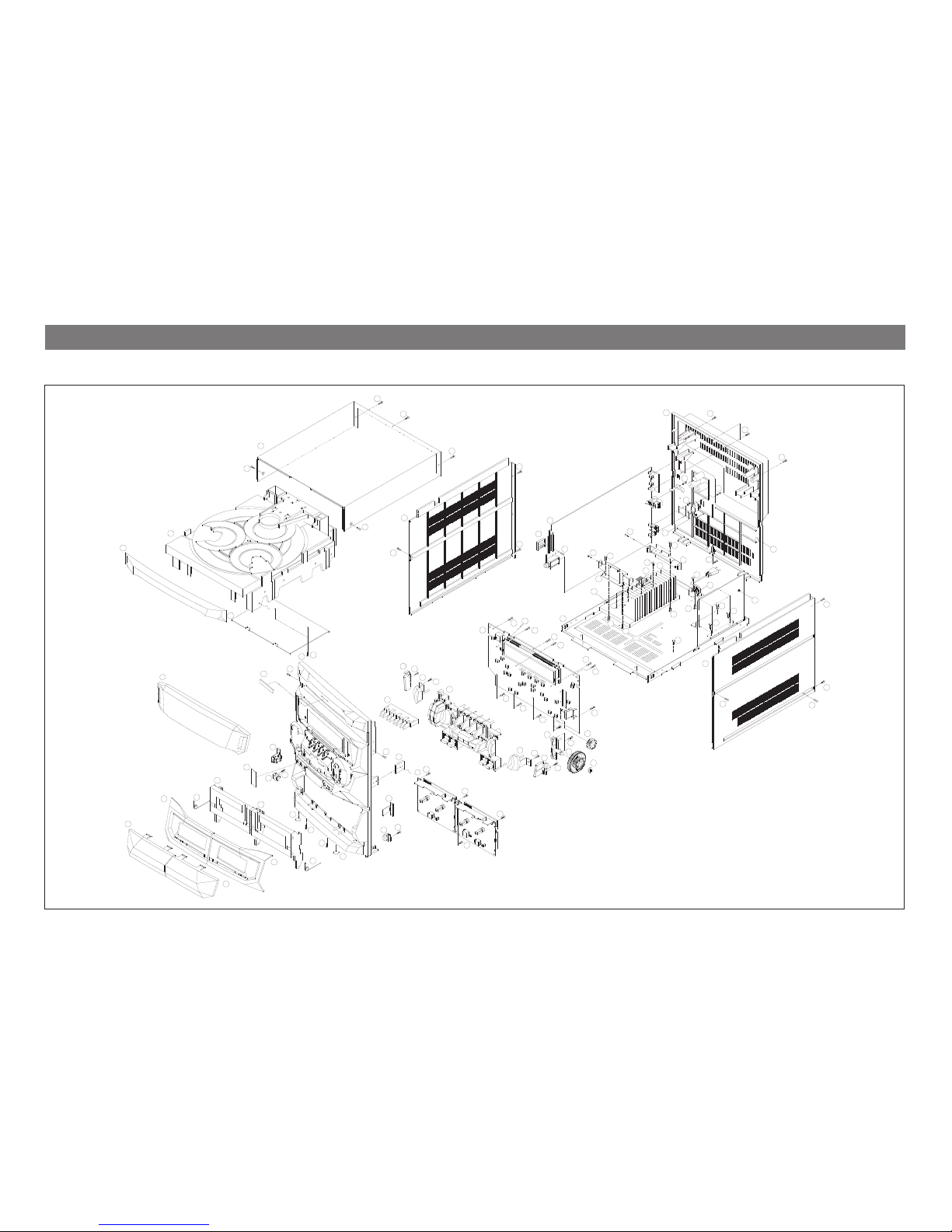

Exploded View and Mechanical Parts List
Model No : XL-115
S3
S3
S3
S3
23
13
1
2
4
12
11
S2
22
16
17
25
27
35
P3
S2
S2
S2
S2
S2
S3
S3
S3
S3
S3
3
24
S3
S3
26
40
28
S6
S4
S4
S4
S2
P4
10
14
18
P5
37
P1
S1
S1
S1
S1
XL-115R
8
19
S2
P2
S7 36
36
S5
S5
S2
S2
39
38
5
S2
S2
S2
S2
S3
S3
S3
S3
S3
S5
15
S3
S3
S1
S1
S1
S1
S1
S1
S1
6
S2
S2
7
S2
S2
20
S3
S2
S2
S1
9
9
10
14
11
21
29
31
32
30
33
34
S2
S2
11
- 5-

NO PARTS NAME PARTS CODE DESCRIPTION Q'TY REMARKS NO PARTS NAME PARTS CODE DESCRIPTION Q'TY REMARKS
1 WINDOW DOOR "A" 9CD18173A0 ACRYL 1 33 COVER SIDE "R" 9CD0410000 MIPS 1
2 WINDOW DOOR "B" 9CD18173B0 ACRYL 1 34 CHASSIS BOTTOM 9CD0607100 SECC 1
3 DOOR COVER "A" 9CD18122A0 MIPS 1 35 COVER BACK 9CD0411100 MIPS 1
4 DOOR COVER "B" 9CD18122B0 MIPS 1 36 BRKT HEAT SINK 9CD2414600 SECC 1.0T 2
5 SPRING DOOR EJECT "L" 9CD30078A0 STS 1 37 HEAT SINK N50 9CD4405800 AL 7.0T 1
6 SPRING DOOR EJECT "R" 9CD30078B0 STS 1 38 PLATE MICA "A" 9CD0910600 MICA 2
7 DOOR FRAME "A" 9CD18113A0 ABS 1 39 BRKT HEAT SINK 9CD2414400 STS 0.3T 1
8 DOOR FRAME "B" 9CD18113B0 ABS 1 40 HOLDER AC CORD 9CD2303300 ABS 1
9 LOCKER ASS'Y 2
10 DAMPER ASS'Y 2
11 CUSHION FOOT 9CD4207700 URETHAN RUBBER 3 S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 X 10 MFZN 15
12 BADGE DAEWOO 9CD1500900 ABS 1 S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0 X 10 MFZN 22
13 PLATE LED 9CD0911700 PVC 0.5T 1 S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0 X 12 BK 19
14 BRKT SIDE 9CD2412900 MIPS 2 S4 SCREW TAPTTITE 7173301612 TT2 BIN 4.0 X 6 MFZN 4
15 PANEL FRONT 9CD0308200 MIPS 1 S5 SCREW TAPTTITE 7173400611 TT2 BIN 3.0 X 6 MFZN 5
16 WINDOW FLT 9CD1617400 ACRYL 1 S6 SCREW WASHER 9CD3102400 TT2 BIN 3.0 X 10 + D14 1
9CD6007700 ADR-243DSW AUTO STOP S7 SCREW WASHER 9CD3102401 TT2 BIN 3.0 X 8 + D10 4
9CD6007800 ADR-243AMW AUTO REVERSE
18 LENS FUNCTION 9CD1617500 ACRYL 1
19 KNOB POWER 9CD1341800 MIPS 1 P1 PCB CD
9CD6574300
9CD6574800
197X123X1.6T 1
FR
-
3
DCC
-
01B
20 KNOB DEMO 9CD1341700 MIPS 1 P2 PCB FRONT 9CD6583000 247X139X1.6T 1
21 KNOB UBS "L" 9CD13419L0 MIPS 1 P3 PCB MAIN 9CD6580500 319X197X1.6T 1
22 KNOB UBS "R" 9CD13419R0 MIPS 1 P4 PCB POWER 9CD6580600 106.5X88X1.6T 1
23 KNOB CONTROL 9CD1341600 MIPS 1 P5 PCB OPTICAL JACK 9CD6577800 29X21.5X1.6T 1
24 HOLDER VOLUME 9CD2304200 MIPS 1
25 KNOB VOLUME 9CD1342000 MIPS 1
26 GEAR VOLUME 9CD2701700 POM 1
27 SHAFT STOPPER 9CD3601800 POM 1
28 GUIDE FLT 9CD2506700 ABS 1
29 DOOR CD 9CD1812100 MIPS 1
30 CD DECK MECHA 9CD6006900 DCC-01B 1
31 COVER TOP 9CD0409600 MIPS 1
32 COVER SIDE "L" 9CD0409900 MIPS 1
17 CASSETTE DECK 1
Exploded View and Mechanical Parts List
-6-

WIRING DIAGRAM
Model No: XL-115
PLAY
HEAD R/P HEAD
CW703
SN : 9738804300 7P 350MM
SN : 9738835000 3P 260MM
CW704
CW401
CW402
10P CONN PINSN : 9736407800
SN : 9736407600 13P CONN PIN SN : 9738833700 8P 220MM
FD701
CW508
IC702
CN703CN704CN701
SN : 9738834000 11P 150MM
SN : 9738834100 13P 100MM
50W 30W
CW900
SN:9728804100 10P 300MM(W/POWER SAVE MODE)
SN:9738833900 8P 300MM(W/O/POWER SAVE MODE)
CN401
CN400
FUNCTION
CW600
CW602
CW601
TUNER
CW400 CN900
SN:9738832101 7P 250MM
CW503CW501
CW508
CW507
CN509
CW502
SN:9738840900 19P 110MM
CN502
SN:9738840800 16P 250MM
CN502 SN:9738824100 2P 400MM
- 7-

BLOCK DIAGRAM
Model No:XL-115
- 8 -

Schemetic Diagram
Model No : XL-115
Ass'y Name : AMP/TUNER/TAPE
DA CE CK DO XIN NC
PD1 VSS
AM/FM
XOUT
VDD
FMIN
IFIN
FM
SD
AMIN
NC
ST/MO
IF REQ
LW
S-CURVE
AM/FM
IF
BUFF
304KHz 19K 19K 0
1612 3 6 145 13
811 7124 910 15
VDD1
R/DATA
QUAL
R/CLK
CLOCK
VSS1 ANALOG
V REF
VSS2 VSS3
PLL
1187.5Hz
PLL 57KHz
RDS/ARI
anti
aliasimg
8th switched
capacitor
filter
comparator
BIPHASE
DECODER
TEST
Differential
DECODER
ALC
- 9 -

Schemetic Diagram
Model No : XL-115
Ass'y Name: CD
- 1 0 -

Schemetic Diagram
Model No:XL-115
Ass'y Name: Control
- 11 -

P.C.B Pattern Layout
- 12 -
Model No:XL-115
Ass'y Name: MAIN PCB

Model No : XL-115
Ass'y Name : CD P.C.B
P.C.B Pattern Layout
- 13 -

Model No : XL-115
Ass'y Name : Front PCB
- 14 -
P.C.B Pattern Layout

P.C.B Pattern Layout
Model No:XL-115
Ass'y Name: POWER PCB
- 15 -

- 16-
Electrical Parts List
NO LOCATION PART-NAME PART-CODE PART-DESC REMARK NO LOCATION PART-NAME PART-CODE PART-DESC REMARK
1
11000
PCB CD AS (S/S)
9CDC053400
AMI-516DPN
68
D501
DIODE
DZN4148---
1N4148 AUTO 52MM
2
B501
PCB CD
9CD6579500
197X247X1.6T
69
DZ501~502
DIODE ZENER
DZTZ5R6A--
MTZ-5.6 52MM TAPPING
3
BD501
CORE BEAD
9768602000
H.B-T15X25X13ON
70
DZ503
DIODE ZENER
DZTZ3R9B--
MTZ3.9B
4
CC500
C CERA
CXCH1H309C
50V CH 3PF C
71
DZ504
DIODE ZENER
DZTZ5R6A--
MTZ-5.6 52MM TAPPING
5
CC501
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
72
IC501
IC CHIP DSP
1KS9286B--
KS9286B DSP+DAC
6
CC502
C CERA
CCXF1H223Z
50V F 0.022MF Z (TAPPING)
73
IC502
IC CHIP RF
1KB9223---
KB9223 RF+SSP+AF
7
CC503
C CERA
CCXB1H102K
50V B 1000PF K (TAPPING)
74
IC503
IC CHIP
1KA9258D--
KA9258D
8
CC504~505
C CERA
CXCH1H330J
50V CH 33PF J (TAPPING)
75
IC504~505
IC
1DBL2084--
DBL2084(D/W)
9
CC506
C CERA
CCXF1H223Z
50V F 0.022MF Z (TAPPING)
76
JW501~502
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
10
CC508
C CERA
CXCH1H330J
50V CH 33PF J (TAPPING)
77
JW503
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
11
CC509
C CERA
CCXB1H102K
50V B 1000PF K (TAPPING)
78
JW504~510
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
12
CC511
C CERA
CCXF1H223Z
50V F 0.022MF Z (TAPPING)
79
JW511
WIRE JUMPER
W581GY12J5
AWG22 1/0.65 SN 12.5 AUTO
13
CC512
C CERA
CCXB1H151K
50V B 150PF K (TAPPING)
80
JW512
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
14
CC513
C CERA
CCXB1H331K
50V B 330PF K (TAPPING)
81
JW513
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
15
CC514
C CERA
CCXB1H151K
50V B 150PF K (TAPPING)
82
JW514~516
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
16
CC515
C CERA
CCXB1H331K
50V B 330PF K (TAPPING)
83
JW517~519
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
17
CC517~526
C CERA
CCXF1H104Z
50V F 0.1MF Z
84
JW520
WIRE JUMPER
W581GY12J5
AWG22 1/0.65 SN 12.5 AUTO
18
CC527~528
C CERA
CCXB1H222K
50V B 2200PF K (TAPPING)
85
JW521~523
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
19
CE501
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
86
JW524
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
20
CE502
C ELECTRO
CEYF1C102V
16V RSS 1000MF (10X20)
87
JW525
WIRE JUMPER
W581GY12J5
AWG22 1/0.65 SN 12.5 AUTO
21
CE503~505
C ELECTRO
CEXF1E101V
25V RSS 100MF (6.3X11) TP
88
JW526
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
22
CE506
C ELECTRO
CEXF1H100V
50V RSS 10MF (5X11) TP
89
JW527
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
23
CE507
C ELECTRO
CEXF1E101V
25V RSS 100MF (6.3X11) TP
90
JW528~529
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
24
CE508~509
C ELECTRO
CEXF1H478V
50V RSS 0.47MF (5X11) TP
91
JW530~534
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
25
CE510
C ELECTRO
CEXF1H100V
50V RSS 10MF (5X11) TP
92
JW535
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
26
CE511
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
93
JW536~538
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
27
CE512
C ELECTRO
CEXF1H338V
50V RSS 0.33MF (5X11) TP
94
JW539
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
28
CE513~514
C ELECTRO
CEXF1E101V
25V RSS 100MF (6.3X11) TP
95
JW540
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
29
CE515
C ELECTRO
CEXF1H109V
50V RSS 1MF (5X11) TP
96
JW541
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
30
CE516
C ELECTRO
CEXF1E101V
25V RSS 100MF (6.3X11) TP
97
JW542
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
31
CE517
C ELECTRO
CEXF1H479V
50V RSS 4.7MF (5X11) TP
98
JW543
R CARBON FILM
RD-AZ472J-
1/6 4.7K OHM J
32
CE518
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
99
JW544~545
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
33
CE519~520
C ELECTRO
CEXF1H479V
50V RSS 4.7MF (5X11) TP
100
JW546
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
34
CE521
C ELECTRO
CEXF1E101V
25V RSS 100MF (6.3X11) TP
101
JW547
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
35
CE522~523
C ELECTRO
CEXF1H479V
50V RSS 4.7MF (5X11) TP
102
JW548
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
36
CE524
C ELECTRO
CEXF1E221V
25V RSS 220MF (8X11.5) TP
103
JW549~554
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
37
CE525~526
C ELECTRO
CEXF1E101V
25V RSS 100MF (6.3X11) TP
104
JW555
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
38
CM501
C MYLAR
CMXM1H473J
50V 0.047MF J
105
JW556
WIRE JUMPER
W581GY12J5
AWG22 1/0.65 SN 12.5 AUTO
39
CM502
C MYLAR
CMXM1H103J
50V 0.01MF J (TP)
106
JW557
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
40
CM503~504
C MYLAR
CMXM1H104J
50V 0.1MF J
107
JW558~559
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
41
CM505~506
C MYLAR
CMXM1H103J
50V 0.01MF J (TP)
108
JW560
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
42
CM507
C MYLAR
CMXM1H333J
50V 0.033MF J (TP)
109
JW561~562
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
43
CM508~509
C MYLAR
CMXM1H472J
50V 0.0047MF J
110
JW563~564
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
44
CM510
C MYLAR
CMXM1H103J
50V 0.01MF J (TP)
111
JW565
R CARBON FILM
RD-2Y150J-
1/2 15 OHM J
45
CM511
C MYLAR
CMXM1H104J
50V 0.1MF J
112
JW566
R CARBON FILM
RD-4Z109J-
1/4 1 OHM J
46
CM512
C MYLAR
CMXM1H222J
50V 2200PF J
113
JW567~575
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
47
CM513~514
C MYLAR
CMXM1H104J
50V 0.1MF J
114
JW576
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
48
CM515
C MYLAR
CMXM1H333J
50V 0.033MF J (TP)
115
JW577
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
49
CM516
C MYLAR
CMXM1H472J
50V 0.0047MF J
116
JW578
R CARBON FILM
RD-AZ472J-
1/6 4.7K OHM J
50
CM517
C MYLAR
CMXM1H103J
50V 0.01MF J (TP)
117
L501~502
COIL PEAKING
5CPZ101K02
100UH K (AXIAL 3.5MM)
51
CM518
C MYLAR
CMXM1H152J
50V 1500PF J
118
Q501
TR
TZTC3198Y-
KTC3198Y-(1815Y) (AUTO)
52
CM519
C MYLAR
CMXM1H103J
50V 0.01MF J (TP)
119
Q502
TR
TKSC2331Y-
KSC2331Y
53
CM520
C MYLAR
CMXM1H333J
50V 0.033MF J (TP)
120
Q503~504
TR
TKSA928AY-
KSA928A-Y
54
CM521
C MYLAR
CMXM1H103J
50V 0.01MF J (TP)
121
R501
R CARBON FILM
RD-AZ100J-
1/6 10 OHM J
55
CM522
C MYLAR
CMXM1H333J
50V 0.033MF J (TP)
122
R502
R CARBON FILM
RD-AZ561J-
1/6 560 OHM J
56
CM523
C MYLAR
CMXM1H152J
50V 1500PF J
123
R503
R CARBON FILM
RD-AZ121J-
1/6 120 OHM J
57
CM525
C MYLAR
CMXM1H152J
50V 1500PF J
124
R504
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
58
CN501
CONN AS
9738835600
FFC 16P P1.0X110MM R
125
R505~506
R CARBON FILM
RD-AZ332J-
1/6 3.3K OHM J
59
CN503
CONN AS
9738832900
#30 UL1007 6P 170 P=2.0
126
R507
R CARBON FILM
RD-AZ273J-
1/6 27K OHM J
60
CN505
CONN AS
9738832000
AWG26 10P 350 P=2.0 BR
127
R508
R CARBON FILM
RD-AZ105J-
1/6 1M OHM J
61
CN508
CONN AS
9738832400
FFT 19P 300MM P=1.25
128
R509
R CARBON FILM
RD-AZ822J-
1/6 8.2K OHM J
62
CN509
CONN AS
9738832101
8P 250 P=2.5 BOARDIN
129
R510
R CARBON FILM
RD-AZ154J-
1/6 150K OHM J
63
CW501
CONN WAFER
9CD6259300
52807-1610
130
R511
R CARBON FILM
RD-AZ104J-
1/6 100K OHM J
64
CW502
CONN WAFER
9CD6259600
2503-WS-2P
131
R512
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
65
CW503
CONN AS
9738832900
#30 UL1007 6P 170 P=2.0
132
R513
R CARBON FILM
RD-AZ123J-
1/6 12K OHM J
66
CW508
CONN WAFER
9736408400
52045-1945 19P
133
R514
R CARBON FILM
RD-AZ124J-
1/6 120K OHM J
67
CW510
CONN AS
9738841800
#26 400MM 3P 2.5P
134
R515
R CARBON FILM
RD-AZ473J-
1/6 47K OHM J

- 17 -
Electrical Parts List
NO LOCATION PART-NAME PART-CODE PART-DESC REMARK NO LOCATION PART-NAME PART-CODE PART-DESC REMARK
135
R516
R CARBON FILM
RD-AZ683J-
1/6 68K OHM J
28
CE708
C ELECTRO
CEXF1H100V
50V RSS 10MF (5X11) TP
136
R517
R CARBON FILM
RD-AZ153J-
1/6 15K OHM J
29
CN701
CONN AS
9738833700
#26 8P FLAT 220MM
137
R518
R CARBON FILM
RD-AZ563J-
1/6 56K OHM J
30
CN703
CONN AS
9738834100
#26 13P FLAT 100MM
138
R519
R CARBON FILM
RD-AZ104J-
1/6 100K OHM J
31
CN704
CONN AS
9738834000
#26 2.0PITCH 11P FLAT 150
139
R520
R CARBON FILM
RD-AZ124J-
1/6 120K OHM J
32
CW401
CONN WAFER
9736407700
52084-1310 13P BOTTOM
140
R521
R CARBON FILM
RD-AZ393J-
1/6 39K OHM J
33
CW402
CONN WAFER
9736407900
52084-1010 10P BOTTOM
141
R522
R CARBON FILM
RD-AZ474J-
1/6 470K OHM J
34
CW508
CONN WAFER
9736408300
52492-1920 19P BOTTOM
142
R523
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
35
D701
DIODE
DZN4148---
1N4148 AUTO 52MM
143
R524
R CARBON FILM
RD-AZ104J-
1/6 100K OHM J
36
D704
DIODE
DZN4148---
1N4148 AUTO 52MM
144
R525
R CARBON FILM
RD-AZ154J-
1/6 150K OHM J
37
D706~710
DIODE
DZN4148---
1N4148 AUTO 52MM
145
R526
R CARBON FILM
RD-AZ123J-
1/6 12K OHM J
38
D713
DIODE
DZN4148---
1N4148 AUTO 52MM
146
R527
R CARBON FILM
RD-AZ682J-
1/6 6.8K OHM J
39
FD701
VFD
DSVA09MS18
HNA-09MS18 (AMI-V225M)
147
R528
R CARBON FILM
RD-AZ220J-
1/6 22 OHM J
40
IC701
IC
138199727L
MICOM M38199-727L
148
R529
R CARBON FILM
RD-AZ823J-
1/6 82K OHM J
41
IC702
IC
1M24C04---
M24C04-BN6
149
R530~533
R CARBON FILM
RD-AZ683J-
1/6 68K OHM J
42
IC704
IC
1MSGEQ5A--
MSGEQ5A
150
R534
R CARBON FILM
RD-AZ823J-
1/6 82K OHM J
43
IC705
IC PRE AMP
1TM97CT38P
LTM97CT-38P
151
R536
R CARBON FILM
RD-AZ153J-
1/6 15K OHM J
44
IC706
IC
1BU4094BCF
BU4094BCF(SOP16)
152
R537
R CARBON FILM
RD-AZ123J-
1/6 12K OHM J
45
JW300
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
153
R538
R CARBON FILM
RD-AZ824J-
1/6 820K OHM J
46
JW301~303
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
154
R539
R CARBON FILM
RD-AZ474J-
1/6 470K OHM J
47
JW304
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
155
R540
R CARBON FILM
RD-AZ273J-
1/6 27K OHM J
48
JW305
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
156
R541~543
R CARBON FILM
RD-AZ562J-
1/6 5.6K OHM J
49
JW308~309
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
157
R544
R CARBON FILM
RD-AZ273J-
1/6 27K OHM J
50
JW313~318
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
158
R546~548
R CARBON FILM
RD-AZ562J-
1/6 5.6K OHM J
51
JW319
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
159
R549~550
R CARBON FILM
RD-AZ273J-
1/6 27K OHM J
52
JW320~323
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
160
R551
R CARBON FILM
RD-AZ184J-
1/6 180K OHM J
53
JW324
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
161
R552
R CARBON FILM
RD-2Y229J-
1/2 2.2 OHM J
54
JW325
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
162
R554
R CARBON FILM
RD-2Y150J-
1/2 15 OHM J
55
JW326
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
163
R555
R CARBON FILM
RD-2Y100J-
1/2 10 OHM J
56
JW327
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
164
R556~561
R CARBON FILM
RD-AZ472J-
1/6 4.7K OHM J
57
JW328
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
165
R562
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
58
JW329
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
166
R563~566
R CARBON FILM
RD-AZ104J-
1/6 100K OHM J
59
JW330~332
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
167
R567
R CARBON FILM
RD-AZ472J-
1/6 4.7K OHM J
60
JW333
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
168
R568
R CARBON FILM
RD-AZ101J-
1/6 100 OHM J
61
JW334~345
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
169
R569
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
62
JW346
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
170
R574
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
63
JW347
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
171
R575
R CARBON FILM
RD-AZ104J-
1/6 100K OHM J
64
JW348
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
172
R576
R CARBON FILM
RD-AZ392J-
1/6 3.9K OHM J
65
JW349
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
173
R577
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
66
JW351
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
174
XC501
RESONATOR CERA
5PCSA16R93
CSA16.93MXZ04
67
JW352~353
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
1
10
GUIDE FLT
9CD2505600
ABS
68
JW354
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
2
20
GEAR VOLUME
9CD2701700
ACETAL (POM) 1.2GR
69
JW355
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
3
12000
PCB FRONT AS
9CDC058500
AXL-114R
70
JW357~358
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
4
B701
PCB FRONT
9CD6583040
247X139X1.6T
71
JW359~362
WIRE JUMPER
W581GY12J5
AWG22 1/0.65 SN 12.5 AUTO
5
CC701
C CERA
CCXF1H223Z
50V F 0.022MF Z (TAPPING)
72
JW363
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
6
CC703
C CERA
CCXF1H104Z
50V F 0.1MF Z
73
JW364
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
7
CC704
C CERA
CCXF1H223Z
50V F 0.022MF Z (TAPPING)
74
JW368
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
8
CC705~706
C CERA
CCXF1H104Z
50V F 0.1MF Z
75
JW369
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
9
CC707~708
C CERA
CZCH1H101J
CH 50V 100PF J AXL 52MM
76
JW371~374
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
10
CC709
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
77
JW700~704
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
11
CC710
C CERA
CCXF1H104Z
50V F 0.1MF Z
78
JW706
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
12
CC711
C CERA
CZCH1H150J
50V CH 15PF J
79
JW707
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
13
CC712
C CERA
CZCH1H180J
50V CH 18PF J
80
JW708
WIRE JUMPER
W581GY12J5
AWG22 1/0.65 SN 12.5 AUTO
14
CC713~714
C CERA
CZCH1H330J
CH 50V 33PF J AXIAL 52MM
81
JW709~715
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
15
CC715
C CERA
CCXF1H223Z
50V F 0.022MF Z (TAPPING)
82
JW716
WIRE JUMPER
W581GY12J5
AWG22 1/0.65 SN 12.5 AUTO
16
CC716
C CERA
CZCH1H101J
CH 50V 100PF J AXL 52MM
83
JW717~718
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
17
CC717
C CERA
CCXF1H223Z
50V F 0.022MF Z (TAPPING)
84
JW719~721
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
18
CC718
C CERA
CZCH1H330J
CH 50V 33PF J AXIAL 52MM
85
JW722
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
19
CC719
C CERA
CZCH1H101J
CH 50V 100PF J AXL 52MM
86
JW723
WIRE JUMPER
W581GY1505
AWG22 1/0.65 GY 15 AUTO
20
CC720
C CERA
CCZB1H102K
50V B 1000PF K AXIAL
87
JW724
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
21
CC721~723
C CERA
CCXF1H104Z
50V F 0.1MF Z
88
JW725
WIRE JUMPER
W581GY12J5
AWG22 1/0.65 SN 12.5 AUTO
22
CC724
C CERA
CZCH1H101J
CH 50V 100PF J AXL 52MM
89
JW726
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
23
CC725
C CERA
CCXF1H104Z
50V F 0.1MF Z
90
JW727
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
24
CE702
C ELECTRO
CEXF1H109V
50V RSS 1MF (5X11) TP
91
JW728
WIRE JUMPER
W581GY12J5
AWG22 1/0.65 SN 12.5 AUTO
25
CE704
C ELECTRO
CEYF1A102V
10V 1000MF RSS 10X16
92
JW729
WIRE JUMPER
W581GY1505
AWG22 1/0.65 GY 15 AUTO
26
CE705
C ELECTRO
CEXF1E101V
25V RSS 100MF (6.3X11) TP
93
JW730~731
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
27
CE706~707
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
94
JW732
WIRE JUMPER
W581GY1505
AWG22 1/0.65 GY 15 AUTO

- 18 -
Electrical Parts List
NO LOCATION PART-NAME PART-CODE PART-DESC REMARK NO LOCATION PART-NAME PART-CODE PART-DESC REMARK
95
JW733~735
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
162
R313
R CARBON FILM
RD-AZ152J-
1/6 1.5K OHM J
96
JW736
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
163
R314
R CARBON FILM
RD-AZ272J-
1/6 2.7K OHM J
97
JW737
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
164
R315
R CARBON FILM
RD-AZ101J-
1/6 100 OHM J
98
JW738
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
165
R316
R CARBON FILM
RD-AZ331J-
1/6 330 OHM J
99
JW739
WIRE JUMPER
W581GY12J5
AWG22 1/0.65 SN 12.5 AUTO
166
R317
R CARBON FILM
RD-AZ472J-
1/6 4.7K OHM J
100
JW740
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
167
R318
R CARBON FILM
RD-AZ271J-
1/6 270 OHM J
101
JW741
WIRE JUMPER
W581GY12J5
AWG22 1/0.65 SN 12.5 AUTO
168
R319
R CARBON FILM
RD-AZ331J-
1/6 330 OHM J
102
JW742
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
169
R320
R CARBON FILM
RD-AZ391J-
1/6 390 OHM J
103
JW743
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
170
R321
R CARBON FILM
RD-AZ471J-
1/6 470 OHM J
104
JW744~745
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
171
R322
R CARBON FILM
RD-AZ561J-
1/6 560 OHM J
105
JW750~751
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
172
R323
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
106
JW752
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
173
R324
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
107
JW753
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
174
R701~702
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
108
JW755
WIRE JUMPER
W581GY1505
AWG22 1/0.65 GY 15 AUTO
175
R704
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
109
JW756~757
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
176
R709
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
110
JW758~759
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
177
R713~715
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
111
JW761
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
178
R716
R CARBON FILM
RD-AZ333J-
1/6 33K OHM J
112
JW762
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
179
R717
R CARBON FILM
RD-AZ683J-
1/6 68K OHM J
113
JW763
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
180
R718
R CARBON FILM
RD-AZ393J-
1/6 39K OHM J
114
JW764
WIRE JUMPER
W581GY1505
AWG22 1/0.65 GY 15 AUTO
181
R719~721
R CARBON FILM
RD-AZ152J-
1/6 1.5K OHM J
115
JW765~768
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
182
R722
R CARBON FILM
RD-AZ472J-
1/6 4.7K OHM J
116
JW769
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
183
R724
R CARBON FILM
RD-AZ223J-
1/6 22K OHM J
117
JW770~772
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
184
R725
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
118
JW773
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
185
R726
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
119
JW777
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
186
R727
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
120
JW778
WIRE JUMPER
W581GY1505
AWG22 1/0.65 GY 15 AUTO
187
R728~729
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
121
JW779
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
188
R730
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
122
JW780~784
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
189
R731~732
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
123
JW785
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
190
R733
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
124
JW786
WIRE JUMPER
W581GY6095
AWG22 1/0.65 SN 6 AUTO
191
R734
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
125
JW787~788
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
192
R735~736
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
126
JW790~792
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
193
R737
R CARBON FILM
RD-AZ222J-
1/6 2.2K OHM J
127
JW793
WIRE JUMPER
W581GY1505
AWG22 1/0.65 GY 15 AUTO
194
R738
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
128
JW794
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
195
R739
R CARBON FILM
RD-4Z689J-
1/4 6.8 OHM J
129
JW795
WIRE JUMPER
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO
196
R740
R CARBON FILM
RD-AZ222J-
1/6 2.2K OHM J
130
JW796~798
WIRE JUMPER
W581GY1005
AWG22 1/0.65 SN 10 AUTO
197
R741
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
131
LD701~702
LED
DLTL16KGE-
LTL-16KGE(GREEN)PI3.1
198
R742
R CARBON FILM
RD-AZ222J-
1/6 2.2K OHM J
132
LD703
LED
DLTL16KEE-
LTL-16KEE(RED)PI3.1
199
R743
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
133
LD704~705
LED
DLTL16KGE-
LTL-16KGE(GREEN)PI3.1
200
R744
R CARBON FILM
RD-4Z689J-
1/4 6.8 OHM J
134
LD706
LED
DLTL16KEE-
LTL-16KEE(RED)PI3.1
201
R745~746
R CARBON FILM
RD-AZ473J-
1/6 47K OHM J
135
LD707
LED
DLTL16KGE-
LTL-16KGE(GREEN)PI3.1
202
R747
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
136
LD708
LED
DLTL16KGE-
LTL-16KGE(GREEN)PI3.1
203
R748
R CARBON FILM
RD-AZ391J-
1/6 390 OHM J
137
LD709
LED
DLTL16KEE-
LTL-16KEE(RED)PI3.1
204
R749
R CARBON FILM
RD-AZ271J-
1/6 270 OHM J
138
LD710~711
LED
DLTL16KGE-
LTL-16KGE(GREEN)PI3.1
205
R750
R CARBON FILM
RD-AZ391J-
1/6 390 OHM J
139
LD712
LED
DLTL16KEE-
LTL-16KEE(RED)PI3.1
206
R751
R CARBON FILM
RD-AZ271J-
1/6 270 OHM J
140
LD713
LED
DLTL307EE-
LTL-307EE(RED)PI5
207
R752
R CARBON FILM
RD-AZ391J-
1/6 390 OHM J
141
LD716
LED
DLTL307EE-
LTL-307EE(RED)PI5
208
R753
R CARBON FILM
RD-AZ271J-
1/6 270 OHM J
142
Q701
TR
TKRC107M--
KRC107-M TAPPING(KSR1006)
209
R754
R CARBON FILM
RD-AZ391J-
1/6 390 OHM J
143
Q702~703
TR
TKRC111M--
KRC111M (KSR1010)
210
R755
R CARBON FILM
RD-AZ271J-
1/6 270 OHM J
144
Q704
TR
TZTC3198Y-
KTC3198Y-(1815Y) (AUTO)
211
R756
R CARBON FILM
RD-AZ390J-
1/6 39 OHM J
145
Q705~707
TR
TZTA1273Y-
KTA1273Y(966Y)
212
R759
R CARBON FILM
RD-AZ106J-
1/6 10M OHM J
146
Q708~710
TR
TKRC107M--
KRC107-M TAPPING(KSR1006)
213
R760
R CARBON FILM
RD-AZ334J-
1/6 330K OHM J
147
Q711~715
TR
TKRA111M--
KRA111-M TAPPING(KSR2010)
214
R761
R CARBON FILM
RD-AZ101J-
1/6 100 OHM J
148
Q716~717
TR
TKRC107M--
KRC107-M TAPPING(KSR1006)
215
R762
R CARBON FILM
RD-AZ100J-
1/6 10 OHM J
149
Q718
TR
TZTC3198Y-
KTC3198Y-(1815Y) (AUTO)
216
R763
R CARBON FILM
RD-AZ104J-
1/6 100K OHM J
150
R301
R CARBON FILM
RD-AZ101J-
1/6 100 OHM J
217
R764
R CARBON FILM
RD-AZ101J-
1/6 100 OHM J
151
R302
R CARBON FILM
RD-AZ151J-
1/6 150 OHM J
218
R766
R CARBON FILM
RD-AZ224J-
1/6 220K OHM J
152
R303
R CARBON FILM
RD-AZ181J-
1/6 180 OHM J
219
R767~768
R CARBON FILM
RD-AZ101J-
1/6 100 OHM J
153
R304
R CARBON FILM
RD-AZ101J-
1/6 100 OHM J
220
R769
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
154
R305
R CARBON FILM
RD-AZ151J-
1/6 150 OHM J
221
R770
R CARBON FILM
RD-AZ224J-
1/6 220K OHM J
155
R306
R CARBON FILM
RD-AZ181J-
1/6 180 OHM J
222
R771
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
156
R307
R CARBON FILM
RD-AZ271J-
1/6 270 OHM J
223
R773
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
157
R308
R CARBON FILM
RD-AZ331J-
1/6 330 OHM J
224
R775
R CARBON FILM
RD-AZ103J-
1/6 10K OHM J
158
R309
R CARBON FILM
RD-AZ391J-
1/6 390 OHM J
225
R776
R CARBON FILM
RD-AZ334J-
1/6 330K OHM J
159
R310
R CARBON FILM
RD-AZ471J-
1/6 470 OHM J
226
R777~778
R CARBON FILM
RD-AZ104J-
1/6 100K OHM J
160
R311
R CARBON FILM
RD-AZ561J-
1/6 560 OHM J
227
R779
R CARBON FILM
RD-AZ334J-
1/6 330K OHM J
161
R312
R CARBON FILM
RD-AZ821J-
1/6 820 OHM J
228
R780
R CARBON FILM
RD-AZ561J-
1/6 560 OHM J

- 19 -
Electrical Parts List
NO LOCATION PART-NAME PART-CODE PART-DESC REMARK NO LOCATION PART-NAME PART-CODE PART-DESC REMARK
229
R784
R CARBON FILM
RD-AZ683J-
1/6 68K OHM J
57
CE232
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
230
R786
R CARBON FILM
RD-AZ562J-
1/6 5.6K OHM J
58
CE260
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
231
R787
R CARBON FILM
RD-AZ102J-
1/6 1K OHM J
59
CE261
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
232
R788
R CARBON FILM
RD-AZ472J-
1/6 4.7K OHM J
60
CE270
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
233
R789
R CARBON FILM
RD-AZ681J-
1/6 680 OHM J
61
CE271~272
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
234
R790
R CARBON FILM
RD-AZ392J-
1/6 3.9K OHM J
62
CE400~402
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
235
SW701~714
SW TACT
5S50101001
KPT-1105A 1C-1P
63
CE404~406
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
236
SW716~725
SW TACT
5S50101001
KPT-1105A 1C-1P
64
CE408~411
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
237
VR701
SW ENCORDER
5SH162402-
EC16B24208 24P W/DETENT
65
CE412
C ELECTRO
CEXF1H100V
50V RSS 10MF (5X11) TP
238
XC701
RESONATOR
5PCSA8MTZ-
CSALA8M00T55-B0 (8.00MTZ)
66
CE413
C ELECTRO
CEXF1E101V
25V RSS 100MF (6.3X11) TP
239
XC702
X-TAL
5XA32R768-
DT-38 32.768KHZ 20PPM
67
CE414~415
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
1
10000
PCB MAIN AS
9CDC057251
AMI-829SREF(SMALL VFD)
68
CE600~601
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
2
B1000
PCB MAIN
9CD6580500
330X197X1.6T
69
CE602
C ELECTRO
CEXF1H479V
50V RSS 4.7MF (5X11) TP
3
CC001~004
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
70
CE603
C ELECTRO
CEXF1H478V
50V RSS 0.47MF (5X11) TP
4
CC100
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
71
CE604
C ELECTRO
CEXF1H109V
50V RSS 1MF (5X11) TP
5
CC101
C CERA
CCXF1H104Z
50V F 0.1MF Z
72
CE605~606
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
6
CC102
C CERA
CXCH1H150J
50V CH 15PF J (TAPPING)
73
CE607~608
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
7
CC103
C CERA
CXCH1H470J
50V CH 47PF J (TAPPING)
74
CE609
C ELECTRO
CEXF1H100V
50V RSS 10MF (5X11) TP
8
CC200
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
75
CE610~611
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
9
CC201
C CERA
CCXF1H473Z
50V F 0.047MF Z (TAPPING)
76
CE612~613
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
10
CC202
C CERA
CCXF1H104Z
50V F 0.1MF Z
77
CE614~615
C ELECTRO
CEXF1H100V
50V RSS 10MF (5X11) TP
11
CC203
C CERA
CCXF1H473Z
50V F 0.047MF Z (TAPPING)
78
CE616
C ELECTRO
CEXF1H339V
50V RSS 3.3MF (5X11) TP
12
CC204
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
79
CE617~618
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
13
CC205
C CERA
CCXF1H223Z
50V F 0.022MF Z (TAPPING)
80
CE619
C ELECTRO
CEXF1H100V
50V RSS 10MF (5X11) TP
14
CC206
C CERA
CCXB1H471K
50V B 470PF K (TAPPING)
81
CE620~621
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
15
CC207
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
82
CE800
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
16
CC209~211
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
83
CE801
C ELECTRO
CEXF1H100V
50V RSS 10MF (5X11) TP
17
CC230
C CERA
CXCH1H390J
50V CH 39PF J (TAPPING)
84
CE802
C ELECTRO
CEXF1H109V
50V RSS 1MF (5X11) TP
18
CC232
C CERA
CXCH1H330J
50V CH 33PF J (TAPPING)
85
CE803~804
C ELECTRO
CEXF1H220V
50V RSS 22MF (5X11) TP
19
CC234~238
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
86
CE805~806
C ELECTRO
CEXF1H470V
50V RSS 47MF (6.3X11) TP
20
CC239
C CERA
CXCH1H390J
50V CH 39PF J (TAPPING)
87
CE807~808
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
21
CC260~262
C CERA
CCXB1H331K
50V B 330PF K (TAPPING)
88
CE809~810
C ELECTRO
CEXF1H109V
50V RSS 1MF (5X11) TP
22
CC263
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
89
CE870~871
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
23
CC264
C CERA
CXCH1H820J
50V CH 82PF J (TAPPING)
90
CE872~873
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
24
CC265
C CERA
CXCH1H470J
50V CH 47PF J (TAPPING)
91
CE900~902
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
25
CC267
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
92
CE903
C ELECTRO
CEXF1H101V
50V RSS 100MF (8X11.5) TP
26
CC401
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
93
CE904~905
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
27
CC490~493
C CERA
CXCH1H101J
50V CH 100PF J (TAPPING)
94
CE906
C ELECTRO
CEXF1H101V
50V RSS 100MF (8X11.5) TP
28
CC494
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
95
CE907~908
C ELECTRO
CEYF1E222V
25V RSS 2200MF (16X25)
29
CC600
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
96
CE910
C ELECTRO
CEXF1H101V
50V RSS 100MF (8X11.5) TP
30
CC601
C CERA
CCXF1H104Z
50V F 0.1MF Z
97
CE913~914
C ELECTRO
CEYF1V332V
35V RSS 3300MF (18X35.5)
31
CC602
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
98
CF001~002
FILTER CERA
5PE107MJA-
SFE 10.7MHZ RED
32
CC603~604
C CERA
CXCH1H470J
50V CH 47PF J (TAPPING)
99
CF200
FILTER
5PPCFAZ077
PCFAZ077
33
CC605~606
C CERA
CCXB1H221K
50V B 220PF K (TAPPING)
100
CM200~201
C MYLAR
CMXM1H153J
50V 0.015MF J (TP)
34
CC609~611
C CERA
CXCH1H101J
50V CH 100PF J (TAPPING)
101
CM270~271
C MYLAR
CMXM1H103J
50V 0.01MF J (TP)
35
CC612~615
C CERA
CCXB1H221K
50V B 220PF K (TAPPING)
102
CM400~403
C MYLAR
CMXM1H104J
50V 0.1MF J
36
CC616~619
C CERA
CCXB1H821K
50V B 820PF K (TAPPING)
103
CM404~405
C MYLAR
CMXM1H562J
50V 5600 PF J
37
CC620
C CERA
CXCH1H101J
50V CH 100PF J (TAPPING)
104
CM600~601
C MYLAR
CMXM1H683J
50V 0.068 MF J
38
CC621~622
C CERA
CCXB1H331K
50V B 330PF K (TAPPING)
105
CM602
C MYLAR
CMXM1H103J
50V 0.01MF J (TP)
39
CC801
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
106
CM603
C MYLAR
CMXM1H332J
50V 3300 PF J
40
CC804~805
C CERA
CCXB1H221K
50V B 220PF K (TAPPING)
107
CM605
C MYLAR
CMXM1H392J
50V 0.0039MF J
41
CC870~871
C CERA
CCXF1H473Z
50V F 0.047MF Z (TAPPING)
108
CM606~607
C MYLAR
CMXM1H123J
50V 0.012 MF J
42
CC872~873
C CERA
CCXB1H221K
50V B 220PF K (TAPPING)
109
CM608
C MYLAR
CMXM1H102J
50V 0.001MF J (TP)
43
CC874~877
C CERA
CCXF1H104Z
50V F 0.1MF Z
110
CM609~610
C MYLAR
CMXM1H682J
50V 0.0068MF J
44
CC900~902
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
111
CM611~612
C MYLAR
CMXM1H223J
50V 0.022MF J
45
CC904
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
112
CM613
C MYLAR
CMXM1H102J
50V 0.001MF J (TP)
46
CC906
C CERA
CCXF1H103Z
50V F 0.01MF Z (TAPPING)
113
CM800~801
C MYLAR
CMXM1H473J
50V 0.047MF J
47
CE001
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
114
CM802~803
C MYLAR
CMXM1H104J
50V 0.1MF J
48
CE201
C ELECTRO
CEXF1H479V
50V RSS 4.7MF (5X11) TP
115
CM808~809
C MYLAR
CMXM1H392J
50V 0.0039MF J
49
CE202~203
C ELECTRO
CEXF1H100V
50V RSS 10MF (5X11) TP
116
CM900~903
C MYLAR
CMXM1H104J
50V 0.1MF J
50
CE205
C ELECTRO
CEXF1H109V
50V RSS 1MF (5X11) TP
117
CM904~906
C MYLAR
CMXM1H103J
50V 0.01MF J (TP)
51
CE206
C ELECTRO
CEXF1H478V
50V RSS 0.47MF (5X11) TP
118
CN400
CONN AS
9736407600
PIN BASE 53095-1310 13P
52
CE207~208
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
119
CN401
CONN PIN
9736407800
53095-1010 10PIN ANGLE
53
CE209
C ELECTRO
CEXF1H109V
50V RSS 1MF (5X11) TP
120
CN900
CONN WAFER
9728804100
#22 10P P2.5 350 BOARD-IN
54
CE210
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
121
CW100
CONN WAFER
9CD6258800
2P S2B-XH-A
55
CE230
C ELECTRO
CEXF1H229V
50V RSS 2.2MF (5X11) TP
122
CW509
CONN AS
9738832101
8P 250 P=2.5 BOARDIN
56
CE231
C ELECTRO
CEXF1E470V
25V RSS 47MF (5X11) TP
123
CW600
CONN AS
9738833700
#26 8P FLAT 220MM
