Daewoo RG-361 User manual

DAEWOO ELECTRONICS EUROPE.GmbH

8. Block Diagram ................................................................30

CD PLAYING SPECIFICATION
Temp 28 0C Humidity 85 % DATE: 2005.01.31
A.C 230V 50Hz D.C 12 V MODEL: RG-361
LOADS 8 ohm Ref.out 50 mW
MEASURING ITEMS CONDITION UNIT NOMINAL LIMIT SAMPLE TEST CONDITION
CD MAX. OUTPUT POWER MW 2500 2300 2500 TCD-782/TCD-784 0dB
CD 10% THD OUTPUT POWER MW 2000 1800 1800 TCD-782/TCD 784 0dB
CD LINE OUT VOLTAGE V -- 0dB 1KHZ TCD-782
MAX. O/P DIS(BASS BOOST .OFF) 1KHZ. 0dB % 23 28 26 TCD-782/TCD 784 0dB
THD AT ReB OUTPUT 1KHZ % 1-- TCD-782 W/LOW PASS
SEPARATION 1KHZ dB 40 35 40 TCD-782/TCD-784 (SPK O/P)
S/N RATIO 1KHZ dB >50 >50 TCD-782/TCD-784 (SPK O/P)
SCRATCH MM 0.8 0.6 0.8 PHILIPS #5A/444A
INTERRUPTIONS BLACK DOT MM 0.8 0.6 0.8 PHILIPS #5A/444A
FINGER PRINT MM ALL CLEAR ALL PHILIPS #5A/444A
DYNAMIC RANGE dB >45 TCD-782 (SPK O/P)
INITIAL. READING TIME SEC. <8 6TCD-782
ACCESS TIME FIRST TRACK SEC. <5 4TCD-782
LAST TRACK SEC. <14 12
VERTICAL DEVIATION MM 0.8 TCD-732R
HUM & NOISE MIN. VOL. MV <3 1TCD-782 TNO.8/TCD-784 TNO.7
MAX. VOL MV <10 1.5 BASS BOOST OFF,TONE MAX.
SHOCK ABILITY CENTER qm >100 TENSION GUAGE IMPACT UNIT
TCD-782 TNO.1 & 23 CORNERS qm >100 WITHOUT INTERRUPTION
63HZ dB
127HZ dB +/-3 +1
1KHZ dB 00
6.3KHZ dB
8KHZ dB
10KHZ dB 0+-3 0
20KHZ dB
REMARK : OTHER SPEC ARE SUBJECT TO CD MECHANISM SPECIFY.
FREQ. RESPONSE
1KHZ=0dB
TCD-782 (SPK O/P)
BASS BOOST OFF
PAGE 3 ,TOTAL 31

CASSETTE RECORDING SPECIFICATION
Temp 28 0C Humidity 85 % DATE: 2005.01.31
A.C 230V 50Hz D.C 12 V MODEL: RG-361
LOADS 8 ohm Ref.out 50 mW
MEASURING ITEMS CONDITION UNIT NORMAL LIMIT SAMPLE TEST CONDITION
R/P MAX. OUTPUT POWER MW 2500 2300 2600 MTT-112BN/TCC-140
R/P 10% DIST. O/P POWER MW 2000 1800 1800 MTT-112BN/TCC-140
R/PMAX. O/P DIS 1KHZ. 0dB % 18 25 22 MTT-112BN/TCC-140
DIST.AT STANDARD O/P % 487MTT-118N/TCC-142
R/P DIFFERENCE dB <3 2MTT-118N/TCC-142
R/P SEPARATION dB 35 28 28 MTT-114N/TCC-194
R/P S/N RATIO dB 25 22 25 MTT-112BN/TCC-140
R/P ERASE RATIO dB 25 22 24 MTT-112BN/TCC-140
R/P CH BALANCE dB <3 1MTT-118N/TCC-142
REC.LEVEL VS TAPE SAT. FM:DOM.22.5KHZ.1
K
dB 0+/-3
FM:DOM.45KHZ.1K
H
dB 0+/-3
CD:-10dB.1KHZ dB 0+/-3
CD:-20dB.1KHZ dB 0+/-3
ALC REC.DISTORTION % +30dBV OF S.R.L.
R/P FREQ . RESPONSE
1KHZ=0dB 63HZ dB
MTT-256R/TCC-181A
VOL AT 75% POSITION
125HZ dB +/-6 -1
315HZ dB
1KHZ dB 00
6.3KHZ dB +3-4 +3
8KHZ dB +3-6
10KHZ dB
REMARK : OTHER SPEC ARE SUBJECT TO CASS. MECHANISM SPECIFY.
PAGE 4 ,TOTAL 31

CASSETTE PLAYBACK SPECIFICATION
Temp 28 0C Humidity 85 % DATE: 2005.01.31
A.C 230V 50Hz D.C 12 V MODEL: RG-361
LOADS 8 ohm Ref.out 50 mW
MEASURING ITEMS CONDITION UNIT NORMAL LIMIT SAMPLE TEST CONDITION
MAX. OUTPUT POWER MW 2500 2300 2500 MTT-112BN/TCC-140
10% THD DIST. O/P POWER MW 2000 1800 2000 MTT-112BN/TCC-140
MAX. O/P DIS(BASS BOOST OFF) 1KHZ. 0dB % 18 25 22 MTT-112BN/TCC-140
DIST.AT Reb O/P % 133MTT-118N/TCC-142
TAPE SPEED % +2/-1 +3/-2 MTT-111N/TCC-112
WOW &FLUTTER % 0-2 0.35 MTT-111N/TCC-112
L/R CH SEPARATION dB 35 30 32 MTT-114N/TCC-194
TRACK CROSS TALK dB 60 50
MTT-121N, * W/B.P.F.
. MTT-141N, * W/O B.P.F.
HUM & NOISE MIN. VOL MV 1 3 1.3 MTT-501
MAX. VOL MV 20 60 43 BASS BOOST OFF
S/N RATIO dB 35 30 33 MTT-112BN/MTT-501
WINDING TIME F . FWD. SEC <170 C-60 TYPE
F . REW. SEC <170
L/R CH. DIFFERENCE dB 0<3 MTT-118N/TCC-142
FORWARD /REVERSE DIFF. dB -- -- MTT-118N/TCC-142
CASS. TAPE A/B O/P DIFF dB -- -- MTT-118N/TCC-142
PLAY q-cm 35-70
F . FWD. q-cm >55
F . REW. q-cm >55
63HZ dB
125HZ dB +/-3 -1
315HZ dB
1KHZ dB 00
6.3KHZ dB +/-3 +4
8KHZ dB +-6
10KHZ dB
PHONO dB 180MV RMS. PHONO
AUX/CD dB 180MV RMS. AUX/CD
FM dB 045KHZ DEV. IMV
AM dB <3 60% MOD. 74dB/M
CASS dB <3 MTT-112BN 0dB
CD dB -5/+-3 -10dB 1KHZ
BASS BOOST EFFECT 125HZ dB 866 BASS BOOST FROM OFF TO ON
REMARK : OTHER SPEC ARE SUB JECT TO CASS. MECHANISM SPECIFY.
FREQ . RESPONSE
1KHZ=0dB
LEVEL BALANCE
TORQUE METER
MTT-256R/TCC-181A
TORQUE
PAGE 5 ,TOTAL 31

FM MPX SPECIFICATION
Temp 28 0C Humidity 85 % DATE: 2005.01.31
A.C 230V 50Hz D.C 12 V MODEL: RG-361
LOADS 8 ohm Ref.out 50 mW
MEASURING ITEMS CONDITION UNIT NORMAL LIMIT SAMPLE TEST CONDITION
90MHZ dB -- --
98MHZ dB -- --
106MHZ dB -- --
90MHZ dB 24 30
98MHZ dB 24 30
106MHZ dB 24 30
100HZ dB 26 20
1kHZ dB 26 20 25
10KHZ dB 26 20
STEREO LIGHT SENS. 98MHZ dB 24 30
PILOT SIGNAL REJECTION 98MHZ dB 40 35 75KHZ DEV.1MV
STEREO S/N RATIO 98MHZ dB -- --
75KHZ DEV.1MV WITH
19KHZ FILTER
MONO/STEREO O/P
DIFFERENCE 98MHZ dB 0<3
THD AT STANDARD OUTP
U
98MHZ % 3<5 WITH 19KHZ FILTER
ST-VCO FREQ.TEMP.DRIFT 76KHZ HZ AT 250C +/-250C
MIN.PILOT SIGNAL LEVEL % 57 ST.LED START LIGHT UP
REMARK: MOD. DESCRIPTION L+R L-R PILOT
45% 45% 10%
MEMORY BACK UP SPECIFICATION
UNIT NORMAL LIMIT TEST CONDITION
MEMORY BACKUP CURRENT WITH BATTE
R
mA -- -- DISCONNECT AC POWER
TUNER PRESET STATION BACK UP TIME MIN -- --
DISCONNECT AC POWER AND
WITHOUT BATTERY
75KHZ DEV
WITH 19KHZ FILTERSTEREO SEPARATION
MEASURING ITEMS
MAX.SENSITIVITY
-30dB S/N SENS.
PAGE 6 ,TOTAL 31

FM RADIO SPECIFICATION
Temp 28 0C Humidity 85 % DATE: 2005.01.31
A.C 230V 50Hz D.C 12 V MODEL: RG-361
LOADS 8 ohm Ref.out 50 mW
MEASURING ITEMS CONDITION UNIT NORMAL LIMIT SAMPLE TEST CONDITION
LOW END MHZ 87.50 +/-0.3 87.4
HIGH END MHZ 108.50 +/-0.3 108.4
INTERMEDIATE FREQ MHZ 10.7 +/-0.1 10.7
90MHZ dB 16 20 18
98MHZ dB 16 20 17
106MHZ dB 16 20 17
-30dB QUIETING 90MHZ dB 22 26 22
SENSITIVITY 98MHZ dB 22 26 22
106MHZ dB 22 26 23
DIAL CALIBRATION ALL POINTS MHZ <0.5
90MHZ dB 26 20
98MHZ dB 26 20
106MHZ dB 26 20
I.F. REJECTION 90MHZ dB 65 55
SPURIOUS REJECTION 98MHZ dB 55 45
-3dB LIMITING SENS 98MHZ dB 25 30
-3dB AFC HOLDING RANGE 98MHZ KHZ 450 350-600
AM SUPPRESSION 98MHZ dB 40 30
RF OVERLOAD DIST. 98MHZ % 35 100dB 75KHZ DEV
10% DIST. O/P POWER 98MHZ MW 2000 1800 1800
* 1KHZ ; 400HZ
75KHZ DEV
MAX. O/P POWER 98MHZ MW 2500 2300 2500
* 1KHZ ; 400HZ
75KHZ DEV
MAX O/P DIST.(BASS BOOST OFF) 98MHZ % 20 28 23
* 1KHZ ; 400HZ
75KHZ DEV
-3dB AUDIO LOW FREQ HZ 200 250 75uS PRE-EMPHASIS
FIDELITY HIGH FREQ HZ 8.2K 6K VOL AT 75%POSITION
S/N RATIO 98MHZ dB 45 40 45 22.5KHZ DEV. 1MV
DIST .AT Reb O/P 98MHZ % 1 3 2.5
MODULATION HUM 98MHZ dB 50 40 42 22.5KHZ DEV. 100dB
90MHZ dB -- --
98MHZ dB -- --
106MHZ dB -- --
AUTO SEEK ACCURACY KHZ -- --
MAX.SENSITIVITY
FREQUENCY RANGE
AUTO TUNING SEEK SENS
IMAGE REJECTION
PAGE 7 ,TOTAL 31

MW RADIO SPECIFICATION
Temp 28 0C Humidity 85 % DATE: 2005.01.31
A.C 230V 50Hz D.C 12 V MODEL: RG-361
LOADS 8 ohm Ref.out 50 mW
MEASURING ITEMS CONDITION UNIT NORMAL LIMIT SAMPLE TEST CONDITION
LOW END KHZ 525 +/-5 515
HIGH END KHZ 1630 +/-15 1630
INTERMEDIATE FREQ KHZ 465 +/-3
600KHZ dB 50 58 52
1000KHZ dB 50 58 58
1400KHZ dB 50 58 58
-20dB QUIETING 600KHZ dB 58 64 62
SENSITIVITY 1000KHZ dB 58 64 61
1400KHZ dB 58 64 61
DIAL CALIBRATION ALL POINTS KHZ <30 POINTER WITHIN LETTERING
600KHZ dB 50 40
1000KHZ dB 45 35
1400KHZ dB 45 35
I.F. REJECTION 600KHZ dB 45 40
-6dB BAND WIDTH 1000KHZ KHZ 4-8
ACA +/- 10KHZ 1000KHZ dB 20 15
AGC FIGURE OF MERIT 1000KHZ dB 35 28 100dB/M
RF OVERLOAD DIST. 1000KHZ % 35 100dB/M 60% MOD
10% DIST. O/P POWER 1000KHZ MW 2000 1800 1800
* 1KHZ ; 400HZ
80% MOD.
MAX. O/P POWER 1000KHZ MW 2500 2300 2500
* 1KHZ ; 400HZ
80% MOD.
MAX. O/P. DIS 1000KHZ % 20 25 22
* 1KHZ ; 400HZ
80% MOD.
-6dB AUDIO LOW FREQ HZ 100 150 VOL. AT 75% POSITION
FIDELITY HIGH FREQ HZ 3K 2K2 ADJUST MOD .TO REF
2 IF % <10
3 IF % <10
S/N WITH 74dB/M 1000KHZ dB 35 30 32
DIST. AT Reb O/P 1000KHZ % 355
MODULATION HUM 100dB/
M
1000KHZ dB 40 35
MIN. VOL. FEEDTHROUGH
NOISE & HUM MIN. VOL MV 132
600KHZ dB -- --
1000KHZ dB -- --
1400KHZ dB -- --
AUTO SEEK ACCURACY KHZ -- --
AUTO TUNING SEEK SENS
TWEET AT 1MV/M - 5MV/M
IMAGE REJECTION
MAX.SENSITIVITY
FREQUENCY RANGE
PAGE 8 ,TOTAL 31

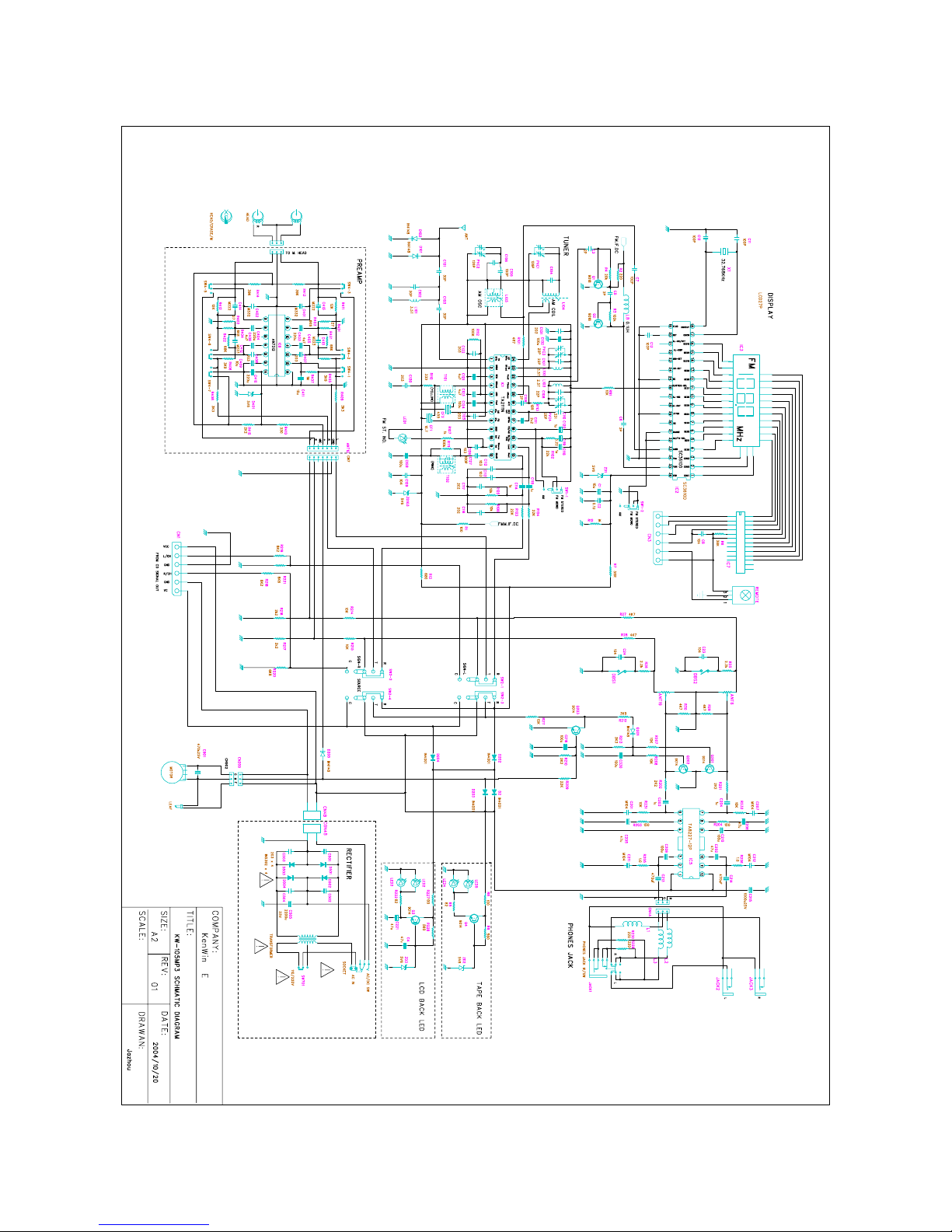

PAGE 9 ,TOTAL 31

PAGE 10,TOTAL 31

PAGE 11 ,TOTAL 31

PAGE 12 ,TOTAL 31

PAGE 13 ,TOTAL 31

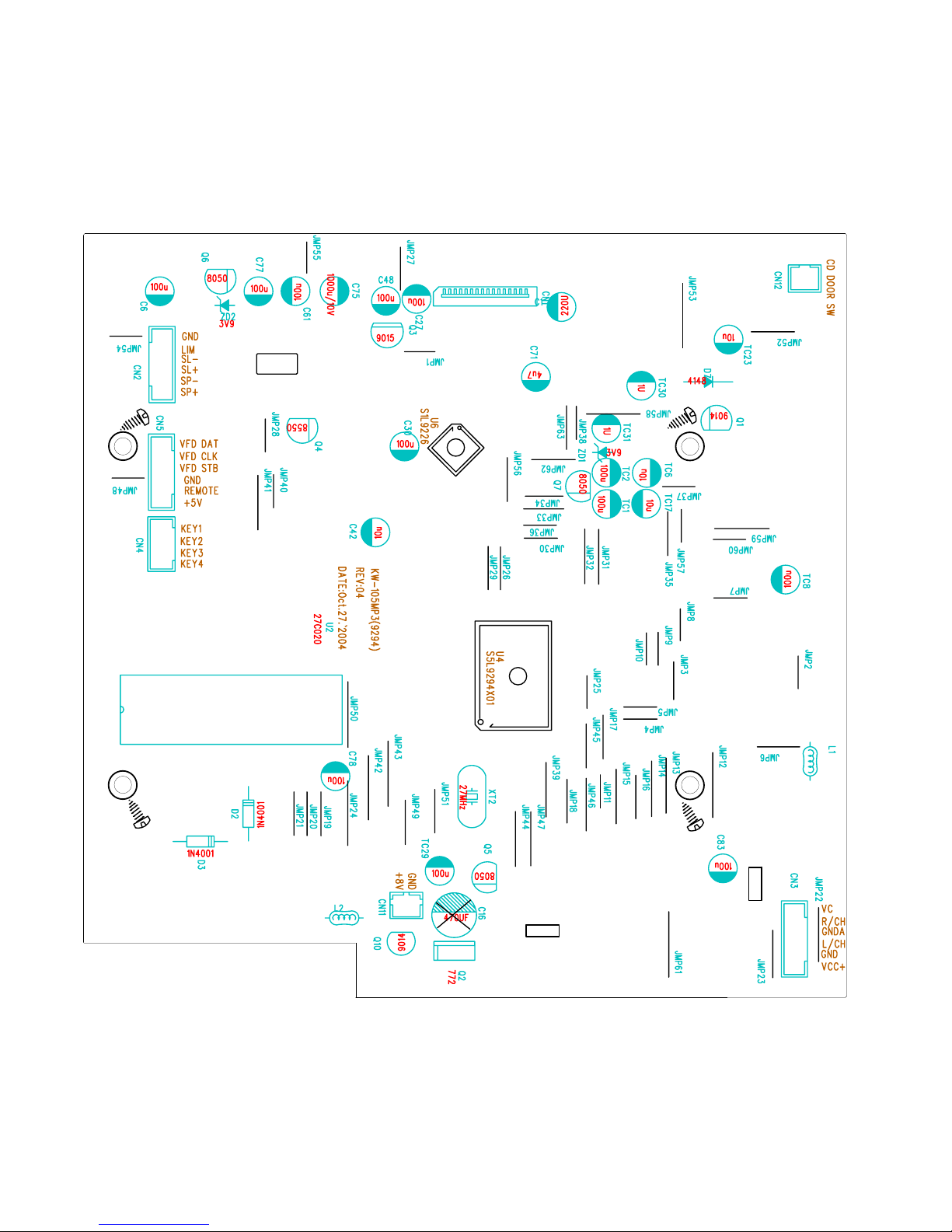

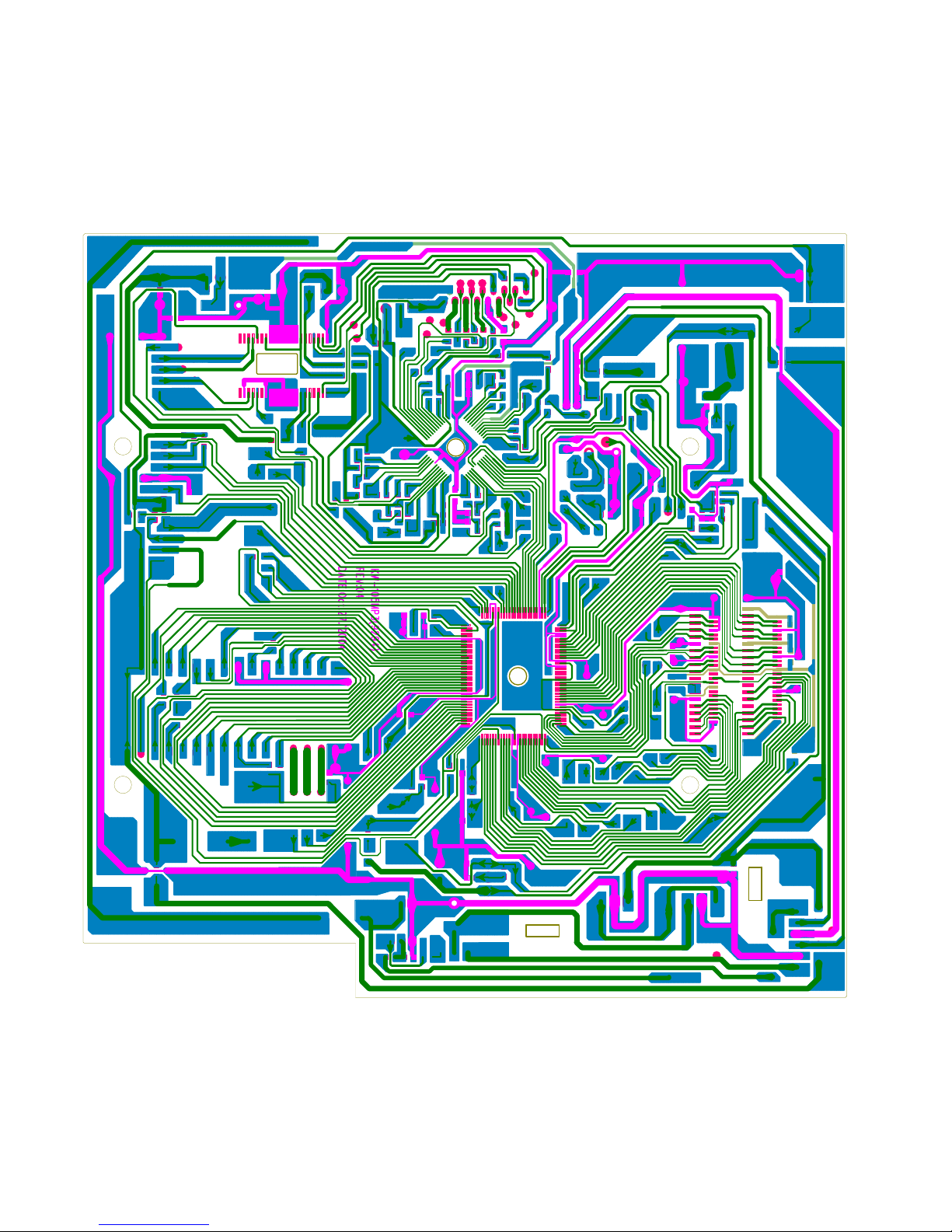

PAGE 14 ,TOTAL 31

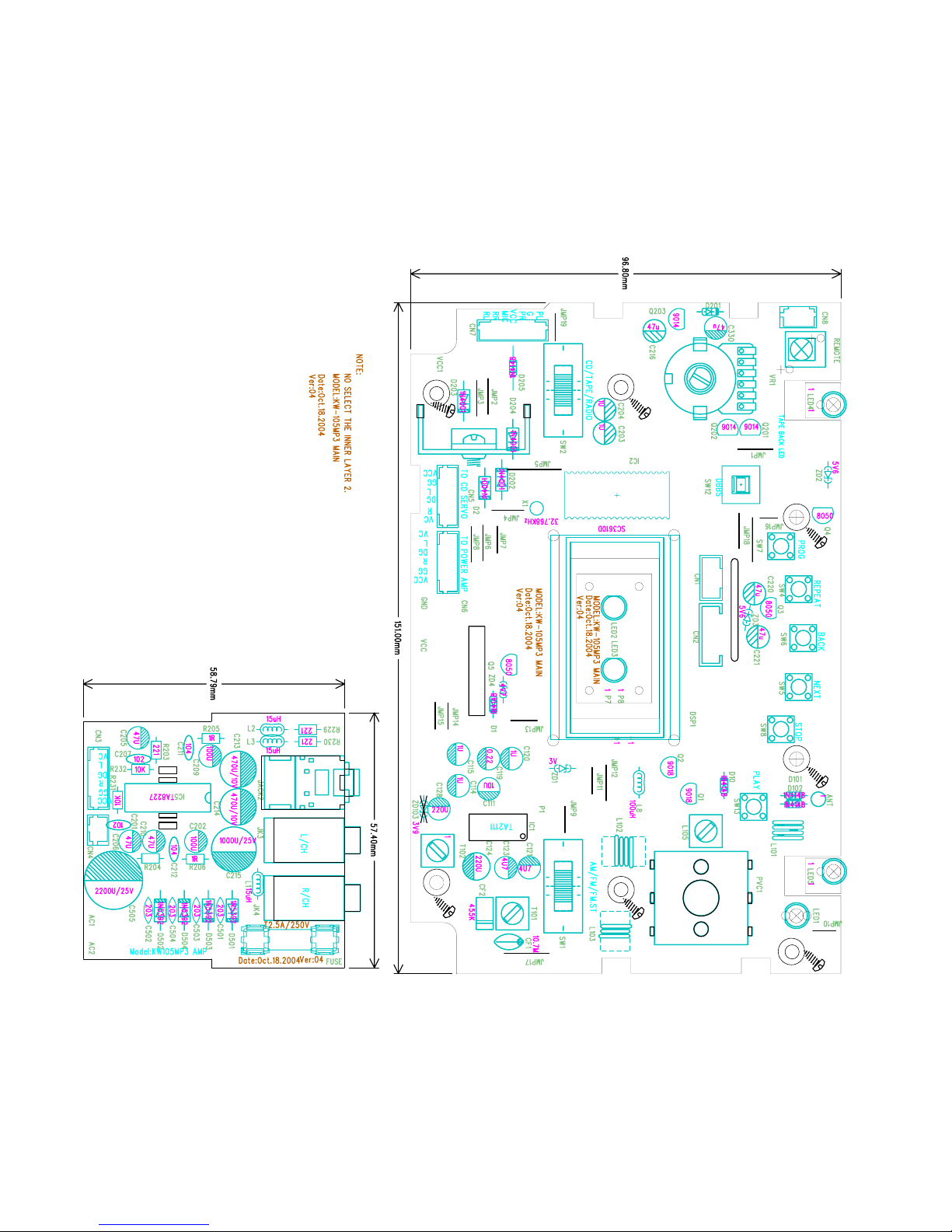

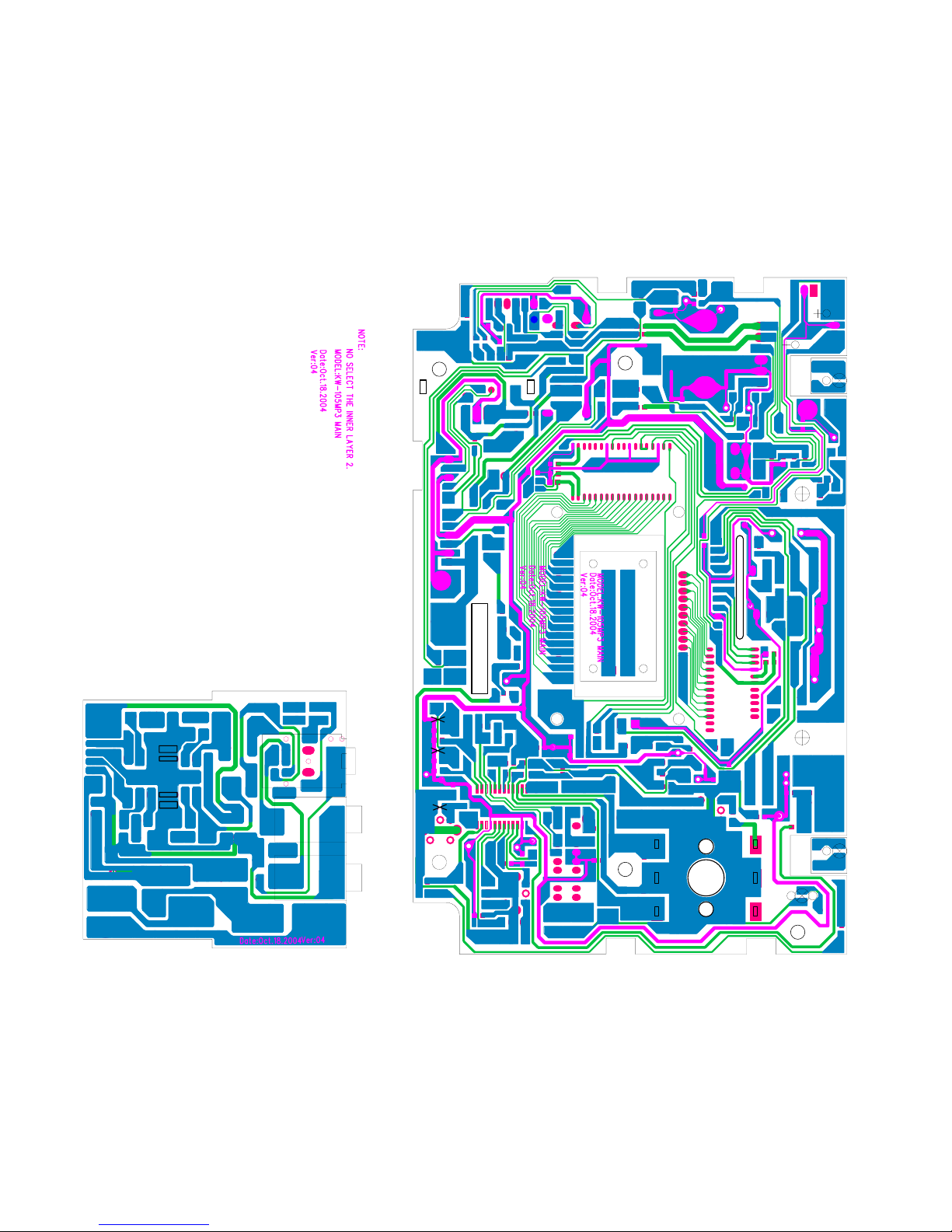

PAGE 15 ,TOTAL 31

PAGE 16 ,TOTAL 31

RG-361ALIGNMENT PROCEDURES
AM IF. ALIGNMENT
1, Set the FUNCTION switch to “RADIO” position.
2, Set the BAND switch to “AM” position.
3, Connect a SWEEPSCOPE OUTPUT to AM standard radiating loop antenna and match the
direction for built-in ferrite bar of AM antenna.
4, Connect a SWEEPSCOPE INPUT to pin 13 or 14 of IC1 through a 1uf capacitor and GND.
STEP SET SIGNAL SET DIAL ADJUST ADJUST FOR
1 465KHz LOW-END OF BAND T3( IFT,YELLOW) CENTER & MAXIMUM OUTPUT
AM RF. ALIGNMENT
1, Connect a RF GENERATOR to the standard radiating loop antenna.
2, Connect a SCOPE and VTVM across the speaker output
STEP SET SIGNAL SET DIAL ADJUST ADJUST FOR
1 520KHz LOW-END OF BAND T5(AM OSC) MAXIMUM OUTPUT
2 1650KHz HIGH-END OF BAND P.V.C C3 MAXIMUM OUTPUT
3 REPEAT STEP 1 & 2 TO MAXIMUM
4 610KHz NEAR 610KHz L104 (AM SENS COIL) MAXIMUM OUTPUT
5 1400KHz NEAR 1400KHz P.V.C C4 MAXIMUM OUTPUT
REPEAT STEP 4 & 5 TO MAXIMUM
FM IF. ALIGNMENT
1, Set the BAND switch to “FM” position.
2, Connect a SWEEPSCOPE OUTPUT to pin 23 of IC1 through a 20pf capacitor and GND.
3, Connect a SWEEPSCOPE INPUT to pin 13 or 14 of IC1 through a 1uf capacitor and GND.
STEP SET SIGNAL SET DIAL ADJUST ADJUST FOR
1 10.7MHz CF1
(FM DISCRI.,PINK)
WITH 10.7MHz AT ZERO CROSSOVER
& MAKE THE “S” CURVE TO FINER.
2 REPEAT STEP 1 TO FINEL
FM RF. ALIGNMENT
1, Connect a RF GENERATOR to the terminal of FM telescope antenna and GND.
2, Connect a SCOPE and VTVM across the speaker output.
STEP SET SIGNAL SET DIAL ADJUST ADJUST FOR
1 87.5MHz LOW-END OF BAND L1(FM OSC) MAXIMUM OUTPUT
2 108MHz HIGH-END OF BAND P.V.C C2 MAXIMUM OUTPUT
3 REPEAT STEP 1 & 2 TO MAXIMUM
4 90.1MHz NEAR 90.1MHz L2(FM SENS COIL) MAXIMUM OUTPUT
5 106.1MHz NEAR 106.1MHz P.V.C C1 MAXIMUM OUTPUT
6 REPEAT STEP 4 & 5 TO MAXIMUM
CASSETTE PARTS ALIGNMENT
1, MOTOR TURNSPEED: Adjust the screw at motor back side to make the output signal near
3KHz while play the 3KHz standard tape. It used frequency meter connected output.
2, HEAD AZIMUTH: Adjust the screw of head azimuth to make the 6.3KHz signal to maximum.
It play the 6.3KHz standard tape and used VTVM connected output.
PAGE 17 ,TOTAL 31

PARTS LIST
DATE:2005-1-25
AM:522-1620KHz
FM:88-108MHZ
Item Part NO Qty PROPOSE
1MAIN PCB
2
271-K105MMP-10
PCB:
KW-105AD+MP3 MAIN REV:1.0 94HB
(W151mmx96.8mm) C:1.6mm 1
3100-TA2111F-20 IC: TA2111F 1 IC1
4100-SC3610D-20 SC3610D 1 IC2
5100-HT1621B-20 HT1621B 1 IC3
6311-SS43D06-M0 SWITCH: FUNCTIONSS43D01 M10 1 SW2
7311-SS43D06-M1 BAND SS43D01 M10 1 SW1
8311-PS22E06-00 DBBS：PS-22E06 1 SW12
9312-TS1150E-A0 TACT 5mm<TS-1150AB> 6 SW4 SW5 SW6 SW7 SW8 SW13
10 251-0007009-B0 IF： PINK：（7mmx12mm）7T 1 T102
11 251-0100103-B1 RED：（7mmx12mm）100：10TA 1 L105
12 251-0157156-B0 YELLOW：（7mmx12mm）157：15T 1 T101
13 232-3276801-00 CYSTRAL：32.768 KHz <2PINS> 1X1
14 116-9014C01-00 TRANSISTOR： 9014 C 3 Q201 Q202 Q203
15 116-8050C01-00 8050 C 3 Q3 Q4 Q5
16 116-9018001-00 9018 H 2 Q1 Q2
17 111-IN41481-00 DIDOE: IN 4148 6 D101 D102 D201 D205 D10 D1
18 111-IN40011-00 IN 4001 4 D202 D203 D204 D2
19 112-5V61210-00 ZENER DIDOE: 5.6V 2 ZD2 ZD3
20 112-4V71210-00 4.7V 1 ZD4
21 112-3V01210-00 3V 1 ZD1
22 241-107033S-00 CER FILTER: 10.7MHz(3P)RED DOT 1 CF1
23 241-455003S-00 455KHz(3P) 1 CF2
24 292-750212C-00 FM COIL: Φ0.75 4.5mm 21/2T 1 L103
25 292-750312D-00 Φ0.75 5mm 31/2T 2 L101 L102
26 295-100UH2B-00 CHOKE COIL 100UH 1 L8
27 CAP(SMD0603):<25V>(+/-5%)
28 211-0003PDA-BS 3pf 2 C109 C3
29 211-0015PDA-BS 15pf 3 C5 C6 C108
30 211-0020PDA-BS 20pf 1 C107
31 211-0022PDA-BS 22pf 2 C11 C12
Description
Model No:RG-361 REF NO:KW-EP-0171<REV:A0>
PAGE 18 ,TOTAL 31

PARTS LIST
DATE:2005-1-25
AM:522-1620KHz
FM:88-108MHZ
Item Part NO Qty PROPOSE
Description
Model No:RG-361 REF NO:KW-EP-0171<REV:A0>
32 211-0025PDA-BS 25pf 1 C127
33 211-0030PDA-BS 30pf 3 C101 C102 C103
34 211-0120PDA-BS 120pf 1 C7
35 211-0150PDA-BS 150pf 1 C105
36 CAP(SMD0603):<25V>(+/-10%)
37 211-0U001DB-BS 102pf(0.001uf) 1 C110
38 211-00U01DB-BS 103（0.01uf) 2 C118 C13
39 CAP(SMD0603):<25V>(+80-20%)
40 211-U0022DD-BS 222(0.0022uf) 2 C116 C117
41 211-0U015DD-BS 153(0.015uf) 2 C112 C113
42
211-000U1DD-BS 104(0.1uf) 11 C23 C24 C129 C125 C19 C2 C100 C20 C21 C8
C1
43 212-00U22FB-1S ELECT CAP.:+/-1
0
0.22uf/50v 1 C119
44 212-0001UFB-1S 1uf/50v 5 C114 C115 C203 C204 C120
45 212-004U7FB-1S 4.7uf/50v 2 C121 C123
46 212-0010UDB-1S 10uf/25v 1 C111
47 212-0047UCB-1S 47uf/16v 4 C216 C330 C220 C221
48 212-0220UCB-1S 220uf/16v 2 C124 C128
49 RESISTOR1/8(SMD0603): +/-5%
50
201-0000RDA-B1 0 OHM 13 JR1 JR4 JR7 JR6 JR5 JR3 JR8 JR11 JR10
JR9 JR2 R11 R14
51 201-0047RDA-B1 47 OHM 1 R101
52 201-0056RDA-B1 56 OHM 1 R7
53 201-0082RDA-B1 82 OHM 2 R5 R222
54 201-0100RDA-B1 100 OHM 3 R8 R227 R13
55 201-0220RDA-B1 220 OHM 2 R1 R2
56 201-0330RDA-B1 330 OHM 1 R110
57 201-0560RDA-B1 560 OHM 3 R9 R228 R15
58 201-0001KDA-B1 1K OHM 6 R23 R24 R12 R201 R202 R107
59 201-002K2DA-B1 2.2K OHM 3 R103 R104 R210
60 201-003K3DA-B1 3.3K OHM 3 R213 R25 R26
61 201-003K9DA-B1 3.9K OHM 1 R212
62 201-004K7DA-B1 4.7K OHM 2 R27 R28
PAGE 19 ,TOTAL 31

PARTS LIST
DATE:2005-1-25
AM:522-1620KHz
FM:88-108MHZ
Item Part NO Qty PROPOSE
Description
Model No:RG-361 REF NO:KW-EP-0171<REV:A0>
63 201-005K6DA-B1 5.6K OHM 1 R10
64 201-006K8DA-B1 6.8K OHM 1 R81
65 201-008K2DA-B1 8.2K OHM 2 R218 R219
66 201-0010KDA-B1 10K OHM 2 R207 R208
67 201-0015KDA-B1 15K OHM 1 R211
68 201-0022KDA-B1 22K OHM 2 R209 R102
69 201-0039KDA-B1 39K OHM 1 R6
70 201-0068KDA-B1 68K OHM 2R214 R215
71 201-0100KDA-B1 100K OHM 3 R3 R4 R112
72 361-5002000-00 光线：Φ0.5x20mm 20
73 481-0000230-00 EYELET： 2x3 6
74 MP3 PCB
75 100-S5L92940-20 IC: S5L9294X02 1U4
76 100-9226X02-20 SAMSUNG 9226X02 1 U9
77 100-KA9258D-20 KA9258D 1 U10
78 100-PT28C02-10 PT28C020-90(9242 SOFTWARE) 1 U2
79 100-416C25B-20 SEC KM416C254BJ-5 1 U1
80
271-K105MP3-10 PCB: KW-105MP3(9242)REV:.1.0 <94HB>
(L140mmxW140mm xH1.6mm) 1
81 232-27M0001-00 CYSTRAL：27MHz 1 XT2
82 116-B772001-00 TRANSISTOR： B772 1 Q2
83 116-8050C01-00 8050 C 3 Q5 Q6 Q7
84 116-8550C01-00 8550 C 1 Q4
85 116-9014C01-00 9014 C 2 Q1 Q10
86 116-9015C01-00 9015 C 1 Q3
87 111-IN41481-00 DIDOE: IN 4148 2 D7 L1
88 111-IN40011-00 IN 4001 1 D2
89 112-3V91210-00 3.9V ZENER DIDOE 2 ZD2 ZD1
90 295-100UH2B-00 CHOKE COIL: 100UH 1 L2
91 331-0220181-00 HSG(2.0mm) 2PIN (Y-INTE) 1 CN12
92 331-0420181-00 4PIN (Y-INTE) 1 CN4
93 331-0620181-00 6PIN (Y-INTE) 2 CN3 CN5
94 332-1610181-00 HSG(1.0mm) 16PIN (Y-INTE) 1 CN1
PAGE 20 ,TOTAL 31
