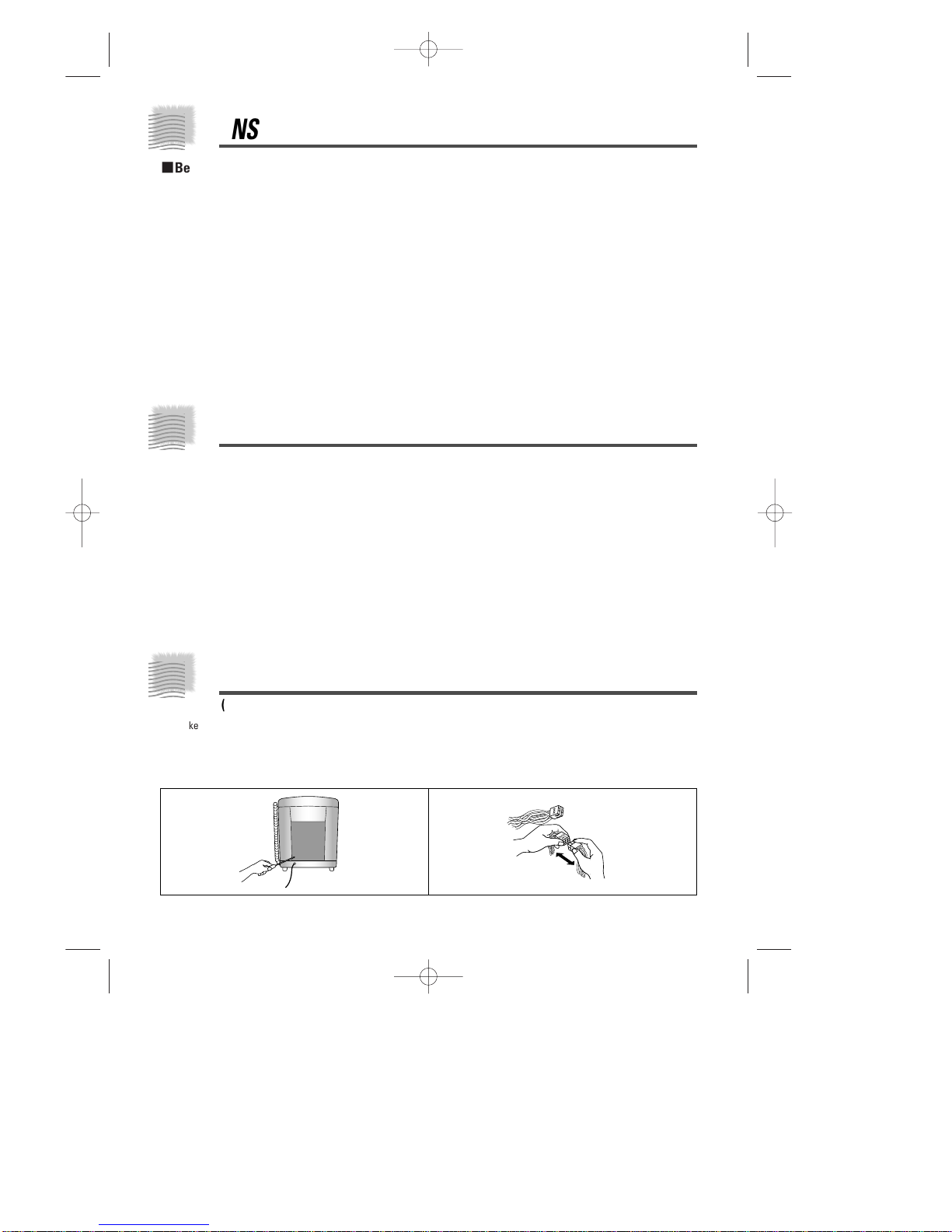

■Be sure that washer is grounded.
To avoid electrical shock, use a metal pipe for the ground
connection.
But, do not ground the washer with gas pipes or telephone
lines to avoid dangers of explosion or lightning strike.
■Do not put your hands into the spin dryer
basket when it is spinning.
Your fingers can be caught by spinning laundry and
damaged.
■Never allow children to operate or play
with the washer.
Children playing with the washer may accidentally fall into
the washing tub.
■Disconnect the power cord from the power
supply when not in use.
■Ventilation openings must not be obstructed by
carpeting when the washing machine is installed on a
carpeted floor.
■If the supply cord of this appliance is damaged, it
should be replaced by a repair shop appointed by
manufacturer, because special purpose tools are required.
■Turn off the SPIN Timer immediately when the
spin dryer makes noise and vibration excessively during
spinning.
■Don’t use excessively hot water.
(Below 50°C)
Plastic parts may be deformed or damaged.
Also, clothing may be deformed or decolored.
■Before washing, check all pockets.
If nails or pins remain in pockets, they may damage the
washer or clothes.
■Close the water tap a little if the water
pressure is too high.
■Be sure to cover with the safety cover on
laundry before spinning.
This prevents laundry from being tossed out and damaged.
■To avoid water splashes, close the wash
tub lid.
■Never splash water on the control panel.
■Do not spin-dry. during feedling water to
spin basket. Otherwise, it may makes
trouble.
PRECAUTIONS WHEN OPERATING
;
;
;
■Make sure that electric connector is set for your
available voltage before operating the washing machine.
■This unit is set for 220V. (240V)
■If you want to change the voltage, remove the back cover
and reset the connector as figures.
ELECTRIC CONNECTION
;
;
;
CAUTIONS
(ONLY FOR DUAL VOLTAGE MODEL)
1
DW-503M(영)_기본 03.4.18 10:39 AM 페이지1

1WATER GUIDE KNOB
During washing, WATER GUIDE KNOB should be selected
to wash.
During spin rinsing, WATER GUIDE KNOB should be
selected to spin.
2TIMER
Use to select the desired time for washing, rinsing or
spinning.
Use to select the desired time for draining.
(In case of DRAIN PUMP model)
3WASH SELECTOR
Select “WASH · RINSE” for washing and rinsing,
Select “DRAIN” to drain the water.
Select “OFF” to stop washing, rinsing and draining.
4SPIN SELECTOR
Select “SPIN” for spinning.
Select “OFF” to stop spinning.
;
;
;
DESCRIPTION OF PARTS
Wash Selector Spin Selector
Wash-Rinse
Drain
Off Off
Spin
Wash Spin Timer
0
3
6
9
12
15
;
;
;
CONTROL PANEL
SPIN DRYER LID
When you open this lid while the spin
basket is spinning, the spinning
will be stopped by brake system.
WATER DRAIN HOSE
(PUMP MODEL)
OVERFLOW FILTER
WASH TUB LID
During operation, close the
wash tub lid.
DRAIN FILTER
WASH TUB
PULSATOR
BASE
POWER CORD
The plug’s shape may not correspond
with this drawing.
INNER LID
SPIN DRYER BASKET.
EARTH WIRE (OPTION)
WATER DRAIN HOSE
(NON-PUMP MODEL)
LEG
SAFETY COVER
2
DW-503M(영)_기본 03.4.18 10:39 AM 페이지2

;
;
;
WASHING PROCEDURE
■TO WASH
1Before starting washing, check followings.
Lay the drain hose down toward a sink hole.
(In case of NO DRAIN PUMP model)
Place the drain hose in sink or bath.
(In case of DRAIN PUMP model)
Connect the power cord to the power supply outlet.
2Set the WASH SELECTOR to “WASH · RINSE”.
3Fill water in the wash tub to the desired water
level and add detergent. (see page 5)
4Put laundry in the wash tub.
5Set the WASH TIMER 1~15 minutes.
6After washing, set the WASH SELECTOR to “DRAIN”
for drain and set the TIMER to the proper time.
■TO SPIN DRY
1Transfer the clothes into the spin basket and arrange it
evenly.
2 Be sure to put the safety cover and close the inner lid.
3Close the spin dryer lid.
4Set the SPIN SELECTOR to “SPIN”.
5Set the TIMER 1~5 minutes.
■TO RINSE
1Set the WASH SELECTOR to “WASH · RINSE”.
2Supply the proper amount of water as not to overflow
the top of the washing tub.
3Set the TIMER 2~3 minutes.
4To drain the water, set the WASH SELECTOR to
“DRAIN” and set the TIMER to the proper time.
5Repeat this cycle until drain water is clean.
(2~3 cycles)
■OVER FLOW RINSE
1Set the WASH SELECTOR to “WASH · RINSE”.
2 Keep suppling water. (Adjust water pressure to ensure that
the amount of supplied does not exceed the amount of drain.)
3Set the TIMER 6~8 minutes.
4As soon as the TIMER shuts off or the rinsing
water become clear, turn off the water tap.
5To drain the water, set the WASH SELECTOR to
“DRAIN” and set the TIMER to the proper time.
■TO SPIN RINSE (ADITIONAL COURSE)
After rinsing you can select this course for more efective
rinse.
1load the laundry evenly into the spin basket.
2Cover the laundry with safety cover and close the linner
lid.
3Close the spin dryer lid.
4Set the WATER GUIDE KNOB to “SPIN”.
5Supply water for about 1 minute.
Adjust the water flow not to overflow the side of the
wash tub.
6After water supply, Set the SPIN SELECTOR to “SPIN”.
And set the TIMER 1~2 minutes.
7Repeat 5~6, if you want.
3
DW-503M(영)_기본 03.4.18 10:39 AM 페이지3

;
;
;
INSTALLATION
■LOCATION & ENVIRONMENT
Leave some space.
Space at least 10cm between the washer and the wall.
Place washer on a sturdy and flat surface.
If the washer is placed on an uneven or weak surface,
noise or vibration may be occurred.
(Allowable inclination is max. 2°)
Never install the washer near water.
Do not place the washer in steamy rooms or where the
washer is directly exposed to rain.
Moisture may destroy the electrical insulation and cause
an electric shock hazard.
Avoid direct sunlight or heating devices.
As plastic and electrical components are affected by direct
heat, never place the washer near heater, boilers, etc..
Do not place it under direct sunlight.
Avoid cold place.
Do not place or store the washer below 0°C(32°F) to avoid
any damage from freezing.

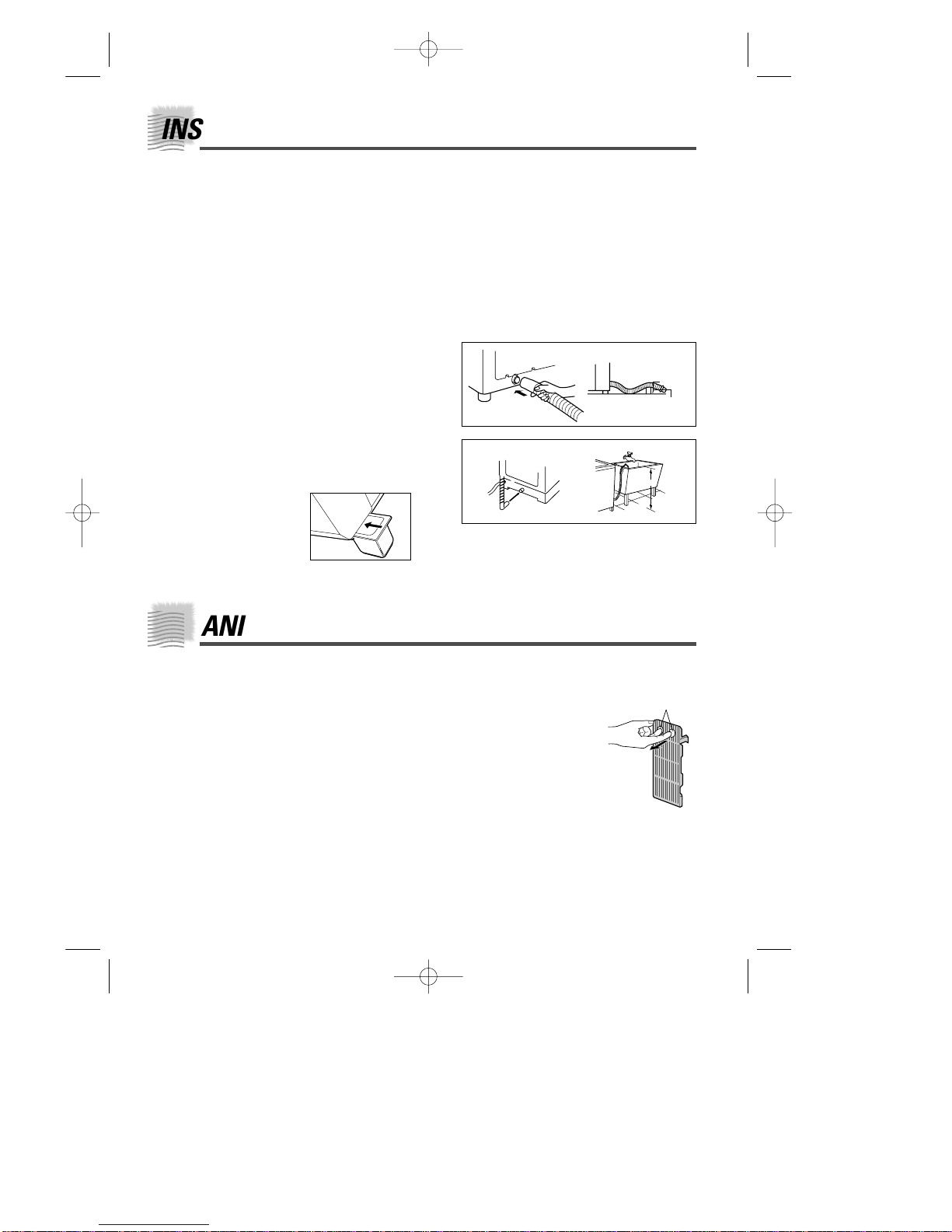

■LEG SETTING
Slide the leg into the
opening underneath the base,
and push.
■INLET HOSE SETTING
Attach the water inlet hose to the water inlet pipe.
■DRAIN HOSE SETTING
1Connect the drain hose to the drain outlet at the rear
side of your washer.
2The other end of drain hose setting toward the bath or
sinkhole.
3Install the drain hose under 85cm from the ground.
(In case DRAIN PUMP model)
85Cm
Less than 10cm
(NO DRAIN PUMP)
(PUMP)
4
;
;
;
CLEANING & MAINTENANCE
■CLEANING THE DRAIN FILTER
In case of incomplete drain, remove lints from the drain
filter with soft brush.
■CLEANING THE WASHER BODY
Wipe of stains on the cabinet and control panel with soft
cloth.
Do not use benzene, thinner, cleanser or wax.
(Plastic parts will be damaged.)
■CLEANING THE OVERFLOW FILTER
Insert your finger into hole “A”
and then pull the overflow filter
in the direction of arrow as shown
in the figure.
■CLEANING THE WASH TUB
Fill water in the wash tub to “L” level,
and operating wash cycle for
1~2 minutes.
After washing drain water from
the wash tub.
Close the wash tub lid.
Proper care of your washer can extend its life.
A
DW-503M(영)_기본 03.4.18 10:39 AM 페이지4

DIMENSIONS(WxDxH,mm) 680x406x870 , 680x406x805
WEIGHT 17 Kg (NON-PUMP) 18 Kg (PUMP)
WATER CONSUMPTION LOW(27
l ), HIGH(37 l )
POWER SOURCE REFER TO SPECIFICATION LABEL
RATING TIME Washing 1 hour Spinning 15 minutes
;
;
;
BEFORE YOU CALL FOR SERVICE
;
;
;
SPECIFICATIONS
;
;
;
LAUNDRY GUIDE
■WASHING TIME & WASH ACTION TABLE
■WHEN YOU PUT THE LAUNDRY INTO THE
SPIN BASKET
Press the laundry evenly and put the safety cover into the
spin basket drum as shown in figures.
The amount of detergent is average.
Follow the instructions printed on the package of detergent for
amount of detergent.
Choose the amount of detergent depending on the fabric type.
KIND OF CLOTHING WASHING TIME
Extremely soiled heavy fabric 10~15 minutes
Linen, cotton, etc. 8~10 minutes
Ordinary clothes (underwear, etc.) 7 minutes
Slightly soiled synthetic fabric 2~5 minutes
100% wool, mixed wool knitting,
thin synthetic fabric with tags 2~5 minutes
indicating hand washing
■SPIN DRY TIME
TIME TYPE OF LAUNDRY
1 min. thin (synthetic fabric)
1~2 min. wool
3~5 min. cotton
5 min. thick (cotton)
■WATER LEVEL & DETERGENT
WATER LEVEL AMOUNT OF DETERGENT
LOW(27 l ) 27g
HIGH(37 l ) 37g
TROUBLE CHECK POINT
The washer Check the power cord is connected
does not work. to a power outlet well.
Power stoppage?
Clothes will not Is the laundry overloaded?
move freely.
Incomplete spinning Is the laundry arranged evenly?
TROUBLE CHECK POINT
Is the drain filter clogged with lint?
Incomplete draining Power stoppage?
The spin dryer Is the spin dryer lid closed
basket will not run. completely?
5
DW-503M(영)_기본 03.4.18 10:39 AM 페이지5

6
;
;
;

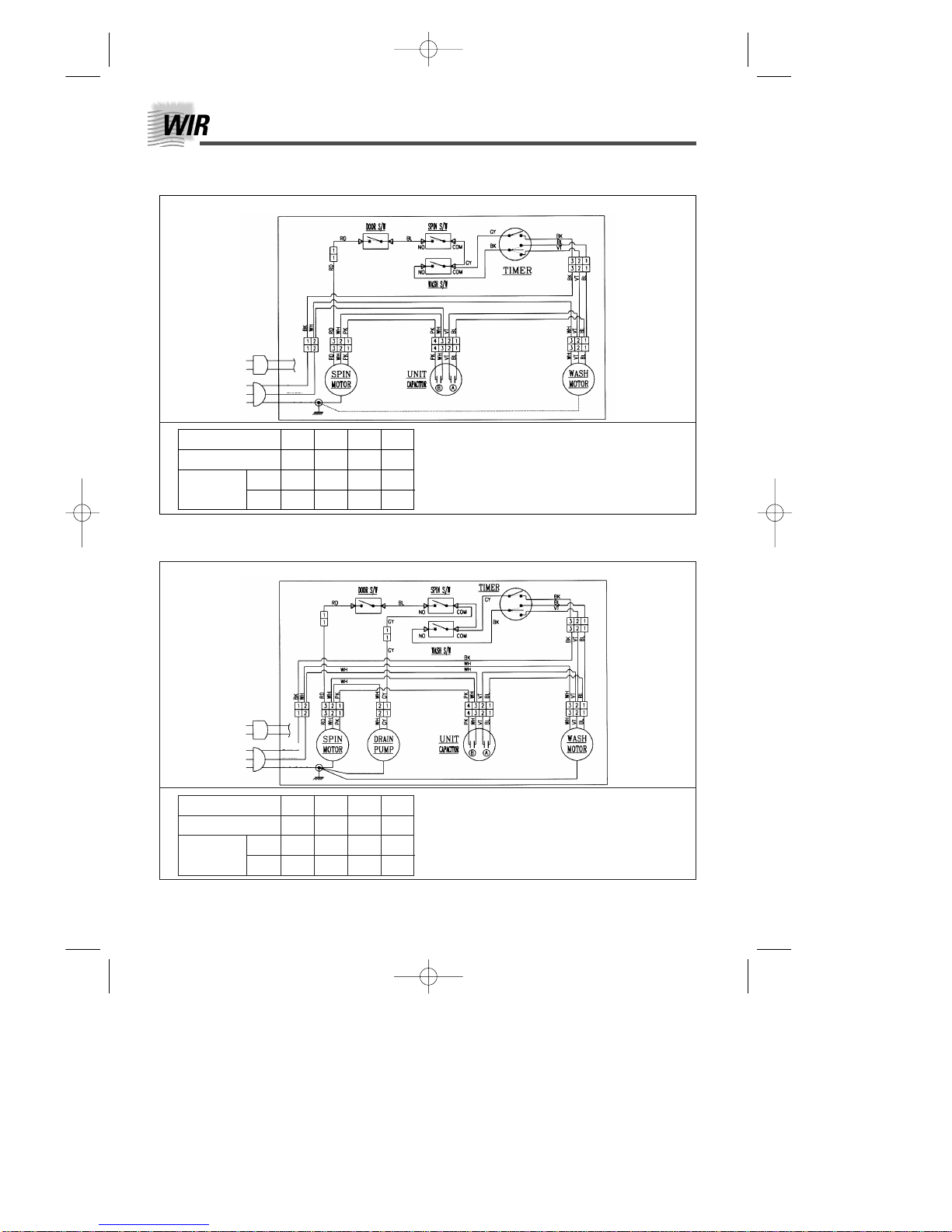

WIRING DIAGRAM
■SINGLE VOLTAGE, NON PUMP
RATING VOLTAGE(V~) 100 110 220 240
Hz 50/60 60 50/60 50
CAPACITOR
Ⓐ 26 26 6.5 6.5
Ⓑ 12.4 9 2.6 2.6
BK: BLACK
BL: BLUE
RD: RED
PK: PINK
WH: WHITE
VT: VIOLET
BR: BROWN
YL/GN: YELLOW/GREEN
GN: GREEN
WIRING DIAGRAM
500-SNO
■SINGLE VOLTAGE, PUMP
RATING VOLTAGE(V~) 100 110 220 240
Hz 50/60 60 50/60 50
CAPACITOR
Ⓐ 26 26 6.5 6.5
Ⓑ 12.4 9 2.6 2.6
BK: BLACK
BL: BLUE
RD: RED
PK: PINK
WH: WHITE
VT: VIOLET
BR: BROWN
YL/GN: YELLOW/GREEN
GN: GREEN
GY: GRAY
WIRING DIAGRAM
500-SPO
BK(BR)
WH(BL)
GN(GN/YW)
BK(BR)
WH(BL)
GN(GN/YW)
DW-503M(영)_기본 03.4.18 10:39 AM 페이지6

7

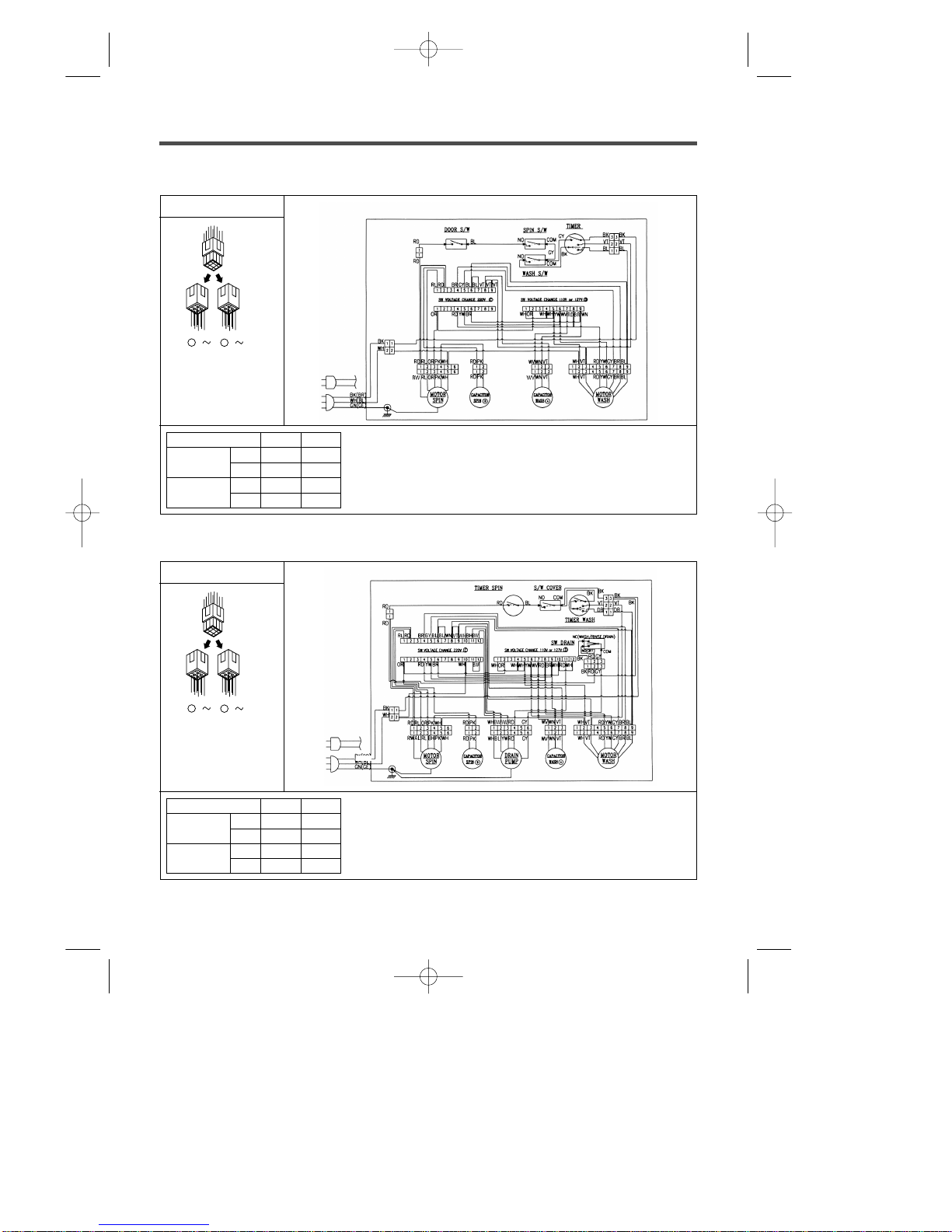

■DUAL VOLTAGE, NON PUMP
RATING VOLTAGE(V~) 110/220 127/220
CAPACITOR
Ⓐ 26/6.5 26/6.5
Ⓑ 12.4 7.6
CONNECTOR
Ⓒ 220 220
Ⓓ 110 127
GN : GREEN
OR : ORANGE
BK : BLACK
BR : BROWN
WH : WHITE
DB : DARK BLUE
RD : RED
PK : PINK
VT : VIOLET
GY : GRAY
YW : YELLOW
RW : RED/WHITE
GE : GREEN/YELLOW
BW : BLUE/WHITE
RL : RED/BLUE
YR : YELLOW/RED
KW : BLACK/WHITE
WE : WHITE/GRAY
WP : WHITE/PURPLE
WN : WHITE/GREEN
YK : YELLOW/BLACK
BH : BROWN/WHITE
BD : BLUE/RED
WV : WHITE/VIOLET
WIRING DIAGRAM
500-DNO
■DUAL VOLTAGE, PUMP
500-DPO
C V D V
C V D V
OPTIMUM USE WITH YOUR
VOLTAGE. THIS UNIT IS
SET FOR IF YOU WANT TO
CHANGE VOLTAGE THE
© V ~ CONNECTOR PLUG
AS THE FIG.
CONNECTOR
PLUG
CONNECTOR
OPTIMUM USE WITH YOUR
VOLTAGE. THIS UNIT IS
SET FOR IF YOU WANT TO
CHANGE VOLTAGE THE
© V ~ CONNECTOR PLUG
AS THE FIG.
CONNECTOR
PLUG
CONNECTOR
CAUTION
CAUTION
RATING VOLTAGE(V~) 110/220 127/220
CAPACITOR
Ⓐ 26/6.5 26/6.5
Ⓑ 12.4 7.6
CONNECTOR
Ⓒ 220 220
Ⓓ 110 127
GN : GREEN
OR : ORANGE
BK : BLACK
BR : BROWN
WH : WHITE
DB : DARK BLUE
RD : RED
PK : PINK
VT : VIOLET
GY : GRAY
YW : YELLOW
RW : RED/WHITE
GE : GREEN/YELLOW
BW : BLUE/WHITE
RL : RED/BLUE
YR : YELLOW/RED
KW : BLACK/WHITE
WE : WHITE/GRAY
WP : WHITE/PURPLE
WN : WHITE/GREEN
YK : YELLOW/BLACK
BH : BROWN/WHITE
BD : BLUE/RED
WV : WHITE/VIOLET
WIRING DIAGRAM
BK(BR)
DW-503M(영)_기본 03.4.18 10:39 AM 페이지7

VISION CREATIVE, INC.
중구 남대문로 5가 526
대우재단빌딩 16층
담 당 마선채 님 TEL
MODEL DWM-503M (기본)
BUYER DWM-503M (영어)
1차 6차
2차 7차
일 정 3차 8차
4차 9차
5차 10차
제판 한 인인쇄쇄영영문문화화사사
규격
MEMO
연연락락처처
VVIISSIIOONN담담당당전지현
TEL: [phone] FAX: [phone]
2003.03.28 - 신규
2003.04.03 - 표지, 2p 세트 수정
2003.04.07 - 5, 6p 수정
2003.04.18 - 1, 3p 수정
ABOUT THIS MANUAL
ABOUT THIS MANUAL
DW-503M(영)_기본 03.4.18 10:39 AM 페이지10
