Dahua DHI-ITARD-024MA-S User manual

Multi Target Bayonet Radar
User’s Manual
V1.
0.1
ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

User’s Manual
I
Foreword
General
This manual introduces the functions and operations of the multi target bayonet radar (hereinafter
referred to as the "Radar").
Models
DHI-ITARD-024MA-S
Safety Instructions
The following signal words might appear in the manual.
Signal Words Meaning
DANGER
Indicates a high potential hazard which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a medium or low potential hazard which, if not avoided,
could result in slight or moderate injury.
CAUTION
Indicates a potential risk which, if not avoided, could result in
property damage, data loss, reductions in performance, or
unpredictable results.
TIPS Provides methods to help you solve a problem or save time.
NOTE Provides additional information as a supplement to the text.
Revision History
Version Revision Content Release Time
V1.0.1 Added notes for testing the Radar
function. September 2021
V1.0.0 First release. September 2021
Privacy Protection Notice
As the device user or data controller, you might collect the personal data of others such as their face,
fingerprints, and car plate number. You need to be in compliance with your local privacy protection
laws and regulations to protect the legitimate rights and interests of other people by implementing

User’s Manual
II
measures which include but are not limited: Providing clear and visible identification to inform
people of the existence of the surveillance area and provide required contact information.
About the Manual
The manual is for reference only. Slight differences might be found between the manual and the
product.
We are not liable for losses incurred due to operating the product in ways that are not in
compliance with the manual.
The manual will be updated according to the latest laws and regulations of related jurisdictions.
For detailed information, see the paper user’s manual, use our CD-ROM, scan the QR code or
visit our official website. The manual is for reference only. Slight differences might be found
between the electronic version and the paper version.
All designs and software are subject to change without prior written notice. Product updates
might result in some differences appearing between the actual product and the manual. Please
contact customer service for the latest program and supplementary documentation.
There might be errors in the print or deviations in the description of the functions, operations
and technical data. If there is any doubt or dispute, we reserve the right of final explanation.
Upgrade the reader software or try other mainstream reader software if the manual (in PDF
format) cannot be opened.
All trademarks, registered trademarks and company names in the manual are properties of their
respective owners.
Please visit our website, contact the supplier or customer service if any problems occur while
using the device.
If there is any uncertainty or controversy, we reserve the right of final explanation.

User’s Manual
III
Important Safeguards and Warnings
This section introduces content covering the proper handling of the Radar, hazard prevention, and
prevention of property damage. Read carefully before using the Radar, comply with the guidelines
when using it, and keep the manual safe for future reference.
Operation Requirements
Make sure that the power supply of the Radar works properly before use.
Do not pull out the power cable of the Radar while it is powered on.
Only use the Radar within the rated power range.
Transport, use and store the Radar under allowed humidity and temperature conditions.
Prevent liquids from splashing or dripping on the Radar. Make sure that there are no objects
filled with liquid on top of the Radar to avoid liquids flowing into it.
Do not disassemble the Radar.
Installation Requirements
WARNING
Connect the Radar to the adapter before power on.
Strictly abide by local electrical safety standards, and make sure that the voltage in the area is
steady and conforms to the power requirements of the Radar.
Do not connect the Radar to more than one power supply. Otherwise, the Radar might become
damaged.
Observe all safety procedures and wear required protective equipment provided for your use
while working at heights.
Do not expose the Radar to direct sunlight or heat sources.
Do not install the Radar in humid, dusty or smoky places.
Install the Radar in a well-ventilated place, and do not block the ventilator of the Radar.
Use the power adapter or case power supply provided by the Radar manufacturer.
The power supply must conform to the requirements of ES1 in IEC 62368-1 standard and be no
higher than PS2. Note that the power supply requirements are subject to the Radar label.
Connect class I electrical appliances to a power socket with protective earthing.
Make sure there are no objects in front of the Radar.
Install the Radar horizontally on a stable surface to prevent it from falling.
Do not install the Radar in an environment that has large amount of metal, advertising boards,
walls or electromagnetic interference. Otherwise, the performance of the Radar might be
affected.

User’s Manual
IV
Do not install 2 devices with the same frequency in the same environment. Otherwise, the
Radar might not work properly.

User’s Manual
V
Table of Contents
Foreword............................................................................................................................................................ I
Important Safeguards and Warnings............................................................................................................. III
1 Product Introduction .................................................................................................................................... 1
Overview ....................................................................................................................................................................................... 11.1
Features ......................................................................................................................................................................................... 11.2
2 Structure ........................................................................................................................................................ 2
Appearance .................................................................................................................................................................................. 22.1
Dimensions................................................................................................................................................................................... 22.2
3 Radar Installation .......................................................................................................................................... 4
Installation Requirements....................................................................................................................................................... 43.1
Installation Position................................................................................................................................................................... 43.2
3.2.1 Adjusting Azimuth Angle .......................................................................................................................................... 4
3.2.2 Adjusting Elevation Angle of Radar....................................................................................................................... 4
Installing the Radar ................................................................................................................................................................... 53.3
Cables............................................................................................................................................................................................. 73.4
4 Software Configuration ................................................................................................................................ 9
Starting the Software ............................................................................................................................................................... 94.1
Setting Radar Parameters .....................................................................................................................................................114.2
4.2.1 Setting Sensitivity and Lane Direction................................................................................................................11
4.2.2 Setting Installation Parameters .............................................................................................................................12
4.2.3 Reading Angle Alignment .......................................................................................................................................12
4.2.4 Setting Velocity Shift .................................................................................................................................................13
4.2.5 Configuring Lane Parameter ..................................................................................................................................13
4.2.6 Exporting Log...............................................................................................................................................................14
5 Radar Debugging ........................................................................................................................................ 15
Calibrating Azimuth................................................................................................................................................................155.1
5.1.1 Calibrating Azimuth Automatically......................................................................................................................15
5.1.2 Calibrating Azimuth Manually ...............................................................................................................................16
Configuring Lane Location...................................................................................................................................................185.2
Changing Status .......................................................................................................................................................................205.3
6 Program Update .......................................................................................................................................... 21
7 Web Configuration ...................................................................................................................................... 22
Connecting the Camera.........................................................................................................................................................227.1
Triggering Capture by the Radar........................................................................................................................................237.2
Configuring Speed Measurement by the Radar...........................................................................................................247.3
Checking Radar Status ...........................................................................................................................................................257.4
Testing Radar Configuration ................................................................................................................................................267.5
8 FAQ ............................................................................................................................................................... 27
Cybersecurity Recommendations............................................................................................. 29Appendix 1

User’s Manual
1
1Product Introduction
Overview1.1
Aiming at traffic applications, the Radar adopts brand-new software and hardware technologies to
measure the distance, speed, angle and range of multiple targets. Based on the measured
information, the Radar reports accurate trigger signals to the camera.
With FMCW and MIMO technologies, the Radar realizes faster and more accurate measurement of
distance, speed and angle. In addition, the embedded tracking algorithm makes the Radar especially
suitable for scenarios with heavy traffic flow, such as multiple-lane check points and traffic
information collection, ensuring effective triggers of all targets.
Features1.2
Center mount and side mount available.
Covers up to 4 lanes horizontally.
Reports triggering information including lane number, vehicle speed and vehicle length.
Detects and keeps track of vehicles within the range from 15 m–100 m.
Adjustable trigger distance from 20 m–55 m with the accuracy of 1 m.
Configurable lower limit of trigger speed.
Advanced MIMO/DBF signal processing technology.
100 Mbps Ethernet and RS-485 communication ports.
Automatic azimuth angle calibration makes installation and debugging easy.

User’s Manual
2
2Structure

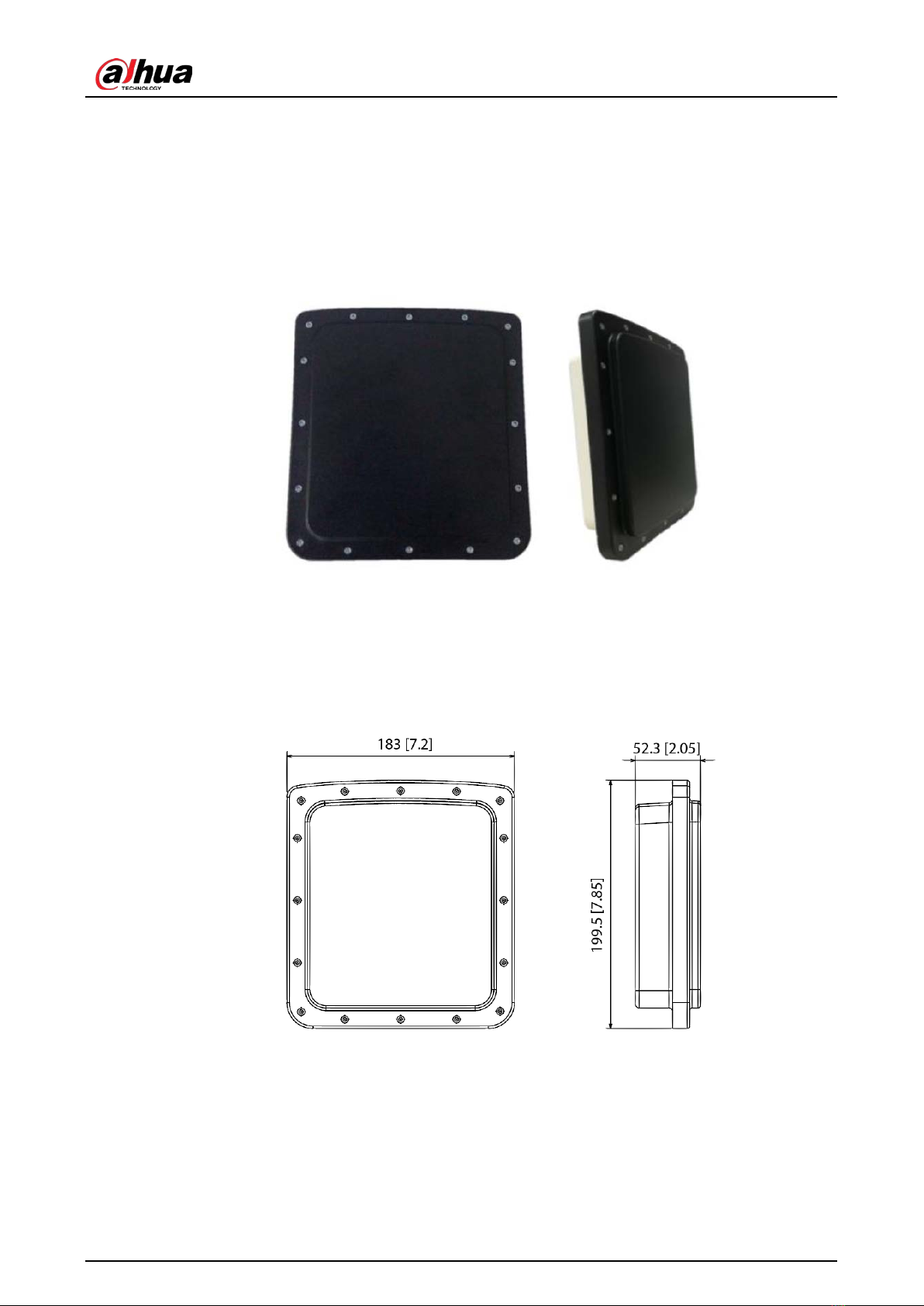

Appearance2.1
Product appearanceFigure 2-1
Dimensions2.2
Radar dimensions (mm [inch])Figure 2-2

User’s Manual
3
Bracket dimensions (mm [inch])Figure 2-3

User’s Manual
4
3Radar Installation
Installation Requirements3.1
Make sure that the installation environment is free of blockage and electromagnetic
interference.
Do not install 2 devices that share the same frequency (or same model) at one place.
Avoid metal reflective objects, for example, advertising board, in the FoV of the Radar.
The recommended installation height is 4 m–8 m.
Installation Position3.2
3.2.1 Adjusting Azimuth Angle
The azimuth angle refers to the angle between the normal line (0 deg) of the Radar and the direction
of moving vehicles.
When the normal line (0 deg) is on the left side of the lane line (axis y), the azimuth angle is positive;
when the normal line is on the right side, the angle is negative.
Azimuth angleFigure 3-1
The Radar supports 4 lanes at most.
3.2.2 Adjusting Elevation Angle of Radar
The elevation angle refers to the angle between the normal line of the Radar and the horizontal line
(road surface).

User’s Manual
5
Elevation angleFigure 3-2
When the Radar is facing down, the elevation angle is negative; when the Radar is facing up, the
angle is positive.
Refer to below table for actual installation.
Table 3-1 Recommended elevation angle (m (ft))
Trigger
Distance
Installation Height
4 (13.12) 5 (16.40) 6 (19.70) 7 (22.97) 8 (26.25)
20 (65.62) –6.3°–9.0°–11.7°–14.3°–16.8°
25 (82.02) –4.1°–6.3°–8.5°–10.6°–12.7°
30 (98.43) –2.6°–4.5°–6.3°–8.1°–9.9°
35 (114.83) –1.5°–3.1°–4.7°–6.3°–7.9°
40 (131.23) –0.7°–2.1°–3.5°–4.9°–6.3°
45 (147.64) 0°–1.3°–2.6°–3.8°–5.1°
50 (164.04) 0°–0.7°–1.8°–3.0°–4.0°
55 (180.45) 0°0°–1.2°–2.3°–3.3°

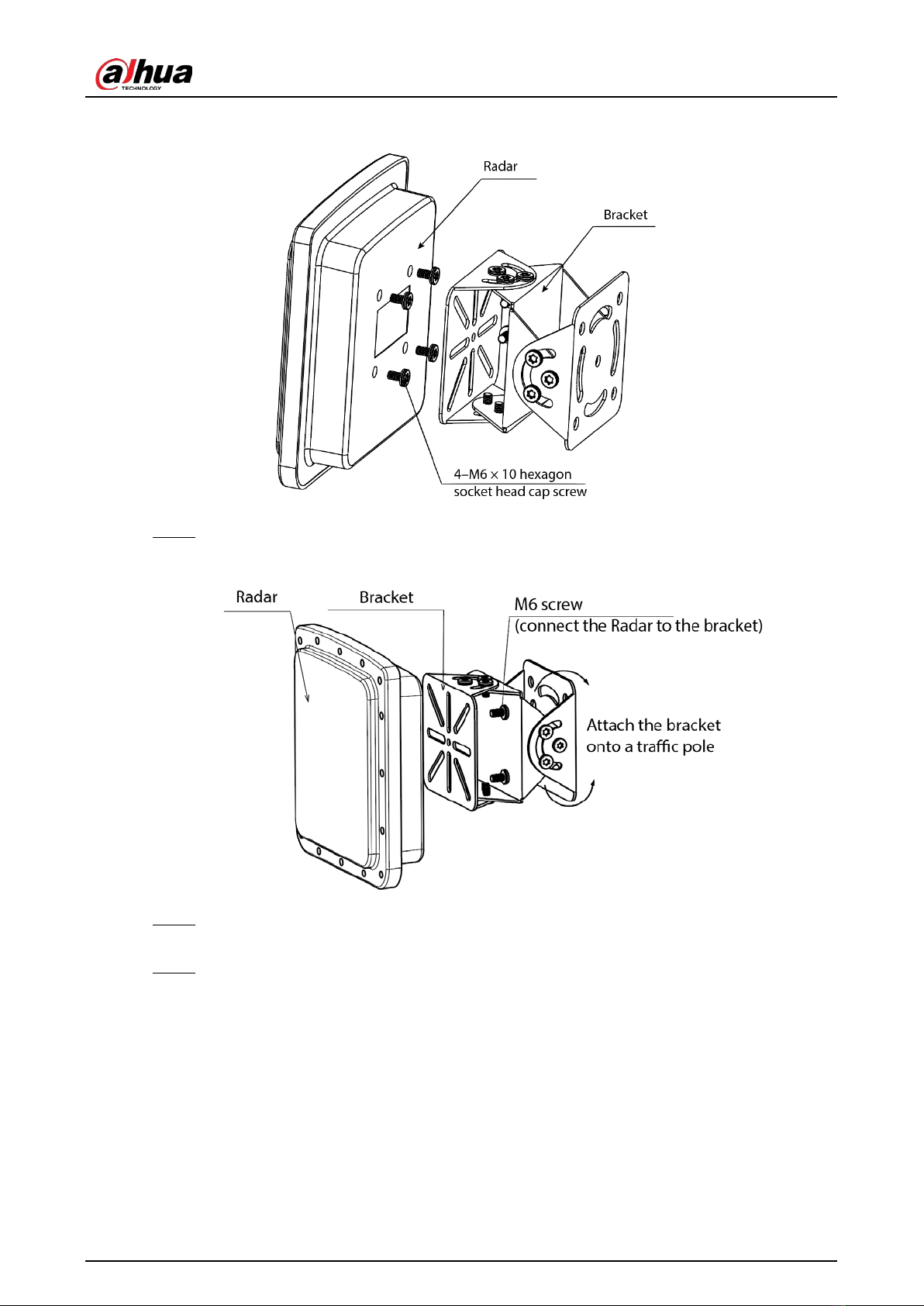

Installing the Radar3.3
Install the universal bracket.Step 1

User’s Manual
6
BracketFigure 3-3
Use pole mount bracket to attach the Radar onto a traffic pole.Step 2
Attach the RadarFigure 3-4
Refer to Table 3-1 for recommended values to adjust the elevation angle manually throughStep 3
adjusting the bracket.
Adjust the azimuth angle manually.Step 4
Install the Radar facing the center of the monitoring road and make sure it can cover all the
monitoring area.
Make sure the side with cables faces down.
Make sure the upside of the Radar is horizontal.

User’s Manual
7
Center mount (recommended)Figure 3-5
Side mount (recommended)Figure 3-6
Cables3.4
Cables of the RadarFigure 3-7

User’s Manual
8
Table 3-2 Cable descriptions
Port Description
12 VDC (red) 12 V+
GND (black) 12 V–
RS-485A (blue) Connects to the camera RS-485A port
RS-485B (white) Connects to the camera RS-485B port
Ethernet port Used for debugging the Radar

User’s Manual
9
4Software Configuration
You can configure and adjust the parameters of the Radar by using the attached software.
Starting the Software4.1
Double-click "Multiple_Target_Radar_Setting_Tool.exe" to start the software.Step 1
On the main interface of the software, click Search at the lower-left corner to search forStep 2
radars on the same network segment as the software.
You can also manually add devices by clicking Manual next to Search and enter the Radar
IP.
Leave the rest of the parameters as default.
Add radar manuallyFigure 4-1
Click to connect the Radar. When it turns to green, the Radar is connected.Step 3
Click next to the Radar to delete it.
Click to disconnect the Radar.

User’s Manual
10
Connect the Radar automaticallyFigure 4-2
Optional operations.Step 4
You can restart the Radar remotely by clicking Restart. Restart takes about 1.5 seconds.
You need to reconnect the Radar after restart.
You can configure the connected Radar IP by clicking Config IP.
1. Click Read to obtain information of the current Radar.
2. Change parameters as needed, and then click Write to synchronize them to the
Radar.
After changing radar information, you need to search or manually add the Radar and
connect it again.
Configure the Radar IPFigure 4-3

User’s Manual
11
Setting Radar Parameters4.2
You can set the parameters of the Radar through the software.
General operations:
Click Read to get the current parameter value.
Change the value and click Write, then the value you set will be synced to the Radar.
Click Default to restore the value on the software window to default.
Homepage of radar softwareFigure 4-4
Table 4-1 Homepage description
No. Description
1 Functions.
2 Operation logs.
3 Vehicle simulation.
4.2.1 Setting Sensitivity and Lane Direction
You can set the sensitivity of the Radar and lane direction.
Set sensitivity and lane directionFigure 4-5
Sensitivity: The detection sensitivity of the Radar. 7 (default) is the highest level.
Dir: Select the lane direction from Come,Go and Double.

User’s Manual
12
There is no need to set the lane direction again under the lane parameter when setting Dir
to Come or Go.
You need to set the lane direction again under the lane parameter when setting Dir to
Double. Refer to "4.2.5 Configuring Lane Parameter" for details.
4.2.2 Setting Installation Parameters
Set the installation parameters based on the actual installation position of the Radar.
Installation parametersFigure 4-6
Height: The distance between the Radar and the ground. Set according to the actual installation.
Azimuth: Azimuth angle configuration. It can be automatically or manually calibrated. For
details, see "3.2.1 Adjusting Azimuth Angle".
The deviation between the set value and the actual value cannot exceed 10 deg. Otherwise, the
automatic calibration will fail.
Elevation: Set according to the actual installation. For details, see "3.2.2 Adjusting Elevation
Angle of Radar".
4.2.3 Reading Angle Alignment
When a vehicle travels normally inside the lane, the Radar collects the vehicle course angle and
calculates horizontal angle alignment data.
You can get the data by clicking Read under Setting > Read Ang.
Angle alignmentFigure 4-7
To get the data under different situations, you can do one of the following:
Test during normal traffic flow
When there are about 50 vehicles passing by, the software can calculate the angle alignment
value. Click Read, if the returned data is 0, wait for more vehicles to pass and then check again.
Test when the road is closed
When a road is closed, you can test the Radar by driving towards it in each lane more than 5
times. Ensure to maintain a speed over 30 km/h, and cover a distance of 100 meters to the Radar.
Multiple vehicles can be driven at the same time.

User’s Manual
13
The angle alignment data can be affected by traffic flow and vehicle track. Low traffic flow or too
many vehicles changing lanes can impact the result.
Angle alignment reading is mainly used in situations where the Radar is installed on the road
center. If the Radar is installed on sides, we recommend calibrating manually.
4.2.4 Setting Velocity Shift
To eliminate deviations between the measured speed and the actual speed, you can adjust the
Velocity Shift. It is 0 by default.
For example, the speed measured by the Radar is 62 km/h, and the Velocity Shift is -2 km/h, the final
speed is 60 km/h.
Velocity shiftFigure 4-8
4.2.5 Configuring Lane Parameter
Lane parameterFigure 4-9
Table 4-2 Description of lane parameters
Parameter Description
Num The number of lanes that the Radar actually detected (up to 4).
Width Lane width. Only adjustable when Group mode is enabled.
Group
Enable the function, the software calculates lane parameters automatically
based on the start XL value, lane width and lane number.
Disable the function, you need to set the lane parameters manually.

User’s Manual
14
Parameter Description
XL(m)/XR(m)
Under the coordinate system of the Radar, the coordinates of the left/right lane line.
Negative value means the lane line is on the left side of the Radar and positive value
indicates the lane line is on the right.
Distance Detection distance. Only when a vehicle passes the line, can the Radar detect it.
Recommended range: 20 m–55 m.
Velocity The lower limit of the speed which the Radar can detect.
Direction Select lane direction when the Dir is set to Double.
Group Configuration
When the lanes are distributed evenly with the same width, you can enable the Group function. You
can only enter the lane width and the first XL value. The software will calculate the rest.
Single Configuration
When the lane width is not the same, or during other special situations where you need to enter the
XL and XR value for each lane. Disable Group, and the Width value is invalid.
We recommend enabling Group function when lane width meets the requirements.
Vehicles within the monitoring range will trigger the Radar to report to the camera through
RS-485 when both Distance and Velocity are exceeded.
4.2.6 Exporting Log
You can view the log and analyze the vehicle trigger information.
Operation logFigure 4-10
Select Output, and the software generates a .csv file containing vehicle triggering logs under
the default path displayed next to Output.
Clear Output, and vehicle triggering logs will not be saved to local.
Cancel selecting Output in advance. Otherwise you might not be able to view the logs in local
storage.
