Dahua DH-PFS4226-24GT2GF-360 User manual

16/24-Port Gigabit Managed PoE Switch
Quick Start Guide
V1.0.1

I
Foreword
General
This manual introduces the functions and operations of 16/24-port Gigabit managed PoE
switch (hereinafter referred to as "the Device").
Safety Instructions
The following categorized signal words with defined meaning might appear in the manual.
Signal Words
Meaning
Indicates a high potential hazard which, if not avoided, will result
in death or serious injury.
Indicates a medium or low potential hazard which, if not avoided,
could result in slight or moderate injury.
Indicates a potential risk which, if not avoided, could result in
property damage, data loss, lower performance, or
unpredictable result.
Provides methods to help you solve a problem or save you time.
Provides additional information as the emphasis and
supplement to the text.
Revision History
Version
Revision Content
Release Time
V1.0.0
First release.
September 2020
V1.0.1
Updated "1.1 Product Introduction" and "1.2
Product Features".
November 2020
About the Manual
●The manual is for reference only. If there is inconsistency between the manual and the
actual product, the actual product shall prevail.
●We are not liable for any loss caused by the operations that do not comply with the manual.
●The manual would be updated according to the latest laws and regulations of related
jurisdictions. For detailed information, refer to the paper manual, CD-ROM, QR code or our
official website. If there is inconsistency between paper manual and the electronic version,
the electronic version shall prevail.
●All the designs and software are subject to change without prior written notice. The product
updates might cause some differences between the actual product and the manual. Please
contact the customer service for the latest program and supplementary documentation.
●There still might be deviation in technical data, functions and operations description, or
errors in print. If there is any doubt or dispute, we reserve the right of final explanation.
●Upgrade the reader software or try other mainstream reader software if the manual (in PDF
format) cannot be opened.
●All trademarks, registered trademarks and the company names in the manual are the
properties of their respective owners.
●Please visit our website, contact the supplier or customer service if there is any problem

II
occurring when using the device.
●If there is any uncertainty or controversy, we reserve the right of final explanation.

III
Important Safeguards and Warnings
The manual helps you to use our product properly. To avoid danger and property damage, read
the manual carefully before using the product, and we highly recommend you to keep it well for
future reference.
Operating Requirements
●Do not expose the device directly to the sunlight, and keep it away from heat.
●Do not install the device in the damp environment, and avoid dust and soot.
●Make sure the device is in horizontal installation, and install the device on solid and flat
surface to avoid falling down.
●Avoid liquid spattering on the device. Do not place object full of liquid on the device to avoid
liquid flowing into the device.
●Install the device in the well-ventilated environment. Do not block the air vent of the device.
●Use the device at rated input and output voltage.
●Do not dissemble the device without professional instruction.
●Transport, use, and store the device in allowed ranges of humidity and temperature.
●Disconnect the power supply first to avoid personal injury when removing the cable.
●Voltage stabilizer and lightning arrester are optional according to site power supply and
surrounding environment.
Power Supply Requirements
●Use the battery properly to avoid fire, explosion, and other dangers.
●Replace the battery with battery of the same type.
●Use locally recommended power cord in the limit of rated specifications.
●Use the standard power adapter. We will assume no responsibility for any problems caused
by nonstandard power adapter.
●The power supply shall meet the SELV requirement. Use the power supply that conforms to
Limited Power Source, according to IEC60950-1. Refer to the device label.
●Adopt GND protection for I-type device.
●The coupler is the disconnecting apparatus. Keep it at the angle for easy to operate.
●Be sure to ground the device (connect with copper wire whose cross section is not less than
2.5 mm²and resistance to ground is less than or equal to 4Ω).
Battery Caution
●Do not ingest battery to avoid chemical burn hazard.
●This product contains a coin cell battery. If the coin cell battery is swallowed, it can cause
severe internal burns in just 2 hours and can lead to death.
●Keep new and used batteries away from children.
●If the battery compartment does not close securely, stop using the product and keep it away
from children.
●If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
●Risk of explosion if the battery is replaced by an incorrect type.
●Do not throw or immerse into water, heat to more than 100°C
（212°F）
, repair or disassemble,
leave in an extremely low air pressure environment or extremely high-temperature

IV
environment, crush, puncture, cut or incinerate.
●Dispose of the battery as required by local ordinances or regulations.

V
Table of Contents
Foreword.................................................................................................................................................... I
Important Safeguards and Warnings.................................................................................................... III
1 Overview................................................................................................................................................. 1
1.1 Product Introduction..................................................................................................................... 1
1.2 Product Features........................................................................................................................... 1
1.3 Typical Application....................................................................................................................... 1
2 Device Structure.................................................................................................................................... 3
2.1 Front Panel..................................................................................................................................... 3
2.2 Rear Panel...................................................................................................................................... 4
3 Installation.............................................................................................................................................. 5
3.1 Installing the Device ..................................................................................................................... 5
3.2 Wiring............................................................................................................................................. 5
3.2.1 Ethernet Port......................................................................................................................... 5
3.2.2 Console Port.......................................................................................................................... 6
3.2.3 SFP Port................................................................................................................................. 7
3.2.4 GND........................................................................................................................................ 7
4 Quick Operations .................................................................................................................................. 8
4.1 First Login by Console Port......................................................................................................... 8
4.2 Device Factory Default Configuration ...................................................................................... 10
4.3 VLAN Configuration.................................................................................................................... 10
Appendix 1 Cybersecurity Recommendations ................................................................................... 12

1
1 Overview
1.1 Product Introduction
The 16/24-Port Gigabit Managed PoE Switch is designed and developed for field transmission
application of high definition video. The product is equipped with high performance switching
engine and large buffer, which features low transmission delay and high reliability.
With solid and sealed all-metal case design, the product has low power consumption. With a
fan inside which improves high surface heat dissipation efficiency, the product can work in the
environment from -10°C to 55°C. And power input end overcurrent, overvoltage, and EMC
protection can effectively resist the interference from static electricity, lightning, and pulse.
The product owns powerful network management function. Network management system
supports iLinksView, CLI, web, and network management software based on SNMP.
1.2 Product Features
●Layer 2 network management PoE switch
●Support IEEE802.3af, IEEE802.3at standard
●Port 1 and port 2 support IEEE802.3bt, and are compatible with Hi-PoE
●Network redundancy: STP/RSTP/MSTP
●Support IPv4/IPv6, and DHCP
●Network management based on SNMP
●Configuration: web console, Telnet, CLI command
●QoS (IEEE802.1p/1Q), CoS/ToS to increase determinism
●Enhanced network security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH
●Large data buffer up to 4 MB, real-time transmission
●MAC auto study and aging, MAC address list capacity is 8K
●PD alive mode
●250 m long-distance transmission mode
●EMC high protection design
1.3 Typical Application
We take the 24-Port Gigabit Managed PoE Switch as the example to introduce the typical
networking scene.

2
Figure 1-1 Networking

3
2 Device Structure
2.1 Front Panel
16-Port Gigabit Managed PoE Switch
Figure 2-1 Front panel
Table 2-1 Front panel description
No.
Name
Description
1
RJ45 port
Ethernet port, supports 10/100/1000 M
self-adaptive.
2
COMBO port
2 Ethernet ports, support 10/100/1000 M
self-adaptive; 2 optical ports, support 1000
M self-adaptive.
3
Reset button
Long press the button for 5 s to reset the
Device and recover default configuration.
4
Console serial port
Device debugging port.
5
PoE power usage indicator
Current power consumption display.
6
Downlink indicator
Current port link status and PoE status.
7
Uplink port indicator
Link/Act indicator.
8
System indicator
System status:
●When device is booting up, the light is
flashing quickly.
●When device is working properly, the
light is flashing slowly.
9
Power indicator
Current power status of the Device.
24-Port Gigabit Managed PoE Switch
Figure 2-2 Front panel
Table 2-2 Front panel description
No.
Name
Description
1
RJ45 port
Ethernet port, supports 10/100/1000 M
self-adaptive.

4
No.
Name
Description
2
COMBO port
2 Ethernet ports, support 10/100/1000 M
self-adaptive; 2 optical ports, support 1000
M self-adaptive.
3
Reset button
Long press the button for 5 s to reset the
Device and recover default configuration.
4
Console serial port
Device debugging port.
5
PoE power usage indicator
Current power consumption display.
6
Downlink indicator
Current port link status and PoE status.
7
Uplink port indicator
Link/Act indicator.
8
System indicator
System status:
●When device is booting up, the light is
flashing quickly.
●When device is working properly, the
light is flashing slowly.
9
Power indicator
Current power status of the Device.
2.2 Rear Panel

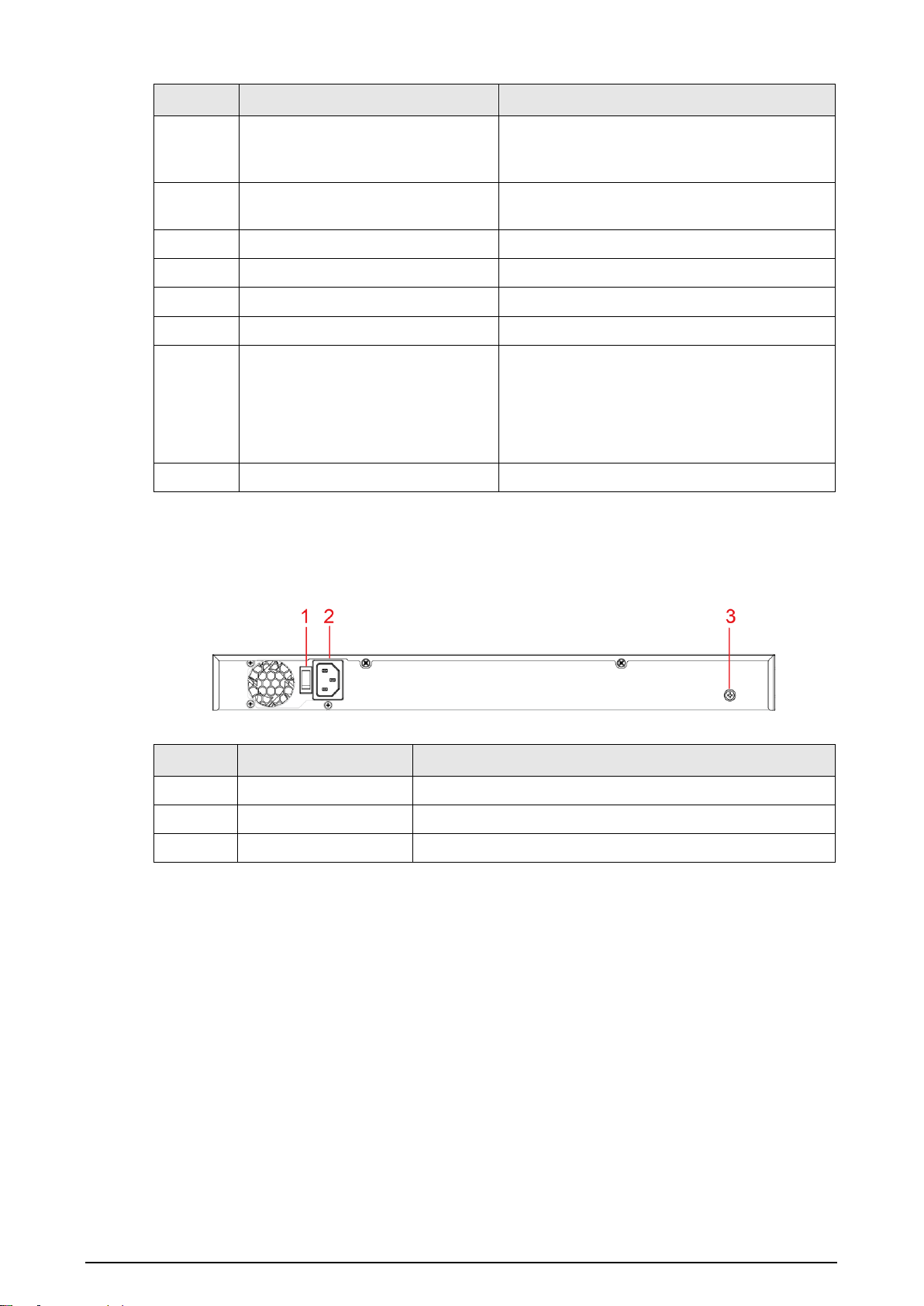

Figure 2-3 Rear panel
Table 2-3 Rear panel description
No.
Name
Description
1
Power switch
Power on or off the Device.
2
Power socket
Support 100V AC to 240V AC.
3
Ground terminal
GND.

5
3 Installation
3.1 Installing the Device
The device supports standard rack mount.
Install the rack mount kit on both sides of the switch. See Figure 3-1.
Figure 3-1 Rack mount
3.2 Wiring
3.2.1 Ethernet Port
Figure 3-2 Ethernet port pin number
10/100/1000 M Base-T Ethernet port adopts standard RJ45 port. Equipped with self-adaptation
function, it can be automatically configured to full duplex/half-duplex operation mode, and
supports MDI/MDI-X self-recognition function of the cable, which means that the switch can use
cross-over cable or straight-through cable to connect terminal device to network device.
Figure 3-3 Pin description
The cable connection of RJ45 connector conforms to the standard 568B (1-orange white,
2-orange, 3-green white, 4-blue, 5-blue white, 6-green, 7-brown white, 8-brown).

6
3.2.2 Console Port
Figure 3-4 Console port

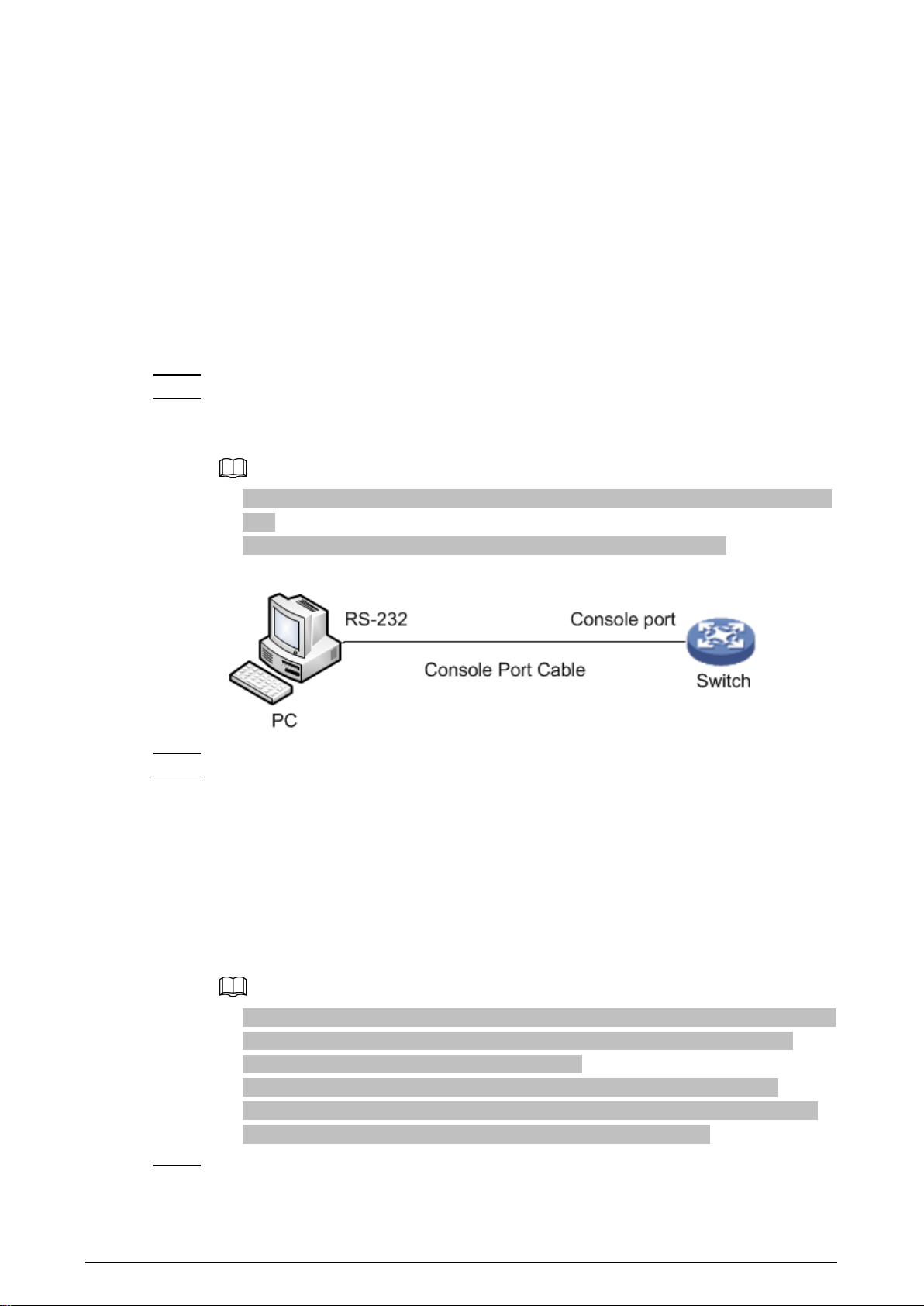

See Figure 3-4 for console port. The switch console port and computer controlling 9-pin serial
port are connected with RJ-45-DB9 cable. You can call the console software of the device by
operating the superterminal software of the Windows system for device configuration,
maintenance, and management.

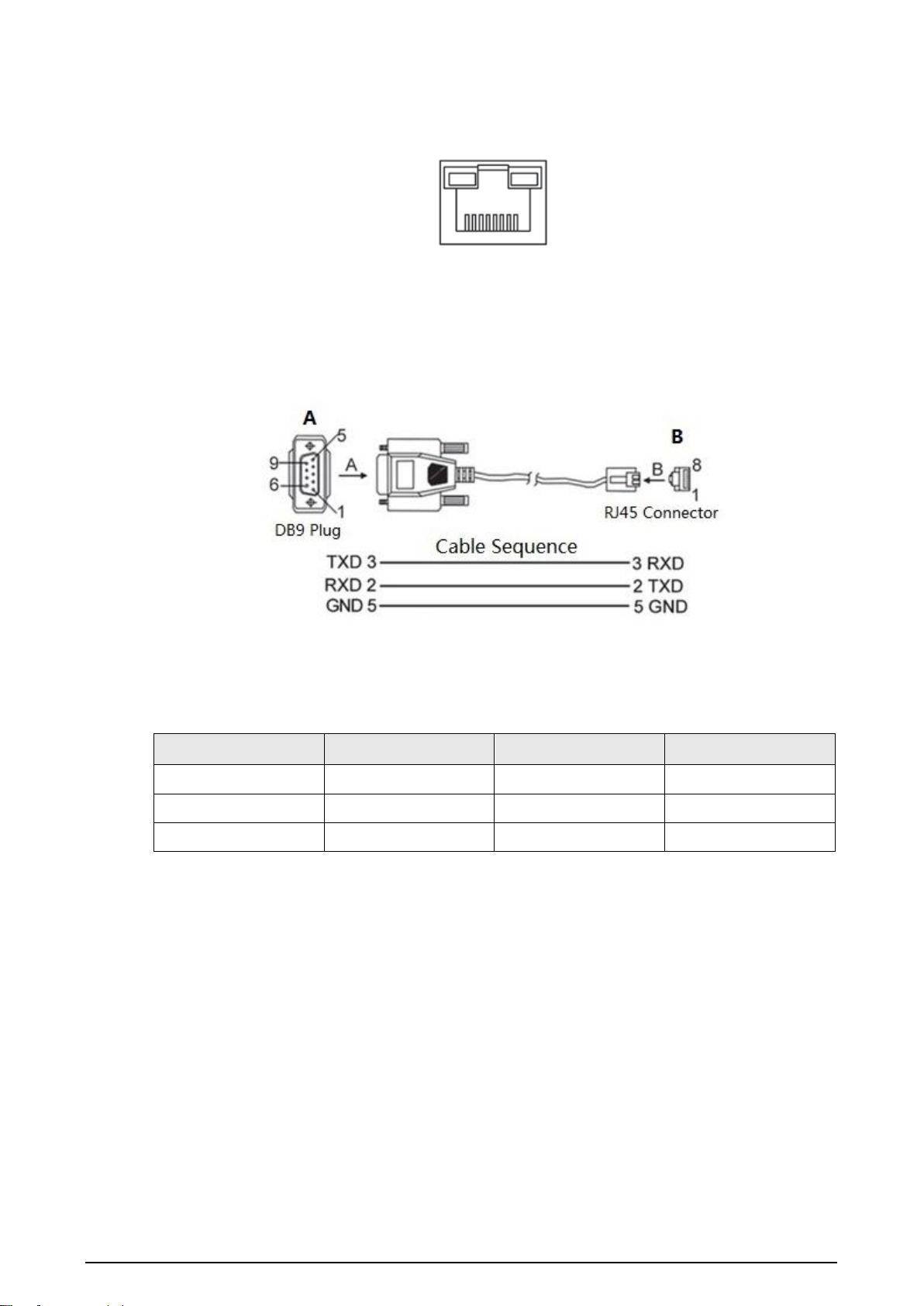

See Figure 3-5 for cable sequence of RJ-45-DB9.
Figure 3-5 Cable sequence of RJ45 DB9
One end of RJ45 DB9 cable is RJ45 connector, which needs to be inserted into the console
port of the device. And the other end is DB9 plug, which needs to be inserted into the computer
controlling 9-pin serial port.
Table 3-1 Pin description
DB9 pin
RJ45 pin
Signal
Description
2
3
RXD
Receiving data
3
2
TXD
Sending data
5
5
GND
GND

7
3.2.3 SFP Port
The signal is transmitted through laser by optical fiber cable. The laser conforms to the
requirement of level 1 laser products. To avoid injury of eyes, do not look at the 1000 Base-X
optical port directly when the device is powered on.
Figure 3-6 SFP module structure
Figure 3-7 SFP module installation
Installing SFP Port
Before installing SFP module, wear antistatic gloves, and then wear antistatic wrist strap. Make
sure that the antistatic gloves and the antistatic wrist strap are in good contact.
1. Lift the handle of SFP module upward vertically, and stuck it to the top hook.
2. Hold the SFP module by both sides, and push it gently into the SFP slot till the SFP module
is firmly connected to the slot (both the top and bottom spring strip of the SFP module are
firmly stuck with the SFP slot).
3.2.4 GND
Figure 3-8 GND terminal
Normal GND of the device is the important guarantee for device lightning protection and
anti-interference. You should connect the GND cable before powering on the device, and
power off the device before disconnecting the GND cable.
There is a GND screw on the device cover board for the GND cable, which is called enclosure
GND. Connect one end of the GND cable with the cold-pressed terminal, and fix it on the
enclosure GND with the GND screw. The other end of the GND cable should be reliably
connected to the ground.
The sectional area of the GND cable shall be more than 2.5 mm², and the GND resistance shall
be less than 4Ω.

8
4 Quick Operations
We will introduce VLAN configuration briefly in this section. See the corresponding command
line manual for detailed configuration.
4.1 First Login by Console Port
It is the most basic way to log in to the local interface via Console port, and it is also the method
to configure other ways to log in to the device.
Step 1 Power off the PC.
Step 2 Use default console port cable to connect PC and the device.
First insert the DB-(hole) plug of console port cable into the 9-pin serial port of PC,
and then insert the RJ45 plug into the console port of the device.
●Confirm the sign on the port during connection, in case it may plug into the wrong
port.
●Plug out RJ45 and then DB-9 when dismantling console port cable.
Figure 4-1 Login via console port
Step 3 Power on the PC.
Step 4 Run terminal simulation program on the PC, and then select the serial port which is to
connect the device, set the terminal communication parameters.
The following parameter values have to be in accordance with the values on the
device, the default are shown as follows.
●Baud rate: 115200
●Data bit: 8
●Stop bit: 1
●Parity: none
●Flow control: none
●If the PC uses Windows Server 2003 operating system, please add super terminal
program in the Windows component and then log in and manage the device
according to the way introduced in this manual.
●If the PC uses Windows Server 2008, Windows Vista, Windows 7 or other
operating systems, please prepare third-party terminal control software, refer to
the software operation guide or online help for operation method.
Step 5 After device is powered on, it displays device self-check information on the terminal
control software, and it will prompt users to press Enter key after self-check, then it will
display username and password input prompt.

9
Step 6 Enter username and password, and then press Enter.
The default username is admin, and the default password is admin.
The following command line prompt (SWITCH#) is displayed after pressing Enter,
which means login has been successful.
Enter corresponding command, and you can configure the device or check device
operating status, and you can enter ? anytime if you need help.
+M25PXX : Init device with JEDEC ID 0xC22018.
Luton10 board detected (VSC7428 Rev. D).
RedBoot(tm) bootstrap and debug environment [ROMRAM]
Non-certified release, version 1_31-4752 - built 17:29:35, Jul 29 2017
Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
Free Software Foundation, Inc.
RedBoot is free software, covered by the eCos license, derived from the
GNU General Public License. You are welcome to change it and/or distribute
copies of it under certain conditions. Under the license terms, RedBoot's
source code and full license terms must have been made available to you.
Redboot comes with ABSOLUTELY NO WARRANTY.
Platform: VCore-III (MIPS32 24KEc) LUTON26
RAM: 0x80000000-0x88000000 [0x80028f20-0x87fdfffc available]
FLASH: 0x40000000-0x40ffffff, 256 x 0x10000 blocks
== Executing boot script in 3.000 seconds - enter ^C to abort
RedBoot> diag -p
RedBoot> fis load -x linux
MD5 signature validated
Stage1: 0x80100000, length 4641272 bytes
Initrd: 0x80600000, length 188416 bytes
Kernel command line: init=/usr/bin/stage2-loader loglevel=4
RedBoot> exec
Now booting linux kernel:
Base address 0x80080000 Entry 0x80100000
Cmdline : init=/usr/bin/stage2-loader loglevel=4
Active fis: linux
[ 0.374113] vcfw_uio vcfw_uio: UIO driver loading
[ 0.378957] vcfw_uio vcfw_uio: Invalid memory resource
[ 0.384141] iounmap: bad address (null)
00:00:00 Stage 1 booted
00:00:00 Using device: /dev/mtd7
00:00:01 Mounted /dev/mtd7
00:00:01 Loading stage2 from NAND file 'n6G5Xw'
00:00:05 Overall: 4195 ms, ubifs = 748 ms, rootfs 3422 ms of which xz = 0 ms of
which untar = 0 ms
Starting application...wuxuwuxu
Using existing mount point for /switch/
system time:2017-10-14 17:59:53

10
W icfg 18:00:22 71/icfg_commit_tftp_load_and_trigger#2695: Warning: TFTP get
bringup-config: Operation timed out.
Press ENTER to get started
Username: admin
Password:
SWITCH#
Enter corresponding command to configure the device or check device operating
status, and you can enter ? anytime if you need help.
4.2 Device Factory Default Configuration
You can log in to Web interface of the device via the following IP address.
Username and password can be applied to log in to Web interface via Console port.
Table 4-1 Device factory default
Parameter
Note
IP address
192.168.1.110
Username
admin
Password
●iLinksView is enabled by default, and the default username is admin, the default password
is lt_91_il_02_nmp.
●When using the iLinksView to manage the device, note that the username and password
must be the same as that you have set in the iLinksView, otherwise the iLinksView cannot
discover the device.
4.3 VLAN Configuration
VLAN (Virtual Local Area Network) is frequently used during actual application; it is divided into
multiple network basics internally. VLAN is to organize several devices into one network
logically, regardless of the physical location of the devices. Each VLAN is a logical network,
which is equipped with all functions and attributes of traditional physical network. Each VLAN is
a broadcast domain; broadcast packet can only be forwarded within one VLAN, not across the
VLAN.
VLAN Based on Port
VLAN based on port means that one switch can realize the division of logical working groups
via controlling interoperability of between two and among several ports. Dividing port VLAN
reasonably can greatly improve network security and bandwidth use ratio, besides it reduces
the probability of broadcast storm. The model supports 4094 VLAN; it needs to select a VLAN

11
ID when creating VLAN, ranging from 2 to 4094. The switch creates VLAN1 by default and
VLAN1 cannot be deleted.
Application Example
Networking Requirement
There are two users, user 1 and user 2. These two users need to be in different VLAN due to
different network function and environment. User 1 belongs to VLAN2, connecting to switch
port G1/1 (Gigabit Ethernet 1/1); user 2 belongs to VLAN 3, connecting to switch port G1/2
(Gigabit Ethernet 1/2).
Figure 4-2 VLAN networking
Configuration Steps
The switch configuration is shown as follows.
1. Log in to the device. Refer to "4.1 First Login by Console Port".
2. Run the following command to create VLAN.
SWITCH #configure terminal
SWITCH (config)#vlan 2
SWITCH (config-vlan)# exit
SWITCH (config)#vlan 3
SWITCH (config-vlan)# exit
3. Run the following command to distribute ports into the VLAN.
SWITCH (config)# interface GigabitEthernet 1/1
SWITCH (config-if)# switchport access vlan 2
SWITCH (config-if)# exit
SWITCH (config)# interface GigabitEthernet 1/2
SWITCH (config-if)# switchport access vlan 3
SWITCH (config-if)# exit

12
Appendix 1 Cybersecurity Recommendations
Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is
connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic
steps toward protecting and strengthening networks and networked appliances will make them
less susceptible to attacks. Below are some tips and recommendations on how to create a
more secured security system.
Mandatory actions to be taken for basic device network security:
1. Use Strong Passwords
Please refer to the following suggestions to set passwords:
●The length should not be less than 8 characters;
●Include at least two types of characters; character types include upper and lower case
letters, numbers and symbols;
●Do not contain the account name or the account name in reverse order;
●Do not use continuous characters, such as 123, abc, etc.;
●Do not use overlapped characters, such as 111, aaa, etc.;
2. Update Firmware and Client Software in Time
●According to the standard procedure in Tech-industry, we recommend to keep your
device (such as NVR, DVR, IP camera, etc.) firmware up-to-date to ensure the system is
equipped with the latest security patches and fixes. When the device is connected to the
public network, it is recommended to enable the “auto-check for updates”function to
obtain timely information of firmware updates released by the manufacturer.
●We suggest that you download and use the latest version of client software.
"Nice to have" recommendations to improve your device network security:
1. Physical Protection
We suggest that you perform physical protection to device, especially storage devices. For
example, place the device in a special computer room and cabinet, and implement
well-done access control permission and key management to prevent unauthorized
personnel from carrying out physical contacts such as damaging hardware, unauthorized
connection of removable device (such as USB flash disk, serial port), etc.
2. Change Passwords Regularly
We suggest that you change passwords regularly to reduce the risk of being guessed or
cracked.
3. Set and Update Passwords Reset Information Timely
The device supports password reset function. Please set up related information for
password reset in time, including the end user’s mailbox and password protection questions.
If the information changes, please modify it in time. When setting password protection
questions, it is suggested not to use those that can be easily guessed.
4. Enable Account Lock
The account lock feature is enabled by default, and we recommend you to keep it on to
guarantee the account security. If an attacker attempts to log in with the wrong password
several times, the corresponding account and the source IP address will be locked.
5. Change Default HTTP and Other Service Ports
We suggest you to change default HTTP and other service ports into any set of numbers
between 1024~65535, reducing the risk of outsiders being able to guess which ports you
are using.

13
6. Enable HTTPS
We suggest you to enable HTTPS, so that you visit Web service through a secure
communication channel.
7. MAC Address Binding
We recommend you to bind the IP and MAC address of the gateway to the device, thus
reducing the risk of ARP spoofing.
8. Assign Accounts and Privileges Reasonably
According to business and management requirements, reasonably add users and assign a
minimum set of permissions to them.
9. Disable Unnecessary Services and Choose Secure Modes
If not needed, it is recommended to turn off some services such as SNMP, SMTP, UPnP,
etc., to reduce risks.
If necessary, it is highly recommended that you use safe modes, including but not limited to
the following services:
●SNMP: Choose SNMP v3, and set up strong encryption passwords and authentication
passwords.
●SMTP: Choose TLS to access mailbox server.
●FTP: Choose SFTP, and set up strong passwords.
●AP hotspot: Choose WPA2-PSK encryption mode, and set up strong passwords.
10.
Audio and Video Encrypted Transmission
If your audio and video data contents are very important or sensitive, we recommend that
you use encrypted transmission function, to reduce the risk of audio and video data being
stolen during transmission.
Reminder: encrypted transmission will cause some loss in transmission efficiency.
11.
Secure Auditing
●Check online users: we suggest that you check online users regularly to see if the device
is logged in without authorization.
●Check device log: By viewing the logs, you can know the IP addresses that were used to
log in to your devices and their key operations.
12.
Network Log
Due to the limited storage capacity of the device, the stored log is limited. If you need to
save the log for a long time, it is recommended that you enable the network log function to
ensure that the critical logs are synchronized to the network log server for tracing.
13.
Construct a Safe Network Environment
In order to better ensure the safety of device and reduce potential cyber risks, we
recommend:
●Disable the port mapping function of the router to avoid direct access to the intranet
devices from external network.
●The network should be partitioned and isolated according to the actual network needs. If
there are no communication requirements between two sub networks, it is suggested to
use VLAN, network GAP and other technologies to partition the network, so as to
achieve the network isolation effect.
●Establish the 802.1x access authentication system to reduce the risk of unauthorized
access to private networks.
●Enable IP/MAC address filtering function to limit the range of hosts allowed to access the
device.
