Daikin ACQ71C/AZQS71BV1 Instruction manual

Air Conditioning
Technical Data
EEDEN14-131A
AZQS-BV1

• Split - Sky Air • AZQS-BV1 1
• Outdoor Unit • AZQS-BV1
TABLE OF CONTENTS
AZQS-BV1
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Capacity and Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Capacity and Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Capacity and Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5 Combination table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

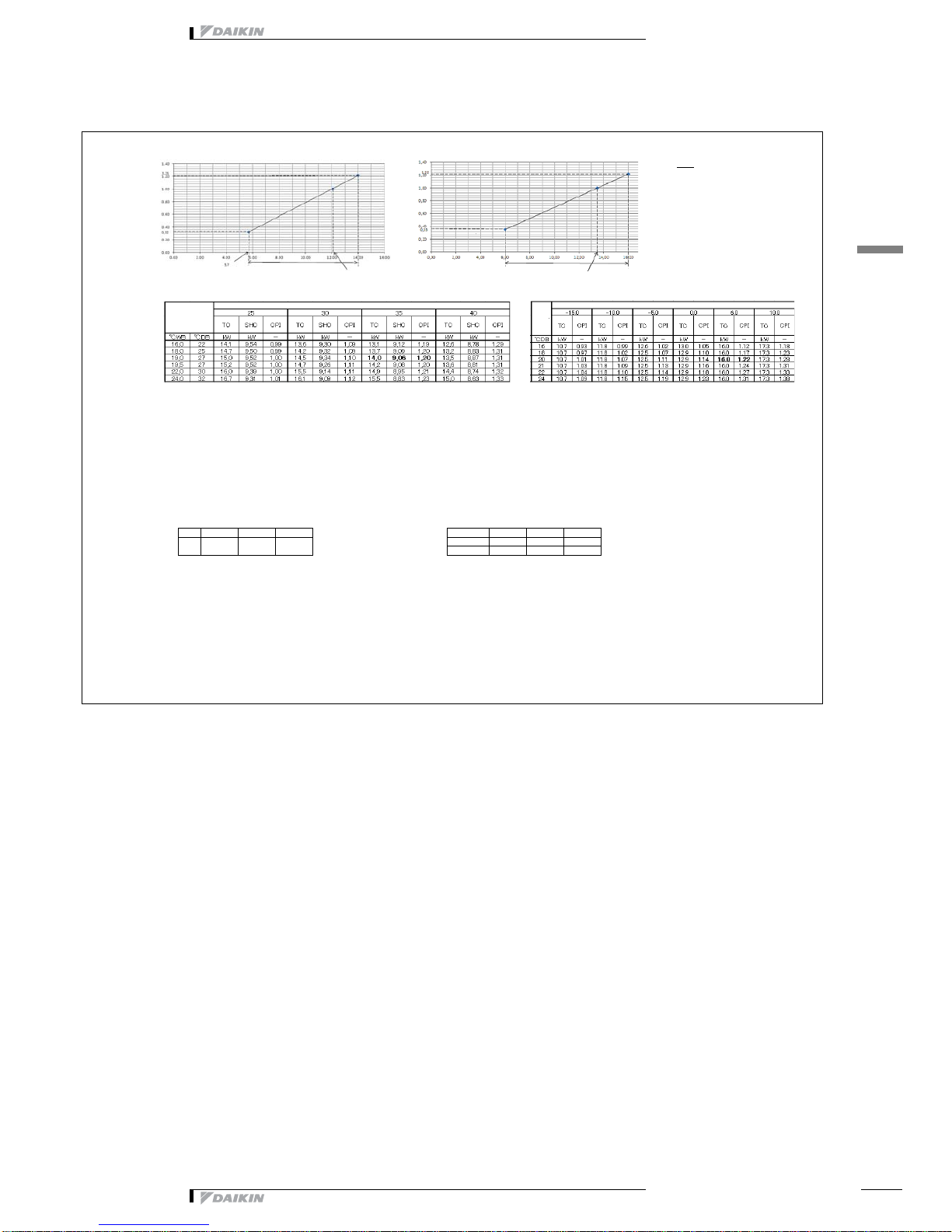

6 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

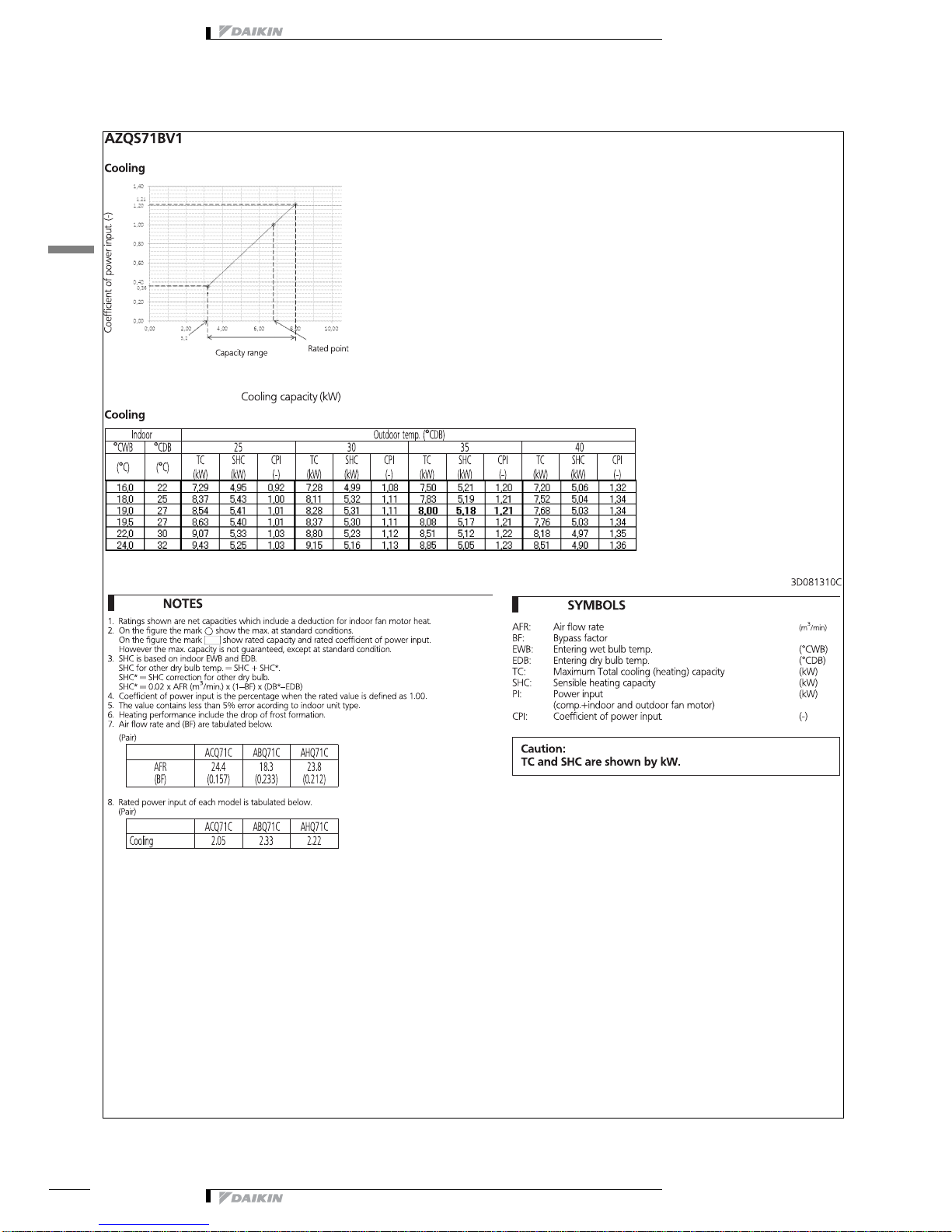

Cooling Capacity Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Heating Capacity Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cooling/Heating Capacity Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

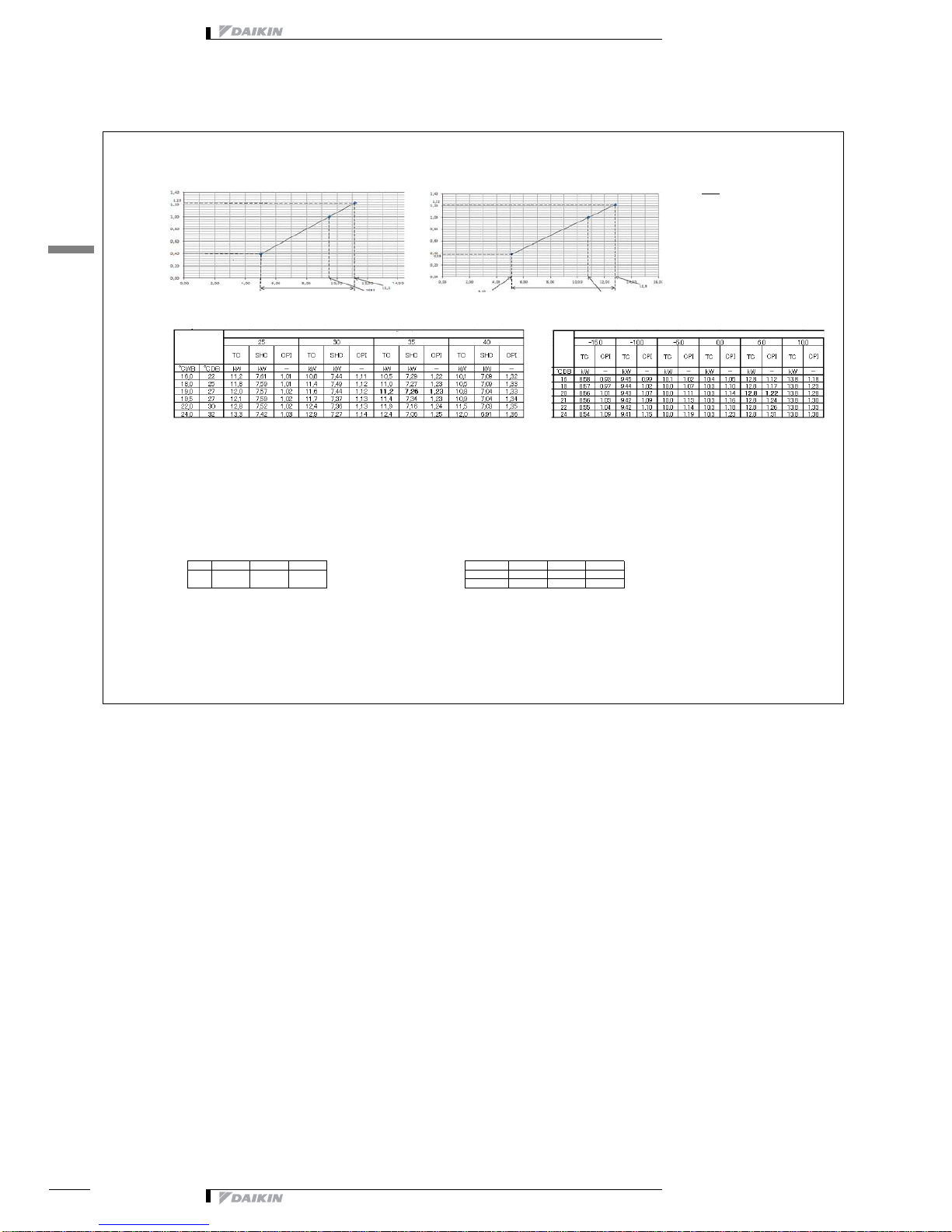

Capacity Correction Factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

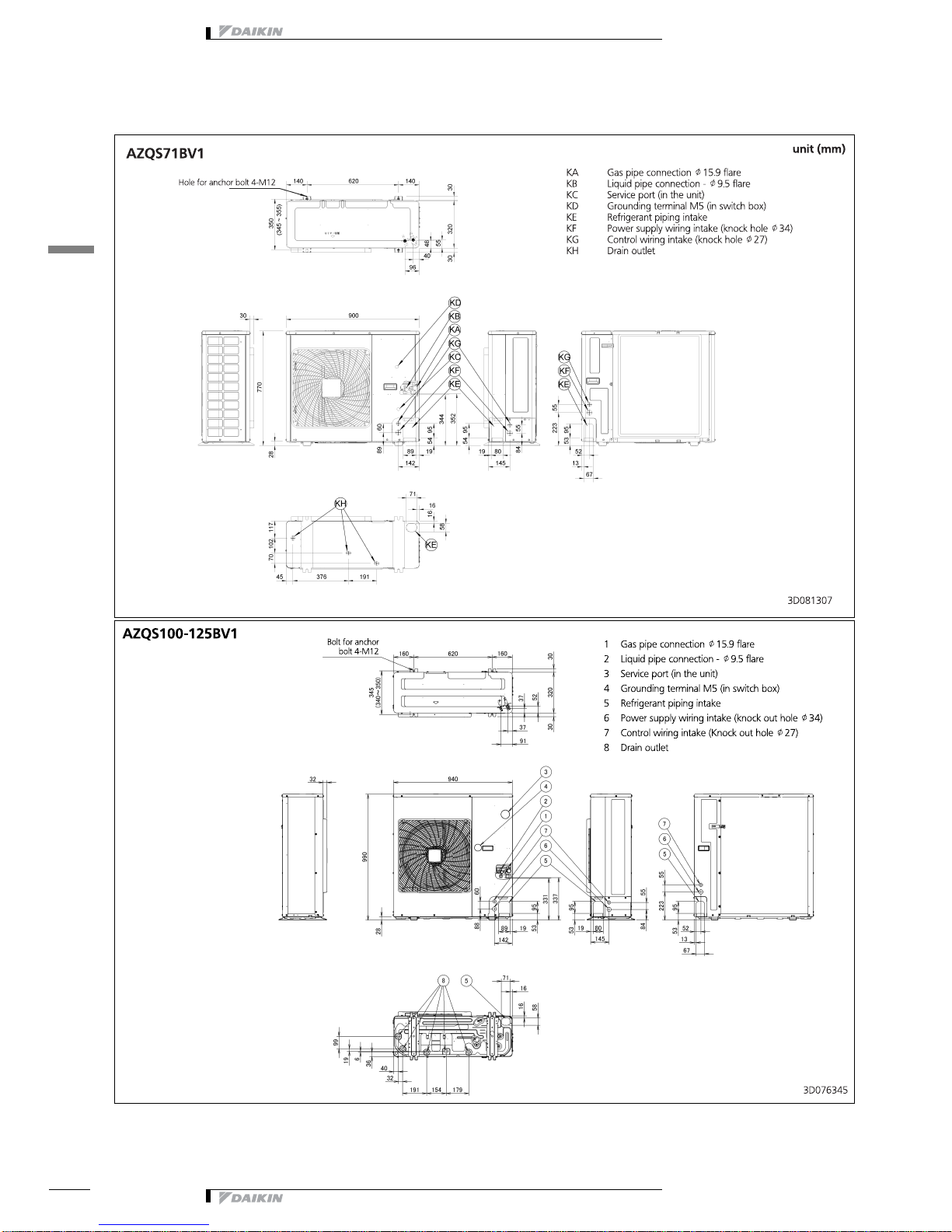

7 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

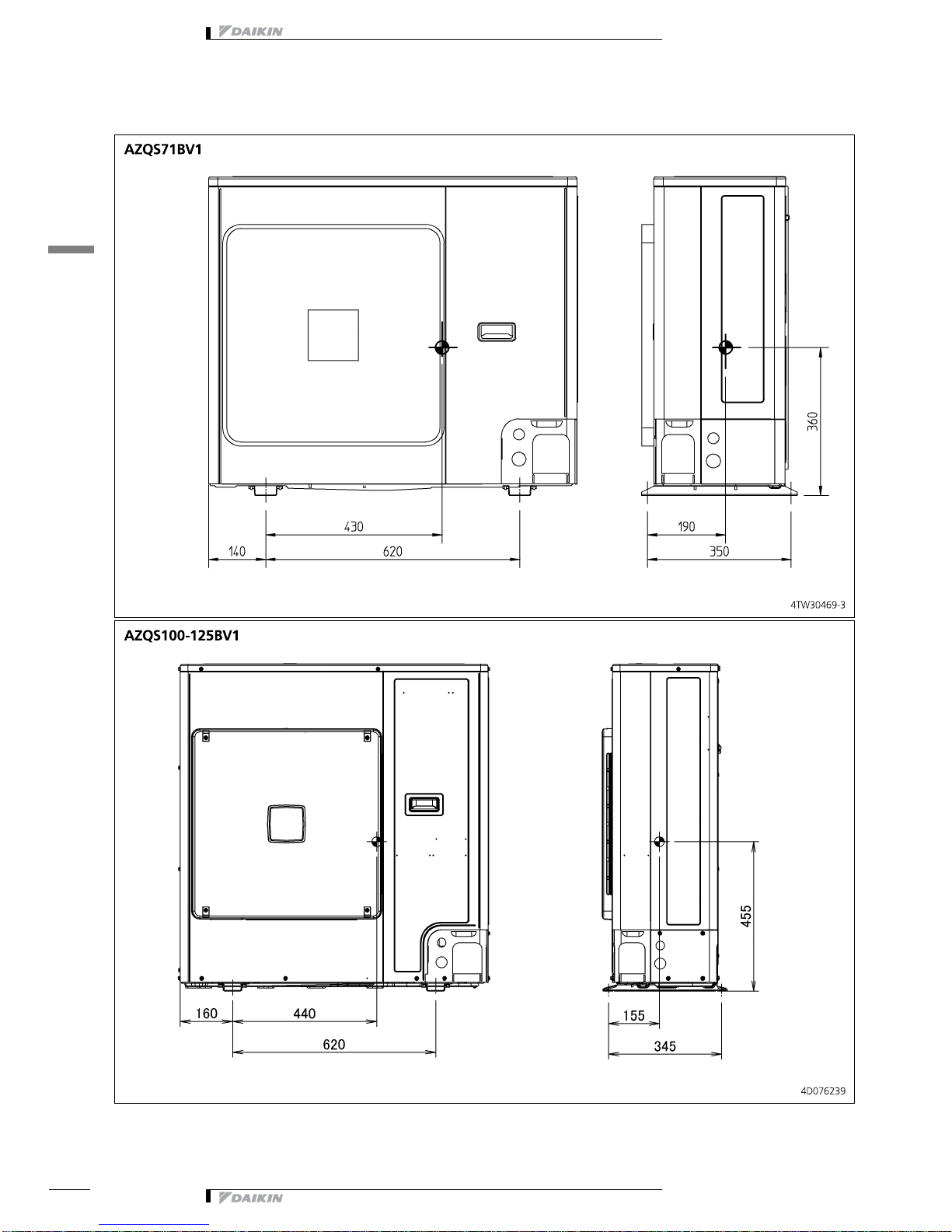

8 Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
9 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
11 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Sound Power Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Sound Pressure Spectrum - Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Sound Pressure Spectrum - Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Sound Pressure Spectrum Quiet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
12 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Installation Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
13 Operation range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

• Outdoor Unit • AZQS-BV1
1
• Split - Sky Air • AZQS-BV1
2

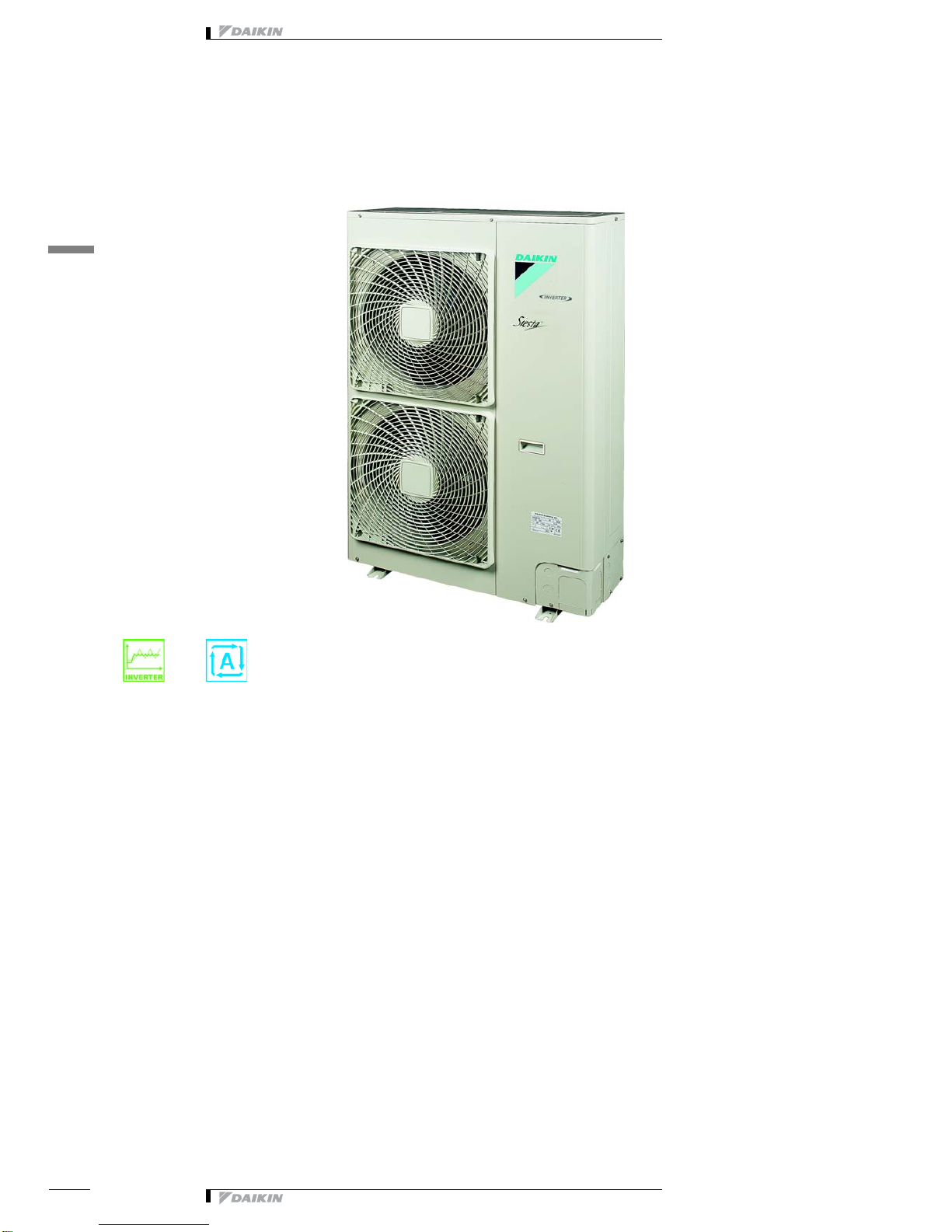

1 Features
OutdoorUni Split-Sk AZQS-BV1 • Daikin outdoor units are neat, sturdy and can easily be mounted on a
roof or terrace or simply placed against an outside wall
• Outdoor units are fitted with either a swing or scroll compressor,
renowned for low noise and high energy efficiency
• Outdoor units for pair application
• Seasonal efficiency, optimized for all seasons.
• Seasonal efficiency gives an indication on how efficient an air
conditioner operates over an entire heating or cooling season.
Inverter Auto cooling-
heating
changeover

3
2
• Split - Sky Air • AZQS-BV1 3
• Outdoor Unit • AZQS-BV1
2 Specifications
Notes
(1) EER/COP according to Eurovent 2012, for use outside EU only
Notes
(1) EER/COP according to Eurovent 2012, for use outside EU only(1) EER/COP according to Eurovent 2012, for use outside EU only Short-circuit power
(2) Annual energy consumption is according to Energy labeling directive 2002/31/EC
(3) SEER and SCOP are according to EN 14825
2-1 Capacity and Power input ACQ71C/AZQS71BV1 ACQ100C/AZQS100BV1 ACQ125C/AZQS125BV1
Cooling capacity Nom. kW 6.8 9.5 12.1
Heating capacity Nom. kW 7.50 10.80 13.5
Power input Cooling Nom. kW 2.05 2.96 4.02
Heating Nom. kW 2.08 2.99 3.96
Seasonal efficiency
(according to
EN14825)
Cooling Energy label B -
Pdesign kW 6.80 9.50 -
SEER 4.65 -
Annual energy
consumption
kWh 512 716 -
Heating (Average
climate)
Energy label A -
Pdesign kW 6.33 7.60 -
SCOP 3.80 -
Annual energy
consumption
kWh 2,332 2,800 -
Nominal efficiency
(cooling at 35°/27°
nominal load, heating
at 7°/20° nominal
load)
EER 3.31 3.21 3.01
COP 3.61 3.41
Annual energy consumption kWh 1,025 1,480 2,010
Energy label Cooling B A B
Heating A B
2-2 Capacity and Power input ABQ71C/AZQS71BV1 ABQ100C/AZQS100BV1 ABQ125C/AZQS125BV1 ABQ140C/AZQS140BV1
Cooling capacity Nom. kW 6.8 9.5 12.1 13.0
Heating capacity Nom. kW 7.5 10.8 13.5 15.5
Power input Cooling Nom. kW 2.33 3.63 4.31 4.32
Heating Nom. kW 2.13 3.16 3.96 4.55
Seasonal efficiency
(according to
EN14825)
Cooling Energy label B -
Pdesign kW 6.80 9.50 -
SEER 4.65 -
Annual energy
consumption
kWh 512 716 -
Heating (Average
climate)
Energy label A -
Pdesign kW 5.65 6.78 -
SCOP 3.80 -
Annual energy
consumption
kWh 2,082 2,498 -
Nominal efficiency
(cooling at 35°/27°
nominal load, heating
at 7°/20° nominal
load)
EER 2.91 2.62 2.81 3.01
COP 3.51 3.42 3.41
Annual energy consumption kWh 1,165 1,813 2,153 2,159
Energy label Cooling C D C B
Heating B
2-3 Capacity and Power input AHQ71C/AZQS71BV1 AHQ100C/AZQS100BV1 AHQ125C/AZQS125BV1 AHQ140C/AZQS140BV1
Cooling capacity Nom. kW 6.8 9.5 12.1 13.0
Heating capacity Nom. kW 7.5 10.8 13.5 15.5
Power input Cooling Nom. kW 2.24 3.62 4.60 4.32
Heating Nom. kW 2.46 3.17 3.74 4.55

• Outdoor Unit • AZQS-BV1
2
• Split - Sky Air • AZQS-BV1
4
2 Specifications
Notes
(1) EER/COP according to Eurovent 2012, for use outside EU only
Seasonal efficiency
(according to
EN14825)
Cooling Energy label B -
Pdesign kW 6.80 9.50 -
SEER 4.65 4.60 -
Annual energy
consumption
kWh 512 723 -
Heating (Average
climate)
Energy label A -
Pdesign kW 6.33 7.60 -
SCOP 3.80 -
Annual energy
consumption
kWh 2,332 2,800 -
Nominal efficiency
(cooling at 35°/27°
nominal load, heating
at 7°/20° nominal
load)
EER 3.03 2.62 2.63 3.01
COP 3.05 3.41 3.61 3.41
Annual energy consumption kWh 1,120 1,810 2,300 2,159
Energy label Cooling B D -
Heating D B A -
2-4 Technical Specifications AZQS71BV1 AZQS100BV1 AZQS125BV1 AZQS140BV1
Capacity control Method Inverter controlled
Casing Colour - Ivory white
Material - Painted galvanized steel plate
Dimensions Unit Height mm 770 990 1,430
Width mm 900 940
Depth mm 320
Packed unit Height mm 900 1,170 1,610
Width mm 980 1,015
Depth mm 420 422
Weight Unit kg 67 81 102
Packed unit kg 71 88 108
Heat exchanger Length mm 857 -
Rows Quantity 2 -
Fin pitch mm 1.4 -
Passes Quantity 8 -
Face area m² 0.641 -
Stages Quantity 34 -
Empty tubeplate
hole
Quantity 0 -
Tube type Hi-XSS -
Fin Type WF fin
Treatment Anti-corrosion treatment (PE)
Compressor Quantity 1
Model 2YC63DXD -
Type Hermetically sealed swing compressor
Output W 1,700.0 -
Starting method Inverter driven -
Fan Type Propeller fan
Discharge direction Horizontal
Quantity 1 2
Air flow rate Cooling Nom. m³/min 52.0 76 77 83
Super
low
m³/min -
cfm -
Heating Nom. m³/min 48.0 83 62
Super
low
m³/min -
cfm -
2-3 Capacity and Power input AHQ71C/AZQS71BV1 AHQ100C/AZQS100BV1 AHQ125C/AZQS125BV1 AHQ140C/AZQS140BV1

3
2
• Split - Sky Air • AZQS-BV1 5
• Outdoor Unit • AZQS-BV1
2 Specifications
Fan motor Quantity 1 2
Model KFD-325-70-8A Brushless DC motor
Output W 70 200 94
Drive Direct drive
Speed Steps 8 -
Cooling Nom. rpm 800 -
Super
low
rpm -
Heating Nom. rpm 745 -
Super
low
rpm -
Sound power level Cooling dBA 65 70 71 70
Heating dBA -
Sound pressure level Cooling Nom. dBA 48 53 54 53
Silent operation dBA 43 -
Heating Nom. dBA 50 57 58 54
Night quiet mode Level 1 dBA - 49
Operation range Cooling Ambien
t
Min. °CDB -5
Max. °CDB 46
Heating Ambien
t
Min. °CWB -15
Max. °CWB 15.5
Refrigerant Type R-410A
Charge kg 2.75 2.9 4.0
Control Expansion valve (electronic type)
GWP 1,975
Circuits Quantity 1
Refrigerant oil Type FVC50K
Charged volume l 0.75 0.9 1.35
Piping connections Liquid Quantity 1
Type Flare connection
OD mm 9.52
Gas Quantity 1
Type Flare connection
OD mm 15.9
Drain Quantity 3 5
Type Hole
ID mm -
OD mm 26
Piping length OU - IU Min. m 5
Max. m 30 50
System Equival
ent
m40 70
Chargel
ess
m30
Additional refrigerant charge kg/m See installation manual
Level difference IU - OU Max. m 15.0 30.0
IU - IU Max. m - 0.5
Heat insulation Both liquid and gas pipes
Defrost method Pressure equalising Reversed cycle
Defrost control Sensor for outdoor heat exchanger temperature
Safety devices Item 01 High pressure switch
02 Fan motor thermal protection
03 Fuse
2-4 Technical Specifications AZQS71BV1 AZQS100BV1 AZQS125BV1 AZQS140BV1

• Outdoor Unit • AZQS-BV1
2
• Split - Sky Air • AZQS-BV1
6
2 Specifications
Notes
(1) European/international technical standard setting the limits for harmonic currents produced by equipment connected to public low-voltage system with input current larger than 16A
and ≤75A per phase.
(2) Short-circuit power
(3) RLA is based on following conditions: indoor temp. 27°CDB, 19°CWB; outdoor temp. 35°CDB
(4) MFA is used to select the circuit breaker and the ground fault circuit interrupter (earth leakage circuit breaker).
(5) See separate drawings for electrical data
(6) Minimum Ssc (=Short-circuit power) value: Equipment complying with EN/IEC 61000-3-12: European/International Technical Standard setting the limits for harmonic currents
produced by equipment connected to public low-voltage systems with input current \>16A and ≤75A per phase
(7) PED unit category: excluded from scope of PED due to article 1, item 3.6 of 97/23/EC
2-5 Electrical Specifications AZQS71BV1 AZQS100BV1 AZQS125BV1 AZQS140BV1
Power supply Name V1
Phase 1~
Frequency Hz 50
Voltage V 220-240
Voltage range Min. % -10
Max. % 10
Current Nominal running
current (RLA)
Cooling A 16.20 -
Zmax List Complies to EN6100-3-
3
Complies to EN61000-3-12
Recommended fuses A 20 32
Current - 50Hz Maximum fuse amps (MFA) A 20 -
Current - 60Hz Maximum fuse amps (MFA) A -
Wiring connections For power supply Remark - See installation manual outdoor unit
For connection with
indoor
Remark - See installation manual outdoor unit
Power supply intake Outdoor unit only

3
3
• Split - Sky Air • AZQS-BV1 7
• Outdoor Unit • AZQS-BV1
3 Electrical data
3 - 1 Electrical Data
1WVFQQT *\`2QYGTUWRRN[ 8QNVCIGTCPIG /%# 61%# /(# /5% 4.# -9 (.# M9 (.#
#<35$8$  㧙  㧙     
#<35$8$  㧙  㧙     
#*3%8 #<35$8$  㧙       
#<35$8$  㧙  㧙     
#$3%8 #<35$8$  㧙  㧙     
#*3%8 #<35$8$  㧙  㧙     
#<35$8$  㧙  㧙     
#<35$8$  㧙  㧙     
#*3%8 #<35$8$  㧙  㧙     
#<35$8$  㧙  㧙     
#<35$8$  㧙  㧙     
#<35$;$  㧙  㧙     
#$3%8 #<35$;$  㧙  㧙     
#*3%8 #<35$;$  㧙  㧙     
#<35$;$  㧙  㧙     
#<35$;$  㧙  㧙     
#*3%8 #<35$;$  㧙  㧙     
#<35$;$  㧙  㧙     
#<35$;$  㧙  㧙     
1(/ +(/
/KP8
/CZ8
0`*\
8
/KP8
/CZ8
#$3%8
#%3%8
#*3%8
*\`8
%QOR
#%3%8
#$3%8
#%3%8
#$3%8
#*3%8
#%3%8
+PFQQT
#%3%8
#$3%8
#$3%8
6\PEROV
0LQLPXP&LUFXLW$PSHUH$
0D[LPXP)XVH$PSHUH$
1RWHV
&RROLQJ
+HDWLQJ
9ROWDJHUDQJH
7KHXQLWVDUHVXLWDEOHIRUXVHZLWKHOHFWULFDOV\VWHPVLQZKLFKWKHYROWDJHVXSSOLHGWRWKHXQLWWHUPLQDOVLVQRWEHORZRUDERYHWKHOLVWHGUDQJHOLPLWV
7KHPD[LPXPDOORZDEOHYROWDJHWKDWLVXQEDODQFHGEHWZHHQSKDVHVLVyy
7KHQH[WORZHUVWDQGDUGIXVHUDWLQJLVPLQLPXPyyDPSHUH
6HOHFWWKHZLUHVL]HDFFRUGLQJWRWKH0&$
(DUWKOHDNDJHFLUFXLWEUHDNHU
0&$
72&$
0)$
06&
5/$
2)0
,)0
)/$
.:







7RWDORYHUFXUUHQWDPSV>$@
)DQPRWRUUDWHGRXWSXW>N:@
)XOOORDGDPSV
5DWHGORDGDPSV>$@
0D[LPXPFXUUHQWRIWKHVWDUWLQJFRPSUHVVRU>$@
7KHy5/$yLVEDVHGRQWKHIROORZLQJFRQGLWLRQV
y0&$yLVWKHPD[LPXPLQSXWFXUUHQW
y0)$yLVXVHGWRVHOHFWWKHFLUFXLWEUHDNHUDQGWKHJURXQGIDXOWFLUFXLWLQWHUUXSWRU
,QGRRUWHPSHUDWXUHyyr&'%yyr&:%
,QGRRUWHPSHUDWXUHyyr&'%
2XWGRRUWHPSHUDWXUHyyr&'%
2XWGRRUWHPSHUDWXUHyyr&'%yyr&:%
7KHFDSDFLW\RIWKHy0)$yPXVWEHJUHDWHUWKDQWKDWRIWKHy0&$y
6HOHFWWKHy0)$yDFFRUGLQJWRWKHWDEOH
y72&$yLVWKHWRWDOYDOXHRIHDFKRYHUFXUUHQWVHW
2XWGRRUIDQPRWRU
,QGRRUIDQPRWRU
AZQS- BV1
AZQS- BY1
3D080873D

• Outdoor Unit • AZQS-BV1
4
• Split - Sky Air • AZQS-BV1
8
4 Options
4 - 1 Options

3
5
• Split - Sky Air • AZQS-BV1 9
• Outdoor Unit • AZQS-BV1
5 Combination table
5 - 1 Combination Table
5-;#+4
#%3%8
#%3%8 #%3%8
#$3%8
#$3%8 #$3%8 #$3%8
#*3%8
#*3%8 #*3%8 #*3%8
#<35$8$ 2 2 2
#<35$8$ #<35$;$ 2 2 2
#<35$8$ #<35$;$ 2 2 2
#<35$8$ #<35$;$ 2 2
/1&'.0#/'
%CUUGVVG &WEV %GKNKPIUWURGPFGF
AZQS-BV1
AZQS-BY1
4D080870D

• Outdoor Unit • AZQS-BV1
6
• Split - Sky Air • AZQS-BV1
10
6 Capacity tables
6 - 1 Cooling Capacity Tables

3
6
• Split - Sky Air • AZQS-BV1 11
• Outdoor Unit • AZQS-BV1
6 Capacity tables
6 - 2 Heating Capacity Tables

• Outdoor Unit • AZQS-BV1
6
• Split - Sky Air • AZQS-BV1
12
6 Capacity tables
6 - 3 Cooling/Heating Capacity Tables
ŽŽůŝŶŐ ,ĞĂƚŝŶŐ
^LJŵďŽůƐ
&Z ŝƌĨůŽǁƌĂƚĞ΀ŵϹŵŝŶ΁
& LJƉĂƐƐĨĂĐƚŽƌ
t ŶƚĞƌŝŶŐǁĞƚ ďƵůďƚĞŵƉĞƌĂƚƵƌĞ;ΣtͿ
 ŶƚĞƌŝŶŐĚƌLJ ďƵůďƚĞŵƉĞƌĂƚƵƌĞ;ΣͿ
d DĂdžŝŵƵŵƚŽƚĂůĐŽŽůŝŶŐŚĞĂƚŝŶŐĐĂƉĂĐŝƚLJ΀Ŭt΁
^, ^ĞŶƐŝďůĞŚĞĂƚĐĂƉĂĐŝƚLJ΀Ŭt΁
W/ ŽĞĨĨŝĐŝĞŶƚŽĨƚŚĞƉŽǁĞƌŝŶƉƵƚ
W/ WŽǁĞƌŝŶƉƵƚ΀Ŭt΁
ŽŽůŝŶŐ ,ĞĂƚŝŶŐ
EŽƚĞƐ
ϭ
Ϯ с DĂdžŝŵƵŵĂƚƐƚĂŶĚĂƌĚĐŽŶĚŝƚŝŽŶƐ
с ZĂƚĞĚĐĂƉĂĐŝƚLJĂŶĚƌĂƚĞĚĐŽĞĨĨŝĐŝĞŶƚŽĨƚŚĞƉŽǁĞƌŝŶƉƵƚ
dŚĞŵĂdžŝŵƵŵĐĂƉĂĐŝƚLJŝƐŶŽƚŐƵĂƌĂŶƚĞĞĚĞdžĐĞƉƚĂƚƐƚĂŶĚĂƌĚĐŽŶĚŝƚŝŽŶƐ
ϯ ^,ŝƐďĂƐĞĚŽŶŝŶĚŽŽƌƵŶŝƚƐtΘ
^,ĨŽƌŽƚŚĞƌĚƌLJ ďƵůďƚĞŵƉĞƌĂƚƵƌĞƐс^,н^,Ύ
^,Ύ с ^,ĐŽƌƌĞĐƚŝŽŶĨŽƌŽƚŚĞƌĚƌLJ ďƵůďƚĞŵƉĞƌĂƚƵƌĞƐ
с ϬϬϮdž&Z;ŵϹŵŝŶͿdž;ϭ &Ϳdž;Ύ Ϳ
ϰ dŚĞĐĂƉĂĐŝƚŝĞƐĂƌĞďĂƐĞĚŽŶƚŚĞĨŽůůŽǁŝŶŐĐŽŶĚŝƚŝŽŶƐ
KƵƚĚŽŽƌĂŝƌϴϱйZ,
,ŽǁĞǀĞƌƚŚĞŽƵƚĚŽŽƌĂŵďŝĞŶƚĐŽŶĚŝƚŝŽŶŽĨƚŚĞƌĂƚĞĚĐĂƉĂĐŝƚLJĚƵƌŝŶŐŚĞĂƚŝŶŐŽƉĞƌĂƚŝŽŶŝƐϳΣϲΣt
ŽƌƌĞƐƉŽŶĚŝŶŐƌĞĨƌŝŐĞƌĂŶƚƉŝƉŝŶŐůĞŶŐƚŚϱϬŵ
>ĞǀĞůĚŝĨĨĞƌĞŶĐĞϬŵ
ϱ W/ŝƐĂƉĞƌĐĞŶƚĂŐĞǀĂůƵĞĐŽŵƉĂƌĞĚƚŽƚŚĞƌĂƚĞĚǀĂůƵĞǁŚŝĐŚŝƐϭϬϬ
ϲ dŚĞĞƌƌŽƌƌĂƚĞĨŽƌƚŚŝƐǀĂůƵĞŝƐůĞƐƐƚŚĂŶϱйĂŶĚĚĞƉĞŶĚƐŽŶƚŚĞŝŶĚŽŽƌƵŶŝƚƚLJƉĞ
ϳ dŚĞŚĞĂƚŝŶŐƉĞƌĨŽƌŵĂŶĐĞƚĂŬĞƐŝŶƚŽĂĐĐŽƵŶƚƚŚĞĚƌŽƉƚŚĂƚŽĐĐƵƌƐĚƵƌŝŶŐĚĞĨƌŽƐƚŽƉĞƌĂƚŝŽŶ
ϴ dŚĞĂŝƌĨůŽǁƌĂƚĞĂŶĚďLJƉĂƐƐĨĂĐƚŽƌĂƌĞŵĞŶƚŝŽŶĞĚŝŶƚŚĞƚĂďůĞ ϵ dŚĞƌĂƚĞĚƉŽǁĞƌŝŶƉƵƚĨŽƌĞĂĐŚŵŽĚĞůŝƐŵĞŶƚŝŽŶĞĚŝŶƚŚĞƚĂďůĞďĞůŽǁ
WĂŝƌ WĂŝƌ
YϭϬϬsϭ ,YϭϬϬsϭ YϭϬϬsϭ YϭϬϬsϭ ,YϭϬϬsϭ YϭϬϬsϭ
ŽŽůŝŶŐ Ϯϵϲ ϯϲϮ ϯϲϯ
,ĞĂƚŝŶŐ Ϯϵϵ ϯϭϳ ϯϭϲ
ĐŽŵƉƌĞƐƐŽƌнŝŶĚŽŽƌĂŶĚŽƵƚĚŽŽƌĨĂŶŵŽƚŽƌƐ
&Z
;&Ϳ
ϮϵϮ
;ϬϮϱϯͿ
ϯϭϭ
;ϬϭϳϰͿ
ϮϮϳ
;ϬϭϳϱͿ
dŚĞƌĂƚŝŶŐƐƐŚŽǁŶĂƌĞŶĞƚĐĂƉĂĐŝƚŝĞƐǁŚŝĐŚŝŶĐůƵĚĞĂĚĞĚƵĐƚŝŽŶĨŽƌŝŶĚŽŽƌĨĂŶŵŽƚŽƌŚĞĂƚ
/ŶĚŽŽƌ
KƵƚĚŽŽƌƚĞŵ
Ɖ
ĞƌĂƚƵƌĞ΀Σ΁
ŽĞĨĨŝĐŝĞŶƚŽĨƚŚĞƉŽǁĞƌŝŶƉƵƚ
ŽĞĨĨŝĐŝĞŶƚŽĨƚŚĞƉŽǁĞƌŝŶƉƵƚ
ŽŽůŝŶŐĐĂƉĂĐŝƚLJ΀Ŭt΁ ,ĞĂƚŝŶŐĐĂƉĂĐŝƚLJ΀Ŭt΁
ZĂƚĞĚƉŽŝŶƚ
ĂƉĂĐŝƚLJƌĂŶŐĞ ZĂƚĞĚƉŽŝŶƚ
ĂƉĂĐŝƚLJƌĂŶŐĞ
/ŶĚŽŽƌ
KƵƚĚŽŽƌƚĞŵƉĞƌĂƚƵƌĞ΀Σt΁
Y^ϭϬϬ ϭ
Y^ϭϬϬzϭ
ϯϬϴϭϮϱϱ 
ϯϬϴϭϮϱϱ 

3
6
• Split - Sky Air • AZQS-BV1 13
• Outdoor Unit • AZQS-BV1
6 Capacity tables
6 - 3 Cooling/Heating Capacity Tables
ŽŽůŝŶŐ ,ĞĂƚŝŶŐ
^LJŵďŽůƐ
&Z ŝƌĨůŽǁƌĂƚĞ΀ŵϹŵŝŶ΁
& LJƉĂƐƐĨĂĐƚŽƌ
t ŶƚĞƌŝŶŐǁĞƚ ďƵůďƚĞŵƉĞƌĂƚƵƌĞ;ΣtͿ
 ŶƚĞƌŝŶŐĚƌLJ ďƵůďƚĞŵƉĞƌĂƚƵƌĞ;ΣͿ
d DĂdžŝŵƵŵƚŽƚĂůĐŽŽůŝŶŐŚĞĂƚŝŶŐĐĂƉĂĐŝƚLJ΀Ŭt΁
^, ^ĞŶƐŝďůĞŚĞĂƚĐĂƉĂĐŝƚLJ΀Ŭt΁
W/ ŽĞĨĨŝĐŝĞŶƚŽĨƚŚĞƉŽǁĞƌŝŶƉƵƚ
W/ WŽǁĞƌŝŶƉƵƚ΀Ŭt΁
ŽŽůŝŶŐ ,ĞĂƚŝŶŐ
EŽƚĞƐ
ϭ dŚĞƌĂƚŝŶŐƐƐŚŽǁŶĂƌĞŶĞƚĐĂƉĂĐŝƚŝĞƐǁŚŝĐŚŝŶĐůƵĚĞĂĚĞĚƵĐƚŝŽŶĨŽƌŝŶĚŽŽƌĨĂŶŵŽƚŽƌŚĞĂƚ
Ϯ с DĂdžŝŵƵŵĂƚƐƚĂŶĚĂƌĚĐŽŶĚŝƚŝŽŶƐ
с ZĂƚĞĚĐĂƉĂĐŝƚLJĂŶĚƌĂƚĞĚĐŽĞĨĨŝĐŝĞŶƚŽĨƚŚĞƉŽǁĞƌŝŶƉƵƚ
dŚĞŵĂdžŝŵƵŵĐĂƉĂĐŝƚLJŝƐŶŽƚŐƵĂƌĂŶƚĞĞĚĞdžĐĞƉƚĂƚƐƚĂŶĚĂƌĚĐŽŶĚŝƚŝŽŶƐ
ϯ ^,ŝƐďĂƐĞĚŽŶŝŶĚŽŽƌƵŶŝƚƐtΘ
^,ĨŽƌŽƚŚĞƌĚƌLJ ďƵůďƚĞŵƉĞƌĂƚƵƌĞƐс^,н^,Ύ
^,Ύ с ^,ĐŽƌƌĞĐƚŝŽŶĨŽƌŽƚŚĞƌĚƌLJ ďƵůďƚĞŵƉĞƌĂƚƵƌĞƐ
с ϬϬϮdž&Z;ŵϹŵŝŶͿdž;ϭ &Ϳdž;Ύ Ϳ
ϰ dŚĞĐĂƉĂĐŝƚŝĞƐĂƌĞďĂƐĞĚŽŶƚŚĞĨŽůůŽǁŝŶŐĐŽŶĚŝƚŝŽŶƐ
KƵƚĚŽŽƌĂŝƌϴϱйZ,
,ŽǁĞǀĞƌƚŚĞŽƵƚĚŽŽƌĂŵďŝĞŶƚĐŽŶĚŝƚŝŽŶŽĨƚŚĞƌĂƚĞĚĐĂƉĂĐŝƚLJĚƵƌŝŶŐŚĞĂƚŝŶŐŽƉĞƌĂƚŝŽŶŝƐϳΣϲΣt
ŽƌƌĞƐƉŽŶĚŝŶŐƌĞĨƌŝŐĞƌĂŶƚƉŝƉŝŶŐůĞŶŐƚŚϱϬŵ
>ĞǀĞůĚŝĨĨĞƌĞŶĐĞϬŵ
ϱ W/ŝƐĂƉĞƌĐĞŶƚĂŐĞǀĂůƵĞĐŽŵƉĂƌĞĚƚŽƚŚĞƌĂƚĞĚǀĂůƵĞǁŚŝĐŚŝƐϭϬϬ
ϲ dŚĞĞƌƌŽƌƌĂƚĞĨŽƌƚŚŝƐǀĂůƵĞŝƐůĞƐƐƚŚĂŶϱйĂŶĚĚĞƉĞŶĚƐŽŶƚŚĞŝŶĚŽŽƌƵŶŝƚƚLJƉĞ
ϳ dŚĞŚĞĂƚŝŶŐƉĞƌĨŽƌŵĂŶĐĞƚĂŬĞƐŝŶƚŽĂĐĐŽƵŶƚƚŚĞĚƌŽƉƚŚĂƚŽĐĐƵƌƐĚƵƌŝŶŐĚĞĨƌŽƐƚŽƉĞƌĂƚŝŽŶ
ϴ dŚĞĂŝƌĨůŽǁƌĂƚĞĂŶĚďLJƉĂƐƐĨĂĐƚŽƌĂƌĞŵĞŶƚŝŽŶĞĚŝŶƚŚĞƚĂďůĞ ϵ dŚĞƌĂƚĞĚƉŽǁĞƌŝŶƉƵƚĨŽƌĞĂĐŚŵŽĚĞůŝƐŵĞŶƚŝŽŶĞĚŝŶƚŚĞƚĂďůĞďĞůŽǁ
WĂŝƌ WĂŝƌ
YϭϮϱsϭ YϭϮϱsϭ ,YϭϮϱsϭ YϭϮϱsϭ YϭϮϱsϭ ,YϭϮϱsϭ
ŽŽůŝŶŐ ϰϬϮ ϰϯϬ ϰϲϬ
,ĞĂƚŝŶŐ ϯϵϲ ϯϵϲ ϯϳϰ
ĐŽŵƉƌĞƐƐŽƌнŝŶĚŽŽƌĂŶĚŽƵƚĚŽŽƌĨĂŶŵŽƚŽƌƐ
&Z
;&Ϳ
ϯϰϬ
;ϬϭϬͿ
ϰϬϱ
;ϬϭϱϳͿ
ϯϰϰ
;ϬϭϮϯͿ
ŽĞĨĨŝĐŝĞŶƚŽĨƚŚĞƉŽǁĞƌŝŶƉƵƚ
ŽĞĨĨŝĐŝĞŶƚŽĨƚŚĞƉŽǁĞƌŝŶƉƵƚ
ŽŽůŝŶŐĐĂƉĂĐŝƚLJ΀Ŭt΁ ,ĞĂƚŝŶŐĐĂƉĂĐŝƚLJ΀Ŭt΁
ZĂƚĞĚƉŽŝŶƚ
ĂƉĂĐŝƚLJƌĂŶŐĞ
ZĂƚĞĚƉŽŝŶƚ
ĂƉĂĐŝƚLJƌĂŶŐĞ
/ŶĚŽŽƌ
KƵƚĚŽŽƌƚĞŵƉĞƌĂƚƵƌĞ΀Σ΁
/ŶĚŽŽƌ
KƵƚĚŽŽƌƚĞŵƉĞƌĂƚƵƌĞ΀Σt΁
Y^ϭϮϱ ϭ
Y^ϭϮϱzϭ
ϯϬϴϭϮϱϲ 

• Outdoor Unit • AZQS-BV1
6
• Split - Sky Air • AZQS-BV1
14
6 Capacity tables
6 - 3 Cooling/Heating Capacity Tables
Y^ϭϰϬ ϭ
ŽŽůŝŶŐ ,ĞĂƚŝŶŐ
Y^ϭϰϬzϭ
^LJŵďŽůƐ
&Z ŝƌĨůŽǁƌĂƚĞ΀ŵϹŵŝŶ΁
& LJƉĂƐƐĨĂĐƚŽƌ
t ŶƚĞƌŝŶŐǁĞƚ ďƵůďƚĞŵƉĞƌĂƚƵƌĞ;ΣtͿ
 ŶƚĞƌŝŶŐĚƌLJ ďƵůďƚĞŵƉĞƌĂƚƵƌĞ;ΣͿ
d DĂdžŝŵƵŵƚŽƚĂůĐŽŽůŝŶŐŚĞĂƚŝŶŐĐĂƉĂĐŝƚLJ΀Ŭt΁
^, ^ĞŶƐŝďůĞŚĞĂƚĐĂƉĂĐŝƚLJ΀Ŭt΁
W/ ŽĞĨĨŝĐŝĞŶƚŽĨƚŚĞƉŽǁĞƌŝŶƉƵƚ
W/ WŽǁĞƌŝŶƉƵƚ΀Ŭt΁
ŽŽůŝŶŐ ,ĞĂƚŝŶŐ
EŽƚĞƐ
ϭ dŚĞƌĂƚŝŶŐƐƐŚŽǁŶĂƌĞŶĞƚĐĂƉĂĐŝƚŝĞƐǁŚŝĐŚŝŶĐůƵĚĞĂĚĞĚƵĐƚŝŽŶĨŽƌŝŶĚŽŽƌĨĂŶŵŽƚŽƌŚĞĂƚ
Ϯ с DĂdžŝŵƵŵĂƚƐƚĂŶĚĂƌĚĐŽŶĚŝƚŝŽŶƐ
с ZĂƚĞĚĐĂƉĂĐŝƚLJĂŶĚƌĂƚĞĚĐŽĞĨĨŝĐŝĞŶƚŽĨƚŚĞƉŽǁĞƌŝŶƉƵƚ
dŚĞŵĂdžŝŵƵŵĐĂƉĂĐŝƚLJŝƐŶŽƚŐƵĂƌĂŶƚĞĞĚĞdžĐĞƉƚĂƚƐƚĂŶĚĂƌĚĐŽŶĚŝƚŝŽŶƐ
ϯ ^,ŝƐďĂƐĞĚŽŶŝŶĚŽŽƌƵŶŝƚƐtΘ
^,ĨŽƌŽƚŚĞƌĚƌLJ ďƵůďƚĞŵƉĞƌĂƚƵƌĞƐс^,н^,Ύ
^,Ύ с ^,ĐŽƌƌĞĐƚŝŽŶĨŽƌŽƚŚĞƌĚƌLJ ďƵůďƚĞŵƉĞƌĂƚƵƌĞƐ
с ϬϬϮdž&Z;ŵϹŵŝŶͿdž;ϭ &Ϳdž;Ύ Ϳ
ϰ dŚĞĐĂƉĂĐŝƚŝĞƐĂƌĞďĂƐĞĚŽŶƚŚĞĨŽůůŽǁŝŶŐĐŽŶĚŝƚŝŽŶƐ
KƵƚĚŽŽƌĂŝƌϴϱйZ,
,ŽǁĞǀĞƌƚŚĞŽƵƚĚŽŽƌĂŵďŝĞŶƚĐŽŶĚŝƚŝŽŶŽĨƚŚĞƌĂƚĞĚĐĂƉĂĐŝƚLJĚƵƌŝŶŐŚĞĂƚŝŶŐŽƉĞƌĂƚŝŽŶŝƐϳΣϲΣt
ŽƌƌĞƐƉŽŶĚŝŶŐƌĞĨƌŝŐĞƌĂŶƚƉŝƉŝŶŐůĞŶŐƚŚϱϬŵ
>ĞǀĞůĚŝĨĨĞƌĞŶĐĞϬŵ
ϱ W/ŝƐĂƉĞƌĐĞŶƚĂŐĞǀĂůƵĞĐŽŵƉĂƌĞĚƚŽƚŚĞƌĂƚĞĚǀĂůƵĞǁŚŝĐŚŝƐϭϬϬ
ϲ dŚĞĞƌƌŽƌƌĂƚĞĨŽƌƚŚŝƐǀĂůƵĞŝƐůĞƐƐƚŚĂŶϱйĂŶĚĚĞƉĞŶĚƐŽŶƚŚĞŝŶĚŽŽƌƵŶŝƚƚLJƉĞ
ϳ dŚĞŚĞĂƚŝŶŐƉĞƌĨŽƌŵĂŶĐĞƚĂŬĞƐŝŶƚŽĂĐĐŽƵŶƚƚŚĞĚƌŽƉƚŚĂƚŽĐĐƵƌƐĚƵƌŝŶŐĚĞĨƌŽƐƚŽƉĞƌĂƚŝŽŶ
ϴ dŚĞĂŝƌĨůŽǁƌĂƚĞĂŶĚďLJƉĂƐƐĨĂĐƚŽƌĂƌĞŵĞŶƚŝŽŶĞĚŝŶƚŚĞƚĂďůĞ ϵ dŚĞƌĂƚĞĚƉŽǁĞƌŝŶƉƵƚĨŽƌĞĂĐŚŵŽĚĞůŝƐŵĞŶƚŝŽŶĞĚŝŶƚŚĞƚĂďůĞďĞůŽǁ
WĂŝƌ WĂŝƌ
YϭϰϬsϭ ,YϭϰϬsϭ YϭϰϬsϭ ,YϭϰϬsϭ
ŽŽůŝŶŐ ϰϯϮ ϰϯϮ
,ĞĂƚŝŶŐ ϰϱϱ ϰϱϱ
ĐŽŵƉƌĞƐƐŽƌнŝŶĚŽŽƌĂŶĚŽƵƚĚŽŽƌĨĂŶŵŽƚŽƌƐ
&Z
;&Ϳ
ϰϴϳ
;ϬϭϱͿ
ϰϯϵ
;ϬϭϱϳͿ
ŽĞĨĨŝĐŝĞŶƚŽĨƚŚĞƉŽǁĞƌŝŶƉƵƚ
ŽĞĨĨŝĐŝĞŶƚŽĨƚŚĞƉŽǁĞƌŝŶƉƵƚ
ŽŽůŝŶŐĐĂƉĂĐŝƚLJ΀Ŭt΁
ZĂƚĞĚƉŽŝŶƚ
ĂƉĂĐŝƚLJƌĂŶŐĞ
ZĂƚĞĚƉŽŝŶƚ
ĂƉĂĐŝƚLJƌĂŶŐĞ
,ĞĂƚŝŶŐĐĂƉĂĐŝƚLJ΀Ŭt΁
/ŶĚŽŽƌ
KƵƚĚŽŽƌƚĞŵƉĞƌĂƚƵƌĞ΀Σ΁
/ŶĚŽŽ
ƌ
KƵƚĚŽŽƌƚĞŵƉĞƌĂƚƵƌĞ΀Σt΁
ϯϬϴϭϮϱϳ 

3
6
• Split - Sky Air • AZQS-BV1 15
• Outdoor Unit • AZQS-BV1
6 Capacity tables
6 - 4 Capacity Correction Factor

• Outdoor Unit • AZQS-BV1
7
• Split - Sky Air • AZQS-BV1
16
7 Dimensional drawings
7 - 1 Dimensional Drawings

3
7
• Split - Sky Air • AZQS-BV1 17
• Outdoor Unit • AZQS-BV1
7 Dimensional drawings
7 - 1 Dimensional Drawings

• Outdoor Unit • AZQS-BV1
8
• Split - Sky Air • AZQS-BV1
18
8 Centre of gravity
8 - 1 Centre of Gravity
