Daikin ATKC09RV2S User manual

REMOVAL
PROCEDURE
SERVICE MANUAL
Indoor Unit
Inverter
Wall Mounted Type
1.5/2.0/2.5/3.0/3.5 kW Class
9000/12000 Btu/h Class
Si041264EC

Service Manual
Removal Procedure
Indoor Unit
zCooling Only zHeat Pump
ATKC09RV2S ATX20J2V1B
ATKC12RV2S ATX25J2V1B
ATX35J2V1B
FTKC09NV2S
FTKC12NV2S FTX20J2V1B
FTX25J2V1B
FTKC25NVM FTX35J2V1B
FTKC35NVM
FTXM20HVMV
FTKC15NVM4 FTXM25HVMV
FTKC20NVM4 FTXM35HVMV
FTKC25NVM4
FTKC35NVM4 FTXP20HVLT
FTXP25HVLT
FTKC25NVMM FTXP30HVLT
FTKC35NVMM
FTKC25NVMV
FTKC35NVMV
FTKC09PV2S
FTKC12PV2S
FTKC15PVM
FTKC20PVM
FTKC25PVM
FTKC35PVM
FTKC15PVM4
FTKC20PVM4
FTKC25PVM4
FTKC35PVM4
FTKC25PVMM
FTKC35PVMM
FTKC20PVMV
FTKC25PVMV
FTKC35PVMV

Si041264EC
Removal Procedure 1
Table of Contents
1. Air Filters .................................................................................................2
2. Horizontal Blade......................................................................................3
3. Front Panel..............................................................................................4
4. Front Grille ..............................................................................................5
5. Electrical Box / Vertical Blades ...............................................................6
6. Swing Motor / PCBs ................................................................................9
7. Indoor Heat Exchanger .........................................................................12
8. Fan Rotor / Fan Motor...........................................................................15
Note: The illustrations may be slightly different depending on the model.

Air Filters Si041264EC
2Removal Procedure

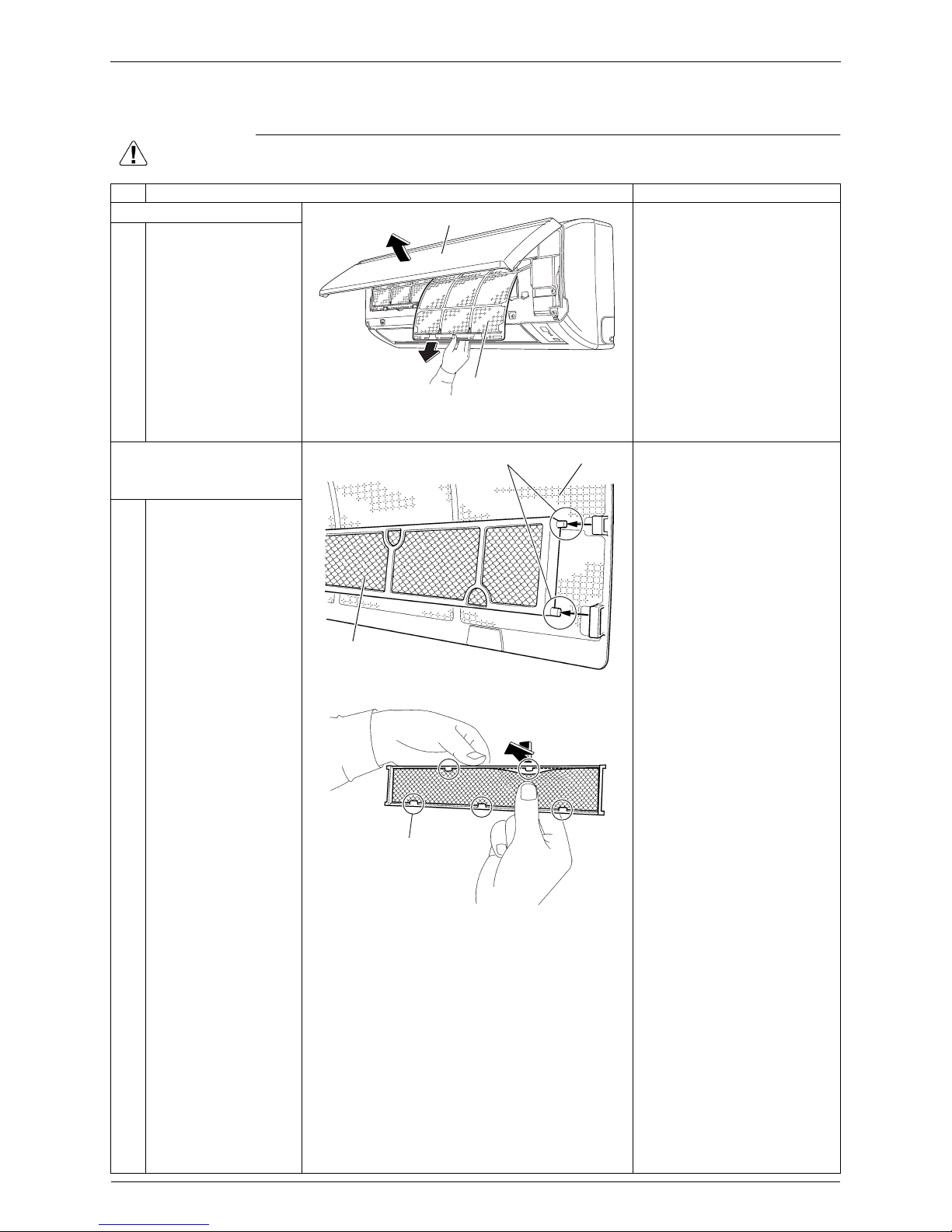

1. Air Filters
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the air filters. The air filter is not marked
for difference between the
right and left sides.
When reassembling, insert
the air filter along the guides.
Insert the air filter with the
“FRONT” mark faced up.
Be sure to fit the 2 bottom
hooks when installing the air
filter.
1
2
Open the front panel.
Pull out the air filter
downward and remove
it.
2. Remove the Titanium
apatite photocatalytic
air-purifying filters.
1 Remove the Titanium
apatite photocatalytic
air-purifying filter ASSY
by unfastening the 2
projections from the
back of the air filter.
2 Unfasten the 5 hooks
and remove the
Titanium apatite
photocatalytic air-
purifying filter from its
frame.
To prevent damage, do not
remove the Titanium apatite
photocatalytic air-purifying
filter from the frame when
cleaning it.
The Titanium apatite
photocatalytic air-purifying
filter is not marked for
difference between the right
and left sides.
(R18236)
Air filter
Front panel
Projection Air filter
Titanium apatite
photocatalytic
air-purifying filter ASSY
(R20666)
Hook
(R8027)

Si041264EC Horizontal Blade
Removal Procedure 3
2. Horizontal Blade
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Release the center
shaft while bending the
horizontal blade
slightly.
Installation procedure
1. Fit the right shaft of the
horizontal blade first. Make
sure to rotate the horizontal
blade so the shaft fits in the
correct position.
2. Fit the horizontal blade to the
center and left shafts.
2
3
Release the left shaft.
Release the right shaft.
4 Remove the horizontal
blade.
(R18188)
Horizontal blade
(R23355)
Shaft
(R23349)
Shaft
Left Right
Shaft
(R17333)

Front Panel Si041264EC
4Removal Procedure
3. Front Panel
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Open the front panel.
2 Release the right rotary
shaft.
The rotary shaft on each
side can be released by
sliding each shaft inward.
3 Release the left rotary
shaft and remove the
front panel.
When reassembling the front
panel, fit the right and left
rotary shafts one by one into
the grooves and fully push
them in position.
Left side
Front panel
Right side
(R11627)
Right Rotary shaft
(R11628)
Left Rotary shaft
(R11629)

Si041264EC Front Grille
Removal Procedure 5
4. Front Grille
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the 2 screws.
2
3
Unfasten the 3 hooks at
the top.
Pull out the upper part
of the front grille, lift up
the lower part, and then
remove the front grille.
The convex marks (...) on
the front panel indicate the
position of the hooks.
When reassembling, make
sure that all the 3 hooks are
fastened.
(R11631)
Front grille
(R18189)
Hook
(R12715)

Electrical Box / Vertical Blades Si041264EC
6Removal Procedure
5. Electrical Box / Vertical Blades
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Disconnect the
connecting wires.
1
2
Remove the screw of
the service cover.
Pull out the service
cover in the direction of
the arrow.
3
4
Remove the screw and
remove the wire fixture.
Remove the 4 screws
of the terminal board
and disconnect the
connecting wires.
2. Remove the electrical
box.
Take care not to lose the clip
of the thermistor.
[S200]: fan motor
Release the fan motor
harnesses from the hook.
1
2
3
Remove the screw and
disconnect the earth /
ground wire.
Pull out the indoor heat
exchanger thermistor.
Disconnect the
connector [S200].
(R18190)
Service cover
(R18237)
Wire
fixture
Connecting
wires
Terminal board
Screw
(R20664)
Indoor heat exchanger thermistor
[S200]
Earth / ground
wire
Clip
(R11268)
Thermistor
(R14602)
Hoo
k

Si041264EC Electrical Box / Vertical Blades
Removal Procedure 7

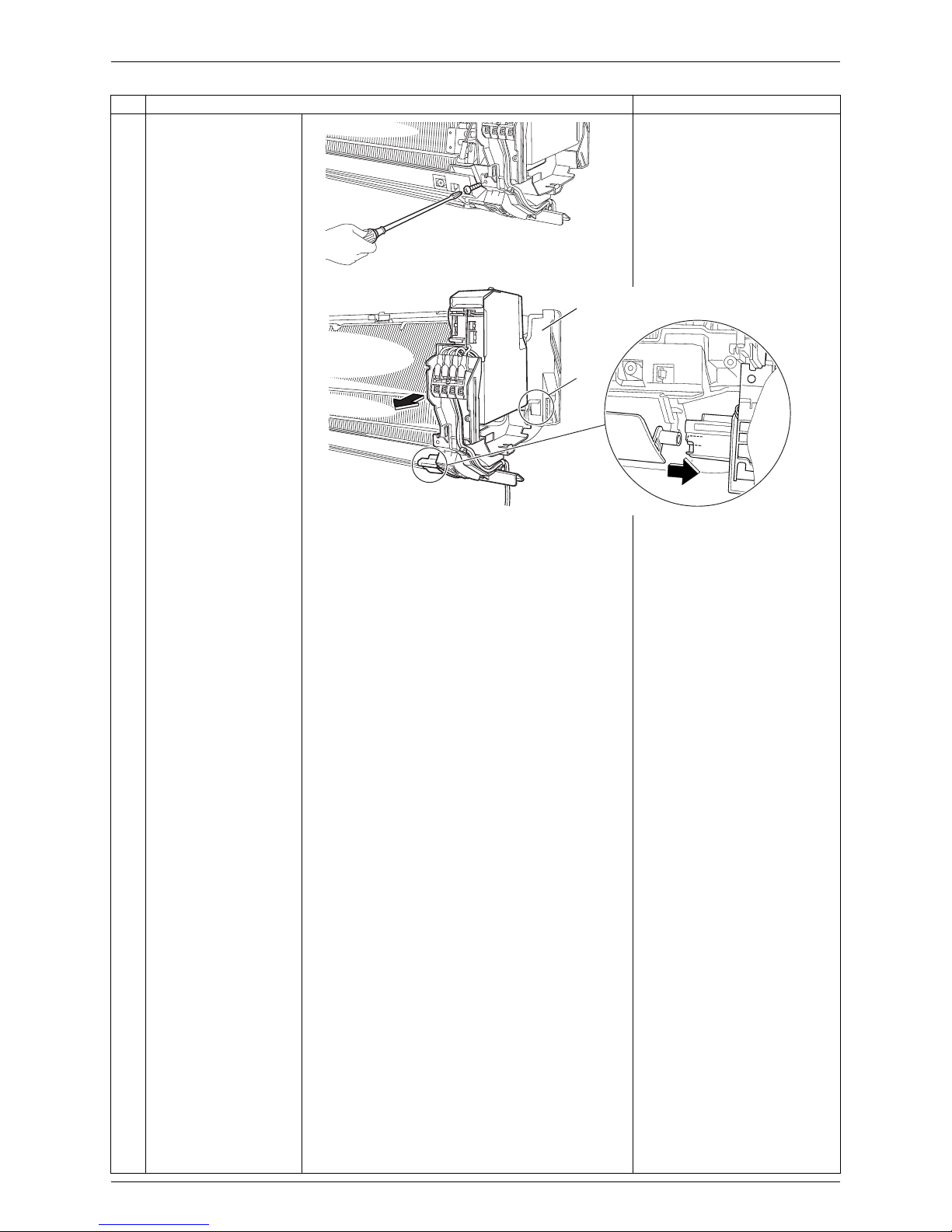

4 Remove the screw of
the electrical box.
5 Pull out and remove the
electrical box.
When reassembling, make
sure that the 2 hooks on the
bottom frame are securely
fastened.
Step Procedure Points
(R18192)
Bottom
frame
(R18193)
Hook

Electrical Box / Vertical Blades Si041264EC
8Removal Procedure
3. Remove the fan guards. Squeeze the edges of the
hook together to unfasten it.
Some models have no fan
guard.
1 Unfasten the right and
left hooks of the fan
guard.
2
3
Unfasten the 4 hooks at
the bottom and remove
the fan guard.
Remove the other fan
guard in the same way.
4. Remove the vertical blade
ASSYs.
Each vertical blade ASSY
has 6 fins. It is not possible
to replace the fins
individually.
The vertical blade ASSY is
not marked for difference
between right and left.
1 Unfasten the 2 hooks at
the top.
2
3
4
Unfasten the 3 hooks at
the shaft mounting part
by pressing them with a
flat screwdriver.
Remove the vertical
blade ASSY.
Remove the other
vertical blade ASSY in
the same way.
Step Procedure Points
Hook
Fan guard
Hook
(R20683)
(R11646)
Hook
(R18247)
Hook
(R18194)
Vertical blade ASSY
Hook
(R8022)
Hook

Si041264EC Swing Motor / PCBs
Removal Procedure 9
6. Swing Motor / PCBs
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the shield plate
(1).
1 Unfasten the 2 hooks at
the top of the shield
plate (1).
2 Unfasten the hook at
the bottom and remove
the shield plate (1).
2. Remove the swing motor.
1 Remove the screw of
the swing motor.
2 Disconnect the
connector.
The connector of the swing
motor has a hook.
Press the hook with a flat
screwdriver to unfasten it.
Electrical box
Shield plate (1)
Hook
(R23306)
Hook
(R16650)
(R11650)
Swing motor
(R8037)
(R14847)

Swing Motor / PCBs Si041264EC
10 Removal Procedure
3. Remove the display/
signal receiver PCB.
1 Unfasten the hook and
release the display/
signal receiver PCB
ASSY.
2
3
Turn over the display/
signal receiver PCB
ASSY.
Unfasten the 3 hooks
and remove the display/
signal receiver PCB.
4 Disconnect the
connector [S27].
[S27]: control PCB
4. Remove the control PCB.
1
2
Lift the shield plate (2)
and unfasten the 2
hooks.
Slide the shield plate
(2) and remove it.
Step Procedure Points
(R23307)
Hook
Display/signal receiver PCB ASSY
(R23308)
Hook
Display/
signal
receiver
PCB
(R22350)
[S27]
TIMER lamp Signal receiver
Operation lamp
ON/OFF button
(Forced cooling operation
ON/OFF button)
(R23309)
Hook
Shield plate (2)

Si041264EC Swing Motor / PCBs
Removal Procedure 11
3 Release the harnesses
from the 2 hooks.
4 Disconnect the
terminals from the
terminal board.
5 Unfasten the 4 hooks.
Release the upper part
of the control PCB and
then pull up to remove.
Step Procedure Points
(R18248)
Hook
(R14609)
(R11943)
Control
PCB
Hook
Hook

Indoor Heat Exchanger Si041264EC
12 Removal Procedure
7. Indoor Heat Exchanger
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
In pump-down work, be sure to stop the compressor before disconnecting the
refrigerant pipe. If the refrigerant pipe is disconnected with the compressor operating
and the stop valve open, air may be sucked in and may generate an over-pressure in
refrigeration cycle, thus resulting in pipe rupture or accidental injury.
When removing or reinstalling the indoor heat exchanger, be sure to wear gloves or
wrap the indoor heat exchanger with cloths. (You may be injured by the fins.)
Caution Be sure to conduct pump down operation before disassembling the refrigerant pipe.
If the refrigerant leaks, repair the spot of leaking, then collect all refrigerant from the
unit. After conducting vacuum drying, recharge proper amount of refrigerant.
From the viewpoint of global environmental protection, make sure to use a vacuum
pump for air purging.
Step Procedure Points
1. Disconnect the refrigerant
piping.
1 Remove the 2 screws.
2 Pull out the drain hose. Hold the indoor unit up with a
piece of wood.
Place a plastic sheet under
the drain pan to prevent
wetting the floor with
remaining drain.
If the drain hose is
embedded in the wall,
disconnect the drain hose
beforehand.
3
4
Disconnect the flare nut
for gas piping.
Disconnect the flare nut
for liquid piping.
Carry out the removal works
with 2 wrenches.
When the pipings are
disconnected, protect the
open ends of both the pipe
and the unit from moisture
intrusion.
(R17298)
Drain hose
Extension drain hose
Connecting wires (R17300)
(R17301)

Si041264EC Indoor Heat Exchanger
Removal Procedure 13

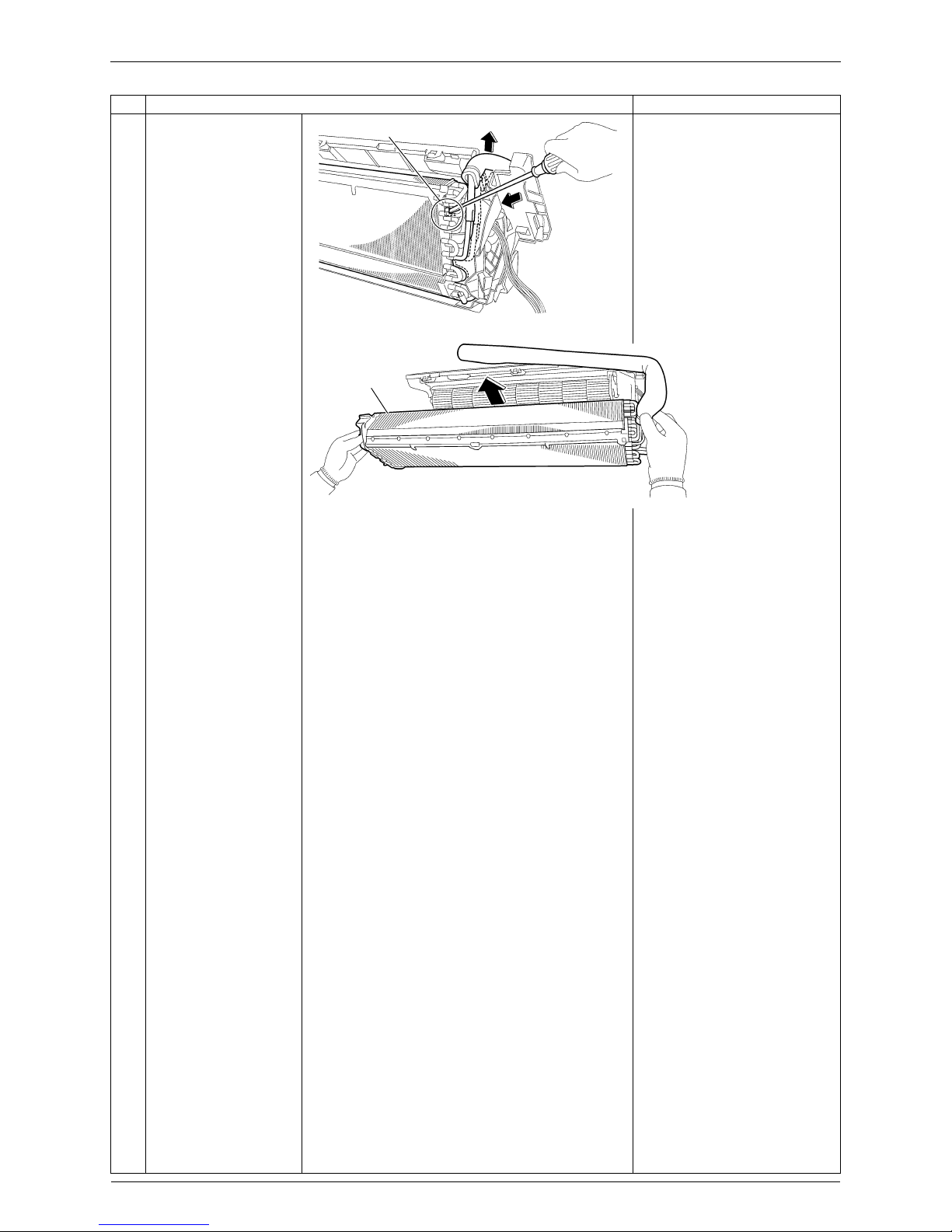

2. Remove the indoor heat
exchanger.
1 Detach the indoor unit
from the installation
plate.
2 Unfasten the hook and
remove the piping
fixture on the back of
the indoor unit.
3 Slightly widen the
auxiliary piping.
4 Remove the screw on
the left side and
unfasten the hook on
the rear side.
Step Procedure Points
Gas piping
Liquid piping
(R17303)
Piping fixture
(R18195)
Auxiliary piping
(R8040)
(R17336)(R11269)
Hook
Hook
Screw

Indoor Heat Exchanger Si041264EC
14 Removal Procedure
5 Unfasten the hook on
the right side and lift up
the indoor heat
exchanger.
6 Pull the indoor heat
exchanger to the front
side to unfasten the
hooks completely, and
then remove it.
When reassembling the
indoor heat exchanger,
make sure that the hooks
are fastened.
Step Procedure Points
Hook
(R8042)
(R8043)
Indoor heat
exchanger

Si041264EC Fan Rotor / Fan Motor
Removal Procedure 15
8. Fan Rotor / Fan Motor
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the screw.
2 Unfasten the hook and
remove the right side
plate.
3 Remove the fan rotor
and the fan motor.
The fan motor has 3
projections on the right side.
The fan rotor has a rotating
shaft on the left side.
Right side plate
(R17337)
Hook (R20685)
Fan rotor
Fan motor
(R8047)

Fan Rotor / Fan Motor Si041264EC
16 Removal Procedure

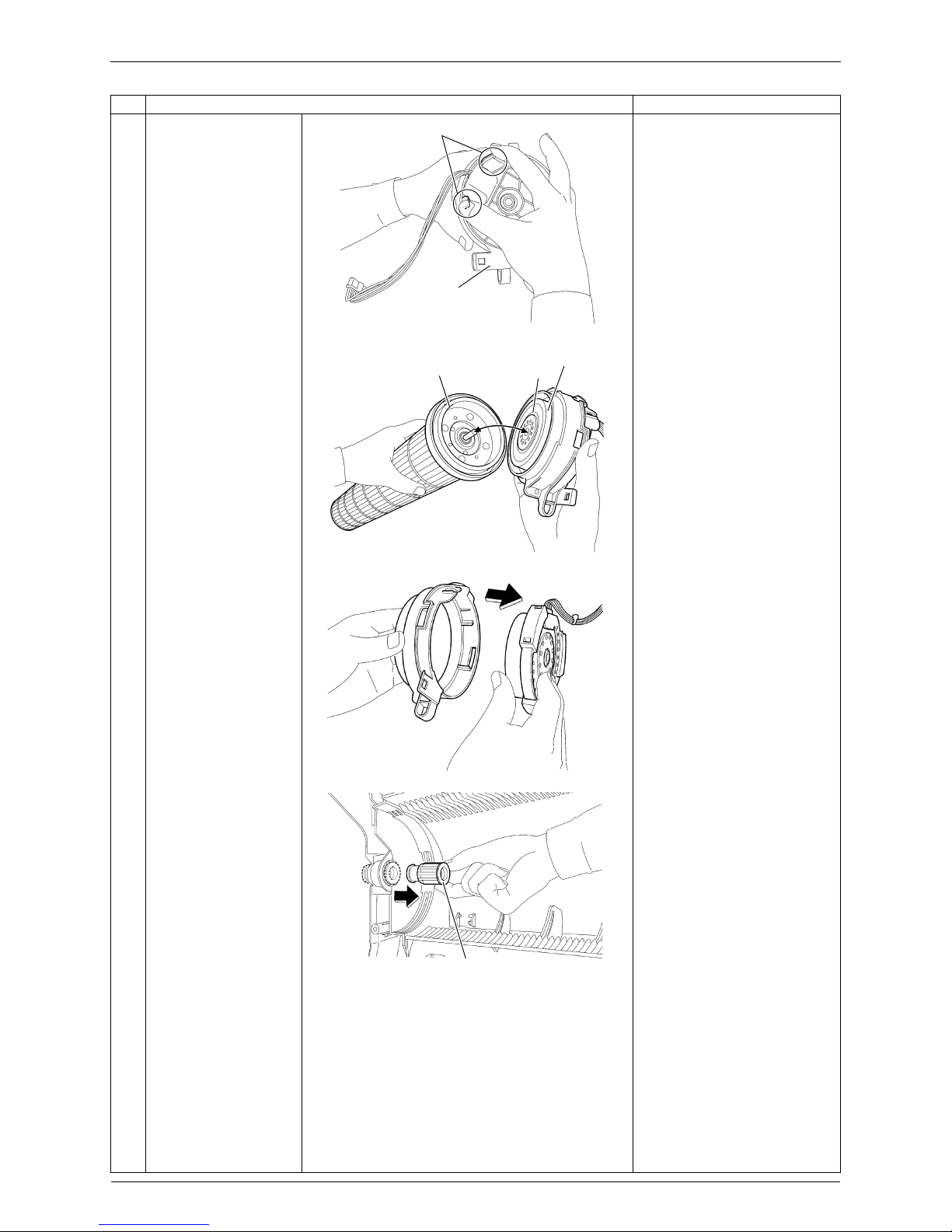

4 Unfasten the 2 hooks of
the motor cover.
5 Pull out the fan motor
from the fan rotor and
remove it.
The magnet of the fan motor
is attached to the fan rotor.
Be careful not to attract
metal waste to the magnet.
Keep away from other
materials that can be
affected by magnetic force.
6 Remove the bearing on
the left side.
Step Procedure Points
(R8051)
Hook
Motor cover
Magnet Coil
Fan motor
(R8052)
(R8053)
(R18196)
Bearing

Revision History
Month / Year Version Revised contents
12 / 2012 Si041264 First edition
07 / 2014 Si041264EA Model addition: FTKC09/12NV2S, FTKC25/35NVM, FTKC15/20/25/35NVM4
FTKC25/35NVMM, FTKC25/35NVMV
08 / 2015 Si041264EB Model addition: FTKC09/12PV2S, FTKC15/20/25/35PVM, FTKC15/20/25/35PVM4,
FTKC25/35PVMM, FTKC20/25/35PVMV, FTXM20/25/35HVMV,
FTXP20/25/30HVLT
04 / 2016 Si041264EC Model addition: ATKC09/12RV2S

Head Office:
Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,
Kita-ku, Osaka, 530-8323 Japan
Tokyo Office:
JR Shinagawa East Bldg., 2-18-1, Konan,
Minato-ku, Tokyo, 108-0075 Japan
http://www.daikin.com/products/ac/
All rights reserved
c
Warning
zDaikin products are manufactured for export to numerous countries throughout the world. Prior to
purchase, please confirm with your local authorised importer, distributor and/or retailer whether this
product conforms to the applicable standards, and is suitable for use, in the region where the product
will be used. This statement does not purport to exclude, restrict or modify the application of any local
legislation.
zAsk a qualified installer or contractor to install this product. Do not try to install the product yourself.
Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion.
zUse only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or
contractor to install those parts and accessories. Use of unauthorised parts and accessories or
improper installation of parts and accessories can result in water or refrigerant leakage, electrical
shock, fire or explosion.
zRead the user's manual carefully before using this product. The user's manual provides important
safety instructions and warnings. Be sure to follow these instructions and warnings.
If you have any enquiries, please contact your local importer, distributor and/or retailer.
Cautions on product corrosion
1. Air conditioners should not be installed in areas where corrosive gases, such as acid gas or alkaline gas, are produced.
2. If the outdoor unit is to be installed close to the sea shore, direct exposure to the sea breeze should be avoided. If you need to install
the outdoor unit close to the sea shore, contact your local distributor.
Dealer
zSpecifications, designs and other content appearing in this brochure are current as of April 2016 but subject to change without notice. Si041264EC
04/2016 AK.B
