Daikin BRC4C65 User manual

OPERATION MANUAL
MODELS:
BRC4C65
BRC4C66
Wireless Remote Controller Kit
Thank you for purchasing this Daikin air conditioner.
Carefully read this operation manual before using the air conditioner.
It will tell you how to use the unit properly and help you if any trouble occurs.
After reading the manual, file it away for future reference.
00_CV_3P107422-29P.fm Page 1 Thursday, January 17, 2008 1:28 PM

[1]
PRIOR TO USE
This operation manual is exclusively for instructions on how to use the wireless remote controller.
Read also the operation manual attached to the indoor unit and to the outdoor unit for safe usage of the
system and maintenance.
00_CV_3P107422-29P.fm Page 2 Thursday, January 17, 2008 1:28 PM

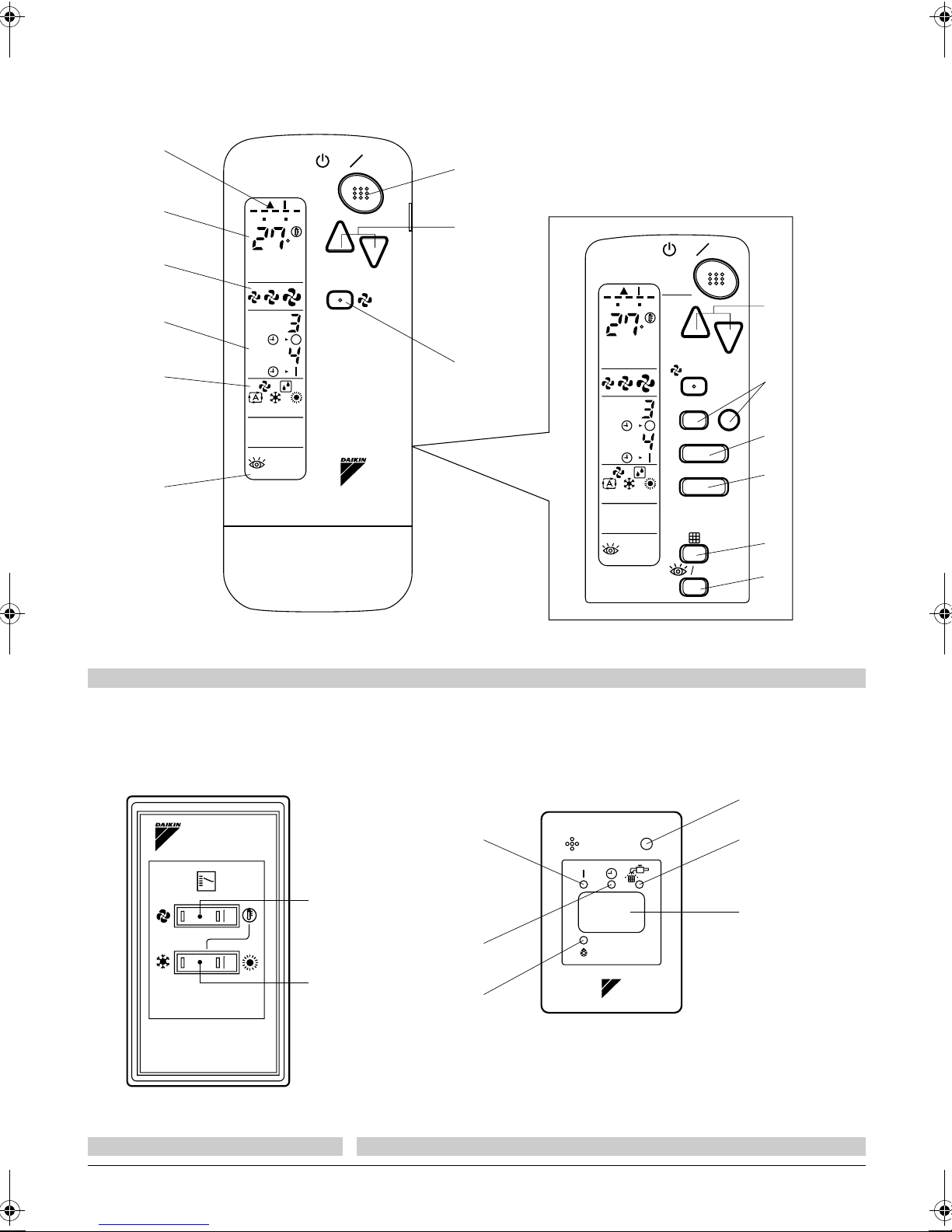

[2]
1-1
1-2
7
9
12
10
11
13
14
15
8
1
3
4
5
2
6
DOWN
FAN
UP
ON OFF
MHL
C
hr.
hr.
TEST
MODE
TIMER
RESERVE
CANCEL
DOWN
UP
TEST
FAN
TIME
TEMP
ON OFF
MHL
C
hr.
hr.
TEST
1
1-3 2
COOL/HEAT CHANGEOVER
REMOTE CONTROL SWITCH
23
22
18
19
21
20
16
17
00_CV_3P107422-29P.fm Page 3 Thursday, January 17, 2008 1:28 PM

3
4

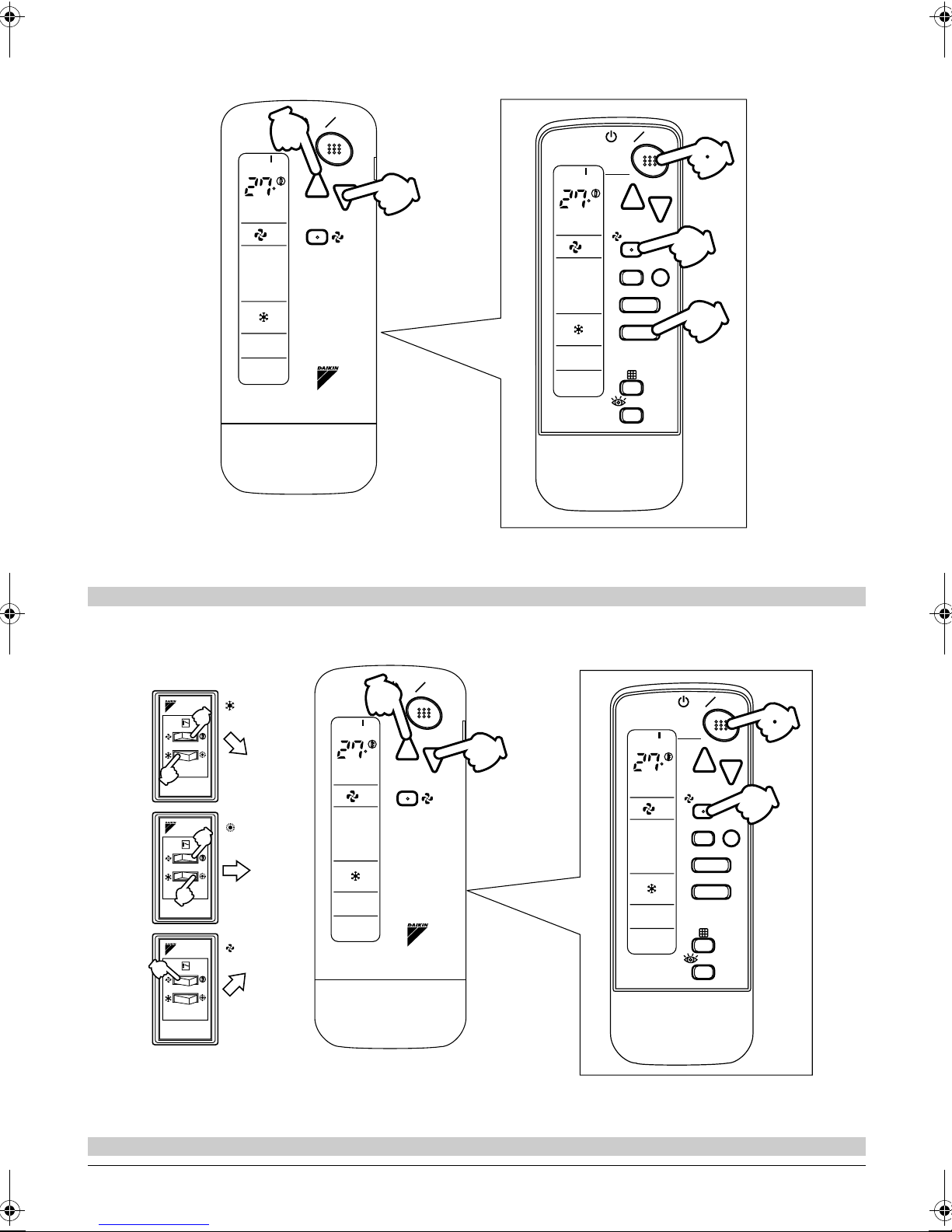

[3]
MODE
TIMER
RESERVE
CANCEL
DOWN
UP
/TEST
FAN
TIME
TEMP
25
4
1
ON OFF
C
DOWN
FAN
UP
ON OFF
3
3
C
MODE
TIMER
RESERVE
CANCEL
DOWN
UP
/TEST
FAN
TIME
TEMP
ON OFF
C
4
4-1
4-2
4-3
25
1
1
1
1
1
DOWN
FAN
UP
ON OFF
C3
3
00_CV_3P107422-29P.fm Page 4 Thursday, January 17, 2008 1:28 PM

1English
CONTENTS
PRIOR TO USE...............................[1]
ILLUSTRATION ...............................[2]
1 SAFETY PRECAUTIONS..................1
2 NAMES AND FUNCTIONS OF
THE OPERATING SECTION ............4
3 HANDLING FOR WIRELESS
REMOTE CONTROLLER..................6
4 OPERATION PROCEDURE .............7
5 NOT MALFUNCTION OF THE
AIR CONDITIONER ........................12
6 HOW TO DIAGNOSE TROUBLE
SPOTS ............................................12
To gain full advantage of the air conditioner’s
functions and to avoid malfunction due to
mishandling, we recommend that you read
this instruction manual carefully before use.
This air conditioner is classified under “appli-
ances not accessible to the general public”.
The precautions described herein are
classified as WARNING and CAUTION.
They both contain important information
regarding safety. Be sure to observe all
precautions without fail.
WARNING....... Failure to follow these
instructions properly
may result in personal
injury or loss of life.
CAUTION........ Failure to observe these
instructions properly
may result in property
damage or personal
injury, which may be
serious depending on
the circumstances.
1. SAFETY PRECAUTIONS
After reading, keep this manual in a con-
venient place so that you can refer to it
whenever necessary. If the equipment is
transferred to a new user, be sure also to
hand over the manual.
WARNING
Be aware that prolonged, direct expo-
sure to cool or warm air from the air
conditioner, or to air that is too cool or
too warm can be harmful to your phys-
ical condition and health.
When the air conditioner is malfunc-
tioning (giving off a burning odour,
etc.) turn off power to the unit and con-
tact your local dealer.
Continued operation under such circum-
stances may result in a failure, electric
shocks or fire hazards.
Consult your local dealer to install
your equipment.
Doing the work yourself may result in
water leakage, electric shocks or fire haz-
ards.
Consult your local dealer regarding
modification, repair and maintenance
of the air conditioner or the remote
controller.
Improper workmanship may result in water
leakage, electric shocks or fire hazards.
Do not place objects, including rods,
your fingers, etc., in the air inlet or out-
let.
Injury may result due to contact with the
air conditioner’s highspeed fan blades.
Beware of fire in case of refrigerant
leakage.
If the air conditioner is not operating cor-
rectly, i.e. not generating cool or warm air,
refrigerant leakage could be the cause.
Consult your dealer for assistance.
The refrigerant within the air conditioner
is safe and normally does not leak. How-
ever, in the event of a leakage, contact
with a naked burner, heater or cooker
may result in generation of noxious gas.
Do not longer use the air conditioner until
a qualified service person confirms that
the leakage has been repaired.
01_EN_3P107422-29P.fm Page 1 Thursday, January 17, 2008 1:46 PM

English 2
Consult your local dealer regarding
what to do in case of refrigerant leak-
age.
When the air conditioner is to be installed
in a small room, it is necessary to take
proper measures so that the amount of
any leaked refrigerant does not exceed
the concentration limit in the event of a
leakage. Otherwise, this may lead to an
accident due to oxygen depletion.
Contact professional personnel about
attachment of accessories and be
sure to use only accessories specified
by the manufacturer.
If a defect results from your own work-
manship, it may result in water leaks,
electric shock or fire.
Consult your local dealer regarding
relocation and reinstallation of the air
conditioner.
Improper installation work may result in
leakage, electric shocks or fire hazards.
Be sure to use fuses with the correct
ampere reading.
Do not use improper fuses, copper or
other wires as a substitute, as this may
result in electric shock, fire, injury or dam-
age to the unit.
Be sure to install an earth leakage
breaker.
Failure to install an earth leakage breaker
may result in electric shocks or fire.
Be sure to earth the unit.
Do not earth the unit to a utility pipe, light-
ning conductor or telephone earth lead.
Imperfect earthing may result in electric
shocks or fire.
A high surge current from lightning or
other sources may cause damage to the
air conditioner.
Consult the dealer if the air condi-
tioner submerges owing to a natural
disaster, such as a flood or typhoon.
Do not operate the air conditioner in that
case, or otherwise a malfunction, electric
shock, or fire may result.
Do not start or stop operating the air
conditioner with the power supply
breaker turned ON or OFF.
Otherwise, fire or water leakage may
result. Furthermore, the fan will rotate
abruptly if power failure compensation is
enabled, which may result in inlury.
Do not use the product in the atmo-
sphere contaminated with oil vapor,
such as cooking oil or machine oil
vapor.
Oil vapor may cause crack damage, elec-
tric shocks, or fire.
Do not use the product in places with
excessive oily smoke, such as cook-
ing rooms, or in places with flammable
gas, corrosive gas, or metal dust.
Using the product in such places may
cause fire or product failures.
Do not use flammable materials (e.g.,
hairspray or insecticide) near the
product.
Do not clean the product with organic
solvents such as paint thinner.
The use of organic solvents may cause
crack damage to the product, electric
shocks, or fire.
Be sure to use a dedicated power sup-
ply for the air conditioner.
The use of any other power supply may
cause heat generation, fire, or product
failures.
CAUTION
Do not use the air conditioner for pur-
poses other than those for which it is
intended.
Do not use the air conditioner for cooling
precision instruments, food, plants, ani-
mals or works of art as this may adversely
affect the performance, quality and/or
longevity of the object concerned.
Do not remove the outdoor unit’s fan
guard.
The guard protects against the unit’s high
speed fan, which may cause injury.
01_EN_3P107422-29P.fm Page 2 Thursday, January 17, 2008 1:46 PM

3English
Do not place objects that are suscepti-
ble to moisture directly beneath the
indoor or outdoor units.
Under certain conditions, condensation
on the main unit or refrigerant pipes, air
filter dirt or drain blockage may cause
dripping, resulting in fouling or failure of
the object concerned.
To avoid oxygen depletion, ensure
that the room is adequately ventilated
if equipment such as a burner is used
together with the air conditioner.
After prolonged use, check the unit
stand and its mounts for damage.
If left in a damaged condition, the unit
may fall and cause injury.
Be sure that children, plants or ani-
mals are not exposed directly to air-
flow from the unit, as adverse effects
may ensue.
Before cleaning, be sure to stop unit
operation, turn the breaker off or
remove the power cord.
Otherwise, an electric shock and injury
may result.
To avoid electric shocks, do not oper-
ate with wet hands.
Do not place heaters directly below
the unit, as resulting heat can cause
deformation.
Do not allow a child to mount on the
outdoor unit or avoid placing any
object on it.
Falling or tumbling may result in injury.
Do not block air inlets nor outlets.
Impaired air flow may result in insufficient
performance or trouble.
Do not place appliances that produce
naked flames in places exposed to the
air flow from the unit as this may
impair combustion of the burner.
Do not place flammable sprays or
operate spray containers near the unit
as this may result in fire.
Do not wash the air conditioner or the
remote controller with water, as this
may result in electric shocks or fire.
Do not place water containers (flower
vases, etc.) on the unit, as this may
result in electric shocks or fire.
Do not install the air conditioner at any
place where there is a danger of flam-
mable gas leakage.
In the event of a gas leakage, build-up of
gas near the air conditioner may result in
fire hazards.
Do not put flammable containers,
such as spray cans, within 1 m from
the blow-off mouth.
The containers may explode because the
warm air output of the indoor or outdoor
unit will affect them.
The batteries must be removed from
the appliance before it is scrapped
and they are disposed of safely.
Arrange the drain hose to ensure
smooth drainage.
Imperfect drainage may cause wetting.
The appliance is not intended for use
by unattended young children or
infirm persons.
Impairment of bodily functions and harm
to health may result.
Children should be supervised to
ensure that they do not play with the
unit or its remote controller.
Accidental operation by a child may result
in impairment of bodily functions and
harm health.
Do not let children play on or around
the outdoor unit.
If they touch the unit carelessly, injury
may be caused.
Consult your dealer regarding clean-
ing the inside of the air conditioner.
Improper cleaning may cause breakage
of plastic parts, water leakage and other
damage as well as electric shocks.
01_EN_3P107422-29P.fm Page 3 Thursday, January 17, 2008 1:46 PM

English 4
To avoid injury, do not touch the air
inlet or aluminium fins of the unit.
Do not place objects in direct proxim-
ity of the outdoor unit and do not let
leaves and other debris accumulate
around the unit.
Leaves are a hotbed for small animals
which can enter the unit. Once in the unit,
such animals can cause malfunctions,
smoke or fire when making contact with
electrical parts.
Never touch the internal parts of the
controller.
Do not remove the front panel. Touching
certain internal parts will cause electric
shocks and damage to the unit. Please
consult your dealer about checking and
adjustment of internal parts.
Do not leave the remote controller
wherever there is a risk of wetting.
If water gets into the remote controller
there is a risk of electrical leakage and
damage to electronic components.
Do not locate inverter fluorescent
lamps or intensive light sources close
to the receiver of the indoor unit if the
wireless remote controller is used, or
otherwise the air conditioner may mal-
function.
Watch your steps at the time of air fil-
ter cleaning or inspection.
High-place work is required, to which
utmost attention must be paid.
If the scaffold is unstable, you may fall or
topple down, thus causing injury.
2. NAMES AND FUNCTIONS
OF THE OPERATING SEC-
TION (Fig. 1, 2)
1
DISPLAY “ ”
(SIGNAL TRANSMISSION)
This lights up when a signal is being
transmitted.
2
DISPLAY “ ” “ ” “ ” “ ”
“ ” (OPERATION MODE)
This display shows the current OPER-
ATION MODE. For straight cooling
type, “ ” (Auto) and “ ” (Heating)
are not installed.
3
DISPLAY “ ”
(SET TEMPERATURE)
This display shows the set temperature.
4
DISPLAY “ ”
(PROGRAMMED TIME)
This display shows PROGRAMMED
TIME of the system start or stop.
5DISPLAY “ ” “ ” “ ” (FAN SPEED)
The display shows the set fan speed.
6
DISPLAY “ ” (INSPECTION/
TEST OPERATION)
When the INSPECTION/TEST OPER-
ATION BUTTON is pressed, the display
shows the system mode is in.
7
ON/OFF BUTTON
Press the button and the system will
start. Press the button again and the
system will stop.
8
FAN SPEED CONTROL BUTTON
Press this button to select the fan
speed, HH or H or L, of your choice.
9
TEMPERATURE SETTING BUTTON
Use this button for SETTING TEMPER-
ATURE (Operates with the front cover
of the remote controller closed.)
10
PROGRAMMING TIMER BUTTON
Use this button for programming
“START and/or STOP” time. (Operates
with the front cover of the remote con-
troller opened.)
11 TIMER MODE START/STOP BUTTON
Refer to page 9.
12 TIMER RESERVE/CANCEL BUTTON
Refer to page 10.
MHL
C
hr. hr.
TEST
01_EN_3P107422-29P.fm Page 4 Thursday, January 17, 2008 1:46 PM

5English
13
OPERATION MODE SELECTOR BUTTON
Press this button to select OPERATION
MODE.
14
FILTER SIGN RESET BUTTON
Refer to the section of MAINTENANCE
in the operation manual attached to the
indoor unit.
15
INSPECTION/TEST OPERATION
BUTTON
This button is used only by qualified service
persons for maintenance purposes.
16
EMERGENCY OPERATION SWITCH
This switch is readily used if the remote
controller does not work.
17
RECEIVER
This receives the signals from the
remote controller.
18
OPERATING INDICATOR LAMP (Red)
This lamp stays lit while the air conditioner
runs. It flashes when the unit is in trouble.
19 TIMER INDICATOR LAMP (Green)
This lamp stays lit while the timer is set.
20
AIR FILTER CLEANING TIME
INDICATOR LAMP (Red)
Lights up when it is time to clean the air
filter.
21
DEFROST LAMP (Orange)
Lights up when the defrosting opera-
tion has started. (For straight cooling
type this lamp does not turn on.)
22
FAN/AIR CONDITIONING SELECTOR
SWITCH
Set the switch to “ ” (FAN) for FAN
and “ ” (A/C) for HEAT or COOL.
23
COOL/HEAT CHANGEOVER SWITCH
Set the switch to “ ” (COOL) for
COOL and “ ” (HEAT) for HEAT.
NOTES
•For the sake of explanation, all indica-
tions are shown on the display in Figure 1
contrary to actual running situations.
•Fig. 1-2 shows the remote controller with
the front cover opened.
•Fig. 1-3 shows this remote controller can
be used in conjunction with the one pro-
vided with the VRV system.
•If the air filter cleaning time indicator lamp
lights up, clean the air filter as explained
in the operation manual provided with the
indoor unit.
After cleaning and reinstalling the air fil-
ter, press the filter sign reset button on
the remote controller. The air filter clean-
ing time indicator lamp on the receiver will
go out.
01_EN_3P107422-29P.fm Page 5 Thursday, January 17, 2008 1:46 PM

English 6
Precautions in handling remote con-
troller
Direct the transmitting part of the remote
controller to the receiving part of the air
conditioner.
If something blocks the transmitting and receiv-
ing path of the indoor unit and the remote con-
troller as curtains, it will not operate.
Transmitting distance is approximately 7m.
Do not drop or get it wet.
It may be damaged.
Never press the button of the remote con-
troller with a hard, pointed object.
The remote controller may be damaged.
Installation site
•
It is possible that signals will not be received
in rooms that have electronic fluorescent
lighting. Please consult with the salesman
before buying new fluorescent lights.
•If the remote controller operated some
other electrical apparatus, move that
machine away or consult your dealer.
3. HANDLING FOR WIRELESS
REMOTE CONTROLLER
2 short beeps
from the receiver
indicates that
the transmission
is properly done.
Receiver
Placing the remote controller in the
remote controller holder
Install the remote controller holder to a wall
or a pillar with the attached screw. (Make
sure it transmits.)
How to put the dry batteries
(1) Remove the back cover
of the remote controller
to the direction pointed
by the arrow mark.
(2) Put the batteries
Use two LR03<IEC>
dry cell batteries. Put
dry batteries correctly
to fit their (+) and (–).
(3) Close the cover
When to change batteries
Under normal use, batteries last about a
year. However, change them whenever the
indoor unit doesn’t respond or responds
slowly to commands, or if the display
becomes dark.
Placing the
remote controller
Slide from above
Removing the
remote controller
Pull it upward
Remote
controller
holder
01_EN_3P107422-29P.fm Page 6 Thursday, January 17, 2008 1:46 PM

7English
[CAUTIONS]
•Replace all batteries at the same time, do
not use new and old batteries intermixed.
•In case the remote controller is not used
for a long time remove all batteries in order
to prevent liquid leak of the battery.
IN THE CASE OF CENTRALIZED CON-
TROL SYSTEM
•If the indoor unit is under centralized con-
trol, it is necessary to switch the remote
controller’s setting. In this case, contact
your DAIKIN dealer.
•Operating procedure varies with heat
pump type and straight cooling type. Con-
tact your Daikin dealer to confirm your sys-
tem types.
•To protect the unit, turn on the main power
switch 6 hours before operation.
•If the main power supply is turned off dur-
ing operation, operation will restart auto-
matically after the power turns back on
again.
•AUTOMATIC OPERATION can be
selected only by Heat recovery system.
•Cooling only system gives selection of
FAN or COOLING OPERATION only.
〈〈FOR SYSTEMS WITHOUT COOL/
HEAT CHANGEOVER REMOTE CON-
TROL SWITCH (Fig. 3)〉〉
Press OPERATION MODE
SELECTOR button several
times and select the OPERATION
MODE of your choice as follows.
 COOLING OPERATION.................. “ ”
 HEATING OPERATION................... “ ”
 AUTOMATIC OPERATION .............. “ ”
 FAN OPERATION............................ “ ”
4. OPERATION PROCEDURE
COOLING, HEATING, AUTOMATIC
AND FAN OPERATION (Fig. 3, 4)
1
On AUTOMATIC OPERATION
In this operation mode, COOL/HEAT
changeover is automatically conducted at a
present indoor temperature.
Press ON/OFF button.
OPERATION lamp lights up and the system
starts OPERATION.
〈〈FOR SYSTEMS WITH COOL/HEAT
CHANGEOVER REMOTE CONTROL
SWITCH (Fig. 4)〉〉
Select OPERATION MODE with
the COOL/HEAT
CHANGEOVER REMOTE CONTROL
SWITCH as follows.
COOING OPERATION ....................
Refer to fig. 4-1 ( , )
HEATING OPERATION ...................
Refer to fig. 4-2 ( , )
FAN OPERATION............................
Refer to fig. 4-3 ( )
Press ON/OFF button.
OPERATION lamp lights up and the system
starts OPERATION.
ADJUSTMENT
For programming TEMPERATURE and FAN
SPEED and AIR FLOW DIRECTION, follow
the procedure shown below.
Press TEMPERATURE SET-
TING button and program the
setting temperature.
Each time this button is pressed,
setting temperature rises 1°C.
Each time this button is pressed,
setting temperature lowers 1°C.
2
1
2
3
UP
DOWN
01_EN_3P107422-29P.fm Page 7 Thursday, January 17, 2008 1:46 PM

English 8
In case of automatic operation
Each time this button is pressed, set-
ting temperature shifts to “H” side.
Each time this button is pressed, set-
ting temperature shifts to “L” side.
[°C]
NOTE
•The setting is impossible for fan operation.
Press FAN SPEED CONTROL
button.
HH, H or L fan speed can be selected.
STOPPING THE SYSTEM
Press ON/OFF button once
again.
OPERATION lamp goes off, and the system
stops OPERATION.
NOTE
•Do not turn OFF power immediately after
the unit stops. Then, wait no less than
5 minutes. Water is leaking or there is
something else wrong with the unit.
[EXPLANATION OF HEATING
OPERATION]
DEFROST OPERATION
•As the frost on the coil of an outdoor unit
increase, heating effect decreases and the
system goes into DEFROST OPERA-
TION.
•The fan operation stops and the
DEFROST lamp of the indoor unit goes on.
After 6 to 8 minutes (maximum 10 min-
utes) of DEFROST OPERATION, the sys-
tem returns to HEATING OPERATION.
UP
DOWN
H•M•L
Setting
temperature 25 23 22 21 19
4
5
Heating capacity & Outdoor air tem-
perature
•Heating capacity drops as outdoor air tem-
perature lowers. If feeling cold, use
another heater at the same time as this air
conditioner.
•Hot air is circulated to warm the room. It
will take some time from when the air con-
ditioner is first started until the entire room
becomes warm. The internal fan automat-
ically turns at low speed until the air condi-
tioner reaches a certain temperature on
the inside. In this situation, all you can do
is wait.
•If hot air accumulates on the ceiling and
feet are left feeling cold, it is recommended
to use a circulator. For details, contact the
place of purchase.
•The function of this program is to decrease
the humidity in your room with the mini-
mum temperature decrease.
•Micro computer automatically determines
TEMPERATURE and FAN SPEED.
•This system does not go into operation if
the room temperature is below 16°C.
〈〈FOR SYSTEMS WITHOUT COOL/
HEAT CHANGEOVER REMOTE CON-
TROL SWITCH (Fig. 5)〉〉
Press OPERATION MODE
SELECTOR button several
times and select “ ” (PROGRAM DRY
OPERATION).
Press ON/OFF button.
OPERATION lamp lights up and system
starts OPERATION.
PROGRAM DRY OPERATION
(Fig. 5, 6)
1
2
01_EN_3P107422-29P.fm Page 8 Thursday, January 17, 2008 1:46 PM

9English
ADJUSTMENT
STOPPING THE SYSTEM
Press ON/OFF button again.
OPERATION lamp goes off and the system
stops OPERATION.
NOTE
•Do not turn OFF power immediately after
the unit stops. Then, wait no less than
5 minutes. Water is leaking or there is
something else wrong with the unit.
〈〈FOR SYSTEMS WITH COOL/HEAT
CHANGEOVER REMOTE CONTROL
SWITCH (Fig. 6)〉〉
Select COOLING OPERATION
MODE with the COOL/HEAT
CHANGEOVER REMOTE CONTROL
SWITCH.
Press OPERATION MODE
SELECTOR button several
times and select PROGRAM DRY “ ”.
Press ON/OFF button.
OPERATION lamp lights up and the system
starts.
STOPPING THE SYSTEM
Press ON/OFF button once again.
OPERATION lamp goes off, and the system
stops OPERATION.
NOTE
•Do not turn OFF power immediately after
the unit stops. Then, wait no less than
5 minutes. Water is leaking or there is
something else wrong with the unit.
3
1
2
3
4
MOVEMENT OF THE AIR FLOW FLAP
For the following conditions, micro computer
controls the air flow direction so it may be dif-
ferent from the display.
Operation mode includes automatic operation.
•The timer is operated in the following two
ways.
Programming the stop time ( )
....The system stops operating after the set
time has elapsed.
Programming the start time ( )
.... The system starts operating after the
set time has elapsed.
•The timer can be programmed a maximum
of 72 hours.
•The start and the stop time can be simulta-
neously programmed.
Press the TIMER MODE
START/STOP button several
times and select the mode on the dis-
play.
The display flashes.
For setting the timer stop...............“ ”
For setting the timer start ..............“ ”
Operation
mode
Cooling Heating
Operation
conditions
•When room
temperature
is lower than
the set tem-
perature
•When room
temperature
is higher than
the set tem-
perature
•At defrost
operation
•When operating continuously
at horizontal air flow direction
PROGRAM TIMER OPERATION
(Fig. 7)
1
01_EN_3P107422-29P.fm Page 9 Thursday, January 17, 2008 1:46 PM

English 10
Press the PROGRAMMING
TIMER button and set the time
for stopping or starting the system.
When this button is pressed, the
time advances by 1 hour.
When this button is pressed, the
time goes backward by 1 hour.
Press RESERVE button.
The timer setting procedure ends.
The display changes from flashing light to a
constant light.
NOTE
•When setting the timer Off and On at the
same time, repeat the above procedure
from to once again.
For example.
When the timer is
programmed to stop
the system after
3 hours and start the
system after
4 hours, the system
will stop after
3 hours and then
1 hour later the sys-
tem will start.
•After the timer is programmed, the display
shows the remaining time.
•Press the TIMER OFF button to cancel
programming. The display vanishes. ( )
2
UP
DOWN
3
13
MODE
TIMER
RESERVE
CANCEL
DOWN
UP
FAN
TIME
TEMP
ON OFF
C
hr.
hr.
4
•When the system is installed as shown
below, it is necessary to designate the
master remote controller.
〈〈For Heat pump system〉〉
When one outdoor unit is connected with
several indoor units.
〈〈For Heat recovery system〉〉
When one BS unit is connected with several
indoor units.
HOW TO SET MASTER REMOTE
CONTROLLER
(For VRV system)
One of these remote controllers
needs to be designated as the
master remote controller.
Indoor
unit
Outdoor unit
BS unit
Indoor
unit
Outdoor unit
One of these remote controllers
needs to be designated as the
master remote controller.
01_EN_3P107422-29P.fm Page 10 Thursday, January 17, 2008 1:46 PM

11 English
•Only the master remote controller can
select HEATING, COOLING or AUTO-
MATIC (only Heat recovery system)
OPERATION.
When the indoor unit with master remote
controller is set to “COOL”, you can switch
over operation mode between “FAN”, “DRY”
and “COOL”.
When the indoor unit with master remote
controller is set to “HEAT”, you can switch
over operation mode between “FAN” and
“HEAT”.
When the indoor unit with master remote
controller is set to “FAN”, you cannot switch
operation mode.
When attempting settings than that con-
sented above, a “peep” is emitted as a warn-
ing.
Only with Heat recovery system, you can set
the indoor unit to AUTOMATIC. Attempting
to do so, a “peep” will be emitted as a warn-
ing.
How to designate the master remote
controller
Continuously press the OPER-
ATION MODE SELECTOR but-
ton for 4 seconds.
The displays showing “ ” of all slave indoor
unit connected to the same outdoor unit or
BS unit flash.
Press the OPERATION MODE
SELECTOR button to the
indoor unit that you wish to designate
as the master remote controller. Then
designation is completed. This indoor
unit is designated as the master
remote controller and the display
showing “ ” vanishes.
•To change settings, repeat steps
and .
1
2
1
2

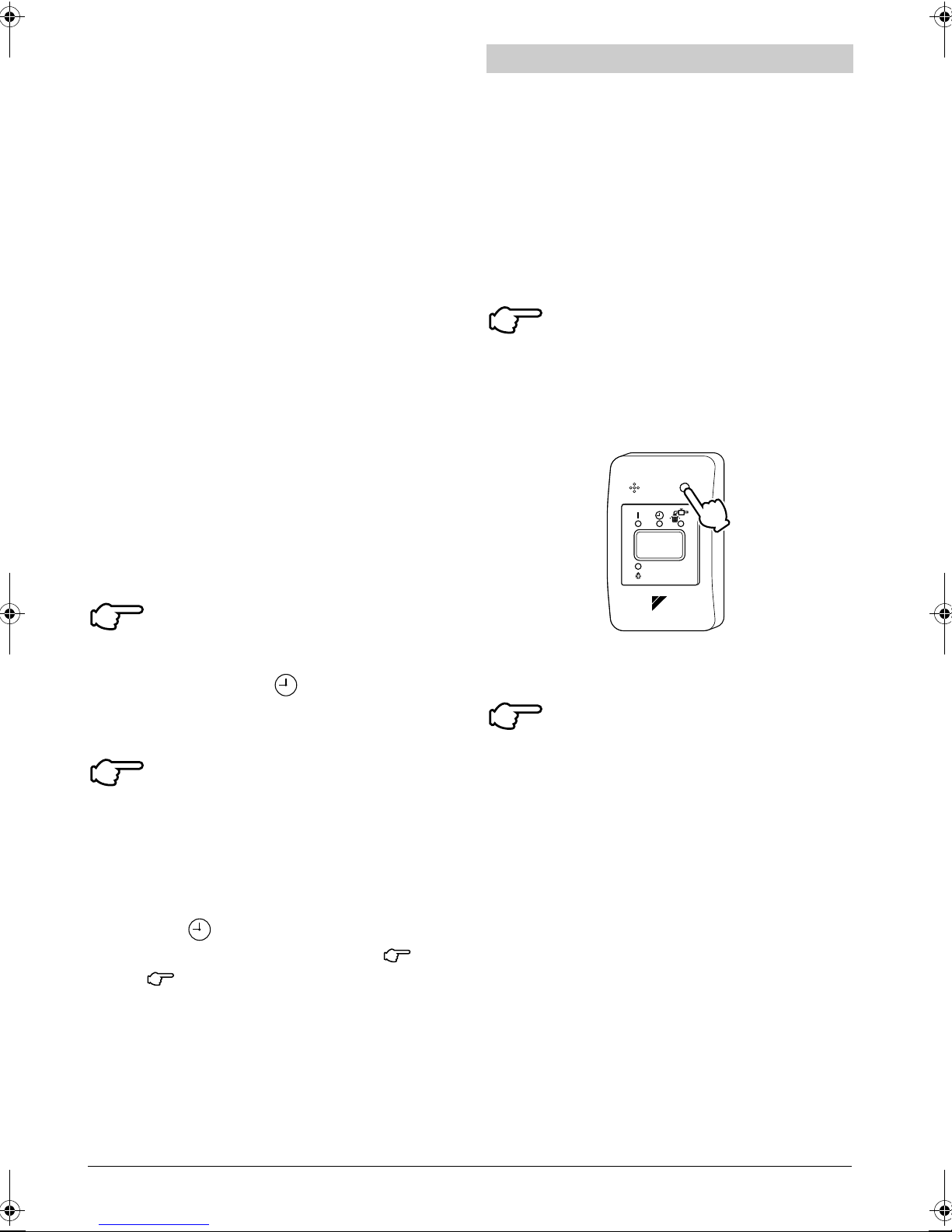

When the remote controller does not work
due to battery failure or the absence thereof,
use this switch which is located beside the
discharge grille on the main unit. When the
remote controller does not work, but the bat-
tery low indicator on it is not lit, contact your
dealer.
[START]
Press the EMERGENCY OPER-
ATION switch.
The machine runs in the previous mode.
The system operates with the previously set
air flow direction, and airflow rate.
[STOP]
Press the EMERGENCY OPER-
ATION switch again.
EMERGENCY OPERATION
1
1
•
2
2
01_EN_3P107422-29P.fm Page 11 Thursday, January 17, 2008 1:46 PM

English 12
This system provides two other control sys-
tems beside individual control (one remote
controller controls one indoor unit) system.
Confirm the following if your unit is of the fol-
lowing control system type.
 Group control system
One remote controller controls up to 16
indoor units.
All indoor units are equally set.
 Two remote controller control system
Two remote controllers control one indoor
unit. (In case of group control system, one
group of indoor units.)
The unit follows individual operation.
NOTES
•Cannot have two remote controllers con-
trol system with only wireless remote con-
trollers. (It will be a two remote controller
control system having one wired and one
wireless remote controllers.)
•Under two remote controller control sys-
tem, wireless remote controller cannot
control timer operation.
•Only the operating indicator lamp out of
3 other lamps on the indoor unit display
functions.
•Contact your Daikin dealer in case of
changing the combination or setting of
group control and two remote controller
control systems.
PRECAUTIONS FOR GROUP CON-
TROL SYSTEM OR TWO REMOTE
CONTROLLER CONTROL SYSTEM
The following symptoms do not indi-
cate air conditioner malfunction
I. THE SYSTEM DOES NOT OPERATE
•
The system does not restart immediately
after the ON/OFF button is pressed.
If the OPERATION lamp lights, the system
is in normal condition. It does not restart
immediately because a safety device oper-
ates to prevent overload of the system.
After 3 minutes, the system will turn on
again automatically.
• The system does not restart immedi-
ately when TEMPERATURE SETTING
button is returned to the former posi-
tion after pushing the button.
It does not restart immediately because a
safety device operates to prevent overload
of the system. After 3 minutes, the system
will turn on again automatically.
• If the reception beep is rapidly repeated
3 times (It sounds only twice when
operating normally.)
Control is set to the optional controller for
centralized control.
• If the defrost lamp on the indoor unit’s
display is lit when heating is started.
This indication is to warn against cold air
being blown from the unit. There is noth-
ing wrong with the equipment.
I. EMERGENCY STOP
When the air conditioner stops in emergency,
the run lamp on the indoor unit starts blink-
ing. Take the following steps yourself to read
the malfunction code that appears on the dis-
play. Contact your dealer with this code. It will
help pinpoint the cause of the trouble, speed-
ing up the repair.
5. NOT MALFUNCTION OF
THE AIR CONDITIONER
6. HOW TO DIAGNOSE TROU-
BLE SPOTS (Fig. 8)
01_EN_3P107422-29P.fm Page 12 Thursday, January 17, 2008 1:46 PM

13 English
Press the INSPECTION/TEST
button to select the inspection
mode “ ”.
“ ” appears on display and blinks. “UNIT”
lights up.
Press PROGRAMMING TIMER
BUTTON and change the unit
number.
Press to change the unit number until the
indoor unit beeps and perform the following
operation according to the number of beeps.
Number of beeps
3 short beeps .....Perform all steps from
to
1 short beep .......Perform and
steps
1 long beep ........Normal state
Press OPERATION MODE
SELECTOR BUTTON.
“ ” on the left-hand of the malfunction code
blinks.
Press PROGRAMMING TIMER
BUTTON and change the mal-
function code.
Press until the indoor unit beeps twice.
Press OPERATION MODE
SELECTOR BUTTON.
“ ” on the right-hand of the malfunction
code blinks.
Press PROGRAMMING TIMER
BUTTON and change the mal-
function code.
Press until the indoor unit makes a long
beep.
The malfunction code is fixed when the
indoor unit makes a long beep.
Reset of the display.
Press OPERATION MODE SELECTOR
BUTTON to get the display back to the nor-
mal state.
1
2
3
6
36
3
4
5
6
7
II. IN CASE BESIDES EMERGENCY STOP
1. The unit does not operate at all.
•Check if the receiver is exposed of sun-
light or strong light. Keep receiver away
from light.
•Check if there are batteries in the
remote controller. Place the batteries.
•Check if the indoor unit number and
wireless remote controller number are
equal.
Operate the indoor unit with the remote con-
troller of the same number.
Signal transmitted from a remote controller of
a different number cannot be accepted. (If
the number is not mentioned, it is considered
as “1”)
2. The system operates but it does not
sufficiently cool or heat.
•If the set temperature is not proper.
•If the FAN SPEED is set to L SPEED.
•If the air flow angle is not proper.
Contact the place of purchase in the fol-
lowing case.
WARNING
When you detect a burning odor, shut
OFF power immediately and contact the
place of purchase. Using the equipment
in anything but proper working condition
can result in equipment damage, electric
shock and/or fire.
Number
01_EN_3P107422-29P.fm Page 13 Thursday, January 17, 2008 1:46 PM

English 14
[Trouble]
The RUN lamp of the indoor unit is flashing
and the unit does not work at all.
[Remedial action]

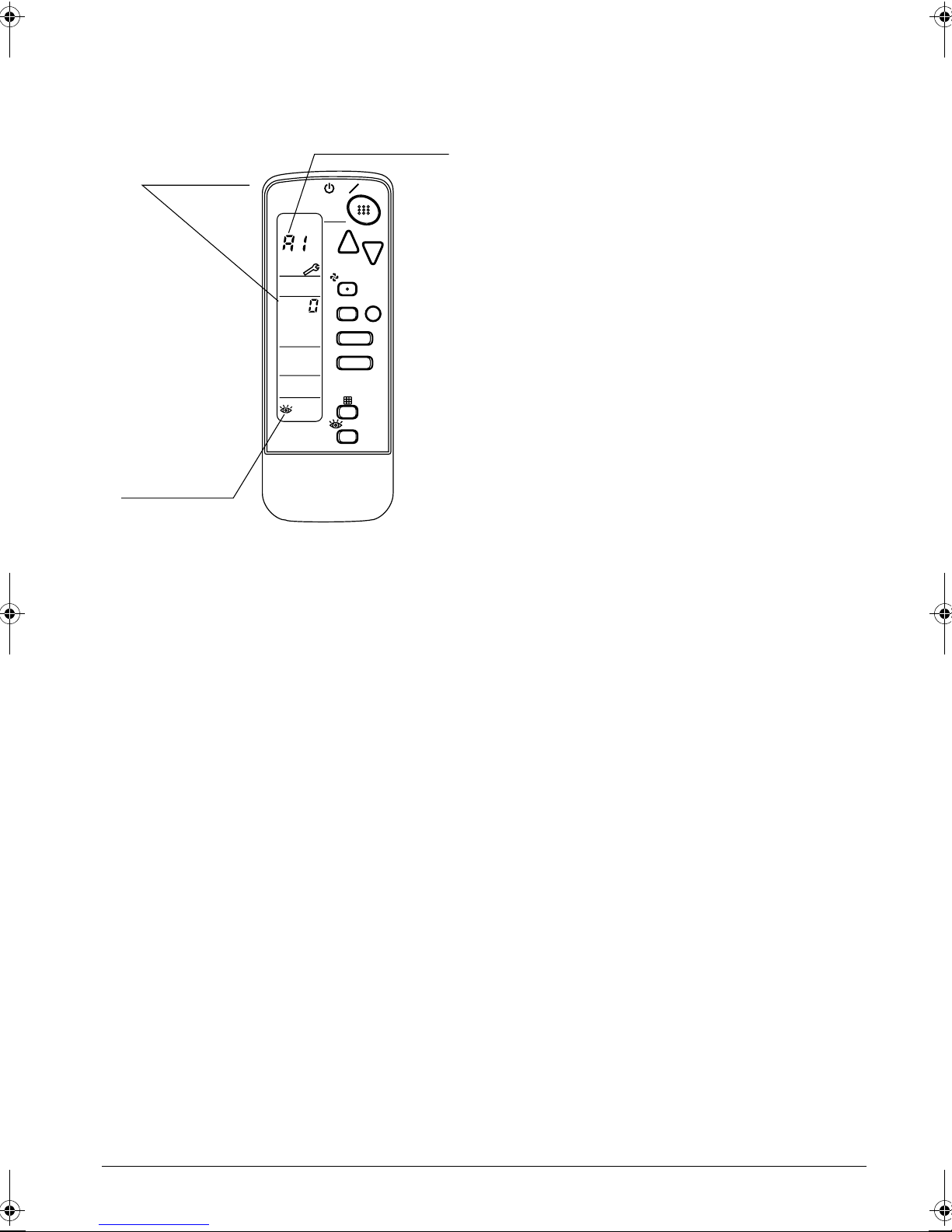

Check the malfunction code (A1 ~ UF) on the
remote control and contact the place of pur-
chase. (See page 12.)
MODE
TIMER
RESERVE
CANCEL
DOWN
UP
/TEST
FAN
TIME
TEMP
ON OFF
UNIT N O .
CODE
Unit No. which
sensed trouble
Malfunction Code
INSPECTION
display
01_EN_3P107422-29P.fm Page 14 Thursday, January 17, 2008 1:46 PM

5
7 8
[4]
MODE
TIMER
RESERVE
CANCEL
DOWN
UP
/TEST
FAN
TIME
TEMP
ON OFF
1
23
MODE
TIMER
RESERVE
CANCEL
DOWN
UP
/TEST
FAN
TIME
TEMP
ON OFF
2
34
1
1
MODE
TIMER
RESERVE
CANCEL
DOWN
UP
/TEST
FAN
TIME
TEMP
ON OFF
C
hr.
hr.
1
( )
4
3
2
2
UNIT N O .
CODE
MODE
TIMER
RESERVE
CANCEL
DOWN
UP
/TEST
FAN
TIME
TEMP
1
24
6
35
7
ON OFF
24
6
6
00_CV_3P107422-29P.fm Page 5 Thursday, January 17, 2008 1:28 PM

3P107422-29P EM07A076 (0803) HT
00_CV_3P107422-29P.fm Page 6 Thursday, January 17, 2008 1:28 PM
