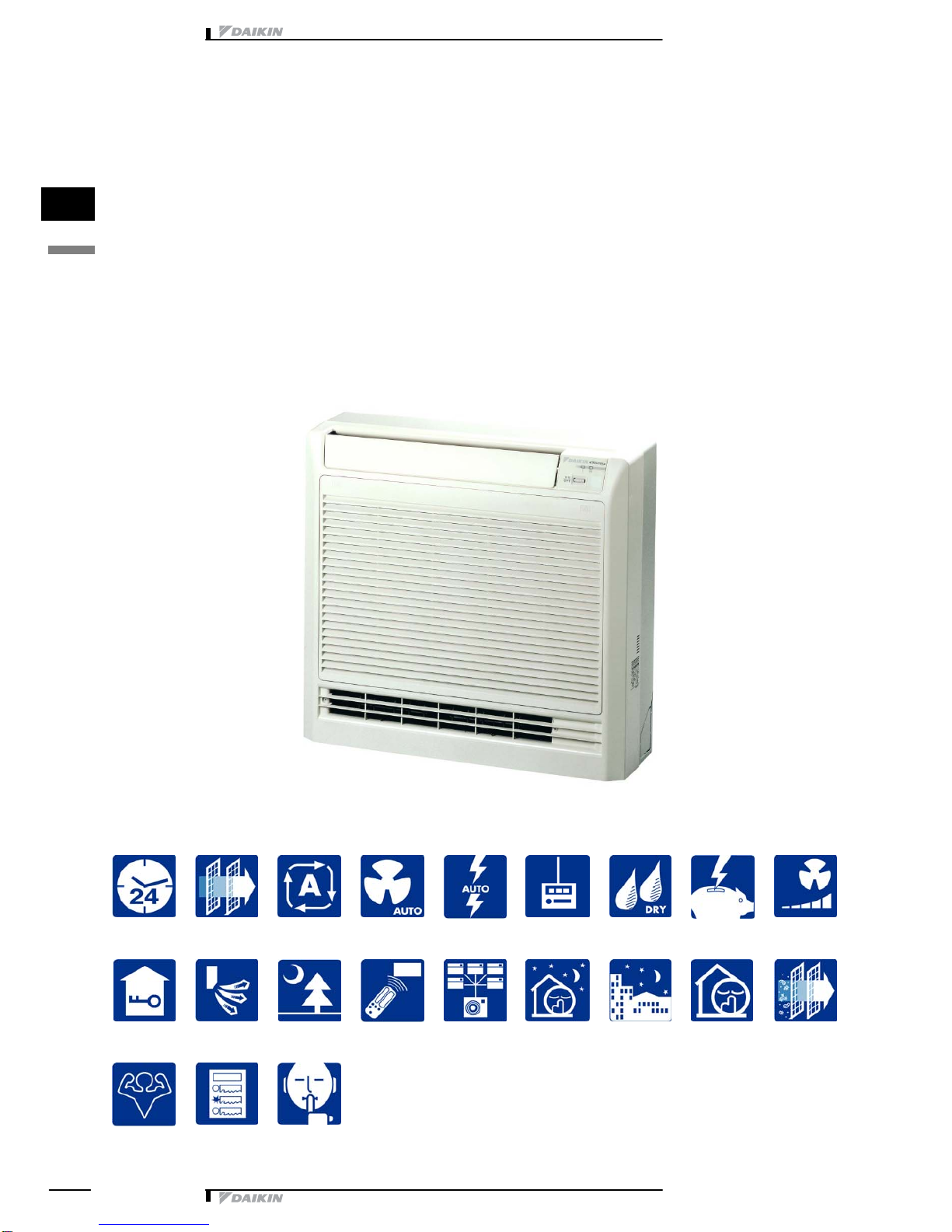

1Features
IndoorUnitSplitSky
A
FVXS-BAVMBR410A • Compact&stylish
• Lightweightand compact
• Can be used as a floor standing or lower wall application. As a floor
standing model, it can be semi-recessed or fully recessed without
loss of capacity.
• A double horizontal air outlet ensures uniform air flow and
temperature distribution
• The home leave operation saves energy during absence
• Air purification filter: deodorises the air and helps to prevent bacterial
and viral propagation
• Thephotocatalytic deodorising air filter: powerfully decomposes
cigaretteand petodours,removeshouse dustand pollenand
deactivates bacteria and viruses
• Powerful mode can be selected for rapid cooling or heating
• Washable front panel
• Indoor unit silent operation: "Silent" button on the remote control
lowerstheoperation sound of theindoor unit by3dB(A).
• Easy to install
• Up to 4 indoor units can be connected to 1 Multi outdoor unit. All
indoor unitsare individuallycontrollablewith remote control and do
not need tobe installed in the same room or at the same time. They
operate simultaneously within the same cooling operation
• Daikin remotecontrols giveyoueasy control at yourfingertips.
• The remote control has a 24-hour timer
• The indoor unit also has a start/stop button mounted on the front
panel
• Up to 5 indoor units can be operated from a single centralised control
• Purpose-designed holder providedfor yourremote control
optional 5 steps
standard MXS

3
1
2
• Split Sky Air • Indoor Units 2
• Indoor Units • R410A• FVXS-BAVMB
2 Specifications
2-1 FOR INDOOR UNITS ONLY FVXS25BAVMB FVXS35BAVMB FVXS50BAVMB
NominalInput Cooling kW 0.032 0.032 0.055
Heating kW 0.032 0.032 0.070
2-2 TECHNICAL SPECIFICATIONS FVXS25BAVMB FVXS35BAVMB FVXS50BAVMB
Casing Colour Almondwhite
Dimensions Packing Height mm 714 714 714
Width mm 770 770 770
Depth mm 294 294 294
Unit Height mm 600 600 600
Width mm 650 650 650
Depth mm 195 195 195
Weight Unit kg 13.0 13.0 13.0
Packed Unit kg 19.0 19.0 19.0
Heat
Exchanger Dimensions Length mm 458 458 458
NrofRows 2 2 2
FinPitch mm 1.30 1.30 1.30
NrofStages 20 20 20
Tube type Tube(7)
Fin Type Slit fin
Fan Type Cross flowfan
Quantity 2 2 2
Air Flow Rate Cooling High m³/min 8.10 8.30 10.80
Medium m³/min 6.20 6.30 9.20
Low m³/min 4.30 4.30 7.70
Silent
Operation m³/min 3.4 3.4 6.7
Heating High m³/min 9.20 9.20 13.20
Medium m³/min 7.00 7.10 11.30
Low m³/min 4.80 5.00 9.40
Silent
Operation m³/min 3.5 3.6 8.3
Fan Motor Quantity 1 1 1
Model D14A-34
Number of steps 5, silentand auto
Motor Speed
(cooling) High rpm 1100 1120 1290
Medium rpm 900 930 1140
Low rpm 700 740 990
Silent
Operation rpm 600 640 890
Speed
(heating) High rpm 1120 1160 1390
Medium rpm 930 960 1220
Low rpm 740 760 1050
Silent
Operation rpm 640 660 950
Fan Motor Output
(high) W141414
Quantity 1 1 1
Model D14B-34
Motor Speed
(cooling) High rpm 1180 1200 1390
Medium rpm 960 990 1220
Low rpm 740 780 1050
Silent
Operation rpm 630 670 950
Speed
(heating) High rpm 1200 1240 1510
Medium rpm 1020 1040 1330
Low rpm 840 840 1150
Silent
Operation rpm 700 720 1040

• Indoor Units • R410A • FVXS-BAVMB
1
2
• Split Sky Air • Indoor Units3
2 Specifications
Fan Motor Output
(high) W141414
Cooling Sound Power High dBA 54.0 55.0 56.0
Sound
Pressure High dBA 38.0 39.0 44.0
Medium dBA 32.0 33.0 40.0
Low dBA 26.0 27.0 36.0
Silent
Operation dBA 23.0 24.0 33.0
Heating SoundPower High dBA 57.0
Sound
Pressure High dBA 38.0 39.0 45.0
Medium dBA 32.0 33.0 40.0
Low dBA 26.0 26.0 36.0
Silent
Operation dBA 23.0 23.0 33.0
Refrigerant Type R-410A
Piping
connections Liquid (OD) Diameter (OD) mm 6.4 6.4 6.35
Gas Diameter
(OD) mm 9.5 9.5 12.7
Drain Diameter
(OD) mm 18 18 20
Heat Insulation Both liquid andgaspipes
AirFilter Removable/washable/Mildew proof
Air direction control Left,right, upand downwards
Temperature control Microcomputercontrol
Standard
Accessories Item Installation and operation manual
Quantity 1 1 1
Item Infraredremotecontrol
Quantity 1 1 1
Item Batteries
Quantity 2 2 2
Item Remote controlholder Remotecontrolholder Air purificationfilter
Quantity 1 1 1
Item Air purification filter Air purificationfilter Remotecontrol holder
Quantity 1 1 1
Item Heatinsulation tube (refrigerantpipe)
Quantity 1 1 1
Item Photocatalytic deodorizing filter
Quantity 1 1 1
Item Protectionbush
Quantity 2 2 2
Item Clampmetal
Quantity 4 4 4
Item Drain hose
Quantity 1 1 1
Notes Soundvaluesaremeasuredinananechoicroom.
Sound pressurelevelis arelativevalue, dependingonthedistanceandacousticenvironment. For moredetails,
pleaserefer to soundlevel drawingsof thischapter.
Thesound powerlevel isanabsolutevalueindicatingthe powerwhicha soundsource generates.
2-3 ELECTRICAL SPECIFICATIONS FVXS25BAVMB FVXS35BAVMB FVXS50BAVMB
PowerSupply Name VM
Phase 111
Frequency Hz 50/60
Voltage V 220-240/220-230
Current Nominal
running current
(RLA)
Cooling A 0.140 0.140 0.260
Heating A 0.140 0.140 0.320
Wiring
connections For Power Supply Quantity 3 3 3
Remark 4 for interunit wiring(included earthwiring)
2-2 TECHNICALSPECIFICATIONS FVXS25BAVMB FVXS35BAVMB FVXS50BAVMB

3
1
2
• Split Sky Air • Indoor Units 4
• Indoor Units • R410A• FVXS-BAVMB
2 Specifications
Voltagerange Minimum -10%
Maximum +10%
Power Supply Intake Outdoor unit only
2-3 ELECTRICAL SPECIFICATIONS FVXS25BAVMB FVXS35BAVMB FVXS50BAVMB

• Indoor Units • R410A • FVXS-BAVMB
1
3
• Split Sky Air • Indoor Units5
3Options
FVK/XS-B
Option name 25 35 50
Wiring adapter for time clock / remote control (1) Normal open contact KRP413A1S
Normal open pulse contact KRP413A1S
Centralised control board 1 up to 5 rooms (2) KRC726
Central remote control DCS302C51
Unified ON/OFF control DCS301B51
Schedule timer DST301B51
Interface adapter (DIII-net) (3) KRP928A2S
Photocatalytic deodorising filter, with frame KAZ917B41
Photocatalytic deodorising filter, without frame KAZ917B42
Air purification filter with frame KAF925B41
Air purification filter without frame KAF925B42
Anti-theft protection for remote control KKF917A4
(1) Wiring adapter is supplied by Daikin. Time clock and other devices; field supply.
(2) Wiring adapter is also required for each indoor unit.
(3) For DIII-NET adapter

3
1
4
• Split Sky Air • Indoor Units 6
• Indoor Units • R410A• FVXS-BAVMB
4 Control systems
FVK/XS-B
<ARC433A5, A6>
1Signal transmitter:
•It sends signals to the indoor unit.
2Display:
•It displays the current settings. (In this illustration, each
section is shown with all its displays ON for the purpose of
explanation.)
3HOME LEAVE button:
for HOME LEAVE operation
4POWERFUL button:
for POWERFUL operation
5TEMPERATURE adjustment buttons:
•It changes the temperature setting
6ON/OFF button:
•Press this button once to start operation. Press once again
to stop it.
7MODE selector button:
•It selects the operation mode
(Auto ,/DryI/ Cool u/ Heat w/FanB)
8OUTDOOR UNIT SILENT button:
SILENT operation
9FAN setting button:
•It selects the air flow rate setting.
10 SWING button
11 ON TIMER button:
12 TIMER setting button:
•It changes the time setting
13 OFF TIMER button:
14 TIMER CANCEL button:
It cancels the timer setting.
15 CLOCK button

• Indoor Units • R410A • FVXS-BAVMB
1
5
• Split Sky Air • Indoor Units7
5 Dimensional drawing & centre of gravity
5 - 1 Dimensional drawing
3D034712A
FVK/XS25-35-50B unit (mm)
Main unit fixing screw
Note) 1. The mark (Y) shows piping direction
Main unit fixed screws
620 (half concealed) Operation lamp
Timer lamp
Indoor unit ON/OFF switch
Signal receiver
Air outlet
selection
switch
(Inside)
Name plate
Drain
socket
Front panel fixed screws
Hole for splint
Hole for piping
Air flow
Required space
(for maintenance) (for
performance)
Wall hole
Wall hole for half
concealed
Terminal strip with earth terminal
Liquid pipe (J6.4 CuT)
Gas pipe (AA CuT)
Room temp. thermistor
Signal transmitter
Infrared remote control
Hole for splint
Hole for piping
Drain hose
Adjusting the air flow direction
Right/left (manual)
Upper air outlet
Lower air outlet
Upward air flow
limit (OFF)
Upward air flow
limit (ON)
Up/down (automatic)
Cooling / dry Heat
(Heat pump model)
Hole for piping
For performance
585 (half concealed)
Wall hole
Heat pump type (ARC433A5)
Cooling only type (ARC433A6)
Front panel fixed screws (inside) Home leave lamp
FVK(X)S25/35B J9.5
FVX(K)S50B J12.7
VP20
I.D. J20
O.D. J26
L210
50 MIN 50 MIN
70 MIN

3
1
5
• Split Sky Air • Indoor Units 8
• Indoor Units • R410A• FVXS-BAVMB
5 Dimensional drawing & centre of gravity
5 - 2 Centre of gravity
4D036467

• Indoor Units • R410A • FVXS-BAVMB
1
6
• Split Sky Air • Indoor Units9

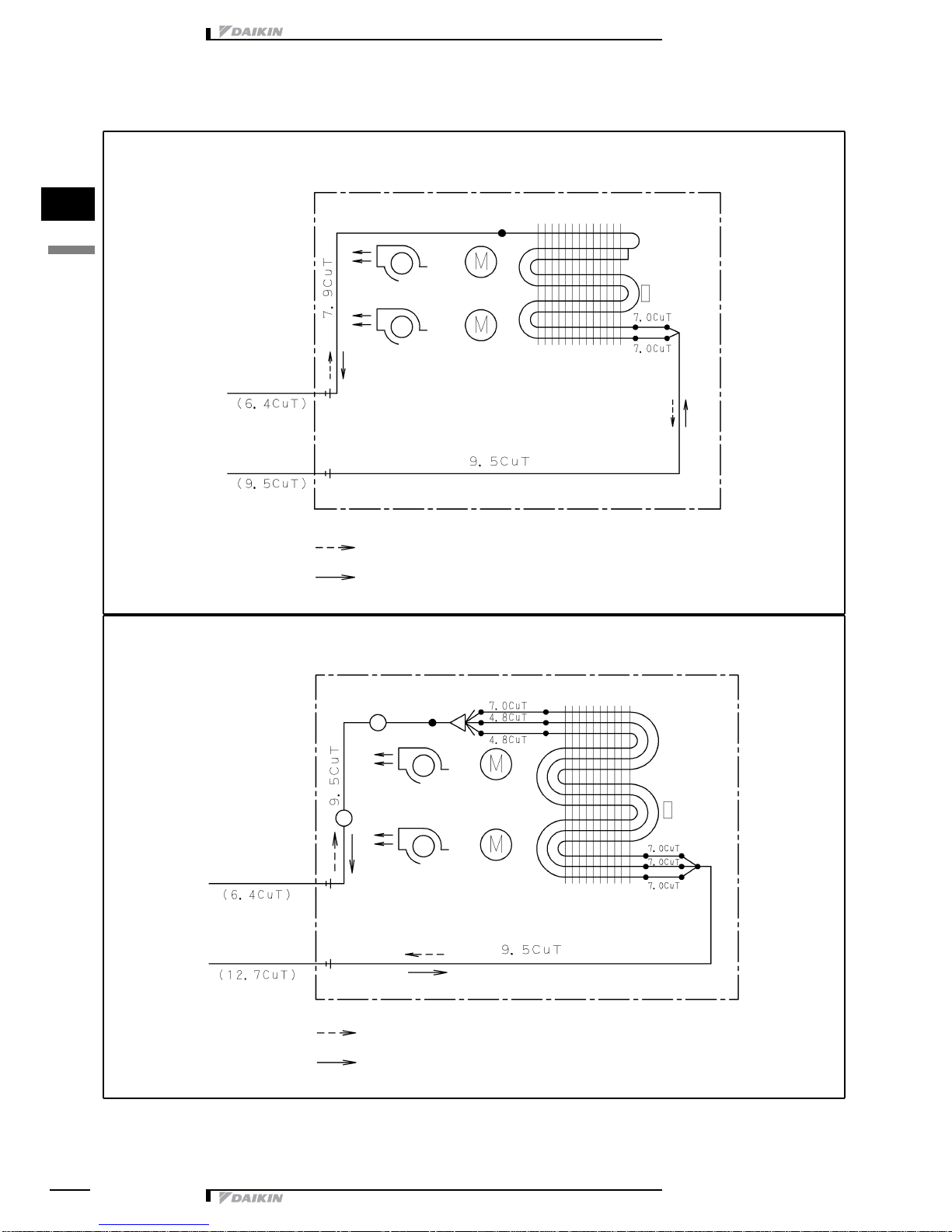

6 Piping diagram
4D034714A
FVK/XS25-35B
Indoor unit
Heat exchanger
Fan motor
Fan motor
Field piping
Field piping
Refrigerant flow
Cooling
Heating
Cross flow fan
Cross flow fan
Single union joint
Single union joint
Thermistor on
heat exchanger
4D020911B
FVK/XS50B
Indoor unit
Heat exchanger
Fan motor
Fan motor
Field piping
Field piping
Refrigerant flow
Cooling
Heating
Cross flow fan
Cross flow fan
Muffler
Muffler Thermistor on
heat exchanger

3
1
7
• Split Sky Air • Indoor Units 10
• Indoor Units • R410A• FVXS-BAVMB
7Wiringdiagram
7 - 1 Wiring diagram
3D034713A
FVK/XS25-35-50B
g
Field wiring
Outdoor
Indoor
R
: Protective earth
FU : Fuse
H1P,H2P,H3P : Pilot lamp
L1S : Limit switch
M1F,M2F : Fan motor
M1S : Swing motor
M2S : Lower air outlet motor
PCB1∼PCB4 : Printed circuit board
R1T,R2T : Thermistor
S6∼S302 : Connector
S1W : Operation switch
S2W(4) : Upward air flow limit switch
S4W : Air outlet selection switch
X1M : Terminal strip
Signal
receiver
Infrared remote
control
(Upper fan motor)
(Lower fan motor)
Transmission
circuit

• Indoor Units • R410A • FVXS-BAVMB
1
8
• Split Sky Air • Indoor Units11
8 Sound data

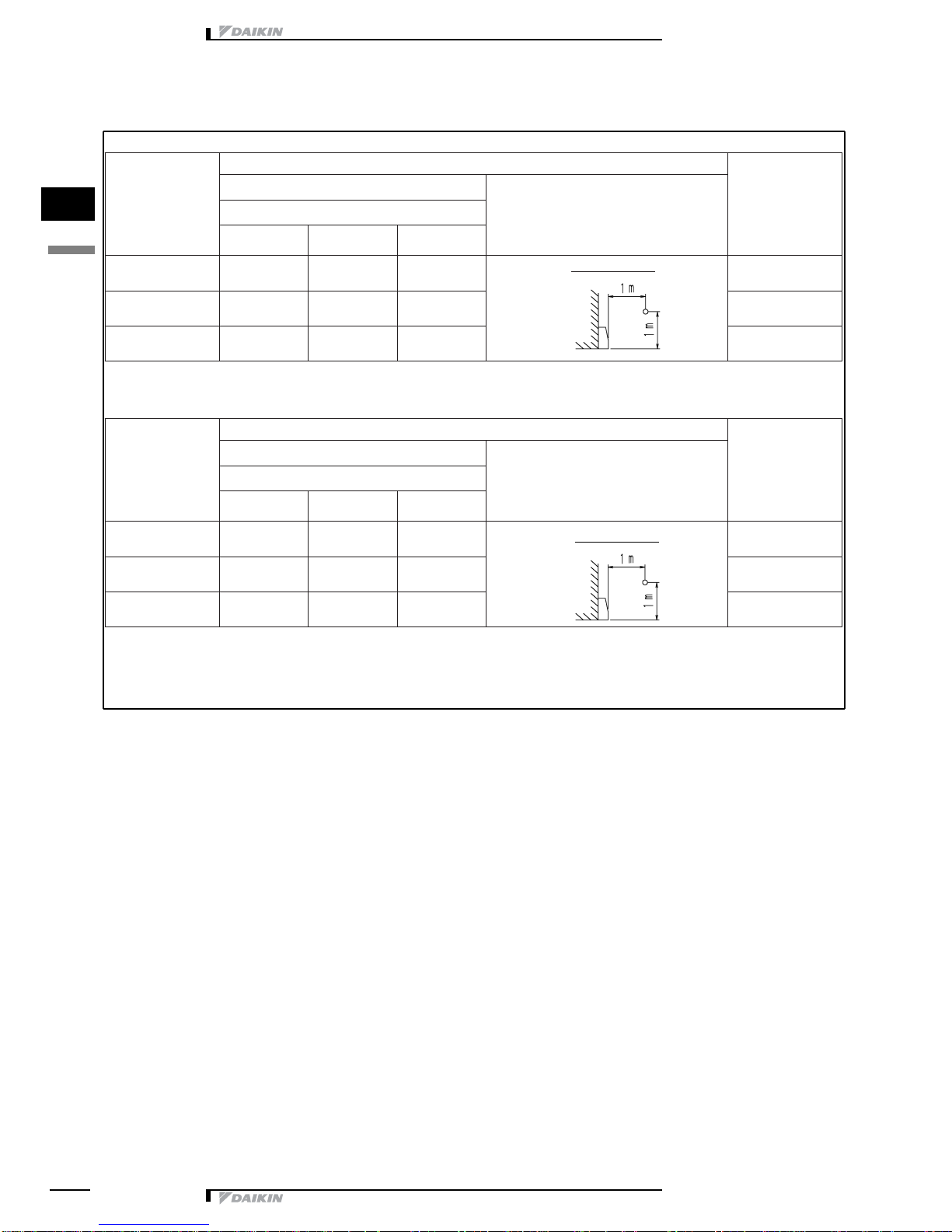

8 - 1 Sound level data
Cooling only
Model
Sound pressure level
Sound power level
cooling
230V, 50Hz
Measuring locationCooling
HLSL
FVKS25B 38 26 23 54
FVKS35B 39 27 24 55
FVKS50B 44 36 33 56
Heat pump
Model
Sound pressure level
Sound power level
(cooling/heating)
230V, 50Hz
Measuring locationCooling/Heating
HLSL
FVXS25B 38/38 26/26 23/23 54/*
FVXS35B 39/39 27/29 24/26 55/*
FVXS50B 44/45 36/36 33/33 56/57
* Sound power levels were not available at time of publication
Location of microphone
Location of microphone

3
1
8
• Split Sky Air • Indoor Units 12
• Indoor Units • R410A• FVXS-BAVMB
8 Sound data
8 - 2 Sound pressurespectrum
3D035249A
Octave band sound pressure level
dB:(0dB = 0.0002 μ bar)
Octave band center frequency (Hz)
FVXS25B (Cooling)
approximate
threshold hearing for
continuous noise
NOTES
1 Operation sound is measured in an anechoic chamber.
2 Operation sound level differs with operation and ambient
conditions.
3 Reference acoustic pressure 0dB = 20μPa
Legend
50/60Hz, 220-240/220-230V (H)
50/60Hz, 220-240/220-230V (L)
3D035250A
FVXS35B (Cooling)
Octave band sound pressure level
dB:(0dB = 0.0002 μ bar)
approximate
threshold hearing
for continuous noise
Octave band center frequency (Hz)
NOTES
1 Operation sound is measured in an anechoic chamber.
2 Operation sound level differs with operation and ambient conditions.
3 Reference acoustic pressure 0dB = 20μPa
Legend
50/60Hz, 220-240/220-230V (H)
50/60Hz, 220-240/220-230V (L)
3D035251A
Octave band sound pressure level
dB:(0dB = 0.0002 μ bar)
Octave band center frequency (Hz)
FVXS50B (Cooling)
approximate
threshold hearing for
continuous noise
NOTES
1 Operation sound is measured in an anechoic chamber.
2 Operation sound level differs with operation and ambient
conditions.
3 Reference acoustic pressure 0dB = 20μPa
Legend
50/60Hz, 220-240/220-230V (H)
50/60Hz, 220-240/220-230V (L)
3D035249A
Octave band sound pressure level
dB:(0dB = 0.0002 μ bar)
Octave band center frequency (Hz)
FVXS25B (Heating)
approximate
threshold hearing
for continuous noise
NOTES
1 Operation sound is measured in an anechoic chamber.
2 Operation sound level differs with operation and ambient
conditions.
3 Reference acoustic pressure 0dB = 20μPa
Legend
50/60Hz, 220-240/220-230V (H)
50/60Hz, 220-240/220-230V (L)

• Indoor Units • R410A • FVXS-BAVMB
1
8
• Split Sky Air • Indoor Units13
8 Sound data
8 - 2 Sound pressurespectrum
3D035250A
FVXS35B (Heating)
Octave band sound pressure level
dB:(0dB = 0.0002 μ bar)
approximate
threshold hearing
for continuous noise
Octave band center frequency (Hz)
NOTES
1 Operation sound is measured in an anechoic chamber.
2 Operation sound level differs with operation and ambient
conditions.
3 Reference acoustic pressure 0dB = 20μPa
Legend
50/60Hz, 220-240/220-230V (H)
50/60Hz, 220-240/220-230V (L)
3D035251A
Octave band sound pressure level
dB:(0dB = 0.0002 μ bar)
Octave band center frequency (Hz)
FVXS50B (Heating)
approximate
threshold hearing
for continuous noise
NOTES
1 Operation sound is measured in an anechoic chamber.
2 Operation sound level differs with operation and ambient
conditions.
3 Reference acoustic pressure 0dB = 20μPa
Legend
50/60Hz, 220-240/220-230V (H)
50/60Hz, 220-240/220-230V (L)

3
1
9
• Split Sky Air • Indoor Units 14
• Indoor Units • R410A• FVXS-BAVMB
9 Installation
9 - 1 Installation method
The indoor unit may be mounted in any of the three styles shown here.
Grid (field supply)
Front panel
50 mm or more
from walls (on
both side)
Caulkpipehole
gap with putty.
70 mm or more
Air filter
j
I
Air purifying filter
j
H
Photocatalytic deodorising filter
Front grille
Half concealed Concealed
Exposed
50 mm or more
from walls (on
both side)
j
E
Infrared remote
controller
j
F
Remote control
holder
Fixing screw
(M3 x 20L)
