Daikin FVXS25FV1A User manual

MODELS
FVXS25FV1A FVXS50FV1A
FVXS35FV1A
DAIKIN ROOM AIR CONDITIONER
Operation Manual
00_CV_3P191290-2K.fm Page 1 Thursday, March 26, 2009 9:42 AM

1
CONTENTS
READ BEFORE OPERATION
Safety precautions ......................................... 2
Names of parts............................................... 4
Preparation Before Operation ........................ 7
OPERATION
AUTO · DRY · COOL · HEAT · FAN
Operation ..................................................... 10
Adjusting the Airflow Direction ..................... 12
POWERFUL Operation ................................ 14
OUTDOOR UNIT QUIET Operation............. 15
ECONO Operation ....................................... 16
TIMER Operation ......................................... 17

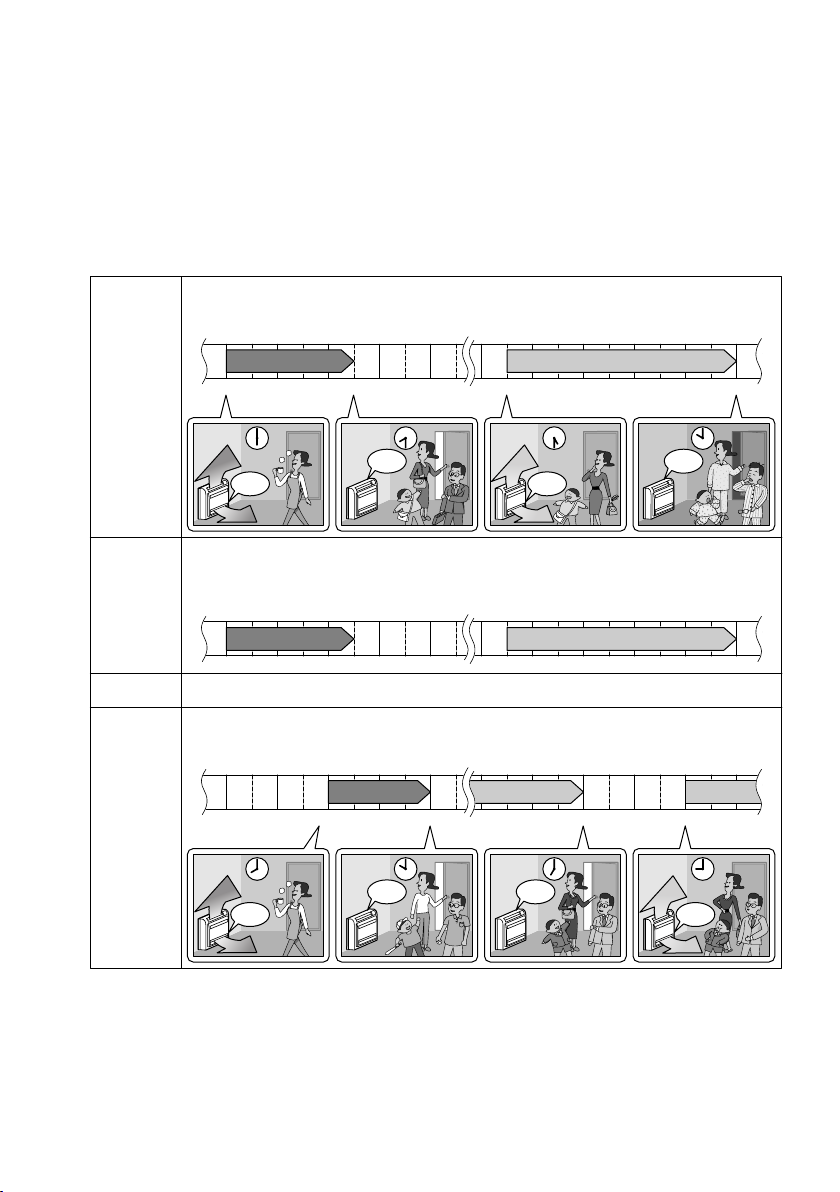

WEEKLY TIMER Operation ......................... 19
Note for Multi System................................... 24
CARE
Care and Cleaning ....................................... 26
TROUBLE SHOOTING
Trouble Shooting.......................................... 29
01_EN_3P191290-2K.fm Page 1 Saturday, March 28, 2009 12:02 PM

2
READ BEFORE OPERATION
Safety precautions
• Keep this manual where the operator can easily find them.
• Read this manual attentively before starting up the unit.
• For safety reason the operator must read the following cautions carefully.
• This manual classifies precautions into WARNING and CAUTION. Be sure to follow all precautions
below: they are all important for ensuring safety.
WARNING
• In order to avoid fire, explosion or injury, do not operate the unit when harmful, among
which flammable or corrosive gases, are detected near the unit.
• It is not good for health to expose your body to the air flow for a long time.
• Do not put a finger, a rod or other objects into the air outlet or inlet. As the fan is rotating at
a high speed, it will cause injury.
• Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work
will cause electric shocks, fire etc.
For repairs and reinstallation, consult your Daikin dealer for advice and information.
• The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for
some reason any refrigerant happens to leak into the room, make sure it does not come in
contact with any flame as of gas heaters, kerosene heaters or gas range.
•
If the air conditioner is not cooling (heating) properly, the refrigerant may be leaking, so call your dealer.
When carrying out repairs accompanying adding refrigerant, check the content of the repairs with our service staff.
• Do not attempt to install the air conditioner by your self. Incorrect work will result in water leakage,
electric shocks or fire. For installation, consult the dealer or a qualified technician.
• In order to avoid electric shock, fire or injury, if you detect any abnormally such as smell of fire, stop
the operation and turn off the breaker. And call your dealer for instructions.
• Depending on the environment, an earth leakage breaker must be installed. Lack of an earth leak-
age breaker may result in electric shocks or fire.
• The air conditioner must be earthed. Incomplete earthing may result in electric shocks. Do
not connect the earth line to a gas pipe, water pipe, lightning rod, or a telephone earth line.
CAUTION
• In order to avoid any quality deterioration, do not use the unit for cooling precision instru-
ments, food, plants, animals or works of art.
• Never expose little children, plants or animals directly to the air flow.
WARNING
If you do not follow these instructions exactly, the unit may
cause property damage, personal injury or loss of life.
CAUTION
If you do not follow these instructions exactly, the unit may
cause minor or moderate property damage or personal injury.
Never do. Be sure to follow the instructions.
Be sure to earth the air conditioner. Never cause the air conditioner (including the
remote controller) to get wet.
Never touch the air conditioner (including the
remote controller) with a wet hand.
01_EN_3P191290-2K.fm Page 2 Saturday, March 28, 2009 12:02 PM

3
• Do not place appliances which produce open fire in places exposed to the air flow from the unit or
under the indoor unit. It may cause incomplete combustion or deformation of the unit due to the heat.
• Do not block air inlets nor outlets. Impaired air flow may result in insufficient performance or trouble.
•
Do not stand or sit on the outdoor unit. Do not place any object on the unit to avoid injury, do not remove the fan guard.
• Do not place anything under the indoor or outdoor unit that must be kept away from moisture. In cer-
tain conditions, moisture in the air may condense and drip.
• After a long use, check the unit stand and fittings for damage.
• Do not touch the air inlet and alminum fins of outdoor unit. It may cause injury.
• The appliance is not intended for use by young children or infirm persons without supervision.
• Young children should be supervised to ensure that they do not play with the appliance.
• To avoid oxygen deficiency, ventilate the room sufficiently if equipment with burner is used
together with the air conditioner.
•
Before cleaning, be sure to stop the operation, turn the breaker off or pull out the supply cord.
• Do not connect the air conditioner to a power supply different from the one as specified. It
may cause trouble or fire.
• Arrange the drain hose to ensure smooth drainage. Incomplete draining may cause wetting of the
building, furniture etc.
• Do not place objects in direct proximity of the outdoor unit and do not let leaves and other debris
accumulate around the unit.
Leaves are a hotbed for small animals which can enter the unit. Once in the unit, such animals can
cause malfunctions, smoke or fire when making contact with electrical parts.
• Do not operate the air conditioner with wet hands.
• Do not wash the indoor unit with excessive water, only use a slightly wet cloth.
•
Do not place things such as vessels containing water or anything else on top of the unit. Water
may penetrate into the unit and degrade electrical insulations, resulting in an electric shock.
■To install the air conditioner in the following types of environments, consult the dealer.
• Places with an oily ambient or where steam or soot occurs.
• Salty environment such as coastal areas.
• Places where sulfide gas occurs such as hot springs.
• Places where snow may block the outdoor unit.
• The indoor unit is at least 1 meter away from any television or radio set (unit may cause interfer-
ence with the picture or sound).
The drain from the outdoor unit must be discharged to a place of good drainage.
■For installation, choose a place as described below.
•
A place solid enough to bear the weight of the unit which does not amplify the operation noise or vibration.
• A place from where the air discharged from the outdoor unit or the operation noise will not annoy
your neighbours.
• For power supply, be sure to use a separate power circuit dedicated to the air conditioner.
• Relocating the air conditioner requires specialized knowledge and skills. Please consult the
dealer if relocation is necessary for moving or remodeling.
Installation site.
Consider nuisance to your neighbours from noises.
Electrical work.
System relocation.
01_EN_3P191290-2K.fm Page 3 Saturday, March 28, 2009 12:02 PM

4
Names of parts
■Indoor Unit
■Opening the Front Panel
How to open the front panel: (page 26.)
CAUTION
Before opening the front panel, be sure to stop the operation and turn the breaker OFF.
Do not touch the metal parts on the inside of the indoor unit, as it may result in injury.
12
6
5
2
4
7
83
9
12
10
11
13
14
Air outlet selection switch
This setting blows air from upper outlet only.•
This setting automatically decides a blow
pattern depending on mode and conditions.
•
• The unit is shipped from the
factory with this setting.
• This setting is
recommended.
01_EN_3P191290-2K.fm Page 4 Saturday, March 28, 2009 12:02 PM

5
■Outdoor Unit
■
Indoor Unit
1. Titanium Apatite Photocatalytic
Air-Purifying Filter:
• These filters are attached to the inside of
the air filters.
2. Air outlet
3. Display
4. Front panel
5. Vertical blades (louvers):
(page 12.)
• The louvers are inside of the air outlet.
6. Air inlet
7. Air filter
8. Horizontal blade (flap):
(page 12.)
9. Operation lamp (green)
10. TIMER lamp (yellow): (page 17.)
11. Indoor Unit ON/OFF switch:
• Push this switch once to start operation.
Push once again to stop it.
• The operation mode refers to the following
table.
• This switch is useful when the remote
controller is missing.
12. Signal receiver:
• It receives signals from the remote
controller.
• When the unit receives a signal, you will
hear a short beep.
• Operation start ........ beep-beep
• Settings changed ..... beep
• Operation stop.......... beeeeep
13. Air outlet selection switch:
(page 13.)
14. Room temperature sensor:
•
It senses the air temperature around the unit.
■

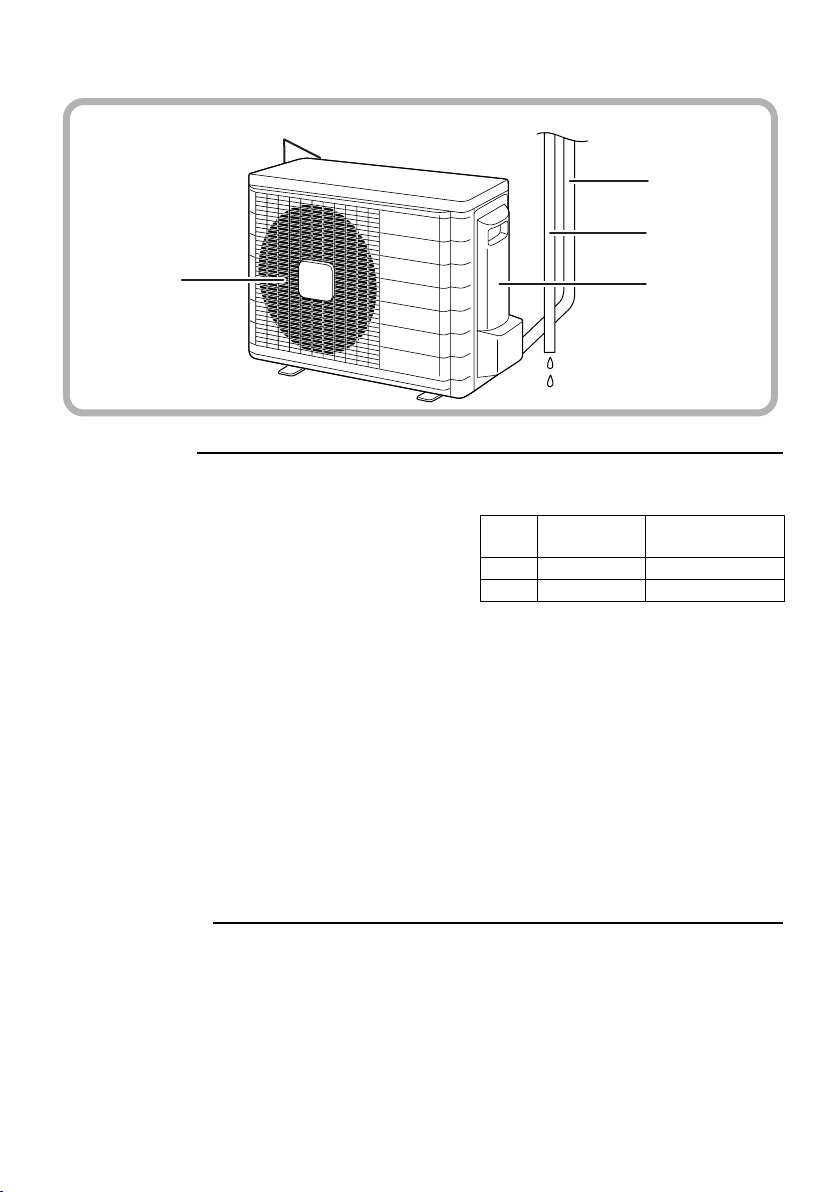

Outdoor Unit
15. Air inlet: (Back and side)
16. Refrigerant piping and inter-unit cable
17. Drain hose
18. Earth terminal:
• It is inside of this cover.
19. Air outlet
Appearance of the outdoor unit may differ from some models.
16
17
18
19
15
Mode Temperature
setting Airflow rate
COOL 22°C AUTO
AUTO 25°C AUTO
01_EN_3P191290-2K.fm Page 5 Saturday, March 28, 2009 12:02 PM

6
■Remote Controller
1. Signal transmitter:
• It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown
with all its displays ON for the purpose of
explanation.)
3. FAN setting button:
• It selects the airflow rate setting.

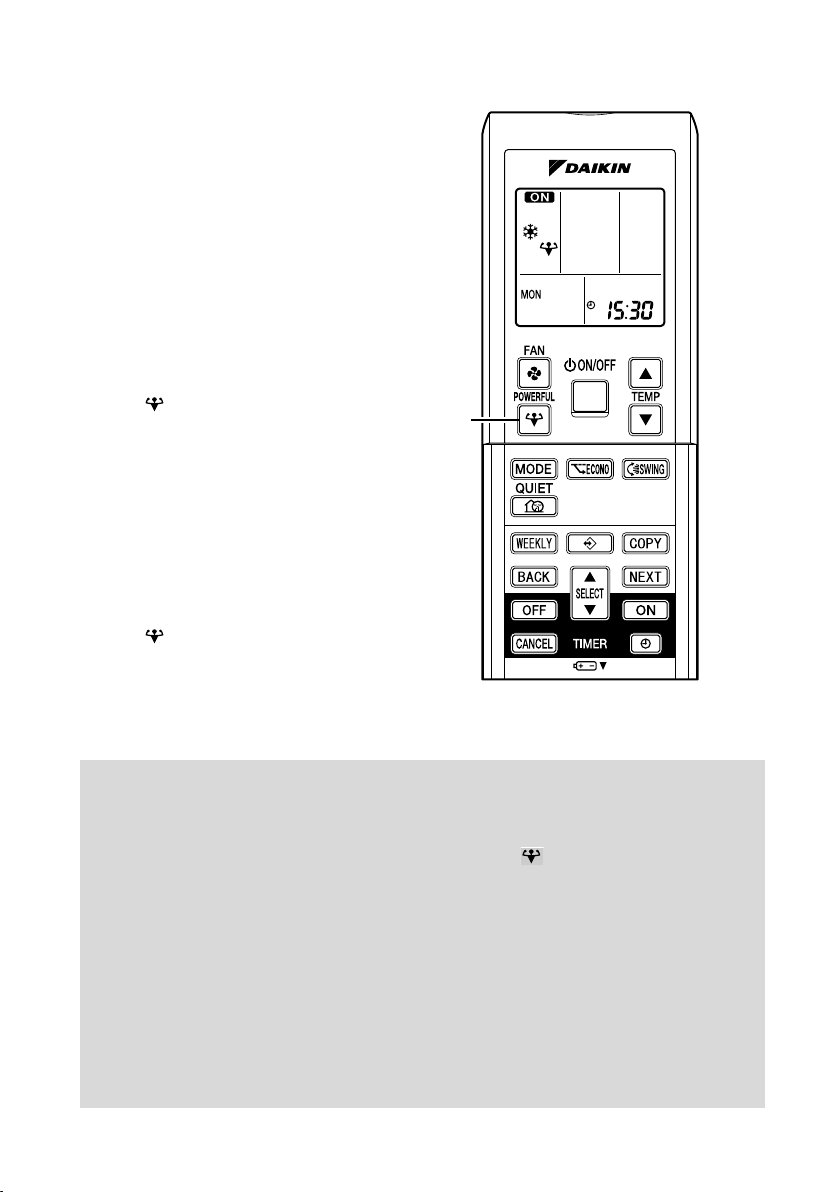

4. POWERFUL button:
POWERFUL operation (page 14.)
5. ON/OFF button:
• Press this button once to start operation.
Press once again to stop it.
6. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
8. QUIET button:
OUTDOOR UNIT QUIET operation (page 15.)

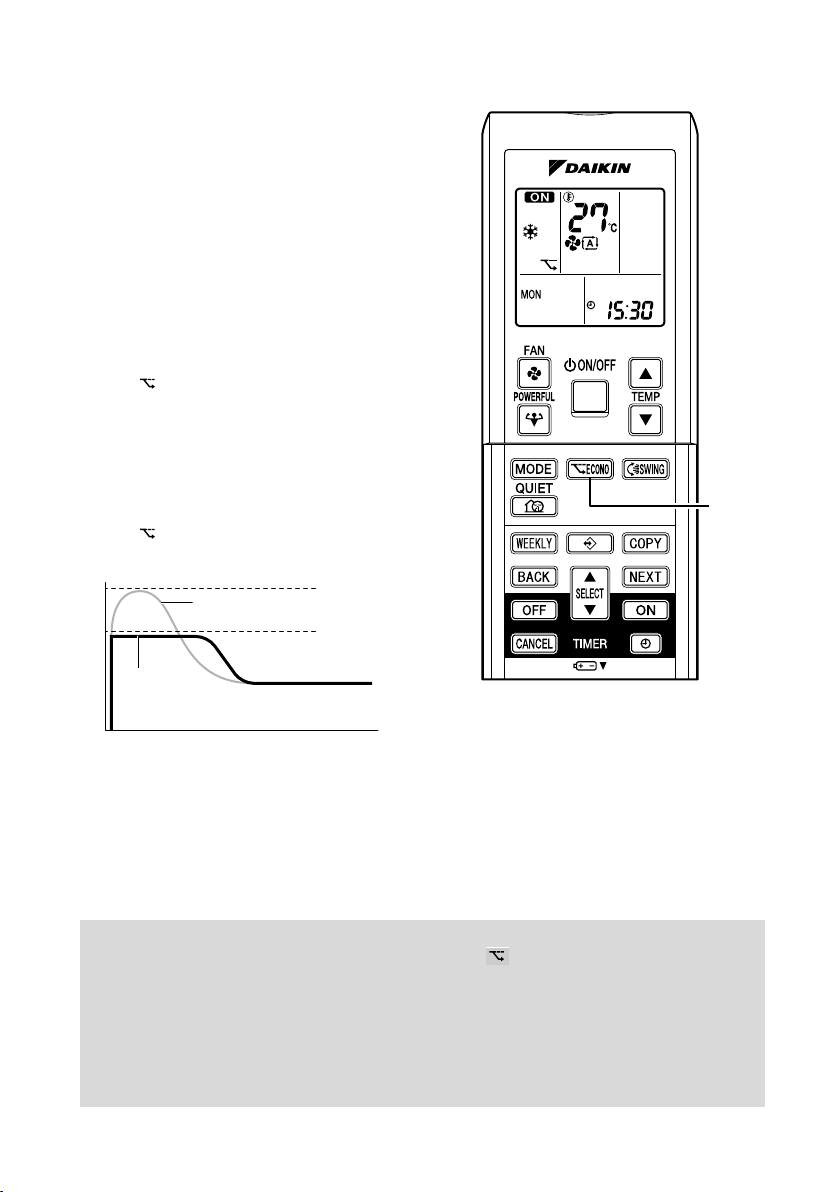

9. ECONO button:
ECONO operation (page 16.)
10. SWING button:
• Adjusting the Airflow Direction (page 12.)
11. WEEKLY/PROGRAM/COPY/BACK/NEXT
button:
• WEEKLY TIMER operation (page 19.)
12. SELECT button:
• It changes the ON/OFF TIMER and
WEEKLY TIMER settings. (page 17, 19.)

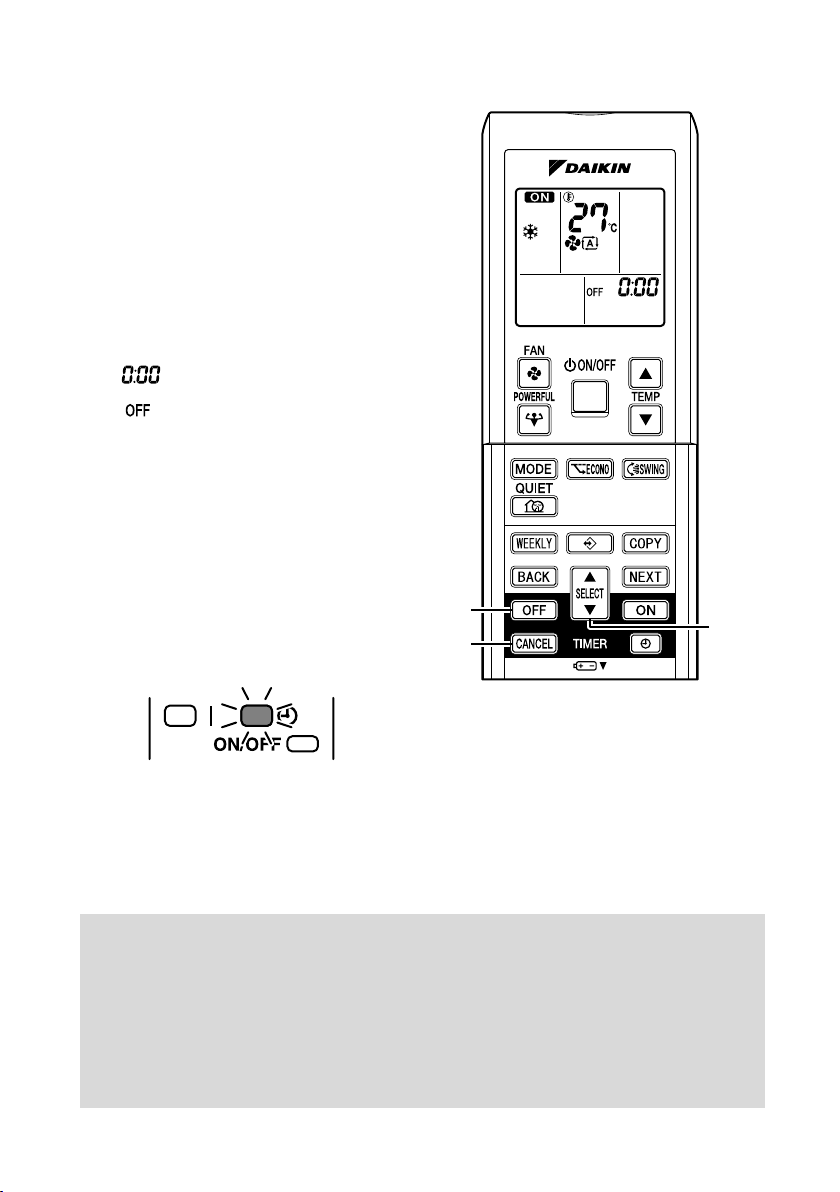

13. OFF TIMER button: (page 17.)

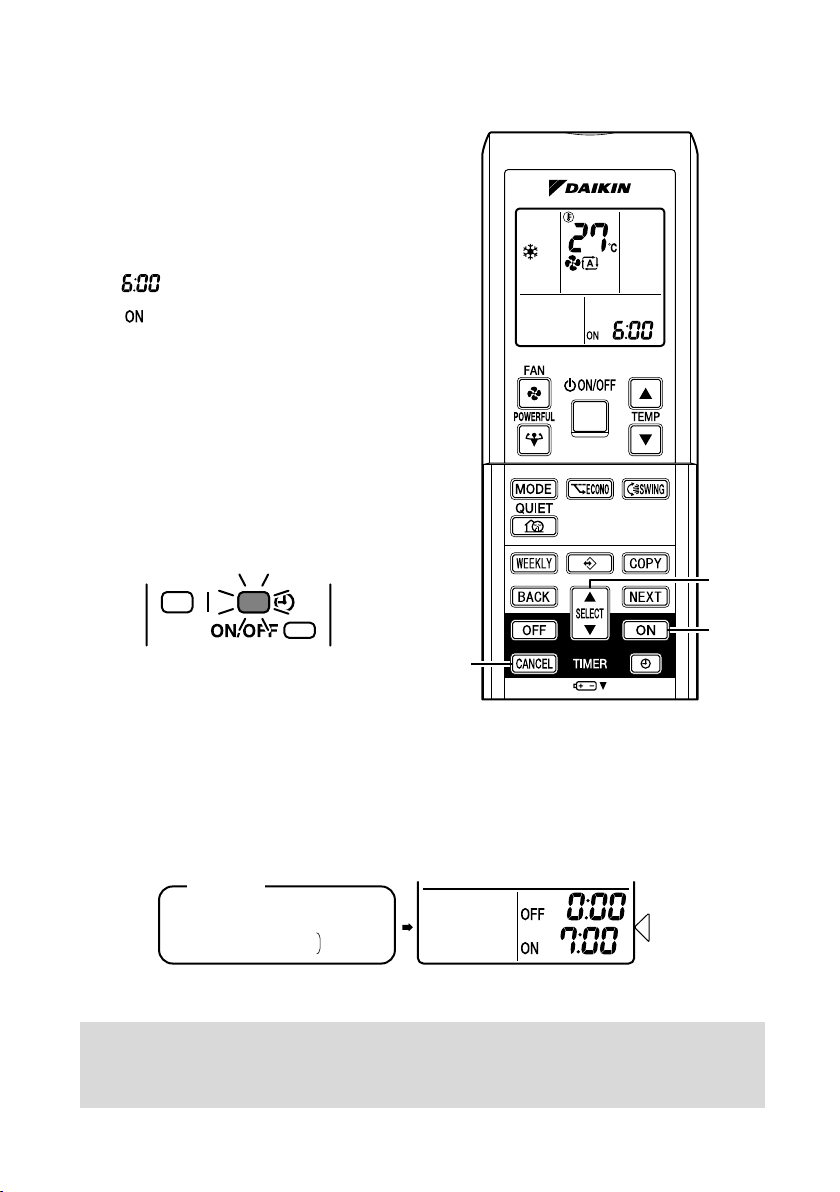

14. ON TIMER button: (page 18.)
15. TIMER CANCEL button:
• It cancels the timer setting. (page 17, 18.)
•
It cannot be used for the WEEKLY TIMER operation.
16. CLOCK button: (page 8.)
1
5
6
2
3
4
<ARC452A2>
7
8
11
12
13
15
<Open the lid>
9
10
14
16
01_EN_3P191290-2K.fm Page 6 Saturday, March 28, 2009 12:02 PM

7

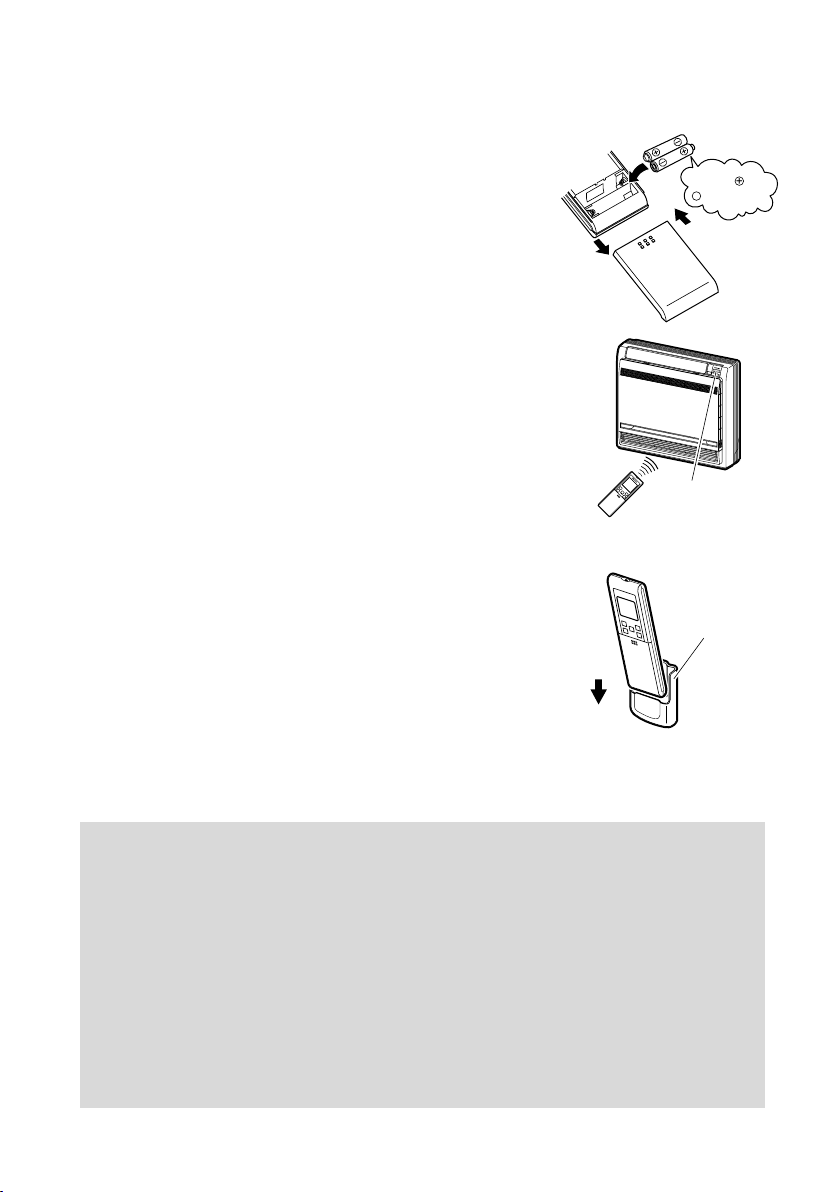

Preparation Before Operation
■To set the batteries
1. Slide the front cover to take it off.
2. Set two dry batteries (LR03·AAA).
3. Set the front cover as before.
■To operate the remote controller
• To use the remote controller, aim the transmitter at the indoor
unit. If there is anything to block signals between the unit and
the remote controller, such as a curtain, the unit will not
operate.
• Do not drop the remote controller. Do not get it wet.
• The maximum distance for communication is about 7m.
■To fix the remote controller holder
on the wall
1. Choose a place from where the signals
reach the unit.
2. Fix the holder to a wall, a pillar, etc. with the
screws supplied with the holder.
3. Place the remote controller in the remote
controller holder.
ATTENTION
■
About batteries
• When replacing the batteries, use batteries of the same type, and replace the two old batteries together.
• When the system is not used for a long time, take the batteries out.
• We recommend replacing once a year, although if the remote controller display begins to fade or if reception
deteriorates, please replace with new alkaline batteries. Using manganese batteries reduces the lifespan.
• The attached batteries are provided for the initial use of the system.
The usable period of the batteries may be short depending on the manufactured date of the air conditioner.
■
About remote controller
• Never expose the remote controller to direct sunlight.
• Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with soft cloth.
• Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such
as inverter-type lamps) is in the room. Consult the shop if that is the case.
• If the remote controller signals happen to operate another appliance, move that appliance
to somewhere else, or consult the shop.
2
3
1
Position +and
– correctly!
Receiver
Remote
controller
holder
Set.
• To remove, pull it
upwards.
01_EN_3P191290-2K.fm Page 7 Saturday, March 28, 2009 12:02 PM

8
Preparation Before Operation
■To set the clock
1. Press “CLOCK button”.
is displayed.
and blinks.
2. Press “SELECT button” to set
the current day of the week.
3. Press “CLOCK button”.
blinks.
4. Press “SELECT button” to set
the clock to the present time.
Holding down “ ” or “ ” button
rapidly increases or decreases the time
display.
5. Press “CLOCK button”.
Always point the remote controller at the
indoor unit when pushing the buttons
when setting the indoor unit’s internal
clock.
blinks.
NOTE
• If the indoor unit’s internal clock is not set to the correct time, the WEEKLY TIMER will not
operate punctually.
1, 3, 5
2, 4
01_EN_3P191290-2K.fm Page 8 Saturday, March 28, 2009 12:02 PM

9
■Turn the breaker ON
• Turning ON the breaker closes the flap. (This is a normal procedure.)
NOTE
■
Tips for saving energy
• Be careful not to cool (heat) the room too much.
Keeping the temperature setting at a moderate level helps save energy.
• Cover windows with a blind or a curtain.
Blocking sunlight and air from outdoors increases the cooling (heating) effect.
• Clogged air filters cause inefficient operation and waste energy.
Clean them once in about every two weeks.
■
Please note
• The air conditioner always consumes 15-35 watts of electricity even while it is not operating.
•
If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn the breaker OFF.
• Use the air conditioner in the following conditions.
• Operation outside this humidity or temperature range may cause a safety device to disable the system.
Recommended temperature setting
For cooling:26°C – 28°C
For heating:20°C – 24°C
Mode Operating conditions If operation is continued out of this range
COOL Outdoor temperature: 〈3MXS〉 –5 to 46°C
〈4MXS〉 –10 to 46°C
〈3/4MKS〉 10 to 46°C
〈RXS〉 10 to 46°C
Indoor temperature: 18 to 32°C
Indoor humidity: 80% max.
• A safety device may work to stop the operation.
(In multi system, it may work to stop the operation of
the outdoor unit only.)
• Condensation may occur on the indoor unit and drip.
HEAT Outdoor temperature: 〈3/4MXS〉 –15 to 24°C
〈RXS25/35〉 –10 to 24°C
〈RXS50〉 –15 to 24°C
Indoor temperature: 10 to 30°C
• A safety device may work to stop the operation.
DRY Outdoor temperature: 〈3MXS〉 –5 to 46°C
〈4MXS〉 –10 to 46°C
〈3/4MKS〉 10 to 46°C
〈RXS〉 10 to 46°C
Indoor temperature: 18 to 32°C
Indoor humidity: 80% max.
• A safety device may work to stop the operation.
• Condensation may occur on the indoor unit and drip.
01_EN_3P191290-2K.fm Page 9 Saturday, March 28, 2009 12:02 PM

10
OPERATION
AUTO · DRY · COOL · HEAT · FAN Operation
The air conditioner operates with the operation
mode of your choice.
From the next time on, the air conditioner will
operate with the same operation mode.
■To start operation
1. Press “MODE selector button”
and select a operation mode.
• Each pressing of the button advances
the mode setting in sequence.
:AUTO
:DRY
: COOL
:HEAT
:FAN
2. Press “ON/OFF button”.
• The OPERATION lamp lights up.
■To stop operation
3. Press “ON/OFF button” again.
• Then OPERATION lamp goes off.
■To change the temperature setting
4. Press “TEMPERATURE adjustment button”.
DRY or FAN mode AUTO or COOL or HEAT mode
The temperature setting is not variable.
Press “ ” to raise the temperature and press
“ ” to lower the temperature.
Set to the temperature you like.
12, 3
4
01_EN_3P191290-2K.fm Page 10 Saturday, March 28, 2009 12:02 PM

11
■To change the airflow rate setting
5. Press “FAN setting button”.
• Indoor unit quiet operation
When the airflow is set to “ ”, the noise from the indoor unit will become quieter.
Use this when making the noise quieter.
The unit might lose capacity when the airflow rate is set to a weak level.
NOTE
DRY mode AUTO or COOL or HEAT or FAN mode
The airflow rate setting is not variable.
Five levels of airflow rate setting from “ ” to “ ”
plus “ ” “ ” are available.
■
Note on HEAT operation
• Since this air conditioner heats the room by taking heat from outdoor air to indoors, the
heating capacity becomes smaller in lower outdoor temperatures. If the heating effect is
insufficient, it is recommended to use another heating appliance in combination with the air
conditioner.
• The heat pump system heats the room by circulating hot air around all parts of the room.
After the start of heating operation, it takes some time before the room gets warmer.
• In heating operation, frost may occur on the outdoor unit and lower the heating capacity. In
that case, the system switches into defrosting operation to take away the frost.
• During defrosting operation, hot air does not flow out of indoor unit.
■
Note on COOL operation
• This air conditioner cools the room by blowing the hot air in the room outside, so if the
outside temperature is high, the performance of the air conditioner drops.
■
Note on DRY operation
• The computer chip works to rid the room of humidity while maintaining the temperature as
much as possible. It automatically controls temperature and airflow late, so manual
adjustment of these functions is unavailable.
■
Note on AUTO operation
• In AUTO operation, the system selects a temperature setting and an appropriate operation
mode (COOL or HEAT) based on the room temperature at the start of the operation.
• The system automatically reselects setting at a regular interval to bring the room
temperature to user-setting level.
• If you do not like AUTO operation, manually change the set temperature.
■
Note on airflow rate setting
• At smaller airflow rates, the cooling (heating) effect is also smaller.
01_EN_3P191290-2K.fm Page 11 Saturday, March 28, 2009 12:02 PM

12
Adjusting the Airflow Direction
You can adjust the airflow direction to increase
your comfort.
■To adjust the horizontal
blade (flap)
1. Press “SWING button”.
• “ ” is displayed on the LCD and the
flaps will begin to swing.
2. When the flap has reached the
desired position, press
“SWING button” once more.
• The flap will stop moving.
• “ ” disappears from the LCD.
■To adjust the vertical
blades (louvers)
Hold the knob and move the louver.
(You will find a knob on the left-side and the right-
side blades.)
Notes on flap and louvers angle
• Unless “SWING” is selected, you should set the
flap at a near-horizontal angle in HEAT mode and
at a upward position in COOL or DRY mode to
obtain the best performance.
■
ATTENTION
• When adjusting the flap by hand, turn off the unit,
and use the remote controller to restart the unit.
• Be careful when adjusting the louvers. Inside the
air outlet, a fan is rotating at a high speed.
1, 2
COOL/
DRY
HEAT
01_EN_3P191290-2K.fm Page 12 Saturday, March 28, 2009 12:02 PM

13
■Airflow selection
• Make airflow selection according to what suits you.
When setting the airflow selection switch to .
• Air conditioner automatically decides the appropriate blowing pattern depending on the operating
mode/situation.
• During Dry mode, so that cold air does not come into direct contact with people, air is blown
upper air outlet.
When setting the air outlet selection switch to .
• Regardless of the operating mode or situation, air blows from the upper air outlet.
• Use this switch when you do not want air coming out of the lower air outlet. (While sleeping etc.)
CAUTION
Operating mode Situation Blowing pattern
COOL mode
• When the room has become fully
cool, or when one hour has
passed since turning on the air
conditioner.
• So that air does not come into
direct contact with people, air is
blown upper air outlet, room tem-
perature is equalized.
• At start of operation or other
times when the room is not fully
cooled.
• Air is blown from the upper and
lower air outlets for high speed
cooling during COOL mode, and
for filling the room with warm air
during HEAT mode.
HEAT mode
• At times other than below.
(Normal time.)
• At start or when air temperature
is low.
• So that air does not come into
direct contact with people. Air is
blown upper air outlet.
• Do not try to adjust the flap by hand.
• When adjusting by hand, the mechanism may not operate properly or condensation may drip
from air outlets.
01_EN_3P191290-2K.fm Page 13 Saturday, March 28, 2009 12:02 PM

14
POWERFUL Operation
POWERFUL operation quickly maximizes the
cooling (heating) effect in any operation mode.
You can get the maximum capacity.
■To start POWERFUL
operation
1. Press “POWERFUL button”.
• POWERFUL operation ends in
20minutes. Then the system
automatically operates again with the
previous settings which were used
before POWERFUL operation.
• “ ” is displayed on the LCD.
• When using POWERFUL operation,
there are some functions which are
not available.
■To cancel POWERFUL
operation
2. Press “POWERFUL button”
again.
• “ ” disappears from the LCD.
NOTE
■
Notes on POWERFUL operation
• POWERFUL Operation cannot be used together with ECONO or QUIET Operation.
Priority is given to the function of whichever button is pressed last.
• POWERFUL Operation can only be set when the unit is running. Pressing the operation
stop button causes the settings to be canceled, and the “ ” disappears from the LCD.
• POWERFUL operation will not increase the capacity of the air conditioner if the air
conditioner is already in operation with its maximum capacity demonstrated.
• In COOL and HEAT mode
To maximize the cooling (heating) effect, the capacity of outdoor unit must be increased
and the airflow rate be fixed to the maximum setting.
The temperature and airflow settings are not variable.
• In DRY mode
The temperature setting is lowered by 2.5°C and the airflow rate is slightly increased.
• In FAN mode
The airflow rate is fixed to the maximum setting.
• When using priority-room setting
See “Note for Multi System”. (page 24.)
1, 2
01_EN_3P191290-2K.fm Page 14 Saturday, March 28, 2009 12:02 PM

15
OUTDOOR UNIT QUIET Operation
OUTDOOR UNIT QUIET operation lowers the
noise level of the outdoor unit by changing the
frequency and fan speed on the outdoor unit.
This function is convenient during night.
■To start OUTDOOR
UNIT QUIET operation
1. Press “QUIET button”.
• “ ” is displayed on the LCD.
■To cancel OUTDOOR
UNIT QUIET operation
2. Press “QUIET button” again.
• “ ” disappears from the LCD.
NOTE
■
Note on OUTDOOR UNIT QUIET operation
• If using a multi system, this function will work only when the OUTDOOR UNIT QUIET
operation is set on all operated indoor units.
However, if using priority-room setting, see “Note for Multi System”. (page 24.)
• This function is available in COOL, HEAT, and AUTO modes.
(This is not available in FAN and DRY mode.)
• POWERFUL operation and OUTDOOR UNIT QUIET operation cannot be used at the
same time.
Priority is given to the function of whichever button is pressed last.
• If operation is stopped using the remote controller or the main unit ON/OFF switch when
using OUTDOOR UNIT QUIET operation, “ ” will remain on the remote controller
display.
• OUTDOOR UNIT QUIET operation will drop neither the frequency nor fan speed if the
frequency and fan speed have been already dropped low enough.
1, 2
01_EN_3P191290-2K.fm Page 15 Saturday, March 28, 2009 12:02 PM

16
ECONO Operation
ECONO operation is a function which enables
efficient operation by limiting the maximum power
consumption value.
This function is useful for cases in which attention
should be paid to ensure a circuit breaker will not
trip when the product runs alongside other
appliances.
■To start ECONO
operation
1. Press “ECONO button”.
• “ ” is displayed on the LCD.
■To cancel ECONO
operation
2. Press “ECONO button” again.
• “ ” disappears from the LCD.
• This diagram is a representation for illustrative purposes only.
* The maximum running current and power consumption of the air conditioner in ECONO
mode vary with the connecting outdoor unit.
NOTE
• ECONO Operation can only be set when the unit is running. Pressing the operation stop
button causes the settings to be canceled, and the “ ” disappears from the LCD.
• ECONO operation is a function which enables efficient operation by limiting the power
consumption of the outdoor unit (operating frequency).
• ECONO operation functions in AUTO, COOL, DRY, and HEAT modes.
• POWERFUL and ECONO operation cannot be used at the same time.
Priority is given to the function of whichever button is pressed last.
• Power consumption may not drop even if ECONO operation is used of the level of power
consumption is already low.
1, 2
Running current and
power consumption
From start up until set
temperature is reached
Time
Maximum during
normal operation
Maximum during
ECONO Mode
Normal
operation
ECONO
Mode
01_EN_3P191290-2K.fm Page 16 Saturday, March 28, 2009 12:02 PM

17
TIMER Operation
Timer functions are useful for automatically
switching the air conditioner on or off at night or in
the morning. You can also use OFF TIMER and
ON TIMER in combination.
■To use OFF TIMER
operation
• Check that the clock is correct.
If not, set the clock to the present time.
(page 8.)
1. Press “OFF TIMER button”.
is displayed.
blinks.
2. Press “SELECT button” until
the time setting reaches the
point you like.
• Every pressing of either button
increases or decreases the time
setting by 10 minutes. Holding down
either button changes the setting
rapidly.
3. Press “OFF TIMER button”
again.
• The TIMER lamp lights up.
■To cancel the OFF TIMER Operation
4. Press “CANCEL button”.
• The TIMER lamp goes off.
NOTE
• When TIMER is set, the present time is not displayed.
• Once you set ON, OFF TIMER, the time setting is kept in the memory. (The memory is
canceled when remote controller batteries are replaced.)
• When operating the unit via the ON/OFF Timer, the actual length of operation may vary from
the time entered by the user. (Maximum approx. 10 minutes)
■
NIGHT SET MODE
When the OFF TIMER is set, the air conditioner automatically adjusts the temperature
setting (0.5°C up in COOL, 2.0°C down in HEAT) to prevent excessive cooling (heating) for
your pleasant sleep.
1, 3
42
01_EN_3P191290-2K.fm Page 17 Saturday, March 28, 2009 12:02 PM

18
TIMER Operation
■To use ON TIMER
operation
• Check that the clock is correct. If not, set
the clock to the present time. (page 8.)
1. Press “ON TIMER button”.
is displayed.
blinks.
2. Press “SELECT button” until
the time setting reaches the
point you like.
•
Every pressing of either button
increases or decreases the time setting
by 10 minutes. Holding down either
button changes the setting rapidly.
3. Press “ON TIMER button”
again.
• The TIMER lamp lights up.
■To cancel ON TIMER
operation
4. Press “CANCEL button”.
• The TIMER lamp goes off.
■To combine ON TIMER and OFF TIMER
• A sample setting for combining the two timers is shown below.
ATTENTION
■
In the following cases, set the timer again.
• After a breaker has turned OFF.
• After a power failure.
• After replacing batteries in the remote controller.
1, 3
4
2
(Example)
Present time: 11:00 p.m.
(The unit operating)
OFF TIMER at 0:00 a.m.
ON TIMER at 7:00 a.m. Combined
Display
01_EN_3P191290-2K.fm Page 18 Saturday, March 28, 2009 12:02 PM

19
WEEKLY TIMER Operation
Up to 4 timer settings can be saved for each day of the week. It is convenient if the WEEKLY TIMER is
set according to the family’s life style.
■Using in these cases of WEEKLY TIMER
An example of WEEKLY TIMER settings is shown below.
6:00 8:30 17:30 22:00
25˚C 27˚C
6:00 8:30 17:30 22:00
25˚C 27˚C
8:00 10:00 19:00 21:00
27˚C 27˚C25˚C
Example: The same timer settings are made for the week from Monday through
Friday while different timer settings are made for the weekend.
• Up to 4 reservations per day and 28 reservations per week can be set in the WEEKLY TIMER.
The effective use of the copy mode ensures ease of making reservations.
• The use of ON-ON-ON-ON settings, for example, makes it possible to schedule operating mode
and set temperature changes. Furthermore, by using OFF-OFF-OFF-OFF settings, only the turn-
OFF time of each day can be set. This will turn OFF the air conditioner automatically if the user
forgets to turn it OFF.
Make timer settings up to programs 1-4. (see page 20.) [Monday]
No timer settings [Saturday]
Make timer settings up to programs 1-4. (see page 20.) [Sunday]
Use the copy mode to make settings for Tuesday to Friday, because these
settings are the same as those for Monday. (see page 22.)
[Tuesday]
to
[Friday]
Program 1 Program 2 Program 3 Program 4
ON OFF ON OFF
Program 1 Program 2 Program 3 Program 4
ON OFF ON OFF
ON OFF OFF ON
Program 1 Program 2 Program 3 Program 4
OFF
OFF OFF
OFF
27˚C
27˚C
ON
25˚C
25˚C
ON
ON
25˚C
25˚C
ON
27˚C
27˚C
01_EN_3P191290-2K.fm Page 19 Saturday, March 28, 2009 12:02 PM
