Features EDUS39-600-F6
2FXAQ-M
1. Features
External Appearance
Drain pan and air filter can be kept clean by
mildew-proof polystyrene.
Auto-swing ensures efficiency of air
distribution. The louver closes automatically
when the unit stops.
5 steps of discharge angle can be set by
remote controller.
Washable grille, the front grille can be easily
removed for washing.
Discharge angle is automatically set at the
same angle as the previous operation when
restarts. (Initial setting; 10˚ for cooling and 70˚
for heating)
Compact and stylish design that does not
detract from the decor of the room.

EDUS39-600-F6 Specifications
FXAQ-M 3
2. Specifications
Wall Mounted Type
Notes:
1. Nominal cooling capacities are based on the following conditions:
Return air temperature: 80°FDB, 67°FWB
Outdoor temperature: 95°FDB
Equivalent ref. piping length: 25ft (Horizontal)
2. Nominal heating capacities are based on the following conditions:
Return air temperature: 70°FDB.
Outdoor temperature: 47°FDB, 43°FWB
Equivalent ref. piping length: 25ft / 7.5 m (Horizontal)
3. Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat.
4. Anechoic chamber conversion value, measured under JISB8616 conditions. During actual operation,
these values are normally somewhat higher as a result of installation conditions.
5. Refer to page 10 for Power Input.
Model FXAQ07MVJU FXAQ09MVJU FXAQ12MVJU
Cooling Capacity1Btu/h 7,500 9,500 12,000
Heating Capacity2Btu/h 8,500 10,500 13,500
Casing Color White (3.0Y8.5/0.5) White (3.0Y8.5/0.5) White (3.0Y8.5/0.5)
Dimensions: (H×W×D) in (mm) 11–3/8 × 31–1/4 ×9” (289 x 793.7 x
228.6 mm)
11–3/8 × 31–1/4 × 9” (289 x 793.7 x
228.6 mm)
11–3/8 × 31–1/4 × 9” (289 x 793.7 x
228.6 mm)
Coil (Cross
Fin Coil)
Rows×Stages×FPI 2×14×17 2×14×17 2×14×17
Face Area ft² 1.73 1.73 1.73
Fan
Model QCL9661M QCL9661M QCL9661M
Type Cross Flow Fan Cross Flow Fan Cross Flow Fan
Motor Output kW 0.04 0.04 0.04
Airflow Rate (H/L) cfm 260/160 280/175 300/180
Drive Direct Drive Direct Drive Direct Drive
Temperature Control Microprocessor Thermostat for Cooling
and Heating
Microprocessor Thermostat for Cooling
and Heating
Microprocessor Thermostat for Cooling
and Heating
Sound Absorbing Thermal Insulation Material Foamed Polystyrene /
Foamed Polyethylene
Foamed Polystyrene /
Foamed Polyethylene
Foamed Polystyrene /
Foamed Polyethylene
Air Filter Resin Net (Washable) Resin Net (Washable) Resin Net (Washable)
Piping
Connections
Liquid Pipes in / mm φ1/4” / 6.4 mm (Flare Connection) φ1/4” / 6.4 mm (Flare Connection) φ1/4” / 6.4 mm (Flare Connection)
Gas Pipes in / mm φ1/2” / 12.7 mm (Flare Connection) φ1/2” / 12.7 mm (Flare Connection) φ1/2” / 12.7 mm (Flare Connection)
Drain Pipe in / mm
VP13
External Dia. 11/16” (17.5 mm)
Internal Dia. 1/2” (12.7 mm)
VP13
External Dia. 11/16” (17.5 mm)
Internal Dia. 1/2” (12.7 mm)
VP13
External Dia. 11/16” (17.5 mm)
Internal Dia. 1/2” (12.7 mm)
Machine Weight (Mass) Lbs 25 25 25
Sound Level (H)4dBA363738
Safety Devices Fuse Fuse Fuse
Refrigerant Control Electronic Expansion Valve Electronic Expansion Valve Electronic Expansion Valve
Connectable outdoor unit R-410A Series R-410A Series R-410A Series
Standard Accessories
Operation Manual, Installation Manual,
Installation Panel, Paper Pattern for
Installation, Insulation Tube, Clamps,
Screws.
Operation Manual, Installation Manual,
Installation Panel, Paper Pattern for
Installation, Insulation Tube, Clamps,
Screws.
Operation Manual, Installation Manual,
Installation Panel, Paper Pattern for
Installation, Insulation Tube, Clamps,
Screws.
Drawing No. C:3D046038A

Specifications EDUS39-600-F6
4FXAQ-M
Wall Mounted Type
Notes:
1. Nominal cooling capacities are based on the following conditions:
Return air temperature: 80°FDB, 67°FWB
Outdoor temperature: 95°FDB
Equivalent ref. piping length: 25ft (Horizontal)
2. Nominal heating capacities are based on the following conditions:
Return air temperature: 70°FDB.
Outdoor temperature: 47°FDB, 43°FWB
Equivalent ref. piping length: 25ft / 7.5 m (Horizontal)
3. Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat.
4. Anechoic chamber conversion value, measured under JISB8616 conditions. During actual operation,
these values are normally somewhat higher as a result of installation conditions.
5. Refer to page 10 for Power Input.
Model FXAQ18MVJU FXAQ24MVJU
Cooling Capacity1Btu/h 18,000 24,000
Heating Capacity2Btu/h 20,000 27,000
Casing Color White (3.0Y8.5/0.5) White (3.0Y8.5/0.5)
Dimensions: (H×W×D) in (mm) 11–3/8 × 31–1/4 ×9” (289 x 793.7 x 228.6 mm) 11–3/8 × 41–3/8 × 911–3/8 × 31–1/4 ×9” (289 x 1051 x 228.6
mm)
Coil (Cross
Fin Coil)
Rows×Stages×FPI 2×14×17 2×14×17
Face Area ft² 2.29 2.29
Fan
Model QCL9686 QCL9686
Type Cross Flow Fan Cross Flow Fan
Motor Output HP 0.058 0.058
Air Flow Rate (H/L) cfm 500/400 635/470
Drive Direct Drive Direct Drive
Temperature Control Microprocessor Thermostat for Cooling and Heating Microprocessor Thermostat for Cooling and Heating
Sound Absorbing Thermal Insulation Material Foamed Polystyrene /
Foamed Polyethylene
Foamed Polystyrene /
Foamed Polyethylene
Air Filter Resin Net (Washable) Resin Net (Washable)
Piping
Connections
Liquid Pipes in / mm φ1/4” / 6.4 mm (Flare Connection) φ3/8” / 9.5mm (Flare Connection)
Gas Pipes in / mm φ1/2” / 12.7 mm (Flare Connection) φ5/8” / 15.8 mm (Flare Connection)
Drain Pipe in / mm
VP13
External Dia. 11/16” (17.5 mm)
Internal Dia. 1/2” (12.7 mm)
VP13
External Dia. 11/16” (17.5 mm)
Internal Dia. 1/2” (12.7 mm)
Machine Weight (Mass) Lbs 31 31
Sound Level (H)4dBA 43 47
Safety Devices Fuse Fuse
Refrigerant Control Electronic Expansion Valve Electronic Expansion Valve
Connectable outdoor unit R-410A Series R-410A Serie
s
Standard Accessories
Operation Manual, Installation Manual, Installation Panel,
Paper Pattern for Installation, Insulation Tube, Clamps,
Screws.
Operation Manual, Installation Manual, Installation Panel,
Paper Pattern for Installation, Insulation Tube, Clamps,
Screws.
Drawing No. C:3D046038A

EDUS39-600-F6 Dimensions
FXAQ-M 5

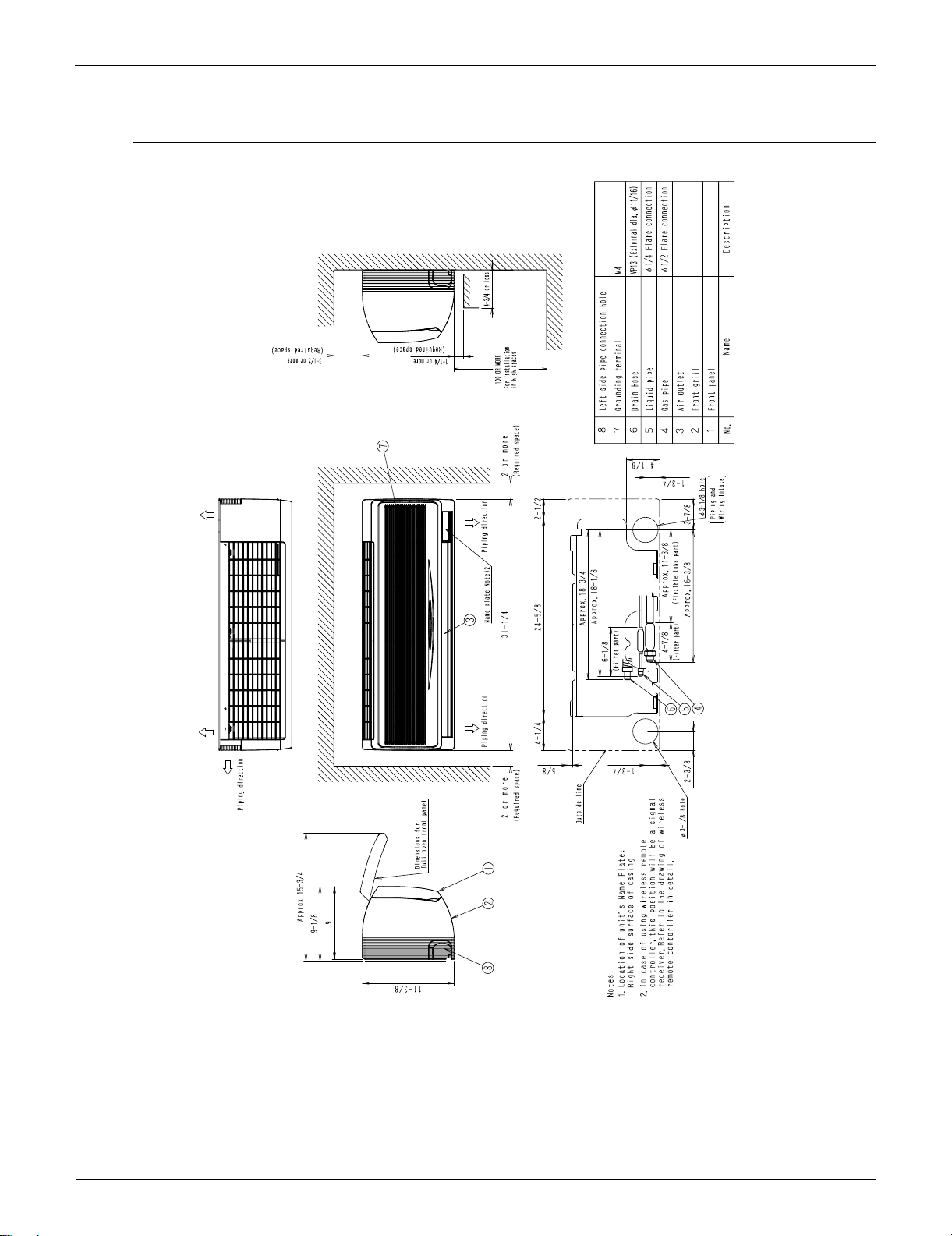

3. Dimensions
FXAQ07/09/12MVJU
3D046040A

Dimensions EDUS39-600-F6

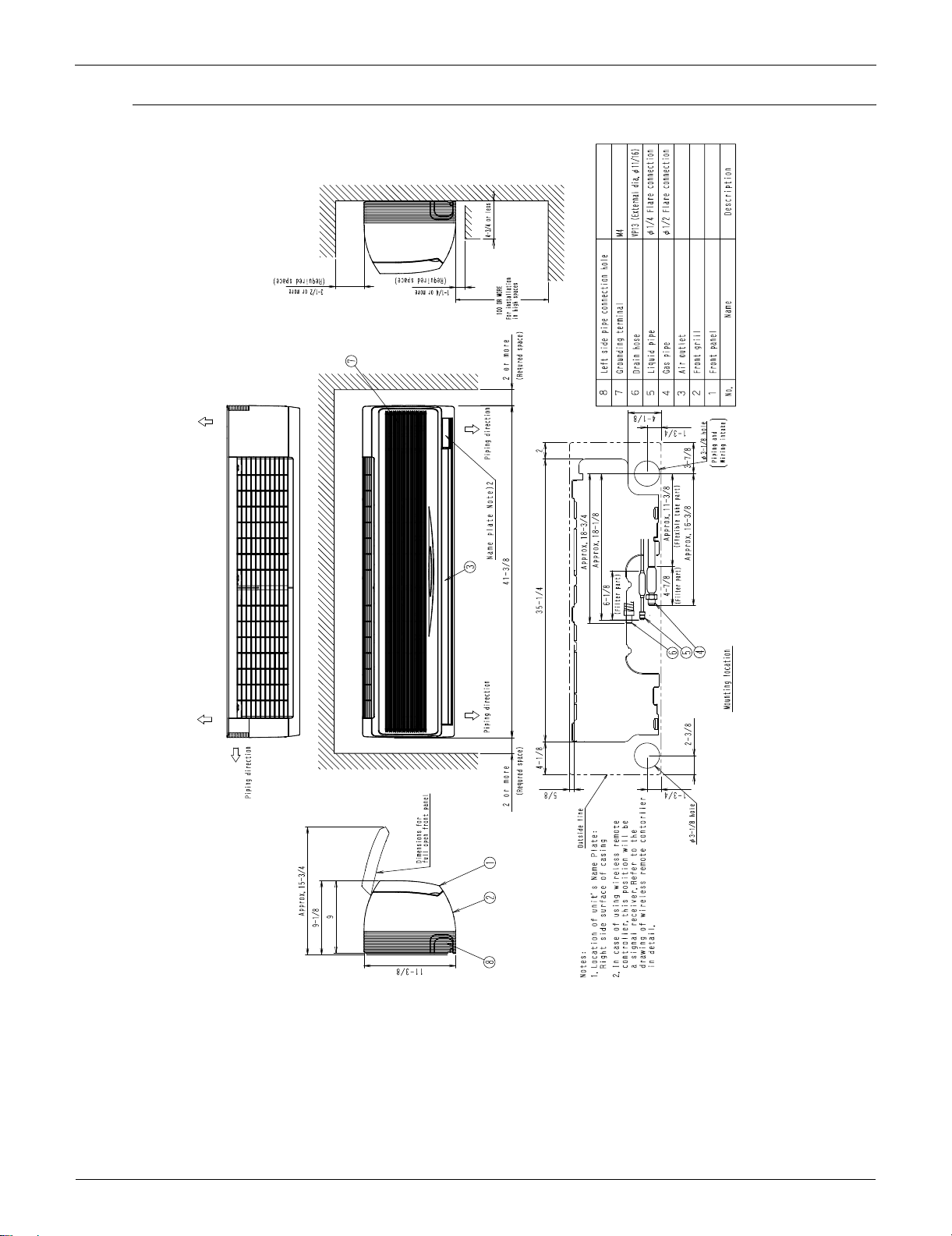

6FXAQ-M
FXAQ18MVJU
3D046041

EDUS39-600-F6 Dimensions
FXAQ-M 7
FXAQ24MVJU
3D046042

Piping Diagrams EDUS39-600-F6
8FXAQ-M
4. Piping Diagrams
R1T : Thermistor for suction air temperature
R2T : Thermistor for liquid line temperature
R3T : Thermistor for gas line temperature
Capacity Gas Liquid
07/09/12/18M φ1/2 (12.7 mm) φ1/4 (6.4 mm)
24M φ5/8 (15.8 mm) φ3/8 (9.5 mm)
J:DU220-602J
Heat exchanger Gas piping connection port
Liquid piping connection port
Fan
R3T
R1T
Electronic
expansion valve
Filter Filter
R2T

EDUS39-600-F6 Wiring Diagrams
FXAQ-M 9

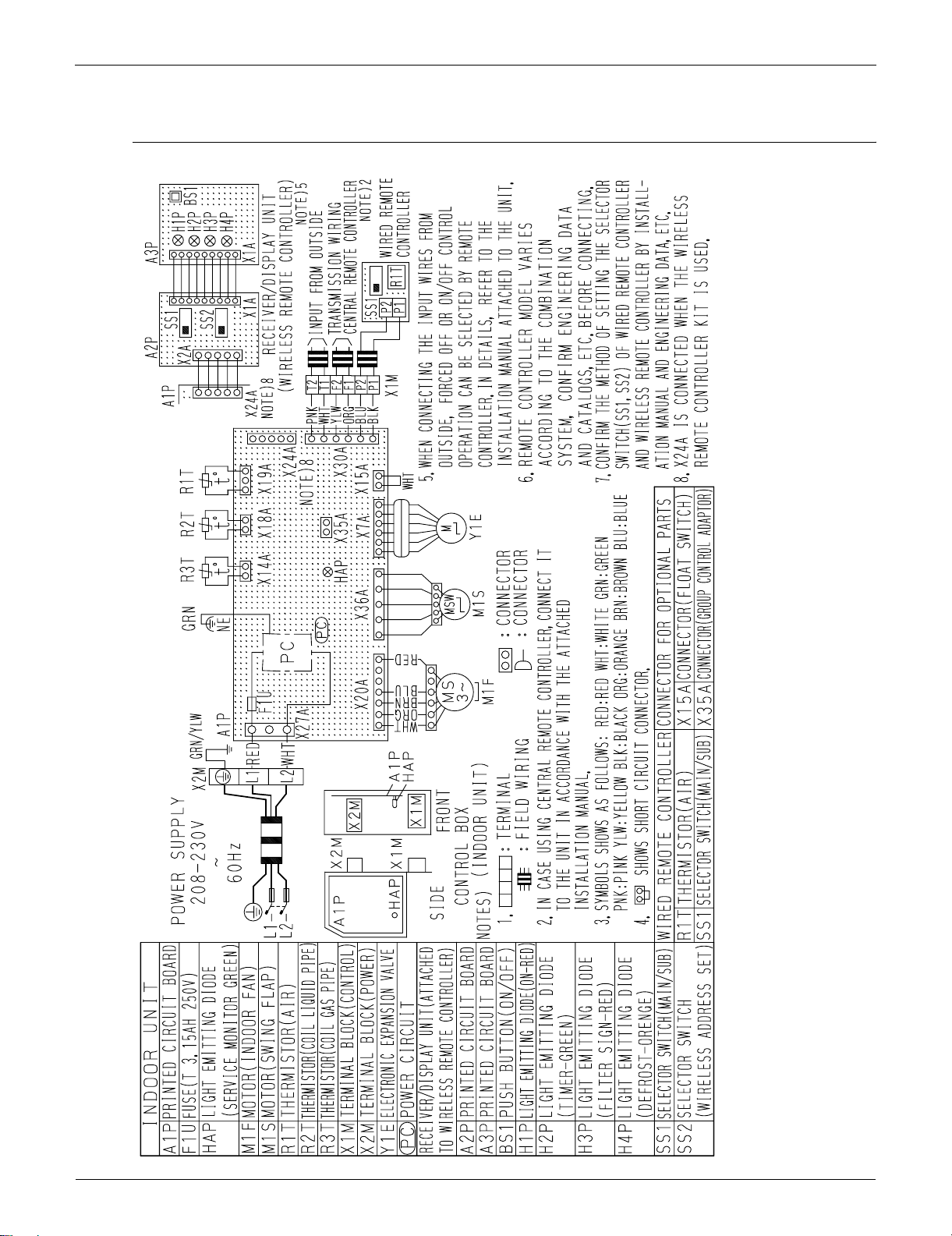

5. Wiring Diagrams
FXAQ07M/09M/12M/18M/24MVJU
3D046039C

Electric Characteristics EDUS39-600-F6
10 FXAQ-M
6. Electric Characteristics
4D046466A

EDUS39-600-F6 Capacity Tables
FXAQ-M 11
7. Capacity Tables
7.1 Cooling Capacity
FXAQ-M
TC : Total capacity ; kW
SHC : Sensible heat capacity ; kW
Refer to Outdoor Unit Capacity Tables for the actual performance data of each indoor and outdoor unit combination.
Cooling capacity
Unit size
Outdoor
air temp.
Indoor Air Temp. °FWB
61 64 67 70 72 75
TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC
°FDB MBh MBh MBh MBh MBh MBh MBh MBh MBh MBh MBh MBh
07
75 5.9 5.6 6.7 6.1 7.5 6.4 8.3 6.6 8.8 6.8 8.9 6.5
79 5.9 5.6 6.7 6.1 7.5 6.4 8.3 6.6 8.6 6.6 8.8 6.4
83 5.9 5.6 6.7 6.1 7.5 6.4 8.3 6.6 8.5 6.5 8.6 6.3
87 5.9 5.6 6.7 6.1 7.5 6.4 8.2 6.6 8.3 6.4 8.5 6.2
91 5.9 5.6 6.7 6.1 7.5 6.4 8.1 6.6 8.2 6.4 8.4 6.1
95 5.9 5.6 6.7 6.1 7.5 6.4 8.0 6.5 8.1 6.3 8.2 6.0
99 5.9 5.6 6.7 6.1 7.5 6.4 7.8 6.3 7.9 6.2 8.1 5.9
103 5.9 5.6 6.7 6.1 7.5 6.4 7.7 6.2 7.8 6.1 7.9 5.8
09
75 7.5 6.5 8.5 7.2 9.5 7.3 10.5 7.7 11.1 8.1 11.3 7.6
79 7.5 6.5 8.5 7.2 9.5 7.3 10.5 7.7 10.9 8.0 11.1 7.4
83 7.5 6.5 8.5 7.2 9.5 7.3 10.5 7.7 10.7 7.8 10.9 7.3
87 7.5 6.5 8.5 7.2 9.5 7.3 10.4 7.6 10.6 7.7 10.9 7.3
91 7.5 6.5 8.5 7.2 9.5 7.3 10.3 7.5 10.4 7.6 10.6 7.1
95 7.5 6.5 8.5 7.2 9.5 7.3 10.1 7.4 10.2 7.4 10.4 7.0
99 7.5 6.5 8.5 7.2 9.5 7.3 9.9 7.2 10.0 7.3 10.2 6.8
103 7.5 6.5 8.5 7.2 9.5 7.3 9.7 7.1 9.9 7.2 10.0 6.7
12
75 9.5 7.9 10.7 8.3 12.0 8.9 13.3 9.2 14.0 9.3 14.3 8.8
79 9.5 7.9 10.7 8.3 12.0 8.9 13.3 9.2 13.8 9.1 14.0 8.7
83 9.5 7.9 10.7 8.3 12.0 8.9 13.3 9.2 13.6 9.1 13.8 8.6
87 9.5 7.9 10.7 8.3 12.0 8.9 13.2 9.1 13.3 8.9 13.6 8.6
91 9.5 7.9 10.7 8.3 12.0 8.9 13.0 9.1 13.1 8.9 13.4 8.5
95 9.5 7.9 10.7 8.3 12.0 8.9 12.7 8.9 12.9 8.8 13.1 8.5
99 9.5 7.9 10.7 8.3 12.0 8.9 12.5 8.9 12.7 8.7 12.9 8.4
103 9.5 7.9 10.7 8.3 12.0 8.9 12.3 8.7 12.4 8.6 12.7 8.4
18
75 14.2 11.7 16.1 12.7 18.0 13.7 19.9 13.9 21.0 14.1 21.4 12.8
79 14.2 11.7 16.1 12.7 18.0 13.7 19.9 13.9 20.7 13.9 21.1 12.7
83 14.2 11.7 16.1 12.7 18.0 13.7 19.9 13.9 20.4 13.8 20.7 12.6
87 14.2 11.7 16.1 12.7 18.0 13.7 19.8 13.8 20.0 13.6 20.4 12.6
91 14.2 11.7 16.1 12.7 18.0 13.7 19.4 13.8 19.7 13.6 20.1 12.5
95 14.2 11.7 16.1 12.7 18.0 13.7 19.1 13.6 19.3 13.3 19.7 12.4
99 14.2 11.7 16.1 12.7 18.0 13.7 18.8 13.5 19.0 12.7 19.4 12.3
103 14.2 11.7 16.1 12.7 18.0 13.7 18.4 13.3 18.7 12.5 19.0 12.2
24
75 18.9 15.3 21.5 16.5 24.0 18.0 26.5 18.3 28.0 18.5 28.5 17.1
79 18.9 15.3 21.5 16.5 24.0 18.0 26.5 18.3 27.6 18.3 28.1 16.9
83 18.9 15.3 21.5 16.5 24.0 18.0 26.5 18.3 27.1 18.2 27.6 16.8
87 18.9 15.3 21.5 16.5 24.0 18.0 26.4 18.2 26.7 18.0 27.2 16.6
91 18.9 15.3 21.5 16.5 24.0 18.0 25.9 18.1 26.2 17.8 26.7 16.4
95 18.9 15.3 21.5 16.5 24.0 18.0 25.5 17.8 25.8 17.6 26.3 16.2
99 18.9 15.3 21.5 16.5 24.0 18.0 25.0 17.8 25.3 17.4 25.8 15.9
103 18.9 15.3 21.5 16.5 24.0 18.0 24.6 17.4 24.9 17.2 25.4 15.7

Capacity Tables EDUS39-600-F6
12 FXAQ-M
7.2 Heating Capacity
FXAQ-M
Refer to Outdoor Unit Capacity Tables for the actual performance data of each indoor and outdoor unit combination.
Heating Capacity
Indoor unit Outdoor Air Temp.
Indoor Air Temp. °FDB
62 65 68 70 72 75
TC TC TC TC TC TC
°FDB °FWB MBh MBh MBh MBh MBh MBh
07
22.0 20.0 7.3 7.3 7.3 7.3 7.3 7.2
26.0 24.0 7.6 7.6 7.6 7.6 7.6 7.6
30.0 28.0 8.0 8.0 8.0 8.0 7.9 7.7
35.0 32.0 8.3 8.3 8.3 8.3 8.1 7.7
39.0 36.0 8.7 8.7 8.7 8.4 8.1 7.7
44.0 40.0 9.0 9.0 8.7 8.5 8.1 7.7
47.0 43.0 9.3 9.2 8.7 8.5 8.1 7.7
51.0 47.0 9.6 9.2 8.7 8.5 8.1 7.7
54.0 50.0 9.7 9.2 8.7 8.5 8.1 7.7
57.0 53.0 9.7 9.2 8.7 8.5 8.1 7.7
60.0 56.0 9.7 9.2 8.7 8.5 8.1 7.7
09
22.0 20.0 9.2 9.2 9.2 9.2 9.2 9.2
26.0 24.0 9.7 9.7 9.6 9.6 9.6 9.6
30.0 28.0 10.1 10.1 10.1 10.1 10.1 9.7
35.0 32.0 10.6 10.5 10.5 10.5 10.3 9.7
39.0 36.0 11.0 11.0 11.0 10.5 10.3 9.7
44.0 40.0 11.4 11.4 11.1 10.5 10.3 9.7
47.0 43.0 11.8 11.7 11.1 10.5 10.3 9.7
51.0 47.0 12.2 11.7 11.1 10.5 10.3 9.7
54.0 50.0 12.3 11.7 11.1 10.5 10.3 9.7
57.0 53.0 12.3 11.7 11.1 10.5 10.3 9.7
60.0 56.0 12.3 11.7 11.1 10.5 10.3 9.7
12
22.0 20.0 11.7 11.7 11.6 11.6 11.6 11.6
26.0 24.0 12.2 12.2 12.2 12.2 12.2 12.1
30.0 28.0 12.8 12.8 12.7 12.7 12.7 12.3
35.0 32.0 13.3 13.3 13.3 13.3 13.0 12.3
39.0 36.0 13.9 13.9 13.9 13.5 13.0 12.3
44.0 40.0 14.5 14.4 14.0 13.5 13.0 12.3
47.0 43.0 14.9 14.7 14.0 13.5 13.0 12.3
51.0 47.0 15.4 14.7 14.0 13.5 13.0 12.3
54.0 50.0 15.5 14.7 14.0 13.5 13.0 12.3
57.0 53.0 15.5 14.7 14.0 13.5 13.0 12.3
60.0 56.0 15.5 14.7 14.0 13.5 13.0 12.3
18
22.0 20.0 17.5 17.5 17.4 17.4 17.4 17.4
26.0 24.0 18.3 18.3 18.3 18.3 18.2 18.2
30.0 28.0 19.2 19.1 19.1 19.1 19.1 18.4
35.0 32.0 20.0 20.0 19.9 19.9 19.5 18.4
39.0 36.0 20.8 20.8 20.8 20.0 19.5 18.4
44.0 40.0 21.7 21.6 21.0 20.0 19.5 18.4
47.0 43.0 22.3 22.1 21.0 20.0 19.5 18.4
51.0 47.0 23.1 22.1 21.0 20.0 19.5 18.4
54.0 50.0 23.2 22.1 21.0 20.0 19.5 18.4
57.0 53.0 23.2 22.1 21.0 20.0 19.5 18.4
60.0 56.0 23.2 22.1 21.0 20.0 19.5 18.4
24
22.0 20.0 23.3 23.3 23.3 23.2 23.2 23.2
26.0 24.0 24.5 24.4 24.4 24.3 24.3 24.3
30.0 28.0 25.6 25.5 25.5 25.5 25.4 24.5
35.0 32.0 26.7 26.6 26.6 26.6 26.0 24.5
39.0 36.0 27.8 27.7 27.7 27.0 26.0 24.5
44.0 40.0 28.9 28.9 28.0 27.0 26.0 24.5
47.0 43.0 29.7 29.5 28.0 27.0 26.0 24.5
51.0 47.0 30.8 29.5 28.0 27.0 26.0 24.5
54.0 50.0 31.0 29.5 28.0 27.0 26.0 24.5
57.0 53.0 31.0 29.5 28.0 27.0 26.0 24.5
60.0 56.0 31.0 29.5 28.0 27.0 26.0 24.5

EDUS39-600-F6 Air Velocity and Temperature Distributions
FXAQ-M 13

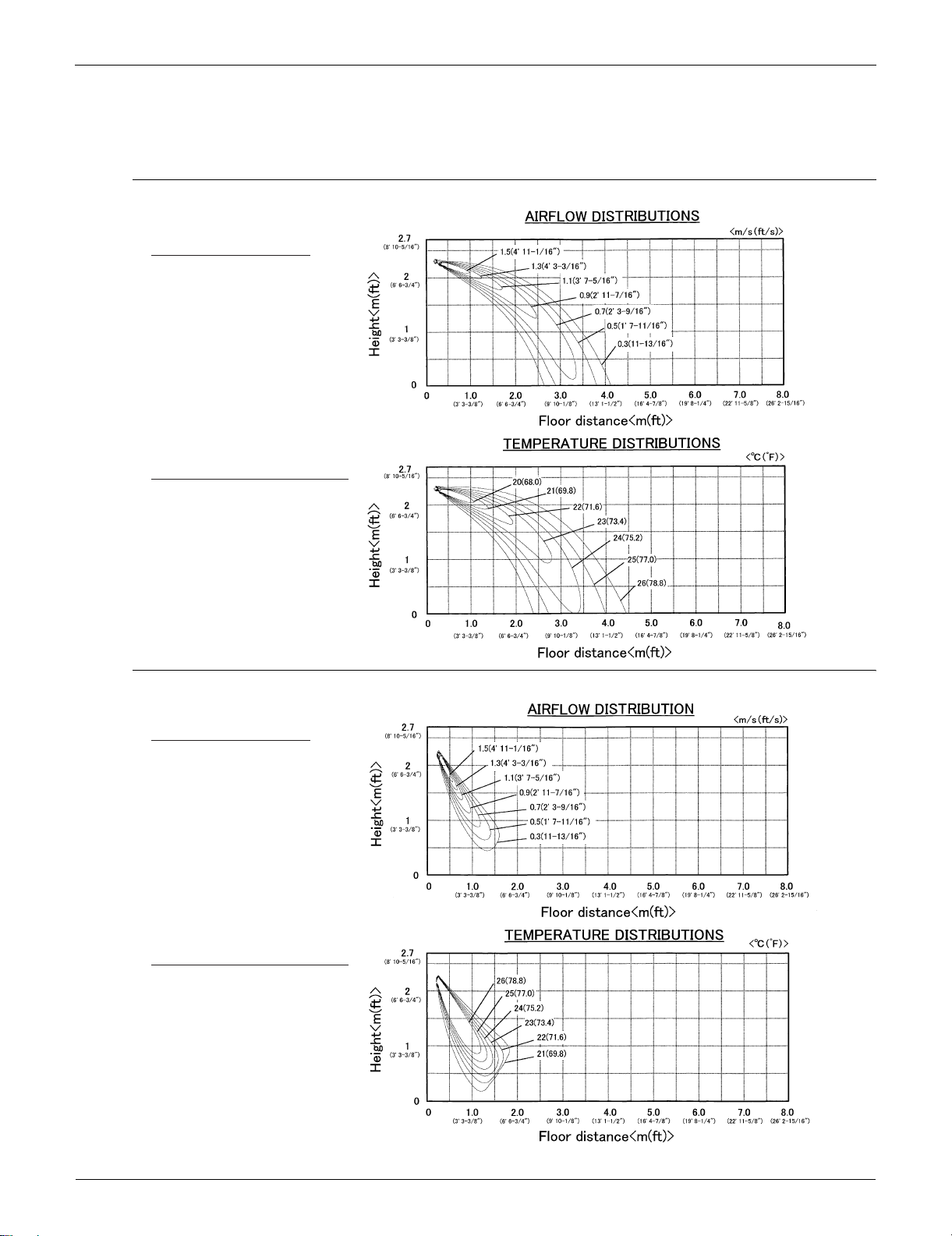

8. Air Velocity and Temperature Distributions
FXAQ07M <Cooling mode>
FXAQ07M <Heating mode>
3D053942
AIRFLOW DISTRIBUTIONS
TEMPERATURE DISTRIBUTIONS
AIRFLOW DISTRIBUTIONS
TEMPERATURE DISTRIBUTIONS

Air Velocity and Temperature Distributions EDUS39-600-F6
14 FXAQ-M
FXAQ09M <Cooling mode>
FXAQ09M <Heating mode>
3D053943
AIRFLOW DISTRIBUTIONS
TEMPERATURE DISTRIBUTIONS
AIRFLOW DISTRIBUTIONS
TEMPERATURE DISTRIBUTIONS

EDUS39-600-F6 Air Velocity and Temperature Distributions
FXAQ-M 15
FXAQ12M <Cooling mode>
FXAQ12M <Heating mode>
3D052935
AIRFLOW DISTRIBUTIONS
TEMPERATURE DISTRIBUTIONS
AIRFLOW DISTRIBUTIONS
TEMPERATURE DISTRIBUTIONS

Air Velocity and Temperature Distributions EDUS39-600-F6
16 FXAQ-M
FXAQ18M <Cooling mode>
FXAQ18M <Heating mode>
3D052936
AIRFLOW DISTRIBUTIONS
TEMPERATURE DISTRIBUTIONS
AIRFLOW DISTRIBUTIONS
TEMPERATURE DISTRIBUTIONS

EDUS39-600-F6 Air Velocity and Temperature Distributions
FXAQ-M 17
FXAQ24M <Cooling mode>
FXAQ24M <Heating mode>
3D052937
AIRFLOW DISTRIBUTIONS
TEMPERATURE DISTRIBUTIONS
AIRFLOW DISTRIBUTIONS
TEMPERATURE DISTRIBUTIONS

Sound Levels EDUS39-600-F6
18 FXAQ-M

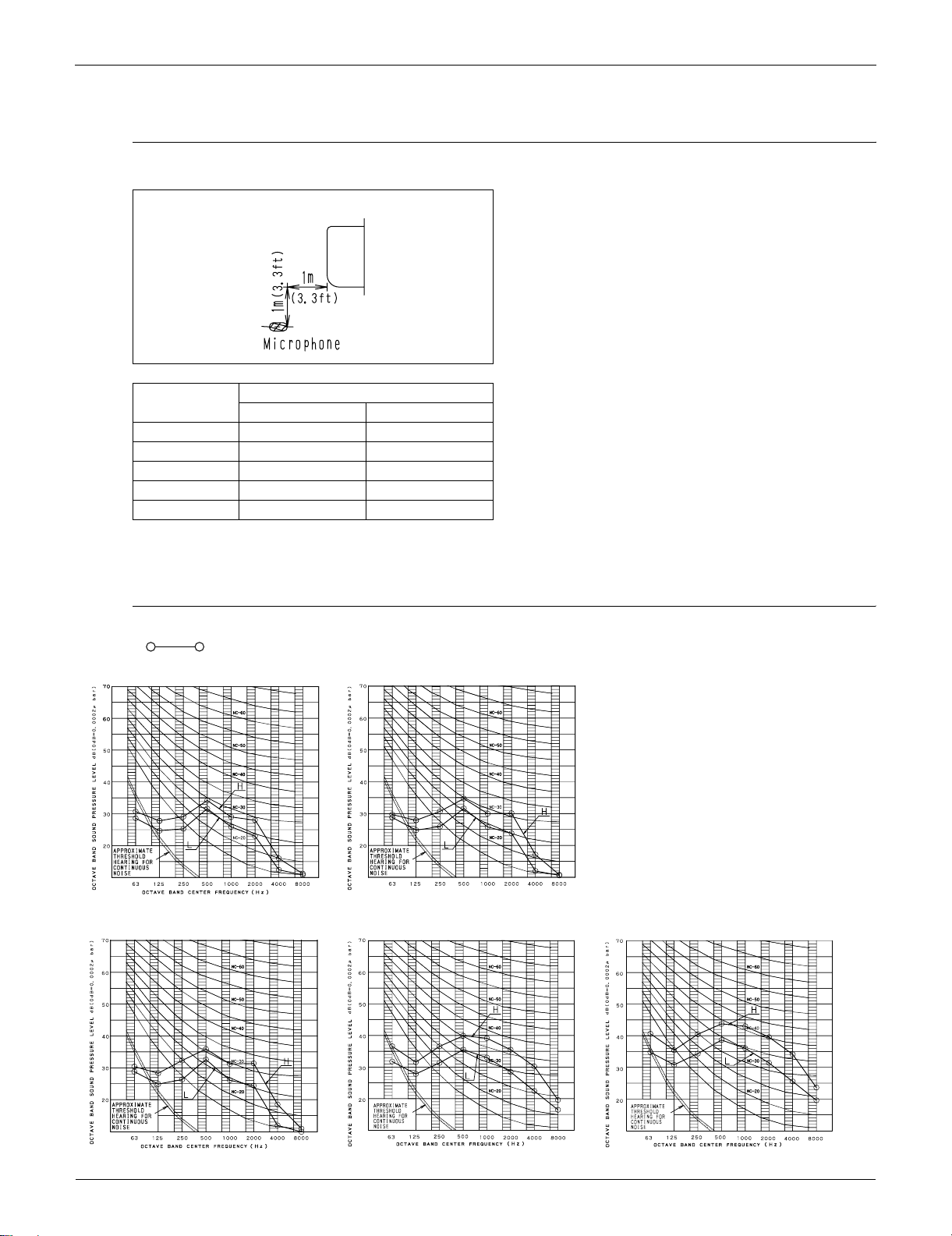

9. Sound Levels
Overall
Octave Band Level
208V~230V
Wall-Mounted Type Notes:
Operation noise differs with operation and ambient
conditions.
dBA
Model 208~230V, 60Hz
HL
FXAQ07MVJU 36 31
FXAQ09MVJU 37 31
FXAQ12MVJU 38 31
FXAQ18MVJU 43 37
FXAQ24MVJU 47 40
FXAQ07MVJU FXAQ09MVJU
FXAQ12MVJU FXAQ18MVJU FXAQ24MVJU
4D055848 4D055849
4D052498A 4D052499
4D052500

EDUS39-600-F6 Installation
FXAQ-M 19
10.Installation

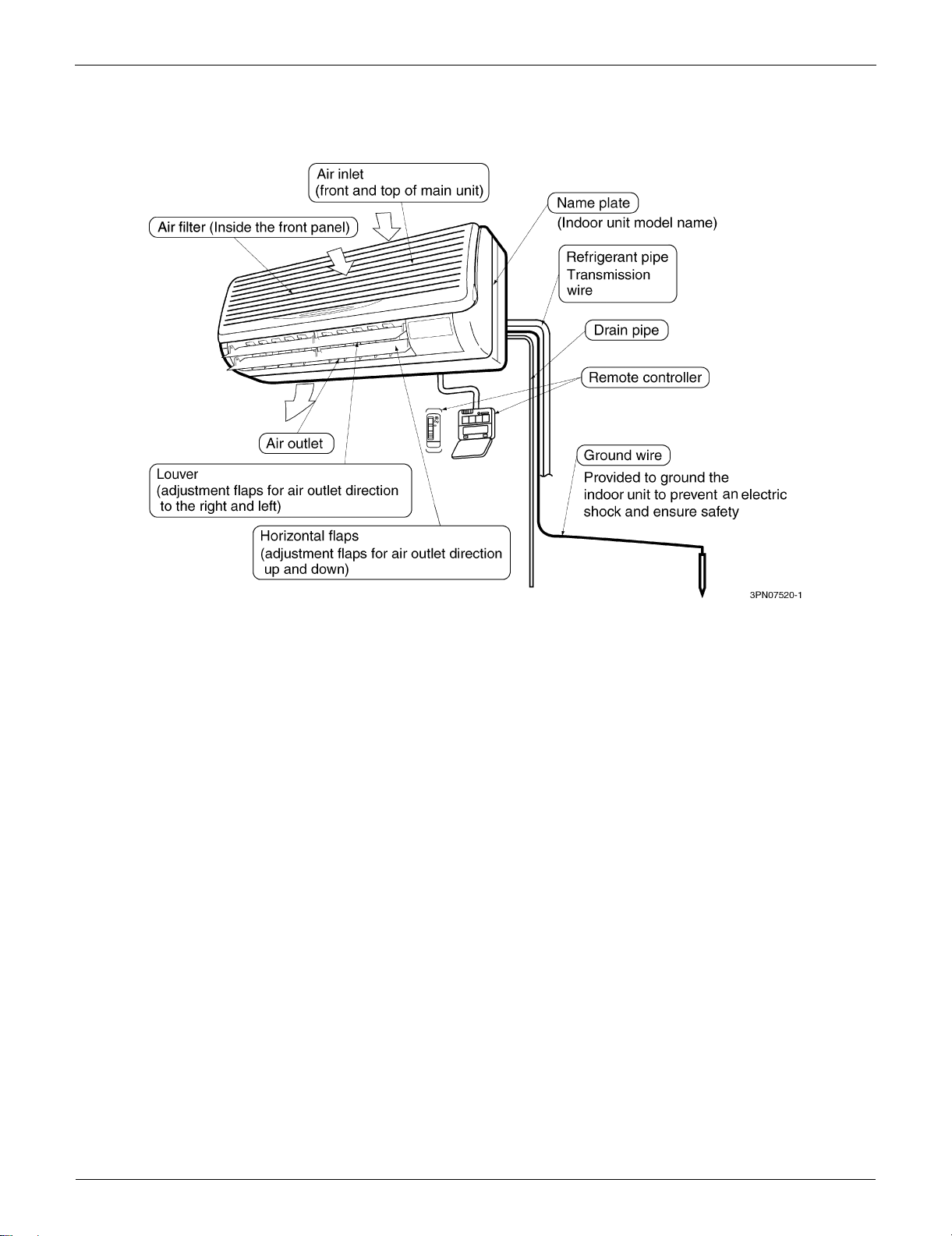

Installation Example
