TECHNICAL MANUAL
Split Systems Air Conditioner
Ducted Blower H Series
FBHN-H & FBVN-H Series
— Cooling Only [50Hz] —
TM-FBHVN-0920-I

Table of Contents
i
Table of Contents
Nomenclature......................................................................................................................1
Indoor ............................................................................................................................1
Outdoor..........................................................................................................................2
Product Line-Up.............................................................................................................3
Application Information .....................................................................................................5
Operating Range ...........................................................................................................5

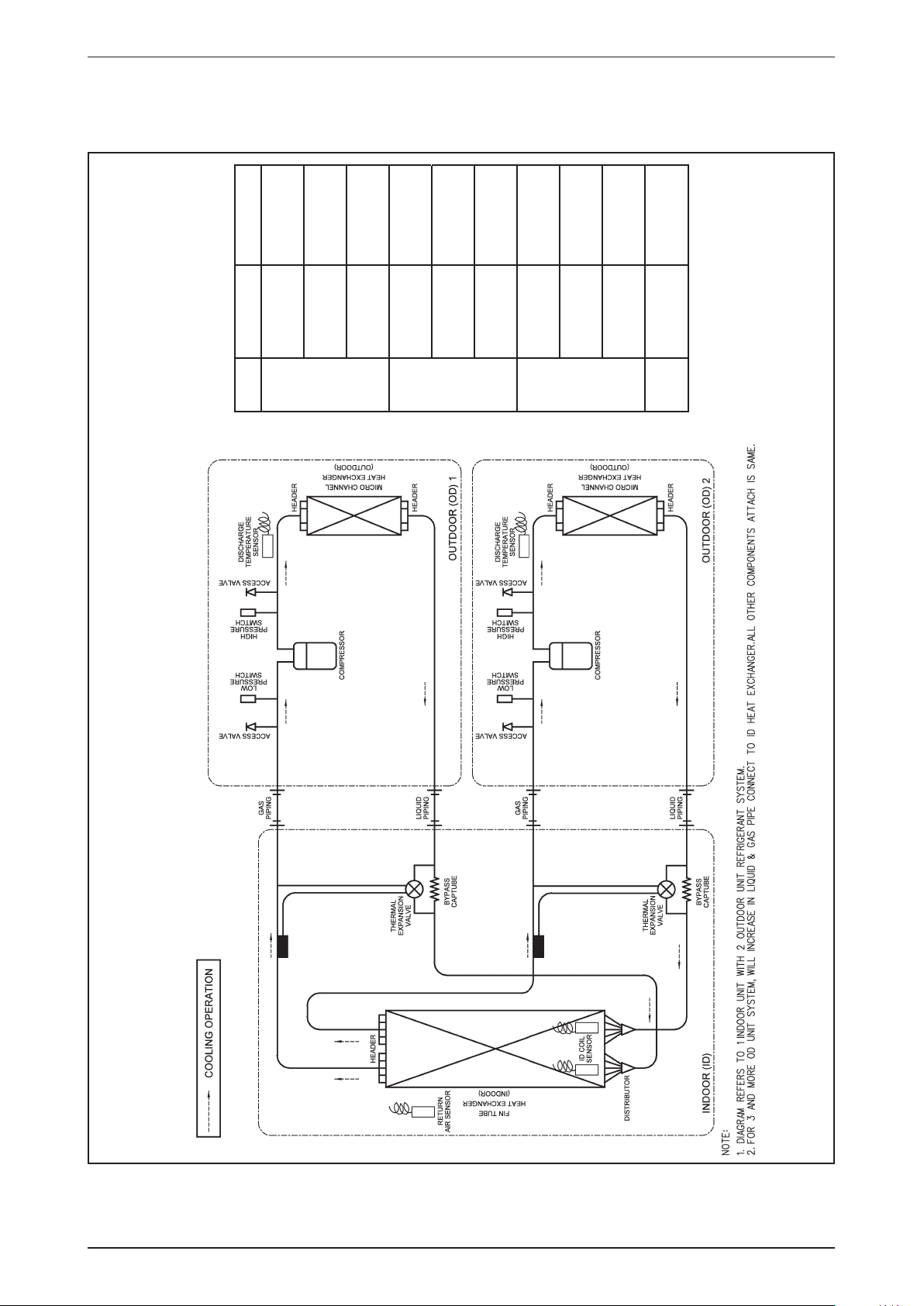

Refrigerant Circuit Diagram ...........................................................................................6
Installation Guideline .....................................................................................................7

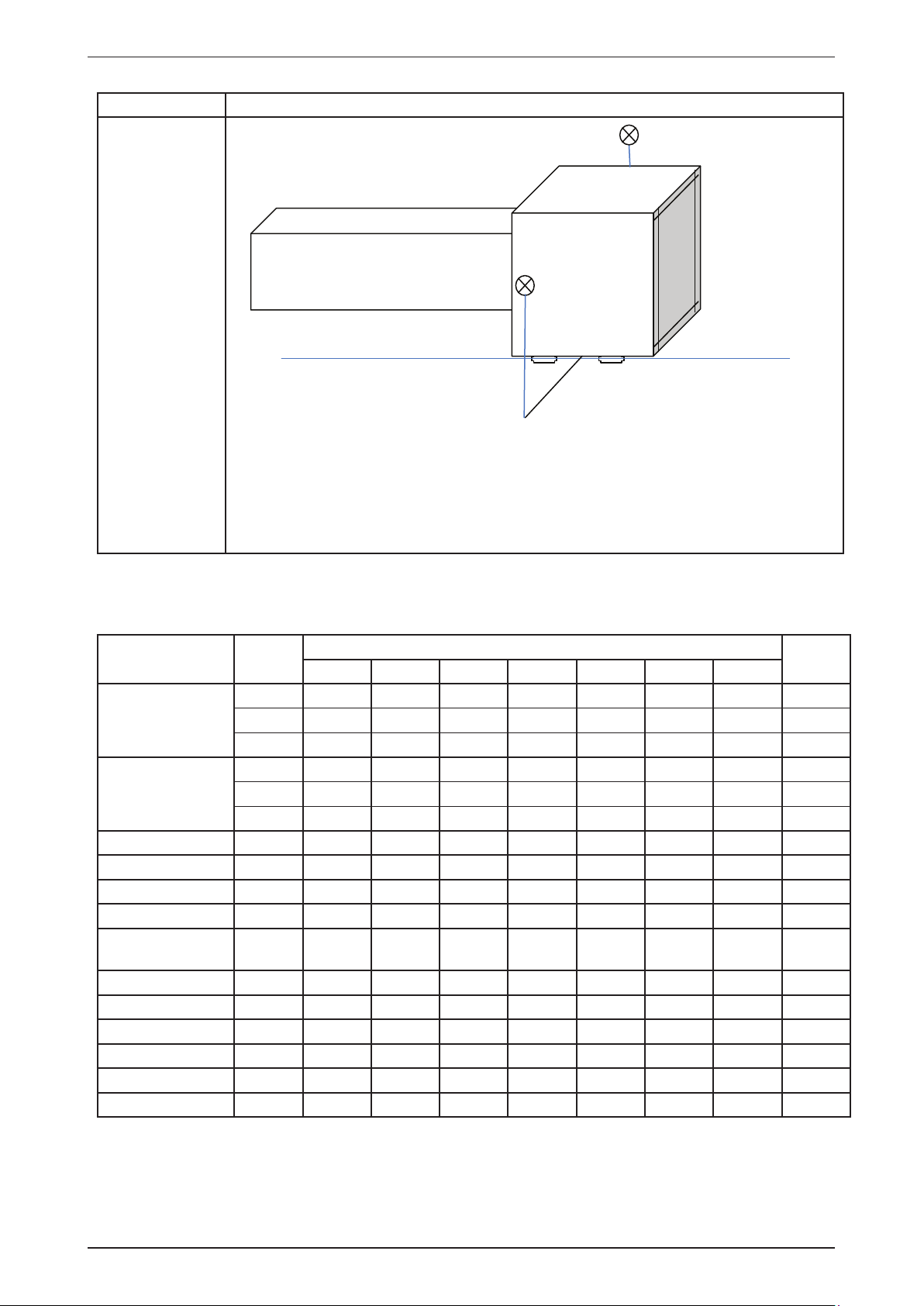

Sound Data........................................................................................................................15
Sound Pressure Level .................................................................................................15
Sound Power Level .....................................................................................................16
NC Curve.....................................................................................................................17
Selection Process.............................................................................................................24
Engineering & Physical Data...........................................................................................42
Performance Data.............................................................................................................46
Calculation Steps.........................................................................................................46
Performance Tables.....................................................................................................48
Outlines & Dimensions ....................................................................................................64
Wiring Diagrams ...............................................................................................................88
Capacity Tables.................................................................................................................62
Service & Maintenance ....................................................................................................95
Troubleshooting ...............................................................................................................97



Nomenclature
1

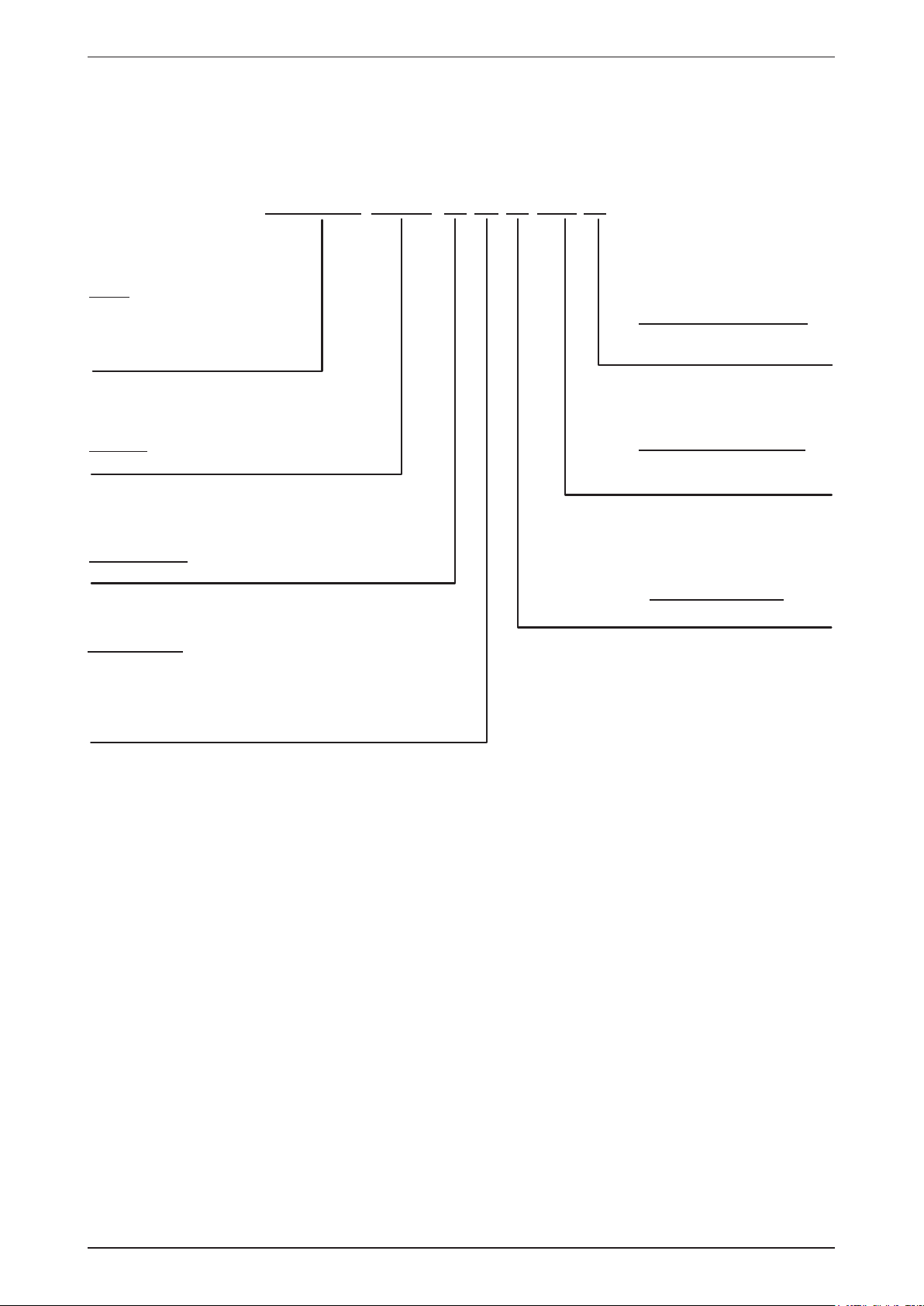

Nomenclature
Indoor
250 H 2
FBVN BY1 C
No. of Circuits
“ ” : 1 Circuit
“2” : 2 Circuits
“3” : 3 Circuits
“4” : 4 Circuits
“5” : 5 Circuits
Electrical Characteristics
V1: 1 Phase 50Hz 220-240V
Y1: 3 Phase 50Hz 380-415V
Evaporator Fin Type
B: Hydrophilic Blue
Brand
FBVN: Ducted Blower
(Vertical Discharge)
FBHN: Ducted Blower
(Horizontal Discharge)
Capacity
250: 250,000 Btu/hr
Product Series
H: H series
Air Discharge Orientation
C: Convertible
X: Not Convertible

Nomenclature
2
RVN 125 H MHT Y1 C
Power Supply
Y1: 3 Phase 50Hz 380-415V
Outdoor
Capacity
125: 125,000 Btu/hr
Product Series
H: H series
Product Type
RHN: Modular Condensing Unit
(Horizontal Discharge)
RVN: Modular Condensing Unit
(Vertical Discharge)
Air Discharge Orientation
C: Convertible
X: Not Convertible
Condenser Fin Type
MHT: TCP-coated Microchannel
PE: E-coated Microchannel

Nomenclature




Nomenclature
Classication
Control Fin Handset Refrigerant Control Air Filter Air Discharge
W/out Control Module W/out Contactor Bare Aluminium Hydrophilic Coated W/out Handset TXV W/out Air Filter Horizontal & Convertible Horizontal & Not Convertible Vertical & Convertible Vertical & Not Convertible
COOLING
FBHN80HBV1X X X X X X X X
FBHN100HBV1X X X X X X X X
FBHN125HBY1C X X X X X X X
FBHN150HBY1C X X X X X X X
FBHN200H2BY1C X X X X X X X
FBVN250H2BY1C X X X X X X X
FBVN300H2BY1C X X X X X X X
FBVN300H3BY1C X X X X X X X
FBVN350H3BY1C X X X X X X X
FBVN400H4BY1C X X X X X X X
FBVN450H3BY1C X X X X X X X
FBVN500H4BY1C X X X X X X X
FBVN600H4BY1X X X X X X X X
FBVN750H5BY1X X X X X X X X

Nomenclature



Nomenclature
Classication
Control Fin Air Discharge
W/out Contactor With HP/LP Switch/Sensor With Phase Sequential Protector Microchannel E-coating Microchannel Horizontal & Convertible Horizontal & Not Convertible Vertical & Convertible Vertical & Not Convertible
COOLING
RHN80HMHTY1X X X X X X
RVN100HMHTY1C X X X X X
RVN125HMHTY1C X X X X X
RVN150HMHTY1C X X X X X
RHN80HPEY1X X X X X X
RVN100HPEY1C X X X X X
RVN125HPEY1C X X X X X
RVN150HPEY1C X X X X X


Application Information
Application Information

Ensure the operating temperature is in allowance range.

The use of your air conditioner
outside the range of working
temperature and humidity can
result in serious failure.
Outdoor
DB (°C)
46
19
23 )C°(BWroodnI41
43
Cooling Operation Range
DB: Dry Bulb
WB: Wet Bulb


Application Information



RVN100HMHTY1C x 2
RVN125HMHTY1C x 2 RVN150HMHTY1C x 2 RVN100HMHTY1C x 3 RVN100HMHTY1C x 1 RVN125HMHTY1C x 2 RVN150HMHTY1C x 3 RVN100HMHTY1C x 4 RVN125HMHTY1C x 4 RVN150HMHTY1C x 4 RVN150HMHTY1C x 5

FBHN200H2BY1C FBVN250H2BY1C FBVN300H2BY1C FBVN300H3BY1C FBVN350H3BY1C FBVN450H3BY1C FBVN400H4BY1C FBVN500H4BY1C FBVN600H4BY1X FBVN750H5BY1X

1 IDU
2 ODU
1 IDU
3 ODU
1 IDU
4 ODU
1 IDU
5 ODU


Application Information



a) Electrical supply and installation is to conform to local authority’s (e.g. National Electricity Board) codes
and regulations.
b) Voltagesupplyuctuationmustnotexceed+/-10%ofratedvoltage.Electricitysupplylinemustbe
independentofweldingtransformerswhichcancausesupplyuctuation.
c) Ensure that the location is convenient for wiring and piping.

a) For ceiling mounted models, locate a position where piping and ducting work can be kept to a minimum.
Ensure that overhead supports are strong enough to hold the unit’s weight. Position hanger rods and
check for alignment with the unit. Check that hangers are secure and that the base of fan-coil unit is level
in two horizontal directions.
DRAINAGE PIPE SIDE

Do not use contaminated or damaged copper tubings. If pipings, evaporator or condenser are exposed or
hadbeenopenedfor15secondsormore,vacuumandpurgewitheldsuppliedrefrigerant.Generally,do
notremoveplastic/rubberplugs/capsfromttings,tubingsandcoilsuntilreadytoconnectsuctionorliquid
lineintottings.

After all electrical wiring is completed and the system is charged with refrigerant, make sure unit is operating
properly. Check that:
a) Condenser fans are running, with warm air blowing off the condenser coil.
b) Evaporator blowers are running and discharging cool air.
c) Suction line inside condensing unit feels cool.
d) Liquid line inside condensing unit feels warm.

As wiring regulations differ from country to country, please refer to your LOCAL ELECTRICAL CODES for
eldwiringregulationsandensurethatthesearecompliedwith.Besides,observethefollowinggeneral
precautions:
a) Ensure that the rated voltage of the unit corresponds to that of the name plate before commencing wiring
work.
b) Provide a power outlet to be used exclusively for each unit. A power supply disconnect and a circuit
breaker for over-current protection should be provided in the exclusive line.
c) The unit must be GROUNDED to prevent possible hazard due to insulation failure.
d) Allwiringmustbermlyconnected.
e) Electrical wiring must not touch the refrigerant piping, compressor and any moving parts of the fan
motors.


Application Information


Ensure that the overhead supports are strong enough to hold the unit’s weight. Position hanger rods and
check for alignment with the unit. Check that hangers are secure and that the base of fan-coil unit is level in
thetwohorizontaldirections,takingintoaccountthegradientrecommendedfordrainageowasshown.
Checkthegradientrecommendedfordrainageowasfollow.
Provideclearanceforservicingandoptimalairowasshowninthediagram.
The indoor unit must be installed such that there is no short circuit of cool discharge with air discharge.
Respect the installation clearance.
Do not put the indoor unit where there is direct sunlight on unit. The location is suitable for piping and
drainage and it must be have a large distance between a door and unit.
10.0
300mm
300mm*
50mm
500mm
* for free return of air
300mm
A
Vertical air discharge
Horizontal air discharge
A
B
D
A
C
B
All dimensions in mm
Model FBHN80HBV1X
FBHN100HBV1X
FBHN125HBY1C
FBHN150HBY1C
FBHN200HBY1C
FBVN250H2BY1C
FBVN300H2BY1C
FBVN300H3BY1C
FBVN350H3BY1C
FBVN400H4BY1C
FBVN450H3BY1C
FBVN500H4BY1C
FBVN600H4BY1X
FBVN750H5BY1X
A (mm) 800 800 800 800
B (mm) 800 800 800 800
C (mm) - - 800 800
D (mm) - - 1000 1500


Application Information


As condensing temperature rises, evaporating temperature rises and cooling capacity drops. In order to
achievemaximumcoolingcapacity,thelocationselectedshouldfulllthefollowingrequirements:-

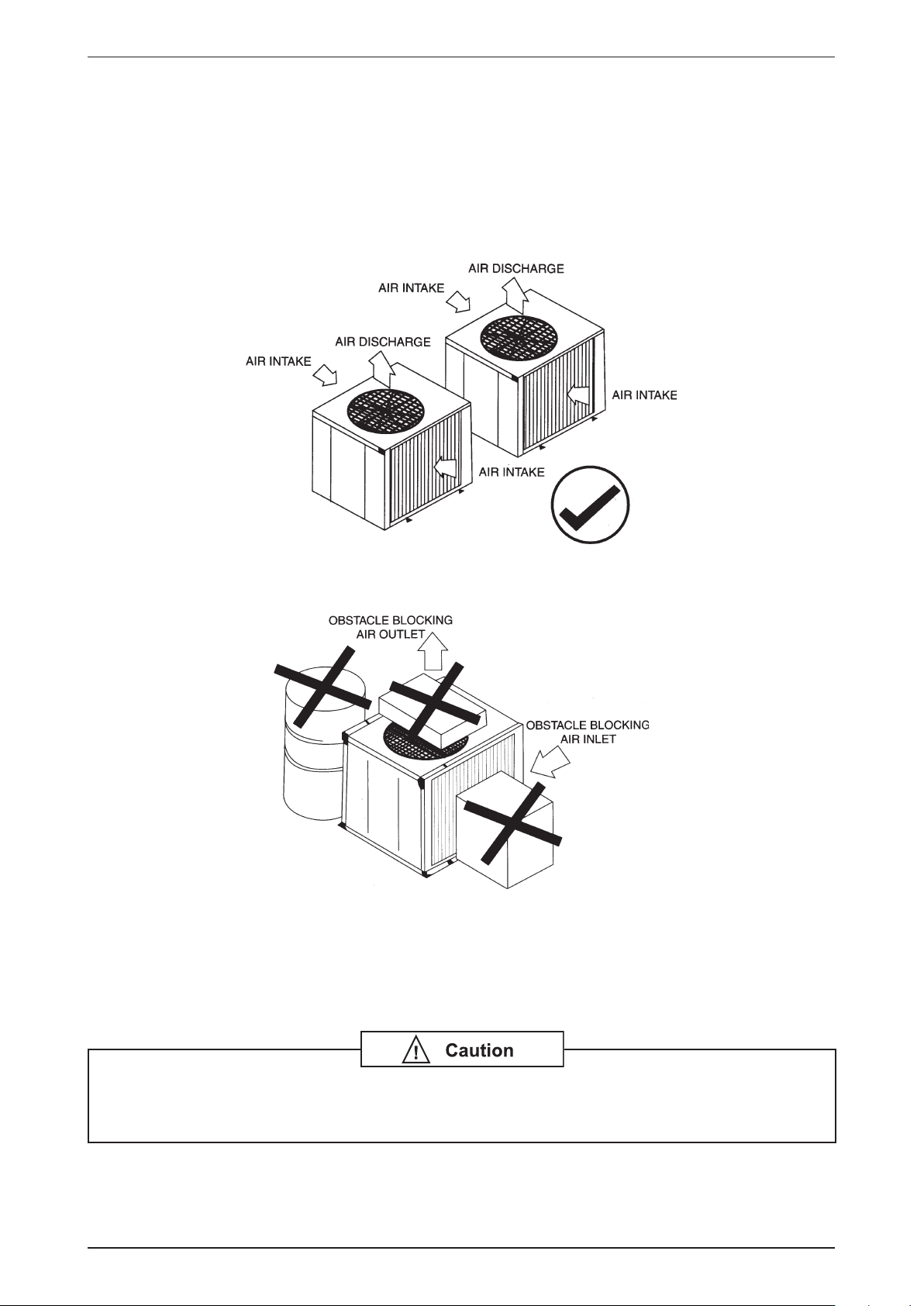

a) Install the condensing (outdoor) unit in a way such that hot air distributed by the outdoor condensing unit
cannotbedrawninagain(asinthecaseofshortcircuitofhotdischargeair).Allowsufcientspacefor
maintenance around the unit.
b) Ensurethatthereisnoobstructionofairowintooroutoftheunit.Removeobstaclewhichblockair
intake or discharge.
c) The location must be well ventilated, so that the unit can draw and distribute plenty of air thus lowering
the condensing temperature.
d) A place capable of bearing the weight of the outdoor unit and isolating noise and vibration.
e) A place protected from direct sunlight. Otherwise use an awning for protection, if necessary.
f) A place where the hot air discharge and operating sound level will not annoy the neighbours.
g) The location must not be susceptible to dust or oil mist.

󵼊󵰔󱣍󱀔󵄍󶏁󱠄󵼂󶌕󵄍󱀂󶈆󵃊󱯁󶌖󵰑󵠊󵐆󱀈󵄔󰿉󵸆󵄓󱀉󵼕󱀔󶀓󵤏󵛍󱀐󵤍󱀓󵔇󵤏󵔓󶣁󶀍󵄏󶏊󱯁󶌖󵌉󱀂󶋁



Application Information

PATTERN 1
TOP VIEW
300
300 600
1200
TOP VIEW
PATTERN 2
RHN80H
RVN100/125/150H VERTICAL RHN100/125/150H HORIZONTAL
SERVICE PANEL
AIR DISCHARGE
DIRECTION
WALL / CEILING
AIR DISCHARGE GRILL
NOTE :
1) ALL DIMENSION ARE IN MM.
2) ALL DIMENSION MENTIONED ARE
MINIMUM DISTANCE REQUIRED.
UNLESS OTHERWISE SPECIFIED.
SINGLE UNIT
PATTERN 1 PATTERN 2
PATTERN 3
TOP VIEW TOP VIEW
FRONT VIEW
SIDE VIEW
600
300100
300
100
300
600
1500
<1500
1500
PATTERN 1
300
600 300
TOP VIEWTOP VIEW
1500
PATTERN 2
Unit Lifting
LEFT BY PALLET TRUCK/FOKLIFT
LEFT BY CRANE USING BELT
CONNECT TO 4 CORNER HOIST BRACKET
REMOVE THE TOP CRATE
Step 1 Step 2
a) By pallet truck / fork lift
b) By crane

11
Cable Size
RHN80HMHTY1X RVN100HMHTY1C
Voltage range**
Indoor220 - 240V / 1Ph /50Hz +
Outdoor380 - 415V / 3Ph /50Hz +N+
Power supply cable size*
a) Indoor Unit
b) Outdoor Unit
c) Total
Number of conductors
a) Indoor Unit
b) Outdoor Unit
mm2
mm2
mm2
1.0
2.5
2.5
-
5
1.0
2.5
2.5
-
5
Recommended fuse/
circuit breaker rating*
a) Indoor Unit
b) Outdoor Unit
c) Total
A
A
A
6.0
32.0
32.0
16.0
32.0
40.0
RVN125HMHTY1C RVN150HMHTY1C RVN100HMHTY1Cx2
Voltage range**
Indoor380 - 415V / 3Ph /50Hz + N +
Outdoor380 - 415V / 3Ph /50Hz + N +
Power supply cable size*
a) Indoor Unit
b) Outdoor Unit
c) Total
Number of conductors
a) Indoor Unit
b) Outdoor Unit
mm2
mm2
mm2
1.0
4.0
4.0
5
5
1.0
10.0
10.0
5
5
1.0
2.5
-
5
5
Recommended fuse/
circuit breaker rating*
a) Indoor Unit
b) Outdoor Unit
c) Total
A
A
A
4.0
40.0
40.0
6.0
50.0
50.0
10.0
32.0
-

Application Information
Voltage range**
Indoor380 - 415V / 3Ph /50Hz + N +
Outdoor380 - 415V / 3Ph /50Hz + N +
Power supply cable size*
a) Indoor Unit
b) Outdoor Unit
Number of conductors
a) Indoor Unit
b) Outdoor Unit
mm2
mm2
1.0
4.0
5
5
1.0
10.0
5
5
1.0
2.5
5
5
Recommended fuse/
circuit breaker rating*
a) Indoor Unit
b) Outdoor Unit
A
A
16.0
40.0
16.0
50.0
16.0
40.0
4
Voltage range**
Indoor380 - 415V / 3Ph /50Hz + N +
Outdoor380 - 415V / 3Ph /50Hz + N +
Power supply cable size*
a) Indoor Unit
b) Outdoor Unit
Number of conductors
a) Indoor Unit
b) Outdoor Unit
mm2
mm2
1.0
4.0
1.0
2.5
5
5
5
5
1.0
2.5
5
5
Recommended fuse/
circuit breaker rating*
a) Indoor Unit
b) Outdoor Unit
A
A
16.0
32.0
16.0
40.0
20.0
32.0

Voltage range**
Indoor380 - 415V / 3Ph /50Hz + N +
Outdoor380 - 415V / 3Ph /50Hz + N +
Power supply cable size*
a) Indoor Unit
b) Outdoor Unit
Number of conductors
a) Indoor Unit
b) Outdoor Unit
mm2
mm2
2.5
10.0
5
5
4.0
4.0
5
5
Recommended fuse/
circuit breaker rating*
a) Indoor Unit
b) Outdoor Unit
A
A
20.0
50.0
32.0
40.0
Voltage range**
Indoor380 - 415V / 3Ph /50Hz + N +
Outdoor380 - 415V / 3Ph /50Hz + N +
Power supply cable size*
a) Indoor Unit
b) Outdoor Unit
Number of conductors
a) Indoor Unit
b) Outdoor Unit
mm2
mm2
4.0
10.0
5
5
6.0
10.0
5
5
Recommended fuse/
circuit breaker rating*
a) Indoor Unit
b) Outdoor Unit
A
A
32.0
50.0
50.0
50.0

When the pipe length becomes too long, both the capacity and reliability will drop and as the number of
bends increases, system piping resistance to the refrigerant increases, thus lowering the cooling
capacity. As a result the compressor may become defective. Always choose the shortest path and follow the
recommendation as tabulated below:
Cooling Only Model
Outdoor RVN125HMHTY
Maximum Allowable Length, m
Maximum Allowable Elevation, m
75
30
Equivalent length for various (meter)
Pipe Size L joint Trap bend
3/8” (OD 9.52mm) 0.18 1.30
1/2” (OD 12.70mm) 0.20 1.50
5/8” (OD 15.88mm) 0.25 2.00
3/4” (OD 19.05mm) 0.35 2.10
7/8” (OD 22.23mm) 0.40 3.00
1” (OD 25.40mm) 0.45 3.40
1 1/8” (OD 28.58mm) 0.50 3.70
1 3/8” (OD 34.92mm) 0.60 4.40
Notes:
1. Equivalent piping length is obtained with actual length of gas piping.
2. 90° bend of piping is equivalent to L joint.
Bending must be carefully made so as not to crush the pipe. Use a pipe bender to bend a pipe where possible.
For Brazed type, if the piping is less than 7.5m, follow the charge level on serial number sticker. When the
piping is more than 7.5m, use the table below.
R410A
Liquid Pipe OD (in) Additional Charge (kg/m)
1/2’’ 0.08
5/8’’ 0.14
FAN MOTOR AND COMPRESSOR PHASE INFORMATION
UNIT UNIT
FBHN80
FBHN100
FBHN125/150
FBVN200/250/300/350/400/450/500/600/750
RHN80H
RVN100H
UNIT
-
3 PHASE
RVN125H
RVN150H
UNIT
1 PHASE
3 PHASE
1 PHASE
3 PHASE
INDOOR
OUTDOOR


Sound Data
Sound Data


   



      

High 57 48 50 45 46 40 29 53 47
Med 55 48 51 45 46 39 28 52 47
Low 60 47 50 44 45 38 27 52 46

High 64 54 52 48 48 42 34 55 50
Med 64 53 51 47 48 42 33 54 50
Low 64 52 50 45 48 41 32 53 50
 High 53 52 53 46 43 39 28 53 49
 High 54 54 56 48 45 41 32 55 53
 High 58 60 60 55 54 48 42 61 57
 High 62 57 59 59 57 52 42 63 58

 High 66 60 62 61 59 54 44 66 60
 High 67 60 62 62 59 54 44 66 61
 High 67 64 63 63 59 54 45 66 62
 High 68 64 65 63 60 55 46 68 62
 High 69 66 66 64 61 56 47 68 63
 High 70 68 68 66 62 57 48 70 65
 High 71 69 69 67 63 57 48 71 66
 
FBHN80HBV1X
FBHN100HBV1X
FBHN125HBY1C
FBHN150HBY1C
FBHN200H2BY1C
2m discharge duct length
1m return duct length
UNIT
1.5m
Microphone position:
1.5m below centre of the unit.
(Tested with 2m length duct at the air discharge outlet and 1m length air return inlet)
Standard: JIS B 8615


Sound Data
 
FBVN250H2BY1C
FBVN300H2BY1C
FBVN300H3BY1C
FBVN350H3BY1C
FBVN400H4BY1C
FBVN450H3BY1C
FBVN500H4BY1C
FBVN600H4BY1X
FBVN750H5BY1X
1m
2m discharge duct length
1m
UNIT
Free return duct
Microphone position:
1mawayfromeverysidepaneloftheunitand1mabovetheoorlevel.
(Tested with 2m length duct at the air discharge outlet only)
Standard: JIS B 8615

   

      

High 68 67 70 69 64 62 54 73
Med 69 64 68 68 61 59 60 70
Low 66 62 66 63 58 56 46 67

High 74 72 74 73 66 65 59 77
Med 73 70 73 71 64 62 55 75
Low 70 68 71 68 60 59 49 72
 High 75 76 78 70 69 62 58 78
 High 74 77 78 75 72 69 63 80
 High 83 84 83 81 77 73 68 85
 High 85 86 85 83 79 75 70 87

 High 87 88 87 85 81 77 72 89
 High 90 91 90 87 84 80 75 92
 High 88 89 88 86 82 78 73 90
 High 91 92 91 89 85 81 76 93
 High 94 95 94 92 88 84 79 96
 High 87 88 87 85 81 77 72 89
 High 91 92 91 89 85 81 76 93
*Remarks:Testwith5ftlengthdischargeduct,terminatedushwiththeinternalwallofreverberationroom.
