• Split Sky Air • Indoor Units 7
• Indoor Units • R-410A • FTXL-G2V1B
TABLE OF CONTENTS
FTXL-G2V1B
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
For indoor units only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . 11
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

• Indoor Units • R-410A • FTXL-G2V1B
• Split Sky Air • Indoor Units
8

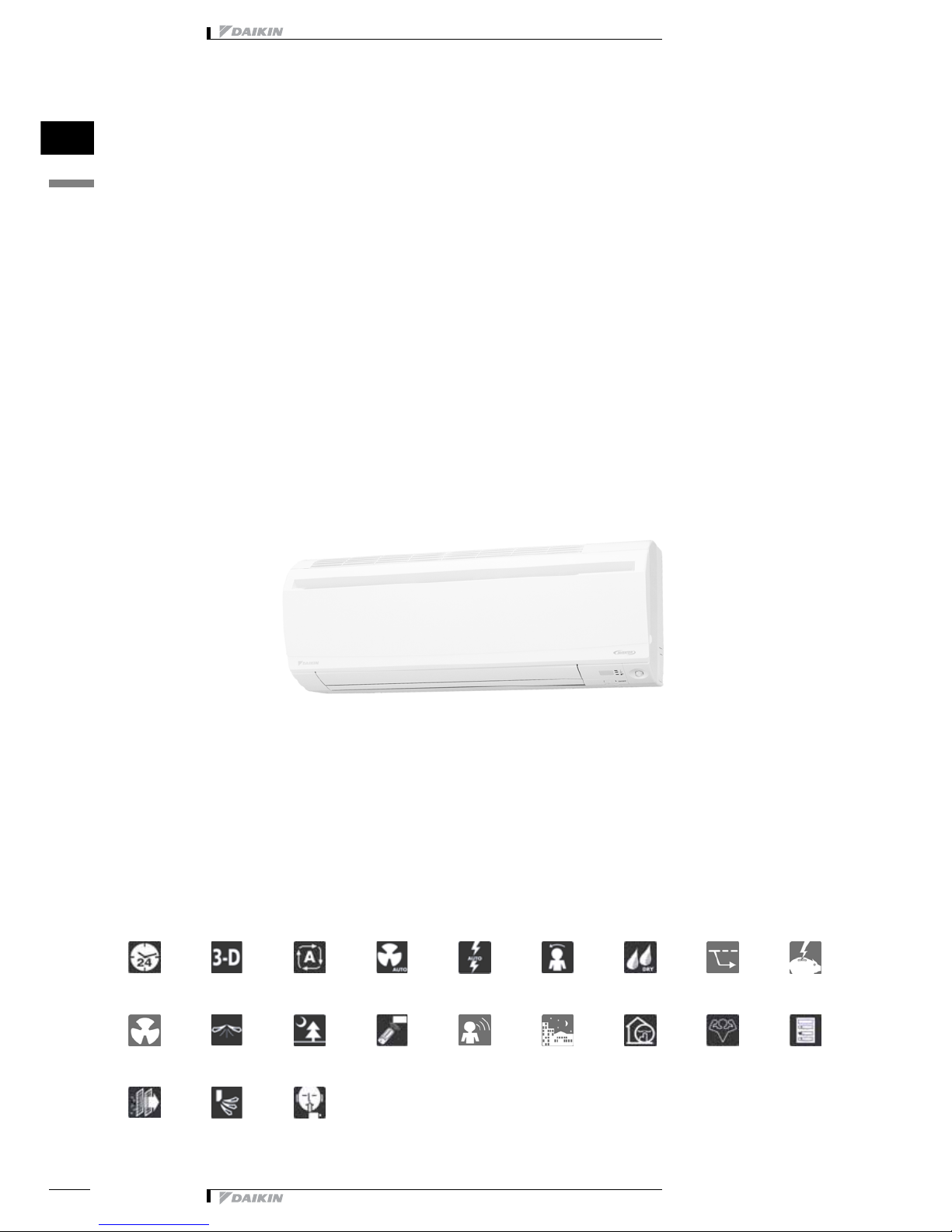

1 Features
1
1
Inr Sp FT2 R- • Energy efficient: full range A class energy labels (COP = 4.58/EER =
4.55)
• High heating capacity: up to 6.6 kW
• 2 area intelligent eye: air flow is sent to the area in a room where no
person is detected
• Energy saving during stand by mode: reduction of energy from 10W
to 2W
• Weekly timer: allows to program the unit on a weekly basis
• Flat front panel: its stylish appearance blends easily within any
interior décor and is more easy to clean.
• Comfort mode reassures draught free operation
• 3D air flow
• Dual air discharge flow for better air distribution
• ECONO mode decreases power consumption so that other
appliances that need large power supply can be used
• Indoor / outdoor unit silent operation
• Powerful mode can be selected for rapid cooling or heating
• Titanium apatite photocatalytic air purification filter absorbs
microscopic particles, decomposes odours and even deactivates
bacteria and viruses
standard
integrated
titanium apatite

• Split Sky Air • Indoor Units 9
• Indoor Units • R-410A • FTXL-G2V1B
2 Specifications
1
2
2-1 FOR INDOOR UNITS ONLY FTXL20G2V1B FTXL25G2V1B FTXL35G2V1B
Nominal input
(Indoor only) Cooling kW 0.026 0.024 0.026
Heating kW 0.028 0.030 0.032
2-2 TECHNICAL SPECIFICATIONS FTXL20G2V1B FTXL25G2V1B FTXL35G2V1B
Casing Colour White
Dimensions Packing Height mm 366 366 366
Width mm 870 870 870
Depth mm 274 274 274
Unit Height mm 295 295 295
Width mm 800 800 800
Depth mm 215 215 215
Weight Unit kg 10 10 10
Packed Unit kg 14 14 14
Heat
Exchanger Dimensions Length mm 605 + 602.7
Nr of Rows 2 + 1
Fin Pitch mm 1.2 + 1.6
Nr of Stages 18 + 12
Tube type ø6.35 Hi-XU
Fin Type ML fin (Multi louvre)
Fan Type Cross flow fan
Air Flow Rate Cooling High m³/min 10.4 9.1 10.2
Medium m³/min 7.7 7.7 8.6
Low m³/min 4.8 6.3 7.0
Silent
Operation m³/min 3.5 5.4 6.0
Heating High m³/min 10.6 11.2 11.0
Medium m³/min 8.5 9.4 9.3
Low m³/min 6.4 7.7 7.6
Silent
Operation m³/min 5.4 6.8 6.7
Cooling High cfm 367 321 360
Medium cfm 270 273 305
Low cfm 170 221 246
Silent
Operation cfm 125 190 212
Heating High cfm 374 395 388
Medium cfm 302 333 330
Low cfm 226 271 267
Silent
Operation cfm 191 240 236
Fan Motor Model KFD-280-23-8A
Number of steps 5 steps, silent and auto
Motor Speed
(cooling) High rpm 1,370 1,310 1,390
Medium rpm 1,090 1,170 1,230
Low rpm 800 1,020 1,060
Silent
Operation rpm 670 930 960
Speed
(heating) High rpm 1,370 1,410 1,440
Medium rpm 1,160 1,230 1,270
Low rpm 940 1,050 1,090
Silent
Operation rpm 840 960 1,000
Fan Motor Output
(high) W23 23 23

• Indoor Units • R-410A • FTXL-G2V1B
• Split Sky Air • Indoor Units
10
2 Specifications
1
2Cooling Sound Power High dBA 58 58 59
Sound
Pressure High dBA 42 42 43
Medium dBA 34 38 39
Low dBA 26 33 34
Silent
Operation dBA 23 30 31
Heating Sound Power High dBA 58 58 60
Sound
Pressure High dBA 42 42 44
Medium dBA 36 38 39
Low dBA 29 33 34
Silent
Operation dBA 26 30 31
Refrigerant Type R-410A
Piping
connections Liquid (OD) Diameter (OD) mm 6.35 6.35 6.35
Gas Diameter
(OD) mm 9.52 9.52 12.7
Drain Diameter
(OD) mm 18 18 18
Heat Insulation Both liquid and gas pipes
Air Filter Removable/washable/Mildew proof
Air direction control Right, Left, Horizontal, Downward
Temperature control Microcomputer control
Standard
Accessories Item Titanium apatite photocatalytic air purification filter
Quantity 222
Item Operation manual
Quantity 222
Item Installation manual
Quantity 111
Item Wireless remote control
Quantity 111
Item Batteries
Quantity 222
Item Remote control holder
Quantity 111
Item Indoor unit fixing screws
Quantity 222
Item Mounting plate
Quantity 111
2-3 ELECTRICAL SPECIFICATIONS FTXL20G2V1B FTXL25G2V1B FTXL35G2V1B
Power Supply Name V1
Phase 1~
Frequency Hz 50
Voltage V 220-230-240
Current
Nominalrunning
current (RLA)
Cooling A 0.12-0.12-0.11 0.11-0.11-0.10 0.12-0.12-0.11
Heating A 0.13-0.13-0.12 0.14-0.14-0.13 0.15-0.14-0.14
Wiring
connections For Power Supply Quantity 3 3 3
Remark 4 for interunit wiring (including earth wiring)
2-2 TECHNICAL SPECIFICATIONS FTXL20G2V1B FTXL25G2V1B FTXL35G2V1B

• Split Sky Air • Indoor Units 11
• Indoor Units • R-410A • FTXL-G2V1B
3 Dimensional drawing & centre of gravity
3 - 1 Dimensional drawing 1
3
FTXL20-25G
3D058919A
Air flow (Indoor)
The mark (
→ ) shows piping direction
50 Min
Space for
maintenance
Space for
maintenance
50 Min
REQUIRED SPACE
30 Min
Space for
performance
Gas pipe Ø9.5 CuT
(The length of pipe outside the unit:
about 350)
Liquid pipe
Ø6.4 CuT
(The length of pipe outside the unit:
about 400)
Drain hose
(Connecting part
I.D.
Ø14
O.D. Ø18
The hose length of outside the
unit is approx. 465)
Wall hole for embedded piping
Ø65 hole
Wall hole
Ø65 hole
STANDARD LOCATIONS OF WALL HOLES
Right/left
(automatic)
Heating FanCooling, dry
INFRARED REMOTE CONTROL
(ARC452A3)
Signal transmitter
Model name plate
BLADE ANGLES
Left Right
Rear
Front panel
fixed screws
(inside)
Bottom Flaps Signal receiver Intelligent eye sensor
Operation lamp
Timer lamp
Intelligent eye lamp
Indoor unit ON/OFF switch
Room temp. thermistor (Inside)
Terminal block
with earth
terminal
Name plate
Including
mounting plate
Up/down
(Automatic)
FTXL35G
3D058920A
Air flow (Indoor)
The mark (
→ ) shows piping direction
50 Min
Space for
maintenance
Space for
maintenance
50 Min
REQUIRED SPACE
30 Min
Space for
performance
Gas pipe Ø12.7 CuT
(The length of pipe outside the unit:
about 350)
Liquid pipe
Ø6.4 CuT
(The length of pipe outside the unit:
about 400)
Drain hose
(Connecting part
I.D.
Ø14
O.D. Ø18
The hose length of outside the
unit is approx. 465)
Wall hole for embedded piping
Ø65 hole
Wall hole
Ø65 hole
STANDARD LOCATIONS OF WALL HOLES
Right/left
(automatic)
Heating FanCooling, dry
INFRARED REMOTE CONTROL
(ARC452A3)
Signal transmitter
Model name plate
BLADE ANGLES
Left Right
Rear
Front panel
fixed screws
(inside)
Bottom Flaps Signal receiver Intelligent eye sensor
Operation lamp
Timer lamp
Intelligent eye lamp
Indoor unit ON/OFF switch
Room temp. thermistor (Inside)
Terminal block
with earth
terminal
Name plate
Including
mounting plate
Up/down
(Automatic)

• Indoor Units • R-410A • FTXL-G2V1B
• Split Sky Air • Indoor Units
12
3 Dimensional drawing & centre of gravity
3 - 2 Centre of gravity
1
3
FTXL20-35G
4D059112A

• Split Sky Air • Indoor Units 13
• Indoor Units • R-410A • FTXL-G2V1B
4 Piping diagram
1
4
FTXL20-25G
4D058897A
AINDOOR UNIT
Heat exchanger
Thermistor on
heat exch.
Fan motor
Cross flow fan
Field piping
Field piping
9.5CuT9.5CuT
6.4CuT
Refrigerant flow
Cooling
Heating
6.4CuT
FTXL35G
4D058898A
INDOOR UNIT
Heat exchanger
Thermistor on
heat exch.
Fan motor
Cross flow fan
Field piping
Field piping
9.5CuT12.7CuT
6.4CuT
Refrigerant flow
Cooling
Heating
6.4CuT

• Indoor Units • R-410A • FTXL-G2V1B
• Split Sky Air • Indoor Units
14

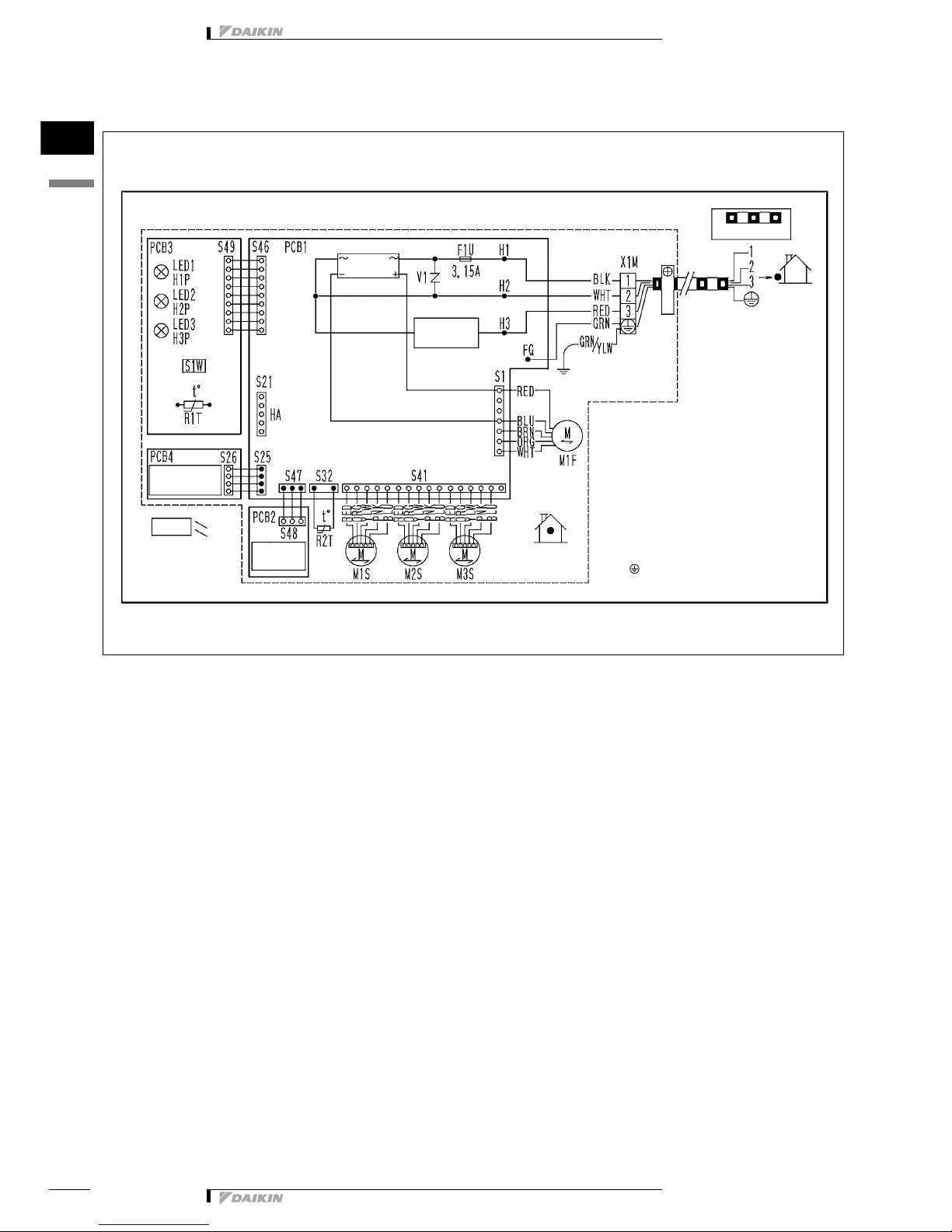

5 Wiring diagram
5 - 1 Wiring diagram
1
5FTXL20-35G
3D058246A
INFRARED
REMOTE
CONTROL
: Frame ground
: Fuse
: Pilot lamp
: Fan motor
: Swing motor
: Printed circuit board
: Thermistor
: Connector
: Operation switch
: Terminal switch
: Protective earth
RECTIFIER
TRANSMISSION
CIRCUIT
WIRING DIAGRAM
FG
F1U
H1P~H3P
M1F
M1S~M3S
PCB1~PCB4
R1T, R2T
S1~S49
S1W
X1M
CAUTION
Note that operation will restart automatically if
the main power supply is turned off and than
back on again.
FIELD WIRING
INDOOR
INTELLIGENT EYE
SENSOR
SIGNAL
RECEIVER
OUTDOOR

• Split Sky Air • Indoor Units 15
• Indoor Units • R-410A • FTXL-G2V1B
6 Sound data
6 - 1 Sound pressure spectrum 1
6
3D059557A
NOTES
1 220-240V 50 Hz
: 50 Hz 220-240V (H)
: 50 Hz 220-240V (L)
Cooling
2 Measure in anechoic room
3 Location of microphone
4 Operation noise differs with operation and ambient conditions.
Octave band sound pressure level dB(0dB=0.0002μbar)
Approximate
threshold hearing
for continuous
noise
FTXL20G
COOLING
Octave band center frequency (Hz)
1m
0.8m
3D059557A
NOTES
1 220-240V 50 Hz
: 50 Hz 220-240V (H)
: 50 Hz 220-240V (L)
Heating
2 Measure in anechoic room
3 Location of microphone
4 Operation noise differs with operation and ambient conditions.
Octave band sound pressure level dB(0dB=0.0002μbar)
Approximate
threshold hearing
for continuous
noise
FTXL20G
HEATING
Octave band center frequency (Hz)
1m
0.8m
3D059558A
NOTES
1 220-240V 50 Hz
: 50 Hz 220-240V (H)
: 50 Hz 220-240V (L)
Cooling
2 Measure in anechoic room
3 Location of microphone
4 Operation noise differs with operation and ambient conditions.
Octave band sound pressure level dB(0dB=0.0002μbar)
Approximate
threshold hearing
for continuous
noise
FTXL25G
COOLING
Octave band center frequency (Hz)
1m
0.8m
3D059558A
NOTES
1 220-240V 50 Hz
: 50 Hz 220-240V (H)
: 50 Hz 220-240V (L)
Heating
2 Measure in anechoic room
3 Location of microphone
4 Operation noise differs with operation and ambient conditions.
Octave band sound pressure level dB(0dB=0.0002μbar)
Approximate
threshold hearing
for continuous
noise
FTXL25G
HEATING
Octave band center frequency (Hz)
1m
0.8m

• Indoor Units • R-410A • FTXL-G2V1B
• Split Sky Air • Indoor Units
16
6 Sound data
6 - 1 Sound pressure spectrum
1
6
3D059559A
NOTES
1 220-240V 50 Hz
: 50 Hz 220-240V (H)
: 50 Hz 220-240V (L)
Cooling
2 Measure in anechoic room
3 Location of microphone
4 Operation noise differs with operation and ambient conditions.
Octave band sound pressure level dB(0dB=0.0002μbar)
Approximate
threshold hearing
for continuous
noise
FTXL35G
COOLING
Octave band center frequency (Hz)
1m
0.8m
3D059559A
NOTES
1 220-240V 50 Hz
: 50 Hz 220-240V (H)
: 50 Hz 220-240V (L)
Heating
2 Measure in anechoic room
3 Location of microphone
4 Operation noise differs with operation and ambient conditions.
Octave band sound pressure level dB(0dB=0.0002μbar)
Approximate
threshold hearing
for continuous
noise
FTXL35G
HEATING
Octave band center frequency (Hz)
1m
0.8m

• Split Sky Air • Outdoor Units 17
• Outdoor Units • R-410A • RXL-G2V1B
TABLE OF CONTENTS
RXL-G2V1B
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Nominal Capacity and Nominal Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3 Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cooling capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . 27
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
8 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9 Operation range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

• Outdoor Units • R-410A • RXL-G2V1B
• Split Sky Air • Outdoor Units
18
1 Features
2
1
OutdoorUni SplitSky RXL-G2V1B R-410A • Energy efficient: full range A class energy labels (COP = 4.58/EER =
4.55)
• High heating capacity: up to 6.6 kW
• Outdoor units for pair application
• Daikin outdoor units are neat and sturdy and can be mounted easily
on a roof or terrace or simply placed against an outside wall.
• Outdoorunitsarefittedwithaswingcompressor, renowned for its low
noise and high energy efficiency

• Split Sky Air • Outdoor Units 19
• Outdoor Units • R-410A • RXL-G2V1B
2 Specifications
2
2
2-1 NOMINAL CAPACITY AND NOMINAL INPUT RXL20G2V1B RXL25G2V1B RXL35G2V1B
For combination
indoor units +
outdoor units
Indoor Units FTXL20G2V1B FTXL25G2V1B FTXL35G2V1B
Cooling capacity Minimum kW 1.4 1.7 1.7
Btu/h 4,800 5,800 5,800
Kcal/h 1,200 1,460 1,460
Standard kW 2.0 2.5 3.5
Btu/h 6,800 8,500 11,900
Kcal/h 1,720 2,150 3,010
Maximum kW 4.0 5.0 5.3
Btu/h 13,600 17,100 18,100
Kcal/h 3,440 4,300 4,560
Heating capacity Minimum kW 1.4 1.7 1.7
Btu/h 4,800 5,800 5,800
Kcal/h 1,200 1,460 1,460
Standard kW 2.7 3.4 4.0
Btu/h 9,200 11,600 13,600
Kcal/h 2,320 2,920 3,440
Maximum kW 5.2 6.0 6.6
Btu/h 17,700 20,500 22,500
Kcal/h 4,470 5,160 5,680
Power Input Cooling Minimum kW 0.35 0.44 0.44
Standard kW 0.45 0.55 0.87
Maximum kW 1.19 2.23 1.81
Heating Minimum kW 0.34 0.40 0.40
Standard kW 0.59 0.77 0.92
Maximum kW 1.46 1.98 2.01
For combination
indoor units +
outdoor units
EER Nominal 4.44 4.55 4.02
COP Nominal 4.58 4.42 4.35
Energy Label Cooling A
Heating A
Annual energy consumption kWh 225 275 435
2-2 TECHNICAL SPECIFICATIONS RXL20G2V1B RXL25G2V1B RXL35G2V1B
Casing Colour Ivory White
Dimensions Unit Height mm 550 550 735
Width mm 765 765 825
Depth mm 285 285 300
Packing Height mm 612 612 797
Width mm 906 906 960
Depth mm 364 364 390
Weight Unit kg 34 39 48
Packed Unit kg 40 45 53
Heat Exchanger Dimensions Length mm 805 810 845
Nr of Rows 2 2 2
Fin Pitch mm 1.4 1.5 1.8
Nr of Stages 24 24 32
Tube type Hi-Xa(7)
Fin Type Waffle fin
Treatment Anti-corrosion treatment (PE)

• Outdoor Units • R-410A • RXL-G2V1B
• Split Sky Air • Outdoor Units
20
2 Specifications
2
2
Fan Type Propeller
Air Flow Rate
Cooling (Low) m³/min 31.4 30.6 48.9
Cooling (High) m³/min 36.0 37.3 50.9
Heating (Low) m³/min 22.6 27.2 43.1
Heating (High) m³/min 30.2 31.3 45.0
Cooling (Low) cfm 1,109 1,079 1,727
Cooling (High) cfm 1,272 1,317 1,797
Heating (Low) cfm 798 959 1,522
Heating (High) cfm 1,066 1,107 1,589
Motor Model D50Q-28 D50R-28 KFD-380-50-8C
Motor Speed (nominal)
Cooling (Low) rpm 810 790 670
Cooling (High) rpm 920 890 780
Heating (Low) rpm 660 780 670
Heating (High) rpm 860 890 720
Fan Motor Output W 50 50 53
Compressor Motor Model 1YC23AFXD#C 2YC36BXD#C 2YC36BXD#C
Type Hermetically sealed swing compressor
Motor Output W 600 1,100 1,100
Operation Range Cooling Min °CDB -10 -10 -10
Max °CDB 46 46 46
Heating Min °CWB -20 -20 -20
Max °CWB 20 20 20
Sound Level
(nominal) Cooling
Sound Power dBA 63 63 62
Sound
Pressure (Low)
dBA 44 44 44
Sound
Pressure(High)
dBA 48 48 48
Heating
Sound
Pressure (Low)
dBA 45 45 45
Sound
Pressure(High)
dBA 48 48 48
Refrigerant Type R-410A
Charge kg 1.2 1.3 1.7
Refrigerant Oil Type FVC50K
Charged Volume l 0.375 0.650 0.650
Piping connections Liquid (OD)
Diameter (OD) mm 6.35 6.35 6.35
Gas
Diameter (OD) mm 9.52 9.52 12.7
Drain
Diameter (OD) mm 18 18 18
Piping Length Maximum m 20 20 20
Chargeless m 10 10 10
Additional Refrigerant Charge kg/m 0.02/>10m
Installation height
difference Maximum m 15 15 15
Heat Insulation Both liquid and gas pipes
Standard
Accessories Item Installation manual
Quantity 2 2 2
Notes Nominal cooling capacities are based on: indoor temperature: 27°CDB, 19.0°CWB; outdoor
temperature: 35°CDB, 24°CWB, refr.pip.length: 5m
Nominalheatingcapacitiesarebasedon:indoortemperature:20°CDB;outdoortemperature:7°CDB,
6°CWB, refr.pip.length: 5m
2-2 TECHNICAL SPECIFICATIONS RXL20G2V1B RXL25G2V1B RXL35G2V1B

• Split Sky Air • Outdoor Units 21
• Outdoor Units • R-410A • RXL-G2V1B
2 Specifications
2
2
2-3 ELECTRICAL SPECIFICATIONS RXL20G2V1B RXL25G2V1B RXL35G2V1B
Power Supply Name V1
Phase 1~
Frequency Hz 50 50 50
Voltage V 220-230-240
Current Nominal running
current (RLA) Cooling (A) A 2.38-2.28-2.19 2.99-2.89-2.80 3.98-3.78-3.59
Heating (A) A 2.97-2.87-2.78 4.16-3.96-3.77 4.15-3.96-3.76
Starting current (cooling/heating) A 4.8 7.4 7.3
Wiring connections For Power Supply Quantity 3 3 3
For connection with
indoor Quantity 4 4 4
Remark (including earth wiring)
