Daikin RXS-L3 Instruction manual

Split
Air Conditioning
Technical Data
RXS-L3

• Split - Sky Air • RXS-L3 1
• Outdoor Unit • RXS-L3
TABLE OF CONTENTS
RXS-L3
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Capacity and Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Capacity and Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Capacity and Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Capacity and Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Capacity and Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Capacity and Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Capacity and Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Capacity and Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Capacity and Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Capacity and Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3 Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cooling/Heating Capacity Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6 Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
10 Operation range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

• Outdoor Unit • RXS-L3
1
• Split - Sky Air • RXS-L3
2

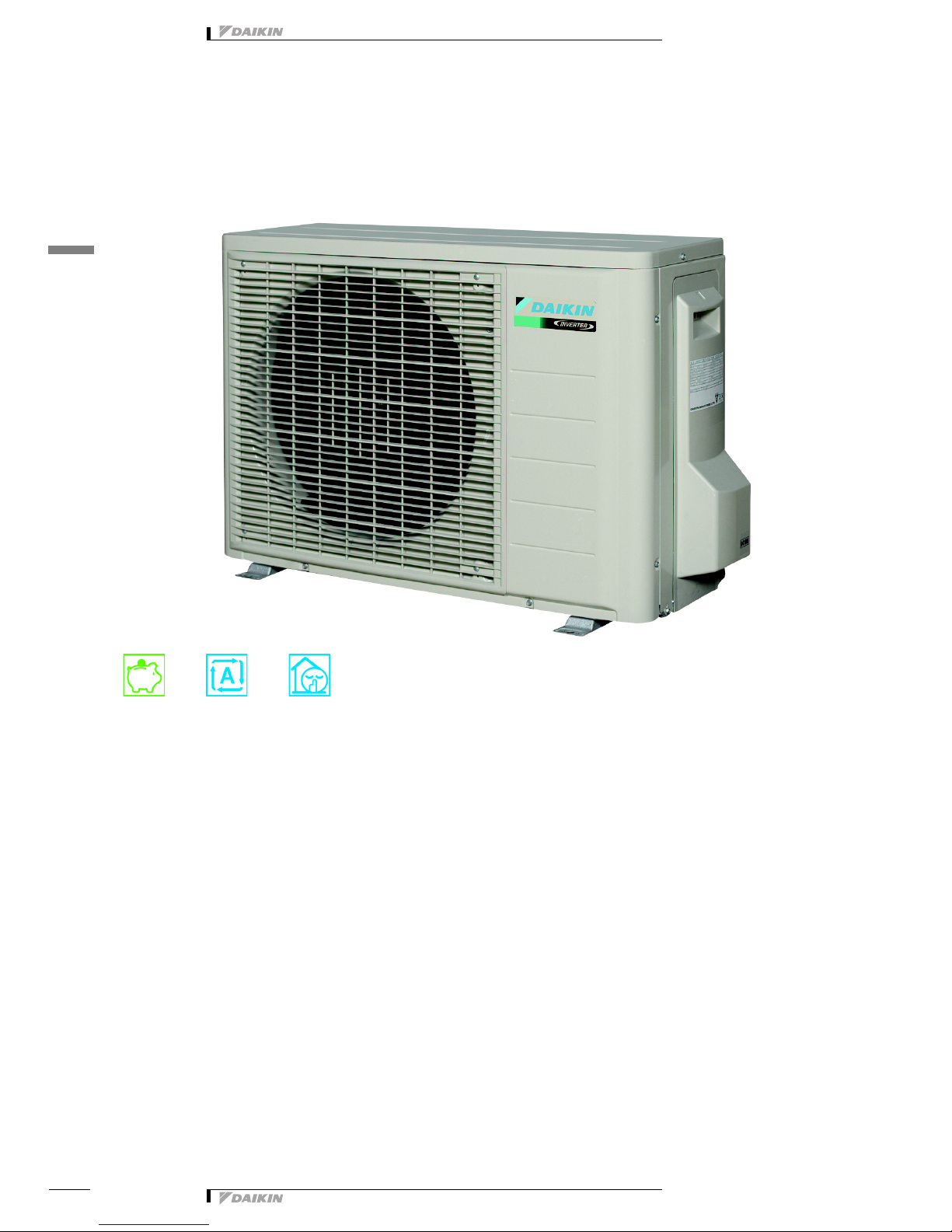

1 Features
OutdoorUni Split-Sk RXS-L3 • Outdoor unit silent operation: "silent" button on the remote control
lowers the operation sound of the outdoor unit by 3dBA to ensure a
quiet environment for the neighbourhood.
• Anti-corrosion treated outdoor heat exchanger fin
• Daikin outdoor units are neat, sturdy and can easily be mounted on a
roof or terrace or simply placed against an outside wall
• Outdoor units are fitted with a swing compressor, renowned for its low
noise and high energy efficiency
• Outdoor units for pair application
Energy saving
during standby
mode
Auto cooling-
heating
changeover
Outdoor unit
silent operation

3
2
• Split - Sky Air • RXS-L3 3
• Outdoor Unit • RXS-L3
2 Specifications
Notes
(1) Nominal efficiency: cooling at 35°/27° nominal load, heating at 7°/20° nominal load
(2) 220V
(3) 230V
(4) 240V
(5) EER/COP according to Eurovent 2012, for use outside EU only
2-1 Capacity and Power input FFQ25C/RXS25L3 FFQ35C/RXS35L3
Indoor unit FFQ25C FFQ35C
Outdoor unit RXS25L3 RXS35L3
Cooling capacity Min. kW 1.4
Btu/h 4,770
kcal/h 1,200
Nom. kW 2.50 (1) 3.4 (1)
Btu/h 8,530 (1) 11,590 (1)
kcal/h 2,150 (1) 2,920 (1)
Max. kW 4.0
Btu/h 13,640
kcal/h 3,440 3,440.0
Heating capacity Min. kW 1.3
Btu/h 4,430
kcal/h 1,120
Nom. kW 3.20 (1) 4.20 (1)
Btu/h 10,920 (1) 14,320 (1)
kcal/h 2,750 (1) 3,610 (1)
Max. kW 5.1
Btu/h 17,390
kcal/h 4,380
Power input Cooling Min. kW 0.360
Nom. kW 0.551 (1) 0.899 (1)
Max. kW 1.470
Heating Min. kW 0.300
Nom. kW 0.820 (1) 1.200 (1)
Max. kW 1.650
Seasonal efficiency
(according to
EN14825)
Cooling Energy label A++
Pdesign kW 2.50 3.40
SEER 6.11 6.32
Annual energy
consumption
kWh 143 188
Heating (Average
climate)
Energy label A+
Pdesign kW 2.31 3.10
SCOP/A 4.24 4.10
Annual energy
consumption
kWh 763 1,059
Piping connections Liquid OD mm 6.35
Gas OD mm 9.5
Drain OD mm VP20 (External dia.26 / Internal dia. 20)
Heat insulation Both liquid and gas pipes
Current Nominal running
current (RLA) - 50Hz
Cooling A 4.13 (2) / 3.94 (3) / 3.74 (4) 4.10 (2) / 3.91 (3) / 3.71 (4)
Heating A 5.60 (2) / 5.40 (3) / 5.10 (4)
Nominal efficiency EER 4.53 (5) 3.78 (5)
COP 3.90 (5) 3.50 (5)
Annual energy consumption kWh 276 450
Energy label Cooling A
Heating A

• Outdoor Unit • RXS-L3
2
• Split - Sky Air • RXS-L3
4
2 Specifications
Notes
(1) Nominal efficiency: cooling at 35°/27° nominal load, heating at 7°/20° nominal load
(2) 220V
(3) 230V
(4) 240V
(5) EER/COP according to Eurovent 2012, for use outside EU only
2-2 Capacity and Power input FCQG35F/RXS35L3
Indoor unit FCQG35F
Outdoor unit RXS35L3
Cooling capacity Min. kW 1.3
Btu/h 4,430
kcal/h 1,120
Nom. kW 3.4 (1)
Btu/h 11,590 (1)
kcal/h 2,920 (1)
Max. kW 4.0
Btu/h 13,640
kcal/h 3,440
Heating capacity Min. kW 1.3
Btu/h 4,430
kcal/h 1,120
Nom. kW 4.20 (1)
Btu/h 14,320 (1)
kcal/h 3,610 (1)
Max. kW 5.2
Btu/h 17,730
kcal/h 4,470
Power input Cooling Min. kW 0.400
Nom. kW 0.909 (1)
Max. kW 1.100
Heating Min. kW 0.230
Nom. kW 1.200 (1)
Max. kW 1.840
Seasonal efficiency
(according to
EN14825)
Cooling Energy label A++
Pdesign kW 3.50
SEER 6.35
Annual energy
consumption
kWh 193
Heating (Average
climate)
Energy label A++
Pdesign kW 3.32
SCOP/A 4.90
Annual energy
consumption
kWh 949
Piping connections Liquid OD mm 6.35
Gas OD mm 9.5
Drain OD mm VP25 (External dia.32 / internal dia. 25)
Heat insulation Both liquid and gas pipes
Current Nominal running
current (RLA) - 50Hz
Cooling A 4.02 (2) / 3.83 (3) / 3.64 (4)
Heating A 5.40 (2) / 5.10 (3) / 4.90 (4)
Nominal efficiency EER 3.74 (5)
COP 3.50 (5)
Annual energy consumption kWh 455
Energy label Cooling A
Heating B

3
2
• Split - Sky Air • RXS-L3 5
• Outdoor Unit • RXS-L3
2 Specifications
Notes
(1) Nominal efficiency: cooling at 35°/27° nominal load, heating at 7°/20° nominal load
(2) EER/COP according to Eurovent 2012, for use outside EU only
2-3 Capacity and Power input FBQ35D/RXS35L3
Indoor unit FBQ35D
Outdoor unit RXS35L3
Cooling capacity Nom. kW 3.4 (1)
Heating capacity Nom. kW 4.00 (1)
Power input Cooling Nom. kW 0.85 (1)
Heating Nom. kW 1.00 (1)
Seasonal efficiency
(according to
EN14825)
Cooling Energy label A++
Pdesign kW 3.40
SEER 6.17
Annual energy
consumption
kWh 193
Heating (Average
climate)
Energy label A+
Pdesign kW 2.90
SCOP/A 4.07
Annual energy
consumption
kWh 998
Nominal efficiency EER 3.99 (2)
COP 4.02 (2)
Annual energy consumption kWh 426
Energy label Cooling A
Heating A
2-4 Capacity and Power input FDXS25F/RXS25L3 FDXS35F/RXS35L3
Indoor unit FDXS25F FDXS35F
Outdoor unit RXS25L3 RXS35L3
Cooling capacity Min. kW 1.3 1.4
Btu/h 4,400 4,800
kcal/h 1,110 1,200
Nom. kW 2.4 (1) 3.4 (1)
Btu/h 8,150 (1) 11,500 (1)
kcal/h 2,060 (1) 2,920 (1)
Max. kW 3.0 3.8
Btu/h 10,200 13,000
kcal/h 2,580 3,260
Heating capacity Min. kW 1.3 1.4
Btu/h 4,400 4,800
kcal/h 1,110 1,200
Nom. kW 3.2 (1) 4.0 (1)
Btu/h 10,900 (1) 13,600 (1)
kcal/h 2,750 (1) 3,440 (1)
Max. kW 4.5 5.0
Btu/h 15,350 17,100
kcal/h 3,870 4,300
Power input Cooling Nom. kW 0.641 (1) 1.148 (1)
Heating Nom. kW 0.800 (1) 1.150 (1)

• Outdoor Unit • RXS-L3
2
• Split - Sky Air • RXS-L3
6
2 Specifications
Notes
(1) Nominal efficiency: cooling at 35°/27° nominal load, heating at 7°/20° nominal load
(2) EER/COP according to Eurovent 2012, for use outside EU only
Seasonal efficiency
(according to
EN14825)
Cooling Energy label A+ A
Pdesign kW 2.40 3.40
SEER 5.63 5.21
Annual energy
consumption
kWh 149 228
Heating (Average
climate)
Energy label A+ A
Pdesign kW 2.60 2.90
SCOP/A 4.24 3.88
Annual energy
consumption
kWh 858 1,047
Piping connections Liquid OD mm 6.35
Gas OD mm 9.5
Drain OD mm VP20 (External dia.26 / Internal dia. 20)
Heat insulation Both liquid and gas pipes
Current Nominal running
current (RLA) - 50Hz
Cooling A 3.85 5.31
Heating A 4.20 5.40
Nominal efficiency EER 3.74 (2) 2.96 (2)
COP 4.00 (2) 3.48 (2)
Annual energy consumption kWh 321 574
Energy label Cooling A B
Heating A
2-5 Capacity and Power input FVXS25F/RXS25L3 FVXS35F/RXS35L3
Indoor unit FVXS25F FVXS35F
Outdoor unit RXS25L3 RXS35L3
Cooling capacity Min. kW 1.3 1.4
Btu/h 4,400 4,800
kcal/h 1,120 1,200
Nom. kW 2.5 (1) 3.5 (1)
Btu/h 8,500 (1) 11,900 (1)
kcal/h 2,150 (1) 3,010 (1)
Max. kW 3.0 3.8
Btu/h 10,200 13,000
kcal/h 2,580 3,270
Heating capacity Min. kW 1.3 1.4
Btu/h 4,400 4,800
kcal/h 1,120 1,200
Nom. kW 3.4 (1) 4.5 (1)
Btu/h 11,600 (1) 15,400 (1)
kcal/h 2,920 (1) 3,870 (1)
Max. kW 4.5 5.0
Btu/h 15,400 17,100
kcal/h 3,870 4,300
Power input Cooling Min. kW 0.300
Nom. kW 0.606 (1) 1.060 (1)
Max. kW 0.920 1.250
Heating Min. kW 0.290 0.310
Nom. kW 0.770 (1) 1.190 (1)
Max. kW 1.390 1.880
2-4 Capacity and Power input FDXS25F/RXS25L3 FDXS35F/RXS35L3

3
2
• Split - Sky Air • RXS-L3 7
• Outdoor Unit • RXS-L3
2 Specifications
Notes
(1) Nominal efficiency: cooling at 35°/27° nominal load, heating at 7°/20° nominal load
(2) 220V
(3) 230V
(4) 240V
(5) EER/COP according to Eurovent 2012, for use outside EU only
Seasonal efficiency
(according to
EN14825)
Cooling Energy label A+
Pdesign kW 2.50 3.50
SEER 5.74 5.60
Annual energy
consumption
kWh 152 219
Heating (Average
climate)
Energy label A+ A
Pdesign kW 2.60 2.90
SCOP/A 4.56 3.93
Annual energy
consumption
kWh 798 1,033
Piping connections Liquid OD mm 6.35
Gas OD mm 9.5
Drain OD mm 20.0
Heat insulation Both liquid and gas pipes
Current Nominal running
current (RLA) - 50Hz
Cooling A 3.72 (2) / 3.51 (3) / 3.40 (4) 5.09 (2) / 4.88 (3) / 4.68 (4)
Heating A 4.50 (2) / 4.30 (3) / 4.10 (4) 5.90 (2) / 5.60 (3) / 5.40 (4)
Nominal efficiency EER 4.12 (5) 3.30 (5)
COP 4.42 (5) 3.78 (5)
Annual energy consumption kWh 303 530
Energy label Cooling A
Heating A
2-6 Capacity and Power input FLXS25B/RXS25L3
Indoor unit FLXS25B
Outdoor unit RXS25L3
Cooling capacity Min. kW 1.2
Btu/h 4,100
kcal/h 1,030
Nom. kW 2.5 (1)
Btu/h 8,500 (1)
kcal/h 2,150 (1)
Max. kW 3.0
Btu/h 10,200
kcal/h 2,580
Heating capacity Min. kW 1.2
Btu/h 4,100
kcal/h 1,030
Nom. kW 3.4 (1)
Btu/h 11,600 (1)
kcal/h 2,920 (1)
Max. kW 4.5
Btu/h 15,400
kcal/h 3,870
Power input Cooling Min. kW 0.300
Nom. kW 0.668 (1)
Max. kW 0.860
Heating Min. kW 0.290
Nom. kW 0.960 (1)
Max. kW 1.490
2-5 Capacity and Power input FVXS25F/RXS25L3 FVXS35F/RXS35L3

• Outdoor Unit • RXS-L3
2
• Split - Sky Air • RXS-L3
8
2 Specifications
Notes
(1) Nominal efficiency: cooling at 35°/27° nominal load, heating at 7°/20° nominal load
(2) 220V
(3) 230V
(4) 240V
(5) EER/COP according to Eurovent 2012, for use outside EU only
Seasonal efficiency
(according to
EN14825)
Cooling Energy label A
Pdesign kW 2.50
SEER 5.19
Annual energy
consumption
kWh 169
Heating (Average
climate)
Energy label A
Pdesign kW 2.50
SCOP/A 3.80
Annual energy
consumption
kWh 921
Piping connections Liquid OD mm 6.35
Gas OD mm 9.5
Drain OD mm 18.0
Heat insulation Both liquid and gas pipes
Current Nominal running
current (RLA) - 50Hz
Cooling A 3.80 (2) / 3.70 (3) / 3.49 (4)
Heating A 4.70 (2) / 4.50 (3) / 4.30 (4)
Nominal efficiency EER 3.74 (5)
COP 3.54 (5)
Annual energy consumption kWh 334
Energy label Cooling A
Heating B
2-7 Capacity and Power input FLXS35B9/RXS35L3
Indoor unit FLXS35B9
Outdoor unit RXS35L3
Cooling capacity Min. Btu/h 4,100
kcal/h 1,030
Nom. kW 3.5 (1)
Btu/h 11,900 (1)
kcal/h 3,010 (1)
Max. Btu/h 13,000
kcal/h 3,270
Heating capacity Min. kW 1.4
Btu/h 4,100
kcal/h 1,030
Nom. kW 4.0 (1)
Btu/h 13,600 (1)
kcal/h 3,440 (1)
Max. kW 5.0
Btu/h 17,100
kcal/h 4,300
Power input Cooling Min. kW 0.300
Nom. kW 1.215 (1)
Max. kW 1.260
Heating Min. kW 0.290
Nom. kW 1.120 (1)
Max. kW 1.850
2-6 Capacity and Power input FLXS25B/RXS25L3

3
2
• Split - Sky Air • RXS-L3 9
• Outdoor Unit • RXS-L3
2 Specifications
Notes
(1) Nominal efficiency: cooling at 35°/27° nominal load, heating at 7°/20° nominal load
(2) 220V
(3) 230V
(4) 240V
(5) EER/COP according to Eurovent 2012, for use outside EU only
Notes
(1) EER/COP according to Eurovent 2012, for use outside EU only
Nominal efficiency: cooling at 35°/27° nominal load, heating at 7°/20° nominal load
Seasonal efficiency
(according to
EN14825)
Cooling Energy label B
Pdesign kW 3.50
SEER 4.87
Annual energy
consumption
kWh 252
Heating (Average
climate)
Energy label A
Pdesign kW 2.90
SCOP/A 3.80
Annual energy
consumption
kWh 1,068
Piping connections Liquid OD mm 6.35
Gas OD mm 9.5
Drain OD mm 18.0
Heat insulation Both liquid and gas pipes
Current Nominal running
current (RLA) - 50Hz
Cooling A 5.70 (2) / 5.49 (3) / 5.27 (4)
Heating A 5.60 (2) / 5.30 (3) / 5.10 (4)
Nominal efficiency EER 2.88 (5)
COP 3.57 (5)
Annual energy consumption kWh 608
Energy label Cooling B
Heating A
2-8 Capacity and Power input FNQ25A/RXS25L3 FNQ35A/RXS35L3
Cooling capacity Nom. kW 2.6 3.4
Heating capacity Nom. kW 3.20 4.00
Power input Cooling Nom. kW 0.69 1.11
Heating Nom. kW 0.80 1.15
Seasonal efficiency
(according to
EN14825)
Cooling Energy label A+
Pdesign kW 2.60 3.40
SEER 5.63 5.65
Annual energy
consumption
kWh 162 211
Heating (Average
climate)
Energy label A+
Pdesign kW 2.80 2.90
SCOP/A 4.24 4.05
Annual energy
consumption
kWh 925 1,002
Nominal efficiency EER 3.77 (1) 3.06 (1)
COP 4.00 (1) 3.48 (1)
Annual energy consumption kWh 345 556
Energy label Cooling A B
Heating A B
2-7 Capacity and Power input FLXS35B9/RXS35L3

• Outdoor Unit • RXS-L3
2
• Split - Sky Air • RXS-L3
10
2 Specifications
Notes
(1) Nominal efficiency: cooling at 35°/27° nominal load, heating at 7°/20° nominal load
(2) EER/COP according to Eurovent 2012, for use outside EU only
2-9 Capacity and Power input FHQ35CB/RXS35L3
Cooling capacity Nom. kW 3.4
Heating capacity Nom. kW 4.00 (1)
Power input Cooling Nom. kW 0.92 (1)
Heating Nom. kW 0.980 (1)
Seasonal efficiency
(according to
EN14825)
Cooling Pdesign kW 3.40
SEER 6.18
Annual energy
consumption
kWh 193
Heating (Average
climate)
Pdesign kW 3.10
SCOP/A 4.43
Annual energy
consumption
kWh 981
Eurovent Sound power level
outdoor
Cooling Nom. dBA 61
Sound power level
indoor
Cooling Nom. dBA 53
Nominal efficiency EER 3.70 (2)
COP 4.08 (2)
Annual energy consumption kWh 459 (1)
2-10 Capacity and Power input FTXS20K/RXS20L3 FTXS25K/RXS25L3 FTXS35K/RXS35L3
Indoor unit FTXS20K FTXS25K FTXS35K
Outdoor unit RXS20L3 RXS25L3 RXS35L3
Cooling capacity Min. kW - 1.4
Btu/h 4,400 4,800
kcal/h 1,120 1,200
Nom. kW 2.00 (1) 2.5 (1) 3.5 (1)
Btu/h 6,800 (1) 8,500 (1) 11,900 (1)
kcal/h 1,720 (1) 2,150 (1) 3,010 (1)
Max. kW - 4.0
Btu/h 9,600 10,900 13,600
kcal/h 2,410 2,750 3,440
Heating capacity Min. kW 1.3 1.4
Btu/h 4,400 4,800
kcal/h 1,120 1,200
Nom. kW 2.5 (1) 2.8 (1) 4.00 (1)
Btu/h 8,500 (1) 9,600 (1) 13,600 (1)
kcal/h 2,150 (1) 2,410 (1) 3,440 (1)
Max. kW 4.3 4.7 5.2
Btu/h 14,700 16,000 17,700
kcal/h 3,700 4,040 4,470
Power input Cooling Min. kW 0.320 0.350
Nom. kW 0.455 (1) 0.593 (1) 0.860 (1)
Max. kW 0.760 1.000 1.190
Heating Min. kW 0.310 0.340
Nom. kW 0.530 (1) 0.600 (1) 0.840 (1)
Max. kW 1.120 1.410 1.460

3
2
• Split - Sky Air • RXS-L3 11
• Outdoor Unit • RXS-L3
2 Specifications
Notes
(1) Nominal efficiency: cooling at 35°/27° nominal load, heating at 7°/20° nominal load
(2) 220V
(3) 230V
(4) 240V
(5) EER/COP according to Eurovent 2012, for use outside EU only
Seasonal efficiency
(according to
EN14825)
Cooling Energy label A++
Pdesign kW 2.00 2.50 3.50
SEER 7.40 7.90 7.47
Annual energy
consumption
kWh 95 111 164
Heating (Average
climate)
Energy label A++
Pdesign kW 2.30 2.50 3.60
SCOP/A 4.77 4.78 4.85
Annual energy
consumption
kWh 675 732 1,039
Piping connections Liquid OD mm 6.35
Gas OD mm 9.5
Drain OD mm 18
Heat insulation Both liquid and gas pipes
Current Nominal running
current (RLA) - 50Hz
Cooling A 2.54 (2) / 2.43 (3) / 2.33 (4) 3.33 (2) / 3.23 (3) / 3.12 (4) 4.60 (2) / 4.39 (3) / 4.18 (4)
Heating A 2.80 (2) / 2.70 (3) / 2.60 (4) 3.30 (2) / 3.20 (3) / 3.10 (4) 4.30 (2) / 4.10 (3) / 3.90 (4)
Nominal efficiency EER 4.39 (5) 4.21 (5) 3.89 (5)
COP 4.72 (5) 4.67 (5) 4.76 (5)
Annual energy consumption kWh 228 297 450
Energy label Cooling A
Heating A
2-11 Technical Specifications RXS20L3 RXS25L3 RXS35L3
Capacity control Method Inverter controlled
Casing Colour Ivory white
Dimensions Unit Height mm 550
Width mm 765
Depth mm 285
Packed unit Height mm 612
Width mm 906
Depth mm 364
Weight Unit kg 34
Packed unit kg 37
Packing Weight kg 3
Heat exchanger Length mm 805
Rows Quantity 2
Fin pitch mm 1.4
Stages Quantity 24
Tube type ø7 Hi-XD
Fin Type Waffle louvered fin
Compressor Model 1YC23AWXDC
Type Hermetically sealed swing compressor
Output W 600
2-10 Capacity and Power input FTXS20K/RXS20L3 FTXS25K/RXS25L3 FTXS35K/RXS35L3

• Outdoor Unit • RXS-L3
2
• Split - Sky Air • RXS-L3
12
2 Specifications
Standard Accessories : Drain plug; Quantity : 1;
Standard Accessories : Installation manual; Quantity : 1;
Standard Accessories : Refrigerant charge label; Quantity : 1;
Standard Accessories : Multilingual fluorinated greenhouse gases labels; Quantity : 1;
Standard Accessories : Drain plug (only heat pump models); Quantity : 1;
Fan Type Propeller fan
Air flow rate Cooling High m³/min 33.5 36.0
cfm 1,183 1,271
Super
low
m³/min 30.1
cfm 1,063
Heating High m³/min 28.3
cfm 999
Super
low
m³/min 25.6
cfm 904
Fan motor Model ARW34W8P50DA
Output W 50
Speed Cooling High rpm 860 920
Super
low
rpm 780
Heating High rpm 860
Super
low
rpm 740
Sound power level Cooling dBA 59 61
Heating dBA 58 59 61
Sound pressure level Cooling High dBA 46 48
Silent operation dBA 43 44
Heating High dBA 47 48
Silent operation dBA 44 45
Operation range Cooling Ambien
t
Min. °CDB -10
Max. °CDB 46
Heating Ambien
t
Min. °CWB -15
Max. °CWB 18
Refrigerant Type R-410A
Charge kg 1.0 1.2
TCO2eq 2.1 2.5
GWP 2,087.5
Piping connections Liquid OD mm 6.35
Gas OD mm 9.5
Drain ID mm -
OD mm 18 -
Piping length OU - IU Max. m 20
System Chargel
ess
m10
Additional refrigerant charge kg/m 0.02 (for piping length exceeding 10m)
Level difference IU - OU Max. m 15
Heat insulation Both liquid and gas pipes
Refrigerant oil Type FVC50K
Charged volume l 0.375
2-12 Electrical Specifications RXS20L3 RXS25L3 RXS35L3
Power supply Name V1
Phase 1~
Frequency Hz 50
Voltage V 220-240
Current - 50Hz Maximum fuse amps (MFA) A 10 -
2-11 Technical Specifications RXS20L3 RXS25L3 RXS35L3

3
2
• Split - Sky Air • RXS-L3 13
• Outdoor Unit • RXS-L3
2 Specifications
Notes
(1) 220V
(2) 230V
(3) 240V
SL: The silent fan level of the air flow rate setting
Current Nominal running
current (RLA)
Cooling A 2.42 (1) / 2.31 (2) / 2.22 (3) -
Heating A 2.61 (1) / 2.52 (2) / 2.43 (3) -
Starting current Cooling A 2.4 3.3 4.3
Heating A 2.4 3.3 4.3
Current - 60Hz Maximum fuse amps (MFA) A -
2-12 Electrical Specifications RXS20L3 RXS25L3 RXS35L3

• Outdoor Unit • RXS-L3
3
• Split - Sky Air • RXS-L3
14
3 Electrical data
3 - 1 Electrical Data
AB C MCAMFARHzRLAkWFLAkWFLA
50 220 MAX.50Hz264V
2
,
30 0
,
24 0
,
19
50 230
2
,
20 0
,
23 0
,
18
50 240
2
,
10 0
,
22 0
,
17
50 220 MAX.50Hz264V
2
,
82 0
,
24 0
,
19
50 230
2
,
70 0
,
23 0
,
18
50 240
2
,
59 0
,
22 0
,
17
50 220 MAX.50Hz264V
2
,
93
50 230
2
,
80
50 240
2
,
68
50 220 MAX.50Hz264V
2
,
61
50 230
2
,
50
50 240
2
,
40
50 220 MAX.50Hz264V
4
,
29
50 230
4
,
10
50 240
3
,
93
50 220
2
,
60
50 230
2
,
50
50 240
2
,
30
OFM
IFM
FLA
kW
RHz
COMP OFM IFM
0,023 0,016
MIN.50Hz198V
FTXS25K3V1B RXS25L3V1B
81047
0,023 0,016
FTXS20K3V1B RXS20L3V1B
81035
MIN.50Hz198V
FVXS25FV1B RXS25L3V1B
9,75 10
FLXS25BAVMB RXS25L3V1B
9,75 10 50
0,023 0,23 0,048 0,05
MIN.50Hz198V
48
0,023 0,23 0,034 0,34
MIN.50Hz198V
2
0,031 0,2 0,034 0,3
MIN.50Hz198V
FFQ25C2VEB RXS25L3V1B
MAX.50Hz264V
MIN.50Hz198V
9,75 10
FDXS25F2VEB RXS25L3V1B
9,75 16 54
0,023 0,23 0,050 0,3
1
MCA
MFA
RLA
3
4
A
B
C
Voltagerange
Voltage
Hz
Outdoor
Indoor
Unitcombinationrestrictions Powersupply
Symbols
MinimumCircuitAmpere(A)
MaximumFuseAmpere(A)
Ratedloadamps[A]
Outdoorfanmotor
Indoorfanmotor
FullLoadAmpere(A)
Fanmotorratedoutput[kW]
Notes
TheRLAisbasedonthefollowingconditions.
Indoortemperature27°CDB/19°CWB
Outdoortemperature35°CDB
SelectthewiresizeaccordingtotheMCA.
Useacircuitbreakerinsteadofafuse.
Ratedoperatingfrequency[Hz]
Themaximumallowablevoltagethatisunbalancedbetweenphasesis2%.
RXS20Ͳ25L3
3D092002A
1 2 3 MCA MFA RHz RLA kW FLA kW FLA
OFM
IFM
FLA
kW
RHz
COMP
MCA
MFA
RLA
3
4
༃
༄
༅
1
2
㻜㻘㻞㻞
㻠㻘㻝 㻜㻘㻜㻟㻝 㻜㻘㻞
㻜㻘㻜㻟㻠 㻜㻘㻟
㻲㻺㻽㻟㻡㻭㻞㼂㻱㻮 㻾㼄㻿㻟㻡㻸㻟㼂㻝㻮 㻥㻜 㻡㻘㻡 㻜㻘㻜㻟㻡
㻲㻺㻽㻞㻡㻭㻞㼂㻱㻮 㻾㼄㻿㻞㻡㻸㻟㼂㻝㻮
㻡㻜 㻞㻞㻜㻙
㻞㻠㻜㼂
㻹㻭㼄㻚㻌㻡㻜㻴㼦㻌
㻞㻢㻠㼂
㻹㻵㻺㻚㻌㻡㻜㻴㼦㻌
㻝㻥㻤㼂
㻝㻞 㻝㻢
㻡㻠
COMP OFM IFM
Voltagerange
Voltage
Hz
Outdoor
Indoor
Unitcombinationrestrictions Powersupply
Symbols
MinimumCircuitAmpere(A)
MaximumFuseAmpere(A)
Ratedloadamps[A]
Outdoorfanmotor
Indoorfanmotor
FullLoadAmpere(A)
Fanmotorratedoutput[kW]
Notes
TheRLAisbasedonthefollowingconditions.
Indoortemperature27°CDB/19°CWB
Outdoortemperature35°CDB
SelectthewiresizeaccordingtotheMCA.
Useacircuitbreakerinsteadofafuse.
Ratedoperatingfrequency[Hz]
Themaximumallowablevoltagethatisunbalancedbetweenphasesis2%.
Compressor
RXS25Ͳ35L3
3D096315C

3
3
• Split - Sky Air • RXS-L3 15
• Outdoor Unit • RXS-L3
3 Electrical data
3 - 1 Electrical Data
12 3 MCAMFARHzRLAkWFLAkWFLA
OFM
IFM
FLA
kW
RHz
COMP
༅
MCA
MFA
RLA
2
3
4
༃
༄
1
㻜㻘㻜㻤㻥 㻜㻘㻢㻝㻡 㻝㻢 㻢㻟 㻟㻘㻝 㻜㻘㻜㻞㻟 㻜㻘㻞㻟
COMP OFM IFM
㻲㻮㻽㻟㻡㻰㻞㼂㻱㻮 㻾㼄㻿㻟㻡㻸㻟㼂㻝㻮 㻡㻜 㻞㻞㻜㻙
㻞㻠㻜㼂
㻹㻭㼄㻚㻌㻡㻜㻴㼦㻌㻞㻢㻠㼂
㻹㻵㻺㻚㻌㻡㻜㻴㼦㻌㻝㻥㻤㼂
Voltagerange
Voltage
Hz
Outdoor
Indoor
Unitcombinationrestrictions Powersupply
Symbols
MinimumCircuitAmpere(A)
MaximumFuseAmpere(A)
Ratedloadamps[A]
Outdoorfanmotor
Indoorfanmotor
FullLoadAmpere(A)
Fanmotorratedoutput[kW]
Notes
TheRLAisbasedonthefollowingconditions.
Indoortemperature27°CDB/19°CWB
Outdoortemperature35°CDB
SelectthewiresizeaccordingtotheMCA.
Useacircuitbreakerinsteadofafuse.
Ratedoperatingfrequency[Hz]
Themaximumallowablevoltagethatisunbalancedbetweenphasesis2%.
0
Compressor
RXS35L3
3D094863B
RXS35L3
       




















































































 











 


 
 
 


      



 
    

   
   

 


   

 

 
 
   

   
   

 


   

 

 
 
   

   
   

 


    

 

 
 
   
  
   

 











 
 
  

  



 


ϯϬϵϰϵϰϵ

• Outdoor Unit • RXS-L3
4
• Split - Sky Air • RXS-L3
16
4 Capacity tables
4 - 1 Cooling/Heating Capacity Tables
1,09 3,81 1,14 4,17 1,1827 2,36 0,99 2,81 1,04 3,26
3,32 1,08 3,86 1,13 4,22 1,17
1,07 3,89 1,13 4,25 1,16
25 2,42 0,98 2,87 1,03
3,94 1,12 4,31 1,15
24 2,44 0,98 2,90 1,02 3,35
1,11 4,36 1,14
22 2,50 0,97 2,95 1,01 3,40 1,06
4,50 1,12
20 2,55 0,96 3,01 1,00 3,46 1,05 4,00
PI
15 2,69 0,93 3,14 0,98 3,60 1,02 4,14 1,08
PI TC PI TC PI TC
Ͳ10 Ͳ50 610
TC PI TC
3,22 1,07 3,63 3,18 1,15
AFR 16,0
3,27 0,99 3,89 3,25 1,02 3,79
1,14
32 24 4,27 3,37 0,83 4,11 3,32 0,91 3,95
1,02 3,63 3,28 1,06 3,48 3,220,91 3,79 3,33 0,98 3,73 3,31
3,24 3,30 1,13
30 22 4,11 3,43 0,83 3,95 3,38
3,49 3,39 1,01 3,40 3,35 1,063,72 3,47 0,90 3,56 3,41 0,98
3,10 1,05 3,16 3,04 1,13
27 19 3,87 3,53 0,82
3,16 0,98 3,42 3,14 1,01 3,32
1,13
25 18 3,80 3,29 0,82 3,64 3,22 0,90 3,48
1,00 3,17 2,87 1,05 3,01 2,800,89 3,32 2,93 0,97 3,26 2,91
2,85 2,83 1,12
22 16 3,64 3,07 0,81 3,48 3,00
3,10 2,94 1,00 3,01 2,90 1,043,33 3,04 0,89 3,17 2,97 0,97
SHC PI TC SHC PI
20 14 3,48 3,12 0,81
SHC PI TC SHC PI TC
32 35 40
TC SHC PI TC SHC PI TC
AFR 16,0
BF 0,15
20 25 30
Heating220Ͳ240V50Hz
A
Totalcapacity[kW]
Powerinput[kW]
Symbols
TC:
PI:
Notes
Thecapacitiesarebasedonthefollowingconditions:
Correspondingrefrigerantpipinglength:5.0m
Leveldifference:0m
1.
2.
A
A
Cooling220Ͳ240V50Hz
SHC:
Indoorairtemperature[°CDB]
Sensibleheatcapacity[kW]
Airflowrate[m³/min]AFR:
BypassfactorBF:
Ratedoperatingfrequency[Hz]
Theboldcellsindicatethestandardconditions.
Outdoorairtemperature
[°CDB]
B
C
D
B
Indoorairtemperature[°CWB]
C
FBQ35C8VEB+RXS35L3V1B
OutdoorairtemperatureD
[°CWB]
3D091976

3
4
• Split - Sky Air • RXS-L3 17
• Outdoor Unit • RXS-L3
4 Capacity tables
4 - 1 Cooling/Heating Capacity Tables
AFR 15,0
BF 0,08
EWB EDB
°C °C TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
14,0 20,0 3,48 3,13 0,65 3,33 3,06 0,72 3,17 2,99 0,78 3,10 2,96 0,80 3,01 2,92 0,84 2,85 2,85 0,91
16,0 22,0 3,64 3,09 0,66 3,48 3,02 0,72 3,32 2,95 0,78 3,26 2,93 0,81 3,17 2,89 0,85 3,01 2,82 0,91
18,0 25,0 3,80 3,31 0,66 3,64 3,25 0,72 3,48 3,18 0,79 3,42 3,16 0,81 3,32 3,12 0,85 3,16 3,06 0,91
19,0 27,0 3,87 3,56 0,66 3,72 3,50 0,73 3,56 3,44 0,79 3,49 3,41 0,81 3,40 3,38 0,85 3,24 3,32 0,91
22,0 30,0 4,11 3,46 0,67 3,95 3,41 0,73 3,79 3,35 0,79 3,73 3,33 0,82 3,63 3,30 0,86 3,48 3,25 0,92
24,0 32,0 4,27 3,39 0,67 4,11 3,34 0,74 3,95 3,30 0,80 3,89 3,28 0,82 3,79 3,25 0,86 3,63 3,20 0,92
AFR 15,0
TC PI TC PI TC PI TC PI TC PI
2,69 0,85 3,14 0,89 3,60 0,93 4,14 0,98 4,50 1,01
2,55 0,87 3,01 0,91 3,46 0,95 4,00 1,00 4,36 1,03
2,50 0,88 2,95 0,92 3,40 0,96 3,94 1,01 4,31 1,04
2,44 0,89 2,90 0,93 3,35 0,97 3,89 1,02 4,25 1,05
2,42 0,89 2,87 0,93 3,32 0,97 3,86 1,02 4,22 1,06
2,36 0,90 2,81 0,94 3,26 0,98 3,81 1,03 4,17 1,06
27,0
°C
15,0
20,0
22,0
24,0
25,0
EDB Ͳ10,0 Ͳ5,0 0,0 6,0 10,0
20,0 25,0 30,0 32,0 35,0 40,0
Symbols
Airflowrate[m³/min]
Bypassfactor
EnteringwetͲbulbtemperature(°CWB)
EnteringdryͲbulbtemperature(°CDB)
Totalcapacity[kW]
Sensibleheatcapacity[kW]
Powerinput[kW]
Indoor Outdoortemperature[°CDB]
Cooling50Hz220Ͳ240V
Heating50Hz220Ͳ240V
Indoor Outdoortemperature[°CWB]
AFR:
BF:
EWB:
EDB:
TC:
SHC:
PI:
FBQ35D2VEB+RXS35L3V1B
Notes
Theratingsshownarenetcapacitieswhichincludeadeductionforindoorfanmotorheat.
Theboldcellsindicatethestandardconditions.
Thetotalcapacity,powerinputandsensibleheatcapacitymustbecalculatedbyinterpolation,usingthefiguresinthetable(figuresnotinthetablemaynot
beusedinthecalculation).
Incasethesensibleheatcapacityisnotmentionedinthetable,pleasecalculateitusinganapproximationbetweentwovaluesindirectproportion.
Thecapacitiesarebasedonthefollowingconditions:
Correspondingrefrigerantpipinglength:5m
Leveldifference:0m
Theairflowrateandbypassfactorarementionedinthetable.
1)
2)
3)
4)
5)
6)
3D095138A

• Outdoor Unit • RXS-L3
4
• Split - Sky Air • RXS-L3
18
4 Capacity tables
4 - 1 Cooling/Heating Capacity Tables
1,18 4,00 1,24 4,38 1,2827 2,48 1,08 2,95 1,13 3,43
3,49 1,17 4,06 1,23 4,43 1,27
1,16 4,08 1,22 4,46 1,26
25 2,54 1,07 3,01 1,12
4,14 1,21 4,52 1,25
24 2,57 1,06 3,04 1,11 3,51
1,20 4,58 1,24
22 2,62 1,05 3,10 1,10 3,57 1,15
4,72 1,21
20 2,68 1,04 3,16 1,09 3,63 1,14 4,20
PI
15 2,83 1,01 3,30 1,06 3,78 1,11 4,34 1,17
PI TC PI TC PI TC
Ͳ10 Ͳ50 610
TC PI TC
2,33 0,96 3,63 2,27 1,03
AFR 12,5
2,38 0,89 3,89 2,36 0,92 3,79
1,03
32 24 4,27 2,49 0,75 4,11 2,44 0,82 3,95
0,91 3,63 2,38 0,96 3,48 2,320,82 3,79 2,44 0,89 3,73 2,42
3,24 2,39 1,02
30 22 4,11 2,57 0,75 3,95 2,50
3,49 2,50 0,91 3,40 2,46 0,953,72 2,60 0,81 3,56 2,53 0,88
2,33 0,95 3,16 2,26 1,02
27 19 3,87 2,67 0,74
2,40 0,88 3,42 2,37 0,91 3,32
1,01
25 18 3,80 2,54 0,74 3,64 2,47 0,81 3,48
0,90 3,17 2,21 0,94 3,01 2,140,80 3,32 2,29 0,87 3,26 2,26
2,85 2,16 1,01
22 16 3,64 2,44 0,73 3,48 2,37
3,10 2,29 0,90 3,01 2,24 0,943,33 2,40 0,80 3,17 2,32 0,87
SHC PI TC SHC PI
20 14 3,48 2,49 0,73
SHC PI TC SHC PI TC
32 35 40
TC SHC PI TC SHC PI TC
AFR 12,5
BF 0,40
20 25 30
Heating220Ͳ240V50Hz
A
Totalcapacity[kW]
Powerinput[kW]
Symbols
TC:
PI:
Notes
Thecapacitiesarebasedonthefollowingconditions:
Correspondingrefrigerantpipinglength:5.0m
Leveldifference:0m
1.
2.
A
A
Cooling220Ͳ240V50Hz
SHC:
Indoorairtemperature[°CDB]
Sensibleheatcapacity[kW]
Airflowrate[m³/min]AFR:
BypassfactorBF:
Ratedoperatingfrequency[Hz]
Theboldcellsindicatethestandardconditions.
Outdoorairtemperature
[°CDB]
B
C
D
B
Indoorairtemperature[°CWB]
C
FCQG35FVEB+RXS35L3V1B
OutdoorairtemperatureD
[°CWB] 3D091971
