Daikin Super Multi NX FLKS25BAVMB Instruction manual

technical data
FLKS-BAVMB
Flexi Type,
Inverter Controlled Unit
air conditioning systems
Split
Sky Air

• Split Sky Air • Indoor Units 1
• Indoor Units • R410A • FLKS-BAVMB
TABLE OF CONTENTS
FLKS-BAVMB
1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
For indoor units only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Control systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . 7
Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sound level data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installation method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

• Indoor Units • R410A • FLKS-BAVMB
1
• Split Sky Air • Indoor Units
2
1 Features

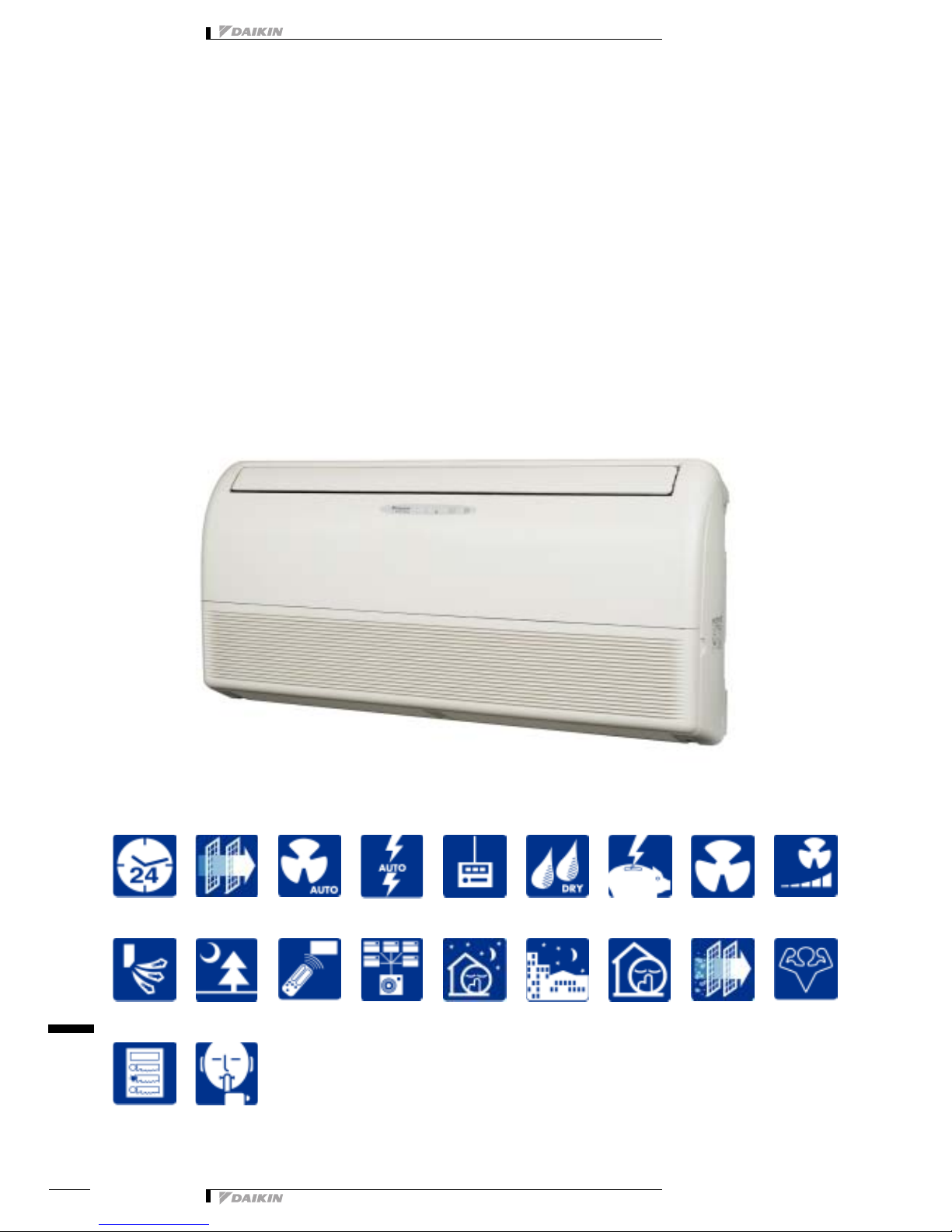

IndoorUnit SplitSky FLKS-BAVMB R410A •Slim&smart
• Lightweight but sturdy design
• Can fit on either ceiling or lower wall. Its low height enables it to fit
beneath a window
• The home leave operation saves energy during absence
• Powerful mode can be selected for rapid cooling
• Auto-swing function ensures efficient air and temperature
distribution.
• Air purification filter: deodorises the air and helps to prevent bacterial
and viral propagation
• The photocatalytic deodorising air filter: powerfully decomposes
cigarette and pet odours, removes house dust and pollen and
deactivates bacteria and viruses
• Washable front panel
• Indoor unit silent operation: "Silent" button on the remote control
lowers the operation sound of the indoor unit by 3dB(A) (only if
connected to a DC inverter controlled outdoor unit)
• Easy to install
• Up to 4 indoor units can be connected to 1 Multi outdoor unit. All
indoor units are individually controllable with remote control and do
not need to be installed in the same room or at the same time. They
operate simultaneously within the same cooling m
• Daikin remote controls give you easy control at your fingertips.
• The remote control has a 24-hour timer
• The indoor unit also has a start/stop button mounted on the front
panel
• Up to 5 indoor units can be operated from a single centralised control
• Purpose-designed holder provided for your remote control
optional 5 steps
standard MKS

2
• Split Sky Air • Indoor Units 3
• Indoor Units • R410A • FLKS-BAVMB
2 Specifications
2-1 FOR INDOOR UNITS ONLY FLKS25BAVMB FLKS35BAVMB FLKS50BAVMB FLKS60BAVMB
Nominal Input Cooling kW 0.074 0.078 0.096 0.098
2-2 TECHNICAL SPECIFICATIONS FLKS25BAVMB FLKS35BAVMB FLKS50BAVMB FLKS60BAVMB
Casing Colour Almond white
Dimensions Packing Height mm 566 566 566 566
Width mm 1100 1100 1100 1100
Depth mm 280 280 280 280
Unit Height mm 490 490 490 490
Width mm 1050 1050 1050 1050
Depth mm 200 200 200 200
Weight Unit kg 16.0 16.0 17.0 17.0
Packed Unit kg 22.0 22.0 24.0 24.0
Heat
Exchanger
Dimensions Length mm 840 840 840 840
Nr of Rows 2 2 3 3
Fin Pitch mm 1.75 1.75 1.50 1.50
Nr of Stages 8 8 10 10
Tube type Hi-XA (7)
Fin Type ML fin (Multi louver)
Fan Type Sirocco fan
Quantity 1 1 1 1
Air Flow Rate Cooling High m³/min 7.60 8.60 11.40 12.00
Medium m³/min 6.80 7.60 10.00 10.70
Low m³/min 6.00 6.6 8.50 9.30
Silent
Operation
m³/min 5.2 5.6 7.5 8.3
Fan Motor Quantity 1 1 1 1
Model KFP-220-34-4A
Number of steps 5 steps, silent and auto
Motor Speed
(cooling)
High rpm 820 920 1380 1380
Medium rpm 740 820 1240 1240
Low rpm 660 720 1100 1100
Silent
Operation
rpm 580 620 1000 1000
Fan Motor Output
(high)
W34 34 34 34
Cooling Sound Power High dBA 53.0 54.0 63.0 64.0
Sound
Pressure
High dBA 37.0 38.0 47.0 48.0
Medium dBA 34.0 35.0 43.0 45.0
Low dBA 31.0 32.0 39.0 41.0
Silent
Operation
dBA 28.0 29.0 36.0 39.0
Refrigerant Type R-410A
Piping
connections
Liquid (OD) Diameter
(OD)
mm 6.4 6.4 6.35 6.35
Gas Diameter
(OD)
mm 9.5 9.5 12.7 12.7
Drain Diameter
(OD)
mm 18 18 18 18
Heat Insulation Both liquid and gas pipes
Air Filter Removable/washable/Mildew proof
Air direction control Left, right, up and downwards
Temperature control Microcomputer control

• Indoor Units • R410A • FLKS-BAVMB
2
• Split Sky Air • Indoor Units
4
2 Specifications
Standard
Accessories
Item Installation and operation manual
Quantity 1111
Item Infrared remote control
Quantity 1111
Item Batteries
Quantity 2222
Item Remote control holder
Quantity 1111
Item Air purification filter
Quantity 1111
Item Heat insulation tube
(refrigerant pipe)
Heat insulation tube
(refrigerant pipe)
Heat insulation tube
(refrigerant pipe)
Heat insulation tube
(refrigerant pipe)
Quantity 1122
Item Mounting plate
Quantity 1111
Item Side cover
Quantity 2222
Item Binding band
Quantity 4444
Item Photocatalytic deodorizing filter
Quantity 1111
Item Extension auxiliary pipe Extension auxiliary pipe
Quantity 22
Notes Sound values are measured in an anechoic room.
Sound pressure level is a relative value, depending on the distance and acoustic environment. For more details,
please refer to sound level drawings of this chapter.
The sound power level is an absolute value indicating the power which a sound source generates.
2-3 ELECTRICAL SPECIFICATIONS FLKS25BAVMB FLKS35BAVMB FLKS50BAVMB FLKS60BAVMB
Power Supply Name VM
Phase 1111
Frequency Hz 50/60
Voltage V 220-240/220-230
Current Nominal
running current
(RLA)
Cooling A 0.340 0.36 0.450 0.450
Wiring
connections
For Power
Supply
Quantity 3333
Remark 4 for interunit wiring(included earth wiring)
Voltage range Minimum -10%
Maximum +10%
Power Supply Intake Outdoor unit only
2-2 TECHNICAL SPECIFICATIONS FLKS25BAVMB FLKS35BAVMB FLKS50BAVMB FLKS60BAVMB

3
• Split Sky Air • Indoor Units 5
• Indoor Units • R410A • FLKS-BAVMB
3 Options
FLK/XS-B
Option name 25 35 50 60
Wiring adapter for time clock / remote control (1) Normal open contact KRP413A1S
Normal open pulse contact KRP413A1S
Centralised control board 1 up to 5 rooms (2) KRC72
Central remote control DCS302C51
Unified ON/OFF control DCS301B51
Schedule timer DST301B51
Interface adapter (3) KRP928A2S
Photocatalytic deodorising filter, with frame KAZ917A41
Photocatalytic deodorising filter, without frame KAZ917A42
Air purification filter with frame KAF925B41
Air purification filter without frame KAF925B42
Anti-theft protection for remote control
(1) Wiring adapter is also required for each indoor unit.
(2) Wiring adapter supplied by Daikin. Time clock and other devices: field supply.
(3) For DIII-NET adapter
KKF917AA4

• Indoor Units • R410A • FLKS-BAVMB
4
• Split Sky Air • Indoor Units
6
4 Control systems
FLK/XS -B

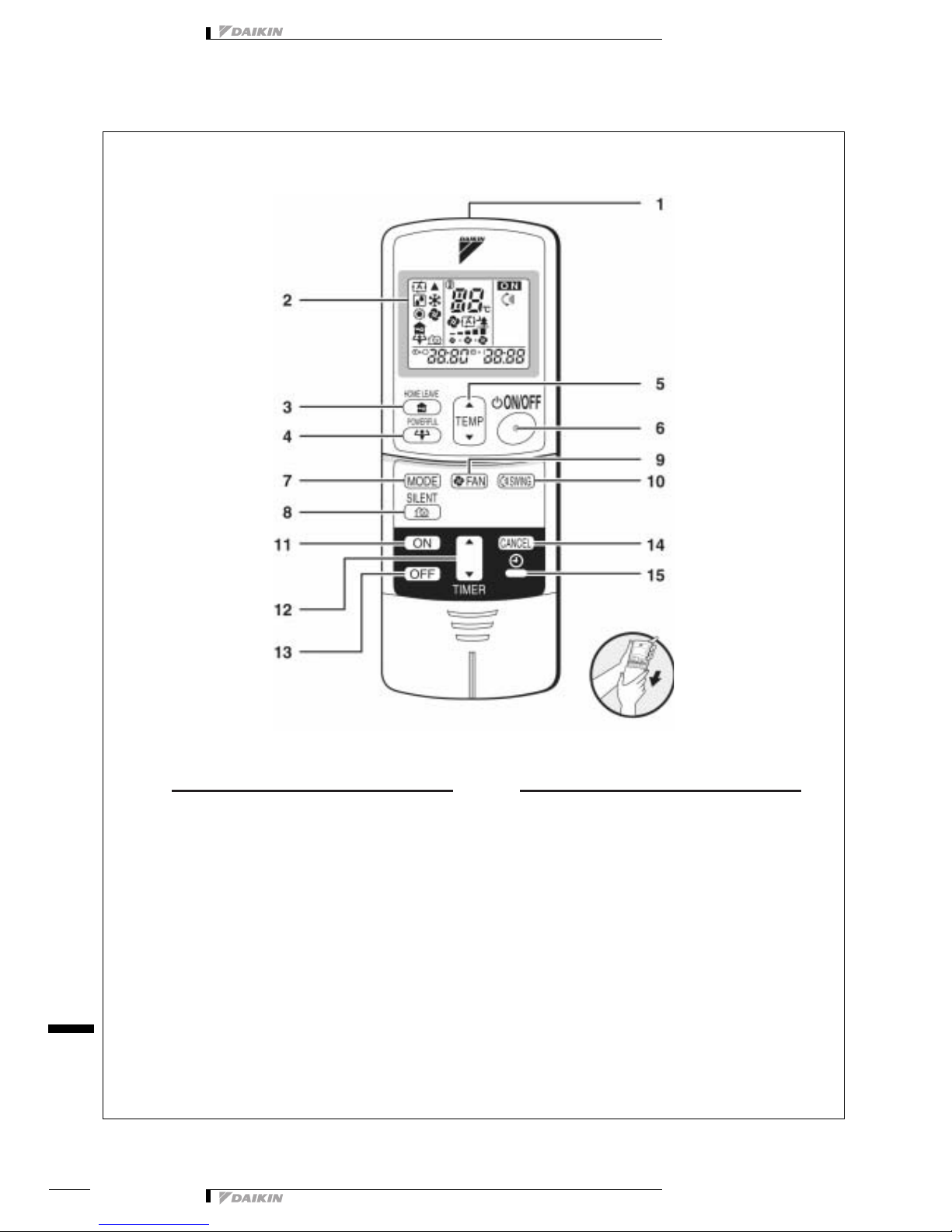

<ARC433A5, A6>
1Signal transmitter:
•It sends signals to the indoor unit.
2Display:
•It displays the current settings. (In this illustration, each
section is shown with all its displays ON for the purpose of
explanation.)
3HOME LEAVE button:
for HOME LEAVE operation
4POWERFUL button:
for POWERFUL operation
5TEMPERATURE adjustment buttons:
•It changes the temperature setting
6ON/OFF button:
•Press this button once to start operation. Press once again
to stop it.
7MODE selector button:
•It selects the operation mode
(Auto ,/ Dry I/ Cool u/ Heat w/ Fan B)
8OUTDOOR UNIT SILENT button:
SILENT operation
9FAN setting button:
•It selects the air flow rate setting.
10 SWING button
11 ON TIMER button
12 OFF TIMER button
13 TIMER setting button:
•It changes the time setting
14 TIMER CANCEL button:
It cancels the timer setting.
15 CLOCK button

5
• Split Sky Air • Indoor Units 7
• Indoor Units • R410A • FLKS-BAVMB
5 Dimensional drawing & centre of gravity

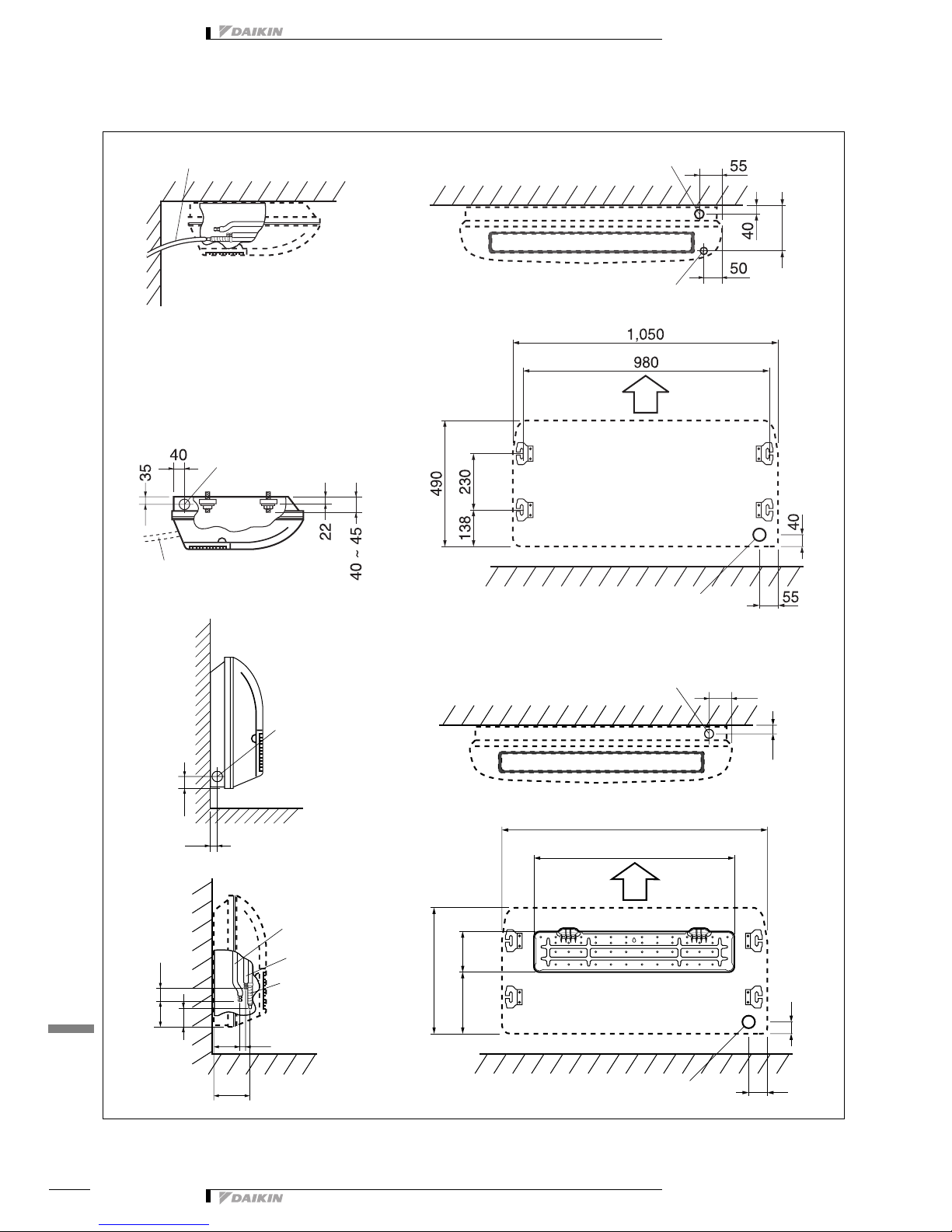

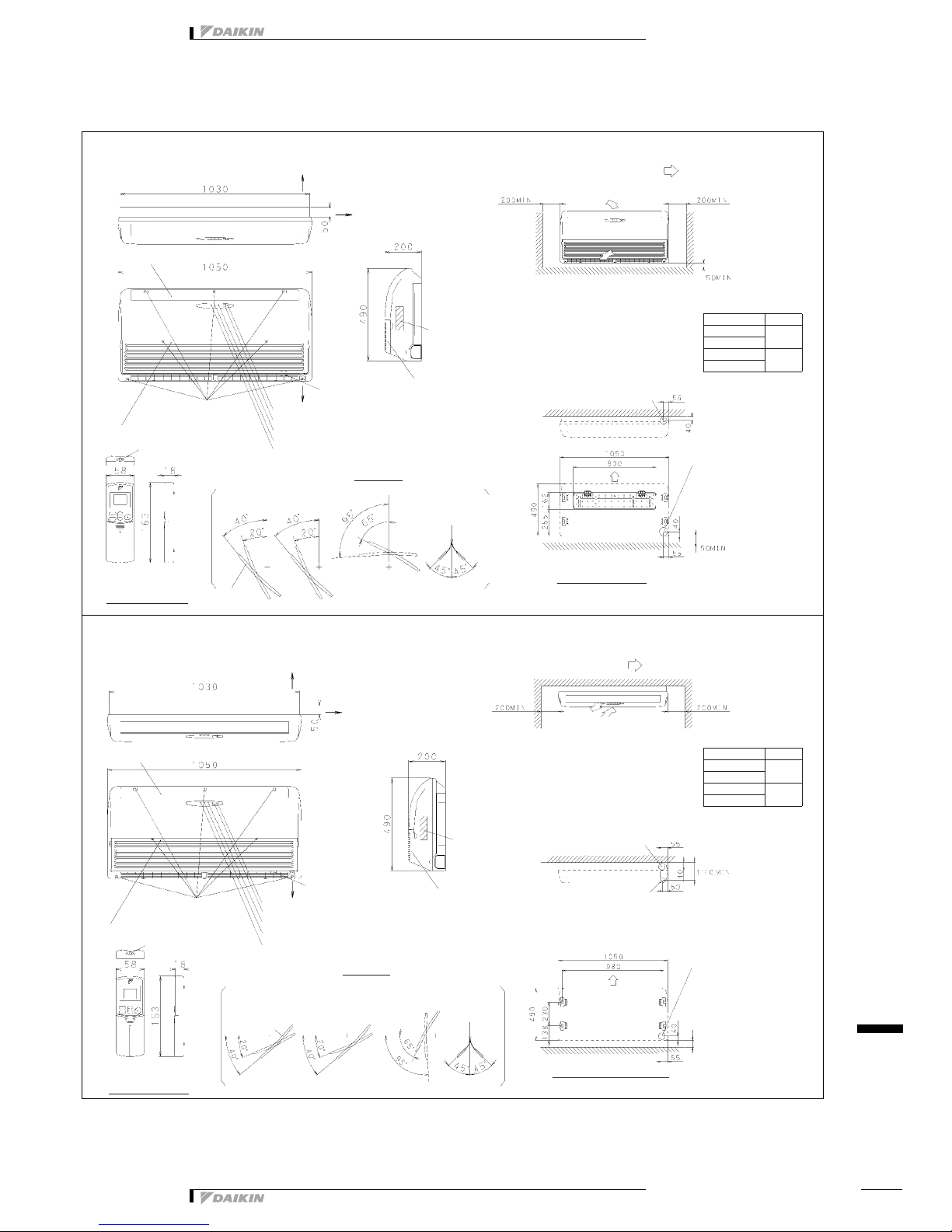

5 - 1 Dimensional drawing
3D033695C
FLK/XS25-35-50-60B unit (mm)
Rear
Right
The mark (Y) shows piping direction
Signal receiver
Under
Cleaning indicator lamp
Front panel fixing screws
Timer indicator lamp
Operation indicator lamp
Signal transmitter
FLX: (ARC433A5)
FLK: (ARC433A6)
Infrared remote control
Up/down (automatic)
Cooling
Blade angle
Right/left (manual)
Required space
(for performance and maintenance)
(space for
maintenance)
Name plate
Terminal strip with
earth terminal
(space for
performance)
(space for maintenance)
- Liquid pipe (6.4CuT)
- Gas pipe (A CuT)
- Drain hose (ID J14-ODJ18)
Wall hole for embedded piping
ø80 hole
Wall hole for refrigerant piping
J80 hole
flap
flap
Dry
Air flow (indoor)
Suction grille
A
FLX(K)S25B J9.5
FLX(K)S35B
FLX(K)S50B J12.7
FLX(K)S60B
Floor level installation
Location of wall holes
Room temp. thermistor
Operation switch
(space for
performance)
Heating
3D033694B
FLK/XS25-35-50-60B unit (mm)
Rear
Right
The mark (Y) shows piping direction
Signal receiver
Under
Cleaning indicator lamp
Front panel fixing screws
Timer indicator lamp
Operation indicator lamp
Signal transmitter
FLX: (ARC433A5)
FLK: (ARC433A6)
Infrared remote control
Up/down (automatic)
Cooling
Blade angle
Right/left (manual)
Required service space (ceiling suspended)
(for performance and maintenance)
(space for
maintenance)
Name plate
Terminal strip with earth
terminal
(space for
performance)
50 min (space for
maintenance)
- Liquid pipe (6.4CuT)
- Gas pipe (A CuT)
Wall hole for embedded piping
ø65 hole
Wall hole for refrigerant J65
hole
flap
flap
Dry
Air flow (indoor)
Suction grille
A
FLX(K)S25B J9.5
FLX(K)S35B
FLX(K)S50B J12.7
FLX(K)S60B
Ceiling suspended installation
Location of suspension bolts
Room temp. thermistor
Operation switch
J40 drain hose hole
- Drain hose (ID J14-ODJ18)
Heating
Standard locations of wall holes

• Indoor Units • R410A • FLKS-BAVMB
5
• Split Sky Air • Indoor Units
8
5 Dimensional drawing & centre of gravity
5 - 2 Centre of gravity
4D027653C
FLK/XS-B

6
• Split Sky Air • Indoor Units 9
• Indoor Units • R410A • FLKS-BAVMB
6 Piping diagram
4D034012B
FLK/XS25-35-50-60B
Indoor unit
Heat exchanger
Sirocco fan
Fan motor
Field piping
(6.4Cut)
Field piping
(ACut)
Refrigerant flow
Thermistor on
heat
exchanger
Cooling
Heating
ABC
FLX(K)S25B J9.5 J9.5 J6.4
FLX(K)S35B
FLX(K)S50B J12.7 J12.7 J9.5
FLX(K)S60B

• Indoor Units • R410A • FLKS-BAVMB
7
• Split Sky Air • Indoor Units
10
7 Wiring diagram
7 - 1 Wiring diagram
3D033909B
FLK/XS25-35-50-60B
g
Field wiring
Outdoor
Indoor
Caution:
Notice that operation will restart automatically when the main power supply is
turned off and then turned on again.
C70 : Running capacitor
FU : Fuse
H1P∼H3P : Pilot lamp
M1F : Fan motor
M1S : Swing motor
PCB1∼PCB4 : Printed circuit board
R1T∼R2T : Thermistor
S6∼S37, X11A, X21A : Connector
S1W : Operation switch (SW7)
X1M : Terminal strip
R: Protective earth
Signal receiver
Infrared remote
control
Transmission
circuit

8
• Split Sky Air • Indoor Units 11
• Indoor Units • R410A • FLKS-BAVMB
8 Sound data
8 - 1 Sound level data
Cooling only
Model
Sound pressure level
Sound power level
(Cooling)
230V, 50Hz
Measuring locationCooling
HLSL
FLKS25B 37 31 28 53
FLKS35B 38 32 29 54
FLKS50B 47 39 36 63
FLKS60B 48 41 39 64
Heat pump
Model
Sound pressure level
Sound power level
(Cooling/Heating)
230V, 50Hz
Measuring locationCooling/Heating
HLSL
FLXS25B 37/37 31/31 28/29 53/*
FLXS35B 38/39 32/33 29/30 54/*
FLXS50B 47/46 39/35 36/33 63/*
FLXS60B 48/47 41/37 39/34 64/63
* Sound power levels were not available at time of publication
Location of microphone
Location of microphone

• Indoor Units • R410A • FLKS-BAVMB
8
• Split Sky Air • Indoor Units
12
8 Sound data
8 - 2 Sound pressure spectrum
4D035260A
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
Octave band center frequency (Hz)
FLKS25B
approximate threshold
hearing for continuous
noise
Legend
50/60Hz 220-240/220-230V(H)
50/60Hz 220-240/220-230V(L)
NOTE
1 Operation noise differs with operation and ambient
conditions.
4D035261A
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
Octave band center frequency (Hz)
FLKS35B
approximate threshold
hearing for continuous
noise
Legend
50/60Hz 220-240/220-230V(H)
50/60Hz 220-240/220-230V(L)
NOTE
1 Operation noise differs with operation and ambient
conditions.
4D035262A
FLKS50B
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
approximate threshold
hearing for continuous
noise
Octave band center frequency (Hz)
Legend
50/60Hz 220-240/220-230V(H)
50/60Hz 220-240/220-230V(L)
NOTE
1 Operation noise differs with operation and ambient
conditions.
4D035263A
FLKS60B
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
approximate threshold
hearing for continuous
noise
Octave band center frequency (Hz)
Legend
50/60Hz 220-240/220-230V(H)
50/60Hz 220-240/220-230V(L)
NOTE
1 Operation noise differs with operation and ambient
conditions.

9
• Split Sky Air • Indoor Units 13
• Indoor Units • R410A • FLKS-BAVMB
9 Installation
9 - 1 Installation method
j
A
Mounting plate
The mounting plate
should be installed on a
wall which can support
the weight of the indoor
unit.
Caulk pipe hole
gap with putty.
Cut thermal insulation pipe to an appropriate length
and wrap it with tape, making sure that no gap is left in
the insulation pipe’s cut line.
Wrap the installation pipe
with the finishing tape
from bottom to top
j
B
Photocatalytic deodorising filter
j
C
Air purification filter
j
D
Infrared remote control
Before screwing the remote control holder to
the wall, make sure that control signals are
properly received by indoor unit.
Space for
installation work.
Min. (200mm)
Air filters
j
E
Remote
control holder
There should be no space between
ceiling and the unit. Space for installation work. Min.
(200mm)
Space for installation work.
Min. (200mm)
50 mm or more from walls (on
both side)
j
B
Photocatalytic deodorising filter
j
C
Air purification filter
Space for installation
work. Min. (200mm)
50 mm or more from floor
Hold the recessed parts of the
frame and unhook the four
claws.
M4 x 25L
(M3x20L)

• Indoor Units • R410A • FLKS-BAVMB
9
• Split Sky Air • Indoor Units
14
9 Installation
9 - 1 Installation method
Ceiling mounting
Wall mounting
Top side piping hole J65 mm
Local drain pipe Rear side piping hole J65 mm
Ceiling
Right side piping hole J65 mm
Rear side drain hose hole J40 mm
Ceiling
Drain hose
Wall
Right side piping hole J80 mm
Wall
Wall Liquid pipe
Floor
Gas pipe
Floor
Drain pipe
Wall
*1 Determine the position of the feed-through
hole so that the local piping is placed in a
downward sloping direction.
*1 More than 170
35
40
40
55
30
97 48
102 26
150
Wall
55
40
1,050
800
162255
490
Floor
Rear side piping hole J80 mm
Connection position
Under side piping hole J80 mm
Wall

ISO14001 assures an effective environmental
management system in order to help protect
human•health•and the environment from the potential
impact of our activities, products and services and to
assist in maintaining and improving the quality of
the•environment.
Daikin Europe N.V. is approved by LRQA for its Quality
Management System in accordance with the ISO9001
standard. ISO9001 pertains to quality assurance regarding
design, development, manufacturing as well as to services
related to the product.
Daikin units comply with the European
regulations that guarantee the safety of
the product.
Zandvoordestraat 300
B-8400 Ostend - Belgium
www.daikineurope.com
EEDE06-1/3 • 05/2006 Prepared in Belgium by Lannoo
The present publication is drawn up by way of
information only and does not constitute an offer
binding upon Daikin Europe N.V.. Daikin Europe N.V.
has compiled the content of this publication to the
best of its knowledge. No express or implied warranty
is given for the completeness, accuracy, reliability or
fitness for particular purpose of its content and the
products and services presented therein. Specifications
are subject to change without prior notice. Daikin
Europe N.V. explicitly rejects any liability for any direct
or indirect damage, In the broadest sense, arising from
or related to the use and/or interpretation of this
publication. All content is copyrighted by Daikin
Europe N.V..
ÉEEDE06-1/3ÇËÍ
Split - Sky Air
Daikin Europe N.V. is participating in the
EUROVENT Certification Programme.
Products are as listed in the EUROVENT
Directory of Certified Products.
