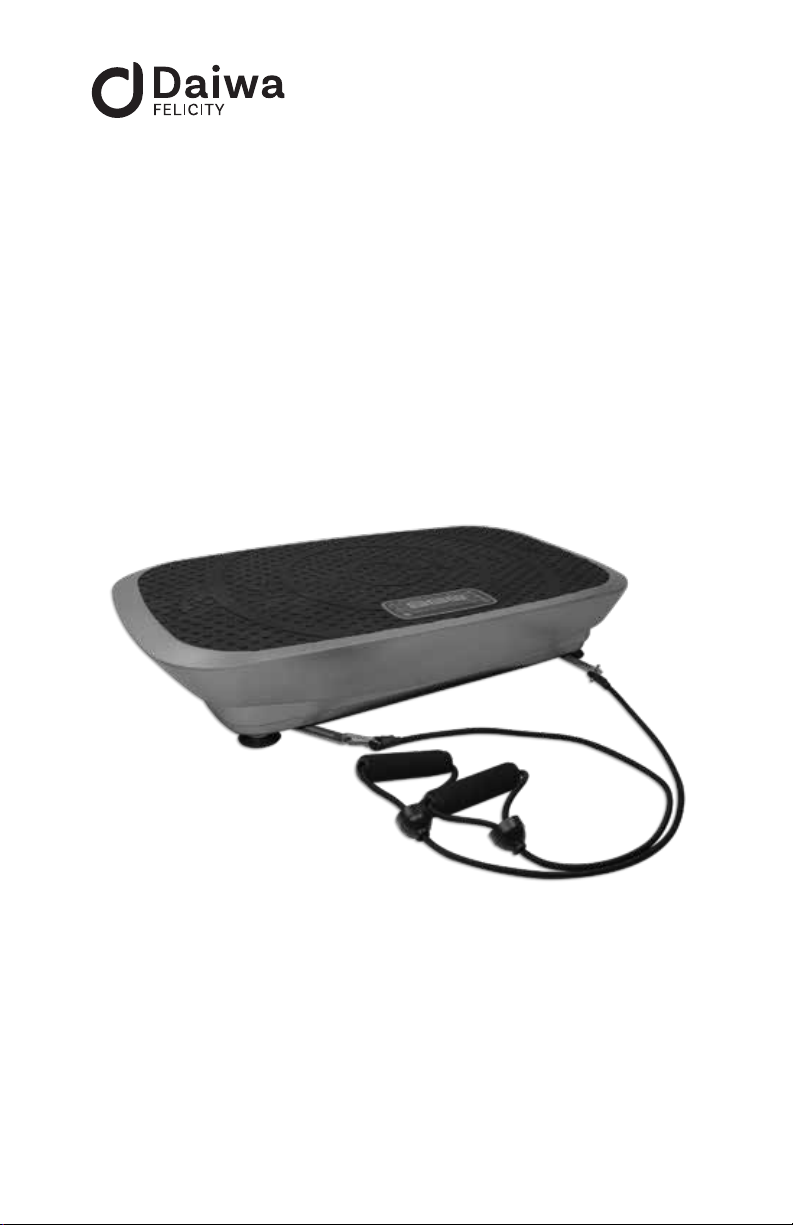

Daiwa Vitality Plate USJ-849 User manual

USJ-849
Thank you for purchasing the Vitality Plate.
Please read this manual carefully to ensure optimum performance and safety.
SAVE THESE INSTRUCTIONS
INSTRUCTION MANUAL
VIT ALIT Y PLATE

1
THE FIRST STEP TO A HEALTHY LIFE
Thank you for purchasing the USJ-849 Vitality Plate. Please carefully read the
instructions within this manual, paying special attention to the Safety Precautions, before
operating the unit. Please also retain this manual for future reference.
function stated in this manual, versus that on the actual device.
CONTENTS
IMPORTANT SAFETY PRECAUTIONS........................................................................2
PART NAMES................................................................................................................5
CONTROL PANEL AND REMOTE CONTROL .............................................................5
OPERATION..................................................................................................................6
USAGE POSITIONS .....................................................................................................8
PRODUCT CLEANING AND MAINTENANCE..............................................................9
TROUBLESHOOTING ..................................................................................................9
TECHNICAL SPECIFICATIONS..................................................................................10

32
SAFETY PRECAUTIONS SAFETY PRECAUTIONS
2. During Use
This unit was built to be used by ONE person at a time. Injury or damage may result if
two or more people step on the plate at the same time.
• Do not jog or hop up and down on the footplate.
• Do not kneel on the footplate. Vibration is not intended to the knees.
• Always balance your weight on the footplate. Do not load all of your body
weight on one side or the other.
• Do not touch or operate this unit with wet or humid hands. Electric shock or
malfunction may result.
• Be careful with the remote control. Damage may result if it falls
onto the ground or the footplate.
• Stop using the unit if you experience any discomfort. Consult a doctor
immediately.
• Do not strike or apply excessive force on the unit. Injury and / or malfunction
may result.
• While working out on the unit, do not remain in the same pose for over
10 minutes. Muscle cramping may result.
• Do not work out on this unit more than four times a day.
3. After Use
• After each session, turn off the power and disconnect the power plug from the
• Remember to drink plenty of water both before and after use.
• If the unit needs cleaning, use only a dry cloth to do so. Keep any moisture
away from the unit.
1. Before Use
• Do not operate this unit during thunderstorms and lightning strikes.
• If you have experienced previous illness, or are concerned about your
Persons with the following conditions should check with a doctor before using
this unit:
• Epilepsy
• Severe diabetes
• Heart and vascular diseases
• Skin disease
• Asthma or other respiratory disorders
• Hypertension
• Spinal disc herniation or other spinal abnormalities
• Knee or hip implants
• Pacemaker
• Bone fractures or joint problems
• Recently inserted IUD or metal pins
• Blood clots
• Tumors
• Recent infections
• Pregnancy
• Women during their menstrual cycle
• Severe migraines
• Patients recovering from surgery
• Close supervision is necessary when the unit is used by, on, or near children.
• This unit is NOT intended for use by persons with reduced physical, sensory,
or mental capacities, invalids, or disabled persons, unless supervised closely by
a person responsible for their safety.
Read all instructions before using the unit. When using an electric apparatus, basic
precautions should always be followed, including the following:
DANGER – To reduce the risk of electric shock:
• Always remove the power plug from the electrical outlet immediately after use.
• Always remove the power plug from the electrical outlet before cleaning.
persons:
into the outlet.
• Before turning on the unit, check to make sure that electrical current in your power
outlet matches the voltage indicated on the unit’s power adaptor.
• Do not allow pets to use this unit.
• Do not load heavy objects onto the unit.
• Only operate this unit according to its intended usage, as described in this manual.
• Use caution when moving the unit from one location to another. Dragging it over
certain surfaces, such as wood or tile, may result in damage.
• Do not work out on the unit within 30 minutes before and after meals.
• Do not operate this unit for any purposes other than exercise.
• Keep sharp, rigid objects, such as knives, away from the unit. Never insert your
• Drink plenty of water both before and after use.
• Do not wrap the power cord around the unit’s footplate.
• Do not drop or insert any object into any opening on the unit.
• Do not strike the unit, especially with any hard objects.
• Keep children and pets away from the unit at all times.
• If an emergency arises, press the “emergency button” to call for help.

54
CONTROL PANEL AND REMOTE CONTROL
P1
P2
PART NAMES
Main unit
Handles
Power cord
Power switch
Carry
handle
Resistance bands
Do not run on the unit. Do not kneel on the
platform.
This unit is not suitable
for use by children.
Do not allow use by
more than one person
at a time.
Do not strike unit. Keep pets away from
this unit.
Do not scratch the unit
with any sharp object.
Do not load the unit with
excessive weight.
Do not stand on a
single side.
Do not drop the
remote control.
Do not operate during
thunderstorms.
Keep liquids away from
the unit. Clean with a
dry cloth.
SAFETY PRECAUTIONS
*NOTE = Remote control requires two (AAA) batteries.
Mode Button
Time Button
ON/OFF Button
Speed up
Speed down
Auto Program
Auto Program Auto Program P3
Program Button
Program
Button
Mode
Button
Time
Button
Mode Display Time Display Speed Display
Speed Button
ON/OFF Button
Signal Light Auto Program Light
Manual
Program Light

76
9. To add an upper body workout, fasten one end of each resistance band to one
attachment at the front of the main unit. Grasp one handle with each hand. Stand
straight up on the platform, with hands on your sides.
A. Slowly raise both arms straight out in front of you, up to
shoulder level. Hold a few seconds, then lower them back
down to your sides. Repeat.
B. Slowly raise both arms straight out in to each side, up to
shoulder level. Hold a few seconds, then lower them back
down to your sides. Repeat.
C. With your palms facing forward, bend your elbows and slowly
bring your forearms up to your shoulders. Hold a few
seconds, then lower them back down to your sides. Repeat.
OPERATION OPERATION
P1
P2
P3
Auto Program 1: Vibration begins at low speed (1) and increases by increments
every 3 seconds. Upon reaching the top speed (10), speed will
decrease by increments every 3 seconds. The cycle repeats
throughout your session.
Auto Program 2: Vibration begins at low speed (1) and increases by increments
every 3 seconds. Upon reaching the top speed (10), speed
will decrease by increments every 8 seconds. The cycle repeats
throughout your session.
Auto Program 3: Vibration begins at speed (2) and skips to a different level every
10 seconds, alternating in a continuous pattern.
6. To choose a program, press button on the control panel. Each subsequent
press will toggle through the following programs:
• On the remote control, each of these programs has its own button.
Simply press to select.
NOTE: The and keys will be disabled during automatic programs.
7. Each session lasts 10 minutes by default. To adjust the duration of your
current session (between 1 and 15 minutes), press . This option is available in
automatic mode.
M
P1
P2 P3
1. Press the power switch.
2. Step onto the unit.
3. Press . Automatic mode will start immediately at the lowest speed (1).
4. To select your preferred vibration mode press . Press again until you arrive at
your preferred vibration mode:
5. Using the remote control, press to increase vibration speed or to
decrease vibration speed. The highest available speed is 10.
• OSCILLATION • HORIZONTAL• COMBINATION
8. During the automatic programs, functions rotate according to the following
pattern:

98
TROUBLESHOOTING
The unit does not
operate at all.
The power cord or plug
has been crushed or
bent out of shape.
No.
1
2
Problem Causes and Remedies
• The power plug is not connected to an outlet.
• The power button has been pressed to the OFF.
• The power cord or power plug is broken. Contact
the manufacturer or an authorized repairman.
• Immediately shut off the unit.
• Contact manufacturer or an authorized repairman.
* If unusual symptoms persist after you have tried the actions listed above, please contact the manufacturer or
an authorized repairman.
CLEANING AND MAINTENANCEUSAGE POSITIONS
STARTING BLOCK POSITION (2 minutes)
onto the platform. Lean your upper body forward,keeping both legs
slightly bent, your front leg at a sharper angle than your back leg.
This position works muscles in the shoulders, back, and arms.
STANDING POSITION (5 minutes)
Stand on the platform with your feet shoulder-width apart,gripping
the handles securely with both hands.
This position works muscles in the back,waist, glutes, chest, and
stomach.
STANDING POSITION (2 minutes)
Stand on the platform with your feet a bit wider apart than
shoulder-width. Bend your knees to lower height about 6 inches.
This position works muscles in the glutes, thighs, and along the
vertebrae.
TIPTOE POSITION (2 minutes)
Stand on the platform with your feet a bit wider apart than
shoulder-width. Bend your knees to lower your body height
about 6 inches. Lift your heels off of the platform, shifting your
weight onto your toes.
This position works muscles in the feet,glutes,thighs,and along
the vertebrae.
RESISTANCE BAND WORKOUT
Pair an upper-body workout with any usage position! Simply attach hooks at the
front end of the unit's platform.
• Wipe all surfaces of the unit with a soft, damp cloth on a regular basis to remove
excessive accumulation of dust, dirt, sweat, and other substances, especially after
each workout. Do not treat with abrasive solvents.
• Avoid spraying water on the unit. Avoid immersing the unit or any of its parts in
water or any other type of liquid.
• We recommend placing the unit back into its original packaging for storage.
• When this unit is not being used, store it in a dry location. Do not store near intense
• Do not leave the unit under direct sunlight for prolonged periods of time.
• Keep the unit out of the reach of pets and young children.
To reduce the risk of electric shock:

10
USJ-849
VITALITY PLATE
TECHNICAL SPECIFICATIONS
Product Name: .............................................................................................. Vitality Plate
Model Number: ...................................................................................................USJ-849
Rated Voltage: ..........................................................................................................110V
Rate Frequency: ......................................................................................................60 Hz
Rated Power: ..........................................................................................................300 W
WARRANTY
Consumer Limited Warranty: ONE-YEAR WARRANTY
This warranty guarantees that the product purchased is to be free from defects in
material and workmanship under normal usage and local voltage for a period of one
year. This warranty expires in TWO (2) years on parts, and ONE (1) year on labor
after the date of purchase.
U.S. Jaclean, Inc. (referred to as “the Warrantor”) will repair this product with new or
rebuilt parts in case of defects in material or workmanship, free of charge, in the USA
provided that:
This warranty is extended to the original end-user when purchased from an authorized
U.S. Jaclean, Inc. distributor. A purchase receipt or other proof of date of the original
purchase is required for service and parts replacement under this warranty. This
warranty does not cover shipping charges for defective items if a claim is made more
than 30 days after the date of purchase.
This warranty only covers failures due to defects in materials and workmanship, and
does not cover normal wear or cosmetic damages. This warranty does not cover
damages which occur in shipment, or failures which result from: accident, misuse
(including, without limitation, failure to comply with instructions and use limitations
contained in the Operating Instructions), abuse, neglect, mishandling, faulty installation,
set-up adjustments, improper operation or maintenance, alteration, modification, power
line surge, lightening, improper line voltage, commercial use such as hotel, office,
restaurant, or other business or rental use of product, service by anyone other than
from U.S. Jaclean, Inc., or damage that is attributable to “acts of God.”
Continued use of this product after discovering a defect voids this warranty. This
warranty shall be governed by the state of California, United States of America.
Please retain this Warranty Certificate, together with the original purchase receipt, and
present it to our technician for inspection during service.
For assistance and more information, please contact U.S. Jaclean, Inc.
USJ-849 VITALITY PLATE
IMPORTANT: DO NOT return defective product to the store.
Contact U.S. Jaclean, Inc. for repair services.
1) The product is operated in accordance with the printed instructions supplied.
2) The product is used under normal conditions for which designed.
3) The product is not subjected to misuse, negligence, or accident.
4) The product receives proper care, protection, and maintenance.
1-833-542-1918
9AM - 5PM PST (Monday - Friday)
usjaclean.com
Distributed by U.S. Jaclean, Inc.
1816 West 135th Street
Gardena, CA 90249
