Dali Kubik User manual

DALI KUBIK MANUAL

OFF
MUTE
BLUETOOTH
BLUETOOTH PAIRING

CONTENTS / INHALT / INDHOLD / 零部件 / 󰎽
ENGLISH 3
DEUTSCH 19
DANSK 35
中国 51
日本の 67

5
CONTENTS
BOX CONTENTS 4
INTRODUCTION 5
UNPACKING 5
CONNECTIONS 6
POSITIONING 8
CONTROLS 10
BLUETOOTH SETUP 13
IR LEARNING 14
RUNNING IN 16
OVERLOAD 16
CLEANING 16
DISPOSAL 16
CONNECTIONS
SpEAKEr SETUp
pLAyBACK
AppENDIx
CONTrOLS
GB

6
KUBIK Remote
Power cable
DALI CONNECT SC XR605C
KUBIK FREE
KUBIK FREE XTRA
KUBIK FREE KUBIK FREE XTRA
BOx CONTENTS

7
INTrODUCTION
Congratulations with your new DALI KUBIK FREE loudspeaker. It is important to
us that your new loudspeaker is set-up and connected optimally. We strongly
recommend that you read this manual and follow its instructions before unpacking
and installing the speaker. This manual contains instructions for set-up and
connection, as well as tips and advice on how to get the most out of your KUBIK
FREE loudspeaker.
DALI is acclaimed around the world for unique loudspeakers developed to meet our
uncompromising standards for design and performance. The goal for every single
DALI loudspeaker is to create a listening experience in your home that will make
you forget time and place.
Remember to sign up for the DALI newsletter at www.dali-speakers.com.
Enjoy.
UNpACKINg
Be careful not to damage the contents when unpacking the parts. Check that all
parts are included in the cardboard box. Keep the packaging materials in case your
speaker needs to be relocated or serviced.
Note - NEVER place the DALI KUBIK FREE with the front facing down without the
grille, as this will cause deformation of the silk dome tweeter, which may damage
its performance.

8

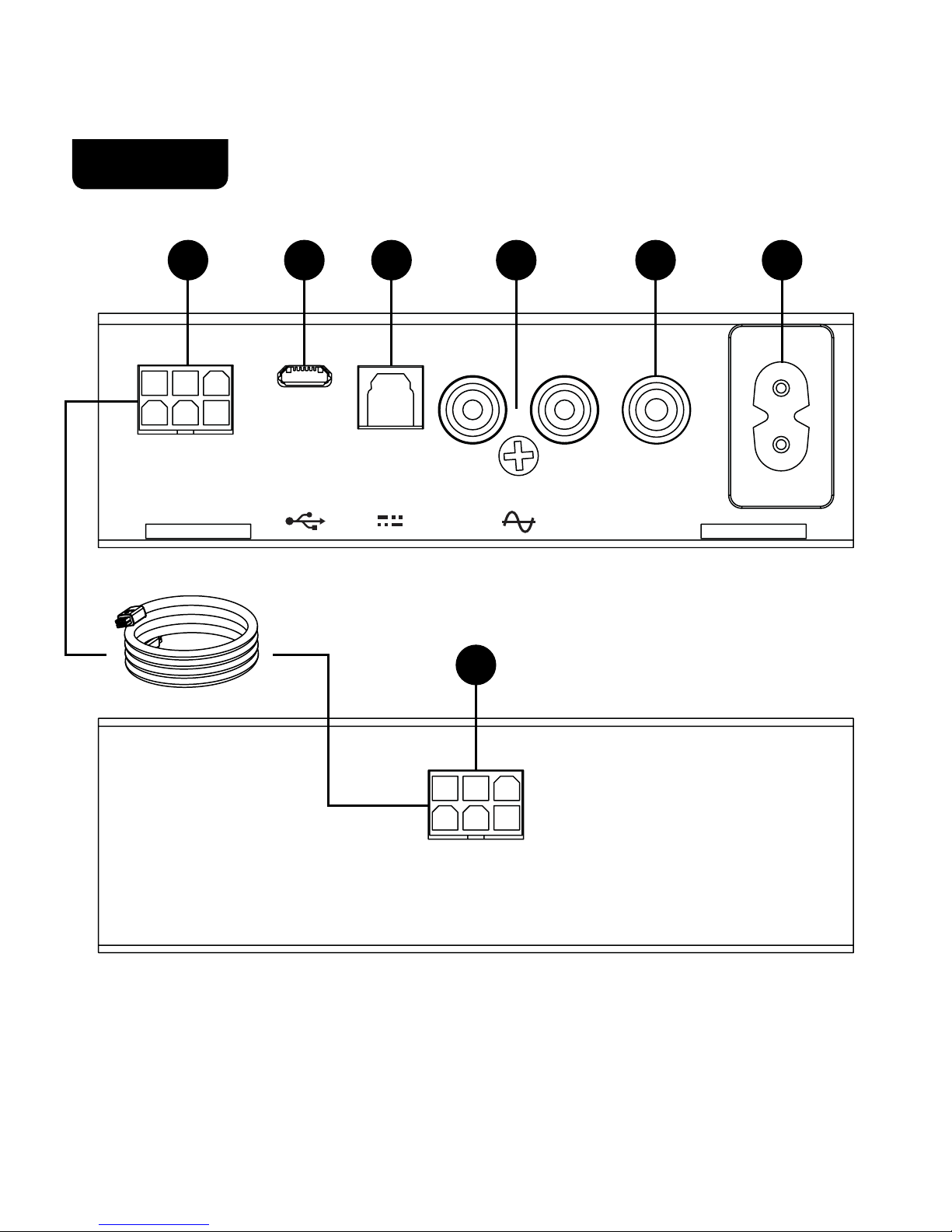

KUBIK XTRA connector
Connect the cable supplied with the KUBIK FREE XTRA.
Adjust the L-L+R-R button on the back of the KUBIK FREE (see page 9) to reflect the position of the
KUBIK FREE.
USB connector
Connect a Micro USB cable to the KUBIK FREE.
Note – The Micro USB input only works with a PC or MAC (iPad when using the Apple Camera
Connection Kit).
Optical connector
Connect an optical cable (TOSLINK) to the KUBIK FREE.
AUX connector
Connect an analogue source via a RCA (Cinch) cable.
Subwoofer connector
Connect any active Subwoofer to the KUBIK FREE.
The KUBIK FREE automatically activates the Subwoofer output when the cable is connected.
Power cord connector
KUBIK FREE connector
Adjust the L-L+R-R button on the back of the KUBIK FREE (see page 9) to reflect the position of the
KUBIK FREE.
1
2
3
4
5
6
7
CONNECTIONS
CONNECTIONS

9
KUBIK FREE
1 2 3 4 5 6
KUBIK FrEE
KUBIK FrEE xTrA
7
SUB OUTKUBIK XTRA OPTICAL INUSB IN AUX IN
L
100-240V~50/60Hz 150W
R
CONNECTIONS

10

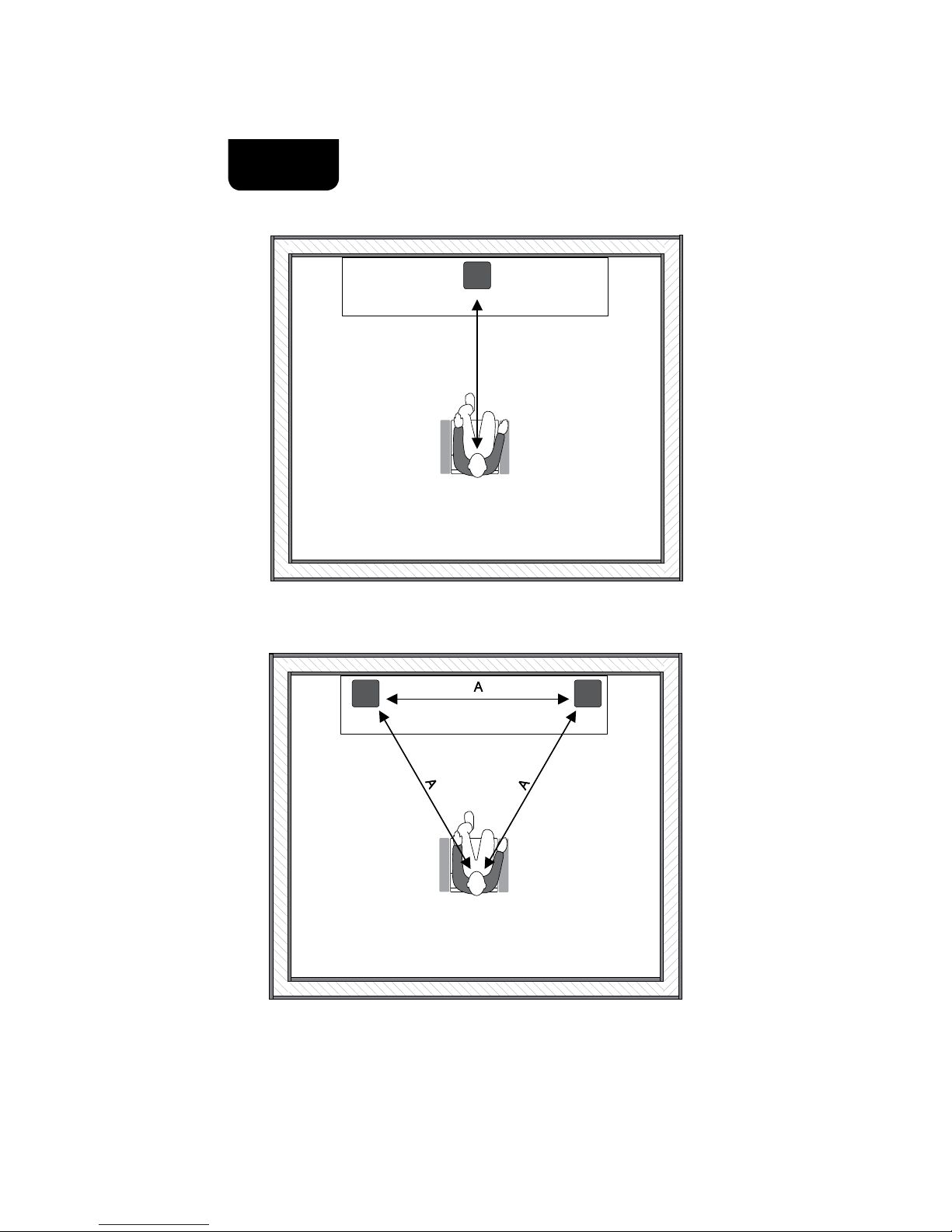

pOSITIONINg
KUBIK FREE
KUBIK FREE and KUBIK FREE XTRA
KUBIK FREE
KUBIK FREE and KUBIK FREE XTRA
SpEAKEr
SETUp

11
Left
Right
Left + Right
CHANNEL
SELECT
Left
Right
Left + Right
CHANNEL
SELECT
Left
Right
Left + Right
CHANNEL
SELECT
KUBIK FREE
KUBIK FREE
KUBIK FREE
KUBIK FREE XTRA
KUBIK FREE XTRA
Power
plug
left
Power
plug
right
Use DALI CONNECT SC XR605C
to connect KUBIK FREE and
KUBIK FREE XTRA.
(Included in KUBIK FREE XTRA)
Power cable
Power cable
Power cable
Power
plug
Use DALI CONNECT SC XR605C
to connect KUBIK FREE and
KUBIK FREE XTRA.
(Included in KUBIK FREE XTRA)
SpEAKEr
SETUp

12

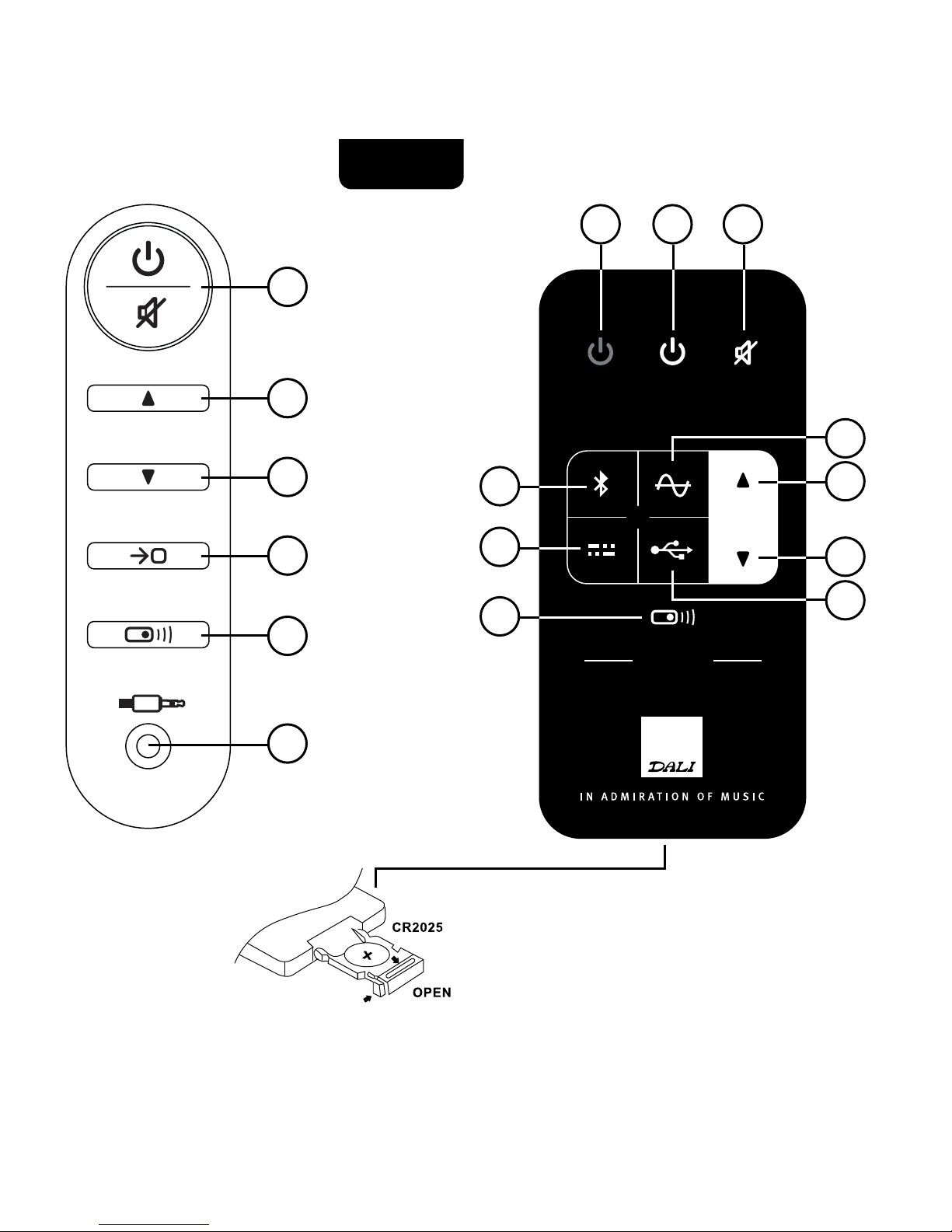

Power Button
To turn on the KUBIK FREE press the Power Button.
To turn off the KUBIK FREE (standby mode) press and hold the Power Button.
To mute the KUBIK FREE press the Power Button, press again to un-mute.
Volume up
Volume down
Input Selector
To change input press the Input Selector button.
The light on the front of the KUBIK FREE will indicate the active input source.
IR Learning
Operate the KUBIK FREE from any remote control, see page 14 for more information.
Mini Jack in
The KUBIK FREE automatically selects this input when a cable is connected. Therefore when
connected, the KUBIK FREE can only play from this input.
Power off (Standby mode)
Power on
Mute
Bluetooth input selector
Optical input selector
AUX input selector
USB input selector
1
2
4
5
6
3
7
8
9
10
11
12
13
CONTrOLS
CONTrOLS

13
IR LEARN
DALI KUBIK FREE
IR REMOTE CONTROL
1
2
3
4
5
6
7 8 9
10
11
5
2
3
13
12
Remove plastic tab
to engage the battery
in the remote control.
To use the KUBIK FREE
remote control, push the
desired function while
pointing the remote
towards the front of the
KUBIK FREE.
CONTrOLS

14
Min. Max.
USB
CHARGE
Auto
Manual
Left
Right
Left + Right
GAIN
ADJUST
POWER
MODE
CHANNEL
SELECT

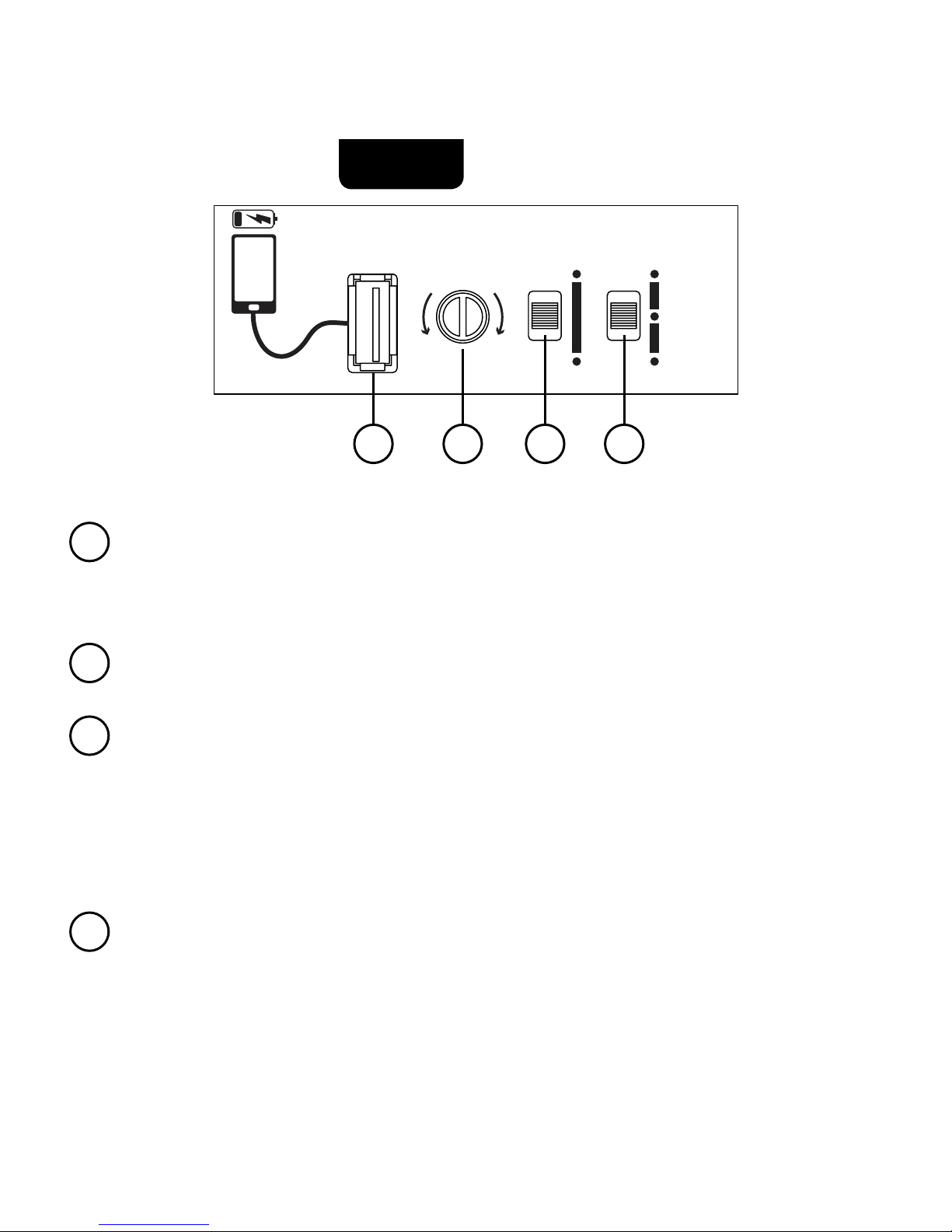

USB charge
Connect a USB cable to the KUBIK FREE to charge your phone, tablet or music player while playing.
Note - This connector is for charging only. No music playback from USB sticks or connected phones
or table.
Gain adjust
If there is a difference in input level turn Gain adjust to match analog input level to digital level.
Auto Power Mode
Auto
Turns off KUBIK FREE after minutes of inactivity.
Turns on when signal activity is detected from sourced used when put into standby mode.
Manual
Power on/off by using power button or remote.
Channel select (Se page 9)
Left+Right : KUBIK FREE is used as standalone speaker.
Left : KUBIK FREE is placed as left speaker in a stereo setup with KUBIK FREE XTRA.
Right : KUBIK FREE is placed as right speaker in a stereo setup with KUBIK XTRA.
14 15 16 17
14
15
16
17
CONTrOLS

15
BLUETOOTH SETUp
Action Status
1 Select Bluetooth on the KUBIK FREE. The light next to the symbol will start flashing,
indicating the KUBIK FREE is ready for pairing.
2 Enable Bluetooth on phone, tablet or PC.
3On the phone, tablet or PC, scan for Bluetooth
devices.
DALI KUBIK FREE will show up on the list of
Bluetooth devices.
4Select 'DALI KUBIK FREE' and finalize the
pairing process.
If asked to input a code use four zeros (0000).
5KUBIK FREE is now connected to your phone,
tablet or PC.
KUBIK FREE is now connected and will play
music and video audio.
When turned on in Bluetooth mode, or switched to Bluetooth mode via the input selector or remote control,
the KUBIK FREE will automatically try to reconnect to the last used phone, tablet or PC.
As long as a phone, tablet or PC is connected to the KUBIK FREE no other phone, tablet or PC can connect.
Release Bluetooth connection on phone, tablet or PC to activate pairing process for new phone, tablet or PC.
KUBIK FREE will not function as a hands free speaker for your phone or PC.
Note: To achieve the best audio quality set the volume on your phone, tablet or PC to maximum and use the
volume control on the KUBIK FREE.
pLAyBACK

16
Ir LEArNINg
The IR learning function lets you use an existing remote control to operate the KUBIK FREE. This means
that you can use your TV remote control, or any other remote control to adjust the volume and activate any
input on the KUBIK FREE. To achieve this you must first enable the KUBIK FREE to accept the IR signals from
the remote you wish to use. Follow the simple steps below to activate IR learning for your remote control.
Place yourself in close proximity to the front of the KUBIK FREE. Have both your primary remote control and
the KUBIK FREE remote control ready at hand, and the KUBIK FRE turned on.
NOTE - The KUBIK FREE will automatically exit IR learning mode if no user activity is detected for 30 seconds.
NOTE: KUBIK FREE’s IR learning feature cannot be used with Bang & Olufsen remote controls.
AppENDIx

17
AppENDIx
Action Status
1Start process
To enter IR learning mode press and hold the
button directly on the KUBIK FREE control panel
or on the KUBIK FREE remote control.
All indicator lights on the front of the KUBIK FREE will
turn on to show IR learning mode is active.
2 Define function
Press the button directly on the KUBIK FREE or on the
KUBIK FREE remote that performs the function that
you wish to be transferred to your primary remote
control.
The red indicator light on the front of the KUBIK FREE
will turn off when the input is accepted.
3 Define primary remote control button
3.1. Press the button on the primary remote that
you wish to perform the function indicated in
the previous step.
3.2. Press and hold the same button for 5 seconds.
3.3. Press the same button again.
3.1. The indicato lights turns off when input is
accepted.
3.2. The indicator lights turns off when input is
accepted.
3.3. The indicator lights blinks when final input is
accepted.
4Continue or exit process
To teach other functions
Repeat step 2 and 3 until all the desired
functions have been taught.
To exit IR learning mode
Press and hold the button directly
on the KUBIK FREE or on the KUBIK FREE
remote, alternatively wait 30 seconds.
5 You are done
It is now possible to control the KUBIK FREE from
your primary remote.
If you accidently assign a wrong primary remote control key to a KUBIK FREE function, just restart the
learning process for that function to overwrite.

18
AppENDIx
rUNNINg IN
Like any mechanical system (e.g. a new car), a loudspeaker requires a “running-in” period to perform at
its best. You will experience a gradual increase in sound quality during the first period of use. The break-
in period will vary depending on use and playback volume (approximately 50 hours at medium volume is
recommended). Unlike other mechanical systems, the life-span of a loudspeaker is increased by normal,
regular playback of music.
OvErLOAD
If the KUBIK FREE is overloaded it will automatically turn off to protect itself and the power LED will start
flashing. Turn on KUBIK FREE manually after approximately 15-20 min.
CLEANINg
Clean the cabinets with a soft, dry cloth. If the cabinets are dirty, wipe with a soft cloth dipped in all-purpose
cleaner and then well wrung out. Be very careful when wiping the speaker cones, as they are very fragile.
Front grilles can be cleaned with a clothes brush and wiped with a wellwrung, lint-free cloth and mild all-
purpose cleaner.
DISpOSAL
If you want to dispose of this product, do not mix it with general household waste. There is a separate
collection system for used electronic products in accordance with legislation that requires proper treatment,
recovery and recycling. Private households in the EU member states, Switzerland, Liechtenstein and Norway
may return their used electronic products free of charge to designated collection facilities or to a retailer (if
you purchase a similar new one). If you reside in countries not mentioned above, please contact your local
authorities for the correct method of disposal. By following this process, you will ensure that your disposed
product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative
effects on the environment and human health.

19
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN.
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE BACK PANEL.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
The lightning flash within an equilateral triangle is
intended to alert you to the presence of non insulated
“dangerousvoltage”withintheproduct’senclosurethat
may be of sufficient magnitude to constitute an electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert you to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
1 Read instructions - all the safety and operating instructions
should be read before the appliance is operated.
2 Retain instructions - the safety and operating instructions
should be retained for future reference.
3 Heed warnings - all warnings on the appliance and in the
operating instructions should be adhered to.
4 Follow instructions - all operating and use instructions should
be followed.
5 Water and moisture - the appliance should not be used near
water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool and
the like.
6 Carts and stands - the appliance should be used only with a
cart or stand if recommended by the manufacturer.
7 Wall or ceiling mounting - the appliance should be mounted to
a wall or ceiling only as recommended by the manufacturer.
8 Ventilation - the appliance should be situated so that its
location or position does not interfere with proper ventilation.
For example, the appliance should not be situated on a bed,
sofa, rug, or similar surface that may block the ventilation
openings; or placed in a built-in installation, such as a
bookcase or cabinet, that may impede the flow of air through
the ventilation openings.
9 Heat - the appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances that produce heat.
10 Power sources - the appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked on the appliance.
11 Power cord protection - power-supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed on or against them, paying particular
attention to cords at plugs, convenience receptacles and
the point where they exit from appliance. Appliance coupler
serves as disconnecting device.
12 Cleaning - do not use any liquid cleaners. Use only a dry
cloth to wipe off dust and grease.
13 Non-use periods - the power cord of the appliance should
be unplugged from the outlet when left unused for a long
period of time.
14 Object and liquid entry - care should be taken so that
objects do not fall and liquids are not spilled into the
enclosure through openings.
15 Damage requiring service - the appliance should be
serviced by qualified personnel when:
a) The power-supply cord or the plug has been
damaged; or
b) Objects have fallen, or liquid has been spilled into
the appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally,
or exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure
damaged.
16 Servicing - the user should not attempt to service
the appliance beyond that described in the opera ting
instructions. All other servicing should be referred to
qualified service personnel.
AppENDIx

20
