Dali PHANTOM IW SUB S-100 User manual

6. Subwoofer connections
Go to the
User Manual
by scanning
the QR code.
DALI PHANTOM subwoofer QUICK START GUIDE
1 x DALI PHANTOM
IW SUB S-100
1 x Grille (magnetic) 1 x Cut-out template 4 x Rubber pads
DALI PHANTOM IW SUB S-100
QUICK START GUIDE
1. Carton Contents
2.A Installation - In-wall
Use cut-out template
to prepare the wall for
installation.
Place subwoofer in wall.
Use a cross-head screwdriver or drill bit to
tighten the eight dogleg clamp screws.
615 mm
24.2 in
370 mm
14.6 in
Minimum depth
102 mm
4.02 in
123
4
Connect cables from the
amplifier to the subwoofer.
x 8
10 - 70 mm
0.4 - 2.8 in
Place the grille.
5
1 x Subwoofer (LFE .1) 2 x Subwoofer (LFE .1)
4 x Subwoofer (LFE .1)
PROCESSOR /
AV Reciever
PROCESSOR /
AV Reciever
PROCESSOR /
AV Reciever
PHANTOM CI
AMP-2500 DSP
PHANTOM CI
AMP-2500 DSP
PHANTOM CI
AMP-2500 DSP
Sub (LFE out) Sub (LFE out)
Sub (LFE out)
+ +
+
+
+ ++
- -
-
-
- --
OUTPUTS
CH1 CH2
OUTPUTS
CH1 CH2
OUTPUTS
CH1 CH2
+ +
+
+ +
+
- -
-
- -
ANALOG INPUTS
CH2 CH4
CH1 CH3
ANALOG INPUTS
CH2 CH4
CH1 CH3
ANALOG INPUTS
CH2 CH4
CH1 CH3 -
Item.no. 951125-0-0 06/2023

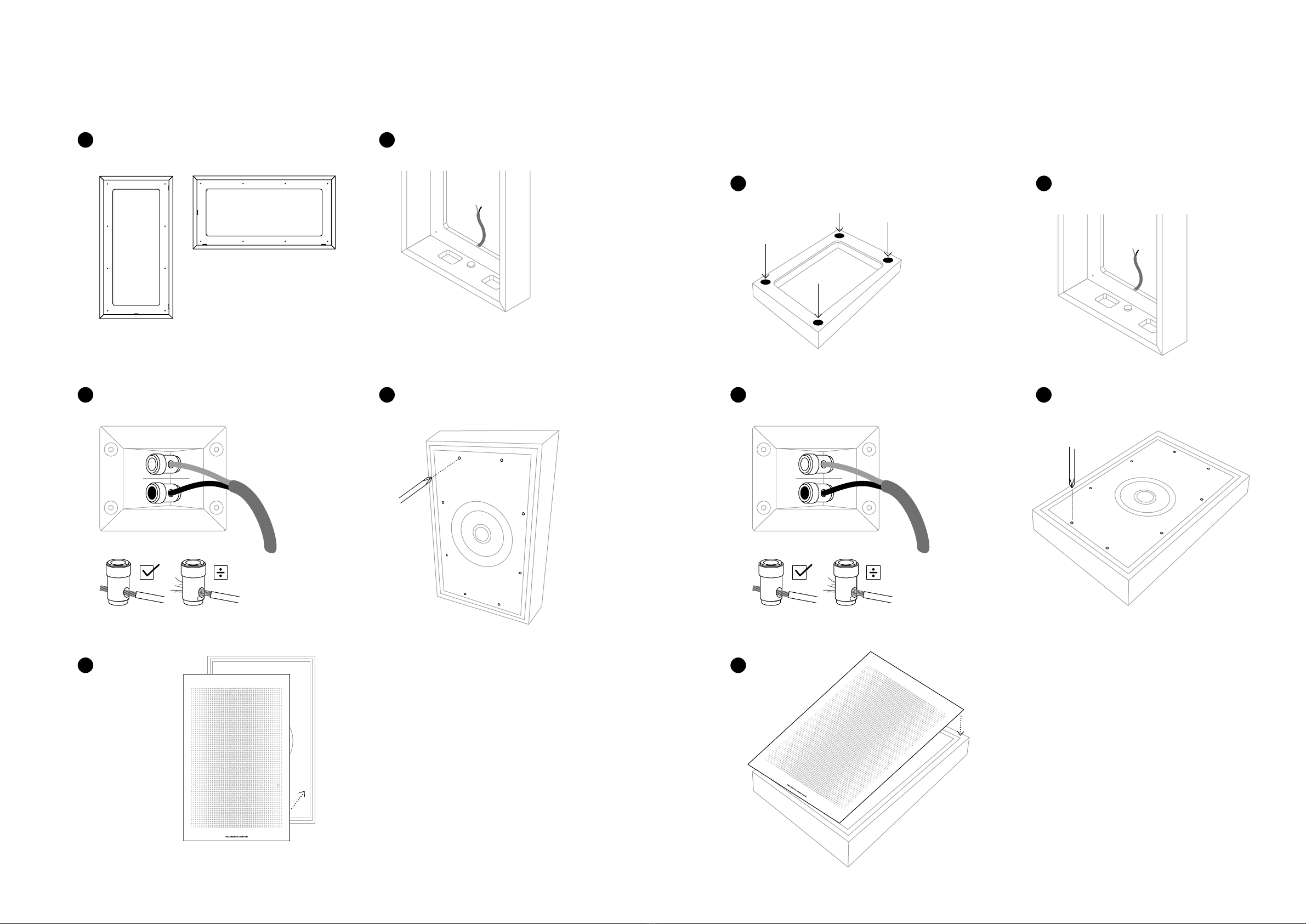

2.B Installation - On-wall frame 2.C Unmounted installation
Mount the DALI S-80 On-wall frame on the wall
in landscape or portrait position.
Enable unmounted installation by using the DALI S-80 On-wall frame as an
external cabinet for the subwoofer. For example for placement on floor.
1
1
Landscape
Portrait
Pass the cable from the amplifier unit
through the channels of the frame.
Pass the cable from the amplifier unit
through the channels of the frame.
Place the 4 rubber feet to the rear
side of the DALI S-80 On-wall frame.
2
2
Connect cables from the
amplifier to the subwoofer.
Connect cables from the
amplifier to the subwoofer.
3 3
Use a cross-head screwdriver or drill bit to
tighten the eight dogleg clamp screws.
Use a cross-head screwdriver or drill bit to
tighten the eight dogleg clamp screws.
4 4
Place the grille. Place the grille.
5 5
x 8
x 8
DALI PHANTOM subwoofer QUICK START GUIDE
