Remote Control Instructions
MODEL
AIR CONDITIONER
2016.01.14
DPA080CB7WDB
DPA100CB7WDB
DPA120CB7WDB

Handling the Remote Control...............................................................................................................2
Remote Control Specifications............................................................................................................3
FunctionButtons...................................................................................................................................4
Indicators on LCD Display....................................................................................................................6
OperatingtheButtons...........................................................................................................................7
Auto Operation Setting.........................................................................................................................7
Cooling/FanSetting.............................................................................................................................7
DehumidifierSetting..............................................................................................................................8
SwingSetting.........................................................................................................................................8
Timer Setting.........................................................................................................................................9
EconomySetting.................................................................................................................................12
CONTENTS
1

Handling the Remote Control
• Use the remote control within a distance of 8 m (26 ft.) from
the appliance, pointing it towards the receiver. Reception is
confirmed by a beep.
CAUTION
• The air conditioner will not respond if curtains, doors or other materials block the signal from the
remote control to the unit.
• Prevent any liquid from contact with the remote control. Do not expose the remote control to direct
sunlight or heat.
• If the infrared signal receiver on the indoor unit is exposed to direct sunlight, the air conditioner
may not function properly. Use curtains to prevent the sunlight from falling on the receiver.
• If other electrical appliances react to the remote control, either move these appliances to another
location or consult your local dealer.

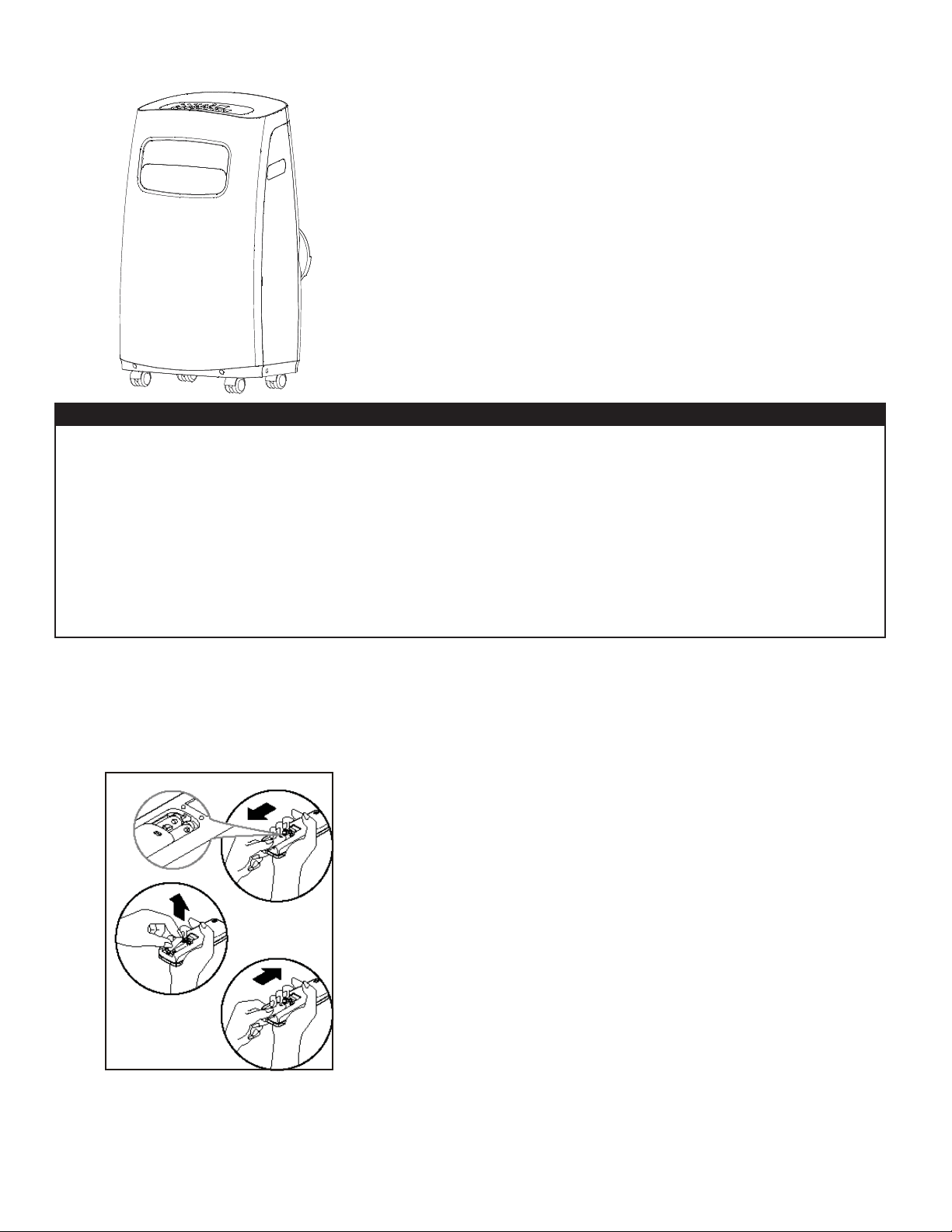

Replacing the Batteries
The remote control is powered by two dry batteries (2-AAA)
located in the rear part and protected by a cover.
1. Remove the cover by pressing down and sliding it off.
2. Remove the old batteries and insert the new batteries,
placing the (+) and (-) ends correctly.
3. Reattach the cover by sliding it back into position.
NOTE: When the batteries are removed, the remote control
erases all programming. After inserting new batteries, the
remote control must be reprogrammed.
2
.

CAUTION
• Do not mix old and new batteries or batteries of different types.
• Do not leave the batteries in the remote control if it is not going to be used for more than 2
months.
• Dispose of the old batteries in special containers such as those found in the sales outlets.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital de-
vice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is en-
couraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna
2. Increase the separation between the equipment and receiver
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected
4. Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not approved by the party responsible for FCC compliance could void the
user’s authority to operate the equipment.
This appliance complies with Part 15 of the FCC Rules. Operation is subject to the following condi-
tions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause unde-
sired operation.
This device complies with Canadian CAN ICES-3 (B) / NMB-3 (B)
Remote Control Specifications
Model RG51I46/BGCE
Rated Voltage 3.0V (2-AAA)
Signal Receiving Range 8m
Environment -5°C to 60°C (-41°F to 140°F)
Note:
Temperature setting display: Press and hold the UP and DOWN buttons at the same time for 3
seconds to alternate the temperature display between °C and °F.
Performance Feature
1. Operating Mode: AUTO, COOL, DRY, and FAN.
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range: 17°C~30°C (62°F~86°F).
4. Full Function of LCD (Liquid Crystal Display)
NOTE: All the illustrations in this manual are for explanatory purposes only. Your air conditioner may
be slightly different.
3

4

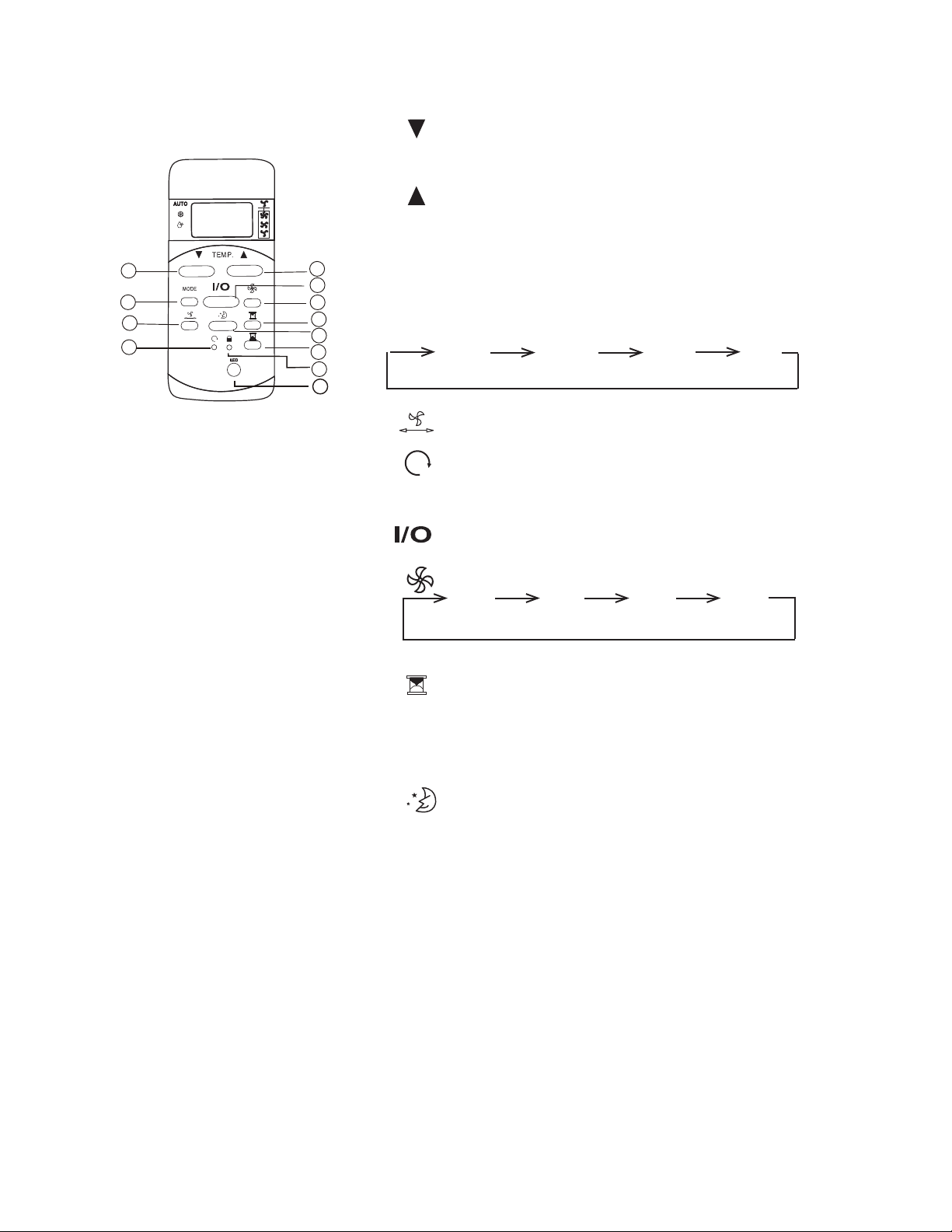

Function Buttons
1. TEMP DOWN Button: Push this button to decrease
the indoor temperature setting by 1°C (1°F) increments to
17°C (62°F).
2. TEMP UP Button: Push this button to increase the
indoor temperature setting by 1°C (1°F) increments to 30°C
(86°F). Press and hold the UP and DOWN buttons at the
same time for 3 seconds to alternate the temperature dis-
play between °C and °F.
3. MODE Button: Each time the button is pressed, the opera-
tion mode changes in the following sequence:
AUTO COOL DRY FAN
4. Button: Used to stop or start louver movement and
move the airflow direction up/down as desired.
5. Button: once the recessed RESET button is pressed,
all of the current settings will be cancelled and the control-
ler will return to default settings.
6. Button: Operation starts when this button is pressed
and stops when the button is pressed again.
7. Button: Used to select the fan speed in four steps:
Auto Low Med High
8. Button: Press this button to activate the Auto-on time
setting. Each time it’s pressed will increase the start time by
30 minute increments, up to 10 hours, then by 1 hour incre-
ments up to 24 hours. To cancel the Auto-on time setting,
just press the button until the time setting is 0.0.
9. Button: Select this function if you want the unit to
maintain a comfortable setting and save energy while you
sleep. This function is available on COOL or AUTO mode
only.
12
4
3
6
5
7
8
9
10
11
12
Model: RG5 ECGB/64I1
TEMP (°C / °F)

Function Buttons (continued)
NOTE: While the unit is running in sleep mode, it will cancel if or MODE buttons
are pressed.
5
,,
10. Button: Press the timer button to activate the AUTO-OFF setting. Each time it is pressed,
increases the time setting by 30 minute increments for the first 10 hours, then by 1 hour increments
up to 24 hours. To cancel the AUTO-OFF setting, press the button until the setting displays 0.0.
11. Button: Press this recessed button to lock all current settings, and the remote control will not
accept any changes except for unlocking. Use the LOCK mode when you want to prevent settings
from changing accidentally. Press the LOCK button again to cancel the LOCK function. A LOCK sym-
bol will appear on the remote control display when the LOCK function is activated.
12. LED Display Button: Press this button to clear the unit’s display, press it again to light the dis-
play.

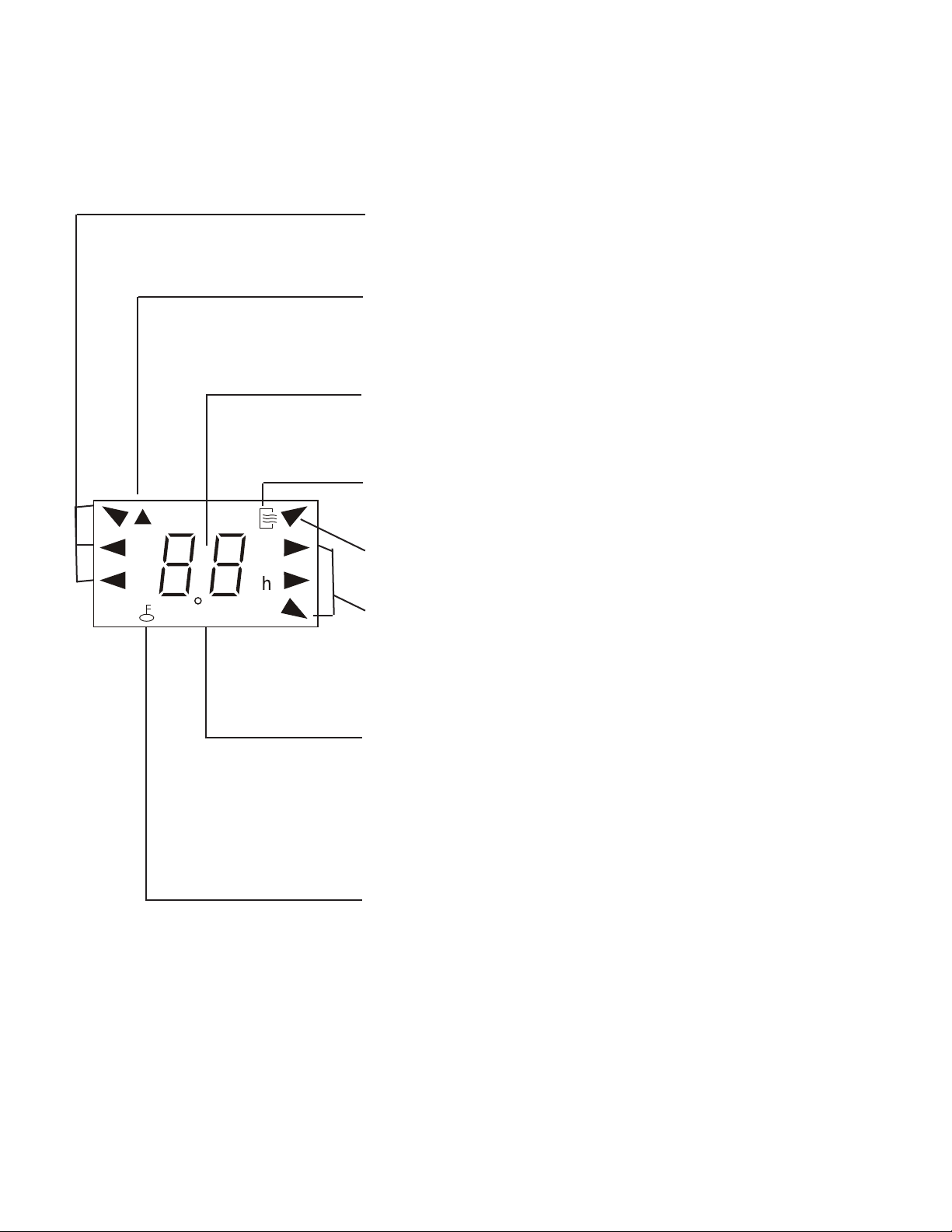

Indicators on the LCD
6
MODE Display
Displays the current selected mode. Including AUTO, COOL,
DRY and FAN.
Transmission Indicator
This transmission indicator will light up when the remote control
transmits signals to the indoor unit.
Temp./Timer Display
The temperature setting, from 17°C (62°F) 30°C (86°F) or timer
setting (0~24h) will be displayed. If FAN mode is selected, there
will be no temperature displayed.
ON/OFF Display
This indicator will be displayed when the unit is operating.
MODE Display (FAN mode)
FAN SPEED Display
Displays the selected fan speed: AUTO, HIGH, MED, or LOW.
Nothing is displayed when the fan speed is on AUTO speed.
When AUTO or DRY mode are selected, there will be no signs
displayed.
TIMER Display
This display area shows the TIMER settings. That is, if only
the Auto-on function is set, it will display TIMER ON. If only the
Auto-off time function is set, it will display TIMER OFF. If both
functions are set, it will display TIMER ON OFF which indicates
you have chosen both the Auto-on and Auto-off setting.
LOCK Indicator
The LOCK icon is displayed after pushing the LOCK button.
Push the LOCK button again to clear display.
TIMER ON OFF
SET TEMPERATURE

How to use the Buttons

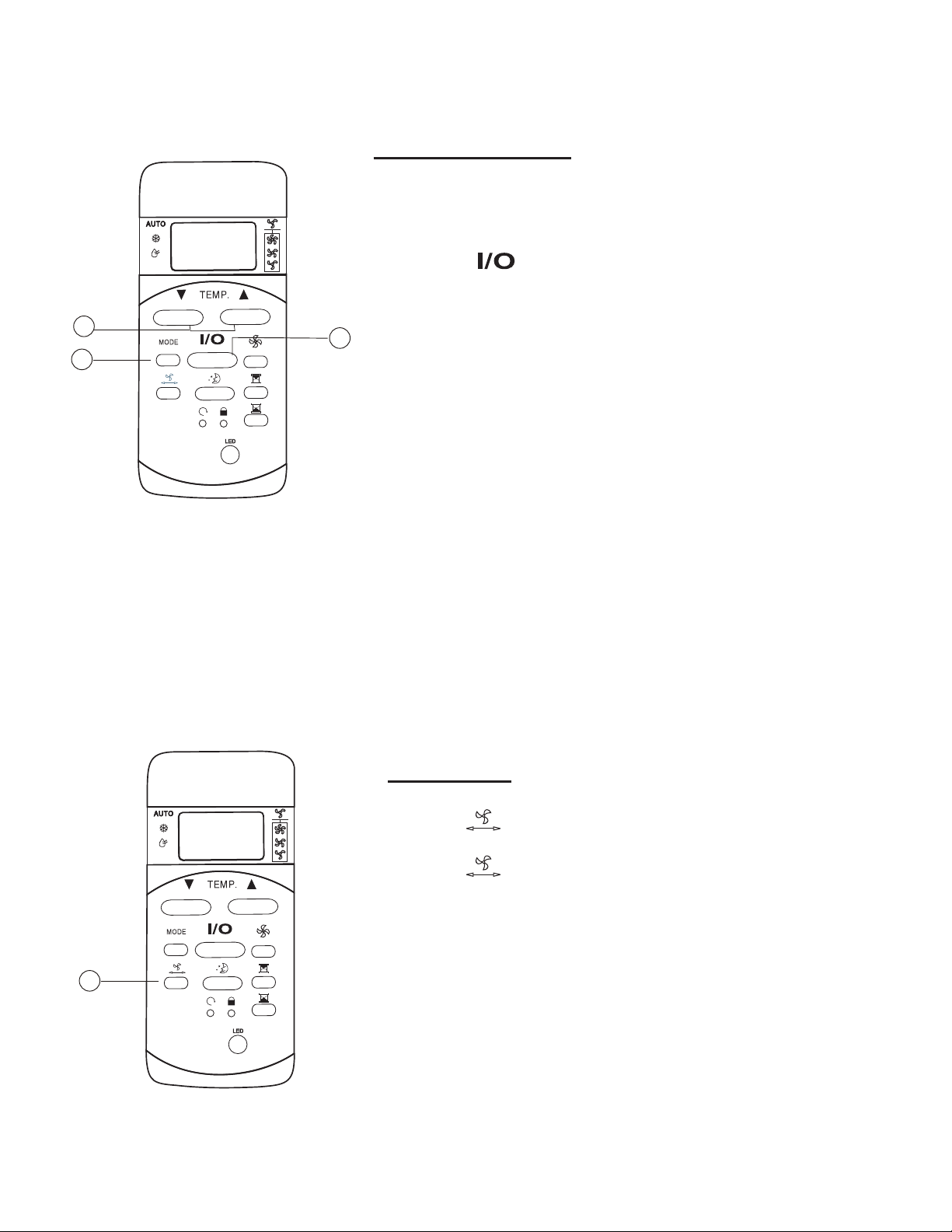

Auto Operation
Ensure that the unit is plugged in and has power. The OPERA-
TION indicator will illuminate on the display panel of the unit.
1. Press the MODE button until AUTO is selected.
2. Press the TEMP button to set the desired temperature. The
temperature can be set within a range of 17°C (62°F) to 30°C
(86°F) by 1°C (1°F) increments.
3. Press the button to start the air conditioner.
NOTE
1. In auto mode, the air conditioner can automatically choose
the mode of Cooling, Fan, Dehumidifying by sensing the differ-
ence between the actual room temperature and the set tem-
perature on the remote control.
2. In auto mode, you can’t switch the fan speed.
3. If auto mode doesn’t suit you, the desired mode can be con-
trolled manually.
Cooling / Fan Operation
Ensure the unit is plugged in and has power.
1. Press the MODE button to select COOL, FAN mode.
2. Press the TEMP button to set the desired temperature. The
temperature can be set within a range of 17°C (62°F) to 30°C
(86°F) in 1°C (1°F) increments.
3. Press the button to select one of the 4 fan speeds, Auto,
Low, Med, or High.
4. Press the button to start the air conditioner.
NOTE
In FAN mode, the temperature setting is not displayed on the re-
mote control and you are not able to control the room tempera-
ture either. In this case, only step 1, 3, and 4 may be performed.
7
4
1
3
2
1
3
2
TEMP (°C / °F)
TEMP (°C / °F)

Dehumidifying Setting
Ensure the unit is plugged in and has power. The OPERATION
indicator on the display panel of the unit illuminates.
1. Press the MODE button until DRY mode is selected.
2. Press the button to start dehumidifying mode.
NOTE: You cannot set the temperature in dehumidifying mode.
The factory humidity preset is 60%.
8
1
3
2
Swing Setting
Use the button to adjust the Up/Down airflow direction.
1. If the button is held down for more than 2 seconds,
the auto-swing feature of the louver is activated. The
horizontal louver will swing up/down automatically. Press
it again to stop.
NOTE: When the louver swings or moves to a position which
would affect the cooling ability of the air conditioner, it will
automatically change the swing/moving direction.
1
TEMP (°C / °F)
TEMP (°C / °F)

How to use the Buttons
Timer Setting
Pressing the button will set the auto-on time of the unit.
Pressing the button will set the auto-off time of the unit.
To set the auto-on time:
1. Press the button. The remote control will display TIMER
ON, the last auto-on time setting and the LCD display area
will show an “h.” Now it’s ready to reset the auto-on time.
2. Push the button again to set the desired auto-on time.
Each time you press the button, the time increases by 30
minute increments, up to 10 hours, then by 1 hour incre-
ments up to 24 hours.

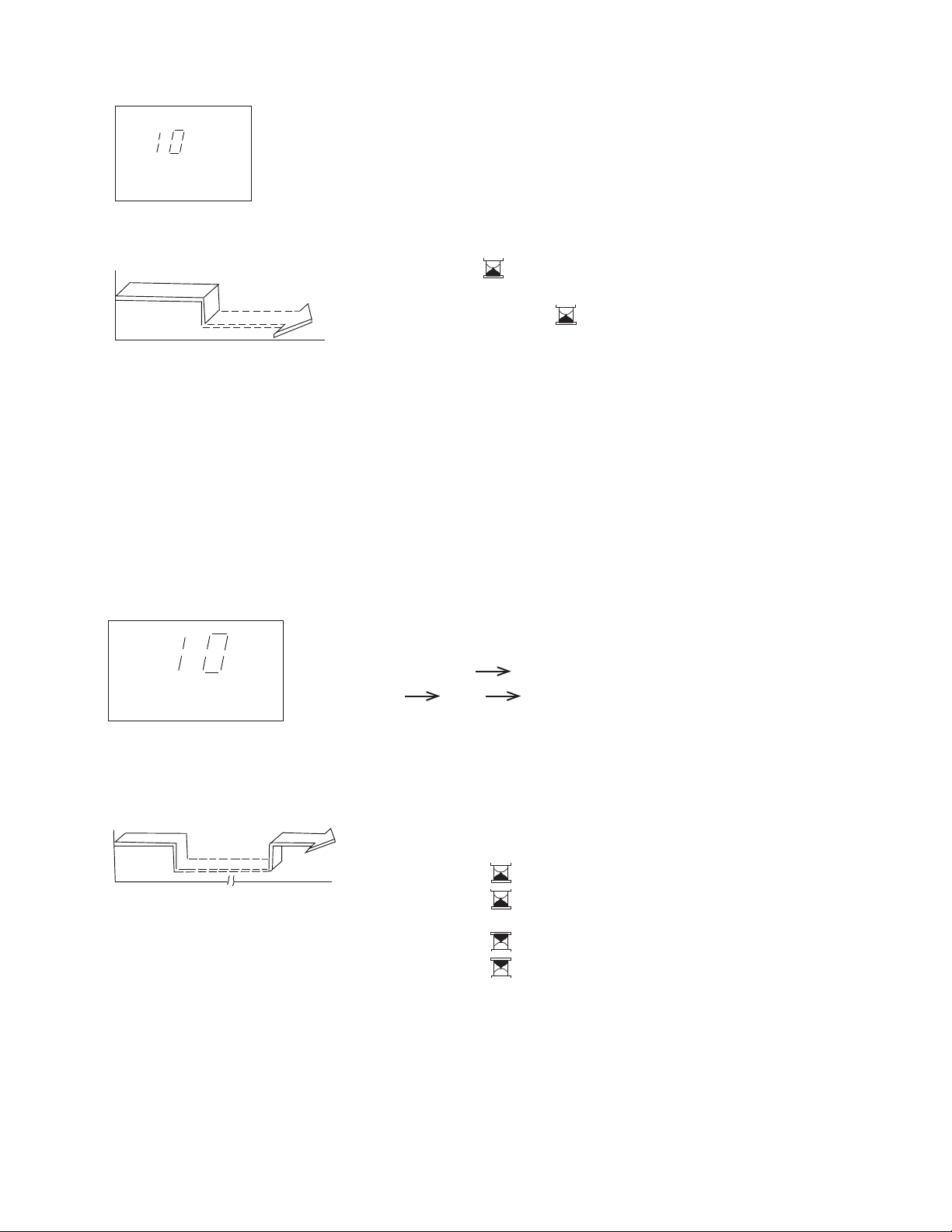

3. After turning the TIMER ON, there will be a one-half second
delay before the remote control transmits the signal to the air
conditioner. Then, after approximately 2 more seconds, the
“h” will disappear and the set temperature will re-appear on
the LCD display window.
To set the auto-off time:
1. Press the button. The remote control will show TIMER
OFF, the last auto-off time setting, and the LCD display area
will show an “h.” Now it is ready to reset the auto-off time.
2. Push the button again to set the desired auto-off time.
Each time you press the button, the time increases by 30
minute increments up to 10 hours, then by 1 hour incre-
ments up to 24 hours.
3. After setting the TIMER OFF, there will be a one-half second
delay before the remote control transmits the signal to the
air conditioner. Then, after approximately another 2 seconds,
the signal “h” will disappear and the set temperature will
re-appear on the LCD display window.
Note: This is a “one-shot” timer. It does not continue to cycle on
and off. It will turn the unit on (if set by the user) ONE time. It
will turn the unit off (if set by the user) ONE time. If you require
the unit to turn on/off again automatically, then you must set the
timer again.
9
1
2
TEMP (°C / °F)
