Dartel LJ-120 User manual

User guide
Please read these instructions
carefully before use and keep
this User Guide for future
reference!
LJ-120

1
Contents LJ-120
Contents
I. Introduction......................................................................................... 3
Telephone features............................................................................... 3
Function button index............................................................................ 5
II. Getting started................................................................................... 7
How to connect the batteries................................................................ 7
How to mount the stand…………………………………………………… 7
How to connect the handset and telephone line................................... 8
How to set the dial mode for your type of telephone exchange............ 8
Wall mounting………………………………………………………………. 8
III. Using the telephone......................................................................... 10
How to set the menu language…………………………………………… 10
How to set the display contrast............................................................. 10
How to set date and time...................................................................... 11
Ringer volume control........................................................................... 12
How to select ringer melody.................................................................. 12
2-way speaker function......................................................................... 13
How to make a call............................................................................... 13
How to receive a call............................................................................. 14
OUT memory........................................................................................ 14
How to delete the OUT number............................................................ 15
Redial function...................................................................................... 15
Auto-redial function………………………………………………………… 16
How to enter a pause............................................................................ 16
How to set a pause………………………………………………………… 17
Hold function......................................................................................... 17
Memory.......................................................................…………………. 18
Flash function........................................................................................ 20
How to lock telephone numbers............................................................ 21
Alarm function....................................................................................... 22
Anti-parallel function........................................................................….. 23
Calculator.............................................................................................. 23
IV. Clip (Caller ID) – Calling line identification presentation............. 24
How to review Clip numbers................................................................. 25
How to delete Clip numbers.................................................................. 25
VIP function.......................................................................................... 25
How to make a call from the Clip memory............................................ 26
How to set the prefix……………………………………………………….. 26
How to set the local area code.............................................................. 27

2
Contents LJ-120
V. Phone-book………………………………………………………………. 29
How to enter the name and number……………………………………... 29
How to search and review the name and number……………………… 30
How to edit the phone-book………………………………………………. 31
How to delete a name and number………………………………………. 31
How to make a call from the phone-book……………………………….. 32
VI. Connecting the headphone…………………………………………… 33
VII. Help................................................................................................... 34
Important advice.................................................................................. 35

3
I. Introduction LJ-120
I. Introduction
Important!
Please read these instructions carefully before use and
keep this User Guide for future reference.
Telephone components supplied:
 telephone set (base unit + handset),
 handset cord,
 line cord,
 stand,
 user guide,
 guarantee card.
 Telephone features
♦ Phone-book
- maximum of 93 memory locations
- entering a name
- searching a name (number)
- deleting a number
♦ 10 languages
♦ 16-digits, blue backlit LCD display
♦ 10 two-touch number memory
♦ 8 one-touch number memory
♦ Support of memory
♦ Calculator
♦ CLIP(Caller ID) – calling line identification
presentation in European system
- telephone number review
- date and time display
- local area code enter
- prefix
- call back
- VIP function
♦ Alarm-clock
♦ Call timer
♦ Adjustable display contrast
♦ Date and time setting

4
I. Introduction LJ-120
♦ Last number redial
♦ Auto redial
♦ Out number memory
♦ Pause
♦ 2-way speaker function
♦ 2-way speaker volume rotary switch
♦ Pre-dial function
♦ Flash
♦ 16 types of ringer sound selectable
(12 melody ringers)
♦ Ringer volume control
♦ Anti-parallel function
♦ Music on hold
♦ Tone/pulse dialing
♦ Lock for long distance calls
♦ Headphone socket
♦ Wall mounting

5
I. Introduction LJ-120

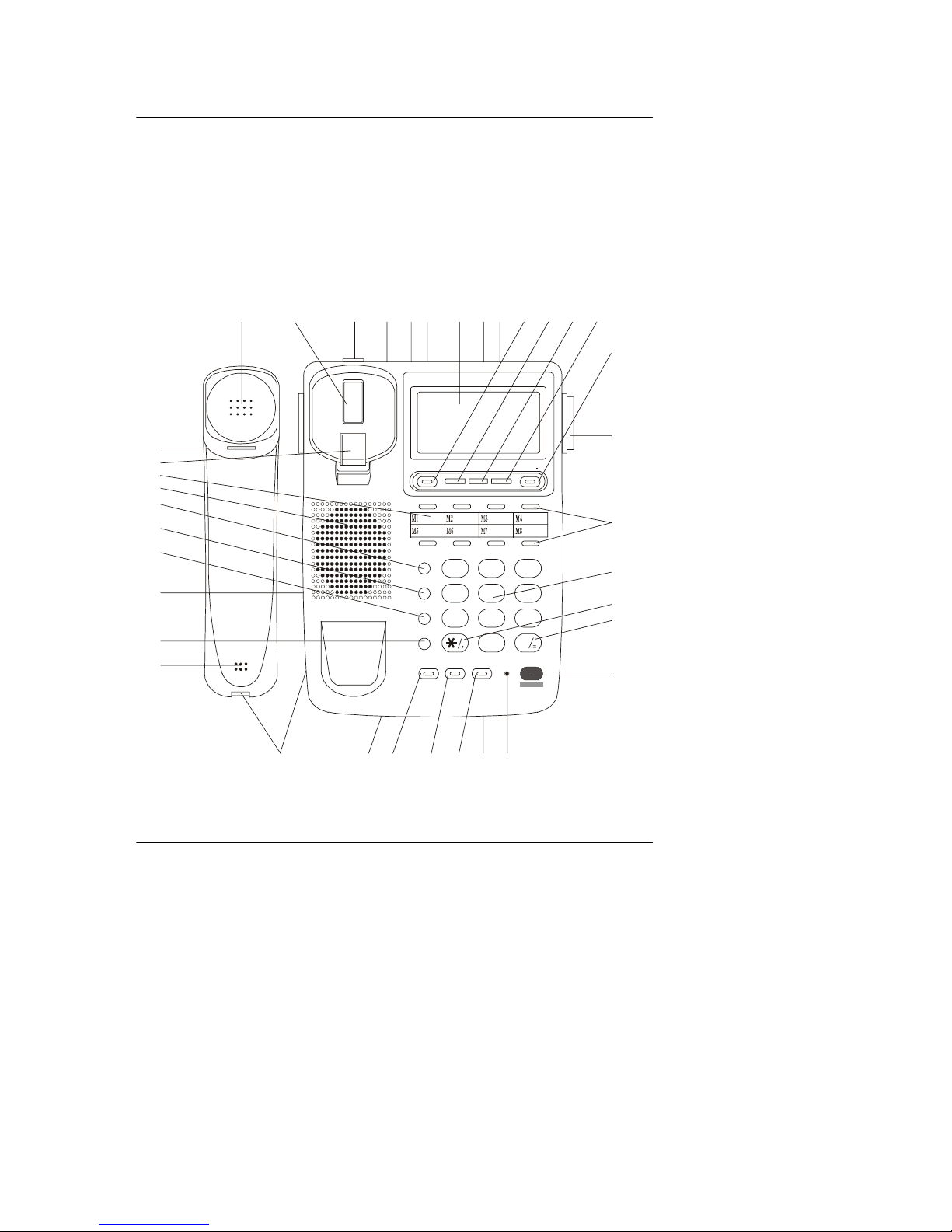

 Function button index
1. Handset loudspeaker
2. Hook switch
3. Hold clip
4. 9V socket for power adaptor
5. LINE OUT line socket
6. LINE IN line socket
7. Display
8. RINGER LOW/HI switch
9. MODE P/T switch
10. CAL button
11. UP/+ button
12. DOWN/- button
13. OUT/X button
14. STORE/÷
÷÷
÷ button
15. Speaker volume rotary switch
16. M1-M8 button
17. Keypad
18. */. button
19. #/= button
20. SP-PHONE button
21. Handset hole
22. Handset clip
23. Memory label
24. Base loudspeaker
25. RECALL/VIP button
26. DEL/TIME button
27. BOOK button
28. Headphone socket
29. SET/HOLD button
30. Handset microphone
31. Handset sockets
32. Lock-socket
33. BACK/ARD button
34. FLASH button
35. RD/P button
36. Base microphone
37. IN USE indicator

6
I. Introduction LJ-120
Note!
The line sockets LINE OUT, LINE IN, the RINGER LOW/HI switch,
the MODE P/T switch, the 9V socket, the handset socket and the
headphone socket are located on the side of the base unit. In
addition, on the bottom of the base unit, is the socket for
blocking telephone numbers.
123
456
789
0
A
BC DEF
GHI JKL MNO
PQRS TUV WXYZ
#
CAL UP/ + DOWN/- OUT/ X STO RE /
RECALL/VIP
DEL/TIME
BOOK
SET/HOLD
BACK/ ARD FLASH RD/P
IN USE
SP-PHONE
12 3456789
10 11 12 13
15
14
16
17
18
19
20
21
22
23
25
26
27
28
20
30
31 32 33 34 35 36 37
24

7
II. Getting started LJ-120
II. Getting started
 How to connect the batteries
♦ Remove the cover of the battery
compartment on the underside of the base
unit.
♦ Fit three 1,5V AA batteries,
♦ Replace the battery compartment cover.
Note!
Instead of batteries, the adaptor to the 9Vsocket, which is
placed on the side of the base unit can be connected. The
parameters of the adaptor must be as follows:
 inside voltage –
UIN = 230V, f =50 Hz
 outside voltage–
Uout = 9V DC
 current
Ioutmin = 100 mA
 standard plug (
Φ =2.1 mm)
with „-” inside.
Adaptor is not in complete!
 How to mount the table stand
See below picture.

8
II. Getting started LJ-120
 How to connect the handset and telephone line
 Plug one end of the coiled handset cord into the handset and the
other end into the socket on the side of the telephone.
 Insert the base unit’s telephone line plugs into the PTT wall socket and
telephone socket LINE IN as shown on the illustration.
Note!
The telephone is equipped with two line sockets. These sockets
are connected in parallel. It does not matter, where the
telephone line and second telephone are connected.
After connecting the telephone, the display shows the date, the clock and the
counter of the CLIP numbers. These symbols will be always displayed in the
standby mode.
 How to set the dial mode for your type of telephone exchange
These are two different modes a telephone can use to communicate with the
local exchange. Modern telephone exchanges accept TONE dialing, but some
older exchanges accept only PULSE dialing. This telephone is capable of
either type of dialing- but if your local telephone exchange is a modern one
that accepts TONE dialing, this is the best type to use, because:
 it gives you much faster connections,
 it allows you to use special functions if they are available in your area.
To set the right dial mode:
move the MODE P/T switch to T or P position.
Note!
Special functions are available only if the relevant TP S.A.
services have been subscribed to.
If more information is required, please contact the BOK office
or your network provider.

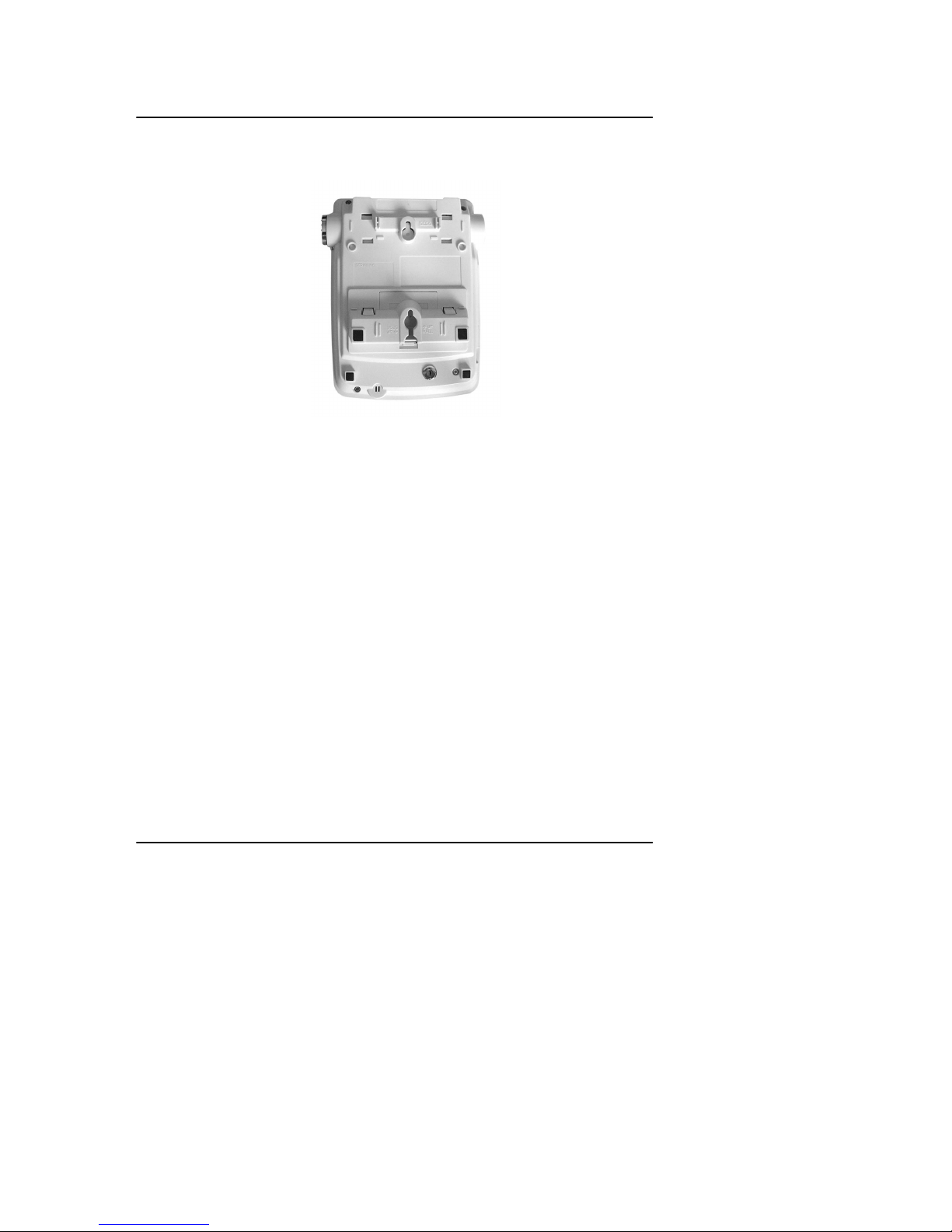

 Wall mounting
The wall mount brackets are located underneath the telephone base unit. The
telephone can be conveniently wall mounted near the PTT line socket.
To mount the base onto the wall:
 drill two holes into the wall in the correct position, a distance of 89 mm
apart. Put the screws into the wall, leaving about 5 mm free to hang
the wall mounting bracket,
 mount the stand (please see the below figure)
 set the wall clip in the right position,
 replace the handset on the base unit,
 hang the telephone onto the screws.

9
II. Getting started LJ-120
YOUR TELEPHONE IS NOW READY FOR USE!!!

10
III. Using the telephone LJ-120
III. Using the telephone
 How to set the menu language
The factory setting is ENGLISH.
You may select:
ENGLISH- English, FRANCAIS- French, ESPANOL- Spanish, PORLUGUES-
Portuguese, POLISH- Polish, ITALIANO- Italian, SVENSKA- Slovenian,
DEUTSCH- German, NEDERLANDS- Dutch, TURKCE- Turkish.
To select the appropriate language:
♦ press the SET/HOLD button, the display
will show LANGUAGE.
♦ Press the SET/HOLD button again, the
display will show ENGLISH.
♦ Press the UP/+ or DOWN/- button to
select a language.
♦ Press the SET/HOLD button.
♦ Press the DEL/TIME button twice. The
telephone will return to the standby mode.
If the DEL/TIME button is not pressed, the
telephone will return to standby mode
after several seconds. The setting will be
stored.
 How to set the display contrast
The factory setting is 3.
To set the display contrast::
♦ Press the SET/HOLD button, the display
will show LANGUAGE.
♦ Press the UP/+ button, the display will
show LCD CONTRAST.
♦ Press the SET/HOLD button.
♦ Press the UP/+ or DOWN/- button to set
the right contrast.
♦ Press the SET/HOLD button.
♦ Press the DEL/TIME button twice. The
telephone will return to the standby mode.
If the DEL/TIME button is not pressed, the
telephone will return to standby mode
after several seconds. The setting will be
stored.
SET/HOL
D
UP/+ DOWN/-
DEL/TIME
DEL/TIME
SET/HOL
D
UP/+ DOWN/-

11
III. Using the telephone LJ-120
 How to set date and time
To set date and time:
♦ press the SET/HOLD button. The display
will show LANGUAGE.
♦ Press the UP/+ button twice, the display
will show DATE TIME.
♦ Press the SET/HOLD button. The display
will show the symbol Y 2003 indicating
the year. The two last digits will be
flashing.
♦ Press the UP/+ or DOWN/- button to set
the right year.
♦ Press the SET/HOLD button. The digit
indicating the month will start to flash.
♦ Press the UP/+ or DOWN/- button to set
the right month.
♦ Press the SET/HOLD button. The digit
indicating the day will start to flash.
♦ Press the UP/+ or DOWN/- button to set
the right day.
♦ Press the SET/HOLD button. The digits
indicating the hours will start to flash.
♦ Press the UP/+ or DOWN/- button to set
the right hour.
♦ Press the SET/HOLD button. The digits
indicating the minutes will start to flash.
♦ Press the UP/+ or DOWN/- button to set
the right minutes.
♦ Press the SET/HOLD button.
♦ Press the DEL/TIME button twice. The
telephone will return to the standby mode.
If the DEL/TIME button is not pressed, the
telephone will return to standby mode
after several seconds. The setting will be
stored.
Note!
♦ During the setting, the display will show the following
symbols:
MON- Monday,
TUE- Tuesday,
DEL/TIME
SET/HOL
D
UP/+ DOWN/-

12
III. Using the telephone LJ-120
WED- Wednesday,
THU- Thursday,
FRI- Friday,
SAT- Saturday,
SUN- Sunday,
PM – afternoon time,
AM – before noon time.
 Ringer volume control
The volume at which the base unit will ring for an incoming call can be
adjusted.
To select the volume you prefer:
move the RINGER LOW/HI switch to:
 LOW position– low ringing volume
or
 HI position– high ringing volume.
 How to select the ringer melody
One ringer melody can be selected from among 16 ringer melodies. The
settings 01-04 indicate the normal ringers and settings 05-16 indicate the
melody ringers.
To select one ringer melody:
♦ press the SET/HOLD button, the display
will show LANGUAGE.
♦ Press the UP/+ or DOWN/- button until the
display will show RING MELODY.
♦ Press the SET/HOLD button. The display
will show an actual setting and the ringer
melody will be played.
♦ Press the UP/+ or DOWN/- button to
select the right signal. The setting 00
indicates, the ringer is off.
♦ Press the SET/HOLD button.
♦ Press the DEL/TIME button twice. The
telephone will return to the standby mode.
If the DEL/TIME button is not pressed, the
telephone will return to standby mode
after several seconds. The setting will be
stored.
DEL/TIME
SET/HOL
D
UP/+ DOWN/-

13
III. Using the telephone LJ-120
Note!
The melody ringers are available only, when the batteries are
placed in the battery compartment. If there are no batteries,
only the normal ringer will sound.
 2-way speaker function
The 2-way speakerphone function allows a number to be dialed, or a call to be
made, without the handset needing to be lifted. The party on the other end of
the line will automatically be able to hear and to be heard through the speaker
located in the base unit of the telephone. When using this function, the user
needs to speak within a reasonable distance of the telephone microphone in
order that the microphone may pick-up voice sound. This function may also be
used to make a conference call between several parties in the same office.
Using the SP-PHONE button, the 2-way speakerphone function can be
switched on/off.
After pressing the SP-PHONE button, the
display will show the timer.
In addition, the VOLUME LOW/HIGH rotary
switch can be used to adjust the volume of the
loudspeaker.
 How to make a call
To make a call:
♦ lift the handset from the base unit
or
♦ press the SP-PHONE button.
The display will show the timer.
♦ When the PTT on-line signal is heard, the
required number should be dialed. The
number will be displayed. After several
seconds, the call time counter will be
switched on.
♦ To end your conversation, replace the
handset on the base unit or press the
SP-PHONE button. The time of your last
call can be displayed by pressing the
OUT/X button (see the chapter: ”OUT
memory”).
V
O
L
U
M
E
LOW
HIGH
V
O
L
U
M
E
LOW
HIGH
SP-PHONE
SP-PHONE
123
456
789
0
A
BC DEF
GHI JK L MNO
PQRS TUV WXYZ
#
SP-PHONE

14
III. Using the telephone LJ-120
Note!
The telephone number in the standby mode can also be entered
(before lifting the handset or pressing the SP-PHONE button).If
you wish to delete the last incorrect digit, press the DEL/TIME
button. If you wish to make a call, press the BACK/ARD button.
The 2-way speaker function will be switched on and the number
will be dialed automatically.
 How to receive a call
When the telephone rings (the display and
IN USE indicator flash):
♦ lift the handset from the base unit or press
the SP-PHONE button.
In addition, on the side of the handset there is
the VOLUME LOW/HIGH rotary switch to
adjust the volume of the base’s loudspeaker.
♦ After completing your conversation,
replace the handset on the base unit or
press the SP-PHONE button.
 OUT memory
Your telephone can store the most recently dialed numbers in the OUT
memory. They can be reviewed by pressing the OUT/X button in standby
mode. Each number may consist of up to 16 digits.
Note!
The volume of the OUT memory locations depends on the volume of
the digits in the telephone number. If the stored numbers have
16 digits, the OUT memory has 20 memory locations. If the volume
of the digits decreases, the volume of the memory locations
increases. For example, for 10-digit numbers, the volume of the
memory location is 26, for 8-digit numbers the volume of the
memory location is 34.
To review OUT numbers:
♦ press the OUT/X button. The display
shows the last number dialed, the time of
this call and the number of the memory
location.
♦ By pressing the OUT/X button, the
remaining numbers can be reviewed.
If the OUT/X button is not pressed, the telephone will return to standby mode
after several seconds. If the memory is empty, the display will show the
symbol - - - End - - -.
SP-PHONE
OUT/X

15
III. Using the telephone LJ-120
To make a call:
♦ press the OUT/X button to select the
number.
♦ Press the BACK/ARD button. The 2-way
speaker function will be switched on and
the number will be dialed automatically.
♦ After the call, replace the handset on the
base unit or press the SP-PHONE button.
 How to delete the OUT number
To delete an individual number:
♦ press the OUT/X button to select the
number, to be deleted.
♦ Press the DEL/TIME button twice. The
number will be removed.
To delete the all numbers:
♦ Press the OUT/X button.
♦ Press and hold the DEL/TIME button until
- - - End - - - is displayed. After several
seconds, the telephone will return to
standby mode. All numbers will be
removed.
 Last number redial
Your telephone automatically stores the last number dialed. This function
can be used, when the number is busy.
To redial:
♦ lift the handset or press the SP-PHONE
button.
♦ Press the RD/P button. The last number
will be displayed and dialed.
OUT/X
BACK/ARD
SP-PHONE
OUT/X
DEL/TIME
SP-PHONE
RD/P

16
III. Using the telephone LJ-120
 Auto-redial function
The Auto-redial function allows the last number to be redialed during the
using the 2-way speaker button. This operation can be repeated 16 times,
until a connection is made.
To dial the number again:
♦ press the BACK/ARD button. The 2-way
speaker function will be switched off
briefly. After an interval, the 2-way
speaker function will be switched on and
the number will be dialed again
automatically.
♦ Press the SP-PHONE button to return to
the standby mode.
 How to enter a pause
With some switchboards, after dialing the access code you may have to
wait for a moment while the switchboard picks up an outside line. To
compensate for this, you can enter a pause within a phone number.
To enter a pause:
♦ lift the handset or press the SP-PHONE
button.
♦ Enter the access code for an outside line,
for example 0.
♦ Press the RD/P button to enter a pause.
The symbol P will be showed on the
display.
♦ Enter the remaining digits of the telephone
number.
♦ After your call, replace the handset on the
base unit or press the SP-PHONE button.
Note!
The number and pause can be also entered in the standby mode. To
make a call, press the BACK/ARD button.
123
456
789
0
A
BC DEF
GHI JKL M NO
PQRS TUV WXYZ
/
OPER
/
=
BACK/ARD
SP-PHONE
SP-PHONE
RD/P
SP-PHONE

17
III. Using the telephone LJ-120
 How to set a pause
To set a pause:
To select one ringer melody:
♦ press the SET/HOLD button, the display
will show LANGUAGE.
♦ Press the UP/+ or DOWN/- button until the
display will show PAUSE.
♦ Press the SET/HOLD button. The display
will show an actual setting.
♦ Press the UP/+ or DOWN/- button to
select the right time of the pause. It can be
selected 1-0, 2-0, 3-0 and 4-0.
♦ Press the SET/HOLD button.
♦ Press the DEL/TIME button twice. The
telephone will return to the standby mode.
If the DEL/TIME button is not pressed, the
telephone will return to standby mode
after several seconds. The setting will be
stored.
 Hold function
The Hold function allows music to be switched on during the conversation.
After pressing the HOLD button, the person on the other end of the line
will automatically be able to hear music. This function may be used, for
example, in offices while a client is on hold.
To switch the hold music on:
♦ inform the person on the other end of the
line about a music pause.
♦ Press the SET/HOLD button. The display
will show HOLD. The telephone will start
to play music.
Note!
In activating this function using the UP/+ or DOWN/- button,
you may select the melody you wish the caller to hear. There are
12 melodies available, from which you can choose. These are
indicated by symbols from 01 to 12.
♦ You can replace the handset on the base.
The connection will not be interrupted.
The hold music will be heard through the
speaker located in the base unit of the
telephone.
DEL/TIME
SET/HOL
D
UP/+ DOWN/-
SET/HOL
D

18
III. Using the telephone LJ-120
♦ Lift the handset or press the SP-PHONE
button to continue speaking. The Hold
function will be switched off.
Note!
If the handset is not replaced on the base, press the SET/HOLD
button again to switch the hold music off.
 Memory
Your telephone can store 8 telephone numbers in the one-touch memory and
10 telephone numbers in the two-touch memory. The number can then be
dialed by pressing one button or two buttons. The one-touch memory locations
are located under the buttons indicating M1-M8 and the two-touch memory
locations are located under the buttons of the keypad. Each number that is
stored can have up to 16 digits.
 One-touch memory
To store a number in the memory:
♦ press the STORE/÷
÷÷
÷ button. The display
will show INPUT NUMBER.
♦ Enter the number, to be stored in the
memory. The number will be displayed.
Note!
The pause can be stored in the memory by pressing RD/P button.
♦ Now press one of the number buttons
(M1-M8). This gives you the code under
which your number will be stored. The
telephone will return to standby mode.

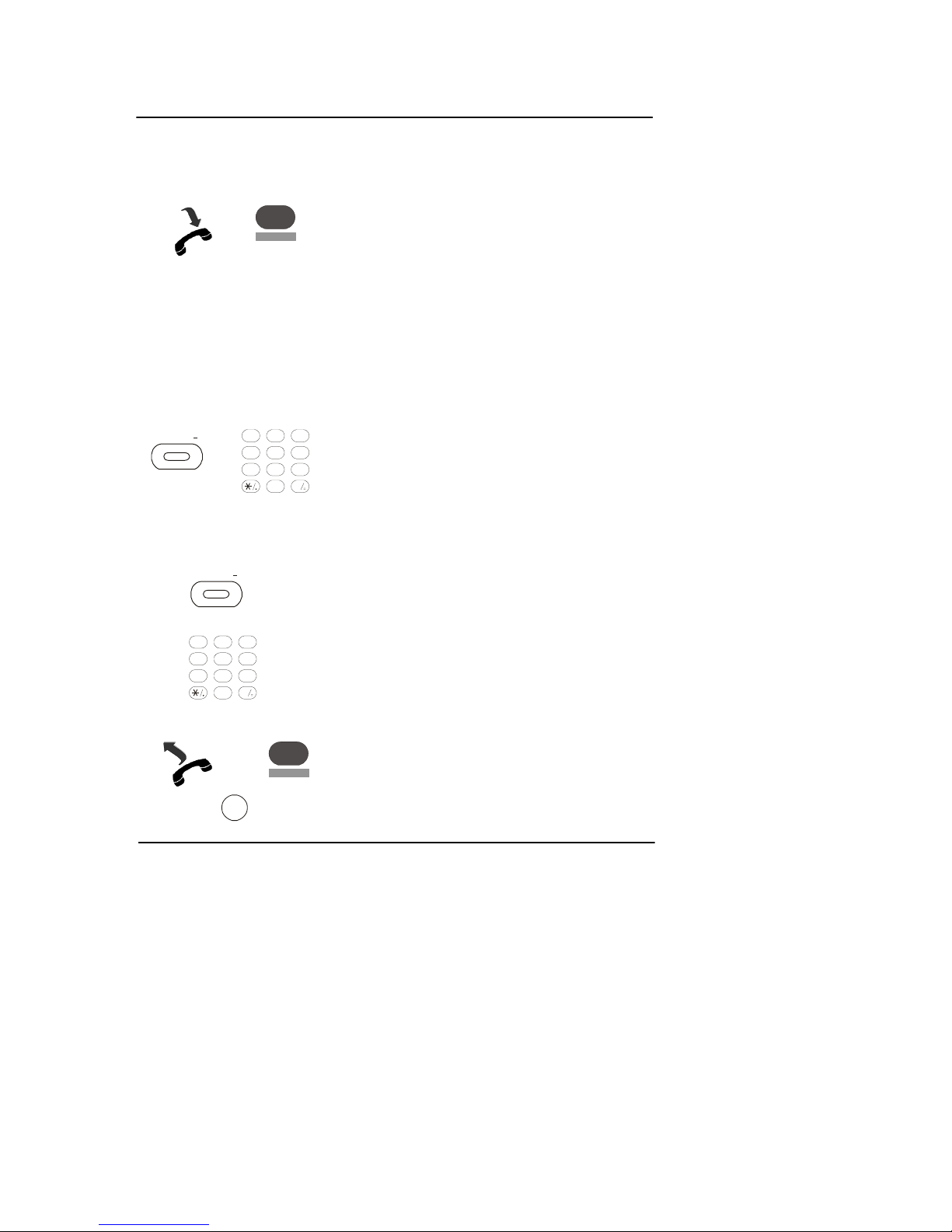

To dial a number using the memory :
♦ lift the handset or press the SP-PHONE
button.
♦ Next press the appropriate code number
key. The number will be displayed and
dialed.
SP-PHONE
STORE /
123
456
789
0
A
BC DEF
GHI JK L MNO
PQRS TUV WXYZ
#
SP-PHONE

19
III. Using the telephone LJ-120
Note!
If there is no number under the code number key, the telephone
displays symbol - - - - .
♦ Replace the handset or press the
SP-PHONE button to end the call.
Note!
1. Storing a number in the memory automatically deletes any
previous number kept under the individual code number you
choose.
2. The stored numbers can be reviewed in the standby mode. To
display the number from the code number key:
press the code number key. The number will be displayed.
 Two-touch memory
To store a number in the memory:
♦ press the STORE/÷
÷÷
÷ button. The display
will show INPUT NUMBER.
♦ Enter the number, to be stored in the
memory. The number will be displayed.
Note!
The pause can be stored in the memory by pressing RD/P button.
♦ Press the STORE/÷
÷÷
÷ button a second time.
The display will show INPUT ADDR.
♦ Now press one of the number buttons
(0-9). This gives you the code under which
your number will be stored. The telephone
will return to standby mode.
To dial a number using the memory :
♦ lift the handset or press the SP-PHONE
button.
♦ Press the RECALL/VIP button.
SP-PHONE
STORE /
123
456
789
0
A
BC DEF
GHI JK L MNO
PQRS TUV WXYZ
#
STORE /
123
456
789
0
A
BC DEF
GHI JK L MNO
PQRS TUV WXYZ
#
SP-PHONE
RECALL/VI
P
