DarwinFitness FB90 User manual

TF
DFFB90.01.03
D
A
R
W
I
N
F
I
T
N
E
S
S
G
E
R
M
A
N
Y
TF
DARWIN FB90
max. 300 kg
~ 90 Min.
CM
45 kg
Assembly
Instructions
L 116 | W 61 | H 82
14.4 kg
Art. No. DF-FB90
L 166 | W 77 | H 122

2
FB90

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery Part A 11
2.3 Scope of Delivery Part C 12
2.4 Scope of Delivery Part D 13
2.5 Scope of Delivery Part E 14
2.6 Assembly Part A 15
2.7 Assembly Part C 24
2.8 Assembly Part D 29
2.9 Assembly Part E 31
2.10 Assembly of the Parts A, D and C 32
3 STORAGE AND TRANSPORT 34
3.1 General Instructions 34
4 TROUBLESHOOTING, CARE AND MAINTENANCE 34
4.1 General Instructions 34
4.2 Faults and Fault Diagnosis 34
4.3 Maintenance and Inspection Calendar 35
5 DISPOSAL 35
6 RECOMMENDED ACCESSORIES 36
7 ORDERING SPARE PARTS 37
7.1 Serial Number and Model Name 37
7.2 Parts List Part A 38
7.3 Parts List Part C 39
7.4 Parts List Part D 40
7.5 Parts List Part E 41
7.6 Exploded Drawing Part A 42
7.7 Exploded Drawing Part C 43
7.8 Exploded Drawing Part D 44
7.9 Exploded Drawing Part E 45

4
FB90
8 WARRANTY 46
9 CONTACT 48

5
Dear customer,
Thank you for choosing Darwin tness equipment. With Darwin tness equipment we oer rst-class
home sports equipment at a great price point. Darwin exercise bikes and strength machines are easy
to use, have a spacesaving design and look really great. With our equipment we want to support you
in reaching your athletic goals, no matter if you want to lose weight or train for the national triathlon.
If you have any further questions, please contact us, we are looking forward to hearing from you and
wish you lots of fun during your training!
Further information can be found at www.sport-tiedje.com
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2016 Darwin® is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is only suitable for home use. The equipment is not suitable for semi-professional
(e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional use (e.g. tness
studios).

6
FB90
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
Article weight (gross, incl. packaging) approx.: Box 1: 20 kg
Box 2: 7 kg
Box 3: 8 kg
Box 4: 10 kg
Article weight (net, excl. packaging) approx.: 45 kg
Package dimensions (L x W x H) approx.: Box 1: 142 cm x 55 cm x 18 cm
Box 2: 57 cm x 45 cm x 12 cm
Box 3: 70 cm x 41 cm x 13,5 cm
Box 4: 53 cm x 53 cm x 185 cm
Set-up dimensions (L x W x H) approx.: 165,7 cm x 77 cm x 121,8 cm
Maximum user weight: 300 kg

8
FB90
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
+ Do not insert any objects of any kind into the openings of the device.

9
1.3 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

10
FB90
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

11
2.2 Scope of Delivery Part A
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

12
FB90

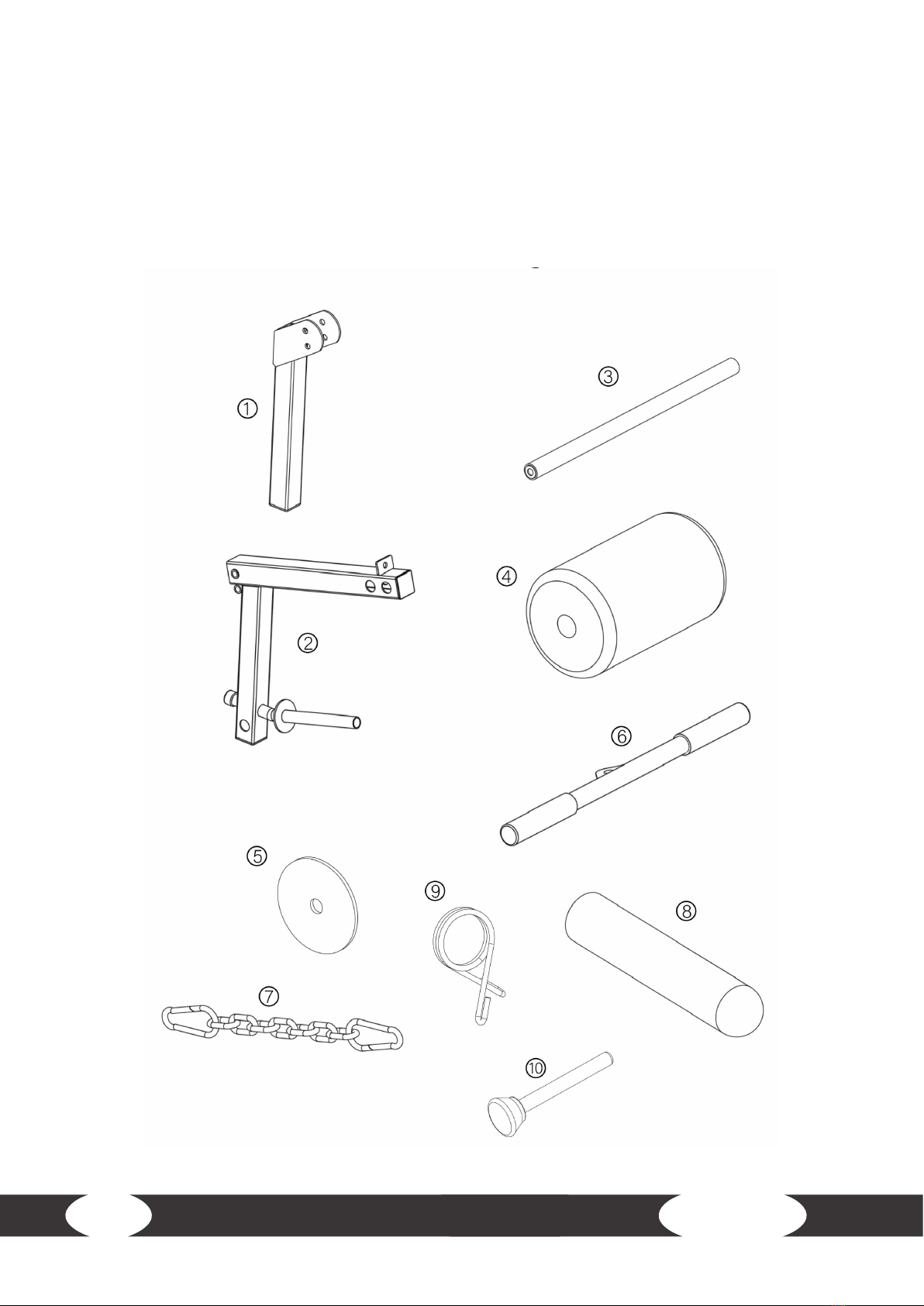

2.3 Scope of Delivery Part C
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

13

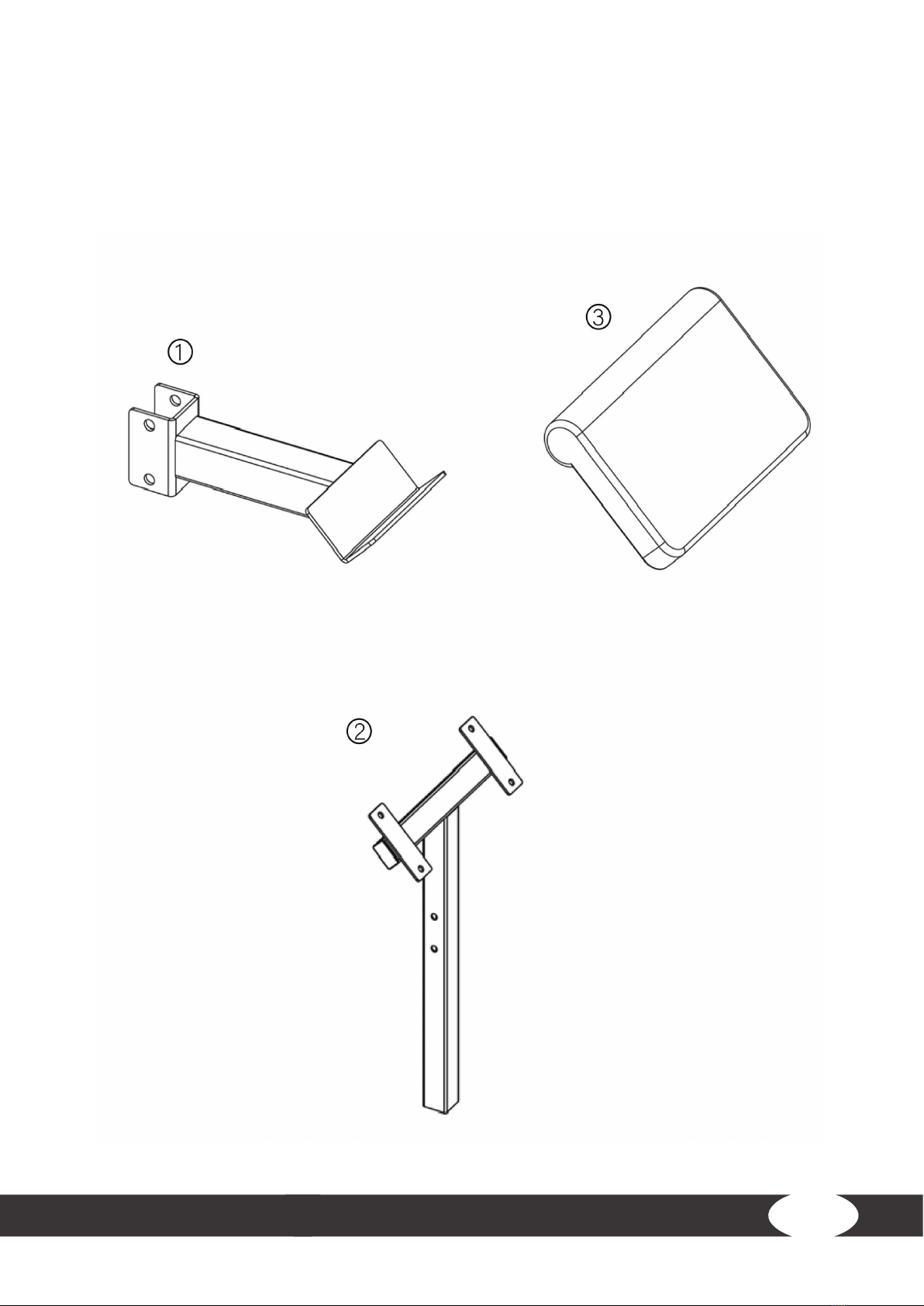

2.4 Scope of Delivery Part D
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

14
FB90
2.5 Scope of Delivery Part E
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

15
2.6 Assembly Part A
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.
Step 1: Assembly of the Main Tube and Back Bottom Frame
Fix the main tube (1) to the back bottom frame (2) by using two M10*80 bolts (10), four φ10 washers
(11) and two M10 nuts (12).

16
FB90
Step 2: Assembly of the Main Tube and Front Bottom Frame
Fix the main tube (1) to the front bottom frame (3) by using hexagon two M10*80 bolts (10), four φ10
washers (11) and two M10 nuts (12).

17
Step 3: Assembly of the Adjustable Plate
Fix the adjustable plate (4) to the main tube (1) by using three M10*90 bolts (13), six φ10 washers
(11) and three M10 nuts (12).

18
FB90
Step 4: Assembly of the Back Support Tube
Fix the back support tube (6) to the main tube (1) by using one M12*100 bolt (14), two φ12 washers
(15) and one M12 nut (16).

19
Step 5: Assembly of the Adjustable Tube
Fix the adjustable tube (7) to the back support tube (6) by using one M12*180 bolt (17), two φ12
washers (15) and one M12 nut (16).

20
FB90
Step 6: Assembly of the Seat Support Tube
Fix the seat support tube (5) to the main tube (1) by using one M12*100 bolt (14), two φ12 washers
(15) and one M12 nut (16).
