Datcon DT1315 Series User manual

DT1315 xx xx
Intrinsically Safe Output Isolators
Operating Instructions

DT1315 xx xx
2 20100826-V0
Contents
1. About this document.....................................................4
1.1. Function ................................................................................... 4
1.2. Target group............................................................................. 4
1.3. Symbolism used....................................................................... 4
2. For your safety...............................................................5
2.1. Authorized personnel ............................................................... 5
2.2. Appropriate use........................................................................ 5
2.3. Warning about misuse ............................................................. 5
2.4. General safety instructions....................................................... 5
2.5. CE conformity........................................................................... 5
2.6. Safety information for Ex areas................................................ 6
2.7. Environmental instructions ....................................................... 6
3. Product description.......................................................7
3.1. Delivery configuration............................................................... 7
3.2. Type designation...................................................................... 7
3.3. Principle of operation ............................................................... 7
3.4. Adjustment ............................................................................... 8
3.5. Indicators.................................................................................. 8
3.6. Storage and transport .............................................................. 8
4. Mounting.........................................................................9
4.1. General instructions ................................................................. 9
4.2. Main dimensions of the instrument .......................................... 9
4.3. Mounting procedure ............................................................... 10
5. Connecting ...................................................................11
5.1. Preparing the connection ....................................................... 11
5.2. Connecting the transmitter ..................................................... 12
5.3. Connecting the signal processing unit and the power supply 13
5.4. Put the instrument under supply voltage................................ 13

DT1315 xx xx
20100826-V0 3
6. Fault rectification.........................................................14
6.1. Fault finding............................................................................ 14
6.2. Repairing................................................................................ 14
7. Dismounting.................................................................15
7.1. Dismounting procedure .......................................................... 15
7.2. Disposal ................................................................................. 16
8. Appendix.......................................................................17
8.1. Technical specification ........................................................... 17
8.2. Application example ............................................................... 19
8.3. ATEX Certification.................................................................. 20

DT1315 xx xx
4 20100826-V0
1. About this document
1.1. Function
This operating instructions manual has all the information
you need for quick set-up and safe operation of
DT1315 xx xx.
Please read this manual before you start setup.
1.2. Target group
This operating instructions manual is directed to trained
personnel. The contents of this manual should be made
available to these personnel and put into practice by them.
1.3. Symbolism used
Information, tip, note
This symbol indicates helpful additional information.
Caution, warning, danger
This symbol informs you of a dangerous situation that could
occur. Ignoring this cautionary note can impair the person
and/or the instrument.
Ex applications
This symbol indicates special instructions for Ex
applications.
•List
The dot set in front indicates a list with no implied sequence.
→Action
This arrow indicates a single action.
1
Sequence
Numbers set in front indicate successive steps in a
procedure.

DT1315 xx xx
20100826-V0 5
2. For your safety
2.1. Authorized personnel
All operations described in this operating instructions
manual must be carried out only by trained and authorized
specialist personnel. For safety and warranty reasons, any
internal work on the instruments must be carried out only by
DATCON personnel.
2.2. Appropriate use
The DT1315 xx xx is an Intrinsically Safe Output Isolator
product family. Detailed information on the application range
is available in chapter 3. Product description.
2.3. Warning about misuse
Inappropriate or incorrect use of the instrument can give rise
to application-specific hazards, or damage to system
components through incorrect mounting or adjustment.
2.4. General safety instructions
The DT1315 xx xx is a high-tech instrument requiring the
strict observance of standard regulations and guidelines.
The user must take note of the safety instructions in this
operating instructions manual, the country-specific
installation standard as well as all prevailing safety
regulations and accident prevention rules.
2.5. CE conformity
The DT1315 xx xx is in conformity with the provisions of the
following standards:
EN 61010-1:2001 (safety)
EN 61326:2004 (EMC)

DT1315 xx xx
6 20100826-V0
2.6. Safety information for Ex areas
Please note the Ex-specific safety information for installation
and operation in Ex areas. These safety instructions are
part of the operating instructions manual and come with the
Ex-approved instruments.
2.7. Environmental instructions
Protection of the environment is one of our most important
duties.
Please take note of the instructions written in the following
chapters:
•Chapter 3.4. Storage and transport
•Chapter 8.2. Disposal

DT1315 xx xx
20100826-V0 7
3. Product description
3.1. Delivery configuration
Delivered items The scope of delivery encompasses:
•DT1315 xx xx
•documentation:
this operating instructions manual
certification
Warranty
3.2. Type designation
3.3. Principle of operation
Area of application The DT1315 xx xx Intrinsically Safe Output Isolator provide
signal transmission between the control equipment and
signal sources located in the safe area and actuators,
current to pressure converters, field process indicators,
operate in zone 0, zone 1 potentially explosive area.
The instruments isolate the input, the output and the power
supply.
The input signal may be 0-20 mA, 4-20 mA, 0-10 V, the
intrinsically safe output signal also may be
0-20 mA, 4-20 mA, 0-10 V.
Operating principle
The instruments are powered from a 19-29 VDC supply
trough a dual output high frequency DC-DC converter. One
output supplies power for the input (safe) side, the other
supplies power for the output (Ex) side. The DC isolation
and intrinsically-safe segregation are provided by high
isolation optocoupler. The DC signal transmission based on
a high precision pulse modulation-demodulation principle.
Power supply The instrument works from a 19-29 VDC supply voltage.
The power consumption is 1.6W.

DT1315 xx xx
8 20100826-V0
3.4. Adjustment
The DT1315 xx xx doesn’t need any adjustment.
After connected to the power supply it is ready to work.
3.5. Indicators

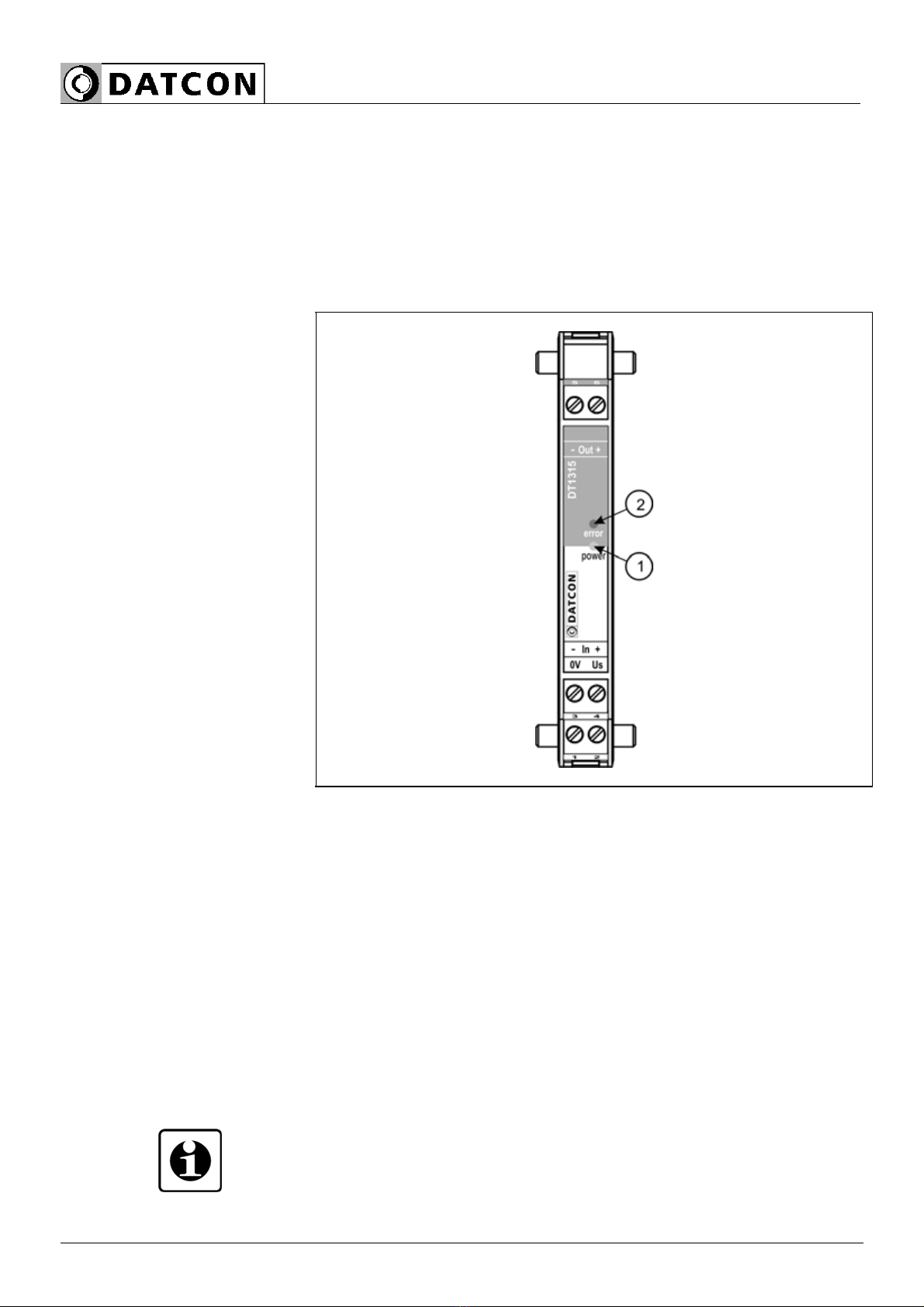

The following figure shows the indicator on the instruments
front:
1. “power” green indicator indicates the power on state of
the instrument.
2. “error” yellow indicator indicates that the output is in
overload state. (Uout > 16 V, i.e. Rl > 800 ohm @ 20 mA)
3.6. Storage and transport
This instrument should be stored and transport in places
whose climatic conditions are in accordance with chapter
8.1 Technical specifications, as described under the title:
Environmental conditions.
The packaging of DT1315 xx xx consist of environment-
friendly, recyclable cardboard is used to protect the
instrument against the impacts of normal stresses occurring
during transportation. The corragulated cardboard box is
made from environment-friendly, recyclable paper. The
inner protective material is polyfoam and nylon, which
should be disposed of via specialized recycling companies.

DT1315 xx xx
20100826-V0 9
4. Mounting
4.1. General instructions
The instrument should be installing in the safe area in a
cabinet with sufficient IP protection, where the operating
conditions are in accordance with chapter 8.1 Technical
specifications, as described under the title: Operating
conditions.
Mounting position
The instruments are designed in housing for mounting on
TS35 rail.
The instruments should be mounted in vertical position
(horizontal rail position).
There are spacers both sides of the housing to keep 5 mm
distance between the instruments for the sufficient cooling.
Horizontal mounting may cause overheating and damage of
the instrument.

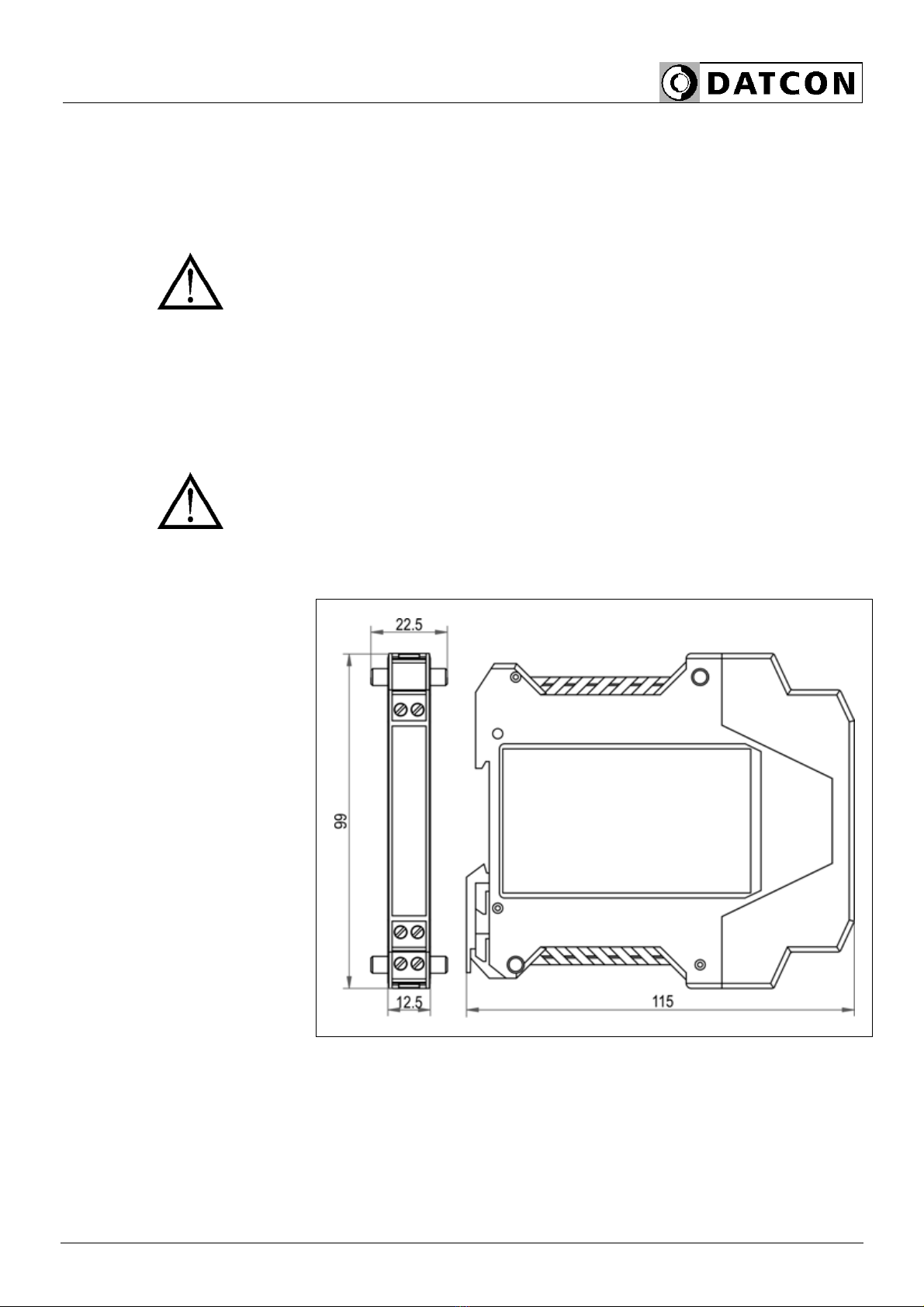

4.2. Main dimensions of the instrument

DT1315 xx xx
10 20100826-V0
4.3. Mounting procedure

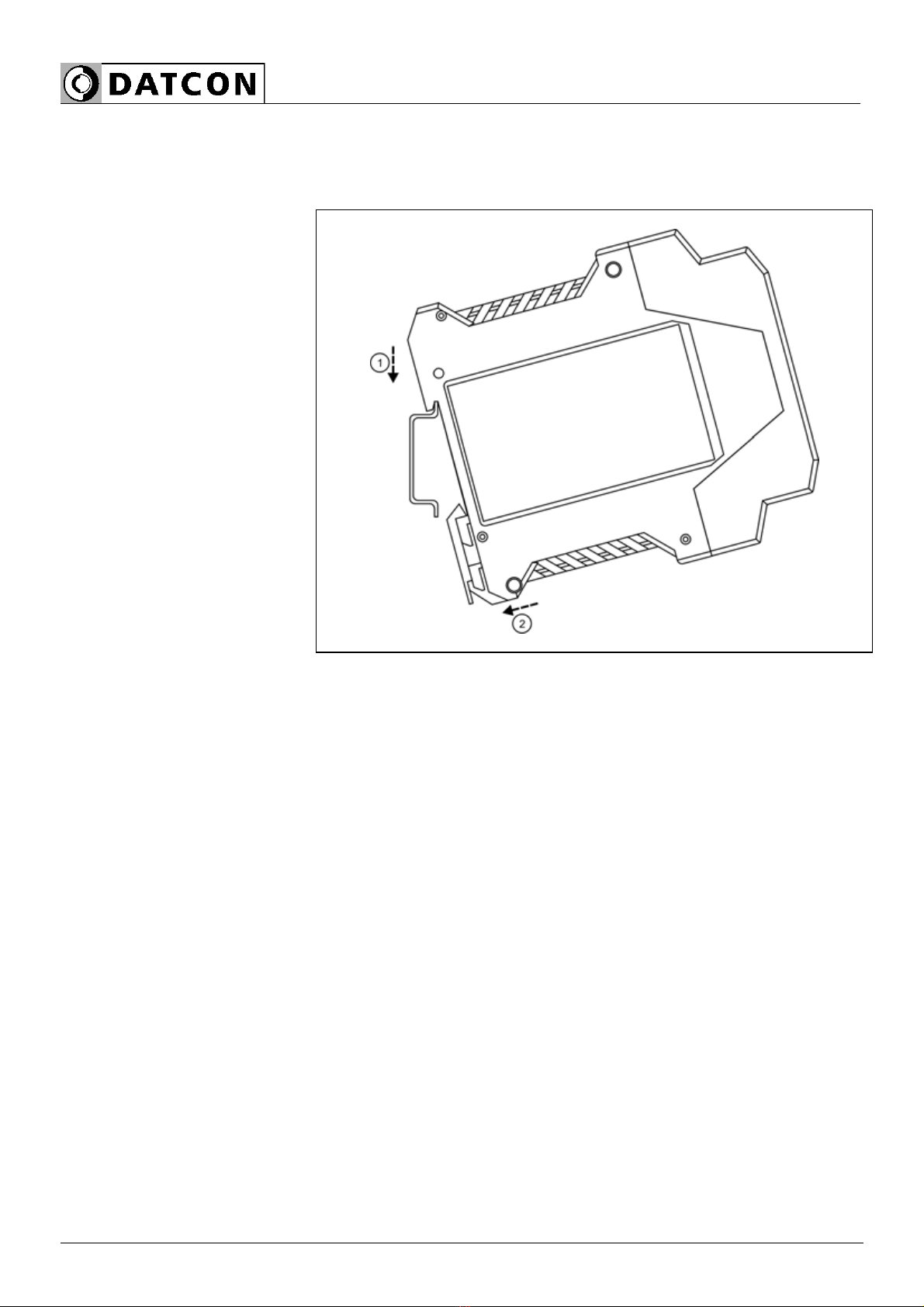

The following figure shows the mounting procedures (fixing
on the rail):
Mounting on the rail
The mounting doesn’t need any tool.
1. Tilt the instrument according to the figure; put the
instrument’s mounting hole onto the upper edge of the rail
(figure step 1.).
2. Push the instrument’s bottom onto the bottom edge of the
rail (figure step 2.), you will hear the fixing assembly
closing.
3. Check the hold of the fixing by moving the instrument
firmly.

DT1315 xx xx
20100826-V0 11
5. Connecting
5.1. Preparing the connection
Select and prepare
connection cable
Always observe the following safety instructions:
• When you are going to install instruments in hazardous
area or install instruments which are connecting to
instruments are working in hazardous area you should take
note of the appropriate regulations, conformity and type
approval certificates of the DT1315 xx xx and other
instrument. The connection must be carried out by trained
and authorized personnel only!
• Connect only in the complete absence of supply voltage
• Use only a screwdriver with appropriate head
Take note the suitability of the connecting cable
(wire cross-section, insulation, etc.).
The wire cross-section should be 0.25-1.5 mm2.
You may use either solid conductor or flexible conductor.
In case of using flexible conductor use crimped wire end.
Take note of the corresponding installation regulations for
Ex applications. In particular, make sure that no potential
equalization currents flow over the cable screen. Ground
only one side the cable screen (it’s recommended the
transmitter side). If necessary of grounding on both sides
(for suppress the influence of high frequency interference
signals) this can be achieved by use of a capacitor (e.g.
ceramic capacitor 1 nF, 1500 V) or separate potential
equalization. The low frequency potential equalization
currents are thus suppressed, but the protective effect
against high frequency interference signals remains.

DT1315 xx xx
12 20100826-V0
5.2. Connecting the transmitter

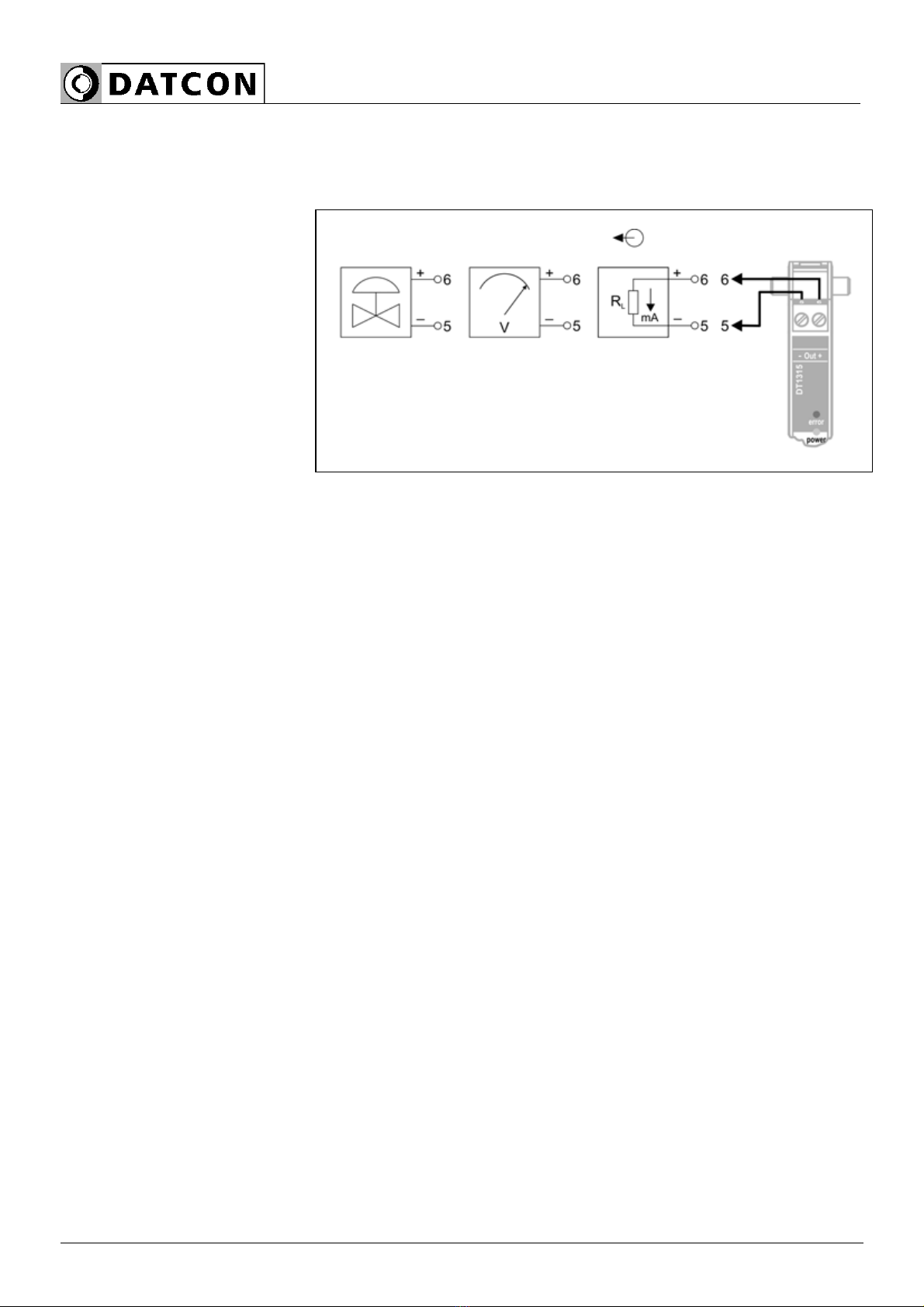

The following figure shows the wiring plan, connecting the
transmitter:
Wiring plan, connecting
the transmitter
(see also “Application
example”)
Be careful the polarity of
the cables
Checking the
connections
1. Loosen terminal screws.
2. Insert the wire ends into the open terminals according to
the wiring plan.
3. Screw the terminal in.
4. Check the hold of the wires in terminals by pulling on
them firmly.
Check if the cables are connected properly (have you
connected all the cables, have you connected to the right
place, do not the cable-ends touch each other).

DT1315 xx xx
20100826-V0 13
5.3. Connecting the signal processing unit and the
power supply
The following figure shows the wiring plan, connecting the
signal processing unit and the power supply:
Wiring plan, connecting
the signal processing
unit and the power
supply
(see also “Application
example”)
Be careful the polarity of
the cables
Checking the
connections
1. Loosen terminal screws.
2. Insert the wire ends into the open terminals according to
the wiring plan.
3. Screw the terminal in.
4. Check the hold of the wires in terminals by pulling on
them firmly.
Check if the cables are connected properly (have you
connected all the cables, have you connected to the right
place, do not the cable-ends touch each other).
The connection is finished.
5.4. Put the instrument under supply voltage.
Put the instrument
under supply voltage
After you have completed the connections, put the
instrument under supply voltage. If the connection is correct
the green indicator give light and you can measure output
current or voltage according to the measured value of the
transmitter.

DT1315 xx xx
14 20100826-V0
6. Fault rectification
6.1. Fault finding
The fault finding must be carried out by trained and
authorized personnel only!
Use only an Ex proofed meter when measuring on the input
(EX) side.
•The green indicator is dark →check the power supply.
If the supply voltage is OK, the instrument is defective.
•There is no output signal →check the input signal.
If the input signal is OK, the instrument is defective.
When the result of fault finding is that the DT1315 xx xx is
defective call the manufacturer service department.
6.2. Repairing
There is no user repairable part inside the instrument.
In accordance with Point 2.1.: For safety and warranty
reasons, any internal work on the instrument must be
carried out by DATCON personnel.

DT1315 xx xx
20100826-V0 15
7. Dismounting
7.1. Dismounting procedure
The following figure shows the dismounting procedures:
Dismounting from the
rail
The dismounting procedure needs a screwdriver for slotted
screws.
Pull out all the terminals:
1. Put the screwdriver into the slot between the terminal
and the housing (figure step 1.).
2. Lift (lower terminals) or push down (upper terminal) the
screwdriver handle as far as the terminal will be free (figure
step 2.).
Dismount the instrument:
3. Put the screwdriver end into the fixing assembly’s hole
(figure step 3.).

DT1315 xx xx
16 20100826-V0
4. Lift the screwdriver handle until it possible to open the
fixing assembly (figure step 4.).
5. Keeping the screwdriver in this position lift the instrument
bottom from the bottom edge of the rail (figure step 5.).
6.Lift the whole instrument (you may put out the
screwdriver) (figure step 6.), as far as the instrument will be
free.
7.2. Disposal
According with the concerning EU directive, the
manufacturer undertakes the disposal of the instrument that
are manufactured by it and intended to be destroyed.
Please deliver it in contamination-free condition to the site
of the Manufacturer or to a specialized recycling company.

DT1315 xx xx
20100826-V0 17
8. Appendix
8.1. Technical specification
Intrinsic safety data:
Certification: 05 ATEX 020 X
Marking: II (1) GD [EEx ia] IIC / IIB (-20 °C ≤Ta ≤+50 °C)
Um: 250 Veff
Safety data:
IIC IIB
UoIoPoCo Lo Co Lo
Limit outputs safety data: 19.1 V 91 mA 570 mW 150 nF 4 mH 450 nF 12 mH
Input parameters:
Input signal: DC current or DC voltage
Ranges: 0-20 mA (DT1315 I0 xx) or
4-20 mA (DT1315 I4 xx) or
0-10 V (DT1315 U10 xx)
Input resistance (current input): ~68 ohm
Input resistance (voltage input): ~1 Mohm
Overdriving ability: 5%
Output parameters:
Output signal: DC current or DC voltage
Ranges: 0-20 mA (DT1315.xx I0) or
4-20 mA (DT1315 xx I4) or
0-10 V (DT1315 xx U10)
Terminating resistor (current output): 800 ohm (max.)
Loading resistor (voltage output): 500 ohm
Error of the output signal: 0.05 % (max.), 22 °C amb. temperature
Nonlinearity: 0.01 % (max.)
Temperature-dependency: 50 ppm / °C (max.)
Supply-voltage dependency: practically zero
Response time: 10 ms (10-90 %)

DT1315 xx xx
18 20100826-V0
Galvanic isolation:
Operating isolation voltage: 250 Veff (between the input, the output,
and the supply voltage terminals)
Test voltage: 2500 VDC (1 min.) (between the input and
the output terminals; between the input and
the power supply terminals)
Power supply:
Supply voltage: 19-29 VDC
Consumption: 1.6 W
Ambient conditions:
Operating temperature range: -20 - +50 °C
Storage temperature range: -20 - +70 °C
Relative air humidity: 90 % (max., non-condensing)
Place of installation: safe area, cabinet
Installation: with 5 mm space
Electromagnetic compatibility (EMC):
accordance with the standard EN 61326:2000 szerint
Immunity: -B- criterion
Noise emission: -A- class
Data in general::
Design: terminal assembly box, push-mountable on
a TS-35 rail material: polyamide PA6.6
Connection: screw-fixed type terminal connection
(plugable)
Cross-section of the connected cable: 1.5 mm2(max.)
Dimensions: 12.5 x 99 x 115 mm (width x height x depth)
Weigh: 0.15 kg
Protection: IP 20
The Manufacturer maintains the right to change technical data.

DT1315 xx xx
20100826-V0 19
8.2. Application example

DT1315 xx xx
20 20100826-V0
8.3. ATEX Certification
