Datecs LineaPro 11 Industrial User manual

1 DATECS
LineaPro 11 Industrial
User Manual

1 DATECS LINEAPRO 11 INDUSTRIAL USER MANUAL
UM 07.01.34/v1.1.0 2
LEGAL NOTICE
THE INFORMATION IN THIS DOCUMENT CANNOT BE REPRODUCED IN ANY MECHANICAL, ELECTRICAL
OR ELECTRONIC WAY AND UNDER ANY CIRCUMSTANCES WITHOUT THE WRITTEN CONSENT FROM DATECS LTD.
Address: 4 Datecs Street, Sofia 1592, Bulgaria
Phone: [phone]
Fax: [phone]
E-mail: [email protected]

1 DATECS LINEAPRO 11 INDUSTRIAL USER MANUAL
UM 07.01.34/v1.1.0 3
REVISION HISTORY
Version
Data
Change description
1.0.0
21.08.2020
First Release
1.1.0
08.12.2020
Updated section “TECHNICAL SPECIFICATIONS”

1 DATECS LINEAPRO 11 INDUSTRIAL USER MANUAL
UM 07.01.34/v1.1.0 4
CONTENTS
REGULATORY........................................................................................................................................................................... 5
TECHNICAL SPECIFICATIONS ................................................................................................................................................... 6
GENERAL VIEW........................................................................................................................................................................ 8
GETTING STARTED................................................................................................................................................................... 9
ATTACHING APPLE DEVICE TO LINEAPRO 11 INDUSTRIAL................................................................................................... 10
REPLACING BATTERY OF LINEAPRO 11 INDUSTRIAL............................................................................................................ 11
OPERATION MODES .............................................................................................................................................................. 12
SCANNING BARCODES ............................................................................................................................................................. 12
CONTACTLESS CARDS READING.RFID HF AND RFID LF ................................................................................................................ 13
TURN OFF DEVICE FUNCTION .................................................................................................................................................... 14
CHARGING APPLE DEVICE......................................................................................................................................................... 14
UPDATING FIRMWARE ............................................................................................................................................................ 14
CARE, MAINTENANCE AND WARRANTY............................................................................................................................... 15

1 DATECS LINEAPRO 11 INDUSTRIAL
USER MANUAL
UM 07.01.34/v1.1.0 5
REGULATORY
FCC ID: YRW-LINEAPRO11IH
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on.the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any change or modification to the product not expressly approved by Datecs Ltd could void the user's
authority to operate the device.
RF Exposure Information and Statement
This transmitter must not be in co-location or operating in conjunction with any other antenna or
transmitter. This device complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device should be installed and operated with a minimum distance of 5 mm between
the device and your body.

1 DATECS LINEAPRO 11 INDUSTRIAL USER MANUAL
UM 07.01.34/v1.1.0 6
TECHNICAL SPECIFICATIONS
Keyboard and Buttons
Two Scan buttons
Contactless Card Reader (optional)
Supports:
ISO/IEC 14443 Type-A/MIFARE
- MIFARE MINI
- MIFARE CLASSIC-1K, MIFARE CLASSIC-4K
- MIFARE ULTRALIGHT, ULTRALIGHT-C
- MIFARE PLUS 2K/4K
- MIFARE DESFire
- and other
ISO/IEC 14443 Type-B
- supports most of the cards
ISO/IEC 15693
- supports most of the cards
JIS X 6319-4
- compatible with FeliCa
ISO/IEC 18000-3 mode 3
- NFC
Omnikey 5127CK RFID Reader
(optional)
Supports (HF):
ISO/IEC 14443 Type-A/B
ISO/IEC 15693
NFC Tag (1,2,3,4,5)
Supports (LF):
HID Prox, Indala Prox, EM Prox, EM4100/4102/4200/4305/4450,
AWID Prox, Hitag 1.2.3
2D Barcode Reader
2D Opticon MDI-4000* CMOS Imager 640 x 480 pixels (optional)
2D Opticon MDI-5010 with UV_LED CMOS Imager 1280 x 800
pixels (optional)
2D Zebra SE4750 SR/MR-PL3307 CMOS Imager 1280 x 960 pixels
(optional)
Supported 1D and 2D Symbology
BARCODE 1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11,
Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar
(RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN,
Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey
POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean
Postal Authority code, POSTNET
2D CODE: Aztec Code, Aztec Runes, Chinese Sensible code,
Codablock F, Composite codes, Data Matrix (ECC200), Passport
MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417, Micro QR
Code, PDF417, QR code
Connectivity
Apple 9 pin connector
SAM holder
Device Compatibility
Apple iPhone 11, iPhone XR
Audio Features
Electro-Magnetic Buzzer
Power Supply
DC 5V through USB type-C
DC 5V through single or 5 station charger
Battery
Rechargeable Li-Ion Battery 3.6V / 2330mAh
Precise battery management by Fuel Gauge microcontroller for
remaining battery capacity
Dimension W x H x D, mm
85 x 171.5 x 30
Weight, g
186 (without UHF)
Operational temperature range
-10 °C to +40 °C / 5 to 90% RH
Storage temperature range
-20 °C to +50 °C / 5 to 90% RH
Compatible Accessories
Single charger (GT1)
5 stations charger (GT5)
Holsters

1 DATECS LINEAPRO 11 INDUSTRIAL USER MANUAL
UM 07.01.34/v1.1.0 7
* Specification can be change without any notice.
Use only original equipped DATECS cable USB-A to USB-C (Z05C000000-05) or
approved USB-C to USB-C cable for charging Apple device.
Use only UL approved USB adapters. The minimum requirements of USB
adapter are 5V/2.1A!
Waste Electrical & Electronic Equipment
The symbol means that according to local laws and regulations your product
shall be disposed of separately from household waste at the end of its working
life. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material
resources.

1 DATECS LINEAPRO 11 INDUSTRIAL USER MANUAL
UM 07.01.34/v1.1.0 8
GENERAL VIEW
1. Barcode engine
7. Battery cover/RFID reader for HF
2. Back Cover
8. External features connector
3. Right Scan button
9. On/Off button of Apple device
4. Linea battery cover lock/unlock lever
10. USB type-C connector
5. Locking screw for back cover.
11. Left Scan Button
6. RFID reader for HF and LF
12. Volume buttons of Apple device

1 DATECS LINEAPRO 11 INDUSTRIAL USER MANUAL
UM 07.01.34/v1.1.0 9
GETTING STARTED
LineaPro 11 Industrial has rechargeable Li-ion battery. Can be charge from USB port or External
features connector. Power source can be variable from USB wall adapters, Datecs power stations.
Before first use, battery must be fully charged.
If the device is fully discharged, charging time to fully charged would be approx.
4 hours and 30min (for more details please refer to the table below).
LineaPro 11 Industrial battery always start to charge when external power was provided. Charging
stops when battery is fully charged. Charging power can be “LOW”and “HIGH”and depends on Apple
device connection state. (valid for firmware version 01.05.68.64)
External Power supply*
Apple device connected
Apple device disconnected
500mA
LOW
LOW
1000mA
LOW
HIGH
>1000mA
HIGH
HIGH
*Maximum current which can provide the power supply
LOW –350mA
HIGH –580mA
Charging form USB adapter:

1 DATECS LINEAPRO 11 INDUSTRIAL USER MANUAL
UM 07.01.34/v1.1.0 10

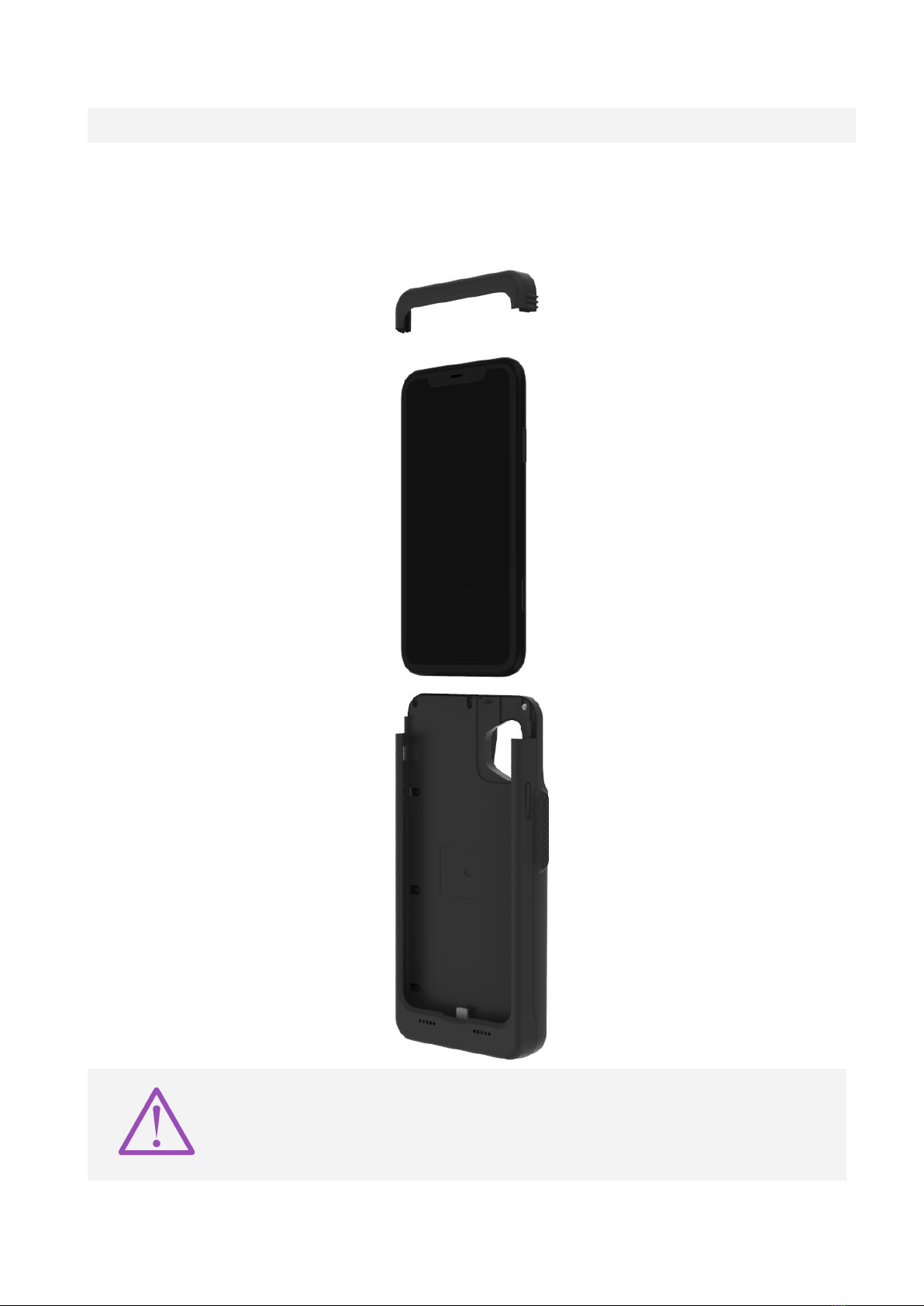

ATTACHING APPLE DEVICE TO LINEAPRO 11 INDUSTRIAL
First needs to be removed back cover. Then must be slide down Apple device to LineaPro 11 Industrial
lightning connector. Slide Apple device until completely fit to LineaPro 11 Industrial. Place back cover
to LineaPro 11 Industrial.
Before removal back cover, locking screw of back cover must be unscrewing.

1 DATECS LINEAPRO 11 INDUSTRIAL USER MANUAL
UM 07.01.34/v1.1.0 11
REPLACING BATTERY OF LINEAPRO 11 INDUSTRIAL
The rechargeable battery of Linea can be replaced. Put the lever (1) to unlock position, then pull up
the battery cover (2). Remove old battery with pulling up (3). Insert first the side with contacting pads
of the battery then press it down. Direction of battery cover closing. Place the clips to correct position.
When the battery cover is completely closed, slide the lever to lock position.
Replace battery only with new original battery with part number PL-15-110.

1 DATECS LINEAPRO 11 INDUSTRIAL USER MANUAL
UM 07.01.34/v1.1.0 12
OPERATION MODES
For start operating with LineaPro 11 Industrial is need to be attached Apple device and installed
application for iOS. For downloading the latest SDK please contact with your distributor.
For turn On LineaPro 11 Industrial press one of the scan buttons and unlock Apple device screen.
Scanning barcodes
LineaPro 11 Industrial can scan 1D and 2D barcodes. To scan barcode first, activate the scanner (by
pressing and holding the scan button). Then position the scanning engine to the center of the barcode
by aiming and the illumination box is over the outer edges of the barcode, as shown on the picture
below. Slowly pull back or forward the unit, while increasing or decrease the distance between the
barcode and the scanning head, until the barcode has been read by the scanner. Barcode data will have
shown on the use application for iOS.
LineaPro 11 Industrial support different types of scanning modes:
- Single Scan
- Multi Scan
- Motion Detect
- Multi Scan without duplicates

1 DATECS LINEAPRO 11 INDUSTRIAL USER MANUAL
UM 07.01.34/v1.1.0 13

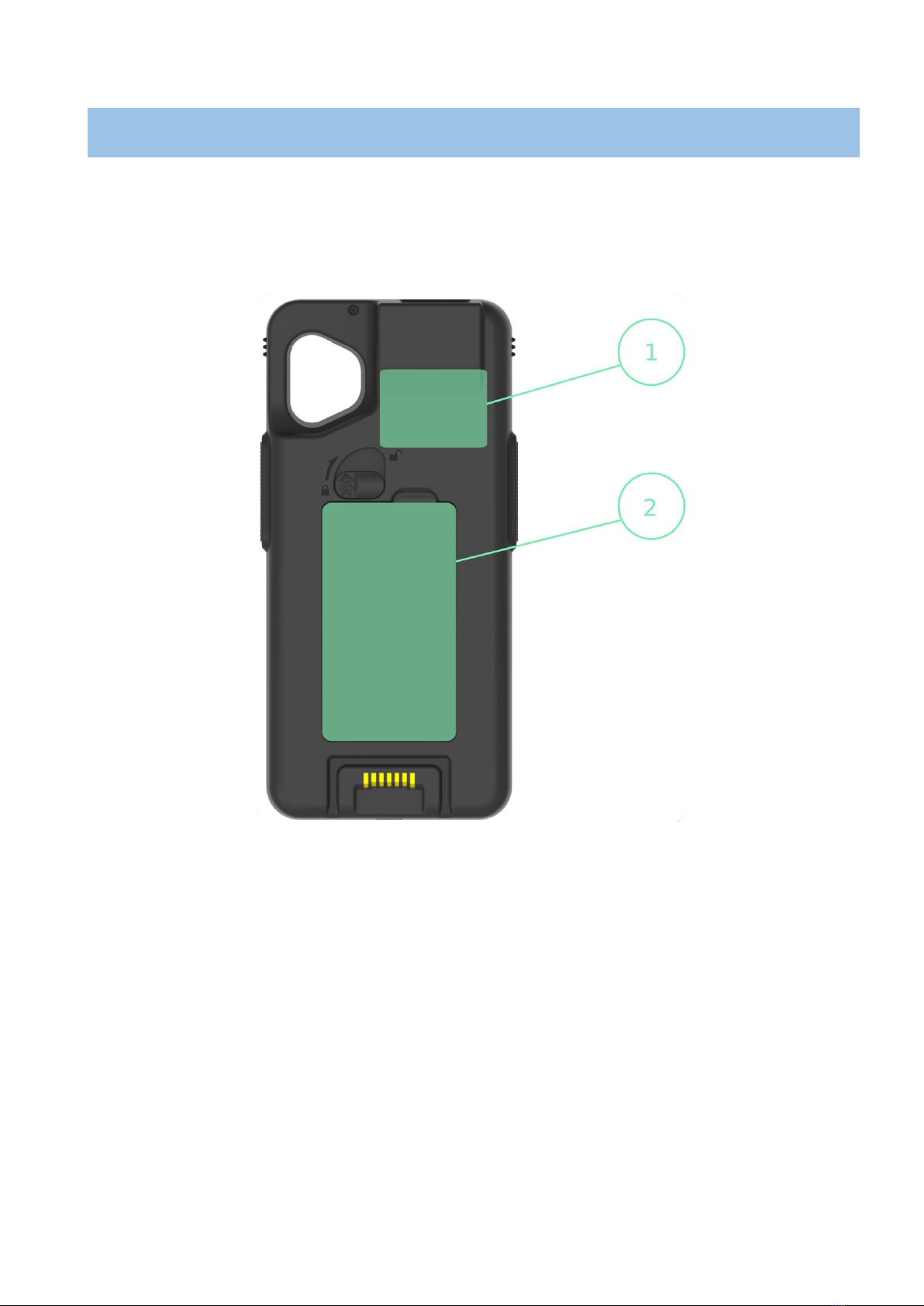

Contactless cards reading. RFID HF and RFID LF
The LineaPro 11 Industrial has RFID HF (2) and RFID HF/LF (1) contactless card readers. Both readers
are located on LineaPro11 Industrial back side. Contactless card/tag must be placed on showed
positions (1) or (2). For list of supported standards, please refer to sections “TECHNICAL
SPECIFICATIONS”.

1 DATECS LINEAPRO 11 INDUSTRIAL USER MANUAL
UM 07.01.34/v1.1.0 14
Turn off device function
When is pressed this turn off, LineaPro 11 Industrial is going to sleep mode immediately.
Charging Apple device
LineaPro 11 Industrial can charge Apple device, when power source (USB adapter) is attached to USB
connector or LineaPro 11 Industrial is placed on Datecs charging station. Charging Apple device can be
at LOW and HIGH power and depends on the battery charging state and power source.
External Power supply*
When Linea battery is
charging, can be provided
current to Apple device:
When Linea battery is
charged, can be provided
current to Apple device:
500mA
NONE
LOW
1000mA
LOW
HIGH
1500mA
LOW
HIGH
>1500mA
HIGH
HIGH
*Maximum current which can provide the power supply
NONE –0A
LOW –500mA
HIGH –1000mA
LineaPro 11 Industrial can charge Apple device from his own battery. Only is need to be activated
function “Automated Charge”, to be start charging battery level of LineaPro 11 Industrial must be
above 20%. Charging will stop when Linea battery is below 10%. Charging current to Apple device is
500mA.
Updating Firmware
Firmware of LineaPro 11 Industrial can be update with newer version. Press “Update Firmware” from
application, first will be shown current firmware version and to which version can be updated, then
press update.
Firmware of LineaPro 11 Industrial barcode engine can be update with newer version. Press “Update
Barcode Engine Firmware” from application. First will be shown current firmware version and to which
version can be updated, then press update.

1 DATECS LINEAPRO 11 INDUSTRIAL USER MANUAL
UM 07.01.34/v1.1.0 15
CARE, MAINTENANCE AND WARRANTY
•Keep the LineaPro 11 Industrial side of the reach of small children.
•Do not drop or knock LineaPro 11 Industrial
•Don’t charge LineaPro 11 Industrial when inside of USB connector is
spilled liquid. Please first clean and dry the USB connector and then
charge the device.
•Keep the device and battery away from excessive heat and direct
sunlight. Do not place them on or in heating devices, such as microwave
ovens, stoves, or radiators.
•Dispose the battery, and accessories according to local regulations.
They should not be disposed of in normal household waste. Improper
battery use may lead to fire, explosion, or other hazards.
•Do not use, store or transport the device where flammables or
explosives are stored (in a gas station, oil depot, or chemical plant, for
example). Using your device in these environments increases the risk of
explosion or fire.
•Do not open the LineaPro 11 Industrial. Only qualified personnel can
open the device and make repair. If the LineaPro 11 Industrial is not
working, please contact with your dealer.
•Allowing unqualified personnel to service your LineaPro 11 Industrial
may result in damage to your LineaPro 11 Industrial and will void your
warranty.
