Datecs LineaPro 7 Industrial User manual

1 DATECS
LineaPro 7 Industrial
User Manual

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 2
LEGAL NOTICE
THE INFORMATION IN THIS DOCUMENT CANNOT BE REPRODUCED IN ANY MECHANICAL, ELECTRICAL
OR ELECTRONIC WAY AND UNDER ANY CIRCUMSTANCES WITHOUT THE WRITTEN CONSENT FROM DATECS LTD.
Address: 4 Datecs Street, Sofia 1592, Bulgaria
Phone: [phone]
Fax: [phone]
E-mail: [email protected]

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 3
REVISION HISTORY
Version
Data
Change description
1.0.0
14.12.2017
First Release
2.0.0
10.03.2020
Added Section “Regulatory”

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 4
CONTENTS
REGULATORY........................................................................................................................................................................... 5
TECHNICAL SPECIFICATIONS ................................................................................................................................................... 6
GENERAL VIEW........................................................................................................................................................................ 8
GETTING STARTED................................................................................................................................................................. 10
ATTACHING APPLE DEVICE TO LINEAPRO 7 INDUSTRIAL..................................................................................................... 11
REPLACING BATTERY OF LINEAPRO 7 INDUSTRIAL.............................................................................................................. 13
OPERATION MODES .............................................................................................................................................................. 15
SCANNING BARCODES ............................................................................................................................................................. 15
CONTACTLESS CARDS READING.................................................................................................................................................. 16
TRANSFERRING DATA BETWEEN APPLE DEVICE AND PC OR MAC..................................................................................................... 17
TURN OFF DEVICE FUNCTION .................................................................................................................................................... 17
CHARGING APPLE DEVICE......................................................................................................................................................... 17
UPDATING FIRMWARE ............................................................................................................................................................ 17
CARE, MAINTENANCE AND WARRANTY............................................................................................................................... 18

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 5
REGULATORY
FCC ID: YRW-LINEAPRO7I
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on.
Any change or modification to the product not expressly approved by Datecs Ltd could void the
user's authority to operate the device.
RF Exposure Information and Statement
This transmitter must not be in co-location or operating in conjunction with any other antenna or
transmitter. This device complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.This device should be installed and operated with a minimum distance of 5 mm
between the device and your body.
ISED Statement
This device complies with license-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1)this device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that may cause
undesired operation.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio
exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.”

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 6
TECHNICAL SPECIFICATIONS
Keyboard and Buttons
Two Scan buttons
Reset device button
Contactless Card Reader
(optional)
Supports:
ISO/IEC 14443 Type-A/MIFARE
- MIFARE MINI
- MIFARE CLASSIC-1K, MIFARE CLASSIC-4K
- MIFARE ULTRALIGHT, ULTRALIGHT-C
- MIFARE PLUS 2K/4K
- MIFARE DESFire
- and other
ISO/IEC 14443 Type-B
- supports most of the cards
ISO/IEC 15693
- supports most of the cards
JIS X 6319-4
- compatible with FeliCa
ISO/IEC 18000-3 mode 3
- NFC
2D Barcode Reader
2D Opticon MDI-4000* CMOS Imager 640 x 480 pixels (optional)
2D Motorola SE4750/PL3307 CMOS Imager 1280 x 960 pixels, Laser Aim (optional)
Supported 1D and 2D
Symbology*
BARCODE 1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11,
Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS),
IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/
Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey POSTAL CODE: Chinese
Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
2D CODE: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F,
Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code
(mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
Connectivity
Apple 9 pin connector
Pass-through sync through USB type-C
Pass-through sync through via GT1 or GT5
Bluetooth 3.0 Class 2 (option)
- SPP - Serial Port Profile
SAM holder
Device Compatibility
Apple iPhone 7 and iPhone 8
Audio Features
Electro-Magnetic Buzzer
Power Supply
DC 5V through USB type-C
DC 5V through Datecs charging station
Battery
Rechargeable Li-Ion Battery 3.6V / 2400mAh
Precise battery management by Fuel Gauge microcontroller for remaining battery
capacity
Certificates
IP65
Dimension W x H x D, mm
75.1 x 25.6 x 157.4
Weight, g
Operational temperature range
-10 °C to +40 °C / 5 to 90% RH
Storage temperature range
-20 °C to +50 °C / 5 to 90% RH
Compatible Accessories
Single charger (GT1)
5 stations charger (GT5)
Dual Charger
* Specification can be change without any notice.

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 7
Use only original equipped DATECS cable USB-A to USB-C (Z05C000000-05) for
charging Apple device.
Use only UL approved USB adapters. The minimum requirements of USB
adapter is 5V/2.1A!
Waste Electrical & Electronic Equipment
The symbol means that according to local laws and regulations your product
shall be disposed of separately from household waste at the end of its working
life. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material
resources.

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 8
GENERAL VIEW

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 9
1. Barcode engine
7. Opening for
2. Back Cover
8. Linea battery cover lock/unlock lever
3. On/Off button of Apple device
9. Battery cover
4. Left and Right scan buttons
10. External features connector
5. USB type-C connector
6. Volume buttons of Apple device

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 10
GETTING STARTED
LineaPro 7 Industrial has rechargeable Li-ion battery. Can be charge from USB port or External features
connector.
Before first use, battery must be fully charged.
If the device is fully discharged, charging time to fully charged would be approx.
4 hours and 30min.
Depends of the settings, LineaPro 7 Industrial can pass-through input power supply from USB
connector or External features connector to Apple device. Charging current to Apple device can be
selected.
Charging form USB adapter:

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 11

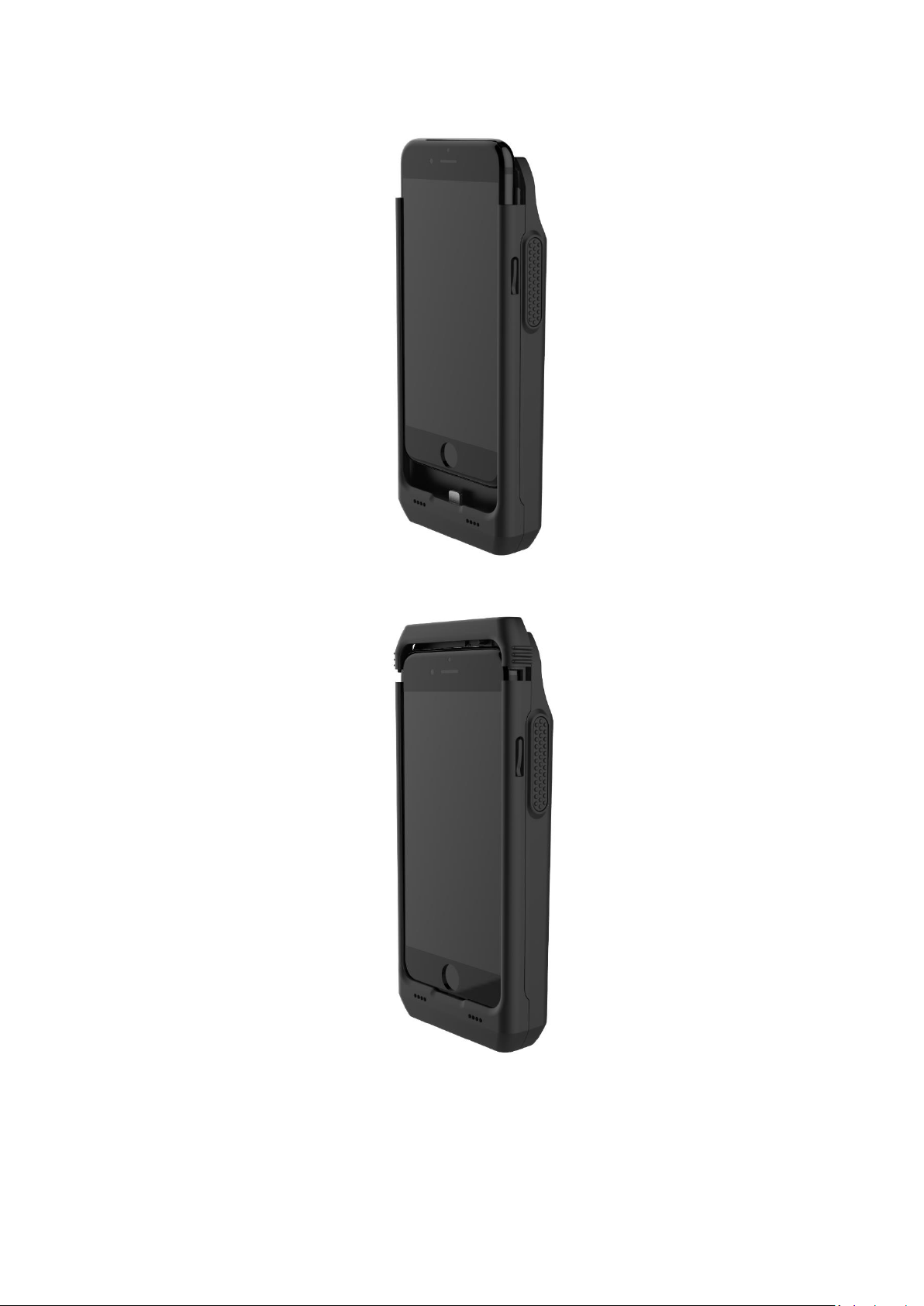

ATTACHING APPLE DEVICE TO LINEAPRO 7 INDUSTRIAL
First is need to be removed back cover. Then must be slide down iPhone to Linea Pro 7 Industrial
lightning connector.

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 12
Slide until completely fit of the iPhone to LineaPro 7 Industrial.
Place back cover to LineaPro 7.

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 13

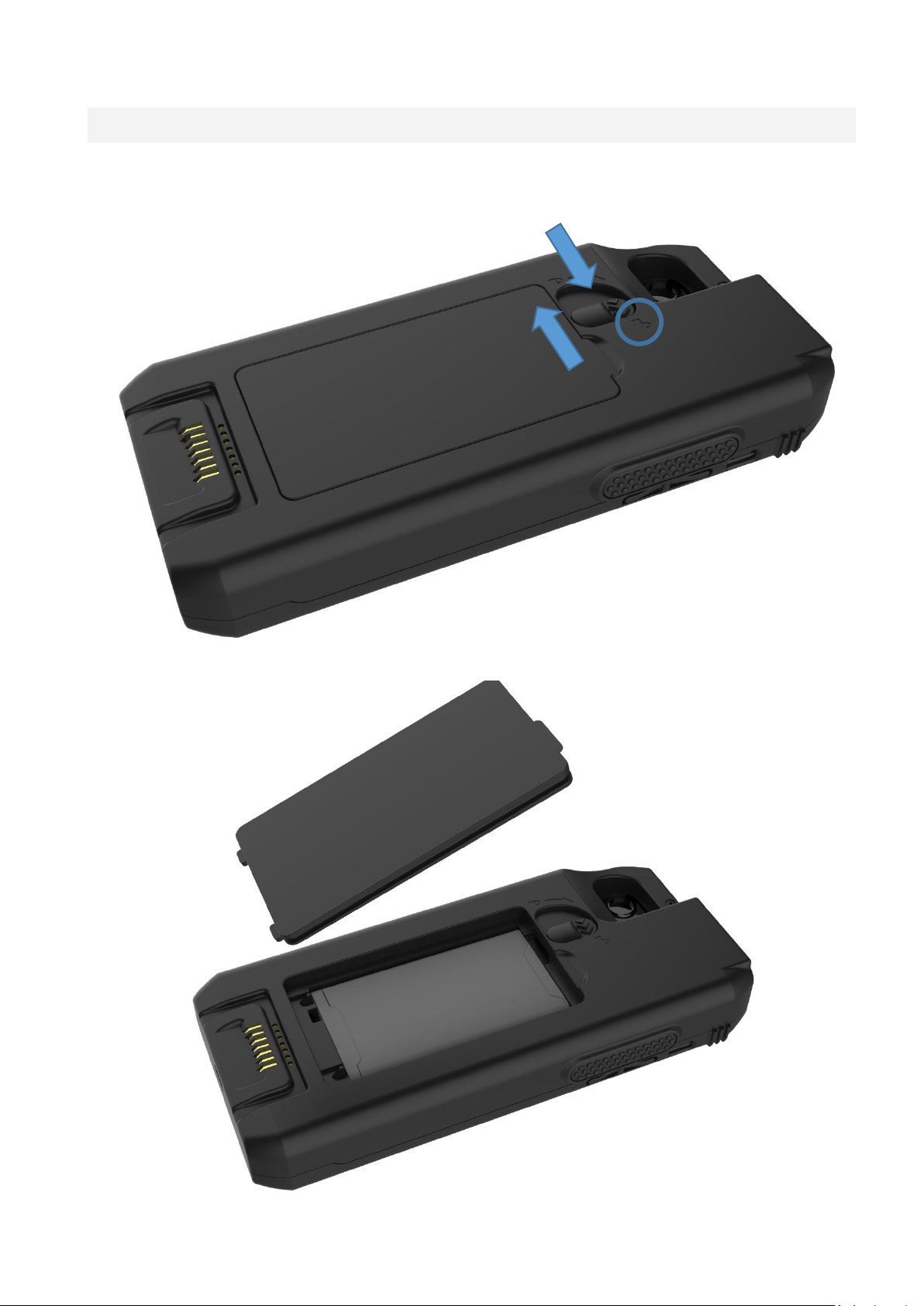

REPLACING BATTERY OF LINEAPRO 7 INDUSTRIAL
The rechargeable battery of Linea can be replaced. Put the lever (1) to unlock position, then pull up
the battery cover (2).
Remove old battery with pulling up.
1
2

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 14
Insert first the side with contacting pads of the battery then press it down.
Direction of battery cover closing. Place the clips to correct position.
When the battery cover is completely closed, slide the lever to lock position.
Replace battery only with new original battery with part number PL-15-110.

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 15
OPERATION MODES
For start operating with LineaPro 7 Industrial is need to be attached Apple device and installed
application for iOS. For downloading the latest SDK please contact with your distributor.
For turn On LineaPro 7 Industrial press one of the scan buttons and unlock Apple device screen.
Scanning barcodes
LineaPro 7 Industrial can scan 1D and 2D barcodes. To scan barcode first, activate the scanner (by
pressing and holding the scan button). Then position the scanning engine to the center of the barcode
by aiming and the illumination box is over the outer edges of the barcode, as shown on the picture
below. Slowly pull back or forward the unit, while increasing or decrease the distance between the
barcode and the scanning head, until the barcode has been read by the scanner. Barcode data will have
shown on the use application for iOS.
LineaPro 7 Industrial support different types of scanning modes:
- Single Scan
- Multi Scan
- Motion Detect
- Multi Scan without duplicates

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 16
Contactless cards reading
The LineaPro 7 Industrial has a contactless card reader. Contactless card reader is located on the
bottom side. Contactless card, tag or etc… must be placed over the RF ID logo (showed on the picture
below).

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 17
Transferring data between Apple device and PC or MAC
LineaPro 7 Industrial is supporting sync function when USB cable is plugged.
Sync can be enable or disabled by setting. If “pass-through sync”, was disabled, when USB cable is
plugged to LineaPro 7 Industrial will be charge only.
To enter in sync mode can be used this way:
Holding scan button and plug the USB cable. After that scan button must be
release.
Turn off device function
When is pressed this turn off, LineaPro 7 Industrial is going to sleep mode immediately.
Charging Apple device
LineaPro 7 Industrial can charge Apple device, when power source (USB adapter) is attached to USB
connector or LineaPro 7 Industrial is placed on Datecs charging station. Charging current to Apple
device can be selected from application:
- 500mA (Default)
- 1000mA
LineaPro 7 Industrial can charge Apple device from his own battery. Only is need to be activated
function “Automated Charge”, to be start charging battery level of LineaPro 7 Industrial must be
above 20%.
Updating Firmware
Firmware of LineaPro 7 Industrial can be update with newer version. Press “Update Firmware” from
application, first will be shown current firmware version and to which version can be updated, then
press update.
Firmware of LineaPro 7 Industrial barcode engine can be update with newer version. Press “Update
Barcode Engine Firmware” from application. First will be shown current firmware version and to
which version can be updated, then press update.

1 DATECS LINEAPRO 7 INDUSTRIAL USER MANUAL
UM 07.01.12/v1.0.0 18
CARE, MAINTENANCE AND WARRANTY
•Keep the LineaPro 7 Industrial side of the reach of small children.
•Do not drop or knock LineaPro 7 Industrial
•Do not open the LineaPro 7 Industrial. Only qualified personnel can
open the device and make repair. If the LineaPro 7 Industrial is not
working, please contact with your dealer.
•Allowing unqualified personnel to service your LineaPro 7 Industrial
may result in damage to your LineaPro 7 Industrial and will void your
warranty.
