Dawn Curvetine M Series Installation and operating instructions

Dawn Model 1202/1203/1204 Curvetine
Assembly and Operation Manual
2014_03_1202/1203/1204

1
©2012 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:[phone]
DISCLAIMER
WEIGHTS AND MEASURES
All Dawn Equipment Company part and whole good designs
adhere to the United states Customary Unit System (Inch-
Pound). All measurements in this manual are labeled using
only the aforementioned units, unless otherwise explicitly
specified.
ADDITIONAL INFORMATION
Additional information on this, and any other Dawn tool
can be found on the web at www.dawnequipment.com.
You may also contact Dawn for information by phone at
800.554.0007, or by fax at 815.899.3663, or by email at
[email protected]
PLEASE CAREFULLY READ THIS MANUAL
It is strongly recommended that you become familiar with
all operation and maintenance procedures concerning your
Dawn agricultural equipment.
Failure to follow safety recommendations while this implement
is in operation, and/or failure to properly store this implement,
and/or failure to adequately prepare this implement for
transport, could result in equipment damage, personal
injury or death. Please make yourself aware of all federal
and local laws that may apply to the transport, use and sale
of this implement.
USING THIS MANUAL
All Dawn manuals are named and numbered and should be
considered a principal element of the device they accompany.
Please ensure this manual is kept in a location not subject
to extreme conditions (i.e. excess humidity, hydraulic fluid,
exposed to natural elements, etc.). Please ensure that this
manual remains with the implement if traded, leased, or
sold.
WARRANTY INFORMATION
All new Dawn Equipment company products carry a limited
warranty. Warranty assurances vary by device, and can be
found in the appendices of this or any other Dawn Equipment
Company users manual. Warranty information is also
available upon request by contacting Dawn toll-free at
800.554.0007, or you can request a copy in writing.
Request warranty information by e-mail at
[email protected], or by US post at
Dawn Equipment Company
PO Box 497
Sycamore, IL 60178
Dawn Equipment Company prides itself on the manufacture
of quality American made row crop tools. Warranties will
be honored by Dawn to dealers authorized to sell Dawn
Equipment products who, in turn, honor such warranties
to the original retail purchaser. Should this equipment be
improperly cared for, or should it be modified to change
performance beyond OEM specifications, applicable Dawn
warranties will become void, and Dawn sponsored implement
improvements will not be granted.
Dawn Equipment Company makes no claim to the
safety or reliability of non-Dawn OEM parts or whole
goods used in conjunction with Dawn OEM equipment,
and shall not be held responsible for any personal
injury or property damage, or for any complications
with operational performance caused by non-Dawn
OEM parts or whole goods used in conjunction with
Dawn OEM equipment. Please familiarize yourself
with the users manuals and safety recommendations of
all non-Dawn OEM equipment.
Introduction

2
©2012 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:[phone]
GENERAL SAFETY
It is essential that you be able to recognize safety signal
words and their associated symbols. Please be alert to
any signs posted on your Dawn Equipment Company products,
and/or in your users manual. Make sure you have read
all safety messages and that you clearly understand the
recommended precautions. If you have any questions
about any Dawn safety sign, or have further questions
about the safety recommendations on this or any other
Dawn product, please contact Dawn Equipment Company
at 800.554.0007.
DANGER - Indicates an imminently hazardous situation
that, if not avoided, will result in serious injury or death,
and/or property damage
WARNING - Indicates a potentially hazardous situation
that, if not avoided, will result in serious injury or death,
and/or property damage.
CAUTION - Indicates a potentially hazardous situation
that, if not avoided, may result in minor or moderate
injury, and/or property damage.
REPORTING AN EMERGENCY
Ensure that you have access to a radio or a mobile phone
when operating or repairing farm machinery. Working with
a partner whenever possible significantly increases the
chances of receiving timely emergency care should one
party become severely injured, and/or incapacitated.
MAINTENANCE AND UPKEEP
For safety reasons, it is important to keep your implements
in proper working order. Unauthorized modifications to
Dawn Equipment Company products may compromise the
efficiency and/or safe operation of the product and will void
any and all warranties through Dawn Equipment Company.
Please read your manual before attempting any repair work
to your Dawn tool. If you need to work on your Dawn tool,
make sure to support it before partially or fully removing
it from the attachment points. Do not adjust your Dawn
tools while they are moving.
PROTECTIVE CLOTHING
Wearing proper attire when working on agricultural equipment
is a critical safety precaution. Loose clothing or accessories
may become entangled in moving parts causing serious injury
or death.

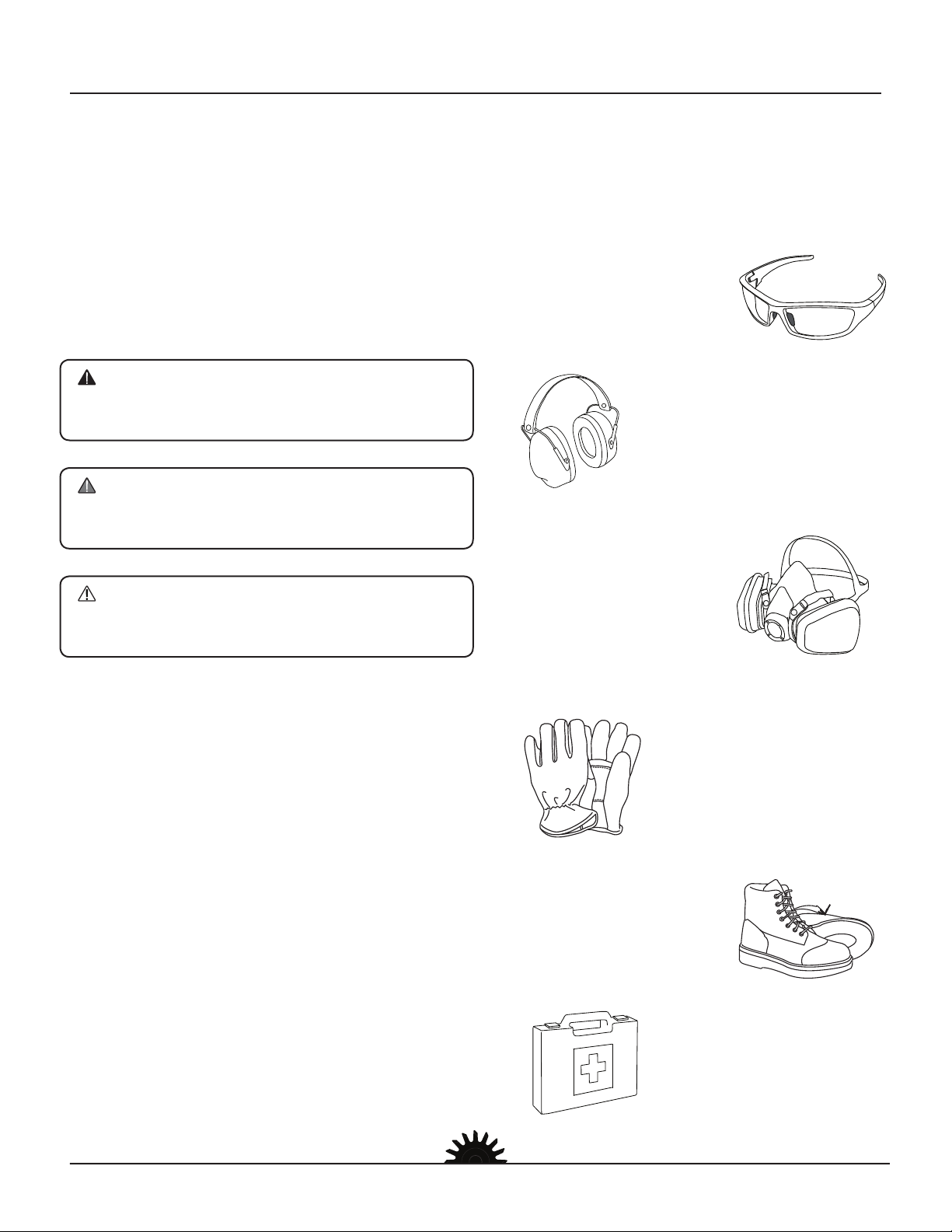

SAFETY INFORMATION
SAFETY GLASSES/GOGGLES
If you will be using hazardous
chemicals, or are striking, cutting
or grinding metal make sure you
are wearing eye protection.
EARPLUGS / SOUND MUFFLERS
When working around equipment that
generates high amplitude sound (ie
dryers, vacuums, etc.) ear protection
is strongly recommended.
RESPIRATOR MASK
Carefully read all safety
information associated with
any chemicals you will be
handling. Use a respirator
mask when using hazardous
chemicals, (ie Insecticides,
NH3, etc.)
WORK GLOVES
If working around machinery
with sharp edges, or rough metal
surfaces, work gloves may prevent
a few stitches. Work gloves are
inexpensive, and are really worth
the investment.
STEEL-TOED BOOTS
A good pair of steel-toed boots
can safe your toes. Avoid
an unfortunate accident, and
protect your feet.
FIRST AID KIT
In order to minimize the risk of
infection, every shop and tractor
should have a complete first aid
kit.

3
©2012 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:[phone]

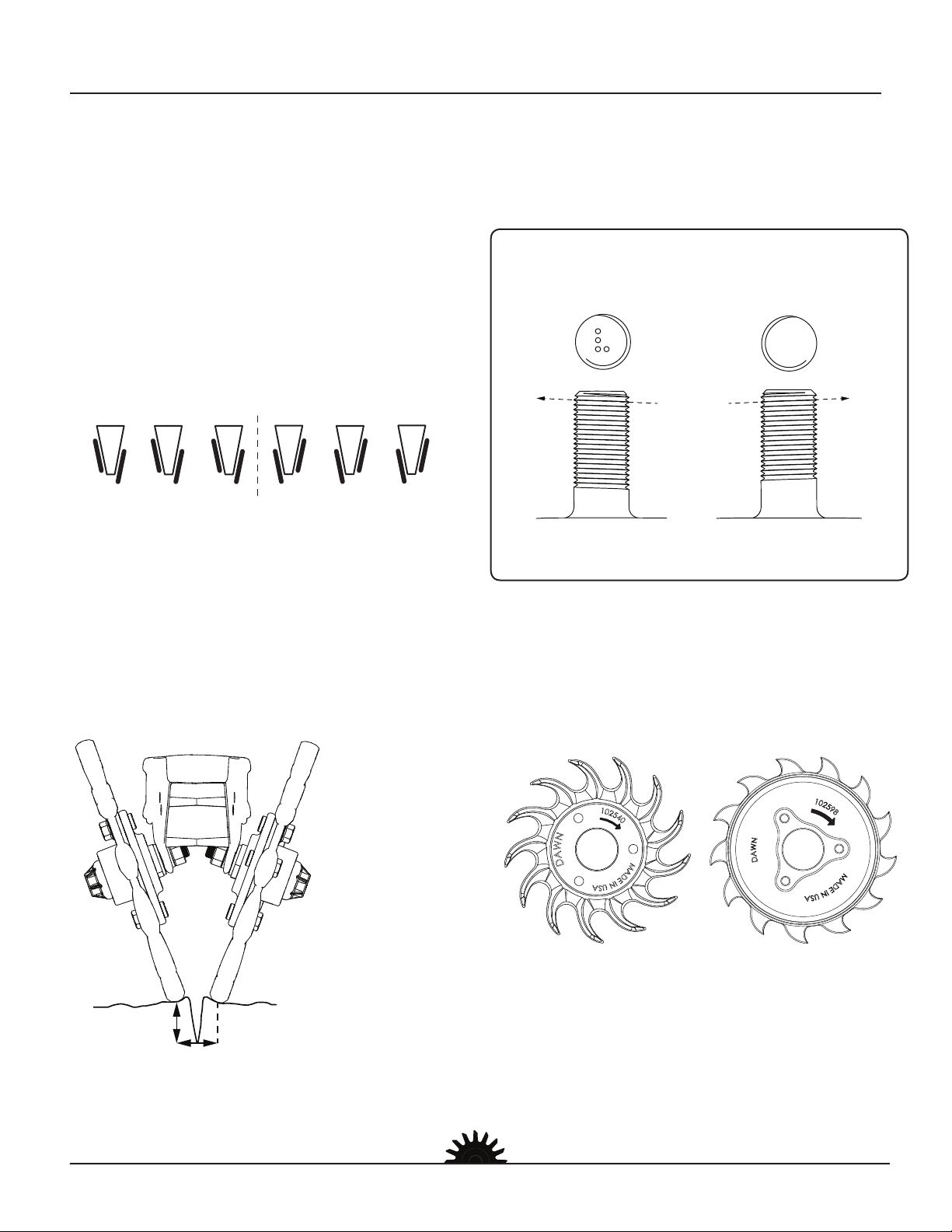

CURVETINE PLACEMENT - STAGGERING WHEELS
Most major planter row unit manufacturers incorporate a
two-hole tailpiece design for staggering the closing wheels.
When running one Curvetine and one rubber wheel, it is
recommended to have the Curvetine in the front hole closest
to the planter with the rubber wheel in the rear hole. This
is a good idea for shallow planting depth and prevents the
Curvetine from becoming too aggressive. If more aggressive
action is needed, you may reverse the orientation and run
the Curvetine in the rear hole furthest from the planter with
the rubber wheel in the leading hole. With either setting, it
is important to be mindful of your tailpiece down-pressure.
The first (lightest pressure) notch is a good place to start.
CLOSING WHEEL SPACING
As a general rule, the distance between wheels (mea-
sured center-to-center) should match your desired plant-
ing depth. Each Curvetine order contains multiple washers
as well as a triangular hub spacer, these will allow you to
adjust your closing wheel spacing to match your planting
depth. The deeper your seed is being placed, the further
apart the closing wheels need to be. You may need to adjust
your wheel spacing when changing planting depth.
PRODUCT INTRODUCTION
Left-hand threads Right-hand threads
for left-hand hub for right-hand hub
HUB ORIENTATION
Hubs are handed! Due to the special hub-shaft threading,
a left-handed hub can only be installed on the left-hand
side of the tailpiece, and a right-handed hub can only be
installed on the right-hand side of the tailpiece.
Left-hand hubs are indentied by an “L” marked on the hub
shafts. The right-hand hub shaft will show nothing on it.
WHEEL ORIENTATION
Curvetines are directional! Due to the modular design
of the M-Series Curvetine, each wheel is symmetrical and
can be mounted to either the right-hand or left-handed
modular hub. Install Curvetines according to the arrow
indicating direction of forward travel.
CARE AND MAINTENANCE
Use Mobil XP222 or similar to grease hubs yearly or every
100 acres/row, whichever comes first. In extremely dusty
environments and when liquid fertilizer is being applied
with the planter, it may be necessary to grease hubs daily.
Grease to purge; it is not possible to over-grease hubs.
Remove excess grease.
The distance between your
closing wheels should be
about the same as your
planting depth. Make sure
wheels sit on the OUTSIDE
of the furrow.

4
©2012 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:[phone]
JOHN DEERE, KINZE & WHITE
For this assembly you will need;
• One open-end 15/16” wrench
• Dawn 1 3/8” hub wrench
• 3/4” socket wrench or impact gun
NOTE This installation is intended as a starting point for most
growers with seed depths ~2-2.5”. To change spacing, add or
remove supplied washers as necessary.
Install Hub
Insert hub shaft through 1 supplied washer, tailpiece, lock
washer, and thread into nut. Tighten by placing 15/16” wrench
onto nut and turning hub shaft using the supplied Dawn 1 3/8”
wrench. To tighten, turn Dawn wrench TOWARDS planter
unit. To loosen hub, turn Dawn wrench AWAY from planter
unit. Remember that each hub is handed.
Install Curvetine
Place triangular hub spacer between Curvetine and hub,
thread on 5/8” flange lock nuts. Remember to install wheel
according to the rotational arrow stamped on the outside
of the wheel.
Install Rubber Wheel
Place rubber wheel onto hub, secure 1/2-13” flange lock nuts
with 3/4” socket or impact gun.
1
2
3
INSTALLATION
To install hub, turn
wrench TOWARDS
planter unit.

5
©2012 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:[phone]
The following warranties with respect to new Dawn Equipment
Company (“Dawn”) products, excepting as hereafter
provided, is made by Dawn to Dealers (“Dealers”) authorized
by Dawn to sell the products involved and each selling
Dealer, in turn, make such warranties to the original retail
purchaser (“Purchaser”).
A. Duration and Extent of Warranty
B. Warranty Exclusions; Dawn will not be responsible for
any of the following;
C. Remedies Exclusive: NO Other Warranties
The obligations of Dawn and the Dealers are limited to the
obligations set forth in this Limited Warranty. THIS LIMITED
WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF
DAWN, AND THE DEALERS, EXPRESSED OR IMPLIED.
WARRANTIES BY DAWN OR THE DEALER OF CONDITION
QUALITY, MERCHANT ABILITY OR FITNESS FOR A
PARTICULAR PURPOSE ARE EXCLUDED, AS ARE ALL
OTHER REPRESENTATIONS BY DAWN AND THE DEALERS
TO THE PURCHASE OR USER AND ALL OTHER OBLIGATIONS
OR LIABILITIES OF DAWN AND THE DEALERS. NO OTHER
PERSON IS AUTHORIZED TO GIVE ANY OTHER WARRANTY
OR TO ASSUME ANY OTHER LIABILITY ON BEHALF OF
DAWN AND THE DEALERS. THIS LIMITED WARRANTY
MAY NOT BE TRANSFERRED BY THE PURCHASER TO
ANY SUBSEQUENT OWNER.
D. The instruction manual supplied with the Product contains
important maintenance and service information. Read the
manual and follow the recommendations contained herein.
Please remember that failures due to improper maintenance
or service are not covered by the Limited Warranty.
Dawn Equipment Company reserves the right to make
changes in design or specifications at any time without obligation
to purchasers or equipment and components previously
sold. This warranty shall not be altered or changed in any
way.
Appendix - WARRANTY
1. Products, except all working, moving and all or any parts
subject to wear, except as hereafter provided, which are
defective in materials or workmanship as delivered to
the Purchaser by Dealer will be repaired by a Dealer or
replaced by Dawn, only, as Dawn elects, without charge
for materials or labor, if such defect appears in not more
than 12 months, or from and after the date of delivery to
the Purchase by the Dealer.
2. Dawn warrants that the Trashwheels planter attachment
wheels (Dawn part #s 200015, 101550, 102185M-L,
102185M-R) and Curvetine closing wheels (Dawn part
# 102540F) will not bend or break during its useful lifetime.
3. Liability of Dawn for defective parts or material is specifically
limited to the value of the parts or materials, only.
4. All parts or materials requiring work MUST be returned
by delivery to the selling Dealer for repair or for delivery
to Dawn within thirty (30) days of occurrence of the
defect or failure of the part or material, all freight prepaid
by the Dealer upon Dealer warranty form, available by
request from Dawn. Upon completion of the warranty
work, Dawn will ship parts or material to the Dealer,
freight prepaid by Dawn.
5. All decisions by Dawn pertaining to warranty are final.
4. INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUD-
ING BUT NOT LIMITED TO, LOSS OF PROFITS, LOSS
OF TIME, LOSS OF CROPS, INCONVENIENCE, LOSS OF
USE OF THE PRODUCT OR OTHER MACHINERY, EQUIP-
MENT OR VEHICLE USED WITH THE PRODUCTS, COST
OF RENTALS OR REPLACEMENT OF THE PRODUCTS
OR OTHER COMMERCIAL LOSS.
1. Defects of damage resulting from use, repairs or service
performed in a manner not approved by Dawn or from
repairs or service performed by someone other than
an authorized Dawn Dealer service department (after
approval from Dawn) or Dawn to repair or replace the
product involved.
2. Defects, damage or failure resulting from any alteration
or additions done in a manner not approved by Dawn.
3. Defects, damage or failure or deprecation resulting from
wear and tear, accidents, misuses, negligence, improper
maintenance or improper protection and storage.

6
©2012 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:[phone]
Item Dawn Part # Item Description
1 90428 5/8”-18 Hex Nut RH thread
3 9069 Lock Washer
4 9375 3/4 SAE Flat Washer
5 102542R Hub Shaft RH thread
7 9017 Triple Lip Seal
8 9018 Phenolic Wear Ring
9 9016 Bearing Cone
Item Dawn Part # Item Description
13 9178 Castelated Nut
12 9028 Tongue Washer
11 9007-R1 1/2”-13 Flange Lock Nut
14 9019 Cotter Pin
15 90426 O-Ring for Modular Hub
16 102544C Grease Cap for Modular Hub
17 9806 1/8” Grease Zerk
18 90458 Snap Ring for Modular Hub
19 102567 Triangular Hub Spacer
10 300480 Forged Hub Press Assy.
20 102540F Curvetine Wheel (1202)
Dawn Parts Breakdwon
M-Series Curvetine
21
20
19
16
15
14
13
9
6
5
43
21 12 17 18
78
21 400159 Metal Rim and Tire (1203)
2 90429 5/8”-18 Hex Nut LH thread
6 102542L Hub Shaft LH thread
10 11
OR OR
*
*
*
*
*
*
*
*
*
*
*
*
*
* Included with hub replacement kit 400156R/L
must specify RIGHT or LEFT
*
*
*
*
Dawn Parts
1202/1203/1204_2014_2
22
22 102598 Gaugetine Wheel (1204)
