DCS AERGES MIRAGE F1 Technical specifications

DCS: Mirage F1 Flight Manual
Version 1.0
1
MIRAGE F1
for DCS World
Flight Manual

DCS: Mirage F1 Flight Manual
Version 1.0
2
0. Contents
0. Contents................................................................................................................................ 2
1. INTRODUCTION..................................................................................................................... 7
2. AIRCRAFT CHARACTERISTICS............................................................................................... 10
2.1 PHYSICAL CHARACTERISTICS ............................................................................................. 10
2.2 TECHNICAL CHARACTERISTICS .......................................................................................... 10
3. AIRCRAFT SYSTEMS ............................................................................................................. 13
3.1 COCKPIT CONTROLS AND INDICATORS............................................................................. 13
3.2 ELECTRICAL SYSTEM.......................................................................................................... 19
Description .......................................................................................................................... 19
Operation ............................................................................................................................ 19
Controls............................................................................................................................... 20
Failure lights........................................................................................................................ 20
Failures ................................................................................................................................ 21
CIRCUIT BRAKER PANEL....................................................................................................... 23
3.3 FUEL SYSTEM..................................................................................................................... 25
Description .......................................................................................................................... 25
Controls............................................................................................................................... 26
Indicators............................................................................................................................. 26
Failure lights........................................................................................................................ 27
3.4 JET ENGINE........................................................................................................................ 29
Introduction ........................................................................................................................ 29
Description .......................................................................................................................... 29
Controls............................................................................................................................... 30
Indicators............................................................................................................................. 31
Failure lights........................................................................................................................ 31
3.5 HYDRAULIC SYSTEM .......................................................................................................... 33
Description .......................................................................................................................... 33
Controls............................................................................................................................... 34
Indicators............................................................................................................................. 35
Failure lights........................................................................................................................ 35
3.6 CONTROL SYSTEM ............................................................................................................. 39
Description .......................................................................................................................... 39
Controls............................................................................................................................... 39
Indicators............................................................................................................................. 39

DCS: Mirage F1 Flight Manual
Version 1.0
3
Failure lights........................................................................................................................ 40
3.7 AUTOPILOT........................................................................................................................ 42
Operation ............................................................................................................................ 42
3.8 MISCELLANEOUS SYSTEMS................................................................................................ 44
Brake chute ......................................................................................................................... 44
IFF........................................................................................................................................ 45
3.9 AIR DATA SYSTEM AND MISCELLANEOUS INSTRUMENTS ................................................ 46
Description .......................................................................................................................... 46
Controls and indicators ....................................................................................................... 46
3.10 COCKPIT SYSTEMS........................................................................................................... 49
Canopy................................................................................................................................. 49
Ejection seat........................................................................................................................ 50
Lighting................................................................................................................................ 51
3.11 OXYGEN SYSTEM ............................................................................................................. 54
Description .......................................................................................................................... 54
Controls and indicators ....................................................................................................... 54
3.12 AIR CONDITIONING AND PRESSURIZATION SYSTEM ...................................................... 56
Description .......................................................................................................................... 56
Controls and indicators ....................................................................................................... 56
3.13 RADIO SYSTEM ................................................................................................................ 58
Description .......................................................................................................................... 58
Controls............................................................................................................................... 58
Indicators............................................................................................................................. 59
3.14 NAVIGATION SYSTEM...................................................................................................... 61
Description .......................................................................................................................... 61
Controls............................................................................................................................... 62
Indicators............................................................................................................................. 63
3.15 ARMAMENT SYSTEM....................................................................................................... 66
Description .......................................................................................................................... 66
Controls............................................................................................................................... 68
Indicators............................................................................................................................. 69
3.16 COUNTERMEASURES....................................................................................................... 74
Description .......................................................................................................................... 74
Controls............................................................................................................................... 74
Indicators............................................................................................................................. 74
3.17 RADAR DETECTOR ........................................................................................................... 76

DCS: Mirage F1 Flight Manual
Version 1.0
4
Description .......................................................................................................................... 76
Controls and indicators ....................................................................................................... 76
3.18 RADAR ............................................................................................................................. 77
Description .......................................................................................................................... 77
Operation ............................................................................................................................ 80
Simplified operation............................................................................................................ 90
Controls and indicators ....................................................................................................... 97
4. NORMAL PROCEDURES ..................................................................................................... 101
ENTERING COCKPIT............................................................................................................... 101
CABIN CHECKS....................................................................................................................... 101
STARTUP ............................................................................................................................... 103
AFTER START......................................................................................................................... 103
BEFORE TAXI ......................................................................................................................... 104
DURING TAXIING .................................................................................................................. 104
BEFORE LINE-UP.................................................................................................................... 105
TAKEOFF................................................................................................................................ 105
CLIMB.................................................................................................................................... 105
CEILING.................................................................................................................................. 106
CRUISE................................................................................................................................... 106
COMBAT................................................................................................................................ 106
DESCENT................................................................................................................................ 106
PATTERNS.............................................................................................................................. 108
LANDING ............................................................................................................................... 108
GO-AROUND......................................................................................................................... 108
USE OF THE AUTOPILOT ....................................................................................................... 111
RETURNING TO PARKING AREA ........................................................................................... 111
AFTER CLEARING THE RUNWAY........................................................................................... 111
ON PARKING AREA ............................................................................................................... 112
5. LIMITATIONS ..................................................................................................................... 115
5.1 CLEAN AIRCRAFT LIMITATIONS ....................................................................................... 115
5.2 ALTERNATORS VENTILATION .......................................................................................... 116
5.3 ENGINE LIMITATIONS...................................................................................................... 117
5.4 ELEMENTS EXTENDED LIMITATIONS............................................................................... 117
6. EMERGENCY PROCEDURES ............................................................................................... 119
6.1 ENGINE RESTART IN FLIGHT ............................................................................................ 119
6.2 COMPRESSOR STALL........................................................................................................ 119

DCS: Mirage F1 Flight Manual
Version 1.0
5
6.3 FLAMEOUT PATTERN....................................................................................................... 120
7. COMBAT EMPLOYMENT.................................................................................................... 123
7.1 AIR-TO-AIR GUNS ............................................................................................................ 125
7.2 MATRA R550 OR SIDEWINDER........................................................................................ 125
7.3 MATRA R530 ................................................................................................................... 125
7.4 AIR-TO-GROUND GUNS................................................................................................... 125
7.5 ROCKETS.......................................................................................................................... 125
7.6 BOMBS............................................................................................................................. 125
7.7 Depression Angle Tables ................................................................................................. 126
8. FLIGHT CHARACTERISTICS................................................................................................. 130
9. CREDITS ............................................................................................................................. 132

DCS: Mirage F1 Flight Manual
Version 1.0
6

DCS: Mirage F1 Flight Manual
Version 1.0
7
1. INTRODUCTION
Introduction
The Mirage F1 is a single engine French fighter and attack aircraft first introduced in the early
1970s. It was envisioned originally as an all-weather interceptor and has seen many variants,
roles and configurations. It is still in service today with multiple air forces and private companies.
The F1 is equipped with a single SNECMA Atar 9K-50 afterburning turbojet, capable of delivering
70 kN of thrust at sea level. A Cyrano IV monopulse radar (later Cyrano IVM) is carried by most
of the variants of the aircraft.
The aircraft can carry an extensive variety of payloads: Both IR and radar air to air missiles,
guided and unguided bombs, rockets, as well as countermeasures, reconnaissance and
electronic warfare pods. Most versions also carry two internal 30 mm DEFA 553 cannons. Some
of the latest variants can carry the famous AM39 Exocet antiship missile.
History
During the 1960s, Dassault was involved in the development of several fighter design projects:
the F1, the larger F2, the swing-wing G and the BAC/Dassault AFVG. Cost and political issues led
to the cancellation of all of these projects, except of the F1, which was a lighter fighter aircraft
designed from the beginning to be the successor of the Mirage III and V families of aircraft.
The Mirage F1 wing and empennage configuration enabled it to improve upon some of the
problems of that the Mirage III and V suffered due to their delta wing configuration: The high lift
devices of the F1 allowed for shorter landing distances and better manoeuvrability and handling
at low speeds. The F1 was also able to carry 40% more fuel internally and had a more powerful
engine.
The initial prototype first flew on the 23rd of December of 1966, already achieving speeds in
excess of Mach 2 in its fourth flight. A fatal accident related to fluttering destroyed this
prototype but, after a redesign, the testing of the aircraft continued successfully and the first
deliveries of the production aircraft took place in May 1973.
The type has partaken in multiple conflicts serving different countries throughout its extensive
service life. With France it has served in Operations Manta, Epervier, Daguet (the Gulf War),
Provide Comfort, Harmatan and Serval over Chad, Libya, Mali, Kuwait… As well as in Afghanistan.
It partook in the South African Border War with South Africa, in the Paquisha War with Ecuador,
in the Libyan civil war, in the Western Sahara War with Morocco and, perhaps most famously,
in the Iran-Iraq and Gulf wars with Iraq.
The Mirage F1 has served in the air forces of several countries: France, Iraq, Spain, South Africa,
Greece, Jordan, Kuwait, Ecuador and Qatar. It is still in operation in several others: Morocco,
Iran, Libya, Gabon and the Republic of the Congo. It also serves in private aggressor training
services in the USA.

DCS: Mirage F1 Flight Manual
Version 1.0
8
Main variants
More than 700 units of the Mirage F1 have been produced and it has been exported to several
countries. The different necessities of customers over the years have led to the emergence of
multiple variants to better satisfy specific requirements:
Mirage F1-C: The original all-weather interceptor variant for the ‘Armée de l’Air’,
exported to several countries (Spain, Greece, Morocco…). Several of these aircraft were
reconverted to the CT (close air support) specification for France. The C-200 was a C
version with air refuelling capability, also for the ‘Armée de l’Air’. Despite its main role
as an interceptor, a secondary role as ground attacker was considered, and a wide
selection of air-to-ground ordnance was also available for these models.
Mirage F1-B: Two seat conversion trainer of the Mirage F1-C. It was capable of carrying
the same ordnance as the Mirage F1-C but the extra seat came at the cost of less fuel,
a slight increase in weight and the loss of the internal cannons. External cannon pods
could be mounted instead.
Mirage F1-E: Multirole and ground attack version of the Mirage F1-C, it was equipped
with a better navigation suite and air refuelling capability. All of the E versions made
were for export clients (Iraq, Spain, Jordan, Ecuador…). Of special note are the later
Iraqi versions, which were equipped with a wide variety of guided air to ground
weapons.
Mirage F1-D: Two seat version of the F1-E. Only 2 were built, both for Qatar.
Mirage F1-A: Simplified ground attack variant for the South African Air Force and the
Libyan Air Force. It substituted the Cyrano IV radar with a laser rangefinder.
Mirage F1-CR: Dedicated reconnaissance version which included visual and IR cameras
(the IR camera replaces one of the cannons), a radar with extra ground mapping
capabilities and a variety of pods, including ELINT and side looking radar. It served with
the ‘Armée de l’Air’ and some were later sold to an aggressor company in the USA.
Mirage F1-M: Spanish modernised version based on the Spanish C and E models carried
out by Thomson-CSF. The modernisation vastly improved air to ground capability,
included the new Cyrano IVM radar with sea search modes, as well as new navigation
suites, a colour LCD and new HUD.
The Mirage F1-CE
The Mirage F1-CE is the export variant for Spain of the interceptor French F1-C, it entered service
in 1975, making the ‘Ejército del Aire’ the second client to buy the type. It differs slightly from
the French version in its ability to carry American made AIM-9 Sidewinder missiles, as well as
having an incorporated countermeasure suite. Most of their operative life was spent in the ‘Ala
14’, based in Los Llanos Air Force Base, until the year 2000, in which it was completely replaced
by the F1-M.

DCS: Mirage F1 Flight Manual
Version 1.0
9

DCS: Mirage F1 Flight Manual
Version 1.0
10
2. AIRCRAFT CHARACTERISTICS
2.1 PHYSICAL CHARACTERISTICS
Clean aircraft gross take-off weight comprising:
-empty weight equipped………………………………………………………………7849 kg… (17,304 lbs)
-pilot………………………………………………………………………………….…………….95 kg……….(209 lbs)
-fuel (JP1)*……………………………………………………………………………………3397 kg.…...(7489 lbs)
-shells………………………………………………………………………………………..……145 kg………(320 lbs)
GW: 11,486 kg….(25,322 lbs)
Overall dimensions:
-length…………………………………………………………………………………………….15.25 m…..(50.03 ft)
-span…………………………………………………………………………………………………8.44 m…..(27.69 ft)
-height (clean aircraft, fully fueled)……………………………………………………4.49 m…..(14.73 ft)
Undercarriage:
-wheelbase (clean aircraft, fully fueled)…………………………………..…………4.87 m….(15.98 ft)
-track…………………………………………………………………………………………..………2.48 m…..(8.14 ft)
Propulsion:
-SNECMA ATAR 9 K50 jet engine
-Test bed thrust:
oFull power dry……………………………………………..………………..4770 daN…(10,725 lbs)
oMax. afterburner……………………………..……………………………6830 daN…(15,355 lbs)
* Fuel density: 0.79 kg/l
2.2 TECHNICAL CHARACTERISTICS
Clean aircraft permissible load factor:
-In subsonic flight (Mach < 0.95)………………………………………………………………….………-3/+7.2
-In supersonic flight (Mach > 1)……………………………………………………………………………-3/+6
Maximum speed………………………………………………………………………….....…………700 kt (0 – 20,000 ft)
750 kt (> 20,000 ft)

DCS: Mirage F1 Flight Manual
Version 1.0
11
Mach number limit…………………………………………………………………………………………………………...…..2.1
Ceiling (high altitude equipment is not part of aircraft specifications)............................55,000 ft
Service ceiling……………………………………………………………………………………………………………….50,000 ft
Figure 2-1 Mirage F1CE Lateral View
Figure 2-2 Mirage F1CE Top View

DCS: Mirage F1 Flight Manual
Version 1.0
12

DCS: Mirage F1 Flight Manual
Version 1.0
13
3. AIRCRAFT SYSTEMS
3.1 COCKPIT CONTROLS AND INDICATORS

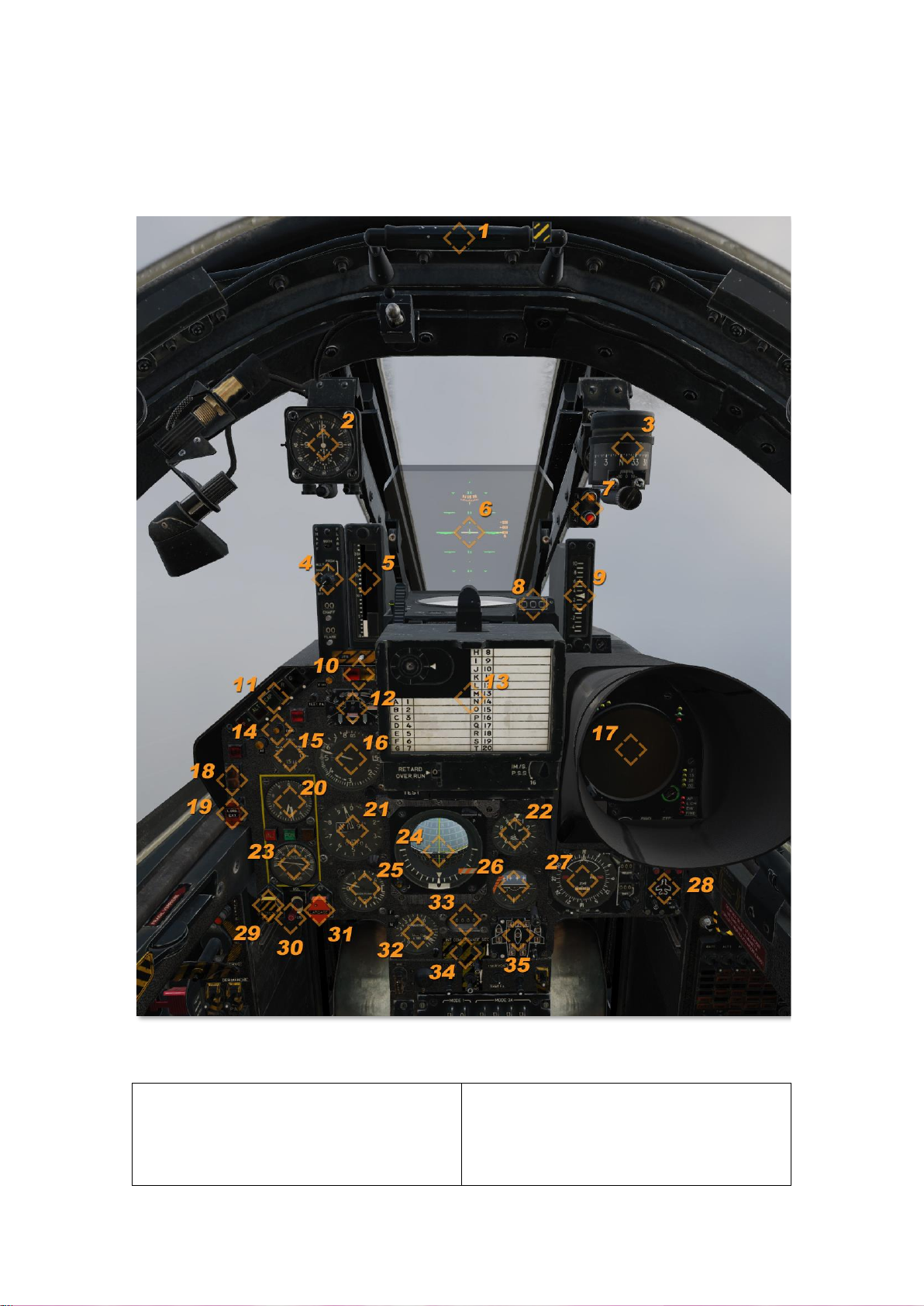

Figure 3-1 Main Instrument Panel
1 CANOPY HINGED HANDLE
2 CLOCK
3 STANDBY MAGNETIC COMPASS
4 CHAF AND FLARE DISPENSER PANEL
5 INCIDENCE INDICATOR
6 SIGHT HEAD
7 JAMMER DETECTION LIGHT AND (C + M OR SW) R
LIGHT
8 MANUAL GRAVITY DROP SELECTOR INDICATOR
9 ACCELEROMETER
10 MASTER FAILURE WARNING LIGHT
11 AUTOPILOT CONTROL AND INDICATOR UNIT

DCS: Mirage F1 Flight Manual
Version 1.0
14
12 CONFIGURATION INDICATOR
13 SIGHT CAMERA
14 WARNING LIGHTS
15 SHOCK-CONE POSITION INDICATOR
16 MACH/AIRSPEED INDICATOR
17 RADAR INDICATOR SCOPE
18 FIRE WARNING LIGHT (ENG/AB) + HORN
19 MATRA 550 OR SIDEWINDER JETTISON
20 RPM INDICATOR
21 SLAVED ALTIMETER
22 STANDBY ALTIMETER
23 JPT (JET PIPE TEMPERATURE) INDICATOR
24 SPHERICAL INDICATOR
25 VERTICAL SPEED INDICATOR
26 STANDBY HORIZON
27 NAVIGATION INDICATOR
28 RADAR DETECTOR INDICATOR
29 EMERGENCY JETTISON 22 STANDBY ALTIMETER
30 JETTISONING SELECTOR SWITCH
31 SELECTIVE JETTISON
32 DUAL FUEL GAUGE
33 FUEL REMAINING INDICATOR
34 CROSSFEED SWITCH AND EMERGENCY TRANSFER
SWITCH
35 FUEL TRANSFER INDICATOR
Figure 3-2 Forward Lower Panel
1 ANTI-SKID (SPAD) SWITCH
2 SHOCK-CONE MANUAL CONTROL SWITCH
3 SHOCK-CONE PUSHBUTTON
4 FUEL TRANSFER SEQUENCE SELECTOR SWITCH
5 HYDRAULIC PRESSURE SELECTOR SWITCH
6 NOSE WHEEL STEERING HIGH SENSITIVITY BUTTON
7 NOSE WHEEL STEERING SWITCH
8 IFF CONTROL PANEL
9 DUAL HYDRAULIC PRESSURE GAUGE
10 CABIN ALTIMETER
11 TRIM INDICATOR
12 ALTERNATIVE FIRING HANDLE

DCS: Mirage F1 Flight Manual
Version 1.0
15

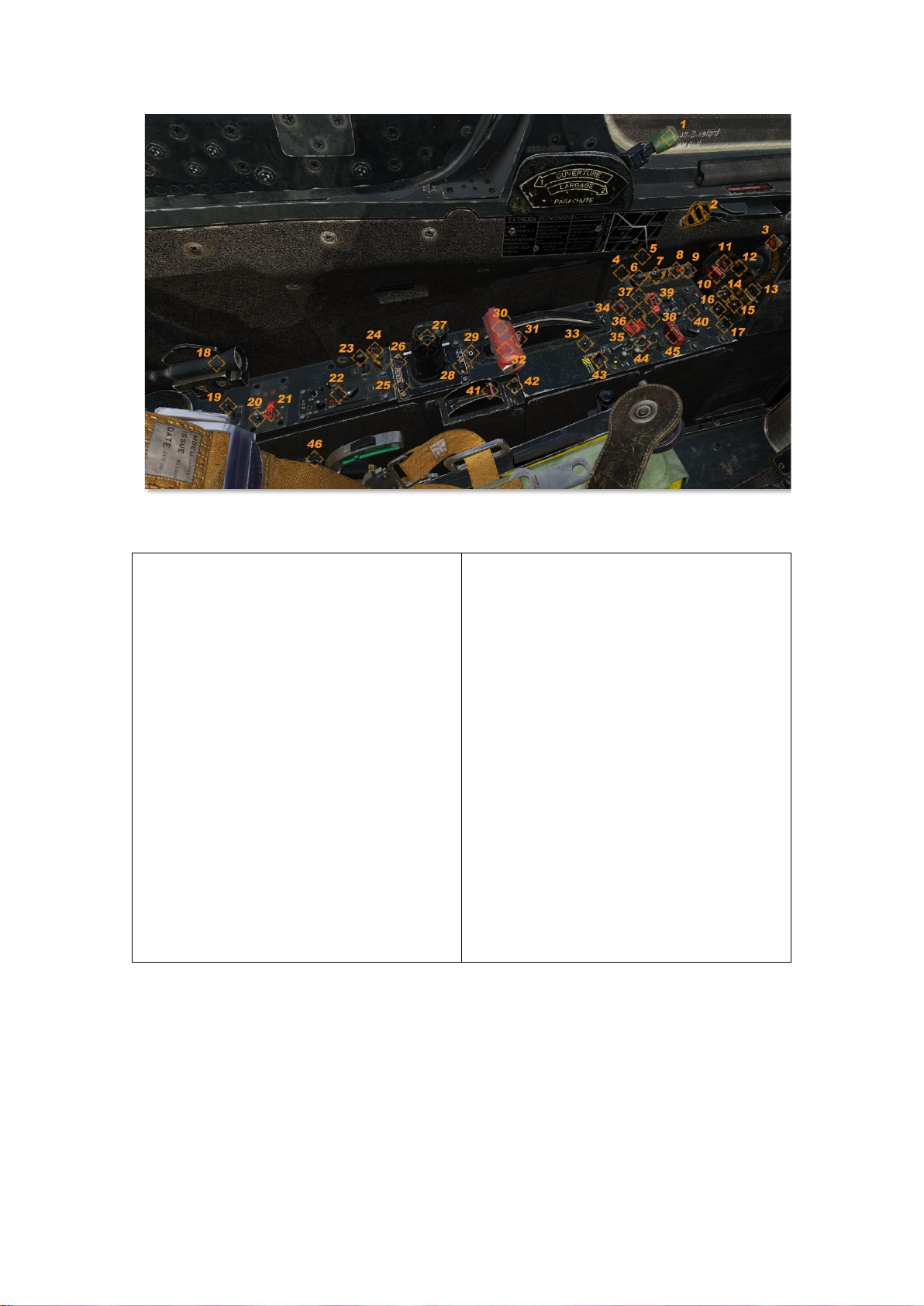

Figure 3-3 Left Side Panel
1 BRAKE CHUTE CONTROL
2 CANOPY EMBRITTLE CONTROL
3 STANDBY RECEPTACLE LIGHT
4 (C + SW) R DESELECTION SWITCH
5 TELEMETER/ZONE SCANNING SWITCH
6 EMERGENCY REGULATION CONTROL LEVER
7 EMERGENCY REGULATION SWITCH
8 EMERGENCY REGULATION LIGHT
9 LANDING LIGHT CONTROL
10 LANDING GEAR SAFETY LEVER AND CONTROL LEVER
11 ANTI-RETRACTION OVERRIDE BUTTON
12 EMERGENCY/PARKING BRAKE HANDLE
13 SERVO RESET BUTTON
14 ARTHUR SELECTOR SWITCH
15 STICK UNCOUPLE SWITCH
16 YAW/ANTI-SLIP SWITCH
17 PITCH SWITCH
18 LEAD LIGHT
19 INCIDENCE TEST SWITCH
20 FLIGHT CONTROL TEST RESTART BUTTON
21 FLIGHT CONTROL TEST SWITCH
22 UHF RADIO CONTROL UNIT
23 JPT EMERGENCY REGULATION SWITCH
24 A/B MAIN COCK SWITCH
25 RADAR CONTROL STICK SCALE SELECTION
26 RADAR CONTROL STICK ELEVATION/ALTITUDE
DIFFERENCE BUTTON
27 RADAR CONTROL STICK
28 RADAR CONTROL STICK SCAN SELECTION
29 ANTENNA-GYRO SWITCH
30 THROTTLE LEVER
31 THROTTLE CUT/IDLE SWITCH
32 IN-FLIGHT RELIGHT BUTTON (HIDDEN)*
33 ALTERNATIVE PTT
34 IGNITION/VENTILATION SELECTOR SWITCH
35 START BUTTON
36 STARTING PUMP SWITCH
37 L/H LP PUMP SWITCH
38 R/H LP PUMP SWITCH
39 LP MAIN COCK SWITCH
40 V/UHF RADIO CONTROL UNIT
41 SLAT/FLAP LEVER
42 RUDDER TRIM CONTROL SWITCH
43 HIGH-LIFT DEVICE SELECTOR SWITCH
44 RADIO SELECTOR UNIT
45 ARMAMENT MASTER SWITCH
46 OXYGEN SYSTEM CONTROLS (PARTIALLY HIDDEN)**

DCS: Mirage F1 Flight Manual
Version 1.0
16
Figure 3-4 *Throttle detail
Figure 3-5 **Oxygen system controls
Figure 3-6 Cockpit Left Side View
1 FACE BLIND FIRING HANDLE
2 REAR-VIEW MIRROR
3 CANOPY OPEN/CLOSE HANDLE
4CANOPY SHEAR KNIFE
1 THROTTLE CUT/IDLE SWITCH
2 IN-FLIGHT RELIGHT BUTTON
1 ANIT-G VALVE COCK
2 ANIT-G TEST BUTTON
3 ANIT-G CONNECTION COVER
4 N-100%-EMEG MODE SELECTOR
SWITCH
5 OXYGEN OVERPRESSURE BUTTON

DCS: Mirage F1 Flight Manual
Version 1.0
17
Figure 3-7 Right Side Panel
1 DINGHY PUNCTURE
2 CANOPY LOCK CONTROL
3 EMERGENCY LANDING GEAR HANDLE
4 CANNONS TOO HOT LIGHT
5 TR RESET BUTTON
6 BATTERY SWITCH
7 ALTERNATOR 1 SWITCH
8 ALTERNATOR 2 SWITCH
9 INVERTER SELECTOR SWITCH
10 NAVIGATION LIGHT CONTROL
11 FORMATION LIGHT CONTROL
12 SEE RIGHT SIDE PANEL DETAIL *
13 CANOPY SEAL VALVE CONTROL LEVER
14 RADAR INDICATOR SCOPE CONTROL BOX
15 SEAT HEIGHT ADJUSTMENT CONTROL
16 HEADING AND VERTICAL REFERENCE SYSTEM
CONTROL SWITCH
17 HEADING AND VERTICAL EMERGENCY
GYROMAGNETIC COMPASS SWITCH
18 HEADING AND VERTICAL EMERGENCY HEADING
CONTROL UNIT ERECTION BUTTON
19 TACAN X/Y MODE AND FREQUENCY SELECTORS
20 VOR-ILS/OFF/TACAN AND OMNIBEARING
SELECTORS
21 VOR-ILS CONTROL UNIT
22 HEADING SELECTION KNOB
23 PILOT OXYGEN TEST BUTTON
24 AIR CONDITIONING SYSTEM EMERGENCY CONTROL
SWITCH
25 AIR CONDITIONING SYSTEM MASTER VALVE
CONTROL SWITCH
26 AIR CONDITIONING SYSTEM TEMPERATURE
CONTROL REHOSTAT
27 LIGHTING CONTROL UNIT
28 AIR CONDITIONING SYSTEM AUTO/MANUAL
SELECTOR SWITCH
29 AIR CONDITIONING SYSTEM HOT/COLD SELECTOR
SWITCH
30 AIR CONDITIONING SYSTEM RAM AIR SWITCH
31 AIR CONDITIONING SYSTEM DEMIST SWITCH
32 CIRCUIT BREAKER BOX

DCS: Mirage F1 Flight Manual
Version 1.0
18
Figure 3-8 *Right Side Panel Detail
1 FAILURE WARNING PANEL T TEST BUTTON
2 FAILURE WARNING PANEL O2 TEST BUTTON COPY
3 STANDBY HORIZON SWITCH
4 ELECTRO-PUMP SWITCH
5 WARNING HORN SWITCH
6 PROBE HEATER SWITCH
7 RADAR DETECTOR SWITCH
8 SEARCH LIGHT CONTROL
9 SIGHT SELECTOR
10 FIRING FUEL DIPPER SWITCH
11 BOMB/ROCKET SELECTOR
12 MATRA 550 OR SIDEWINDER MISSILE SWITCH
13 FORE/AFT SELECTOR SWITCH
14 AUTO/MANUAL FIRING SELECTOR SWITCH
15 SINGLE/SALVO SELECTOR
16 INSTANTANEOUS/DELAY/SAFE SELECTOR SWITCH
17 RADAR SELECTOR
18 LEFT MATRA R550 OR SIDEWINDER MISSILE
PUSHBUTTON
19 LEFT OR FUSELAGE MATRA R530 MISSILE
PUSHBUTTON
20 AIR-TO-AIR GUNS PUSHBUTTON
21 WING BOMBS PUSHBUTTON
22 RADAR EMERGENCY TRANSMISSION BUTTON
23 RIGHT MATRA R550 OR SIDEWINDER MISSILE
PUSHBUTTON
24 RIGHT MATRA R530 MISSILE PUSHBUTTON
25 AIR-TO-GROUND GUNS OR ROCKETS PUSHBUTTON
26 FUSELAGE BOMBS PUSHBUTTON
27 RADAR 4 LINES/1 LINE SCAN SWITCH
28 R530 MISSILE NORMAL/ALTITUDE DIFFERENCE
SELECTOR SWITCH
29 NORMAL/JUMMER PURSUIT SWITCH (NO
FUNCTION)
30 ARMAMENT PANEL LIGHTS TEST

DCS: Mirage F1 Flight Manual
Version 1.0
19
3.2 ELECTRICAL SYSTEM
Description
The electrical system consists of:
-Two 15 kVA three phase alternators at 400 Hz and 115/200 V AC
-Two 100 A transformers-rectifiers (TR)
-One 40 Ah battery.
-A static inverter
-A switching box that enables to supply an emergency AC system by the alternators or
the DC system through the static inverter.
-A standby receptacle that enables certain equipment to be energized and preheated on
the ground.
-An external AC power receptacle to supply the systems from an auxiliary power unit.
The electrical power is distributed by:
-AC system 1, normally supplied by alternator 1
-AC system 2, normally supplied by alternator 2
-Emergency AC system, normally supplied by alternator 1
-DC system, normally supplied by the TR’s and the battery. It comprises:
oa direct battery system
oa main system
oa utility subsystem, with automatic shedding in case of both alternators failure.
There are three missile busses, shedding occurs if an alternator fails and RPM are < 5600.
See limitations chapter regarding alternators ventilation.
Operation
When there is undervoltage detection in AC system 1, the emergency AC system is switched to
the inverter. The EMG~ light is on.
When the standby receptacle is connected, the batteryand the distribution systems are isolated.
During start, the cranking and ignition of the engine are electrically accomplished on the battery.
After starting, the alternators cut in when they reach their frequency and voltage thresholds,
this happens at approximately 2800 engine RPM.
The inverter selector is set to RESET, switching the emergency AC system to system 1. The EMG~
light goes out.
As soon as the alternators cut in, the standby receptacle disconnects and the aircraft is supplied
normally.
When the external power receptacle is connected, the alternators are isolated (battery switch
ON, light is out) and the two AC systems are supplied.
The external power has priority over the alternators.
There is no external DC power receptacle, since the aircraft is equipped with transformer-
rectifiers.

DCS: Mirage F1 Flight Manual
Version 1.0
20
Controls
-Battery switch: connects the battery to the DC system.
-Alternator 1 switch: connects alternator 1 to the AC system.
-Alternator 2 switch: connects alternator 2 to the AC system.
-TR reset button: used to reset the transformer-rectifiers.
-Inverter selector switch: enables the emergency AC system to be supplied by the
alternators or the DC system through the static inverter. It has two steady positions (INV
and AUTO) and a RESET spring-loaded position.
Failure lights
-Red BATT light: the battery is disconnected from the main system.
-Amber ALT 1 light: the alternator 1 is not supplying its system.
-Amber ALT 2 light: the alternator 1 is not supplying its system.
-Amber TR1 light: the transformer-rectifier 1 is not supplying the DC systems.
-Amber TR2 light: the transformer-rectifier 2 is not supplying the DC systems.
-Amber SEC  light: emergency AC system supplied by the inverter.
-Red MODUL light: excessive modulations of the vario-alternator driving torque.
