INSTALLATION INSTRUCTIONS
DishDrawerTM dishwasher
DD24SUT7
590225A 10.11

3
SAFETY AND WARNINGS
1
WARNING!
Electrical hazard
Before installing the dishwasher, remove the house fuse or open the circuit
breaker. If permanently connecting the dishwasher, be sure the power is isolated
and the dishwasher unplugged.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of a malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped with a cord having
an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is installed and grounded in accordance
with all local codes and ordinances. WARNING - Improper connection of the
equipment-grounding conductor can result in a risk of electric shock. Check with
a qualified electrician or service representative if you are in doubt as to whether
the appliance is properly grounded.
If the dishwasher is installed as a permanently connected appliance:
GROUNDING INSTRUCTIONS - This appliance must be connected to a grounded
metal, permanent wiring system, or an equipment-grounding conductor must
be run with the circuit conductors and connected to the equipment-grounding
terminal or lead on the appliance.
Do not modify the power supply plug provided with the appliance - if it will not
fit the outlet, have a proper outlet installed by a qualified electrician. Do not use
an extension cord, adapter plug or multiple outlet box.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
IMPORTANT SAFETY INSTRUCTIONS!
Installation of this dishwasher requires basic mechanical and electrical skills.
Be sure to leave these Instructions with the Customer.
Installation must comply with your local building, electricity, and plumbing regulations.
At the completion of the dishwasher installation, the Installer must perform the Final Checklist.
Remove all packaging materials supplied with the dishwasher.
This dishwasher is manufactured for indoor use only.
Ensure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
The dishwasher MUST be installed to allow for future removal from the enclosure if service is required.
The switched power outlet must be outside the dishwasher cavity, so that it is accessible after
installation.
Care should be taken when the appliance is installed or removed to reduce the likelihood of damage to
the power supply cord and hoses.
If the dishwasher is to be relocated from one installation to another it must be kept upright to avoid
damage from water spillage.
Make sure only new hoses are used for connection (supplied with the dishwasher). Old hoses should
not be reused.
Failure to install the dishwasher correctly could invalidate any warranty or liability claims.
If the product is installed in a motor vehicle, boat or similar mobile facility, you must bring the vehicle,
boat or mobile facility containing the product to the service shop at your expense or pay the service
technician’s travel to the location of the product.
SAVE THESE INSTRUCTIONS

4
PARTS SUPPLIED
2
Phillips
⁄” (16 mm)
screws (7)
1½” (38 mm)
bottom fixing
screws & metal
washers (2)
Drain hose
support (1) Drain hose joiner (1)
Side mounting
bracket kit
(A and B) (2)
OPTIONAL
If the Drain hose supplied is not long enough to reach your services, you must use a Drain Hose Extension Kit P/N 525798 which will extend the drain hoses by 11’ 10” (3.6m).
The kit is available from the nearest DCS by Fisher & Paykel Authorized Service Center, or Toll free 1.888.936.7872 or www.dcsappliances.com
Edge Protector (1)
(If the services hole is through
a metal partition the hole
must be protected with the
Edge protector supplied to
prevent damage to the power
cord or hoses.)
Wire clip (1)
(for securing
Drain hose joiner)
Moisture protection
tape (1)
(to prevent moisture
damage)
Clamp (1)
(for securing
Drain hose joiner)
Rubber
washer for
inlet hose (1)
(comes already
fitted)

5
OPTIONALLY HARD WIRING PRIOR TO INSTALLATION
9
12
11
11
10
4
5
6
7
7
8
8
3a
3c
3
3b

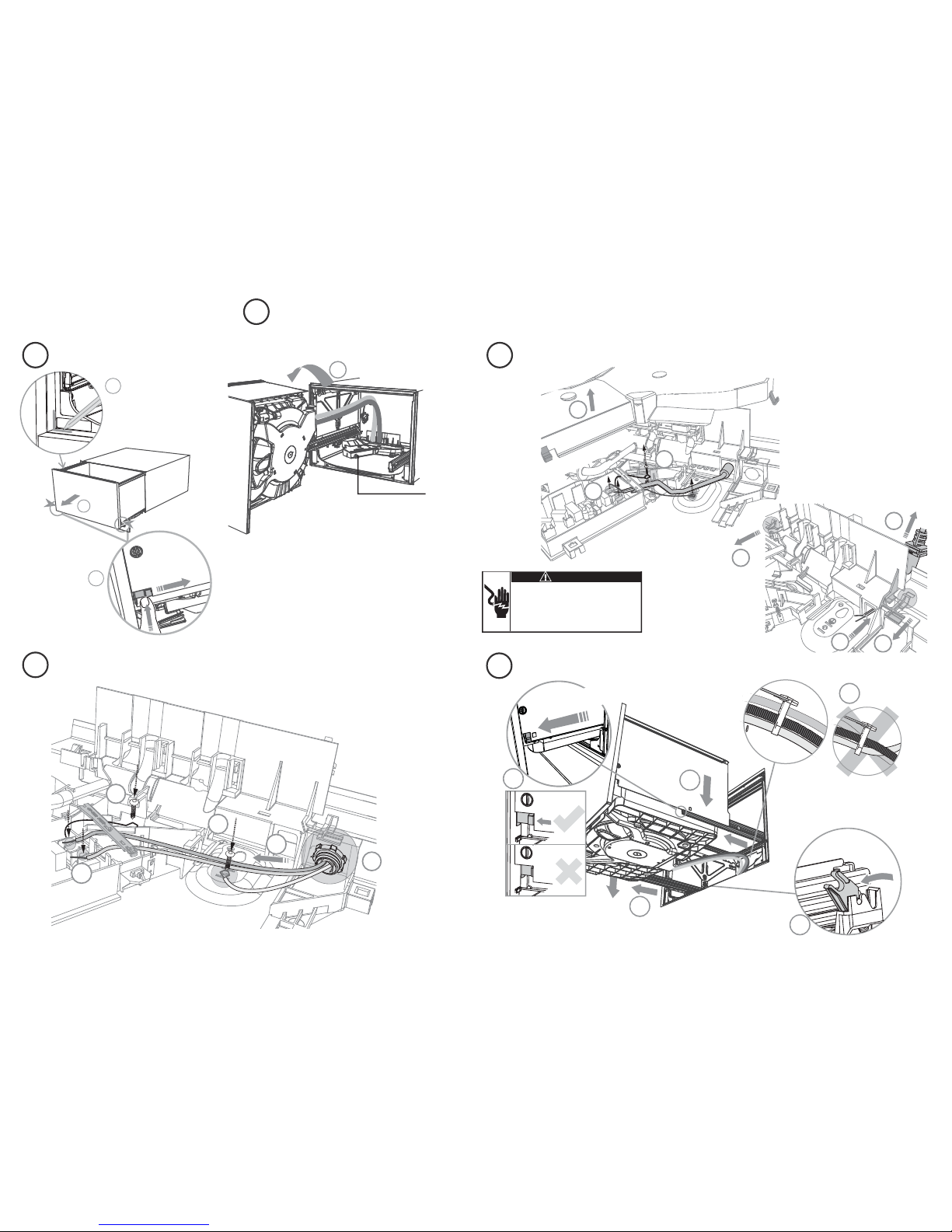

REMOVE THE DRAWER
TERMINATE THE WIRING AS SHOWN
REMOVE THE ACCESS COVER & POWER CORD
Remove knock-out for cable clamp and
fit a suitable cable clamp for the conduit.
Use copper conductors only.
2
100 mm
1
3
4
5
To prevent kinked hoses, we recommend
rotating the drawer counter-clockwise
and resting it on its side after removal.
Product may move.
Mark chassis position
on cavity
Access
cover
Press the release tabs in on
either side and push back
to release drawer from
runners.
3
4” (100mm)
18
19
15
16
17
Before refitting the drawer,
ensure the hoses are not
twisted and the latches at
the rear of each drawer
runner are facing forward.
Ensure the release tabs on
both sides are reset fully.
Ensure the drawer
is now rotated
clockwise back.
13
14
15
16
17
Pull forward the release tabs
on both sides 4”(100
mm)
3d REFIT THE DRAWER ONTO THE RUNNERS & CLOSE
Electrical Shock Hazard
Before continuing, ensure that the product is
disconnected from the power supply.
Failure to follow this warning may result in
electrical shock, injury or re.
WARNING!

6

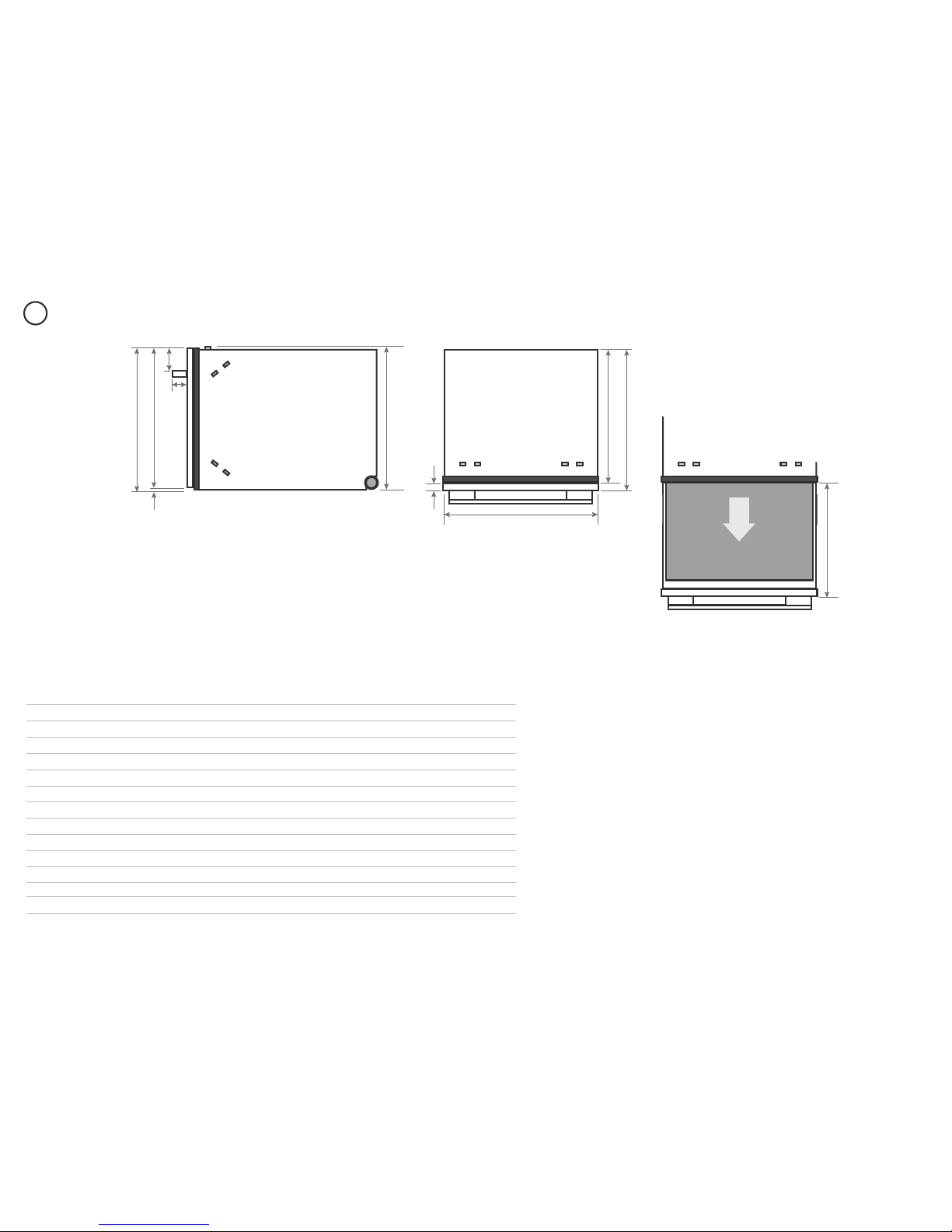

4PRODUCT DIMENSIONS
A
H
I
J
K
Side Plan
G
F
B
CD
E
Product dimensions inches (mm)
Aoverall height1of product (incl. front panel height) 17 ⁄”(454)
Boverall width of product 23 ⁄”(605)
Coverall depth of product (excl. handle) 22 ⁄”(577)
Ddepth of chassis (to back of front panel) 21 ¾”(553)
Emaximum extension of drawer (excl. handle) 21 ¾”(552)
Fdepth of front panel (excl. handle) 1”(25)
Gheight1of chassis 17 ⁄”(454)
Hdepth of handle 2 ⁄”(66)
Iheight of front panel 17 ⁄”(442)
Jheight of ventilation gap below front panel ⁄”(8)
Kheight from top of handle to top of front panel 2 ⁄”(62)
1includes ⁄”(2 mm) high bracket slots

7

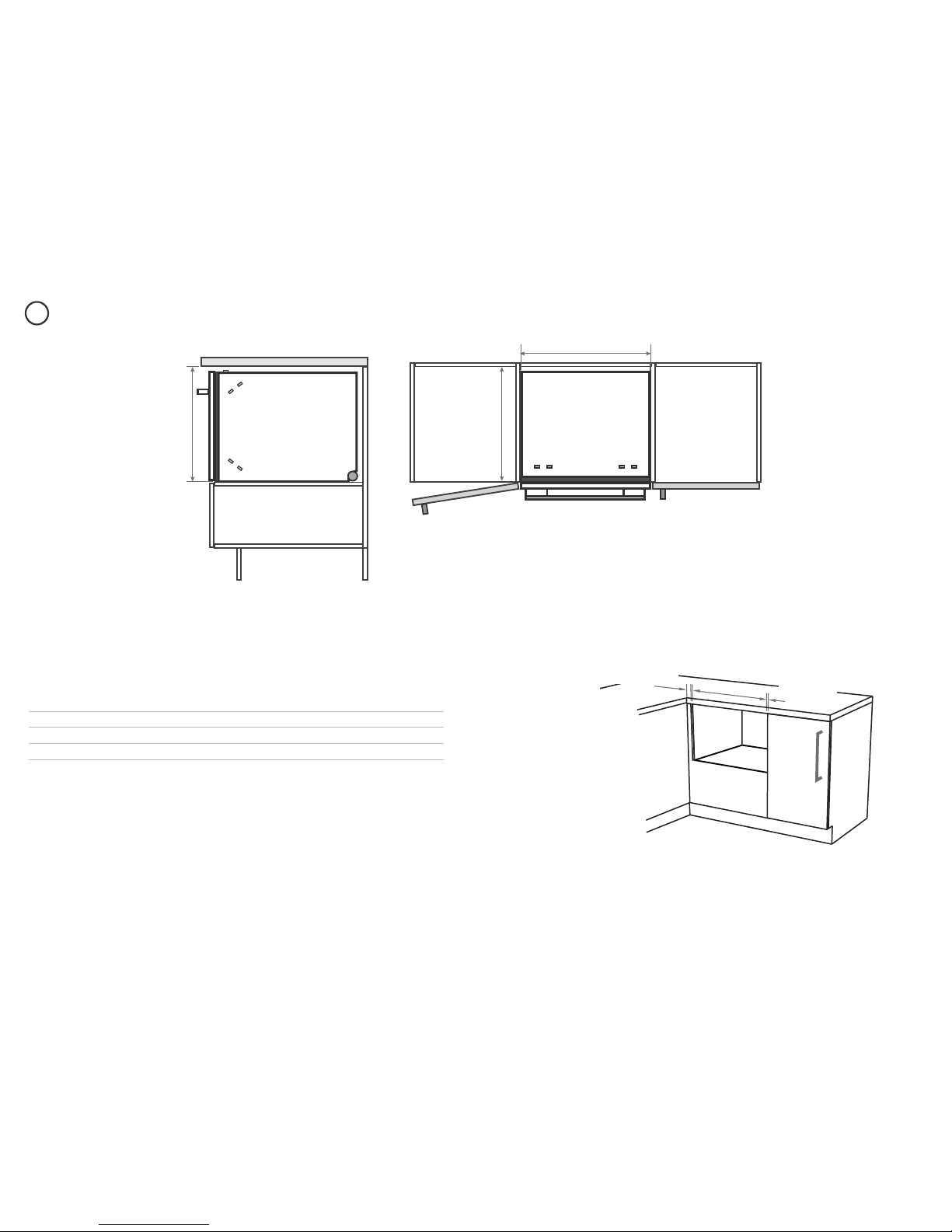

5CABINETRY DIMENSIONS
Plan
Side
LN
M
Minimum clearances from adjacent cabinetry
Cabinetry dimensions inches (mm)
Linside height of cavity 18”(456)
Minside width of cavity 24”(610)
Ninside depth of cavity min. 22 ⁄”(560)
min. ½” (13 mm)
clearance from a
corner cupboard
min. ⁄” (2 mm)
clearance
to adjacent
cupboard door

8

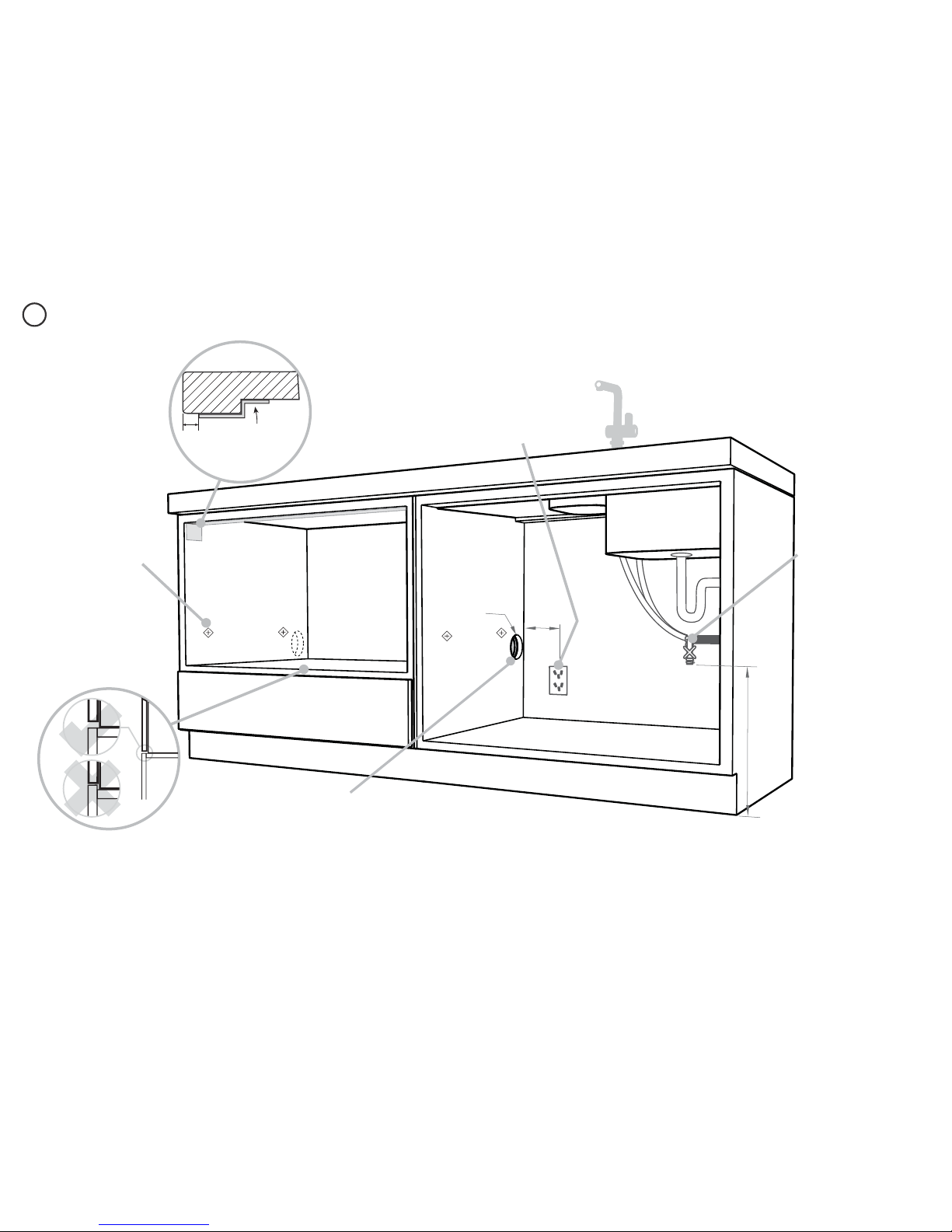

6CAVITY PREPARATION
Important!
Adjacent cabinetry
must not extend
above cavity base
Moisture
protection
tape must
be applied.
Services can be
located either side
of the dishwasher.
These marks indicate
formed bracket screw
locations, if securing
by drawer removal.
If there is no side
partition, you can
construct timber
bracing as something
to secure into.
COUNTERTOP
Water Connection
Recommended HOT
(Maximum 140°F/60°C).
Supplied hose to
suit ⁄” (9 mm) male
compression fitting.
Water Pressure
Max. 1 MPa (145 psi)
Min. 0.03 MPa (4.3 psi)
Important!
The power outlet must be
located in a cabinet adjacent
to the dishwasher cavity.
110-120 VAC max. 15 A
min. 7 ⁄” (200 mm)
⁄” (10mm)
max. 17 ⁄”
(450 mm)
ø max. 1½”(38 mm)
Services hole
Can be located either side of dishwasher, preferably
at the bottom of the cavity, as shown. If adequate
clearance, services hole can be made higher to clear
toekick space. If hole is higher, ensure drain hose(s)
are routed straight into the waste connection.
- If the hole is through wood, make sure its edges
are smooth and rounded.
- If the hole is through metal, ensure you t the
supplied Edge Protector to prevent damage to the
power cord.

9
7MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE
Left hand side Right hand side
Drain hose - 78 ½" (2000 mm)
Inlet hose - 64 ¾" (1650 mm)
Venting hose - 60 ⁄" (1525 mm) Venting hose - 75 ⁄" (1925 mm)
(Integrated models only) (Integrated models only)
Power cord (excl. plug) - 29 ½" (750 mm) Power cord (excl. plug) - 27 ½" (700 mm)
Drain hose - 70 ½" (1800 mm)
Inlet hose - 49" (1250 mm)

10
RECOMMENDED METHOD (a) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY)

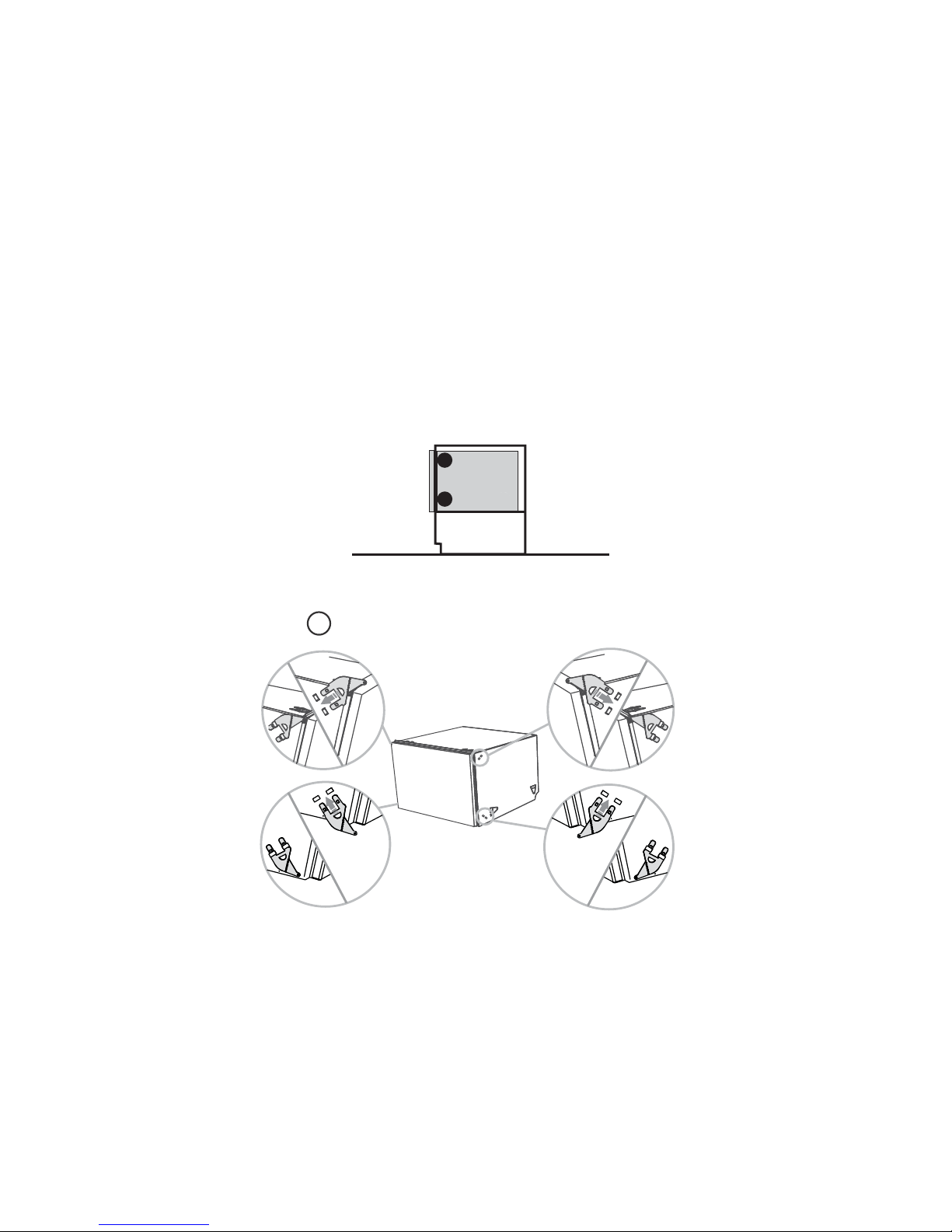

8a ATTACH SIDE MOUNTING BRACKETS
Clip all four side mounting
brackets into their slots
using a flat-bladed
screwdriver. Ensure they’re
securely fitted before
sliding product into cavity.
The mounting slots are in pairs,
one on each side diagonally
across the product. Abracket
must match Aslot and B
bracket must match Bslot.
NOW CHOOSE WHICH INSTALLATION METHOD (a) or (b)
IS MORE SUITABLE FOR YOUR CABINETRY...
A
A
B
B
B
B
A
A

11
9a 10a

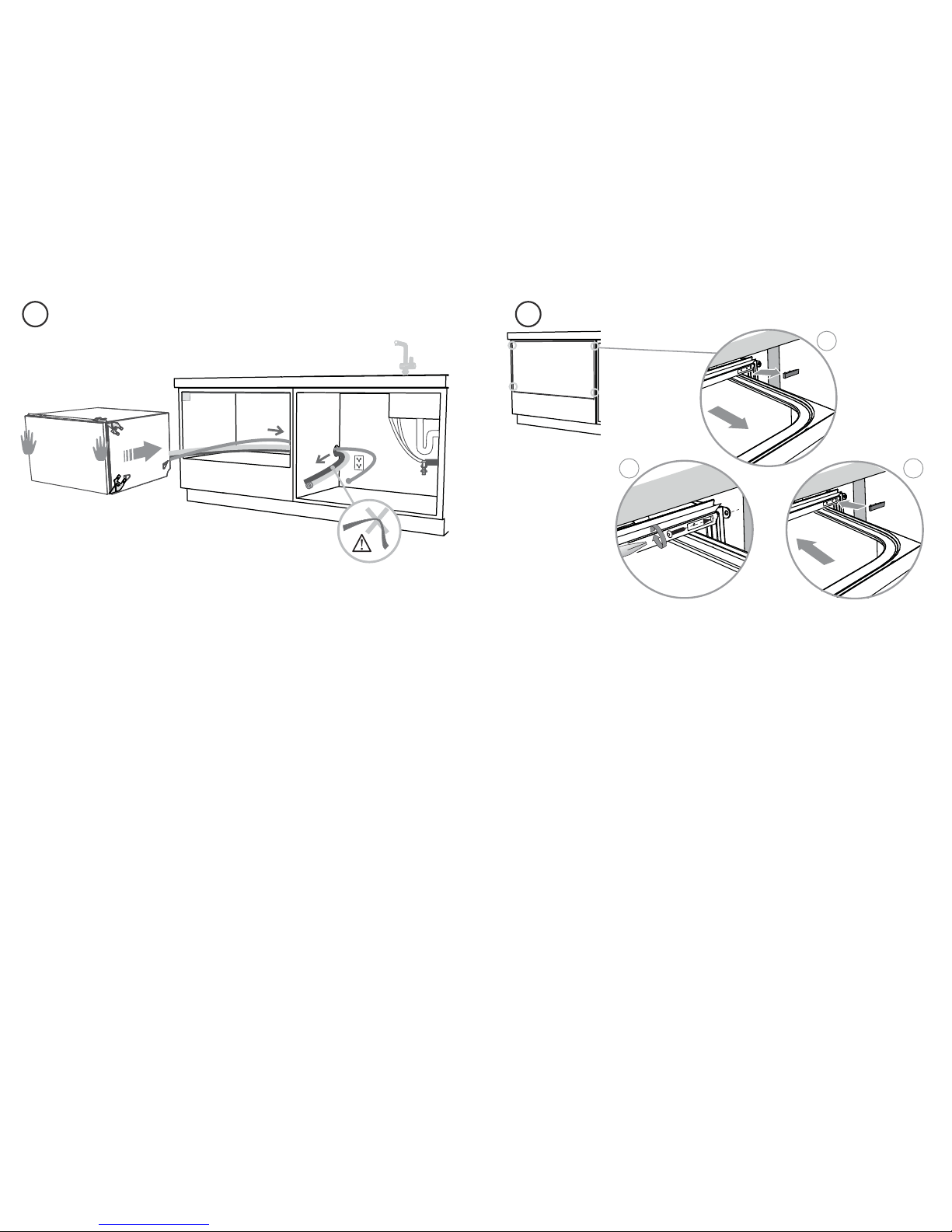

PULL THROUGH HOSES & MOVE INTO THE CAVITY SECURE THE DRAWER
As you push product in, pull through hoses and
cord, ensuring they don’t get kinked or twisted.
Important!
If product cannot be pushed in far enough, pull
out again and rearrange hoses and cord. Do not
use excessive force, as doing so may squash the
hoses and lead to incorrect operation.

1
32
Open the
drawer halfway.
Using a flat-bladed
screwdriver, prize
the gray
rubber plug out
of the trim moulding.
Replace the gray
rubber plug back into
the trim moulding
and ensure the trim
seal is facing forward.
Repeat for all
four brackets.
Using a small Philips
screwdriver,
screw through the trim
moulding, securing the
side mounting bracket
to the cabinetry.
Do not damage the
rubber trimseal.

12
ALTERNATIVE METHOD (b) - SECURE BY DRAWER REMOVAL

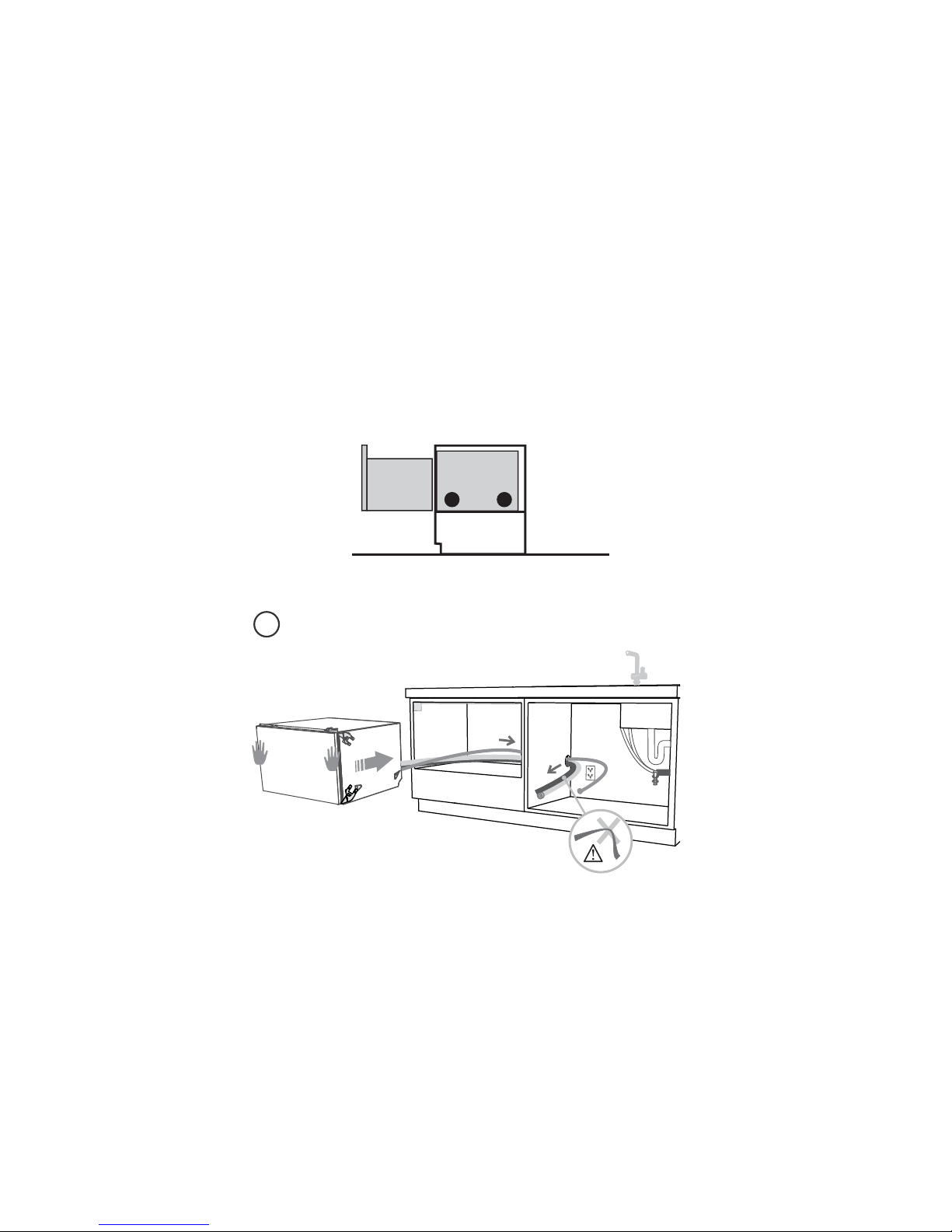

8b PULL THROUGH HOSES & MOVE INTO THE CAVITY
As you push product in, pull through hoses and
cord, ensuring they don’t get kinked or twisted.
Important!
If product cannot be pushed in far enough, pull
out again and rearrange hoses and cord. Do not
use excessive force, as doing so may squash the
hoses and lead to incorrect operation.

13
9b
11b
REMOVE THE DRAWER SECURE THE DRAWER TO THE CABINETRY
REFIT THE DRAWER ONTO THE RUNNERS
2
100 mm
1
3
4
5
To prevent kinked hoses, we recommend
rotating the drawer counter-clockwise and
resting it on its side after removal.
Press the release tabs
in on either side and
push back to release
drawer from runners
Push drawer runners back in.
Product may
move. Mark
chassis position
on cavity
1
2
The product has three
pairs of fixing points:
Ensure the sound insulation is
repositioned correctly.
a pair of fixing
holes on the bottom
(use 1 ½” (38 mm)
fixing screws &
washers)
two pairs of formed
brackets on either
chassis side (use ⁄”
(16 mm) screws)
4” (100mm)
10b
18
19
15
16
17
Before refitting the drawer,
ensure the hoses are not
twisted and the latches at
the rear of each drawer
runner are facing forward.
Ensure the release tabs on
both sides are reset fully.
Ensure the drawer
is now rotated
clockwise back.
1
2
3
4
5
Pull forward the release tabs
on both sides 4”(100
mm)

14

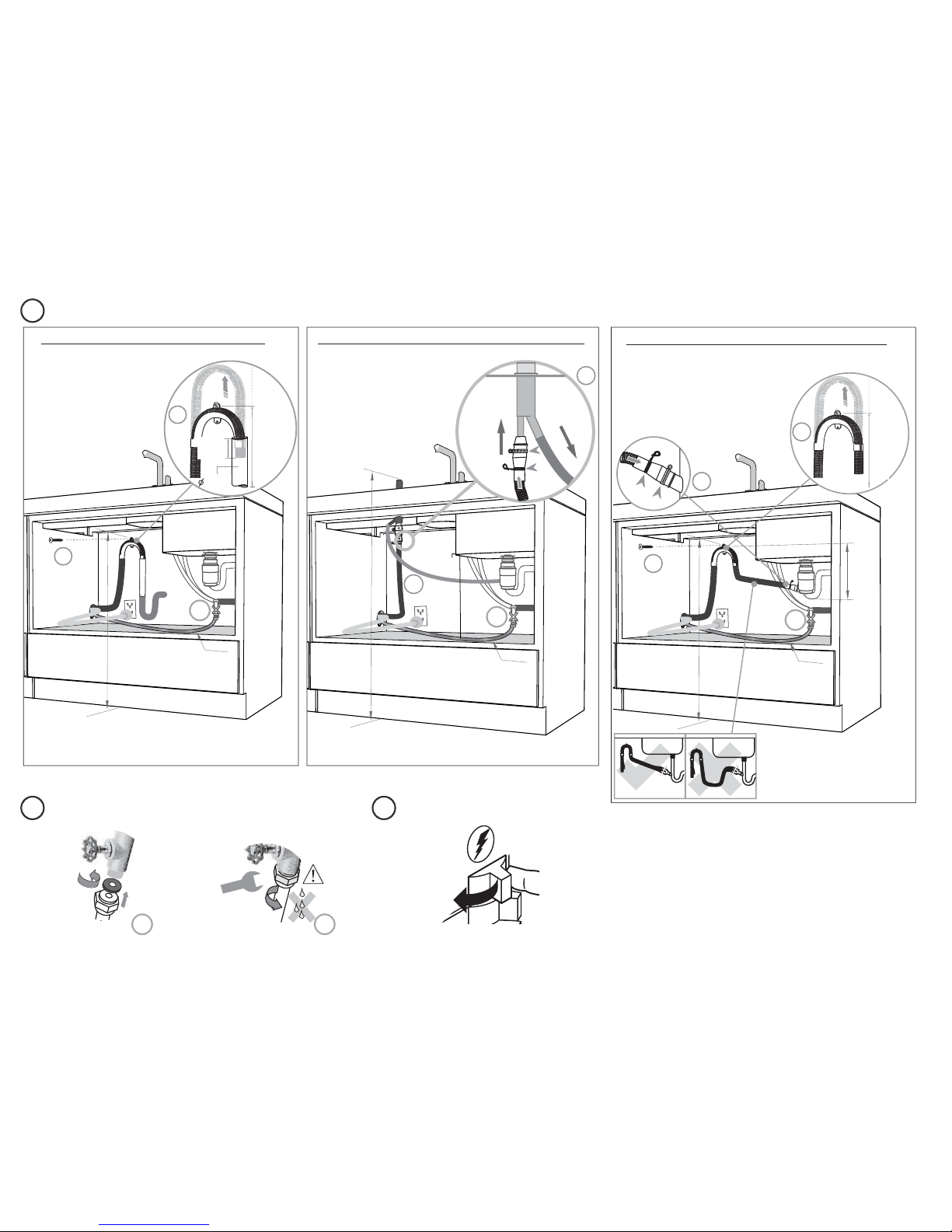

THERE ARE THREE DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE.
12
1
3
750-882.5 mm
*
2
1
*
2
1
38 mm
max.
120
mm
750-882.5 mm
*
2
*
If space is limited
for fixing, push
hose through drain
hose support
to required height
If space is limited
for fixing, push
hose through drain
hose support
to required height
Ensure drain hose is routed straight
to joiner. Remove excess drain hose
material if necessary.
Do not shorten the inlet hose.
Dishwasher using sink trap with drain hose joiner
Dishwasher using Air Break with Drain Hose Joiner
29½”-34¾”
(750-882.5 mm)
min. R 8”
(200 mm) min. R 8”
(200 mm) min. R 8”
(200 mm)
1½”
(38 mm)
max.
4¾”
(120mm)
29 ½”-34 ¾” (750-882.5 mm)
29 ½”-34 ¾” (750-882.5 mm)
Supplied drain hose joiner
Ø ¾” (19 mm) waste tee
Dishwasher and Standpipe Ø 1½” (38 mm)
HIGHLOOP
min. 6”
(150 mm)
CONNECT INLET HOSE TO HOT WATER SWITCH PRODUCT ON
13 14
34
Ensure the
supplied
rubber
washer is
fitted inside
the coupling.
Tighten coupling with wrench.
180o
No leaks!
1 2
Important!
Ensure that drain connection
will comply with local plumbing
regulations.
13
13 13
37 ⁄” ( 950 mm)
Max. height to
top of Air Break
(countertop or
wall mounted)
see see see

15
16
15 FINAL CHECKLIST TROUBLESHOOTING
Check all parts are installed.
Ensure product is level, securely fastened to the cabinetry and opens and
closes freely. The drawer must be free to fully close with no resistance from the
cabinetry.
Ensure inlet hose to water supply has supplied rubber washer fitted, and that
it’s tightened a further half turn after seal contact.
Ensure any knockouts or plugs in drain connection have been drilled out and
drain connection has been made.
The drain hose joiner must not support the weight of excess hose material.
Keep drain hose as fully extended as possible to prevent sagging. Any excess
length of drain hose should be kept on the dishwasher side of the highloop.
If connecting the drain hose to the sink trap, ensure the Highloop is a minimum
6” (150 mm) higher than the drain hose joiner.
Ensure any packaging or tape securing the racks is removed from the drawer.
Turn on the power and water supplies, then open the drawer. You should hear a
beep and see a program indicator light up on the internal control panel.
Check the spray arm is in place and free to rotate.
Add three cups of water into the drawer. Press on the internal control panel
until the indicator of the ‘Rinse’ program lights up. Close the drawer and press
to start the program.
After the Rinse program has finished, ensure the dishwasher has run and
drained correctly.
Check water supply and drainage connection for leakage.
Spray arm
Excessive water remaining above the filter plate, after the rinse cycle
Check for a kinked drain hose or blocked waste connection, highloop not
properly installed or drain hose not routed correctly.
No water supply (This is displayed as a ‘U1’ fault -- see section ‘If there is a
fault’ in the User guide for how to recognise this fault.)
Check water is connected and turned on.
The dishwasher is beeping continuously
There is a fault. See section ‘If there is a fault’ in the User guide for further
information and instructions.
No program indicator lights up when the drawer is opened
Ensure power is connected and is switched on. If it is and still no indicator
lights up, see the ‘Preference options’ section of the ‘Quick start guide’. An
option called ‘Open drawer auto power-on’ may need to be turned on.
Water around water supply and drainage connections
Check connections, existing plumbing and hoses for leaks. Check rubber
washer and hose clamp are correctly fitted.
If product is tipping
Ensure the product is secured to the cabinetry.
If front panels are misaligned
Check and relevel product. Check the cabinetry is square.
Drawer doesn’t close properly
Ensure nothing is obstructing the drawer from closing properly eg sound
insulation, hoses or drawer latches.
If a problem occurs, consult the ‘Troubleshooting’ section of the User guide.
If after checking these points you still need assistance, please refer to the
Service & Warranty book for warranty details and your nearest Authorized
Service Center, or contact us through our website, listed below.
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change
at any time. For current details about model and specification availability in your country, please
visit our local website listed at the end of this document or contact your local DCS by Fisher &
Paykel dealer.
www.dcsappliances.com
