DCS DishDrawer DD24DUT7 User manual

US CA
590225A 10.11
INSTALLATION INSTRUCTIONS
DishDrawerTM dishwasher
DD24DUT7 models

3
SAFETY AND WARNINGS
1
WARNING!
Electrical hazard
Before installing the dishwasher, remove the house fuse or open the circuit
breaker. If permanently connecting the dishwasher, be sure the power is isolated
and the dishwasher unplugged.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of a malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped with a cord having
an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is installed and grounded in accordance
with all local codes and ordinances. WARNING - Improper connection of the
equipment-grounding conductor can result in a risk of electric shock. Check with
a qualified electrician or service representative if you are in doubt as to whether
the appliance is properly grounded.
If the dishwasher is installed as a permanently connected appliance:
GROUNDING INSTRUCTIONS - This appliance must be connected to a grounded
metal, permanent wiring system, or an equipment-grounding conductor must
be run with the circuit conductors and connected to the equipment-grounding
terminal or lead on the appliance.
Do not modify the power supply plug provided with the appliance - if it will not
fit the outlet, have a proper outlet installed by a qualified electrician. Do not use
an extension cord, adapter plug or multiple outlet box.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
IMPORTANT SAFETY INSTRUCTIONS!
Installation of this dishwasher requires basic mechanical and electrical skills.
Be sure to leave these Instructions with the Customer.
Installation must comply with your local building, electricity, and plumbing regulations.
At the completion of the dishwasher installation, the Installer must perform the Final Checklist.
Remove all packaging materials supplied with the dishwasher.
This dishwasher is manufactured for indoor use only.
Ensure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
The dishwasher MUST be installed to allow for future removal from the enclosure if service is required.
The switched power outlet must be outside the dishwasher cavity, so that it is accessible after
installation.
Care should be taken when the appliance is installed or removed to reduce the likelihood of damage to
the power supply cord and hoses.
If the dishwasher is to be relocated from one installation to another it must be kept upright to avoid
damage from water spillage.
Make sure only new hoses are used for connection (supplied with the dishwasher). Old hoses should
not be reused.
Failure to install the dishwasher correctly could invalidate any warranty or liability claims.
If the product is installed in a motor vehicle, boat or similar mobile facility, you must bring the vehicle,
boat or mobile facility containing the product to the service shop at your expense or pay the service
technician’s travel to the location of the product.
SAVE THESE INSTRUCTIONS

4
PARTS SUPPLIED
2
If the Drain hoses supplied are not long enough
to reach your services, you must use a Drain Hose
Extension Kit P/N 525798 which will extend the drain
hoses by 11’ 10” (3.6m).
The kit is available from the nearest DCS by Fisher
& Paykel Authorized Service Center, or Toll free
1.888.936.7872 or www.dcsappliances.com
Wire clip (2)
(for securing
Drain hose joiner)
Phillips
⁄” (16 mm)
screws (9)
Drain hose
support (1)
Moisture protection
tape (1)
(to prevent moisture
damage)
Drain hose
joiner (1) Top mounting
brackets (2)
OPTIONAL
Prefinished toekick (1)
Hexagonal
socket for feet
adjustment (2)
(long & short)
Side mounting
bracket kit
(A and B) (2)
OPTIONAL
Edge Protector (1)
(If the services hole is through
a metal partition the hole
must be protected with the
Edge protector supplied to
prevent damage to the power
cord or hoses.)
Clamp (1)
(for securing
Drain hose joiner)
Rubber
washer for
inlet hose (1)
(comes already
fitted)

5
OPTIONALLY HARD WIRING PRIOR TO INSTALLATION
9
12
11
11
10
4
5
6
7
7
8
8
3a
3c
3
3b
REMOVE THE LOWER DRAWER
TERMINATE THE WIRING AS SHOWN
REMOVE THE ACCESS COVER & POWER CORD
100 mm
2
4
5
1
4” (100mm)
To prevent kinked hoses, we recommend
rotating the drawer anti-clockwise and
resting it on its side after removal.
Access
cover
Press the release tabs in on
either side and push back
to release drawer from
runners.
3
Remove knock-out for cable clamp and
fit a suitable cable clamp for the conduit.
Use copper conductors only.
3d REFIT THE DRAWER ONTO THE RUNNERS & CLOSE
13
14
15
16
19
Before refitting the drawer,
ensure the hoses are not
twisted and the latches at
the rear of each drawer
runner are facing forward.
Ensure the release tabs on
both sides are reset fully.
Ensure the drawer
is now rotated
clockwise back.
Pull forward the release tabs
on both sides 4”(100
mm)
Electrical Shock Hazard
Before continuing, ensure that the product is
disconnected from the power supply.
Failure to follow this warning may result in
electrical shock, injury or re.
WARNING!

6
H
K
M
NA
O
O
I
Side
Plan
G
F
J
L
B
C
E
D
4PRODUCT DIMENSIONS
Product dimensions inches (mm)
Aoverall height1of product 34 - 36 ⁄”(864-924)2
Boverall width of product 23 ⁄”(605)
Coverall depth of product (excl. handle) 22 ⁄”(577)
Ddepth of chassis (to back of front panel) 21 ¾”(553)
Emaximum extension of drawer (excl. handle) 21 ¾”(552)
Fdepth of front panel (excl. handle) 1”(25)
Gheight1of chassis 33 ⁄”(855)
Hheight of levelling feet ⁄ - 2 ⁄”(9-69)2
Idepth of handle 2 ⁄”(66)
Jdepth of toekick recess (to back of front panel) 31 ⁄ - 3 ⁄”(30-92)
Kheight of upper front panel 17 ⁄”(442)
Lventilation gap between front panels ⁄”(8)
Mheight of toekick panel (adjustable) 2¾- 4 ¾”(70-120)
Nheight of drawer fronts 29 ⁄”(760)
Oheight from top of handle to top of front panel 2 ⁄”(62)
1includes ⁄”(2mm) high bracket slots 2depending on adjustment of leveling feet 3adjustable to match toekick recess on adjoining cabinetry

7

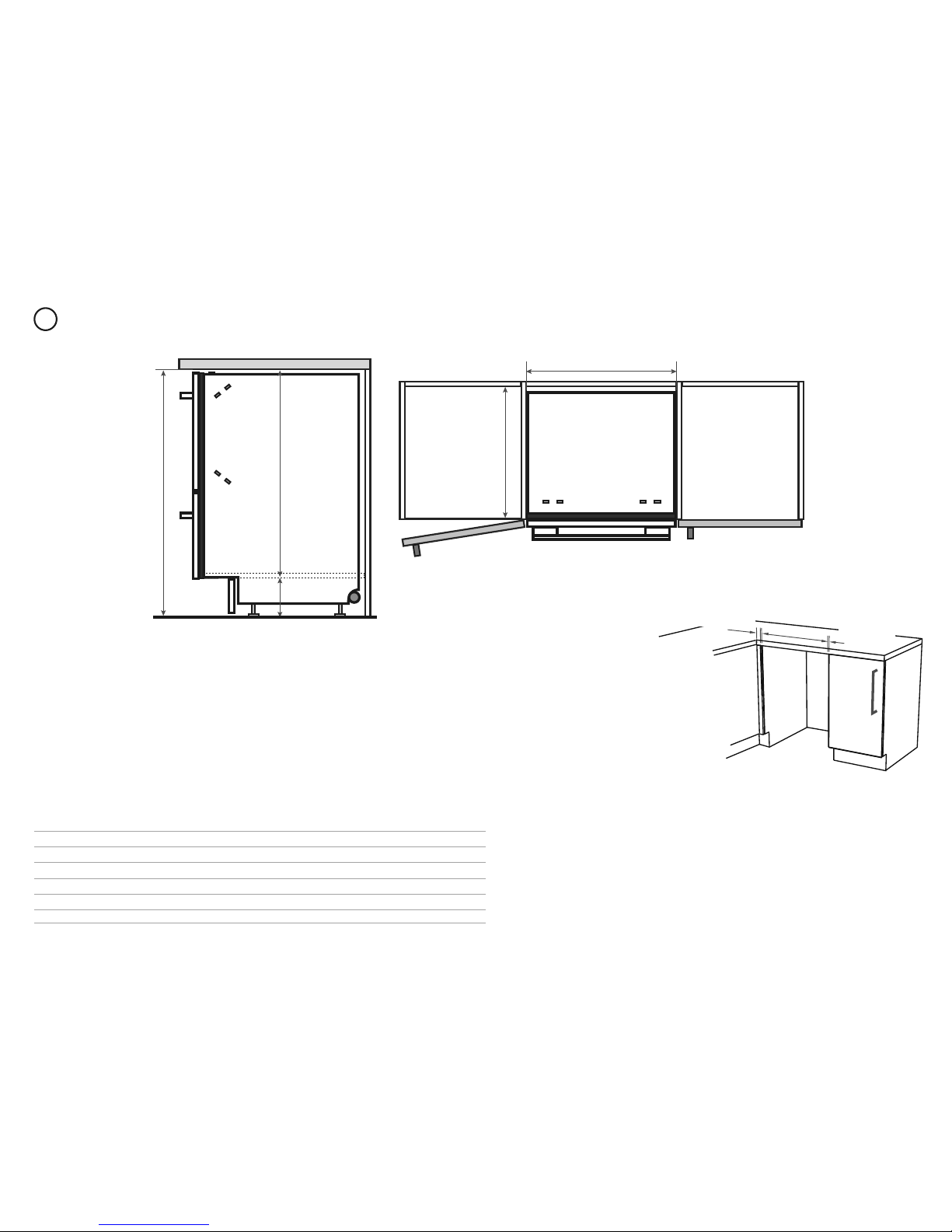

5CABINETRY DIMENSIONS
Plan
Side
P
Q
R
S
T
Minimum clearances from adjacent cabinetry
min. ½” (13 mm)
clearance from a
corner cupboard
min. ⁄” (2 mm)
clearance
to adjacent
cupboard door
Cabinetry dimensions inches (mm)
Pinside height of cavity* min. 34”(864)
Qinside width of cavity 24”(610)
Rinside depth of cavity min. 22 ⁄”(560)
Srecommended height of adjacent cabinet space 30”(762)
Theight of toekick space* 3 ⁄ - 6 ⁄”(100-160)
*depending on adjustment of leveling feet

8

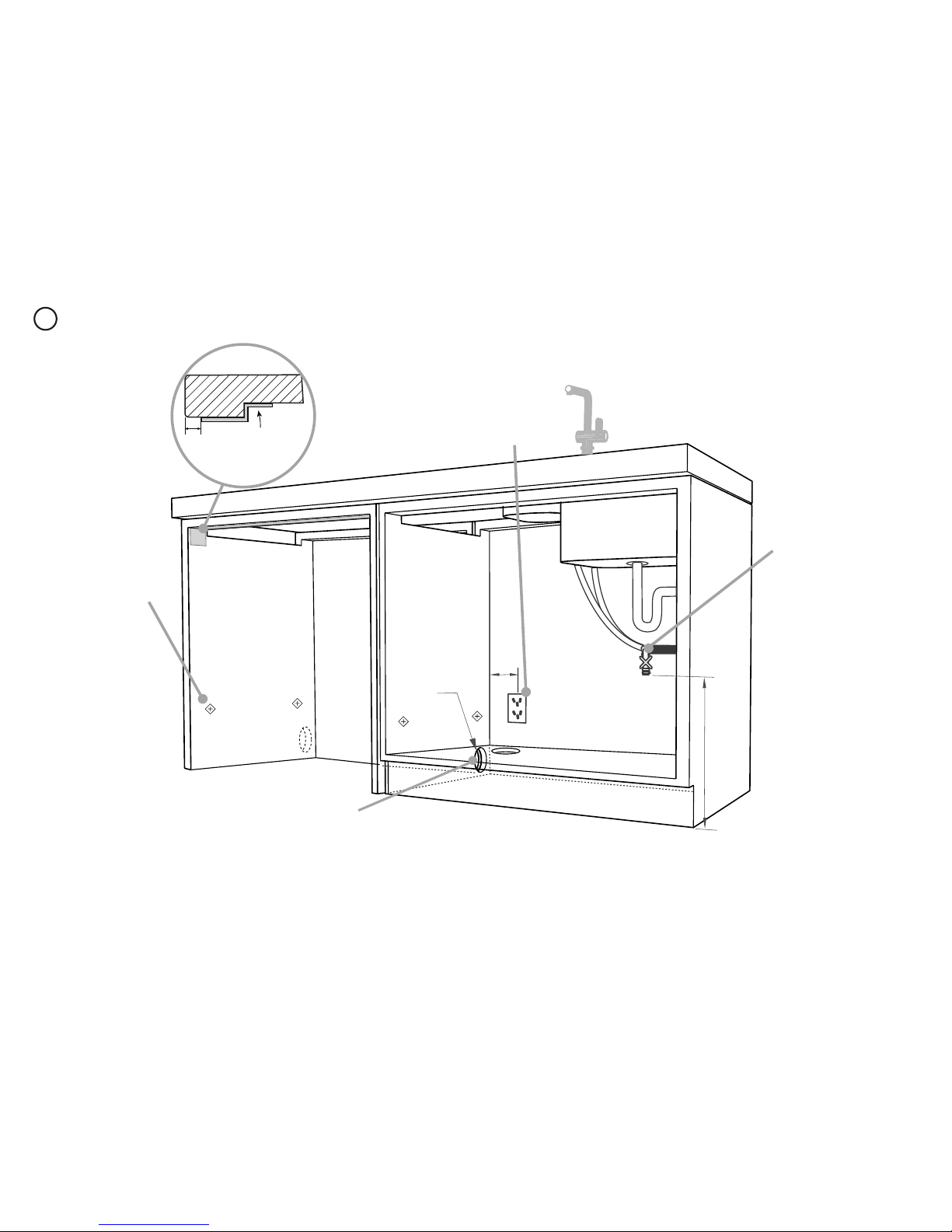

6CAVITY PREPARATION
Water Connection
Recommended HOT
(Maximum 140°F/60°C).
Supplied hose to
suit ⁄” (9 mm) male
compression fitting.
Kosher requirements
Drains will need to be
separated to satisfy
kosher requirements.
We suggest you confirm
acceptability with your
local rabbi in respect to
kosher installations.
Water Pressure
Max. 1 MPa (145 psi)
Min. 0.03 MPa (4.3 psi)
Important!
The power outlet must be
located in a cabinet adjacent
to the dishwasher cavity.
110-120 VAC max. 15 A
ø max. 1½”(38 mm)
min. 7 ⁄” (200 mm)
Moisture
protection
tape must
be applied.
Services hole
Can be located either side of dishwasher, preferably
at the bottom of the cavity, as shown. If adequate
clearance, services hole can be made higher to clear
toekick space. If hole is higher, ensure drain hose(s)
are routed straight into the waste connection.
- If the hole is through wood, make sure its edges
are smooth and rounded.
- If the hole is through metal, ensure you t the
supplied Edge Protector to prevent damage to the
power cord.
These marks indicate
formed bracket screw
locations, if securing
by drawer removal.
⁄” (10mm)
COUNTERTOP
If there is no side
partition, you
can construct
timber bracing
as something to
secure into. max. 17 ⁄”
(450 mm)

9
7MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE
Drain hoses - 70 ½” (1800 mm)
Inlet hose - 49
” (1250 mm)
Drain hoses - 78 ½” (2000 mm)
Inlet hose - 64
¾” (1650 mm)
Power cord (excl. plug) - 29
½” (750 mm) Power cord (excl. plug) - 27
½” (700 mm)
Left hand side Right hand side

10
9a
8a ATTACH SIDE MOUNTING BRACKETS PULL THROUGH HOSES & PUSH INTO THE CAVITY
(x2)
As you push product in, pull
through hoses and cord,
ensuring they don’t get
kinked or twisted.
optionally attach the
two top mounting brackets
Ensure the product is level
Clip all four side mounting brackets into
their slots using a flat-bladed screwdriver.
Ensure they’re securely fitted before
sliding product into cavity.
The mounting slots are in pairs, one on each side
diagonally across the product. Abracket must
match Aslot and Bbracket must match Bslot.
A
A
A
AB
B
B
B
You can raise or lower the product
by twisting the feet. Then take
care when pushing the product
into the cavity that you do not
bend the feet.
RECOMMENDED METHOD (a) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY)
NOW CHOOSE WHICH INSTALLATION METHOD (a) or (b)
IS MORE SUITABLE FOR YOUR CABINETRY...

11
12a FIT THE SUPPLIED TOEKICK PANEL
3
4 6 8
5 7
9
1
2
19
19
Important!
Do not overtighten screw.
Where the toekick
meets the bottom
of the tub is the
cut-off point
Mark this point
on the toekick
with a pencil
Lay the toekick face down on
a chopping board or similiar Smooth the edge with a file.
Be careful of sharp edges.
Snap off the two end tabs
Slide the toekick onto
the mounting rails
either side and screw
the toekick onto the
bottom of tub on
either side.
Mounting rail
Score along with a knife
Turn the toekick over and
score along the same line
Gently snap off the excess
10a SECURE TO THE CABINETRY ON THE SIDES
1
32
Open the
drawer halfway.
Using a flat-bladed
screwdriver, prize
the gray
rubber plug out
of the trim moulding.
Replace the gray
rubber plug back into
the trim moulding
and ensure the trim
seal is facing forward.
Repeat for all
four brackets.
Using a small Philips
screwdriver,
screw through the trim
moulding, securing the
side mounting bracket
to the cabinetry.
Do not damage the
rubber trimseal.
11a OPTIONALLY SECURE TO THE CABINETRY ABOVE
(x2)
The top mounting
brackets will only bend
upwards a maximum
of ⁄” (10 mm).

12

13
9b REMOVE THE LOWER DRAWER
100 mm
2
4
5
1
To prevent kinked hoses, we recommend
rotating the drawer counter-clockwise and
resting it on its side after removal.
Press the release tabs in on either
side and push back to release
drawer from runners. Push drawer runners back in.
8b PULL THROUGH HOSES & PUSH INTO THE CAVITY
(x2)
optionally attach the
two top mounting brackets
You can initially level the product
You can raise or lower the
product by twisting the
feet. Then take care when
pushing the product into
the cavity that you do not
bend the feet.
ALTERNATIVE METHOD (b) - SECURE BY DRAWER REMOVAL
As you push product in, pull
through hoses and cord,
ensuring they don’t get
kinked or twisted.
4” (100mm)
3
4

14
x4
12b REFIT THE DRAWER ONTO THE RUNNERS
10b
To access the side brackets,
you might have to push aside
the insulation. After securing,
ensure the sound insulation is
repositioned correctly.
Secure using two pairs
of formed brackets
(use ⁄” (16 mm)
screws). Repeat on
the other side of the
chassis.
11b OPTIONALLY SECURE TO THE CABINETRY ABOVE
(x2)
The top mounting
brackets will only bend
upwards a maximum of
⁄”(10 mm).
SECURE TO THE CABINETRY ON THE SIDES
For further adjustment,
using the most appropriate
length Hexagonal socket
supplied, fully extend
leveling feet up to required
distance by hand.
Ensure product is level and
aligning with cabinetry.
Hexagonal
socket
13
14
15
16
19
Before refitting the drawer,
ensure the hoses are not
twisted and the latches at
the rear of each drawer
runner are facing forward.
Ensure the release tabs on
both sides are reset fully.
Ensure the drawer
is now rotated
clockwise back.
Pull forward the release tabs
on both sides 4”(100
mm)
1
2
3
4
5

15
13b FIT THE SUPPLIED TOEKICK PANEL
3
4 6 8
5 7
9
1
2
19
19
Important!
Do not overtighten screw.
Where the toekick
meets the bottom
of the tub is the
cut-off point
Mark this point
on the toekick
with a pencil
Lay the toekick face down on
a chopping board or similiar Smooth the edge with a file.
Be careful of sharp edges.
Snap off the two end tabs
Slide the toekick onto
the mounting rails
either side and screw
the toekick onto the
bottom of tub on
either side.
Mounting rail
Score along with a knife
Turn the toekick over and
score along the same line
Gently snap off the excess

16
3
1
750-882.5 mm
2
*
1
2
38 mm
max.
120
mm
750-882.5 mm
*
*
1
2
**
THERE ARE THREE DIFFERENT DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE.
CONNECT INLET HOSE TO HOT WATER SWITCH PRODUCT ON
14
15 16
34
If space is limited
for fixing, push
hose through drain
hose support to
required height
If space is limited
for fixing, push
hose through drain
hose support
to required height
Dishwasher using sink trap with drain hose joiner
29½”-34¾” (750-882.5 mm)
29½”-34¾” (750-882.5 mm)
min. R 8”
(200 mm)
min. R 8”
(200 mm)
min. R 8”
(200 mm)
1½”
(38 mm)
max.
4¾”
(120mm)
29 ½”-34 ¾” (750-882.5 mm)
29 ½”-34 ¾” (750-882.5 mm)
Supplied drain hose joiner
Ø ¾” (19 mm) waste tee
Ensure drain hose is routed straight
to joiner. Remove excess drain hose
material if necessary.
Do not shorten the inlet hose.
Important!
Ensure that drain connection
will comply with local plumbing
regulations.
Dishwasher and Standpipe Ø 1½” (38 mm) Dishwasher using Air Break with Drain Hose Joiner
HIGHLOOP
min. 6”
(150 mm)
Ensure the
supplied
rubber
washer is
fitted inside
the coupling.
Tighten coupling with wrench.
180o
No leaks!
1
15 15 15
2
37 ⁄”
(
950 mm)
Max.
height
to top of
Air Break
see see see

17
18
17 FINAL CHECKLIST TROUBLESHOOTING
Check all parts are installed.
Ensure product is level, securely fastened to the cabinetry and opens and
closes freely. The drawers must be free to fully close with no resistance from the
cabinetry.
Ensure inlet hose to water supply has supplied rubber washer fitted, and that
it’s tightened a further half turn after seal contact.
Ensure any knockouts or plugs in drain connection have been drilled out and
drain connection has been made.
The drain hose joiner must not support the weight of excess hose material.
Keep drain hose as fully extended as possible to prevent sagging. Any excess
length of drain hose should be kept on the dishwasher side of the highloop.
If connecting the drain hose to the sink trap, ensure the Highloop is a minimum
6” (150 mm) higher than the drain hose joiner.
Ensure any packaging or tape securing the racks is removed from the drawers.
Turn on the power and water supplies, then open the drawers. You should hear
a beep and see a program indicator light up on the internal control panel.
Check the spray arms are in place and free to rotate.
Add three cups of water into each drawer. Press on the internal control panel
until the indicator of the ‘Rinse’ program lights up. Close the drawers and press
to start the program.
After the Rinse program has finished, ensure the dishwasher has run and
drained correctly.
Check water supply and drainage connection for leakage.
Spray arm
Excessive water remaining above the filter plate, after the rinse cycle
Check for a kinked drain hose or blocked waste connection, highloop not
properly installed or drain hose not routed correctly.
No water supply (This is displayed as a ‘U1’ fault -- see section ‘If there is a
fault’ in the User guide for how to recognise this fault.)
Check water is connected and turned on.
The dishwasher is beeping continuously
There is a fault. See section ‘If there is a fault’ in the User guide for further
information and instructions.
No program indicator lights up when the drawer is opened
Ensure power is connected and is switched on. If it is and still no indicator
lights up, see the ‘Preference options’ section of the ‘Quick start guide’. An
option called ‘Open drawer auto power-on’ may need to be turned on.
Water around water supply and drainage connections
Check connections, existing plumbing and hoses for leaks. Check rubber
washer and hose clamp are correctly fitted.
If product is tipping
Ensure the product is secured to the cabinetry.
If front panels are misaligned
Check and relevel product. Check the cabinetry is square.
Drawer doesn’t close properly
Ensure nothing is obstructing the drawer from closing properly eg sound
insulation, hoses or drawer latches.
If a problem occurs, consult the ‘Troubleshooting’ section of the User guide.
If after checking these points you still need assistance, please refer to the
Service & Warranty book for warranty details and your nearest Authorized
Service Center, or contact us through our website, listed below.
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change
at any time. For current details about model and specification availability in your country, please
visit our local website listed at the end of this document or contact your local DCS by Fisher &
Paykel dealer.
www.dcsappliances.com

US CA
INSTALLATION INSTRUCTIONS
DishDrawerTM dishwasher
DD24SUT7
590225A 10.11

3
SAFETY AND WARNINGS
1
WARNING!
Electrical hazard
Before installing the dishwasher, remove the house fuse or open the circuit
breaker. If permanently connecting the dishwasher, be sure the power is isolated
and the dishwasher unplugged.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of a malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped with a cord having
an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is installed and grounded in accordance
with all local codes and ordinances. WARNING - Improper connection of the
equipment-grounding conductor can result in a risk of electric shock. Check with
a qualified electrician or service representative if you are in doubt as to whether
the appliance is properly grounded.
If the dishwasher is installed as a permanently connected appliance:
GROUNDING INSTRUCTIONS - This appliance must be connected to a grounded
metal, permanent wiring system, or an equipment-grounding conductor must
be run with the circuit conductors and connected to the equipment-grounding
terminal or lead on the appliance.
Do not modify the power supply plug provided with the appliance - if it will not
fit the outlet, have a proper outlet installed by a qualified electrician. Do not use
an extension cord, adapter plug or multiple outlet box.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
IMPORTANT SAFETY INSTRUCTIONS!
Installation of this dishwasher requires basic mechanical and electrical skills.
Be sure to leave these Instructions with the Customer.
Installation must comply with your local building, electricity, and plumbing regulations.
At the completion of the dishwasher installation, the Installer must perform the Final Checklist.
Remove all packaging materials supplied with the dishwasher.
This dishwasher is manufactured for indoor use only.
Ensure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
The dishwasher MUST be installed to allow for future removal from the enclosure if service is required.
The switched power outlet must be outside the dishwasher cavity, so that it is accessible after
installation.
Care should be taken when the appliance is installed or removed to reduce the likelihood of damage to
the power supply cord and hoses.
If the dishwasher is to be relocated from one installation to another it must be kept upright to avoid
damage from water spillage.
Make sure only new hoses are used for connection (supplied with the dishwasher). Old hoses should
not be reused.
Failure to install the dishwasher correctly could invalidate any warranty or liability claims.
If the product is installed in a motor vehicle, boat or similar mobile facility, you must bring the vehicle,
boat or mobile facility containing the product to the service shop at your expense or pay the service
technician’s travel to the location of the product.
SAVE THESE INSTRUCTIONS
