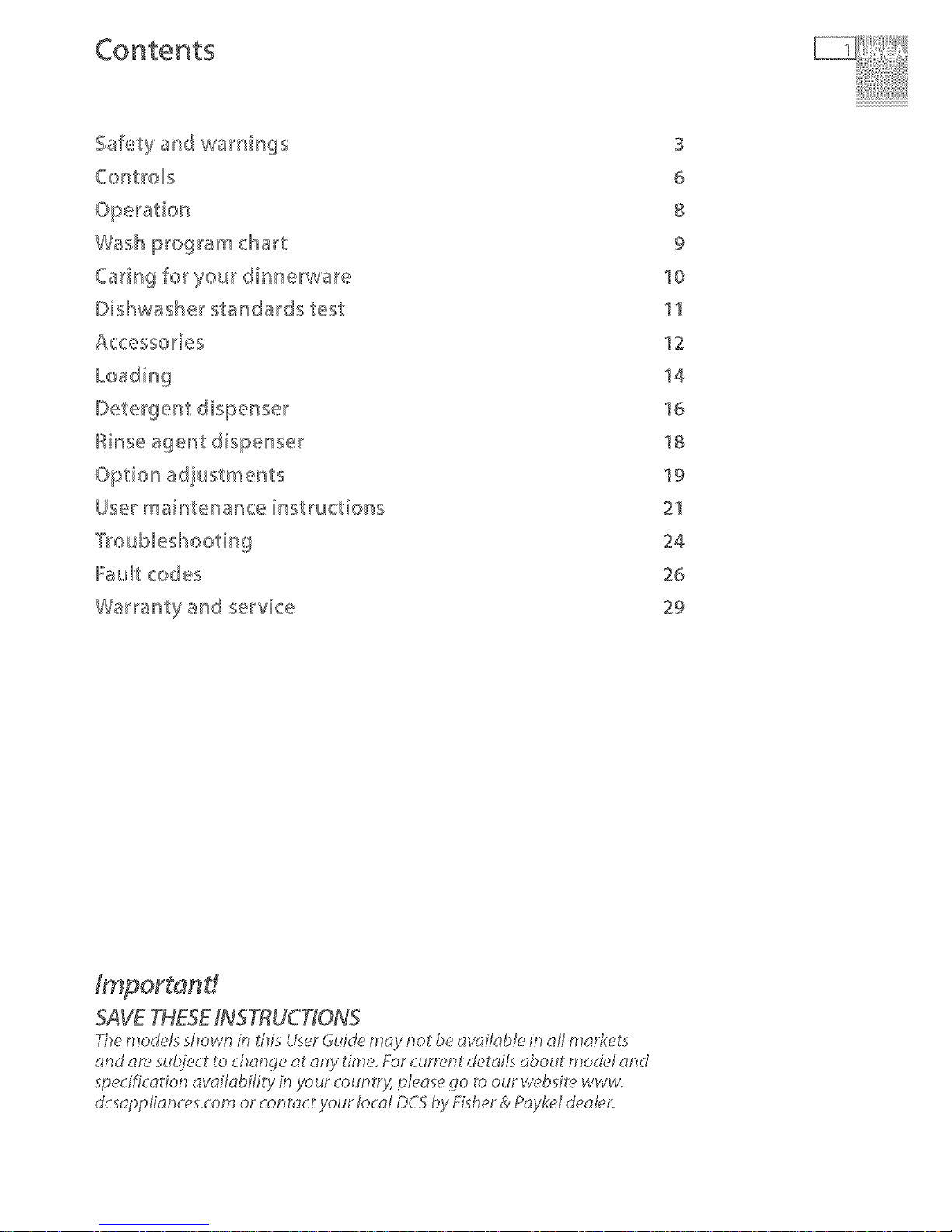

DCS DishDrawer DD224P5 User manual

Safety and warnings
(ontroB
Wash program chart
Caring for your dinnerware

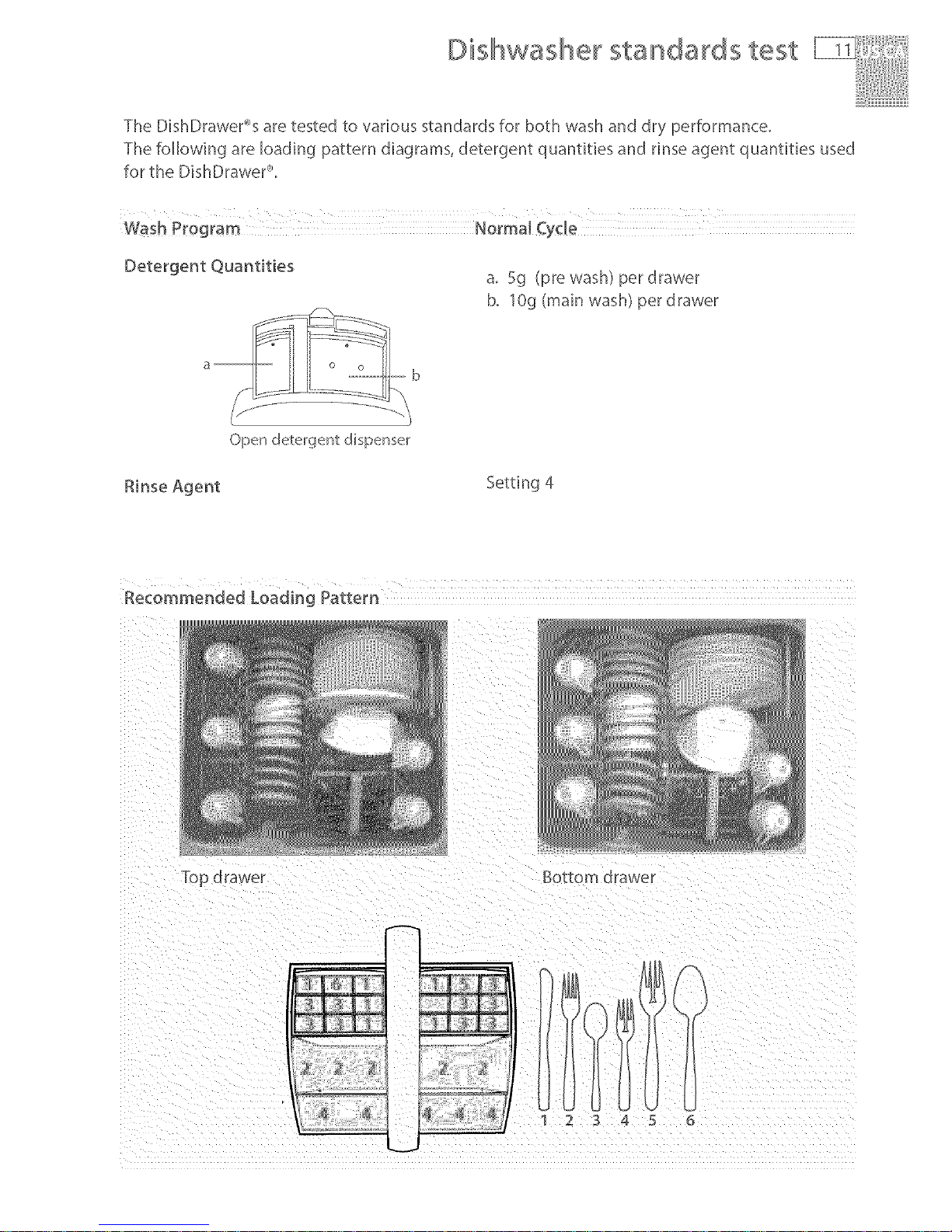

Dishwasher standards test

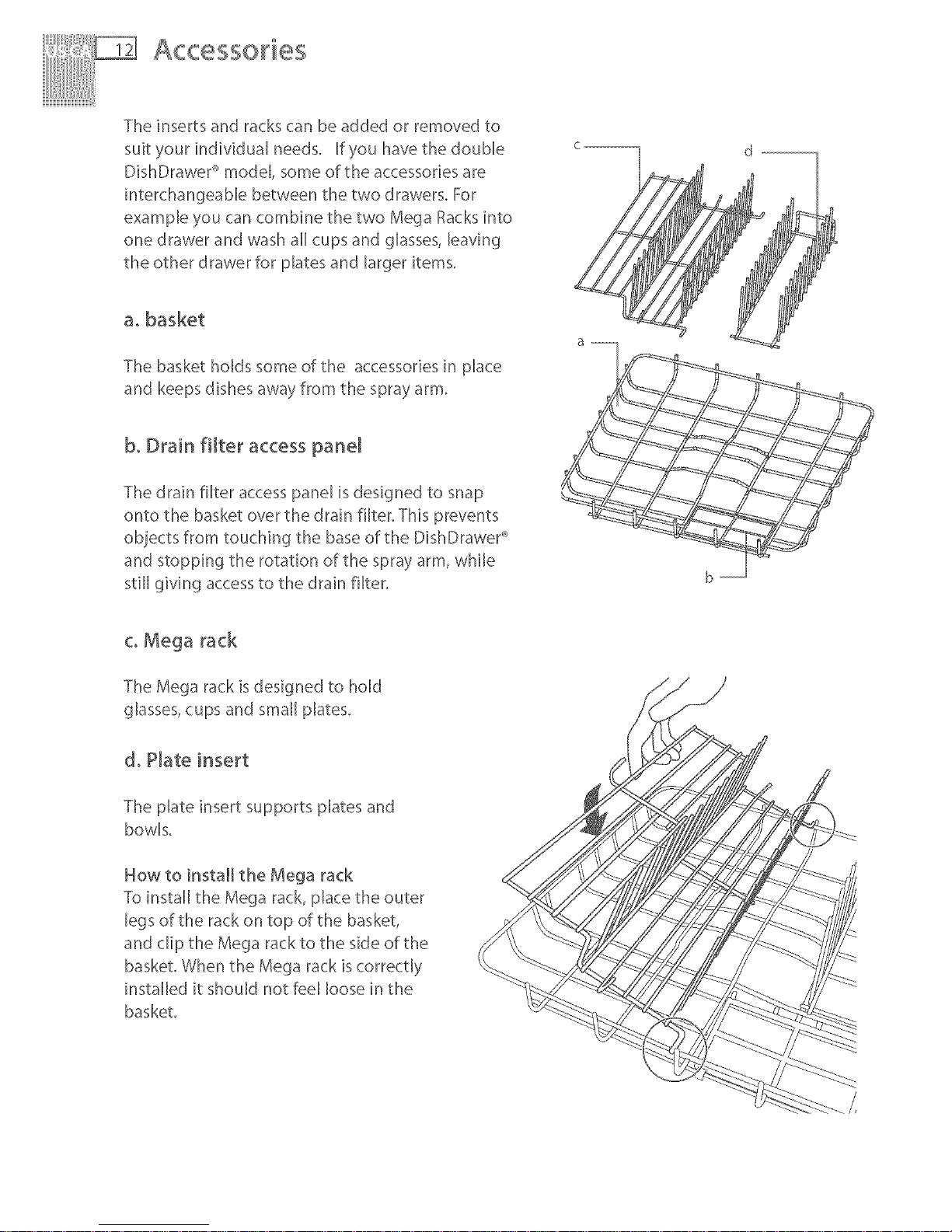

Accessories

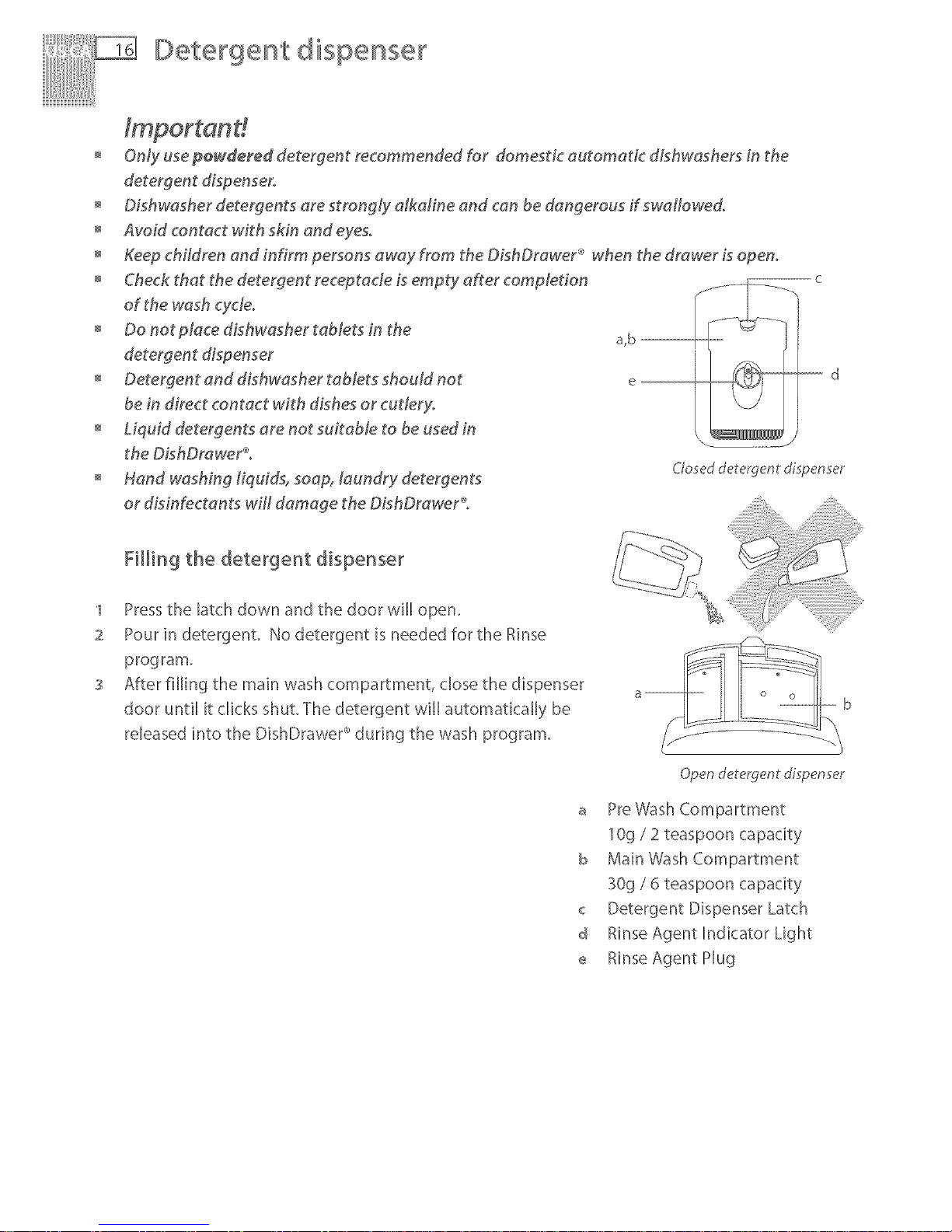

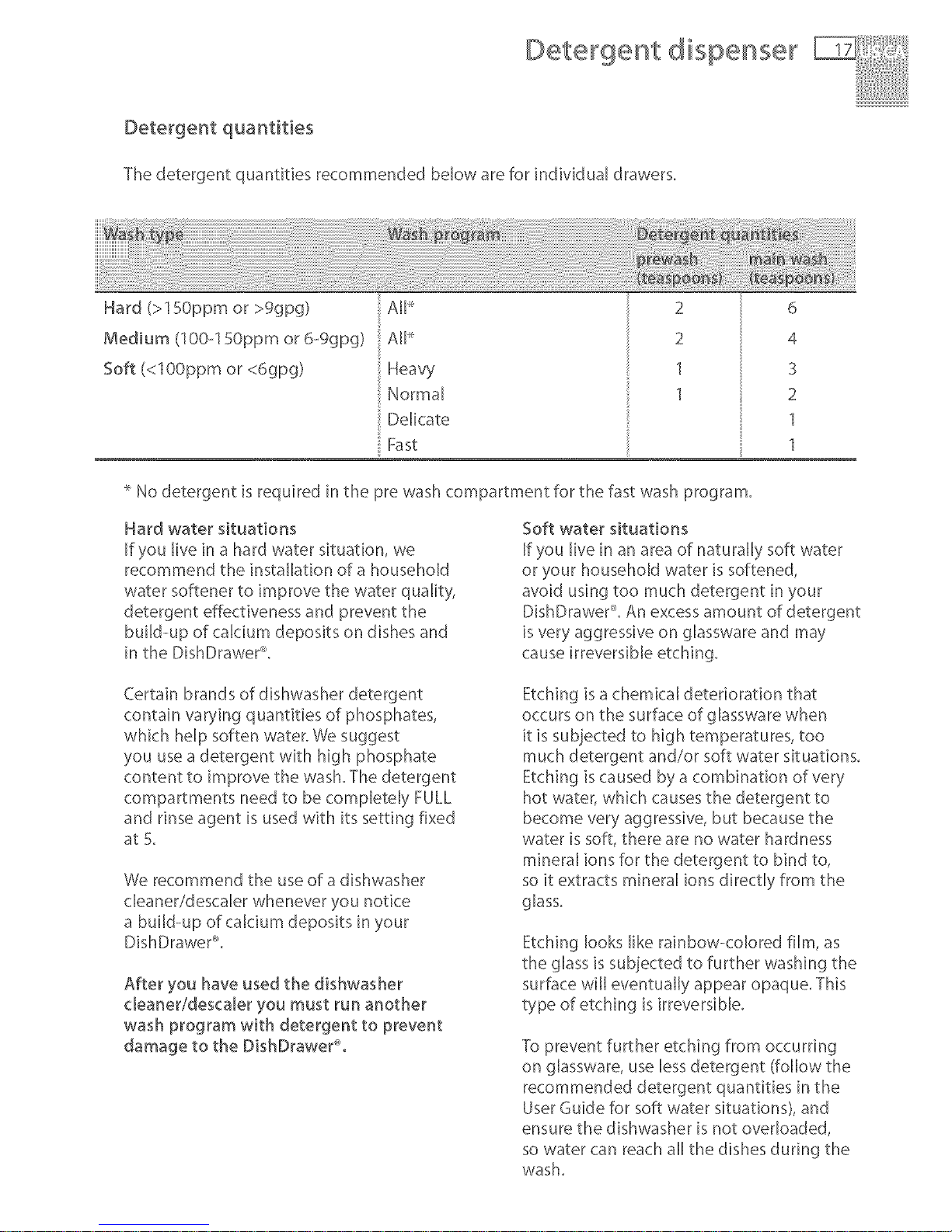

Detergent dispenser

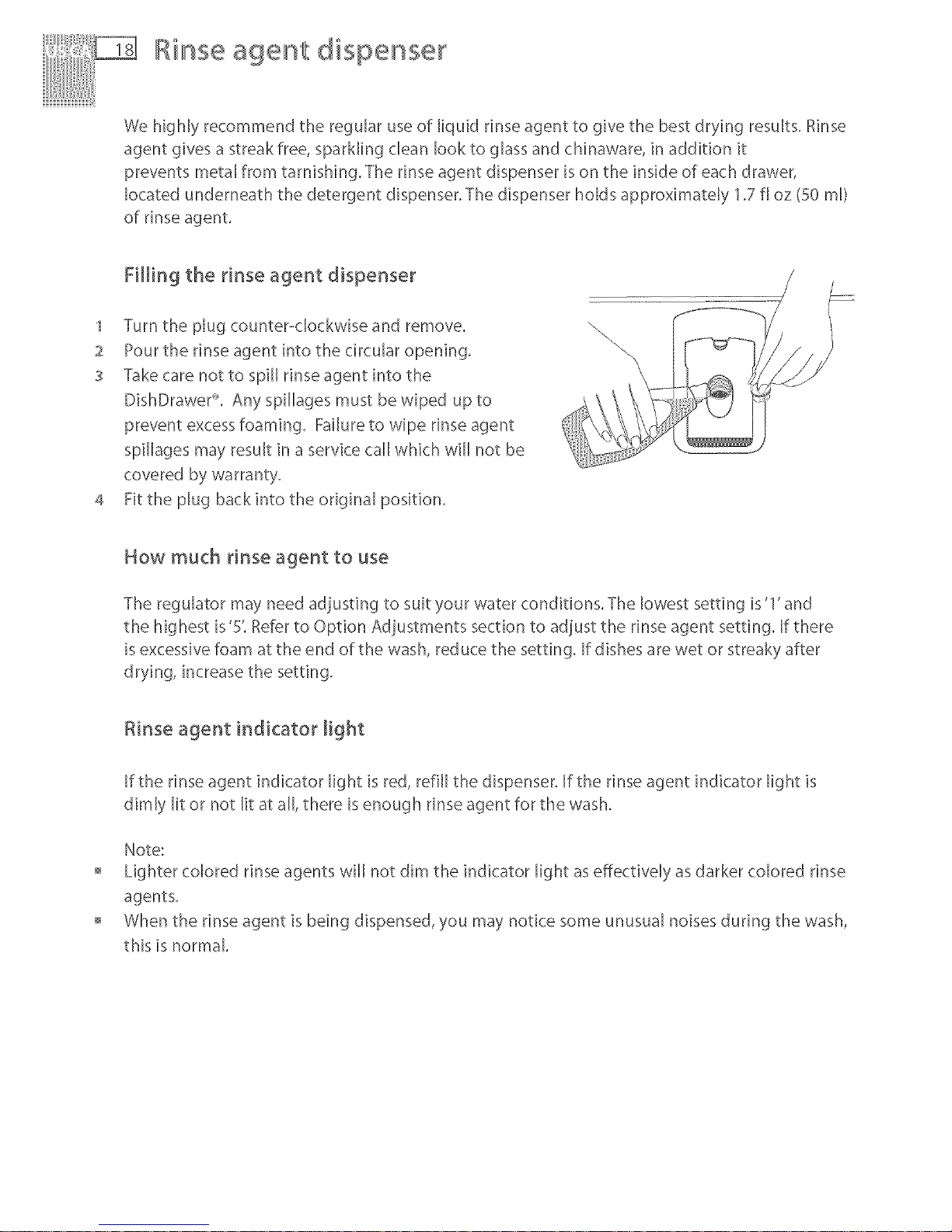

Rinse agent dispenser

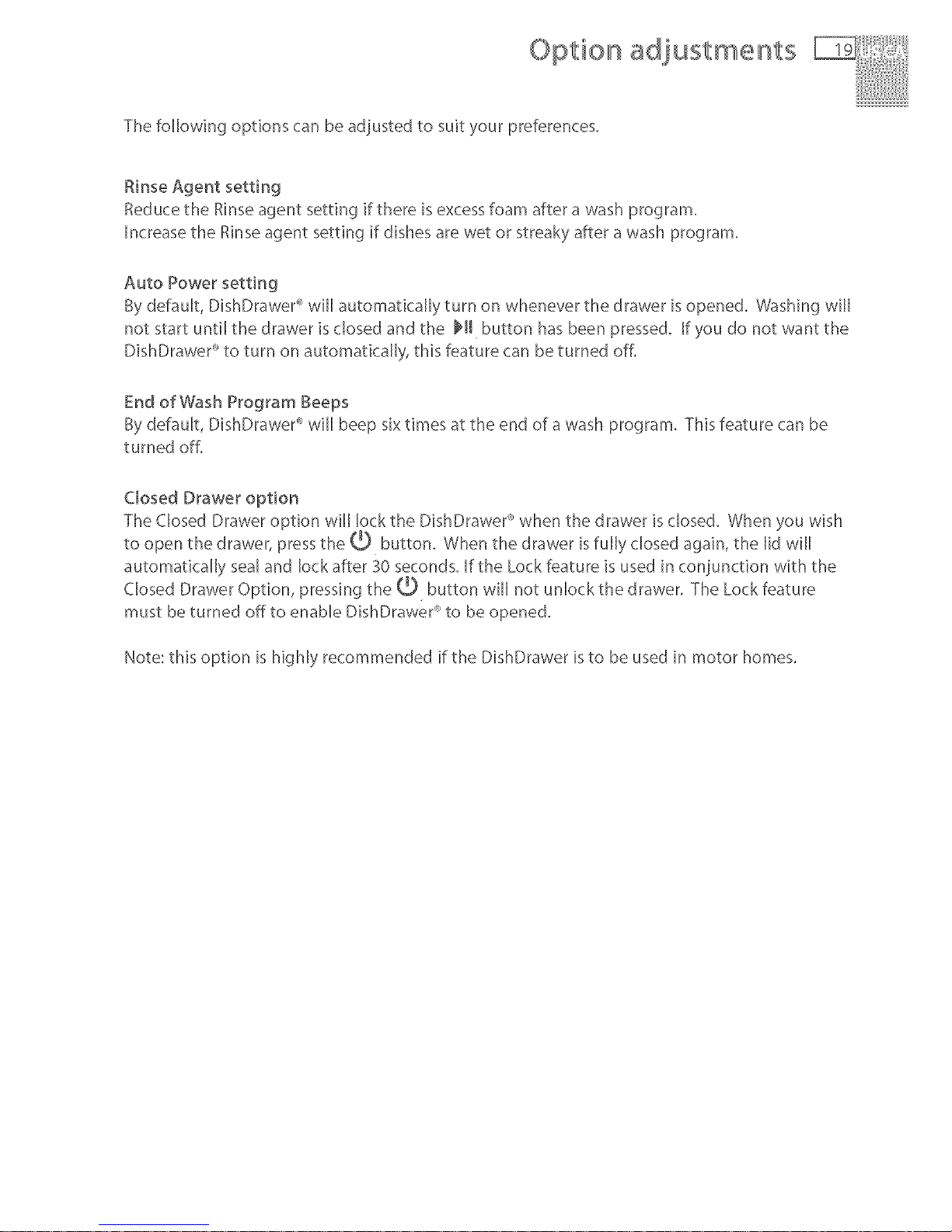

Option ad}ustments
User maintenance instructions
Fault codes
Warranty and service
S
6
8
9
10
11
12
14
16
18
19
21
24
26
29
SAYE INSTRUCTIONS
7hemodels shown in this UserGuidemay not be avaLlab/ein all markets
and are subject tochange at any time,For current details about model and
specification @'dlabfii_y it}your countr}; pleasego _oour website www.
dcsa:ppfiances,comor contact your local DCSbyFisher& Pa},'ke!dealer,

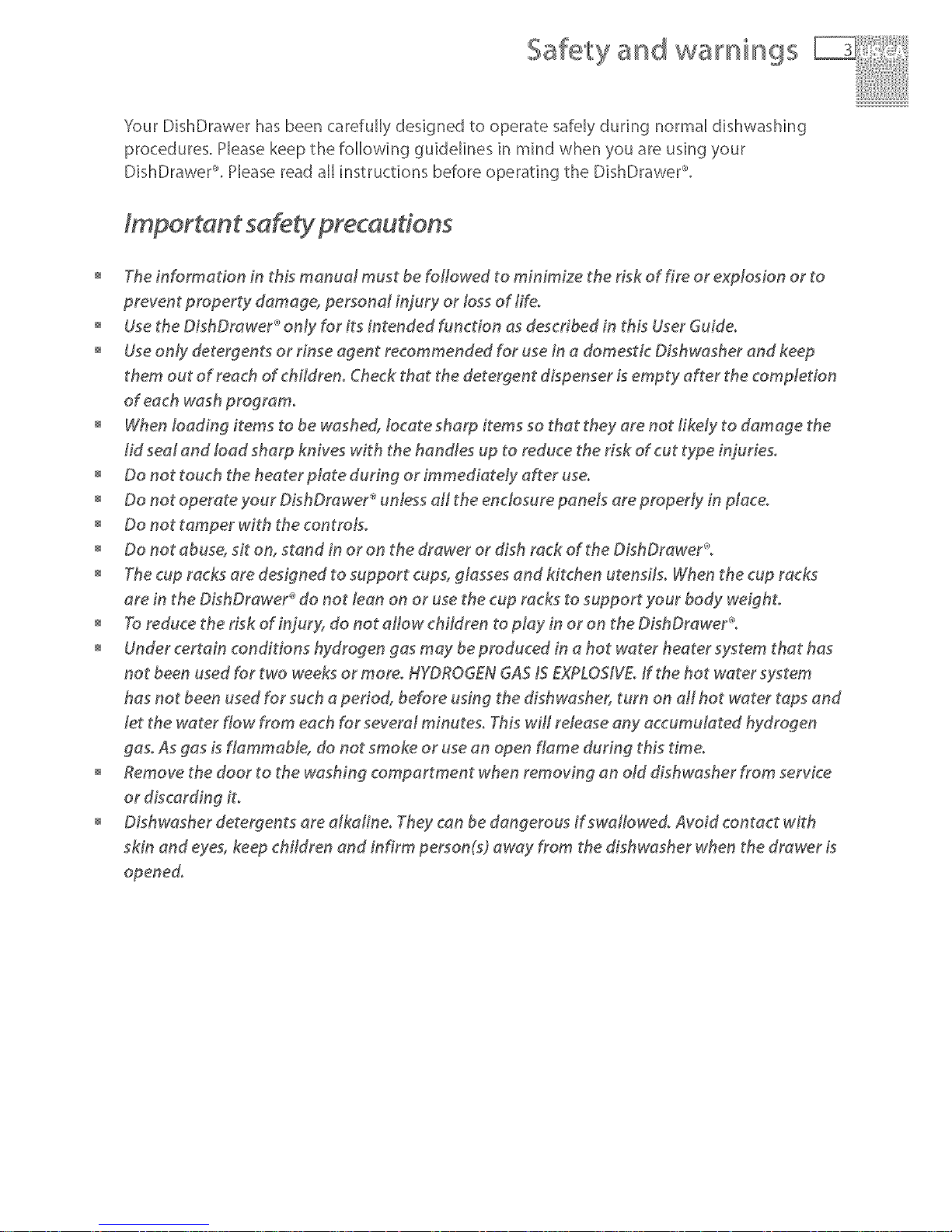

Safety and warnings
Your DishDrawer has been carefully designed to operate safely during normal dishwashing
procedures. Please keep the following guidelines in mind when you are using your
DishDrawedL Please read all instructions before operating the DishDrawedL
The information in this manual must be followed to minimize the risk of fire or explosion or to
prevent property damage, personal injury or toss of life.
Use the OishDrawer _only for its intended function as described in this User Guide.
Use only detergen% or rinse agent recommended for use in adomestic Dishwasher and keep
them out of reach of childreno Check that the detergent dispenser is empty a#er the completion
of each wash program.
When loading items to be washed, locate sharp items so that they are not likely to damage the
lid seal and load sharp knives with the handles up to reduce the risk of cut type injuries.
Do not touch the heater plate during or immediately a#er use.
Do not operate your DishDrawer _unless all the enclosure panels are properly in place°
Do not tamper with the controls.
Do not abuse, sit on, stand in or on the drawer or dish rack of the DishDrawer _,
The cup racks are desoned to support cups, glasses and kitchen utensils. When the cup racks
are in the DishDrawer ®do not lean on or use the cup racks to support your body weohto
To reduce the risk of injury, do not allow children to play in or on the DishDrawer _,
Under certain conditions hydrogen gas may be produced in ahot water heater system that has
not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system
has not been used for such aperiod, before using the dishwasher, turn on ell hot water taps and
let the water flow from each for several mlnuteso This will release any accumulated hydrogen
gas. As gas is flammable, do not smoke or use an open flame during this time.
Remove the door to the washing compartment when removing an old dishwasher from service
or discarding it.
Dishwasher detergents are alkaline. They can be dangerous if swallowed. Avoid contact with
skin and eyes, keep children and infirm person(s) away from the dishwasher when the drawer is
opened.

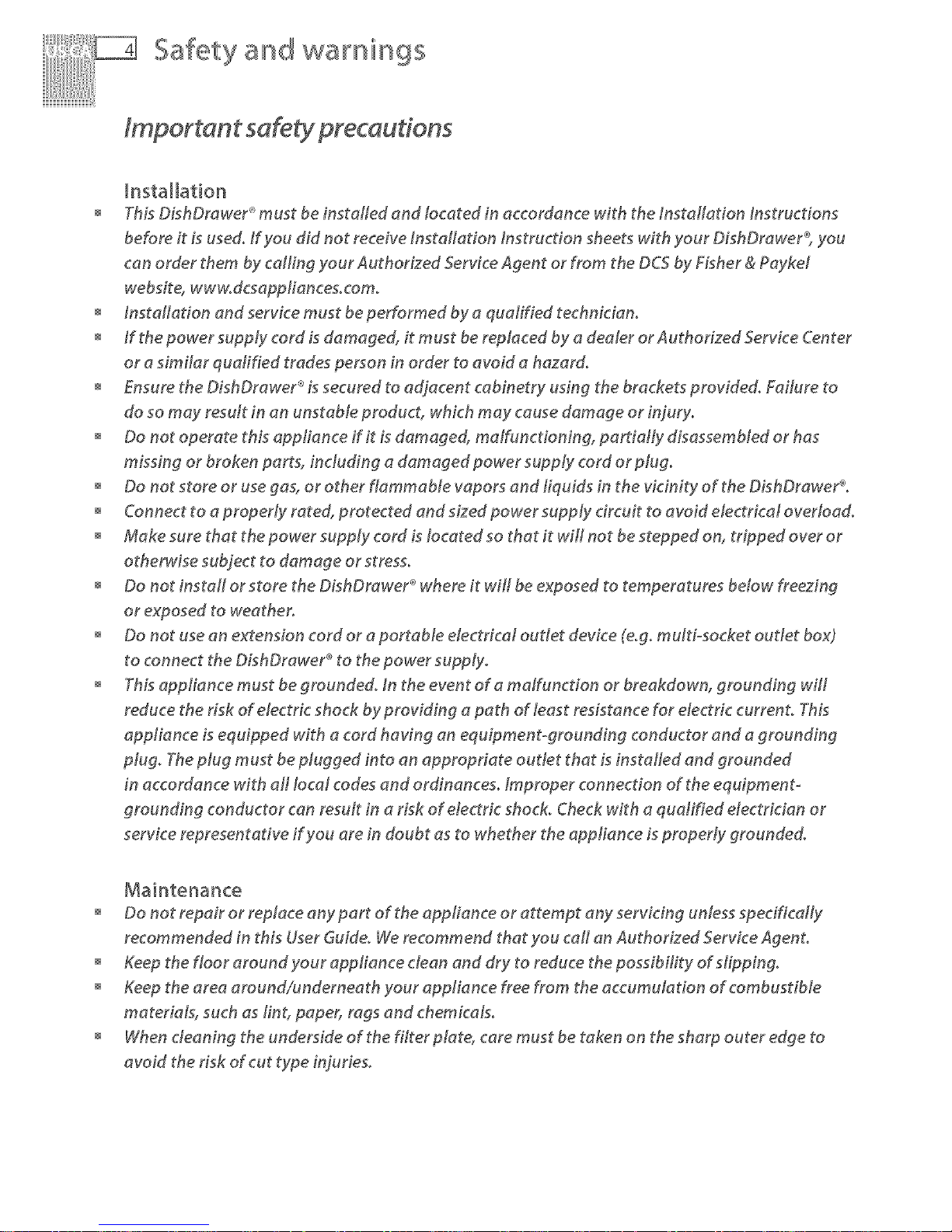

Safety and warnings
[nstaEIation
Th£ D£hDrawer _must be installed and located in accordance with the installation instructions
before it is used. if you did not receive tnstafladon instruction sheets with your DishDrawer*, you
can order them by cat#ng your Authorized Service Agent or from the DC5 by Fisher & Payket
webs#e, www.dcsappfiances.com.
tnstaflation and service must be performed by aqualified technician.
if the power supply cord is damaged, it must be replaced by adealer or Authorized Service Center
or a similar qua#fled trades person in order to avoid a hazard.
Ensure the DishDrawer _is secured to adjacent cabinetry using the brackets provided. Fai@re to
do so may result in an unstable product, which may cause damage or injury.
Do not operate this appliance if it is damaged, malfunctioning, partially disassem bled or has
missing or broken parts, including adamaged power supply cord or plug.
Do not store or use gas, or other flammable vapors and liquids in the vicinity of the DishDrawePL
Connect to aproperly rated, protected and sized power supply circuit to avoid electrical overload.
Make sure that the power supply cord is located so that it wifl not be stepped on, tripped over or
otherwise subject to damage or stress.
Do not install or store the DishDrawer ®where it wit! be exposed to temperatures be!ow freezing
or exposed to weather
Do not use an extension cord or aportable electrical outlet device (e.g. multi-socket outlet bo_)
to connect the DishDrawer ®to the power supply.
This appliance must be grounded, in the event of amalfunction or breakdown, grounding wilt
reduce the risk of electric shock by providing apath of least resistance for electric current. This
appliance is equipped with acord having an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is installed and grounded
in accordance with aft local codes and ordinances, improper connection of the equipment-
ground#_g conductor can result in arisk of electric shock. Check with aqualified electrician or
service representative if you are in doubt as to whether the appliance is properly grounded,
Maintenance
Do not repair or r@tace any part of the appliance or attempt any serv£ing unless specifically
recommended in this User Guide. We recommend that you call an Authorized Service Agent.
Keep the floor around your appfiance clean and dry to reduce the possibility of slipping.
Keep the area around/underneath your appliance free from the accumulation of combustible
materials, such as tint, paper, rags and chemicals.
When cleaning the underside of the tiger plate, care must be taken on the sharp outer edge to
avoid the risk of cut type injuries°

Safety and wamings
Under no circumstances should you open the drawer while the DishDrawer _is in operation.
Always press the _!H button to pause and wait until you hear the three additional beeps before
opening the drawer.
The DishDrawer ®must be used with the motor assembly, filter plate, drain filter and spray arm in
place.
When disconnecting the appliance grasp the plug rather than the power supply cord or junction
of cord to avoM damage.

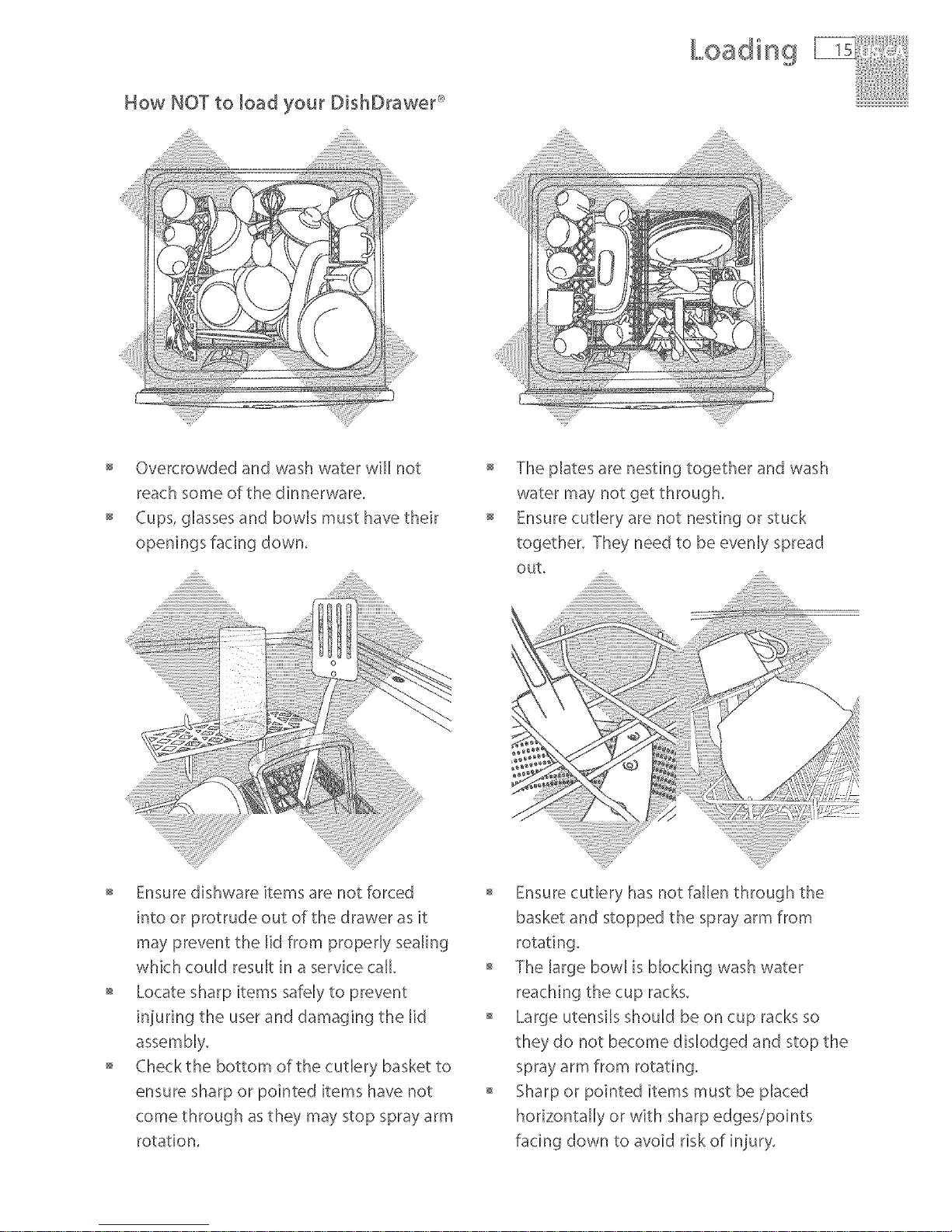

Take care when loading the DishDrawer ®not to toad dishware items so they prevent the lid from
properly sealing with the drawer ttems should be placed so they do not protrude above and/or
forced into the drawer, otherwise aservice carl may result.
Household appliances are not intended to be played with by children. Chitdren or persons with a
disability which limits their ability to use the appliance, should have aresponsible person instruct
them in its use. The instructor should be satisfied that they can then use the appliance without
danger to themselves or their surroundings°
Close supervision is necessary if this appliance is used by or near children. Do not aflow children
to play inside, on or with this appliance or any discarded appliance.
if a Dishwasher cleaner is used, we would strongty recommend a wash program with detergent
should be run immediately afterward, to prevent any damage to the DishDrawer®o
The DishDrawer _is designed for washing normal household utensils, items that are
contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline chemicals are not
to be washed in the DishDrawer%
if the DishDrawer ®is not being used for long periods of time, turn the electricity and water supply
to the DishDrawer ®o_

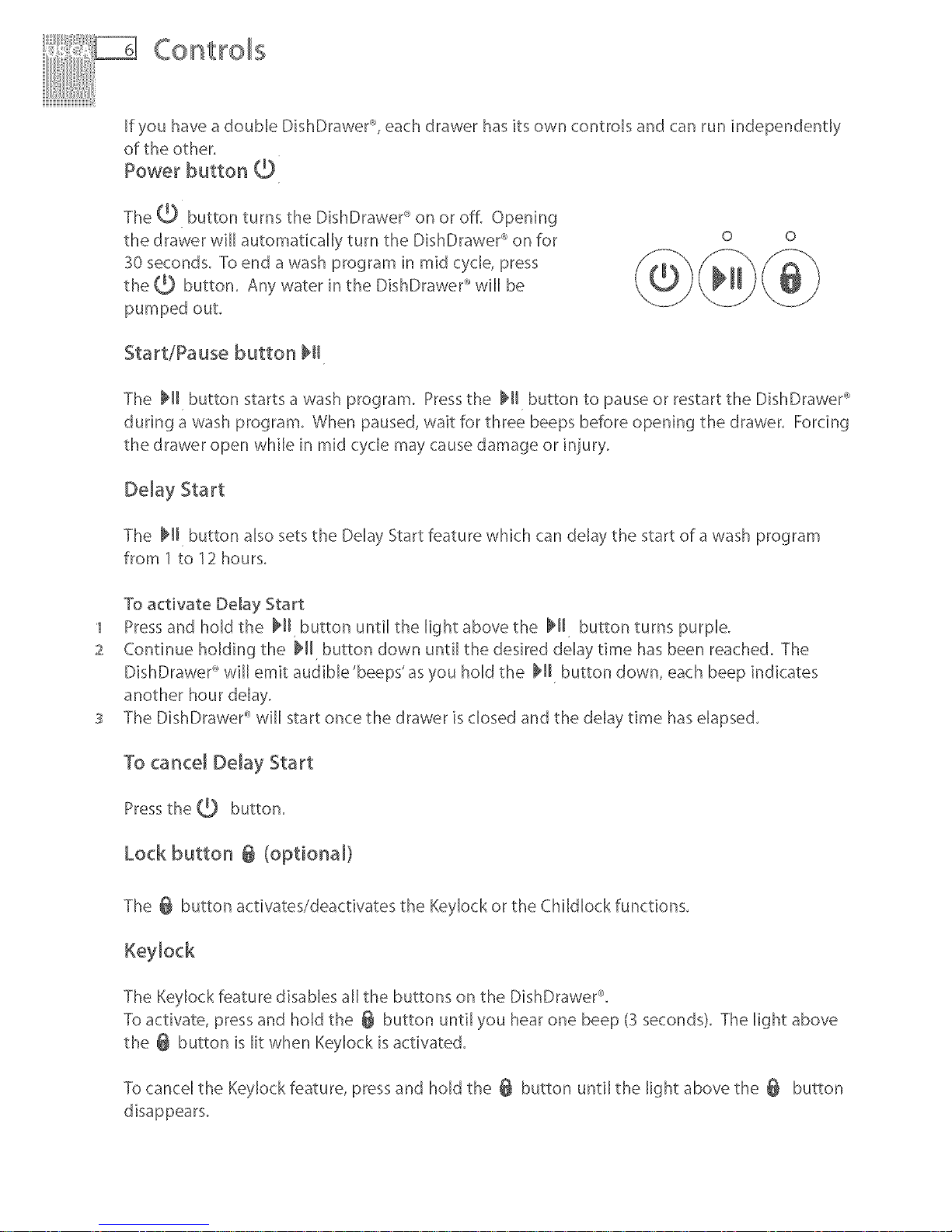

Ifyou have a double DishDrawe¢_,each drawer has its own controls and can run independently
of the other,
Power button
The _ button turns the DishDraweP on or off. Opening
the drawer will automatically turn the DishDrawed _on for
30 seconds. To end a wash program in mid cycle press
the _ button. Any water in the DishDrawed _will be
pumped out.
Start/Pause button _[!
The _H button starts a wash program. Press the _Jl button to pause or restart the DishDrawed _
during a wash program. When paused, walt for three beeps before opening the drawer. Forcing
the drawer open while in mid cycle may cause damage or injury.
Delay Start
The _1[ button also setsthe Delay Startfeature which can delay the start of awash program
from 1to 12 hours.
To activate Delay Start
1 Press and hold the _H button until the light above the _H button turns purple.
2 Continue holding the :_H button down until the desired delay time has been reached. The
DishDrawed _will emit auSible'beeps'as you hold the _H button down, each beep indicates
another hour delay,
s The DishDrawed _will start once the drawer is closed and the delay time has elapsed,
To cancel Delay Start
Press the _ button,
Lock button _ (optional)
The _ button activates/deactivates the Keylock or the Childlock functions,
Keylock
The Keylock feature disables all the buttons on the DishDrawedL
To activate, press and hold the _ button until you hear one beep (3 seconds). The light above
the _ button is lit when Key[ock is activated.
To cancel the Keylock feature, press and hold the _ button until the light above the _ button
disappears.

ChildBock
Controls
The Childlock feature locks the drawer and disables all the buttons on the badge.
To activate, press and hold the _ button until you hear two beeps (5 seconds). The light above
the _ button is lit when Childlock is activated.
Tocancel the Childlock feature, pressand hold the _ button until the light above the _ button
disappears.
Wash program selector
Pressthe _ button inside the drawer to select a wash program. The DishDrawe¢' will
remember the last program used.
Eco button _ (optional}
Press the _ button if you would like the wash program to use less energy and water. The red
ECO light will indicate the feature is on. If your dishes are heavily soiled or you require enhanced
dry performance, we do not recommend ECO programs.
Power failure
If the DishDrawe¢ _is operating and a power failure occurs, it will stop. The DishDrawe¢ _may be
unable to be opened during this time. When the power supply is resumed, the DishDrawe¢ _will
restart in the same part of the wash program.

1 Loaddishes
Removea[[foodscrapsandloadthed[shes_
2 Adddetergent
3 Checkrinseagent
4 Pressthe_ button
5 Selectawashprogram
6 Select_ (optional)
7 Check
Ensurethereisnothingobstructingthe
sprayarm.ThedrainfiBtermustbelevelwith
thefiBterplate.
8
9
Start
C[ose the drawer and press the _H button.
Finish
The DishDrawed _wi[[ beep six times to
indicate the end of the wash program. At
the end of the wash program the drying fan
wi[[ continue to run for a set time or until the
drawer is opened. The fan assists with drying
and uses negligible amounts of energy. It
is normal for some water to remain in the
drain filter area after the wash program is
complete.
DD224 only: At the end of a wash program,
you may find both drawers draining
simultaneously. This is normal.

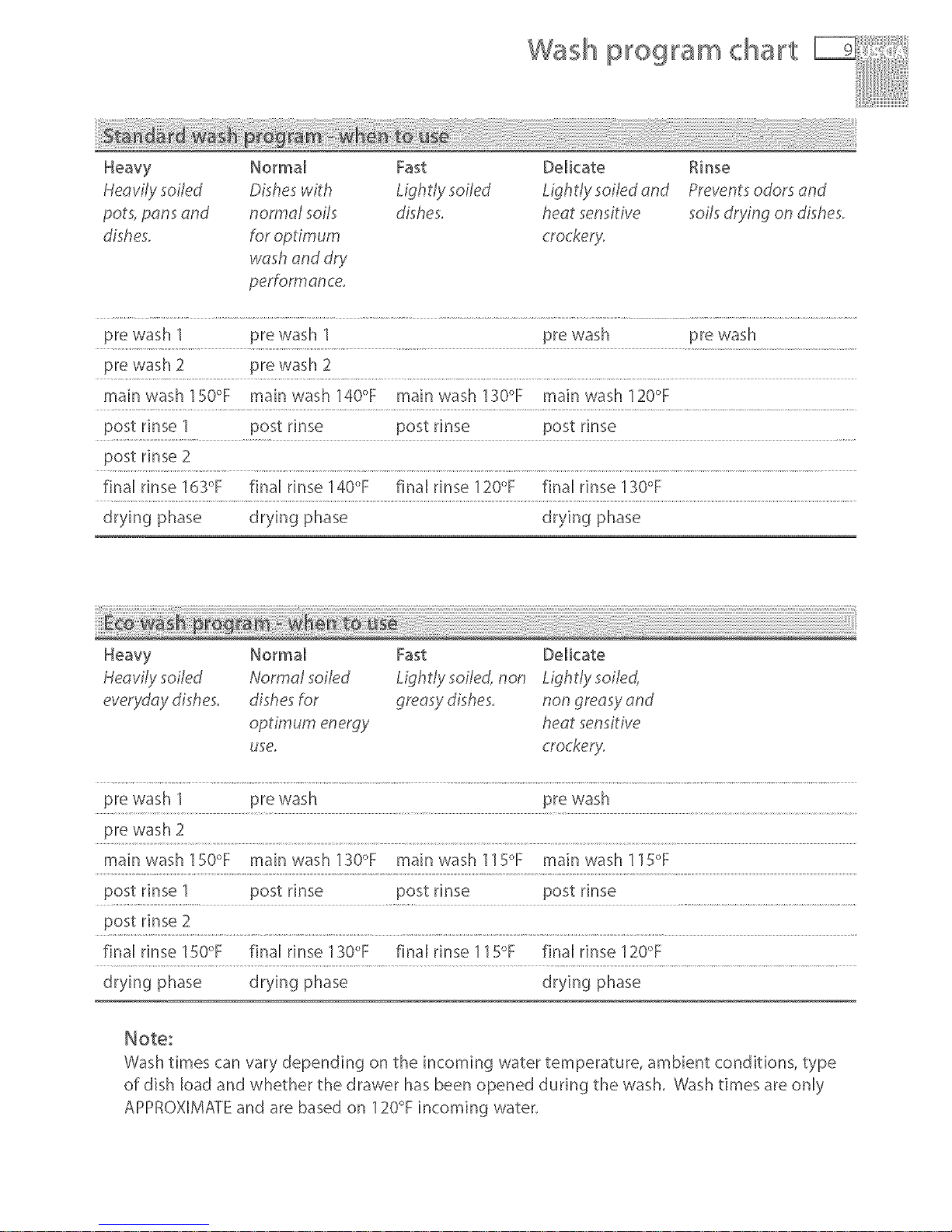

Wash program chart
Heavy NormaJ Fast DeJicate Rinse
Heavily sofied Disheswith Lightly soi/ed Lightly soiled ond Preventsodors and
pots,pansand normal softs dishes, heat sensitive softsdrying on dishes.
dishes, for optimum crocker},.
wa@and dry
performance.
prewash 1 pre wash 1 pre wash pre wash
prewash 2 pre wash 2
main wash 150°F main wash 140°F main wash 130°F main wash 120°F
post rinse 1 post rinse post rinse post rinse
post rinse2
final rinse 163°F final rinse140°F final rinse 120°F final rinse 130°F
drying phase drying phase drying phase
Heavy Normal Fast Delicate
Heavily soiled Normal soiled Lightly soile4 non Lightly soi/e4
everyd@'dishes, dishesfor greasydLshes_ non greasyand
optimum energy heat sensitive
use. crockery.
prewash 1 prewash pre wash
prewash 2
main wash lSO°F main wash lSO°F main wash llS°F main wash l lS°F
post rinse 1 post rinse post rinse post rinse
post rinse2
final rinse 150°F final rinse130°F final rinse 115°F final rinse 120°F
drying phase drying phase drying phase
Note:
Washtimes can vary depending on the incoming water temperature, ambient conditions, type
of dish load and whether the drawer has been opened during the wash. Washtimes are only
APPROXIMATEand are basedon 120°Fincoming water.

Caring for your dinnerware
The combination of high temperatures and dishwasher detergent may cause damage to
some items if they are washed in a dishwasher, Remember, if in any doubt about any aspect
concerning items washed in the DishDraweP', follow the instructions from the manufacturer of
the items, or wash the item by hand,
CutJery & silverware
All cutlery and silverware should be rinsed immediately after use to prevent tarnishing caused
by some foods. The Rinse wash program is useful for this. Silver items should not come into
contact with stainless steel, e.g. other cutlery. Mixing these items can cause staining. Remove
silver cutlery from the DishDrawed _and hand dry it immediately after the program has finished
if needed,
Aluminum
Aluminum can be dulled by dishwasher detergent, The degree of change depends on the
quality of the product,
Other metaJs
Iron and cast iron objects can rust and stain other items, Copper, pewter and brass tend to stain,
Woodware
Wooden items are generally sensitive to heat and water, Regular use in a dishwasher may cause
deterioration over time, If in doubt, wash by hand,
Glassware
Most every'day' glassware is dishwasher safe. Crystal, very' fine and antique glassware may' etch
that is, become opaque. You may' prefer to wash these items by hand.
Plastic
Some plastic may change shape or color with hot water. Check manufacturer's instructions
about washing plastic items. Washable plastic items should be weighed down so they do not
flip over and fill with water or fail through the basket during the wash.
Decorated items
Most modem china patterns are dishwasher safe. Antique items, those with a pattern painted
over the glaze, gold rims or hand painted china may be more sensitive to machine washing. If in
doubt, wash by hand.
Glued items
Certain adhesives are softened or dissolved in machine washing. If in doubt, wash by hand.
Vacation time
If the DishDrawed _is not going to be used for some time, we recommend you ensure the baskets
are empty, Leave the inside tithe DishDrawed _clean. Leave the drawers ajar to allow air to
circulate, Turn off both the power and water supply to the DishDrawePL

Dishwasher standards test
The DishDrawePs are tested to vadous standards for both wash and dry performance,
The foB[owing are loading _attem diagrams, detergent quantities and rinse agent quantities used
for the DishDraweP.
Detergent Quantities a, 5g (pre wash) per drawer
b, lOg (main wash) per drawer
Open detergent dispenser
Rinse Agent Setting 4
Recommended Loading Pattern
Top drawer Bottom drawer
1 2 S 4 5

The inserts and rackscan be added or removed to
suityour individual needs. Ifyou havethe double
DishDraweP model, some of the accessoriesare
interchangeable between the two drawers. For
example you cancombine the two Mega Racksinto
one drawer and wash all cups and gBasses,leaving
the other drawer for plates and larger items.
ao basket
The basket holds some of the accessoriesin place
and keepsdishes away'from the spray'arm.
boDrain filter access panel
The drain filter accesspanel isdesigned to snap
onto the basket over the drain filter. This prevents
obiects from touching the baseof the DishDraweP
and stopping the rotation of the spray'arm, while
still giving accessto the drain filter.
coMega rack
The Mega rack isdesigned to hold
glasses,cups and small plates.
doPlate insert
The plate insert supports plates and
bowls.
How to install the Mega rack
To install the Mega rack, place the outer
legs of the rack on top of the basket,
and clip the Mega rack to the side of the
basket. When the Mega rack is correctly
installed it should not feel loose in the
basket.
b --

Cup racks
Cups,glasses and kitchen utensils can be placed on the
left and right hand side of the cup racks.
o For best performance ensure there are no large items
below, blocking the wash water from reaching the cup
racks.
Wine glassescan be supported on the cup racksif used in
corLjunct[on with the Mega rack.
o There are stops on the cup rack to prevent cups from
touching the D[shDraweP wail This w[[[ maximize the dry
and wash performance.
CutJery basket
Cutlery, small kitchen utensils and some plastic lids are best
placed into the cutlery basket.
For best wash performance, we recommend loading cutlery'
with handles pointing down arid sharp utensils with their
handles facing up, to reduce the risk of in iury.
Mix spoons, knives arid forks within each section to stop
cutlery from nesting together arid to ensure the water
circulates freely.
Keep stainless steel from touching silver cutlery' to avoid
staining.
Small items, like plastic lids, can be placed under the anti-
nesting grid. This will prevent them from being displaced by
wash water and falling to the bottom, where they may stop
the spray arm rotation.
Accessories

Wash water for the DishDrawer ®comes from the spray arm which is situated inside the base of
the drawer. The spray arm rotates, providing wash water to aB[areas of the wash compartment
so care needs to be taken when loading dishes to ensure there is enough space for the water to
reach aB[areas, particularBy the cup racks. If there are any items Mocking the spray arm path or
the wash water, then the performance wiiB be reduced.
How to load your DishDrawer ®
Note: The basketand its inserts are not designed to be lifted out of the DishDrawe¢' while
loaded with dishes.

How NOT to load your DJshDrawer_
Loading
Overcrowded and wash water will not
reach some of the dinnerware.
Cups, gBassesand bowB must have their
openings facing down.
The pBates are nesting together and wash
water may not get through.
Ensure cutBery are not nesting or stuck
together. They need to be evenBy spread
out.
Ensure dishware items are not forced
into or protrude out of the drawer as it
may prevent the lid from properBy sealing
which could result in a service call.
Locate sharp items safeByto prevent
injuring the user and damaging the lid
assemMy.
Check the bottom of the cudery basket to
ensure sharp or pointed items have not
come through as they may stop spray arm
rotation.
Ensure cudery has not fallen through the
basket and stopped the spray arm from
rotating.
The large bowl is blocking wash water
reaching the cup racks.
Large utensils should be on cup racks so
they do not become dislodged and stop the
spray arm from rotating.
Sharp or pointed items must be placed
horizontally or with sharp edges/points
facing down to avoid risk of in iury.

©ete gent dispenser
Only use pewdered detergent recommended for domestic eutomedc dishweshers in the
detergent dispenser.
Dishwesher detergents ere strongty etkaline end ten be dengerous if swettowe&
Avoid contect with skin end eyes.
Keep children end infirm persons ewey from the OishOrawer _when the drawer is open,
Check that the detergent receptede is empty a#er compfedon
of the wesh cycle.
Do not ptece dishwasher table% in the a,b--
detergent dispenser
Detergent and dishwasher tablets should not e --
be in direct contact with dishes or cutlery°
Mquid detergents are not suitable to be used in
the DishDrawe/t
Hand washing liquids, soap, laundry detergen%
or disinfectants wilt damage the DishDrawer®o
Closed detergent dispenser
Filling the detergent dispenser
1 Press the latch down and the door will open.
2 Pour in detergent. No detergent is needed for the Rinse
program.
3After filling the main wash compartment, close the dispenser
door until it clicks shut. The detergent will automatically be
released into the DishDraweP during the wash program.
Open detergent dispenser
Pre Wash Compartment
lOg /2 teaspoon capacity
b Main Wash Compartment
30g /6 teaspoon capacity
c Detergent Dispenser Latch
d Rinse Agent Indicator Light
e Rinse Agent Plug

Detergent dispense
Detergent quantities
The detergent quantities recommended below are for individuaBdrawers.
Hard (>150ppm or >9gpg)
Medium (100-150ppm or 6-9gpg)
Soft (<100ppm or <6gpg)
AlP
All-_
Heavy
Normal
Delicate
_JFast
2
2
1
1s
6
4
3
2
1
1
_ No detergent is required in the pre wash compartment for the fast wash program,
Hard water situations
If you live in a hard water situation, we
recommend the installation of a household
water softener to improve the water quality,
detergent effectiveness and prevent the
build-up of calcium deposits on dishes and
in the DishDrawert
Soft water situations
If you live in an area of naturally soft water
or your household water is softened,
avoid using too much detergent in your
DishDrawert An excess amount of detergent
is very aggressive on glassware and may
cause irreversible etching.
Certain brands of dishwasher detergent
contain varying quantities of phosphates,
which help soften water. We suggest
you use a detergent with high phosphate
content to improve the wash. The detergent
compartments need to be completely FULL
and rinse agent is used with its setting fixed
at 5.
We recommend the use of a dishwasher
deaner/descaler whenever you notice
a build-up of cakium deposits in your
DishDrawert
After you have used the dishwasher
deaneridescaler you must run another
wash program with detergent to prevent
damage to the DishDrawert
Etching is a chemical deterioration that
occurs on the surface of glassware when
it is subiected to high temperatures, too
much detergent and/or soft water situations.
Etching is caused by a combination of very
hot water, which causes the detergent to
become very aggressive, but because the
water is soft, there are no water hardness
mineral ions for the detergent to bind to,
so it extracts mineral ions directly from the
@ass,
Etching looks like rainbow-colored film, as
the glass is sub iected to further washing the
surface will eventually appear opaque. This
type of etching is irreversible,
To prevent further etching from occurring
on glassware, use less detergent (follow the
recommended detergent quantities in the
User Guide for soft water situations), and
ensure the dishwasher is not overloaded,
so water can reach all the dishes during the
wash.

Rinse agent dispenser
We highly recommend the regular use of liquid rinse agent to give the best drying results, Rinse
agent gives a streak free, sparkBing dean look to gBass and chinaware, in addition it
prevents metal from tarnishing. The rinse agent dispenser is on the inside of each drawer,
located underneath the detergent dispenser. The dispenser holds approximately 1.7 fl oz (50 ml)
of rinse agent.
Fillingthe rinse agent dispenser
1 Turn the plug counter-clockwise and remove.
2 Pour the rinse agent into the circular opening.
3 Take care not to spill rinse agent into the
DishDraweP. Any spillages must be wiped up to
prevent excess foaming. Failure to wipe rinse agent
spillages may result in a service call which will not be
covered by warranty.
4 Fit the plug back into the original position.
How much rinse agent to use
The regulator may need adiusting to suit your water conditions. The lowest setting is'l'and
the highest is'S'. Refer to Option Adiustments section to adiust the rinse agent setting. If there
is excessive foam at the end of the wash, reduce the setting. If dishes are wet or streaky after
drying, increase the setting.
Rinse agent indicator light
If the rinse agent indicator light is red, refill the dispenser. If the rinse agent indicator light is
dimly lit or not lit at all, there is enough rinse agent for the wash,
Note:
Lighter colored rinse agents will not dim the indicator light as effectively as darker colored rinse
agents.
When the rinse agent is being dispensed, you may notice some unusual noises during the wash,
this is normal

Option adjustments
The following options can be adjusted to suityour preferences,
Rinse Agent setting
Reduce the Rinse agent setting if there is excess foam after a wash program.
Increase the Rinse agent setting if dishes are wet or streaky after a wash program.
Auto Power setting
By default, DishDraweP will automatically turn on whenever the drawer is opened. Washing will
not start until the drawer is closed and the _ll button has been pressed. If you do not want the
DishDrawed _to turn on automatically', this feature can be turned ofL
End of Wash Program Beeps
Bydefault, DishDraweP will beep sixtimes at the end of awash program, This feature can be
turned ofL
CJosed Drawer option
The Closed Drawer option will lock the DishDraweP when the drawer is closed. When you wish
to open the drawer, press the O button. When the drawer is fully closed again, the lid will
automatically seal and lock after 30 seconds. If the Lock feature is used in con.iunction with the
Closed Drawer Option, pressing the O button will not unlock the drawer. The Lock feature
must be turned offto enable DishDraweP to be opened.
Note: this option is highly recommended if the DishDrawer is to be used in motor homes,
