DDS OA Kneetrac User manual

Bi-Compartmental OA Knee Decompression
USER MANUAL
disc disease
solutions

www.DDSbelt.com

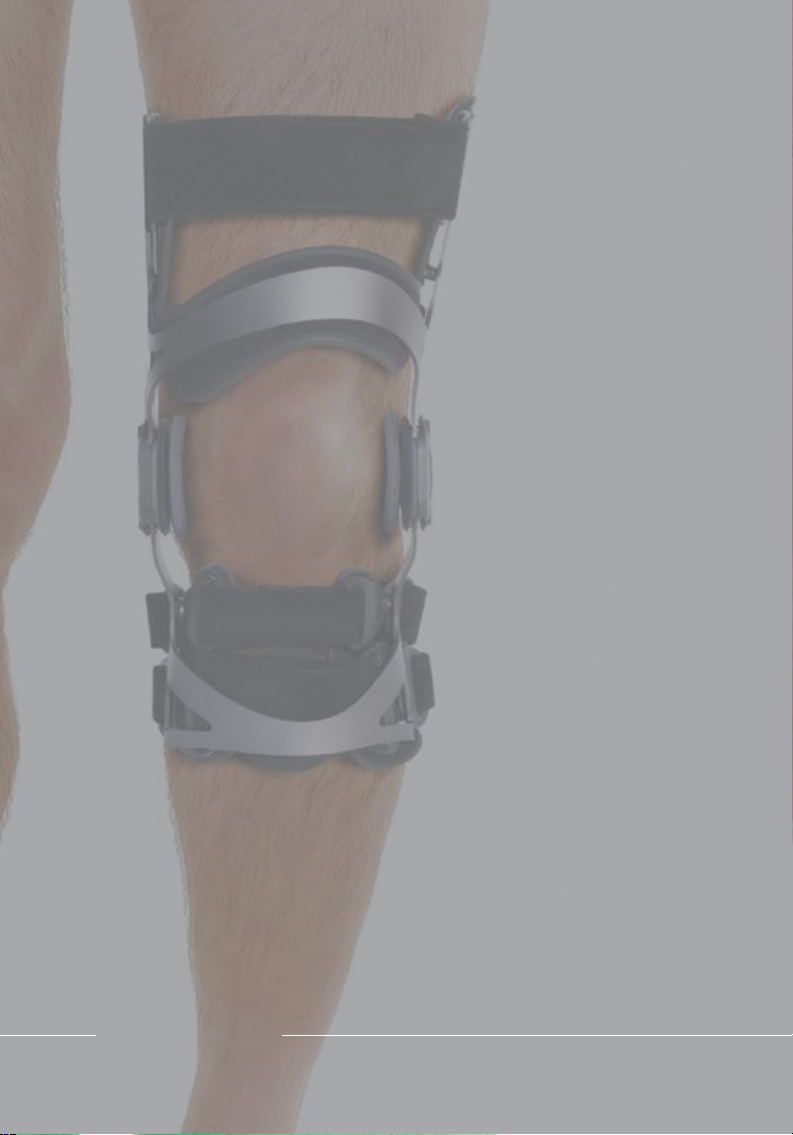

Thank you for choosing DDS
and welcome to an enjoyable life,
free from knee pain.

Table of Contents
3Table of Contents
4Safety Warnings
5What’s Inside the Box
6Recommendations for Eective Use
7How to Wear the Product
9Angle Lock System
11 OA KneetracTM Knee Extension Overview
13 Maintenance
14 Warranty
15 Registration & Warranty Card
Table of Contents 3

4 Safety Warnings
1 READ this manual carefully to ensure proper use of the OA KneetracTM.
2 ALWAYS follow the advice of your physician before wearing the brace.
3 DO NOT wear an OA knee brace on both knees at the same time.
4 IMMEDIATELY discuss with a specialist if you feel any discomfort, pain,
swelling and/or poor blood circulation. It’s especially important for patients
with peripheral vascular disease, neuropathy and/or sensitive skin.
Safety Warnings

What’s Inside the Box 5

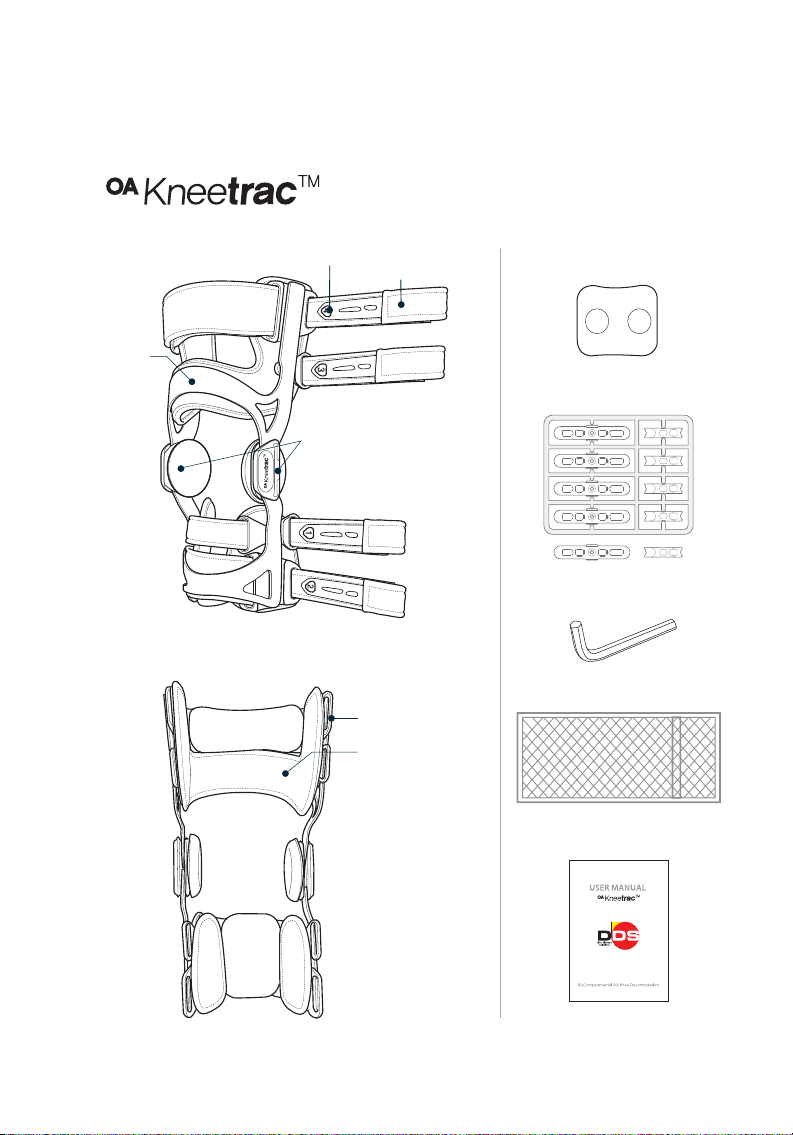

What’s Inside the Box
Knee support
main frame
Strap handle
Center Connector (Hinge)
The angle stopper is located
inside of the center connector/hinges
Angle Stoppers
Allen Key
Laundry Bag
Manual
Strap Ring
Sponge Pad
Rigid Guard
Strap
Front
Back
60ºFLEX
EXT
45ºFLEXEXT
30ºFLEXEXT
15ºFLEX
EXT
0ºFLEXEXT
45º
60º
75º
90º
106
º

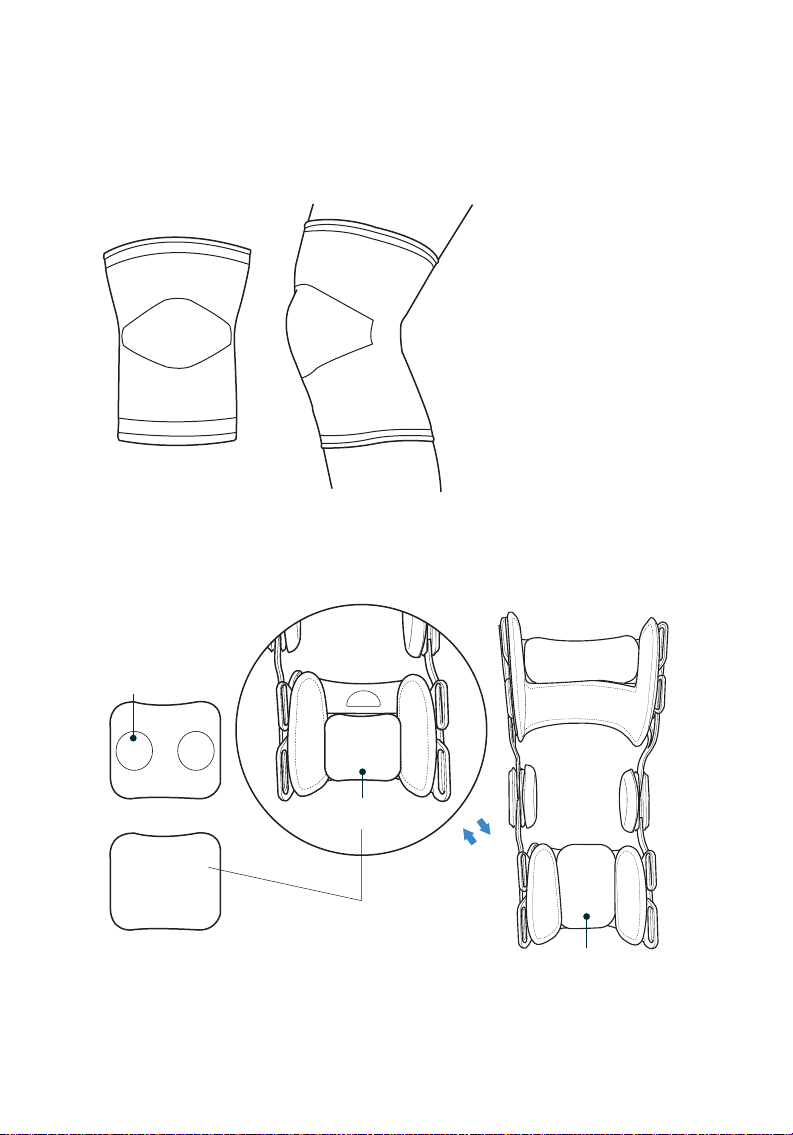

Recommendations for Eective Use
Elastic Knee Sleeve (Not Included)
Rigid Guard
An Elastic Knee Sleeve worn under the DDS OA KneeTracTM may help prevent
brace migration.
The Rigid Guard can be added in place of the shin sponge pad if there is discomfort or
pain experienced on the shin when wearing the brace.
6 Recommendations for Eective Use
Front
Back Sponge Pad
Rigid Guard
Velcro

How to Wear the Product
Sit on a stable chair and extend your leg. Place the brace on your knee so that the
hinge is centered with the knee.
1
1
2
3
4
1
2
3
4
2
The brace must only be worn on the knee it was assigned to by your physician.
How to Wear the Product 7
With the leg extended and only slightly bent, fasten strap #1 (as indicated on the handle)
rst. Then, apply strap #2 in the same fashion.
4 5
1
2
3
42
3
4

How to Wear the Product
8 How to Wear the Product
12
6 7
3
4
4
8
IMPORTANT : The center connector(hinge) must be precisely aligned with the knee.
After securing the Brace, take a few steps to check your comfort as well as the
traction strength.
Straps that are too tight can cause poor blood.
Straps that are too loose will not provide the desired traction.

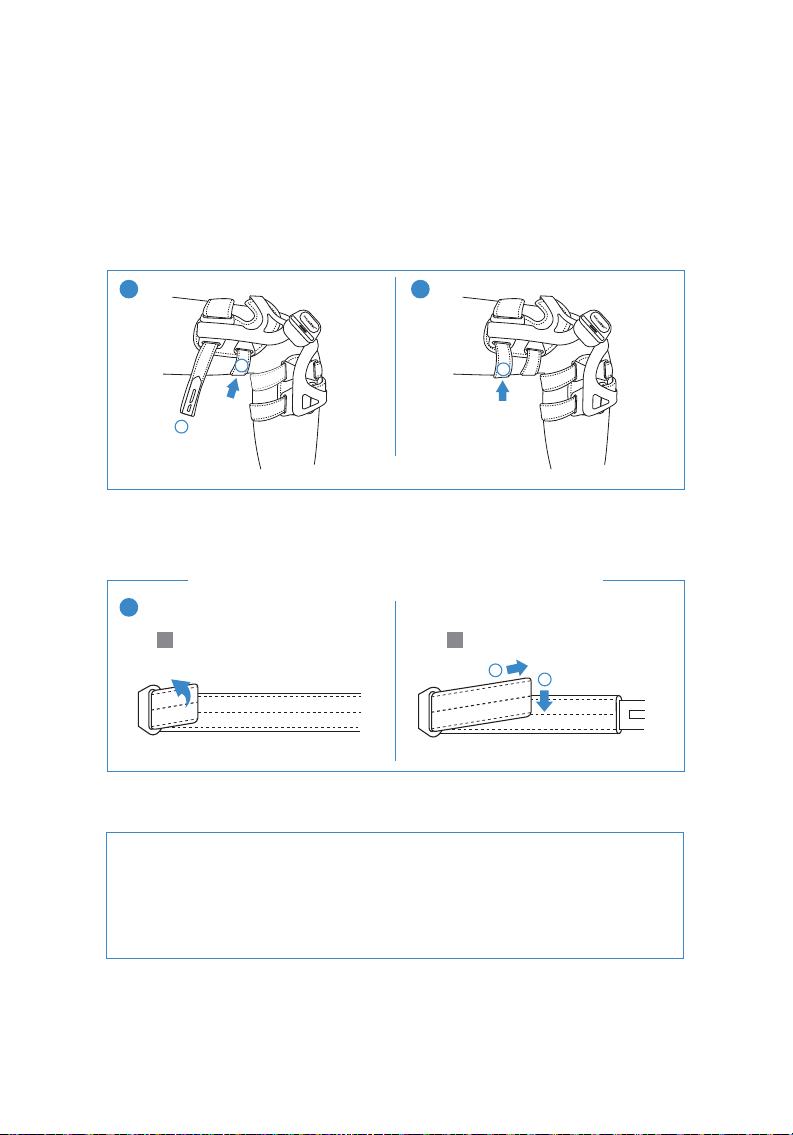

AB
Remove the adjustable velcro.
: The length of each strap can also be adjusted
Adjust to the correct length.
Bend the knee in a 90 angle when fastening straps #3 and #4. If the center connector (hinge)
is too high or too low compared to the knee, adjust the height appropriately.
OPTIONAL

Angle Lock System 9
Extension
Stopper Flexion Degree Indicator
EXT 0 and FLEX 106 are already attached to the frame.
Flexion
Degree
Indicator
Flexion
Stopper
Angle Stopper
Angle Lock System
The Angle Lock System controls the angle and the range of motion with respect to knee
extension and knee exion by combining various EXT and FLEX Angle Stoppers.
IMPORTANT : Only use the Angle Locks when recommended by your physician.
60ºFLEXEXT
45ºFLEXEXT
30ºFLEXEXT
15ºFLEXEXT
0ºFLEXEXT
45º
60º
75º
90º
106
º
EXT Stoppers control the degree of knee extension.
FLEX Stoppers control the degree of knee bend.

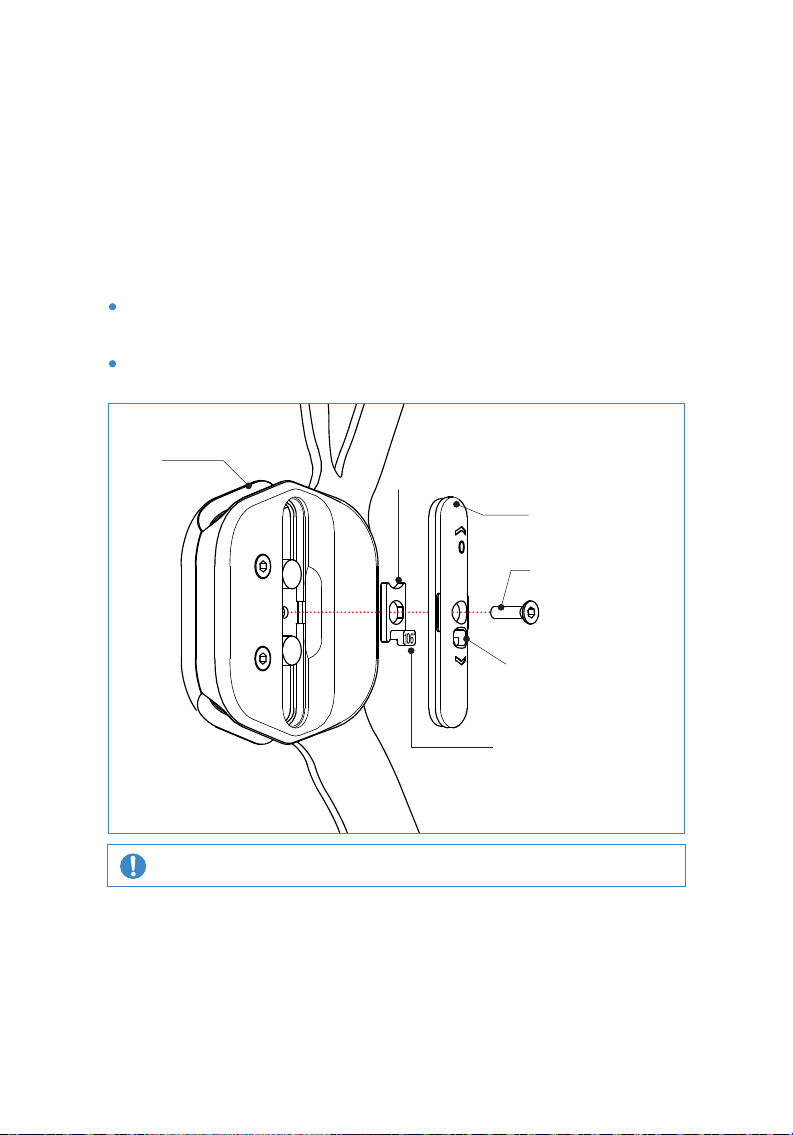

How to Secure the Angle Stopper
The Angle Lock System is installed inside the center connector(hinge).
Remove the sponge padding to access.
Attach the exion stopper [A] with the extension stopper[B] so that the exion degree[C]
snaps in to the exion degree indicator[D].
Tighten the screw[E] with the allen key to attach stoppers to the Hinge[F].
[F]
Hinge
[E]
Screw
[D]
Flexion Degree
Indicator
[C]
Flexion Degree
[A]
Flexion Stopper
[B]
Extension Stopper
10 How to Secure the Angle Stopper
The Angle Stopper must be applied to both sides of the brace.

Increasing EXT degree while keeping FLEX
at 106ºrestricts the extension of the knee.
Knee Extension Overview
EXT 0º/ FLEX 106º
• Angle Restriction: 0º
• Range of Motion : 106º
0ºFLEX
EXT
106
º
0º
106º
106º
EXT 15º/ FLEX 106º
• Angle Restriction: 15º
• Range of Motion : 91º
15ºFLEX
EXT
106
º
0º
0º
15º
15º
91º
91º
106º
106º
EXT 30º/ FLEX 106º
• Angle Restriction: 30º
• Range of Motion : 76º
30ºFLEX
EXT
106
º
0º
30º
76º
106º
EXT 45º/ FLEX 106º
• Angle Restriction: 45º
• Range of Motion : 61º
45ºFLEX
EXT
106
º
0º
45º
61º
106º
EXT 60º/ FLEX 106º
• Angle Restriction: 60º
• Range of Motion : 46º
60ºFLEX
EXT
106
º
0º
60º
46º
106º
OA KneetracTM Knee Extension Overview 11

12 OA KneetracTM Knee Flexion Overview
Decreasing FLEX degree while keeping
EXT at 0ºrestricts the bending of the knee.
Knee Flexion Overview
EXT 0º/ FLEX 106º
• Angle Restriction: 0º
• Range of Motion : 106º
0ºFLEX
EXT
106
º
0º
106º
106º
EXT 0º/ FLEX 90º
• Angle Restriction: 16º
• Range of Motion : 90º
0ºFLEX
EXT
90
º
0º
90º
16º
EXT 0º/ FLEX 60º
• Angle Restriction: 46º
• Range of Motion : 60º
0ºFLEX
EXT
60
º
0º
60º
46º
EXT 60º/ FLEX 45º
• Angle Restriction: 61º
• Range of Motion : 45º
0ºFLEX
EXT
45
º
0º
45º
61º
EXT 0º/ FLEX 75º
• Angle Restriction: 31º
• Range of Motion : 75º
0ºFLEX
EXT
75
º
0º
75º
31º
0º
90º
16º

Maintenance for OA KneetracTM 13
Maintenance for OA KneetracTM
1 Main Frame of the Knee Brace
- Clean with a damp cloth and let it dry in the shade.
2 Sponge Pads
- Remove the sponge pads and place them in the laundry bag
provided with the Brace.
- Use neutral detergent and select a light cycle.
- Air dry in the shade. Only use when completely dry.
DO NOT
IRON
DO NOT
BLEACH
DO NOT
DRY-CLEAN
DO NOT
WRING

Limited 1 Year Warranty
DDS, Inc. will repair or replace the unit free of charge for a 1 year period from
the date of purchase. The warranty is covered only if the device is defective in
workmanship or materials.
To obtain service under this warranty, please mail the warranty card at the
time of purchase. You may then return the defective product to the service
center on the warranty card, together with your purchase receipt and $5.00
postage and handling. In the absence of a purchase receipt, an invoice must
to be produced from the seller. This warranty does not apply for any misuse
and/or deliberate mishandling of our products.
Any implied warranty, obligations or liabilities, including but not limited to the
implied warranty of merchantability tness for a particular purpose, shall be
limited in duration to the 1 year duration of this written, limited warranty.
Some states do not allow limitations on how long an implied warranty lasts, so
the limitations may not apply to you.
In no event shall DDS be liable for any special, incidental or consequential
damages for breach of any other warranty, express or implied whatsoever.
Some states do not allow the exclusion and the limitation may not apply to you.
This warranty gives you specic legal rights. These rights may vary according
to your state laws.
Warranty
14 Warranty

Registration & Warranty Card 15
www.DDSbelt.com
Registration / Warranty Card
FIRST NAME: MI: LAST:
ADDRESS 1:
ADDRESS 2:
CITY: STATE: ZIP:
PHONE (DAY): (EVENING)
PRODUCT INFORMATION
DATE OF PURCHASE:
DDS MODEL:
HOW DID YOU BECOME AWARE OF DDS?
DDS OA KneetracTM
MAIL TO SERVICE CENTER:
DDS, INC.
100 Commerce Way, Suite 5
Hackensack, NJ 07601 U.S.A.

www.DDSbelt.com
Disc Disease Solutions, Inc.
100 Commerce Way, Suite 5
Hackensack, NJ 07601
U.S.A.
Tel: [phone]
Fax: [phone]
[email protected]
For Canada please contact
Tel: [phone]
[email protected]
