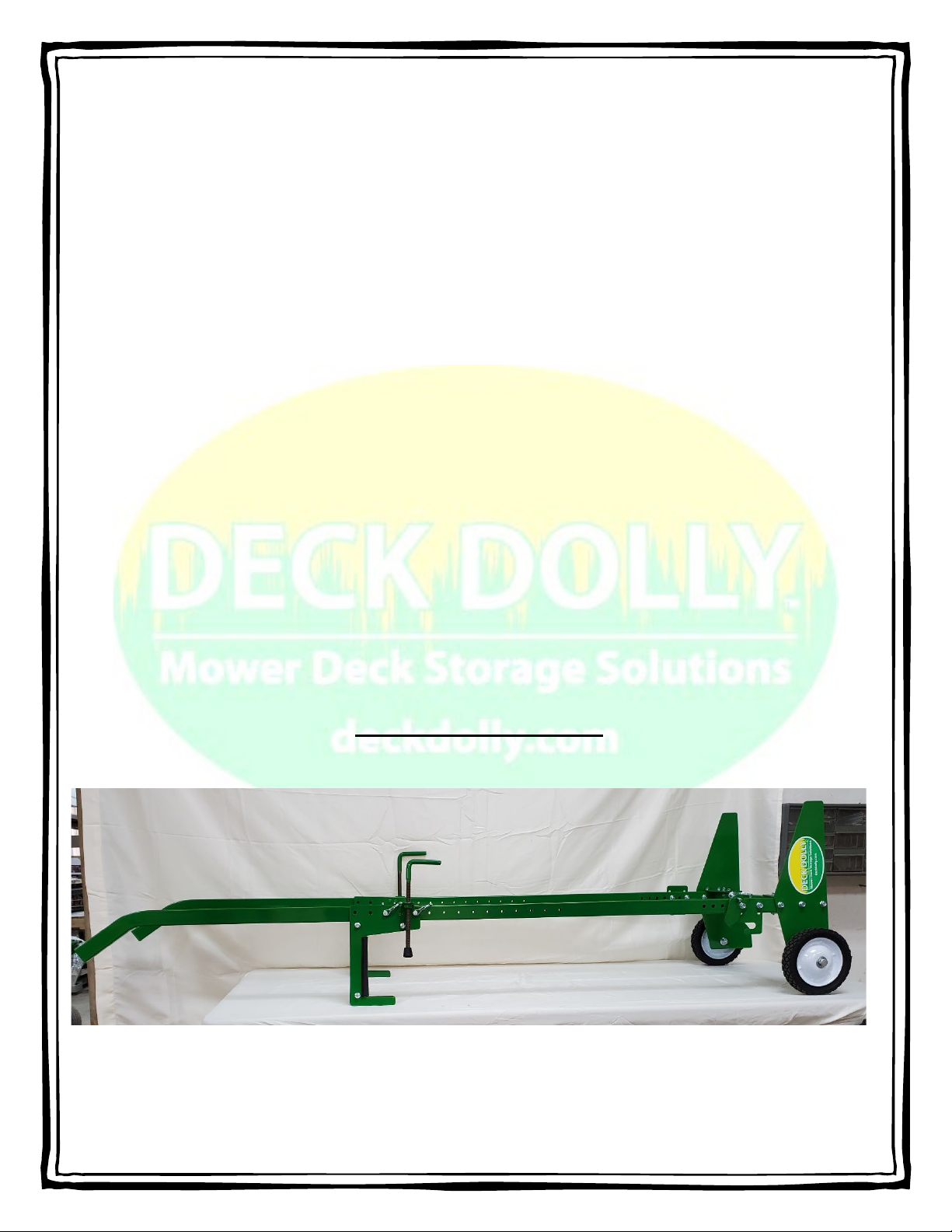

DECK DOLLY JD 1023E User manual

1
ASSEMBLY INSTRUCTIONS
(To be used with the following models)
2020 and Newer JD 1023E & 1025R with 54D (pictured) or 60D deck
JD 2025R, 2032R, 2038R, 3033R, 3039R, 3046R

2
IMPORTANT!!
After assembly, please be sure to operate the Deck Dolly on hard
surfaces only. Standing the Deck Dolly in the upright position on
soft or uneven surfaces may lead to injury and/or damage.
Please read through the instructions before beginning assembly.
Assembly Instructions
1) Open packaging and inspect to ensure contents are complete.
2) Contents (for all models) should be as pictured below:
2 - 7” Tires with hardware
Bottom Cross Support, Tube,
and 4 Brackets with hardware.
2 - Base Plates with hardware
Upper Deck Bracket Kit

3
2 Uprights with end plugs.
Lower deck bracket assembly, 1 each side.

4
3) Preassemble the bottom cross support tube and brackets as shown below while
leaving the nuts loose.
4) Preassemble the Upper Deck Brackets as shown below with the included hardware.
These may be tightened.
The brackets may be used interchangeably on either side depending on your situation
and should be assembled with a left and right bracket. TIP: You will have to cut the trim
lock to install to your liking for protecting your deck. Using a hair dryer or similar will
help you with installing the trim lock.
5) Preassemble the Base Plates and Tires as shown below. The regular nut should be on
the inside and the serrated nut should be to the outside of the base plate. Take care
to tighten the bolt and nuts to allow the tire to spin freely but not be loose on the
bolt.

5
6) Tap warm end caps carefully into Uprights as shown below. Caps can be fragile when
cold. See below.
7) Assemble the bottom cross support tube and brackets as shown below hand tight.
8) The Base Plate may be tightened when assembled as shown below.
