HANGINGFIREPLACE,MODEL:URBAN104A

CONTENTS:
Safetyinstructions……………..……………..….p.2
Hangingfireplaceinstallation…………………p.3
Burnerinstallation.………………………………..p.3
Burner………………...…………....………………….p.3
Combustible…………………...…………………….p.3
Instructions………………………….....……………p.4
‐Generalrules
‐Filling
‐Lighting
‐Extinguishing
‐Whileusing
Cleaningtheburner...……………………………p.5
Cleaningthefireplace…………….……………..p.5
Warranty....................................................p.6



Pleasenoteyourmodel&serialnumbershere:
_______________________________
Modelnumber
_______________________________
Serialnumber
_______________________________
Purchasedate

Readcarefullybeforeusingyourfireplace.


2
Keeptheseinstructionsforfuturereference.

SAFETYINSTRUCTIONS
Readandfollowthebelowinstructionsbeforeusingthisdevice.
Notrespectingtherulesmaycauseseriousinjury(especiallyburns)fortheuserandothersnearby,as
wellasbecomingafirehazard.
The«decoflame »fireplaceisfordecorativepurposesonly,andnottobeusedasyourmainheat
source.
Keepchildrenandpetsawaywhileoperatingthefireplace,especiallywhilelightingitup.
Caution!Ifyourwalliscoveredwithwallpaper,woodvarnishADDPLYWOODTOCOVER
Anyfurniture,curtainsorotherflammablematerialsmustbelocatedatasafeandsecuredistance
fromtheunit.
Ensurethatthereissufficientaircirculationintheroom.
Neveruseanunventeddecorativedeviceinareaswhereflammablevapoursorgasmaybepresent.
Fastenthedeviceontothewallaccordingtotheinstructions.
Donotcoverthefireplace;donotplaceanymaterialorclothesonthefireplace.
Neverlightthecombustiblefuelinaburnerthatisnotproperlypositioned.
Onlyuse«decofuel »combustiblefuelinyourfireplace.
Neveruseanyfuelotherthanthefuelspecificallyidentifiedforuseinanunventeddecorative
appliance.Neverusegasoline,solvents,methylatedorburningalcohol,thinner,ethanolgel,etc.
Theuseofanethanolgelisstrictlyprohibitedsincethiswillrenderyourtankunusable.
Donotcombineanyotherfueltothe«decofuel »fuel.
Donotsmokewhilehandlingthecombustiblefuel.
Lighttheburnerwiththelightingrod.Byholdingthelightingrodawayfromyouslightlysoaktheend
oftherodinthe«decofuel »fuelinordertouseitasalightingdevice.Lighttherodwithalighter
(viewillustrationinappendix).
Donotusepaperornewspapertostartthefire.
Neveraddfuelifthefireplaceispartiallystarted.
Neverrefilltheunventeddecorativeappliancefuelreservoirwhentheunventeddecorativeappliance
isoperatingorstillhot.
Donotfillthefueltankcompletelyandusetheadjustablepourertodoso.Ifthe«decofuel »fuel
spillsoutofthetank,wipeitwithanabsorbentpaperbeforelighting.
Continuallymonitorthedeviceassoonasthefireisstarted.
Thesteelelementsofthefireplacecanbecomeveryhotwhilethecombustiblefuelisburning.Never
touchtheseelementswhilethefireplaceisinoperation,evenseveralminutesafteritisturnedoff.
Donotmovethefireplacewhileitislit.
Avoiddrafts.
Thisdevicewassubjectedtotestsforitsusewithglassdoors.Toreducefirehazardorinjury,never
removethedoors.
Donotuseadditionalpartsorotherproductsthatarenotdesignatedforusewiththisfireplace.
Thecombustiblefuelisahighlyflammableproduct.
Neverstoreortransportthefuelinanythingotherthanametalorplasticcontainerthatisacceptable
forusewiththespecifiedfuelinaccordancewiththeConsumerChemicalsandContainersRegulations
2001andistheoriginalcontainerforthespecifiedfuel.
Neverstorefuelinthesamelocationastheappliance.
Duetothehightemperatureofthefireplacesurfaces,keepchildrenatasafedistance.
Donotusetheunventeddecorativeappliancetoheatorboilwateroruseasacookingappliance.
Donotuseinaroomwithoxygentanks.


3
Neverusetheunventeddecorativeapplianceinareaswhereflammablevapoursorgasmaybe
present.
RiskofIndoorAirPollution–Usetheunventeddecorativeapplianceonlyinawell‐ventilatedareaand
withdoorsofadjacentroomsopen.Donotobstructairflowtothefuelholderboxbypilinglogsover
thefuelholdingboxorinanyotherwaywithanyothermaterial.Peoplewithbreathingproblems
shouldconsultaphysicianbeforeusingtheunventeddecorativeappliance.
Thefollowingorequivalentinformationforprovisionofcombustionandventilatingairforunvented
decorativeappliances:''Inahouseoftypicalconstruction,thatis,onethatisnotofunusuallytight
constructionduetoheavyinsulationandtightsealsagainstairinfiltration,anadequatesupplyofair
forcombustionandventilationisprovidedthroughinfiltration.Theunventeddecorativeappliance
shouldnotbeusedinasmallroomwherelessthan5.7m3(200ft3)ofairspaceisprovidedforeach
1000Btuperhouroftheunventeddecorativeappliancerating(consideringthemaximumburner
adjustment).Donotusetheunventeddecorativeapplianceinabathroom,aroomwheresleeping
accommodationisprovidedoranyothersmallroom.
Makesurethattheshutoffdeviceworksproperlybeforelighting.


INSTALLATIONOFTHEHANGINGFIREPLACEANDBURNER

ThemodelURBAN104Aiswall‐mounted.
Ahorizontalsupportandtwoverticalsupportsareprovidedwiththefireplace.
Determinethelocationofyourfireplace.Itmustbelocatedataminimumof12’’abovethefloor,ata
minimumof24’’fromtheceiling,andallowacleardistanceof12’’fromtherightandleftedgeofthe
unit.
Toattachthehangingsupport,refertothedrawingforinstallation.
Locate2wallstuds(obligatory),thatareat16’’centertocenter.
Attachthehorizontalsupport(no1)usingabubbleleveltoolwith2woodscrewsno.12x1½’’(no.3).
Putthe2verticalsupports(no.2)onthehooksofthehorizontalsupport(no.1)andensurethatthey
aresquare.Attachthemwith4woodscrewsno.12x1½’’(no.3).Youwillneedtwopeopletomove
thefireplace(no.4)intoposition,placeitontothehooksofthehorizontalsupport(no.1)bymatching
upthesquareholesatthebackoftheunitwiththehooks.
Makesurethatthefireplaceislevel.
Attachthe2verticalsupports(no.2)atthebaseofthefireplace(no.4)with2self‐tappingscrews
(no.5).
Placetheburnersupport(no.6)inthefireplaceopening.
Insertthecontainer(no.7)intheburnersupport(no.6).
Placethehatch(no.8)onthetopofthebio‐ethanolcontainer(no.7).
Usingthedesignatedholesinstallthewindowpanesonthefrontofthefireplace.Ensurethatthey
openandclosecorrectly.


BURNER

Fillingcapacity:ourmodelhasacapacityof1litreandatankof15%flood(.150litre).Whichgives2.75
hoursburningcapacitywhenthehatchiscompletelyopen.Youcanincreasethelengthto5hoursby
reducingtheflames’heightbysimplymovingthethrottleforward.Theburnerelementsare
removableandmustbeinstalledinthefireplaceaccordingtotheinstructionsbeforeignition.Thefuel
mustbepouredintheburnertank.
Ifanyspattersoccur,makesuretocleanitbeforelightingthefire.


4




COMBUSTIBLE

Onlyuse«decofuel »liquidfuel.
CAUTION:DONOTUSEPAPER,NEWSPAPERS,STRAW,KINDLINGWOODORANYOTHERFLAMMABLE
PRODUCTTOSTARTAFIRE.
Thecombustiblefuelisahighlyflammableproduct.Itshouldbekeptawayfromanyheatsources.
Neverplaceindirectsunlight.Donotstoreorcarryfuelinaplasticormetalcontainerthatisnot
designatedforthispurpose.Neverstorefuelinthesamelocationasthefireplace.Keepitinasafe
placeandkeepitawayfromchildren.
Incaseofingestion,inhalationand/orcontactwitheyesorskin,urgentlycontactthepoisoncontrol
centreorconsultaDoctor.



INSTRUCTIONS

Readandfollowtheinstructionsintheirentiretybeforeusingthefireplace.

Neveraddfuelwhenthefireplaceisfunctioning,waituntilthetankandthefireplacehascooled(waitatleast
15minutes)beforerefilling.

GENERALRULES:
Onlyusethefireplaceaccordingtotheseinstructions.
Donotusethefireplaceinabathroomoranyothersmallroom.
Minimumroomlimitations:1000ft3.
Thefireplacemustbeusedinaventilatedarea.
Noflammableobjectsmustbelocatednearthefireplace.


FILLING:
Fillthetankwiththeadjustablepourer(orfunnel).Becarefulnottoexceedthelevelindicator
(maximumof1.5Litres).Donotoverfloworsplasharoundthetank.Ifanyspattersarise,cleanthem
witharagorapapertowelinordertoabsorbtheexcess.Donotthrowthisragorpapertowelinthe
garbage;letitdryandkeepitawayfromthefire,childrenandpets,thendisposeofit.
Onlyuse«decofuel »fuel.


LIGHTING:
Thetrapmustbecompletelyopen.
Thefuelmustbekeptatroomtemperaturebeforeusage.
Lighttheburnerwiththelightingrod.Slightlysoaktheendoftherodinthe«decofuel »fueltank,
keepawayfromtheburner.Lighttherodwithalighter.
Closetheglassdoorscompletely.
Theadjustmentoftheheightoftheflamesismadebyusingthetrapknob.Pulltheknobtowardsthe
outsidetoobtainlowerflamesandpushtowardstheinsidetoobtainhigherflames.


5
Theflameswillreachtheirmaximumheightwithin15to30minutes,dependingonthecombustible
fueltemperature.Duringthisperiod,aslightodourmayappear.Ifnecessary,airouttheroomfora
fewminutes.
Letthefireburnuntilallofthefuelhasbeendepleted.Youcanextinguishthefireatalltimessimplyby
completelyclosingtheburner.Ifyouhavetorelightthefireplacewhenthefuelisstillhot,bevery
carefulasthegasresidueislikelytocausealargeflame.Donottrytoextinguishtheflameswithan
objectotherthanthedesignatedtrap.
Keepchildrenandpetsawaywhileoperatingthefireplaceandespeciallywhilelightingitup.Neveradd
fuelifthefireplaceisinoperation,waituntiltheburnerandthefireplacehavecooledbeforerefilling.
Donottouchthefireplaceortheburnerwhileitisinoperation:seriousburnsmayoccur.


EXTINGUISHING:
Keeptheglassdoorsclosed.
Pullthetrapdoorcompletelyclosed.



WHILEUSING:
Constantlymonitorthedeviceassoonasthefirehasbeenstarted.
HaveclassBfireextinctiondevicesnearby.
Incaseofaburn,callthenearesthospital.
ConsultaDoctorifindoubtofanysevereburn.
Ignitingthefireplaceimpliesthatyouhavecarefullyreadandwillfollowthesedirections.




CLEANINGTHEBURNER

Whenthecontentsoftheburnerhavecompletelybeenconsumed,waituntiltheburnerhascooled
beforemovingit.Aftereachuse,itisrecommendedtocleantheburnerusingaspongeorragand
soapywaterandthenrinsewithclearwater.Whentheburnerisdry,itcanberefilled.Iftheburneris
notcleanedaftereachuse,odoursmayoccur.
Afterseveraluses,theburnerwillturnlightbrownduetotheheat.Thiscanberemovedbyrubbing
withtheroughsideofasponge;alwaysrubinthesamedirectionasthestreaks.



CLEANINGTHEFIREPLACE

Allthefireplaceelementscanbecleanedinsoapywaterwithaspongeorarag,thenrinsewithclear
water.
Makesurethattheshutoffdeviceworksproperlybeforelighting.
Weguaranteethegoodperformanceofyourfireplacewiththeuseofthe«decofuel »combustible
fuelonly.







6

GARANTIELIMITÉE

decoflame garantitàl’aquéreuroriginal(venteaudétail)queceproduitneprésentepasde
défautsdematièreoudemaind’œuvre,ets’engageàréparerouàremplacer(àladiscrétionde
decoflame) gratuitementtoutproduitdéfectueuxpendantdeuxansàcompterdeladatede
l’achat.
Unepreuved’achat,sousformedereçudeventedaté,ticketdecaisse,etc.indiquantlenumérode
sérieetlemodèledevotreproduitseraexigéeavanttouteinterventiondenosconcessionnairessurle
produitsousgarantie.Vousdevrezobligatoirementassureràvosfraislalivraisonoul’expéditiondu
produitencasderéparationssousgarantie,ainsiquelarepriseouleretourduproduitaprès
réparation.


Wewishyouthebestmomentswithyour«decoflame »fireplace…




































7



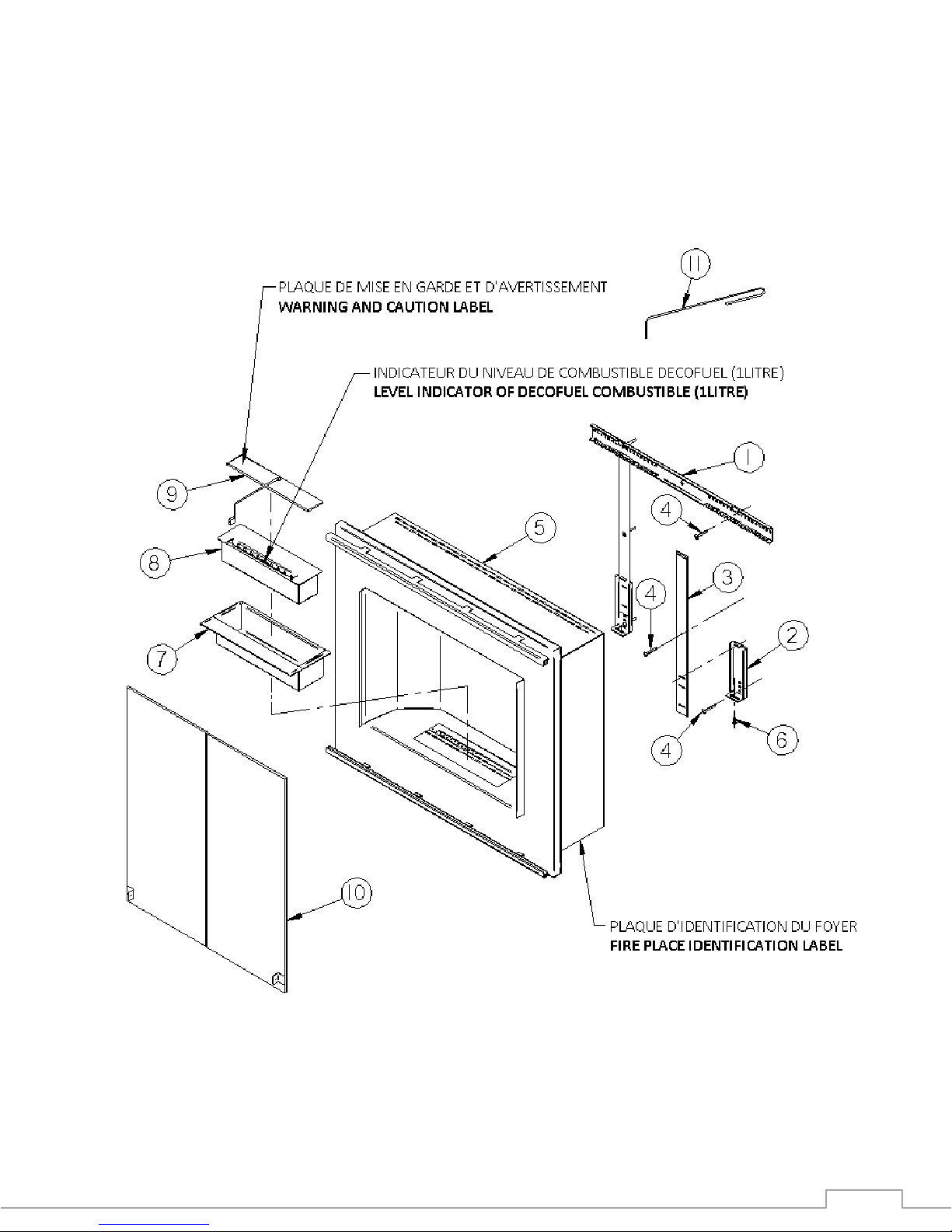

INSTALLATIONOFTHEHANGINGFIREPLACEANDBURNER:URBAN104A










