decoflame Atlantic Series User manual

USER MANUAL
INSTALLATION GUIDE

decoflame® Atlantic Series User Manual English – Version 3 – January 2013
2

decoflame® Atlantic Series User Manual English – Version 3 – January 2013
3
User Manual
wall-mounted decoflame® b oethanol
f replace ser es
Atlant c
Engl sh
It s mperat ve that you read th s manual before us ng the product
Keep the manual n a safe place for future reference

decoflame® Atlantic Series User Manual English – Version 3 – January 2013
Congratulat ons on your new decoflame
®
b oethanol f replace .
IT IS VERY IMPORTANT THAT YOU READ THE ENTIRE INSTALLATION AND OPERATING
INSTRUCTIONS AND ADHERE TO THE SAFETY MEASURES DESCRIBED HEREIN.
DECOFLAME CANNOT BE HELD RESPONSIBLE FOR ANY ACCIDENTS OR DAMAGES CAUSED AS
A RESULT OF NON-ADHERANCE TO THESE INSTRUCTIONS.
TABLE OF CONTENT
SAFETY..............................................................................................................................4
POSITIONING .....................................................................................................................6
OPERATING INSTRUCTIONS.................................................................................................7
MAINTENANCE ..................................................................................................................8
QUESTIONS AND ANSWERS.................................................................................................8
INSTALLATION .................................................................................................................11
Plasterboard walls........................................................................................................11
Concrete / Brick walls...................................................................................................12
Wooden walls..............................................................................................................12

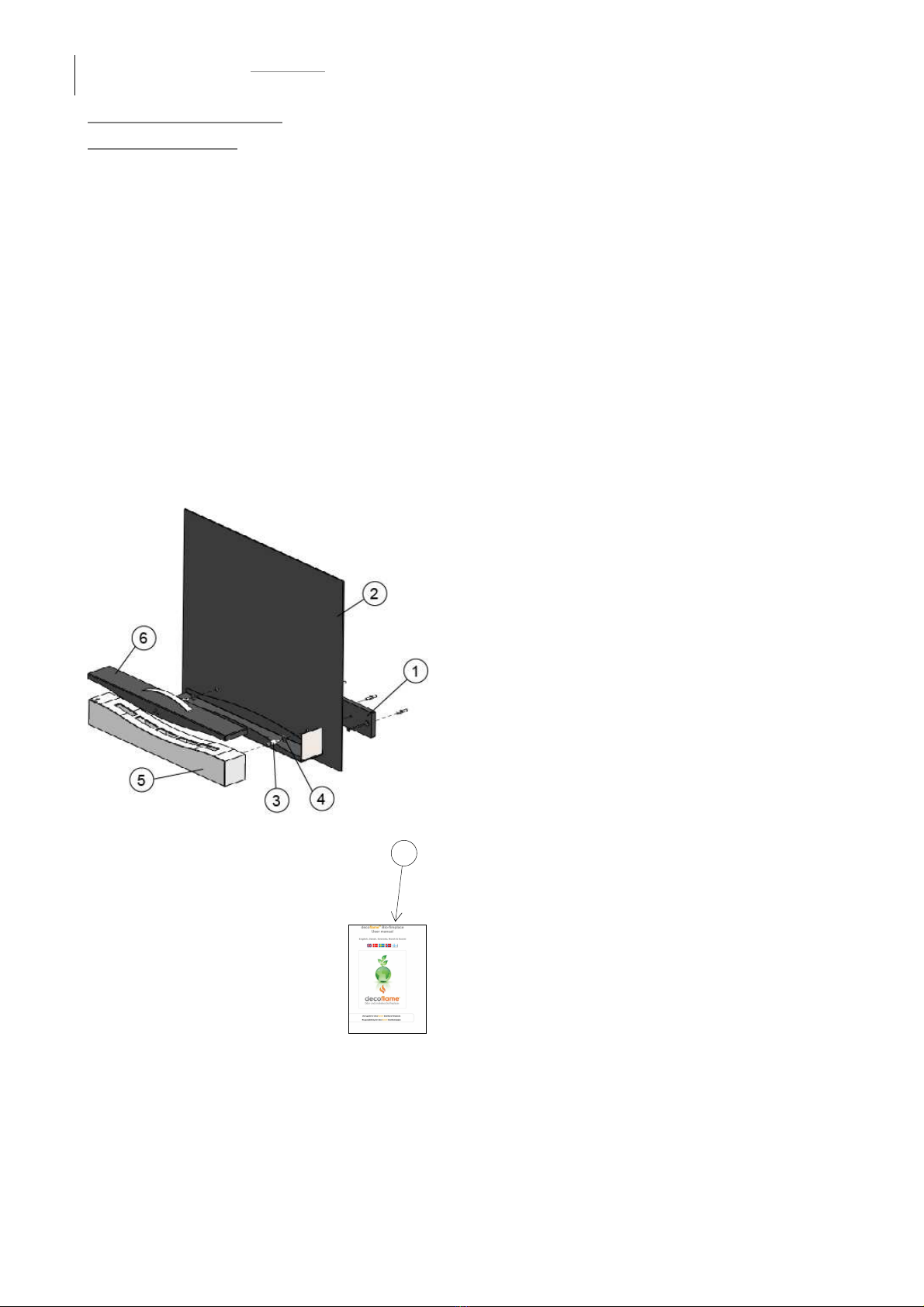

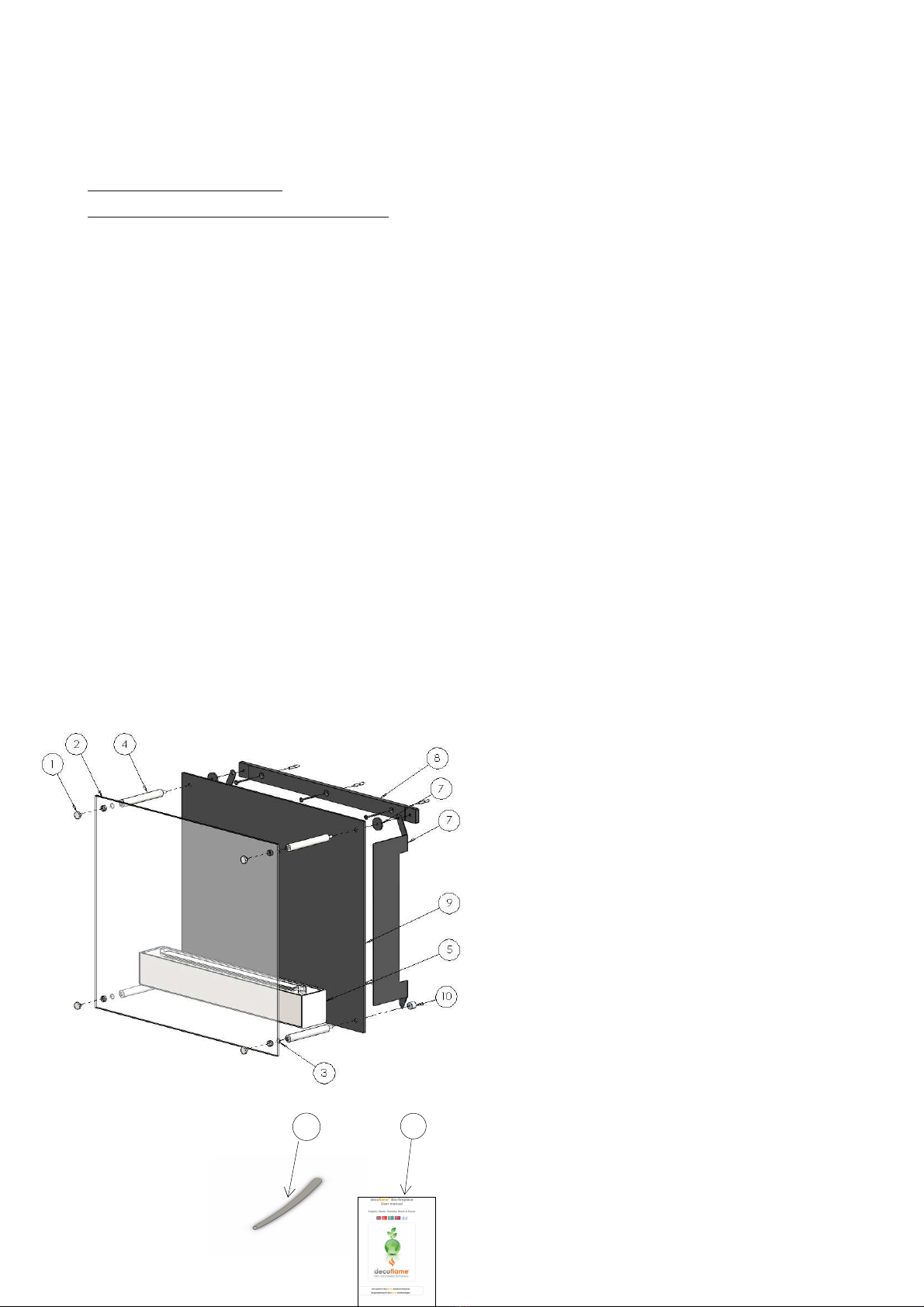

INSTALLATION GUIDE .......................................................................................................13
ATLANTIC AND ATLANTIC TOWER ......................................................................................13
INSTALLATION GUIDE .......................................................................................................14
ATLANTIC TWIN ...............................................................................................................14
INSTALLATION GUIDE .......................................................................................................15
ATLANTIC WAVE ..............................................................................................................15
SPECIFICATIONS ...............................................................................................................16
Atlantic .......................................................................................................................16
Atlantic Tower .............................................................................................................16
Atlantic Twin ...............................................................................................................16
Atlantic Wave ..............................................................................................................16
SAFETY
Naturally, safety is imperative dealing with open fire. All decoflame
®
fireplaces are designed,
manufactured and quality-tested in Denmark with highest product safety and user-friendliness
in mind. Our fireplaces feature a unique and design-protected decoflame
®
burner which is
thoroughly tested and its closing mechanism manually adjusted prior to leaving the production
line. Please strictly adhere at all times to all safety measures and installation instructions
described in this manual.

decoflame® Atlantic Series User Manual English – Version 3 – January 2013
5
Your decoflame® fireplace has been technically engineered to offer not only beautiful design
but also functionality and safety. DO NOT amend, add or omit any parts or components of this
fireplace as this will void your warranty.

decoflame® Atlantic Series User Manual English – Version 3 – January 2013
6
POSITIONING
Make sure that you install your fireplace in a safe place, which means with a distance of at least
one metre ( 0 in) from furniture, curtains or other inflammable objects (see drawing).
DO NOT place any valuable paintings or electronic equipment like TV screens or speakers above
the fireplace. The warm air from the fire will rise upwards and might damage anything in its
way.
DO NOT recess any of the Atlantic models into the wall. These fireplace models are not suited
to be built-in. If in doubt, please call Decoflame.
Also, chose a position for your fireplace which is not exposed to any draught, as bioethanol is a
volatile fluid. In fact, only the vapour of the bioethanol is burning when lit. You should not
touch the flames of the lit fireplace or blow into the flames, as this will cause the flames to
escape from the fireplace and they will become uncontrollable.
You may use this fireplace in conservatories only if their ambient temperature does never
exceed normal room temperature.
The fireplace must not be used in a room constructed of highly inflammable material.
Always keep a safety distance of at least 30 cm (12 in) from a lit fireplace.
When lit, the surfaces of the upper part of the fireplace will be warm, as the heat is led
upwards. DO NOT place anything on top of your fireplace.
When choosing a suitable height as position for your fireplace please also consider keeping it
out of reach of smaller children and pets.
Do you have children or pets in the home? If so, make sure an adult keeps an eye on them at all
times during operation of your fireplace and never leave your fireplace unattended when it is
lit.
If in doubt, please contact Decoflame.

decoflame® Atlantic Series User Manual English – Version 3 – January 2013
7
OPERATING INSTRUCTIONS
ALWAYS light and extinguish your decoflame
®
fireplace in a safe manner. ONLY adults may light
and extinguish the flames.
All decoflame
®
bioethanol fireplaces are designed and manufactured exclusively for use with
bioethanol of highest purity (at least 96% but not more than 97.5%). DO NOT use any other fuel
or materials or bioethanol of inferior quality as this will void your warranty.
We supply our own carefully chosen decoflame
®
bioethanol. Please ask for sourcing options at
your fireplace retailer.
Open a bottle of bioethanol and fill the fuel into the burner up to the max. level indicator. You
can use a funnel or a pump in order to avoid spilling. We recommend that you refill the burner
every time you wish to use the fireplace as this will make lighting it easier.
Never light a fireplace if you have spilled bioethanol outside the burner.
In case of spillage, wipe off any access bioethanol from the burner and surrounding surfaces
and empty the safety chamber underneath the burner. Then, wash your hands thoroughly
before lighting the bioethanol vapours (danger of burns to your sk n).
Use a long fireplace match or a fireplace lighter to light the vapours.
Keep an appropriate distance when lighting the fireplace.
DO NOT smoke when filling the burner with bioethanol.
DO NOT – under any circumstances – refill the burner when it is in use or still hot from
previous use.
DO NOT light the burner in case you have overfilled it! Partly empty the burner and the safety
chamber underneath from any excess bioethanol.
We recommend that you always let the fireplace burn until the complete bioethanol filling has
burnt off. Should you wish to extinguish the fire before the burner is empty, we recommend
that you fill the burner with bioethanol up to the max. level indicator before lighting it again. If
the burner is half empty or filled lower than the min. level indicator, the bioethanol gas on top
of the remaining liquid fills all of the empty space in the burner. If you were to light this "gas
accumulation", you would cause a little explosion. Furthermore, it can be difficult to light a
burner which is only half full.
Should it be necessary to extinguish the fire before the burner is empty, please ONLY use the
following method: place the hole in handle supplied with your fireplace on the stud of the
burner lid and slide the lid to a closed position by pulling it in a continuous, decisive movement
towards you. In this way, the oxygen supply is interrupted immediately and the flames are
extinguished. Should you not succeed at the first attempt, do try again until the flames are
extinguished. DO NOT attempt to blow out the fire!
IMPORTANT! Wait around 15 – 20 minutes or until you are certain that the burner has cooled
down before you refill it with bioethanol.

decoflame® Atlantic Series User Manual English – Version 3 – January 2013
8
The bioethanol must be stored safely and out of reach of children.
DO NOT cover the fireplace. DO NOT place any inflammable materials or clothes on the
fireplace. DO NOT place any pebbles or stones on the burner as these will crack and might
cause injury or damage to the fireplace. Also, DO NOT place any ceramic logs or pebbles on
top of the burner as these will increase the combustion temperature, which increases the fuel
consumption and might cause undesired micro-particles in the room air.
Ensure that the room in which the fireplace is situated is well ventilated at all times during
operation of your fireplace without causing any draught. Please refer to section
"Specifications" for recommendations of suitable room sizes for your fireplace.
The metal and glass parts of your fireplace can become hot during use. Avoid contact with
those parts to avoid burning.
DO NOT mix bioethanol with other fuels.
Always thoroughly follow the instructions on the packaging of the bioethanol.
Bioethanol is extremely flammable.
Avoid contact with eyes and skin.
We recommend that people with breathing problems or asthma keep a window opened during
the use of their bioethanol fireplace.
Avoid draughts, as this can cause soot formation and increases the fuel consumption.
MAINTENANCE
The surface of the inner metal sheet at the back of the fireplace can change slightly with time
due to exposure to the heat of the fire which leads to a slight change in colour or structure. This
is to be considered normal wear and tear and does not constitute a product flaw or fault. We
recommend cleaning the back with a dry sheet of kitchen paper towel followed by a well-wrung
wet lint-free cloth.
The burner is made of brushed stainless steel. You can clean it with a household detergent or
kitchen paper towel to which you apply a small quantity of bioethanol or another alcohol-based
product.
QUESTIONS AND ANSWERS
1. Where can I pos t on the b oethanol f replace?
You may position the fireplace anywhere, as no chimney or flue is required. For example, you

decoflame® Atlantic Series User Manual English – Version 3 – January 2013
9
could place it in your flat, house, holiday home – or in your office. See section "Positioning" for
more details.
2. Is any k nd of approval requ red?
It is important that you are aware of any local rules and regulations which might apply to the
use of bioethanol fireplaces. The model series decoflame
®
”New York”, ”Atlantic” (excluding
Atlantic Twin and Atlantic Wave) and ”San Diego” have been tested and approved by SP
Sveriges Tekniska Forskningsinstitut, which apply the strictest requirements in the marketplace.
3. Is t d ff cult to nstall a decoflame
®
f replace?
For all Atlantic models, you just need basic DIY skills, and follow the installation instructions
described herein using fixing utensils suitable for the wall you intend to hang the fireplace onto.
4. Is the f replace ready for use after unpack ng?
Once it is placed and fitted safely in accordance with the instructions given herein, the only
thing you need to add is bioethanol. You need to be aware, however, that SP Sveriges Tekniska
Forskningsinstitut recommends fitting of a fire-resistant plate between the fireplace and the
wall. See section "Installation Guide" for more details.
5. What s the best way to l ght the f replace?
Use long fireplace matches or fireplace lighters.
6. Is b oethanol dangerous?
Bioethanol is neither dangerous to humans nor the environment and it is biodegradable.
Bioethanol is alcohol which is made by means of fermentation of organic, sustainable and
environmental-friendly raw materials such as corn, potatoes and sugar cane. This alcohol is
then denatured, i.e. made unfit for human consumption. During combustion, water vapour and
carbon dioxide are created. Only the gas of the bioethanol burns, and bioethanol changes its
condition from liquid to gas form at around 15ºC (59ºF). The bioethanol gas is heavier than air,
so it will always remain on top of the surface of the liquid bioethanol. Make sure that you keep
the fuel in a safe place out of reach of children.
Denatured Bioethanol is classified as a Flammable Liquid Class 1B (for Flammability) and Class 3
PGII (for Transportation) and is regulated by various standards around the world. You must
familiarise yourself and comply with these regulations in order to safely and legally store,
handle, decant and use this fuel.
7. Is t dangerous to nhale the gas that s developed dur ng combust on?
When burning, bioethanol is dissolved into not much else but water vapour and CO
2
(carbon
dioxide). As the combustion temperature of your decoflame
®
bioethanol fireplace lies below
00ºC, there are not any other harmful substances (like aldehyde) released which usually occur
at combustion temperatures of over 700ºC. Always make sure that the room in which the
fireplace is situated is well ventilated (without causing a draught) in order to ensure a
sufficiently high level of oxygen (i.e. a good quality of your room air) during operation of the
fireplace – as fire consumes oxygen.
8. In wh ch quant t es s b oethanol suppl ed?
decoflame
®
bioethanol is available in various container sizes. In order to facilitate filling of the

decoflame® Atlantic Series User Manual English – Version 3 – January 2013
10
burner you should fill a smaller container with bioethanol and use this for pouring the liquid
into the burner using a funnel to avoid spillage. Alternatively, using a battery-driven pump has
proven helpful.
9. What s the burn ng durat on of one l tre of b oethanol?
Between 2-8 hours, depending on the model of fireplace, the room ventilation and setting of
the flame intensity.
10. Does the f replace g ve off much heat when n use?
The heat efficiency of the decoflame
®
Atlantic Series fireplaces varies between 2-6 kW/h – of
which 100% remain indoors (compared to a traditional wood-burning fireplace). Nonetheless,
our fireplaces are designed mainly for decorative purposes - they should only be considered a
supplement to any primary heating source.
11. Can paper and wood be used as fuels on the decoflame
®
f replace?
No, you may only use bioethanol – we recommend of at least 96.5% purity - in the burner.
12. How can the flame be ext ngu shed when the f replace s l t?
Ideally, and as recommended, you allow all of the bioethanol in the burner to be burnt. Should
you extinguish the fire at a time when there is still bioethanol left in the burner, please ONLY
use the following method for models Atlantic, Atlantic Tower and Atlantic Twin: place the hole
in handle supplied with your fireplace on the stud of the burner lid and slide the lid to a closed
position by pulling it towards you in one decisive continuous movement. If you wish to
extinguish your Atlantic Wave, please remove the magnetic lid from its position underneath
the burner and place it on top of the burner to extinguish the flames. Do not leave the lid there,
but place it back underneath the burner. You can close the burner later with the lid once it has
cooled down.
13. What shall I do f I have overf lled the burner?
DO NOT light the burner! Lift the burner out of its safety chamber (wear rubber gloves and
reach into the burner opening grabbing its top plate) and empty part of the bioethanol into a
container (bucket, bowl or similar – you can discard it into the toilet or kitchen sink and flush it
away with water as it is only alcohol) until the burner is only filled up to the max. level
indicator. Dry off any bioethanol from the top and the outside of the burner. Then use kitchen
paper to dry off any liquid from the safety chamber. Re-insert the burner into the safety
chamber. Remove the rubber gloves and light the burner.

decoflame® Atlantic Series User Manual English – Version 3 – January 2013
11
INSTALLATION
In order to install any Atlantic series model, only basic DIY skills are required. Please make sure
you only use wall plugs and screws made of metal and suited for the type of wall onto which
the installation will take place.
When installing your decoflame
®
Atlantic wall-hung fireplace you will need:
Power drill
Spirit level
Tape measure
Drill (suitable for the type of wall onto which you wish to hang the fireplace)
Rawlplugs/expansion bolts/butterfly screws and matching screws for the type of wall
Please follow those instructions below which apply to the type of wall onto which you wish to
fit your fireplace.
Plasterboard walls
For installation in accordance with the Swedish Norm SP03 , please fit a plate of fire-resistant
material (e.g. Delignit) behind the fireplace. This plate has to be fitted to the studs which run
behind the plasterboard sheets with screws which penetrate the studs by at least 5mm. Now
use butterfly screws in order to fit the mounting bracket onto the wall and anchor them behind
the plasterboard sheet. Each of those butterfly screws must be able to bear 50kg.
plasterboard sheet
stud
fire
-
resistant sheet
fire
-
resistant sheet

decoflame® Atlantic Series User Manual English – Version 3 – January 2013
12
Concrete / Br ck walls
Use stainless steel expansion bolts. Their anchor must reach at least 50mm into the concrete or
brick wall (excluding any plaster). Each bolt must be able to bear 50 kg.
50mm
Wooden walls
The screws have to penetrate the wooden construction by least 5mm. Each screw must be
able to bear 50 kg.
45mm
IMPORTANT: Use ONLY metal fixing devices.
concrete / bricks
plaster
mounting bracket
wooden wall
mounting bracket

decoflame® Atlantic Series User Manual English – Version 3 – January 2013
13
Atlant c Ser es
INSTALLATION GUIDE
ATLANTIC AND ATLANTIC TOWER
Before you start installation of your fireplace,
please check that the packaging is intact and
that all parts as listed below are included.
Contents of the box:
1. Screw-on caps for steel studs ( )
2. Glass screen, 6mm hardened glass (1)
3. Rubber O-rings ( )
. Brushed stainless steel studs ( )
5. Burner situated in safety chamber, and
slider lid (1 each)
6. Back plate (black aluminium) (1)
7. . Installation in Norway or Sweden: side
covers (2). Installation elsewhere: black
washers (2)
8. Mounting bracket (1)
9. Bolt screws with washers (2 each)
10. Distance pieces (2)
11. Handle for Slider (1)
12. User Manual (1)
Installat on of Atlant c and Atlant c
Tower
1. For each countersunk hole in the
mounting bracket first mark perfectly in
level and thereafter drill five holes into the
wall. Use for the type of wall suitable
metal rawlplugs/butterfly screws/
expansion bolts to fit the bracket.
2. Use the screws and washers to fix the
safety chamber onto the back plate. Take
two of the stainless steel studs and fix
them through the bottom holes of the
back plate with the two distance pieces.
Use the remaining two stainless steel
studs to fix both side covers (for installa-
tion in Norway and Sweden) and the back
plate to the mounting bracket by screwing
them through the top holes in the back
plate into the holes in the mounting
bracket. For installation in all other
countries, please use the two black
washers instead of the side brackets. Do
not force those studs into the threaded
holes! Do not screw them in completely
but leave them slightly loose.
3. Place the burner inside the safety
chamber and its slider lid on top of it - the
little stud facing to the right. Slide rubber
O-rings onto the four stainless steel studs,
place the glass screen onto the studs
resting it on the O-rings and fix with the
screw-on caps without tightening them
completely. Now tighten the upper studs
left and right. Tighten the screw on caps.
Should you find that a hole in the glass
screen seems out of place, unscrew the
relevant stud slightly which will help fitting
the glass screen.
11 12

decoflame
®
New York Series User Manual – Version 3.0 – January 2013
14
INSTALLATION GUIDE
ATLANTIC TWIN
Before you start installation of your fireplace,
please check that the packaging is intact and
that all parts as listed below are included.
Contents of the boxes:
1. Screw-on caps for steel studs (6)
2. Glass screen, 6mm hardened glass (1)
3. Rubber O-rings (6)
. Brushed stainless steel studs (6)
5. Burner situated in safety chamber, and
slider lid (2 each)
6. Back plate (black aluminium) (1)
7. Mounting bracket (1)
8. Bolt screws with washers ( each)
9. Distance pieces (3)
10. User Manual (1)
11. Handle for Slider (2)
Installat on of Atlant c Tw n
- Best done by two people -
1. For each countersunk hole in the
mounting bracket first mark perfectly in
level and thereafter drill five holes into
the wall. Use for the type of wall suitable
metal rawlplugs/butterfly screws/expan-
sion bolts to fit the bracket.
2. Use the screws and washers to fix the
safety chambers onto the back plate.
Take three of the stainless steel studs and
fix them through the bottom holes of the
back plate with the three distance pieces.
Use the remaining three stainless steel
studs to fix the back plate to the
mounting bracket by screwing them
through the top holes in the back plate
into the holes in the mounting bracket.
Do not force those studs into the
threaded holes!
3. Place the burners inside the safety
chamber and their slider lids on top of
them - the little studs facing to the right.
Slide rubber O-rings onto the six stainless
steel studs, place the glass screen onto
the studs resting it on the O-rings and fix
with the screw-on caps. Should you find
that a hole in the glass screen seems out
of place, unscrew the relevant stud
slightly which will help fitting the glass
screen.
10 11

decoflame
®
New York Series User Manual – Version 3.0 – January 2013
15
INSTALLATION GUIDE
ATLANTIC WAVE
Before you start installation of your fireplace,
please check that the packaging is intact and
that all parts as listed below are included.
Contents of the box:
1. Fixing Bracket (1)
2. Black glass screen (1)
3. Stainless steel bolt screws (2)
. Fibre washers (2)
5. Burner (1)
6. Burner lid (1)
7. Manual (1)
Installat on of Atlant c Wave
1. For each countersunk hole in the
mounting bracket first mark perfectly
in level and thereafter drill five holes
into the wall. Use for the type of wall
suitable metal rawlplugs/butterfly
screws/expansion bolts to fit the
bracket.
2. Use the two bolt screws and washers
(in front of the glass screen) to fix the
glass screen through its two holes
onto the mounting bracket.
3. Take the burner and fit its two hollow
stainless steel studs over the two bolt
screws. The two washers are now
between the metal of the hollow
studs and the glass screen. Fix this
connection carefully without over-
tightening with the two enclosed
screws.
. Place the lid on top of the burner.
7

decoflame
®
New York Series User Manual – Version 3.0 – January 2013
16
SPECIFICATIONS
Atlant c
Room volume:
Min. 56m³
Heat Eff c ency:
Max. 3 kW
Burner volume:
3.5 litres of bioethanol. Only use bioethanol of at least 96% for decoflame
®
fireplaces.
Burn ng durat on:
One burner filling will last around – 8 hours, depending on flame intensity and air flow.
Approval:
Tested and approved by SP Sveriges Tekniska Forskningsinstitut.
Atlant c Tower
Room volume:
Min. 0m³
Heat eff c ency:
Max. 2 kW/h
Burner volume:
2.5 litres of bioethanol. Only use bioethanol of at least 96% for decoflame
®
fireplaces.
Burn ng durat on:
One burner filling will last around – 8 hours, depending on flame intensity and air flow.
Approval:
Tested and approved by SP Sveriges Tekniska Forskningsinstitut.
Atlant c Tw n
Room volume:
Min. 100m³
Heat eff c ency:
Max. 8 kW/h
Burner volume:
2 x 3.5 litres of bioethanol. Only use bioethanol of at least 96% for decoflame
®
fireplaces.
Burn ng durat on:
One burner filling will last around – 8 hours, depending on flame intensity and air flow.
Atlant c Wave
Room volume:
Min. 0m³
Heat eff c ency:
Max. 7.2 kW/h
Burner volume:
litres of bioethanol. Only use bioethanol of at least 96% for decoflame
®
fireplaces.
Burn ng durat on:
One burner filling will last around – 8 hours, depending on flame intensity and air flow.

decoflame
®
New York Series User Manual – Version 3.0 – January 2013
17
For more info please visit www.decoflame.com
or contact Decoflame at [e-mail]
