Amantii TRV-45 BESPOKE Owner's manual

INSTALLATION AND OPERATION INSTRUCTIONS FOR
ELECTRIC FIREPLACE
TRV-45 BESPOKE BS2100045-1/EU4
TRV-55 BESPOKE BS2100055-1/EU4
TRV-65 BESPOKE BS2100065-1/EU4
TRV-75 BESPOKE BS2100075-1/EU4
TRV-85 BESPOKE BS2100085-1/EU4
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
WARNING: This product can expose you to chemicals including
lead in the wiring, which is [are] known to the State of California
to cause birth defects of other reproductive harm. For more
information visit: www.p65warnings.ca.gov
SAFETY INFORMATION
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other.
if the information in these instructions are not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss
of life.
WARNING
www.amantii.com
REVISED - 03/16/23
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

TABLE OF CONTENTS
Please read and carefully follow all of the instruction found in this manual. The instructions included
here will assure that you have many years of dependable and enjoyable service from your Amantii
Electric Fireplace.
IMPORTANT INSTRUCTIONS
CAUTIONS
PLUG INSTALLATION
UNPACKING AND TESTING APPLIANCE
LOCATING THE FIREPLACE
PRODUCT SPECIFICATION
HARDWIRE INSTALLATION
INSTALLATION
MODULAR INSTALLATION
MEDIA INSTALLATION
MANUAL OPERATION
REMOTE CONTROL OPERATION
TROUBLE SHOOTING
MAINTENANCE INSTRUCTIONS
ENVIRONMENT
REPLACEMENT PARTS
EXPLODED VIEW
WIRING DIAGRAM
ELECTRIC FIREPLACE WARRANTY
03
04
05
05
05
06
07
08
11
13
14
15
18
18
18
19
20
21
22
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

IMPORTANT INSTRUCTIONS
Please read the following instructions carefully before using the appliance.
Caution - Fire, electric shock, physical injury and material damage hazards:
To use the appliance, always follow the instructions for assembly, use and maintenance as well as usage cautions:
1. Carefully read and retain these instructions.
2. Before connecting the appliance, be sure that the mains voltage available matches that specified on the rating plate.
3. Do not use the appliance for other than its intended use. For domestic indoor use only.
4. There may be trace of odour during the first few minutes of initial use. This is normal and will quickly disappear.
5. The heater is hot when in use. To avoid burns, do not let bare skin touch any hot surface.
6. Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains etc. at least 1m away from
the heater.
7. Do not use the heater in areas where flammable liquids are stored or where flammable fumes may be present.
8. Do not cover or obstruct any of the heat outlet grilles or the air intake openings of the heater.
9. Do not use the heater in the rooms with explosive gas or while using inflammable solvents, varnish or glue.
10. Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust opening as this may cause
electric shock, or fire or damage to the heater.
11. Always unplug or disconnect the appliance from the mains power supply when not in use or when moving or
cleaning it. Do not pull the cord to unplug the heater.
12. Do not immerse the cord, plug or any part of the appliance in water or any other liquid.
13. Do not attempt to repair, disassemble or modify the appliance. There are no user-serviceable parts inside.
14. The heater must not be located immediately below a socket-outlet.
15. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
16. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be
supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on
and off by the utility.
17. Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches
the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
18. WARNING: In order to avoid overheating, do not cover the heater.
19. WARNING! – DO NOT COVER THIS APPLIANCE WITH ITEMS SUCHAS CLOTHING, BLANKETS OR PLACE
NEXT TO CURTAINS OR NET/BLINDS.
20. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
21. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their
own, unless constant supervision is provided.
22. If the glass is damaged, do not use the heater in order to avoid a hazard.
23. Children of less than 3 years should be kept away from unless continuously supervised.
24. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been
placed or installed in its intended normal operating position and they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved, Children aged from 3 years and
less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
25. CAUTION Some parts of this product can become very hot and cause burns. Particular attention has to be given
where children and vulnerable people are present.
26. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concern-
ing use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
27. The heater may emit a slight, harmless odour and smoke when first used. This odour and smoke is normal and it is
caused by the initial heating of internal heater parts and will not occur again.
28. DO NOT plug into an extension lead/cable or plug adaptor.
29. DO NOT cut off the plug and hardwire directly into the mains or via a fused fixed spur.
30. For details about installing the fireplace, please refer to “Installation” section.
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
Always make sure the electrical socket is accessible and located adjacent
to, but not above the heater.
Always disconnect the heater from the electrical supply before moving it, or
carrying out cleaning, maintenance.
Always make sure the heater is firmly secured to prevent it from being
tipped over.
Always use a fireguard when young children and infirm persons can come
into contact with the heater.
Never leave children unsupervised in a room where the heater is ON and
unguarded.
Never obstruct or cover the fan outlet or force items into heater openings.
Never use aerosols or steam cleaners on or around the heater.
Never route the main supply cable under carpet etc.
Never install the heater close to curtains or combustible materials.
Never use the heater to dry clothes etc.
Never sit or stand on the heater.
Do’s
Don’ts
CAUTIONS
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

PLUG INSTALLATION
UNPACKING AND TESTING APPLIANCE
LOCATING THE FIREPLACE
Your power cord will come separate from the unit, please locate it when unpacking your fireplace.
The plug contained inside the box is predetermined at the factory and according to orders placed
by authorized dealers.
Available are UK, European, Swiss &Australian plugs. Should you require any of these options
please contact your dealer for purchase. You will be required to give them the correct part number
as listed below.
Hold the male plug and insert it into the female receptacle. The receptacle is locate on the left side
if the fireplace. Please make sure the plugs are firmly connected.
European plug
10103030E Swiss plug 10103109E
UK plug
10103060E Australian plug 10103087F
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by plugging the
power supply cord into a 240 Volt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all components
are operating correctly.
NOTE: There may be trace of odor during the first few minutes of initial use. This is harm-
less, normal and will never occur again.
Plan where to locate and frame the fireplace. This will save time and money later when you install
the fireplace. Before installation consider the following:
1. Where the fireplace is located must allow for wall and ceiling clearances。
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from win-
dows or doors.
3. A 15 ampere, 240 Volt, 50-60 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit breakers to trip of
fuses to blow.
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

Product model BS2100045-1/EU4
TRV-45 BESPOKE
BS2100055-1/EU4
TRV-55 BESPOKE
BS2100065-1/EU4
TRV-65 BESPOKE
BS2100075-1/EU4
TRV-75 BESPOKE
BS2100085-1/EU4
TRV-85 BESPOKE
Voltage
Watts
Appliance size
(W x H x D)
Cord Length
Glass Viewing
(W1 x H1 )
PRODUCT SPECIFICATION
W
HH1
W1
8 3/4”
[222mm]
3 3/8”
[86mm]
4”
[100mm]
12 7/8”
[326mm]
14 1/4”
[367mm]
D
561/8”x293/8”x15”
142.7x74.6x38.2cm
461/8”x293/8”x15”
117.2x74.6x38.2cm
661/8”x293/8”x15”
168.1x74.6x38.2cm
55”x20”
139.7x50.9cm
45”x20”
114.3x50.9cm
65”x20”
165.1x50.9cm
761/8”x293/8”x15”
193.5x74.6x38.2cm
75”x20”
190.5x50.9cm
861/8”x293/8”x15”
218.9x74.6x38.2cm
85”x20”
215.9x50.9cm
L=70.9”
L=180 cm
1700W-2000W
220-240V AC 50Hz
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

HARDWIRE INSTALLATION
Turn off the appliance completely and let cool before servicing. Only a qualified service person
should service and repair this electric appliance.
If it is necessary to hardwire this appliance, a qualified electrician must remove the cord connection,
and wire the appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes, if
hardwired.
1. Test the unit before removing the cord.
Remove the cover plate from the back top right corner of the appliance by removing the four screws, as shown below.
Unscrew and remove power cord.
2. Attach the wiring to the junction block. Please make sure the live wire goes into the “L”, the neutral wire into “N” and
the ground wire into “G”.
3. Return the cover plate to the back top right corner and screw the four screws back in to fasten the plate.
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

TRV-45 BESPOKE
W D H
TRV-65 BESPOKE
TRV-75 BESPOKE
TRV-85 BESPOKE
INSTALLATION
The TRV BESPOKE models are designed to be built-in and allow for the finishing material (drywall,
stone, tile, etc) to be built right down to the glass edge.
NOTE: Due to the many different materials used on different walls, it is highly recommended that
you consult your local builder before you install this fireplace down to the finishing lip and not to the
glass.
The wall opening size of the fireplace:

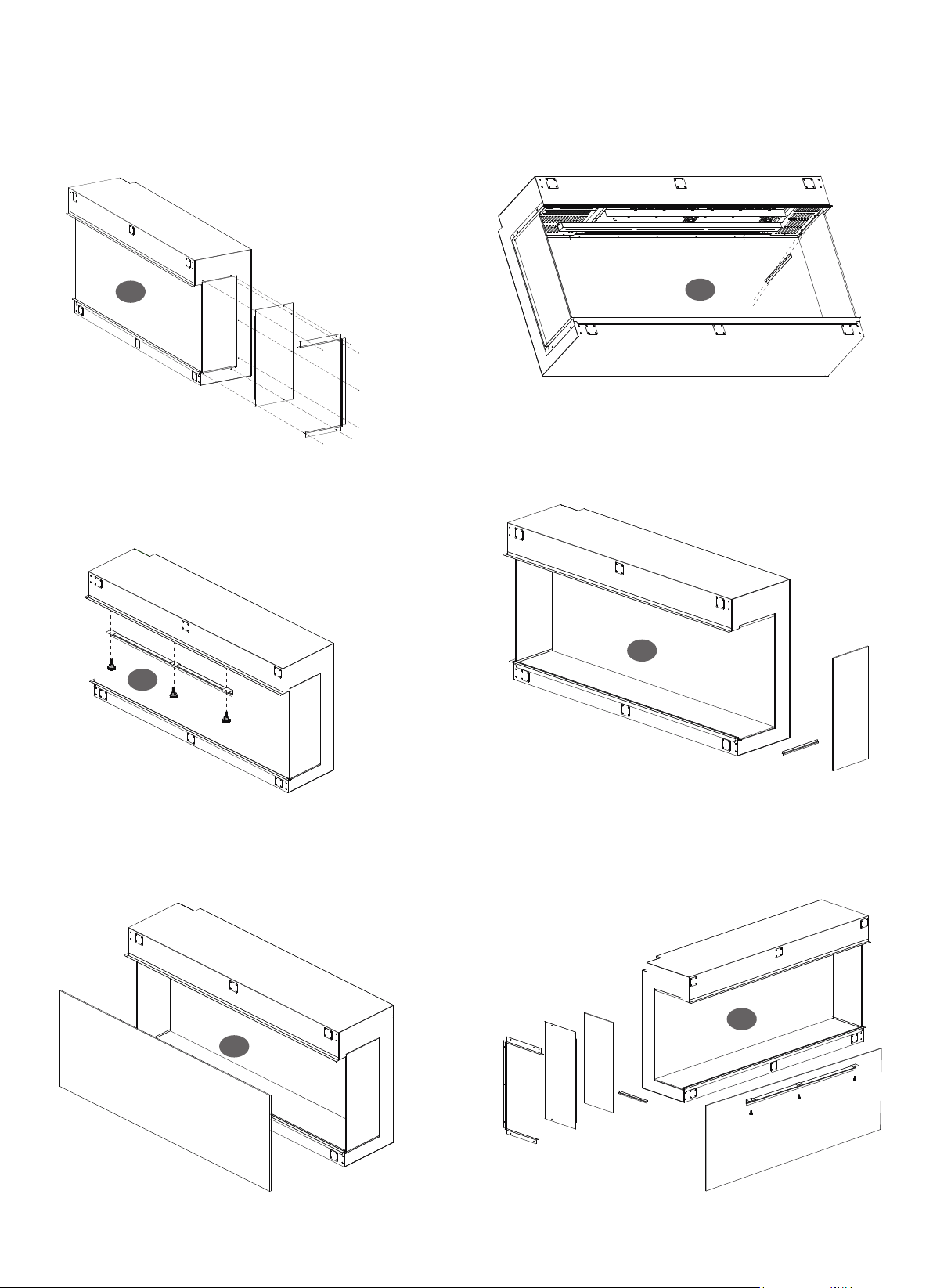

1. Product is fixed with fending bars and
panels on the left and right side.
2. To view the flame from different angles,
you need to remove panels from different
sides.
(1). Remove both sides of the fending
panels if you want to view the flame from
three angles.
fending bar
fending panel
(2). Remove the fending panel on the left
side if you want to view the flame from
front and left side.
45 1/4”
114.8 cm 29 5/8” 75.2 cm
29 5/8”
75.2 cm
29 5/8”
75.2 cm
29 5/8”
75.2 cm
29 5/8”
75.2 cm
13 1/4”
33.6 cm
TRV-55 BESPOKE 55 1/4”
140.2 cm 13 1/4” 33.6 cm
13 1/4”
33.6 cm
13 1/4”
33.6 cm
13 1/4”
33.6 cm
65 1/4”
165.6 cm
75 1/4”
191 cm
85 1/4”
216.5 cm
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

(3). Remove the fending panel on the right
side if you want to view the flame from
front and right side.
3. Screw back the fending bar after the
panel is removed.
4. Remove the framing plates from the
fireplace and save for step 6.
6. Insert the fireplace into the wall opening.
Drive the mounting screws into the frame
plates on the unit and the wall studs. To fix
the bottom of the fireplace and the wall studs
with the framing plates that you’ve removed
from the fireplace at STEP 4. Plug in and
check if the fireplace works.
5. Make an opening for the fireplace
according to requested measurement.
framing plate
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

7. After checking that the fireplace operates properly, cover the glass panels with protective plastic
bag and install plywood or drywall.
Left Side Open Installation
Right Side Open Installation
Three Sided Installation
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

MODULAR INSTALLATION
Unscrew all 7 screws on the right side that
hold the fending bar and panel, and then
take off the fending bar and panel.
2. Unscrew 3 screws （The quantity varies
depending on the size of the unit）and remove
the front glass bracket which are fending the
front glass.
4. Unscrew the 2 screws and remove the
brackets which are fending the right side glass.
5. Remove the right side glass and take off the
bracket.
6. Remove the front glass, left side fending
bar, fending panel,left glass and brackets from
the other one in the same way.
3. Take off the front glass and put it in safe
place.
11
1
2
1
1
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

7. Align fireplace 1 and fireplace 2 and place the right side of fireplace 1 close to the left side of
fireplace 2
9. Put back the front glass to the fireplaces and secure them with screws and front glass brackets.
8. Unscrew the 8 screws at the joint, then remove the 2 framing brackets from the fireplace 1 and
fix them as shown in the image.
NOTE: After removing the framing brackets on the fireplace 1, screw back in the screws that were
taken out.
1
2
1
2
1
2
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

1. Unscrew 3 screws（The quantity varies
depending on the size of the unit）and
remove the bracket which are fending the front
glass panel.
2. Take off the front glass panel and put it in
safe place.
3. Installing the fire glass media. Pour the
fire glass media into the tray as shown
below.
Feel free to use any combination of fire
glass media that you find most appealing.
4.Put back the front glass and screw back
the bracket.
MEDIA INSTALLATION
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

MANUAL OPERATION
The fireplace operates either by the touch panel located on the left front top side of the fireplace or
by supplied remote control.
1. Press “ ” to turn on and off the fireplace.
2. Press “ ” to adjust the flame brightness. There are 6 brightness levels（L6-L1）and an
off(OF) position. Each time the flame button is pressed, the brightness of the flame decrease.
Press the flame button more than 5 seconds, the timer indicator light on and will rapidly blinks, at
this time, you can use the TuyaSmart APP to connect to the fireplace.
3. Press “ ” to adjust the ember bed brightness. There are 7 brightness levels (d8-d2), dynam-
ic condition(d1) ,and the OFF(OF) setting you can cycle through. Each time the ember bed button
is pressed, the brightness of the ember bed decrease.
4. Press “ ” for the first time to display the current timing. If the timing in off position, the
second press will show 30. Multiple times to set operating duration to OF, 30 min, 1h, 2h, 3h, 4h,
5h, 6h, 7h, 8h.
Press and hold the “ ” for 5 seconds to turn on the sound.
5. Press “ ” for the first time to display the current setting temperature，when the digital
display stop blinks, press the button again to clear the current temperature. If the heater in off
position, the second press will show22℃(72℉). Multiple times to set ambient temperatures at
22℃(72℉), 23℃(74℉),24℃(76℉), 25℃(78℉), 26℃(80℉), 27℃(82℉), 28℃(83℉),15℃(59℉),
16℃(60℉), 17℃(62℉),18℃(64℉), 19℃(66℉), 20℃(68℉), 21℃(70℉).
Temperature unit convert function: When the heater is on, press and hold the“ ” Button for 5
seconds, current temperature unit display will convert to another temperature unit.
NOTE:The heater is turned on by switching on the fan first, then after 5 seconds the heating coil.
The heater is turned off by switching off the heating coil first, then after 30 seconds the fan.
Ensure that the ON / OFF Power Switch on the fireplace is in the ON position.
Touch the control panel once to “wakes up” the controls. This will cause the controls to light up. At
this time, you can press the power button to turn on fireplace
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

REMOTE CONTROL OPERATION
You must press the key to open the remote control and press the key to enter the setting
current time state. When one of the “Sun”“ Mon”“Tue”“Wed”“Thu”“Fri”“Sat” date is flashing, you
can press the or key to select the current day of the week, and press the key to con-
firm and enter hour setting. When the digital tube of time hour flashes, press the or key to
set the current time and press the key to confirm and enter minute setting. When the digital
tube of time minute flashes, press the or key to set the current time and press the
key to confirm.
This Power Button turns the fireplace on and off. It has a
memory function, press the power button once to turn
power on. Pressing the power button again will turn the
power off.
The Timer Button has adjustable setting at range from 30
minutes to 8 hours. As shown the following: 0:30- 1:00-
1:30- 2:00- 2:30- 3:00- 3:30- 4:00- 4:30- 5:00- 5:30- 6:00-
6:30- 7:00-7 :30- 8:00. Once you have set the timer, The
icon will be displayed on the LCD screen of the remote
control. Press this button again, cancel the timing setting,
and the icon disappears.
When the timer is up, it will close all the functions and
enter standby mode. In this mode, you should touch the
power icon to restart the appliance.
Each time the Heater Button is pressed, the power of the
heater will change. As shown the following: H1- H2-
AUTO(22℃)- OFF(no display).
H1 means the fireplace on Low Heat.
H2 means the fireplace on High Heat.
AUTO means fireplace can automatically adjust to the
temperature you set. When in AUTO, you can set the
desired temperature with or keys. You can
switch temperature unit between Celsius and Fahrenheit
with or keys.
Setting the current time of the remote control
For the remote to function make sure the fireplace is plugged in and the ON / OFF Power Switch
on the fireplace is in the ON position and the remote has batteries.
Important: When operating the remote make sure you point the remote to the center of the
fireplace. Each time you press the button, there will be a beep tone emitted.
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

The Moodlight Button turns the moodlight on and off. When in on position, the display
screen of the remote control shows AD 1, when the number “1” flash, you can set the color
of moodlight with or keys. There are 10 different moodlight colors(AD1-10) and
dynamic condition(AD11) to choose from.
The Ember Bed Button turns the Ember bed light on and off. When in on position, the
display screen of the remote control default shows 8 8 8. You can press or or
keys to change the corresponding color.
Each time Speed Button is pressed, the speed of the flame will change. Three options are
available: Medium- High- Low.
Each time the Red Button is pressed the brightness of the red color decrease. There
are 7 brightness levels (8-2), dynamic level(1) and OFF ( no display) settings that can
be cycled through. When no number is displayed on the remote control LCD screen
then the ember bed color is off.
Each time the Green Button is pressed the brightness of the green color decrease.
There are 7 brightness levels (8-2), dynamic level(1) and OFF ( no display) settings
that can be cycled through. When no number is displayed on the remote control LCD
screen then the ember bed color is off.
Each time the Blue Button is pressed the brightness of the blue color decrease. There
are 7 brightness levels (8-2), dynamic level(1) and OFF ( no display) settings that can
be cycled through. When no number is displayed on the remote control LCD screen
then the ember bed color is off.
The Flame Button turns the Flame on and off. When in on position, the LCD screen of the
remote control default shows 6 6 6. You can press or or key to change the
corresponding color.
Each time the Red Button is pressed the brightness of the red color decrease. There
are 6 brightness levels (6-1) and OFF ( no display) settings that can be cycled
through. When no number is displayed on the remote control LCD screen then the
flame color is off.
Each time the Yellow Button is pressed the brightness of the yellow color decrease.
There are 6 brightness levels (6-1) and OFF ( no display) settings that can be cycled
through. When no number is displayed on the remote control LCD screen then the
flame color is off.
Each time the Orange Button is pressed the brightness of the orange color decrease.
There are 6 brightness levels (6-1) and OFF ( no display) settings that can be cycled
through. When no number is displayed on the remote control LCD screen then the
flame color is off.
NOTE: If the flame and ember bed brightness are off before the heating function is turned on, after
turning on the heat, the flame and ember bed brightness is slightly light on by default.
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

The Refer Button queries the 7-day timer setting. This will not turn on the timer function but
will only show the previous setting. Press the or key to query the day of the
week. Press the or key to query the start up and shutdown time.
Press key once to enter the query mode, press the key again to exit query mode.
Press the key once, 7 days from Monday to Sunday will display on the LCD screen of
the remote control, press key within 5 seconds to enter 7 day timer function . When
“Sun” is flashing use the or key to select the day that you want to set，pressing
the key to confirm. Then “ON” will be displayed on the LCD screen of the remote
control, at the same time, the hour on the digital clock flashes, press the or key
to set the hour and then the minute you want the fireplace to turn on. After setting the start
up time, “OFF” will be displayed on the LCD screen. Use the or key to set the shut-
down time the same as setting the start up time. After setting the shutdown time, “AUTO”
will be displayed on the LCD screen of the remote control. The digital temperature flashes,
at this time you can set the desired temperature with or keys. The fireplace will
beep to acknowledge the settings. Now, the 7 day function has been set, the fireplace will
save the setting and run automatically.
When the 7 day timer is set, the icon will be displayed on the LCD screen of the
remote control. Press the key again to cancel the 7 day timer function, the will
disappear.
7 day timer function
NOTE: Ensure that the current time setting accurate, otherwise the effective time of the 7
day timer function will be different from what you set.
NOTE: If the 7 day timing and general timing exist at the same time, the shutdown time shall be
the earlier time. For example, it is now 6 am on Tuesday, turning on the heaters general timer for 4
hours, will have the shutdown time of 10 am. The previous 7 day shutdown time is 8 am on Tues-
day, so today's heater shutdown time is 8 am instead of 10 am.
This button turns the fire crackling sound on and off.
ENERGY SAVING FUNCTION
If the heater detects a drop in temperature caused by an open window or door whilst in heat mode
it will shut off the heater followed by flashing the ember bed light. To restart the heater press the
any button.
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

TROUBLE SHOOTING
Each time the heater button is pressed in the E1 state, one beep tone will be given.
Each time the heater button is pressed in the E2 state, two beeps tone will be given.
Each time the heater button is pressed in the E3 state, three beeps tone will be given.
Fault code Fault Cause Solution
E1 The heater overheating
E2 NTC is defective. Call after-sales service.
Call after-sales service.
The heater not working. If the vents are dirty or clogged. Unplug the power,
clean the dust and debris of the vent area. Wait for 5
minutes, plug in and turn on the heater. If the heater
still don't work, please call after-sales service.
E3
MAINTENANCE INSTRUCTIONS
ENVIRONMENT
● Always remove the plug from the socket-outlet and allow the heater to cool down before clean-
ing it.
● Wipe the exterior surface of the appliance occasionally with a soft damp cloth (not dripping wet)
and dry the exterior surface before operating the heater.
WARNING!
Do not immerse the heater in water.
Do not use any cleaning chemicals such as detergents and abrasives.
Do not allow the interior to get wet as this could create a hazard.
● Light accumulated dust may be removed from the appliance with a soft dry cloth.
● To store away the appliance put it back in to its original packaging and store it in a clean dry
place.
● In the event of malfunction do not try to repair the heater yourself as this may result in a fire
hazard or electric shock.
NOTE: The blower motor and flame motor are pre-lubricated for a durable period of time and need
no further lubrication or maintenance. As the dust particles will accumulate on/in the fireplace, so
periodic cleaning/ vacuuming of the fireplace is recommended.
The appliance must not be disposed of with regular household
waste. At the end of its service life, the appliance must be properly
delivered to a collection point for the recycling of electrical and
electronic equipment. By Collection and recycling of old appliances,
you are making an important contribution to the conservation of our
natural resources and provide for environmentally sound and healthy
disposal.
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22

REPLACEMENT PARTS
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22
NO. DESCRIPTION PART NUMBER
BS2100055-1/EU4
(TRV-55 BESPOKE)
BS2100045-1/EU4
(TRV-45 BESPOKE) BS2100065-1/EU4 (TRV-65 BESPOKE) BS2100075-1/EU4 (TRV-75 BESPOKE) BS2100085-1/EU4 (TRV-85 BESPOKE)
2 Adjustable Screws
1 Trim
3 Front Glass Bracket
4 Front Glass
5 Back Glasss
6 Tray Glass
7 Side Glass
8 Black Glass - Left
9 Black Glass - Right
10 Glass Bracket - Left
11 Glass Bracket - Right
12 Adjustable Leveling Feet
14 Flicker Assembly for Tray
13 Flicker Assembly for Flame
15 Flame Motor
16 Heater / Blower Assembly
17 LED Light Set for Flames
18 LED Light Set for
Ember Bed /Tray Lighting
19 LED Light Set for
Canopy Lighting
20 Temperature Sensor
21 Remote Signal Receiver
22 Remote Control
23 Circuit Board
24 AC Adapter
26 Circuit Board for Touch Pad
25 Circuit Board for Touch Panel
27 WiFi Card
28 Bluetooth Speaker Set
(Set includes: Power
Circuit Board, Speaker
Circuit Board & Speaker)
29 Speaker Set (Set includes:
Speaker Circuit Board &
Speaker)
30 Power Switch
10003005P 10003018P 10003012P 10003012P
60000265 60000268 60000271 60000274
60000266 60000269 60000272 60000275
60000267 60000270 60000273 60000276
60000263 60000263 60000263 60000263
10002786P
60000261
60000262
60000264
60000263
not applicable
not applicable
not applicable
20000979
2000111820001117
2000111320001112
20001119
20001114
20001120
20001115
20001121
20001116
30001868
30002019
30000703
10105070
30002180
3000222130001978
200005822000092932000006 200005822000092932000011200005822000092930002306
300021183000211930002120
3000203230002057
30000620
222051
3000205630002304-55
3000205630002059
30002304-45
3000181230001961-55 3000181230001859
30001961-85
3000181230001961-753000185930001961-45 3000181230001859
30001961-65
30002305-55
3000204130002041 300030001887 30001887 32000010
3000205930002304-65
3000217030002305-65 3000217030002305-753000217130002305-45 3000217030002305-85
3000205930002304-75 30002059-85
10002784P
10002784P
not applicable
40000174

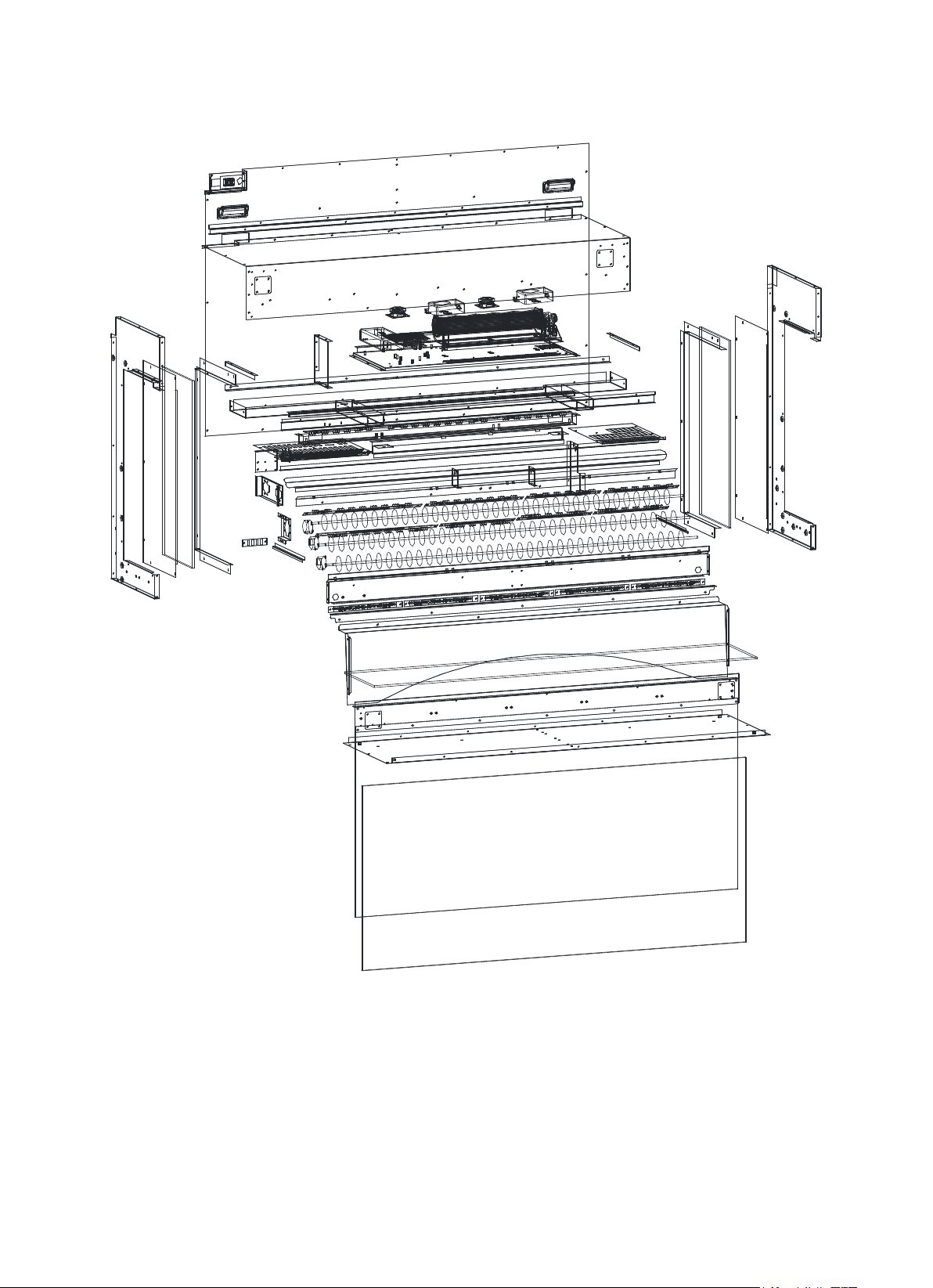

EXPLODED VIEW
01 02 03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
21 22
