Declaration of compliance 1
Declaration of compliance A.R. 8/1/2004 - BE
Manufacturer DE DIETRICH THERMIQUE S.A.S.
57 rue de la gare
F-67580 MERTZWILLER
*[phone]
++33 3 88 80 27 99
Issued by See end of notice
Weherebycertify thattheseries ofappliancesspecifiedhereinafteris incompliancewith thestandardmodel describedinthe ECdeclaration
of compliance, and that it is manufactured and marketed in compliance with the requirements and standards of the following European
Directives:
Product type Floor-standing gas boiler C 210
Formats 85, 130, 170, 210 kW
Standard applied - Royal Decree dated 8th January 2004
- 90/396/EEC Gas Appliance Directive
- Reference Standard : EN 656; EN 437
- 73/23/EEC Low Voltage Directive
- Reference Standard : EN 60.335.1
- 89/336/EEC Electromagnetic Compatibility Directive
- Reference Standard : EN 61000-6-3 ; EN 61000-6-1
- 92/42/EEC Efficiency Directive **** 1,
Condensing boiler
- Directives of the Société Suisse de l'Industrie des Gaz et des Eaux SSIGE
- Directives of local and cantonal bodies
- Directives of the Association des Etablissements Cantonaux d'Assurance
Incendie AEAI
Inspecting organisation Gastec
Measured values NOx: < 35 mg/kWh
CO: < 20 mg/kWh
Date: 10 may 2005 Signature
Technical Director
Mr. Bertrand Schaff

5
03/02/06 - 300001746-001-E C 210 ECO
Preface
This technical instructions contain useful and essential information
requiredto ensure the trouble-freeoperation and maintenance ofthe
C 210.
By following the information in these technical instructions, you are
contributing to the construction of an installation that will run safely
before commissioning and when operating.
Please study this advice carefully before commissioning the boiler
and familiarise yourself with its operation and controls.
If you require more information on specific subjects, do not hesitate
to contact our technical department.
The data published in these instructions are based on the very latest
available information. They may be modified at a subsequent date.
We reserve the right to modify the construction and/or manufacture
of our products at all times without being obliged to adapt deliveries
already made.
Symbols used
Caution danger
Risk of injury and damage to equipment. Attention must be
paid to the warnings on safety of persons and equipment.
Specific information
Information must be kept in mind to maintain comfort.
ZReference
Refer to another manual or other pages in this instruction
manual.
SMI: Integrated air/gas mixing system (IMS)
ECS: Domestic hot water

6C 210 ECO 03/02/06 - 300001746-001-E
General description
The C 210 boiler is a gas fired condensing boiler.
It is CE approved under the following number: 0063BL3264.
The cast aluminium-silicium heat exchanger is designed for the
recuperation of the sensible and latent heat in combusted gases.
Furthermore, an integrated, unique air/gas mixing system (IMS) and
a pre-mix bruner offer a considerable reduction in NOx and CO,
which justifies the expression "Clean combustion boiler".
This watertight combustion circuit boiler can be used in a forced flue
version.
The burner and the combustive air inlet fan are very quiet.
Gas and combustive air is supplied via the upper part of the boiler.
Underneath the boiler is a condensates collector in cast aluminium
andasiphonforcondensatesdischarge.Thesiphonislocatedonthe
side, under the combusted gases discharge.
Output may modulate between 10% and 100% depending on the
heating requirement. Furthermore, the boilers are factory-fitted with
an electronic DIEMATIC 3 control panel, which is preset for priority
domestic hot water production and setting according to outside
temperatures.
The standard DIEMATIC 3 control panel enables the independent
regulation of a boiler circuit without a mixer valve and/or with one or
two circuits with a mixer valve (optional).
The DIEMATIC 3 control panel can also be used to programme a
domestic hot water circuit with or without priority, and to programme
an auxiliary circuit.
The regulator also provides antifreeze protection for the installation
and the environment, if the home is empty, for a period that may be
programmed one year in advance and lasting for up to 99 days.
For Switzerland:
SVGW No. 05-036-4
The installation of the boiler must be done in compliance with the
following directives:
- SSIGE regulations - G1 : Gas installation
- VKF requirements (Cantonal Grouping of Insurance Brokers)
- Local and cantonal regulations
The boiler is supplied preset for an operation with H/E-type
natural gas.
User country FR DE AT CH PL
Category I2ESI I2ELL I2H I2H I2E
Gas type G20 G25 G20 G25 G20 G20 G20
Distribution pressure (mbar) 20 25 20 20 20 20 20

7
03/02/06 - 300001746-001-E C 210 ECO
Construction

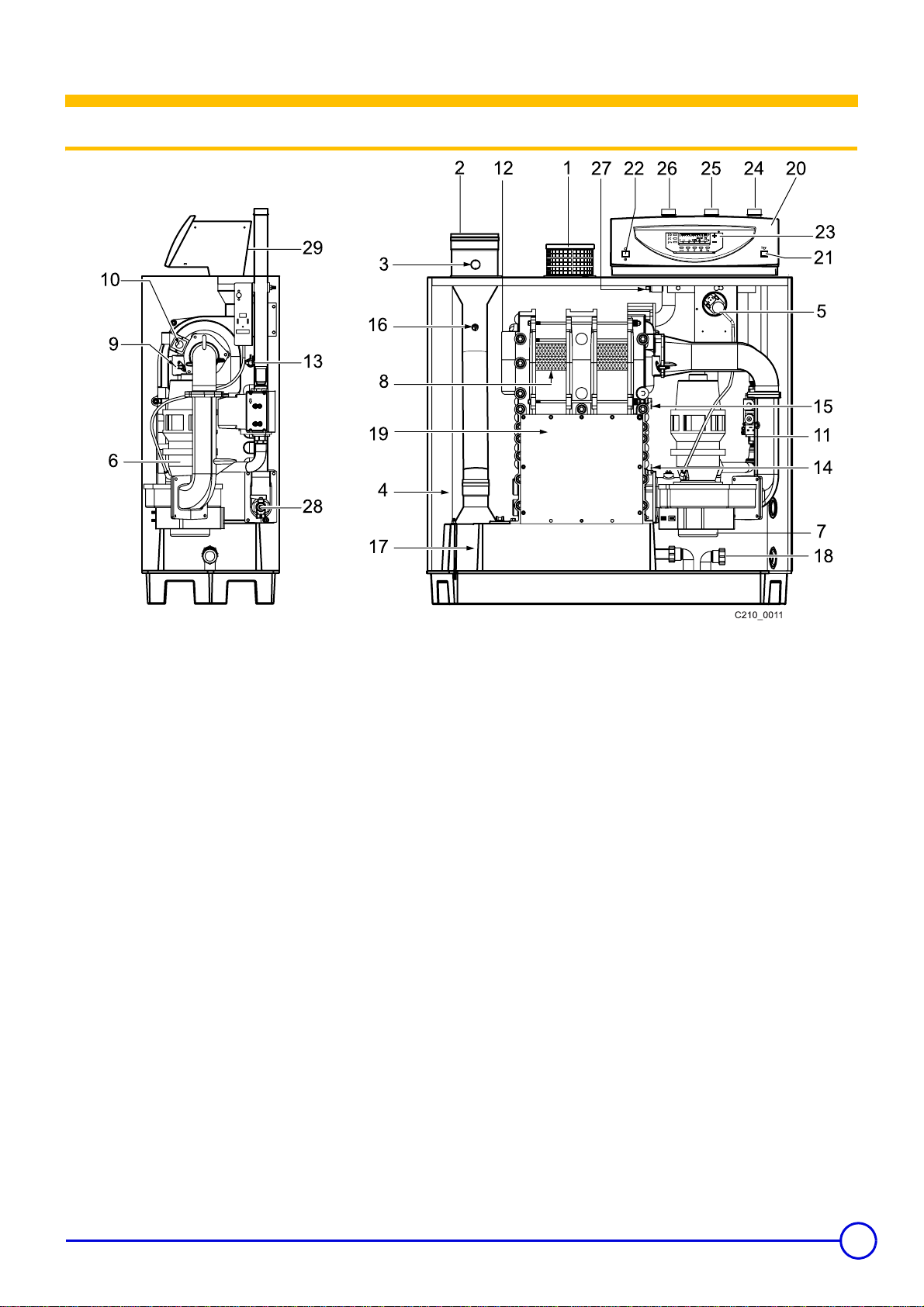

1 Technical details
1. Air inlet
2. Combusted gas discharge
3. Measurement point O2/CO2
4. Air chamber
5. Air pressure switch
6. Integrated air/gas mixing system (IMS)
7. Fan
8. Burner
9. Ignition/ionisation electrode
10. Flame inspection window
11. Combined gas valve unit
12. Heating body
13. Output sensor
14. Return sensor
15. Heating body sensor
16. Combusted gas sensor
17. Condensates tank
18. Condensates discharge
19. Inspection hatch
20. Control panel
21. Reset button
22. General ON 8/ OFF 7switch
23. Adjustment keys
24. Gas connection
25. Return connection
26. Flow connection
27. Filling and emptying tap / Connection for second return
28. Circuit breaker 4A (on the rear)

8C 210 ECO 03/02/06 - 300001746-001-E
2 Operating principle
TheuniqueIMS system(integrated air/gasmixing system) enablesa
perfect air/gas mixture at the fan inlet. When heating is required, the
IMS opens and the fan pre-ventilates. The fan sucks in the
combustionairthroughtheairinletopening,thantheairisthenmixed
in the IMS with the gas from the combined gas valve unit. The
homogenous air/gas mixture is then carried to the burner by the fan.
The output of the boiler is automatically regulated according to the
settings and the temperatures measured by the sensors.
The air/gas mixture is ignited by the ignition/ionisation electrode,
combustion begins, the hot flue gases pass through the cast
aluminium-silicium heat exchanger and reheat the water in the
heating circuit. At a return temperature lower than around 55°C, the
combusted gases cool down to a temperature lower than the dew
point, thus causing the condensation of the water vapour contained
inthefluegases in thelower section oftheheat exchanger. Theheat
given off by this condensation process (latent heat or condensation
heat)istransferredtotheheatingwater.TheC210thusreachesvery
high efficiency values (operating efficiency > 110% at 40°C and
useful efficiency > 109% at 30/40°C). The condensed water is
dischargedvia thesiphon in the lower sectionof theheat exchanger.
The flue gas circuit is reversed in the condensates recuperation tank
and discharged via the flue gas discharge pipe. The combustion air
circulates around the heat exchanger and thus recuperates the
dissipated heat. Losses through the sides of the boiler are therefore
extremely low (<0.3%).
The very efficient microprocessor in the C 210 guarantees totally
reliable operation. This enables the boiler to react to the slightest
problem in the peripheral installation (for example, water circulation,
air supply or other problems). The boiler will therefore remain
operational (no lockout) despite such problems. In the first instance,
it will attempt to modulate as long as possible by adapting to outside
conditions connected to the installation.
The DIEMATIC 3 control panel controls the room temperature in
accordance to the outside temperature by action on the burner.
Heating regulation is controlled by the influence of the regulator on
the burner, the pumps and, if installed, the mixing valve(s).
Connecting a remote control with room sensor or an interactive
remote control CDI 2 also enables self adaptivity of the gradient and
the parallel offset of the heating curve.
The "installation anti-freeze" function is active regardless of the
operating mode. It is triggered as soon as the outdoor temperature
reaches the limiting value preset to +3°C (see paragraph
" Further information on various parameters").
The domestic hot water is regulated by the regulator acting on the
load pump through the DHW sensor. The DHW loop can be made
through the AUXIL auxiliary contact that includes its own
programming.
The DIEMATIC 3 control panel includes the possibility of "anti-
legionnella" protection (see #MISCELLANEOUS, ANTIFREEZ).

9
03/02/06 - 300001746-001-E C 210 ECO
Technical characteristics
1 Main dimensions
Heating outlet
Heating return
Gas inlet R 1 1/4
Filling and emptying tap / Connection for second return
Flow of condensates siphon delivered ext Ø 32 mm
Flue gas nozzle Ø 150 mm
Combustive air inlet
(1) Diameter obtained using 2 1"1/2 - 1"1/4 reductions supplied with
the boiler (in the polystyrene packaging block)
Boiler type A 
C210-85 1290 R 1 1/4 R 1 1/4
C210-130 1290 R 1 1/4 R 1 1/4
C210-170 1290 R 1 1/4 R 1 1/4
C210-210 1305 R 1 1/2(1) R 1 1/2(1)

10 C 210 ECO 03/02/06 - 300001746-001-E
2 Technical characteristics
C 210-... Unit 85 130 170 210
Introduction
Numberofsections 3456
Burner operation Modulating
Useful output (80/60°C) PN minimum kW 8 12 16 20
maximum kW 80 120 160 200
Useful output (40/30°C) PN minimum kW 8,9 13,5 18,1 22,7
maximum kW 86 129 171 214
Burner output (PCI) minimum kW 8,4 12,6 16,8 21
maximum kW 81,5 122 163 204
Combustion gas and by-products
Gas category (see table in "General Description" chapter)
Gas supply pressure G20 mbar 17 - 25
Gas flow rate G20 (15° - 1013 mbar) minimum m3/h 0,9 1,3 1,8 2,2
maximum m3/h 8,6 12,9 17,2 21,6
Gas flow at the meter G20 (15° - 20 mbar) minimum m3/h 0,9 1,3 1,8 2,2
maximum m3/h 8,5 12,7 16,9 21,2
Average nitrogen oxide emission (NOx) Gas
H/E mg/kWh < 35
Average NOx emission (annual emission O2
= 0% dry) mg/kWh < 20
Maximum pressure at the flue gas nozzle Pa 115 100 100 140
Combusted gas flow minimumKg/h14212835
maximum Kg/h 137 205 274 343
Classification of type according to the
dischargeofcombustedgasesandairsupply B23P, C13x, C33x, C43x, C53, C63x, C83x
Heating
Safety temperature °C 110
Water setting range °C 20 - 90
Water pressure minimum bar 0,8
maximum bar 6
Water capacity l 12 16 20 24
Loss of load water at ∆T = 10°C mmCE 6000 5400 6480 7200
Loss of load water at ∆T = 20°C mmCE 1500 1350 1620 1800
Electricity characteristics
Power supply voltage V/Hz 230 / 50
Power consumption minimum W 68 58 69 75
maximum W 92 84 110 160
Insulation class IP 21
Miscellaneous
Weight without water kg 130 150 170 200
Acoustic level at 1 meter dB(A) ≤ 57 ≤ 63

11
03/02/06 - 300001746-001-E C 210 ECO
• Outside sensor resistance
• Resistance of the NTC 10 kΩsensor
(domestic hot water, Outl. B and Outl. C)
• Resistance of the NTC 12 kΩsensor
(boiler sensors (outlet), return, exchanger, flue gases)
3 Details of the equipment
- Heat exchanger in cast aluminium-silicium sections
- Pre-mix stainless steel burner with woven metal fibre surface
-Fan
- Low water safety device using the temperature sensors
- Integrated air/gas mixing system (IMS)
- DIEMATIC 3 regulator
- Filling and emptying tap
- Combusted gas temperature sensor
- Siphon
- Antifreeze protection
4Options
- Sensor tube for Sensors
- Interactive remote control CDI 2 with room temperature sensor
(package FM51), remote control with room temperature sensor
(package FM52)
An interactive remote control CDI 2 (package CDI 2 (FM51))
and/or a simplified remote control (package FM52) may be
connected for each circuit controlled by the boiler.
- Armoured connecting cable (length 40 metres) for connecting
DIEMATIC VM or boiler cascade configuration (package DB119)
- TELCOM telephone remote relay
-For the connection of one or two circuits with mixer valve: 1
or 2 PCB + sensor option(s) for 1 valve (package FM48)
- Connection for second return
- Air filter
- Horizontal forced flue
- Vertical forced flue
- Leak tightness control on gas block (4 and 6 section only)
- Minimum gas pressure switch
- Condensatesneutralisationsystem (packageDU13for3-4section
and package DU14 for 5-6 section)
- Regulator 300 - 20 mbar (package GDJ50)
Temperature
in °C
Resistance in
ohm
Temperature
in °C
Resistance in
ohm
-20°C 2 392 Ω4°C 984 Ω
-16°C 2 088 Ω8°C 842 Ω
-12°C 1 811 Ω12°C 720 Ω
-8°C 1 562 Ω16°C 616 Ω
-4°C 1 342 Ω20°C 528 Ω
0°C 1 149 Ω24°C 454 Ω
Temperature
in °C
Resistance in
ohm
Temperature
in °C
Resistance in
ohm
0°C 34 014 Ω50°C 3 661 Ω
10°C 19 691 Ω60°C 2 535 Ω
20°C 12 474 Ω70°C 1 794 Ω
25°C 10 000 Ω80°C 1 290 Ω
30°C 8 080 Ω90°C 941 Ω
40°C 5 372 Ω
Temperature
in °C
Resistance in
ohm
Temperature
in °C
Resistance in
ohm
10°C 22 800 Ω60°C 3 250 Ω
20°C 14 770 Ω70°C 2 340 Ω
30°C 9 800 Ω80°C 1 710 Ω
40°C 6 650 Ω90°C 1 270 Ω
50°C 4 610 Ω

12 C 210 ECO 03/02/06 - 300001746-001-E
Applications
1Introduction
The C 210 boiler can be used on a very broad field of applications.
Whetherintermsoffluegas orgasconnectionsorfrom thehydraulic
pointofview,awidevariationoftemperaturesettingsisavailable.We
offer a broad range of options without requiring particularly complex
technical installation criteria for all that. Its specifications, along with
its reduced dimensions and low acoustic level, offer the advantage
that the boiler can be installed more or less where you like.
Forthegeneralinstructionsoninstallation,consult chapter"Statutory
terms and conditions of installation and maintenance".
2 Application possibilities from the point of view of air and gas circulation
The standard construction of the C 210 is designed in such a way as
to make it possible, when installing the unit, to opt for an "open"
configuration(separatepipeswithorwithoutthe connection oftheair
inlet) or for a "forced flue" configuration (concentric pipes).
Direct connection to pipes built into masonry is not permitted due to
possible condensation problems. For the instructions and the flue
gas discharge tables, consult chapter "Combusted gas discharge
and air supply".
3 Hydraulic application possibilities
Given the fact that the C 210 has no constraints in terms of the
conditions of irrigation (minimum flow, return temperature, ...), it can
be connected to any kind of hydraulic system.
For more detailed information, see chapter "Technical data for
hydraulic installation".
4 Gas type
The boiler is preset in the factory to operate on natural gas H - 20
mbar. For operation on natural gas L - 20/25 mbar, it is necessary to
reset the CO2.
For more detailed information see chapter "Commissionning". The
nominal output and the CO2value must be reset.

13
03/02/06 - 300001746-001-E C 210 ECO
Control panel
1 Description and operation
1. General ON 8/ OFF 7switch
2. The control panel should always be switched on to take
advantage of the heating pump anti-sticking function. It is
preferable to use the "summer" modefor the period during which
the heating is to be cut off.
Furthermore,ifaninteractiveremotecontrol(CDI2)isconnected
and the 1switch is in the off 7position, there will be no display
on the CDI 2.
3. Access hatch for the settings and programme keys
4. On light / Alarm
- The red resetting button lights up when the burner is in the safety
condition
- The flashing red light signals a sensor error
5. Reset button
6. Timed circuit breaker (4 A)
A second electrical safety device can be found on the card
which is accessible when the hoods are removed. This is a
fuse: F1 - 4 amperes, delayed action.
4
A
p
m

14 C 210 ECO 03/02/06 - 300001746-001-E

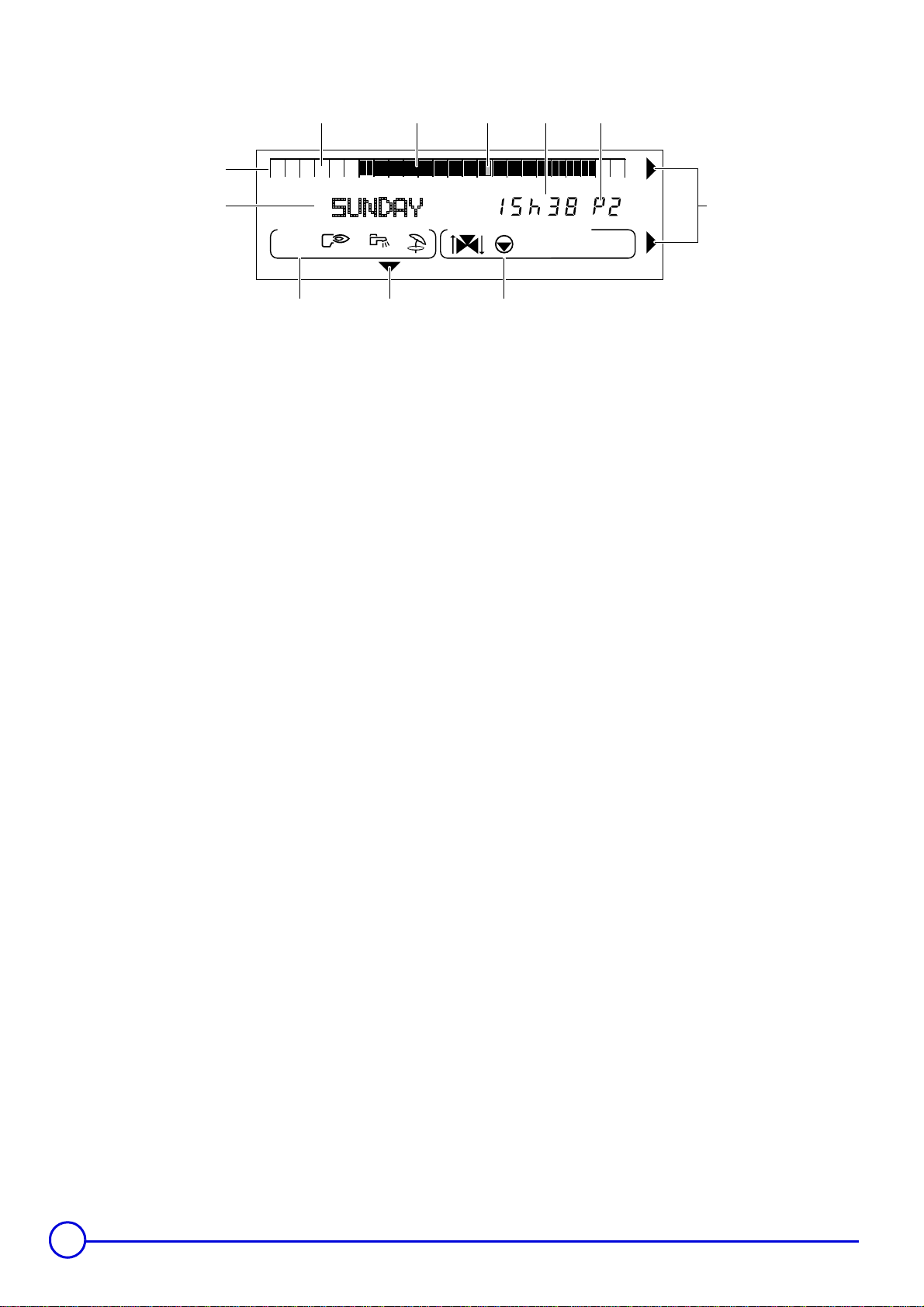

•Display
1. Graphic display bar for the program in circuit A, B or C
2. Light area: indicates a "reduced" heating period or a "calorifier
heating not allowed" period
3. Dark area: indicates "comfort" heating period or a "calorifier
heating allowed" period
4. Flashing cursor showing the current time
5. Number display (current time, adjusted values, parameters, etc.)
6. Active program display, P1, P2, P3, P4 or Su : automatic
“Summer“ cut-off
7. Flashingarrowswhenthe+or-keysshouldbeusedtoadjustthe
displayed parameter
8. Circuit operation symbols
<: Status of the 3-way valve for the displayedcircuit (If the option
is connected):
-
>
:Open
-
=
:Close
:: Circulating pump running for the displayed circuit (A, B or C)
9. Symbol displayed above the active operating mode
10. Symbols indicating that the following inputs/outputs are active:
D: Burner on. Several minutes may elapse until the burner
actually starts.
: DHW load pump on
#: Forced "summer" condition
11. Text display
0246810
12 14 16 18 20 22 24
A B C
8518N060-04
1
25
3
9
7
6
11
4
8
10

15
03/02/06 - 300001746-001-E C 210 ECO
• Keys accessible when the flap is closed
1. Temperature setting keys
2%: Comfort temperature
2$: "Low" temperature mode
2: Domestic hot water temperature
Whenone ofthese keys is pressed, theactive timeprogramme
corresponding to the circuit is displayed in the graphic bar.
2. Setting keys + and -
3. Operating mode selection keys AUTO: automatic
The four keys below are used to make the boiler deviate from the
"AUTO" mode.
%: Forced Comfort mode
$: Forced Low mode
.: Antifreeze mode
: Tank filling enabled mode
8518N061-04

16 C 210 ECO 03/02/06 - 300001746-001-E
• Keys accessible when the flap is open
4. Key for access to setting and measurements
J: Page scrolling
I: Line scrolling
H: Return to the previous line
5. #: Manual "Summer" shutdown key
The heating is shut down but the domestic hot water function
continues. When this function is activated, the symbol #and Eare
displayedseechapterManual summer mode-Key#(locatedunder
the flap).
This function is independent of the "automatic heating
shutdown" function in summer when the outside temperature
exceeds the outside heating shutdown temperature (in this
case, only the symbol Su appears in the display).
6. STANDARD: The "STANDARD"program key is used to activate
P1forcircuitsA,BorCandreplaceallcustomisedprogramswith
their original factory settings:
Hot water program: 5 Hours - 22 Hours (Reheating enabled)
Auxiliary program: 6 Hours - 22 Hours
7. KFitter settings access key
8. Programing keys
%O "Comfort" mode program key (in half-hours) or enable tank
filling (dark area)
$O "Low" mode program key (in half-hours) or disable tank filling
(light area)
SReturn to graph program bar
A.B.C: Selection key for the displayed circuit A, B or C, that will
be displayed in area 8
QDisplayed heating program selection key P1, P2, P3 or P4
The regulator has 4 original heating programmes P1, P2, P3and P4
preset in the factory.
See description in APPENDIX 2. Programs P2, P3 and P4 may be
customised.
8518N062-04

17
03/02/06 - 300001746-001-E C 210 ECO
2 Operating mode
2.1 Automatic mode
The operating modes described below may be selected using
selection keys 3.
TheAUTO keys,%,$,.simultaneouslycontrolallcircuits
connected, A, B or C.
To modify the operating mode (AUTO, comfort "%" or low
"$") for only one of the heating circuits, use the interactive
remote control (CDI2 - package FM51) or the remote control
withroom sensor (package FM52)corresponding tothis circuit.
This type of remote control can be installed for each of the
circuits connected.
Anoverride applied to the remote control takes priority over the
override selected on the central regulator.
•Key AUTO = Automatic mode
Enables the automatic execution of the various heating programs
(P1, P2, P3 or P4) and domestic hot water programsfor each day of
the week. If there is an active override on a remote control, the
SHOW REM. CTRL message is displayed, identifying the override.
In this case, pressthe key for 5seconds to force themode AUTO on
all 3 existing heating circuits.
To select the program for each circuit (A, B or C) (See Selecting a
program).
•Key %= Forced "comfort" temperature mode
Enables operation in "comfort" mode regardless of the heating
program.
-Brief pressure temporarily overrides the program until 12
midnightonthecurrent day.Whenthe "Temporary Comfort"mode
is active, a flashing arrow is displayed above key%.
- Keepthe key%pressed downfor over5 seconds ifyou want the
"Comfort" mode to last for an indefinite period of time. When the
"Permanent Comfort" mode is active, a steady arrow is displayed
above key %.
- To cancel this override, press key AUTO.
- If one of the circuits is in an override mode different from the
others, the SHOW REM. CTRL message is displayed to identify
the override.
- To cancel SHOW REM. CTRL, press key AUTO for 5 seconds.
•Key $= "Low" temperature mode
Enables operation in low mode regardless of the heating program.
-Brief pressure temporarily overrides the program until 12
midnightonthe currentday.Whenthe "TemporaryComfort"mode
is active, a flashing arrow is displayed above key$.
- Keep the key $pressed down for over 5 seconds if you want the
"Comfort" mode to last for an indefinite period of time. When the
"Permanent Comfort" mode is active, a steady arrow is displayed
above key $.
- To cancel this override, press key AUTO.
- If one of the circuits is in an override mode different from the
others, the SHOW REM. CTRL message is displayed to identify
the override.
•Key = Forced "tank reheating enabled" mode
Enables tank reheating regardless of the DHW clock programme:
-Brief pressure temporarily overrides the program until 12
midnightonthe currentday.Whenthe "TemporaryComfort"mode
is active, a flashing arrow is displayed above key .
- Keepthe keypresseddown for over 5 seconds if you wantthe
"Comfort" mode to last for an indefinite period of time. When the
"Permanent Comfort" mode is active, a steady arrow is displayed
above key .
- Press key to cancel this override.
- If domestic looping is handled by the auxiliary output, the looping
pumpisrestartedusingthisoverrideiftheparameterS.AUX: isset
to DHW LOOP.
8518N061-04

18 C 210 ECO 03/02/06 - 300001746-001-E
•Key .= Antifreeze mode
Heatinganddomestic hotwaterproductionare offbutthe installation
is monitored and protected against frost.
`Immediate antifreeze for N days
- Press the .key: The display will indicate DAYS ANTIFREEZ.
- Set the required number of days (current day = 1) with keys + and
- (up to 99 days).
- The antifreeze mode becomes active when you press key AUTO
or after 2 minutes.
- The antifreeze mode is cancelled when the number of antifreeze
days is reset to zero or when the set time has elapsed.
`Antifreeze with selection of the start date
- Press the .key.
- Set the required number of days (current day = 1) with keys + and
- (up to 99 days).
- Press key .a second time and set the start month for the
antifreeze mode using keys + and -.
- Press key .a third time and set the start date for the antifreeze
mode using keys + and -.
- The antifreeze mode start date is recorded when you press key
AUTO or after 2 minutes and a flashing arrow is displayed above
key .up to the date when the antifreeze function becomes
active.
- When the antifreeze function is active, the steady arrow is
displayed.
- The antifreeze mode is cancelled when the number of antifreeze
days is reset to zero or when the set time has elapsed.
`Permanent antifreeze
- Presskey.for5 seconds: Theantifreezeoverride isvalidforan
indefinite period of time.
The antifreeze mode will be cancelled by choosing another
operating mode by pressing the grey selection keys ..
- The antifreeze mode will be cancelled by choosing another
operating mode by pressing the grey selection keys AUTO, %,
$, ., .
Antifreeze protection is provided for the DHW tank and each
heating circuit regardless of the setting of the relevant room
sensor.The room temperature in "antifreeze" modeis preset to
6°C. This value can be modified if a room sensor is fitted See
description in APPENDIX 1.
The domestic hot water tank antifreeze function is activated
automatically when the DHW tank temperature drops below
4°C; the water in the tank is then reheated to 10°C.
The permanent "antifreeze" mode can also be selected using
the TELCOM remote voice monitoring module delivered as an
option.
If one of the circuits is in an override mode different from the
others,theSHOW REM. CTRL messageisdisplayedtoidentify
the override.
2.2 Manual summer mode - Key #(located under the flap)
The "summer" mode is used to shut down the heating system, while
enabling the production of domestic hot water.
- To activate this function, press key #for 5seconds.
- The symbol #is displayed, followed by the symbol Ewhen the
regulator is operating in the "summer" mode.
- Todeactivatethe manual "summer"mode,presskey #again for
5 seconds.
This function is independent of the "automatic heating
shutdown" function in summer when the outside temperature
exceeds the outside heating shutdown temperature (in this
case, only the symbol Su appears in the display).
When the heating is off during the "summer" mode, the pumps
are started up once a week for one minute in order to prevent
fouling.
8518N062-04

19
03/02/06 - 300001746-001-E C 210 ECO
3 Heating and domestic hot water temperature setting (Green keys)
1. Comfort temperature
2. "Reduced" temperature
3. Domestic hot water temperature
Heating temperature setting
The temperatures for the "Comfort" (dark area in the graphbar) and
"Low" (light area) periods may be set separately for each circuit A, B
or C (if any), as follows.
`Select the comfort temperature 2% or the low temperature
2$ for the required circuit by repeatedly pressing on the
2% or 2$ key.
Set the temperature using keys + and -.
The graphic bar displays the heating program for the displayed
circuit for the current day.
`End of setting: The normal display reappears 2 minutes after
making the setting, or when you press key AUTO.
Set DHW temperature
Select the domestic hotwater temperature using key 2 andthen
set the average domestic hot water storage temperature using keys
+ and -.
`End of setting: The normal display reappears 2 minutes after
making the setting, or when you press key AUTO.
The graphic bar displays the heating programme for the circuit
displayed for the current day.
If there is no domestic hot water sensor, pressing this key has
no effect.
Temperature Range of
adjustment
Factory setting
Comfort 2% 5 to 30°C
Setting in steps of
0.5 °C using + and - 20°C
Low 2$ 5 to 30°C
Setting in steps of
0.5 °C using + and - 16°C
Temperature Range of
adjustment
Factory setting
Domestic hot water
2
(Average storage
temperature)
10 to 80°C
Setting in steps of 1
°C using + and - 55°C

20 C 210 ECO 03/02/06 - 300001746-001-E
4 Selecting a program
• Selecting a programme
The DIEMATIC 3 control unit is factory set to include 4 heating
programmes P1, P2, P3 and P4.
The unit is factory set to programme P1.
Programmes P2, P3 and P4 can be customised.
The choice of four programmes is particularly useful for adapting the
heating to the lifestyle of the occupants.
To select a programme from P1, P2, P3 or P4 for circuits A, B or C:
- Select the circuit using key A.B.C: The name of the circuit will be
displayed.
- Select programme P1, P2, P3 or P4 using key PROG.
The selection is validated automatically.
- The selected programme will run automatically if no override is
selected using keys %, $, .or after pressing key AUTO.
To customise programs P2, P3 and/or P4 (See page 21).
Description of the programmes
Using keys A.B.C, 2% or 2$, the heating program for the
current day can be displayed in the graph bar for each circuit
connected.
• Hot water program (Domestic hot water)
The control unit comes with a factory set domestic hot water
programme.
To save a customised program (See page 21).
Hot water program (Factory setting):
Using key , the domestic hot water program for the current
day can be displayed in the graph bar.
•Auxiliary program:
The control unit comes with a factory set auxiliary contact program.
To save a customised program (See page 21).
Auxiliary program (Factory setting):
•Standard program:
To select the standard program, press key STANDARD for 5
seconds.
This activates program P1 for circuits A, B and C and programs P2,
P3,P4, tankand auxiliaryset topersonal requirements,are replaced
by the factory settings described above.
Program Comfort periods
P1 Monday - Sunday: 6 Hours - 22 Hours
P2 (Factory setting) Monday - Sunday: 4 Hours - 21 Hours
P3 (Factory setting) Monday - Friday: 5 Hours - 8 Hours,
16 Hours - 22 Hours
Saturday, Sunday: 7 Hours - 23 Hours
P4 (Factory setting) Monday - Friday: 6 Hours - 8 Hours,
11 Hours - 22 Hours
Saturday: 6 Hours - 23 Hours
Sunday: 7 Hours - 23 Hours
Day Filling enabled
Monday - Sunday 5 Hours - 22 Hours
Day Filling enabled
Monday - Sunday 6 Hours - 22 Hours
