TABLE OF CONTENTS EN
1 / DESCRIPTION OF YOUR APPLIANCE
••Introduction to your oven____________________________________ 48
••Accessories_______________________________________________ 48
••Introduction to the programmer ______________________________ 49
2 / USING YOUR APPLIANCE
••Using the programmer
ºHow to set the time_____________________________________ 50
ºImmediate cooking _____________________________________ 51
••Programmed cooking
ºCooking with immediate start and programmed duration _____ 52
ºCooking with delayed start and chosen cooking end time_____ 53
••Using the timer function_____________________________________ 54
3 / OVEN COOKING MODES_______________________________________ 54
4 / AFTER-SALES SERVICE
••Service calls ______________________________________________ 56
99641401_A_ML.qxp 12/04/2007 10:38 Page 47

48
1 / DESCRIPTION OF YOUR APPLIANCE
EN

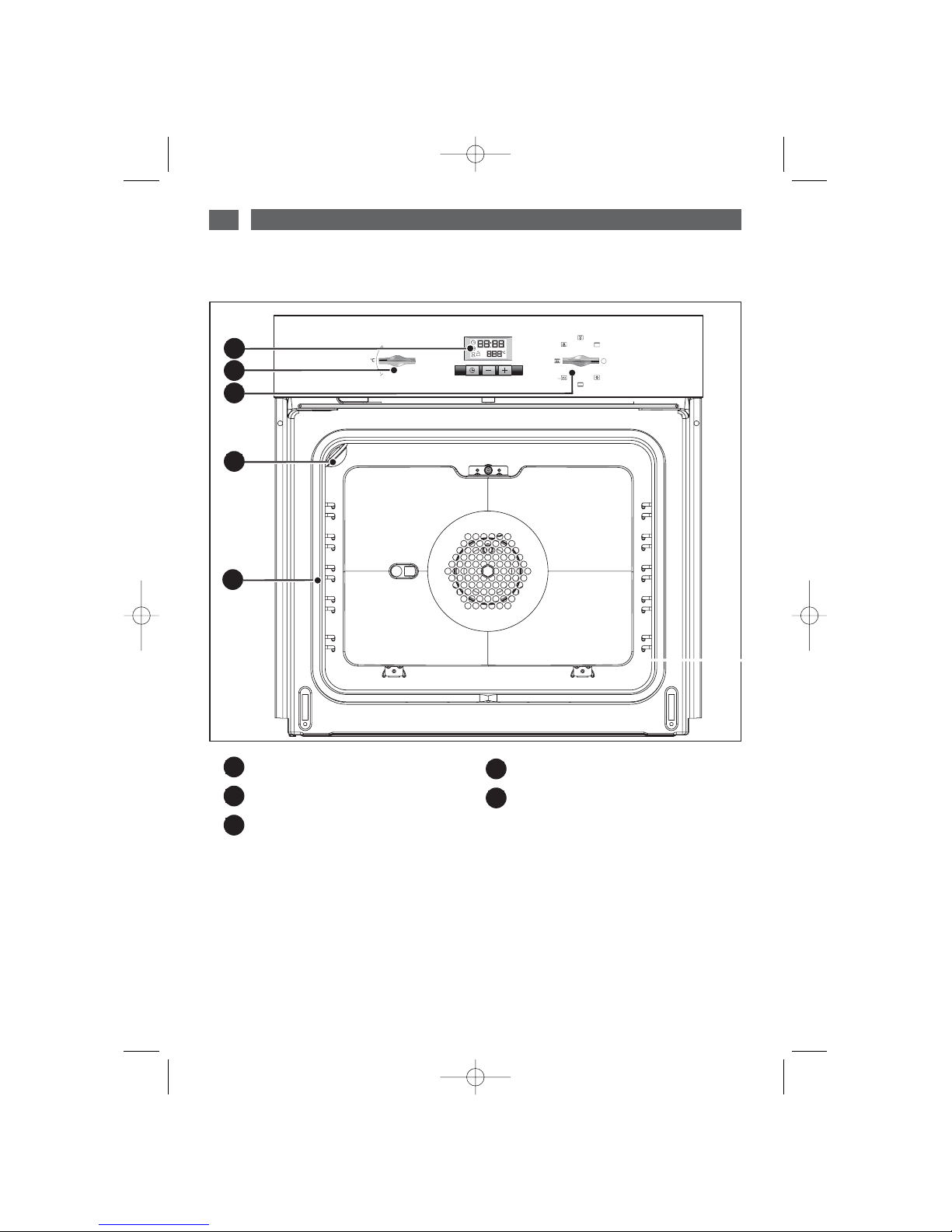

INTRODUCTION TO YOUR OVEN
••
A
B
Programmer
Temperature selector switch
Function selector switch
C
D
E
Light
Wire shelf supports
E
D
B
A
C
•Accessories
Your appliance is equipped with 2 safety grids with handles and a 45 mm dish.
99641401_A_ML.qxp 12/04/2007 10:38 Page 48

49
1 / DESCRIPTION OF YOUR APPLIANCE EN
INTRODUCTION TO THE PROGRAMMER
••
A
D
G
A
B
Time and cooking time display
Cooking time indicator
Cooking end time indicator
Timer display
C
D
ETemperature display
Selection button (cooking time and time)
Time setting buttons
F
G
E
F
C
B
99641401_A_ML.qxp 12/04/2007 10:38 Page 49

50
2 / USING YOUR APPLIANCE
EN
USING THE PROGRAMMER
•How to set the time
--When plugged in
The display flashes 12:00 (fig.1).
Set the time by pressing the + or - buttons
(holding your finger on the button allows you
to scroll through the numbers rapidly) (fig.2).
Example: 12:30
Press the “ ” button to confirm.
The display stops flashing.
- To set the time on the clock
The function selector switch must be in the 0
position (fig.1).
Press and hold the “ ” button for a few
seconds until the display starts flashing (fig.2),
then release. Audible beeps indicate that it is
now possible to set the time.
Adjust the clock setting with the + and -
buttons (fig.3).
Press the “ ” button to confirm (fig.4).
fig.1
fig.2
fig.2
fig.3
fig.4
fig.1
Warning
If there is no confirmation from the
“ ” button, the time is recorded
automatically after a few seconds.
••
99641401_A_ML.qxp 12/04/2007 10:38 Page 50

51
2 / USING YOUR APPLIANCE EN

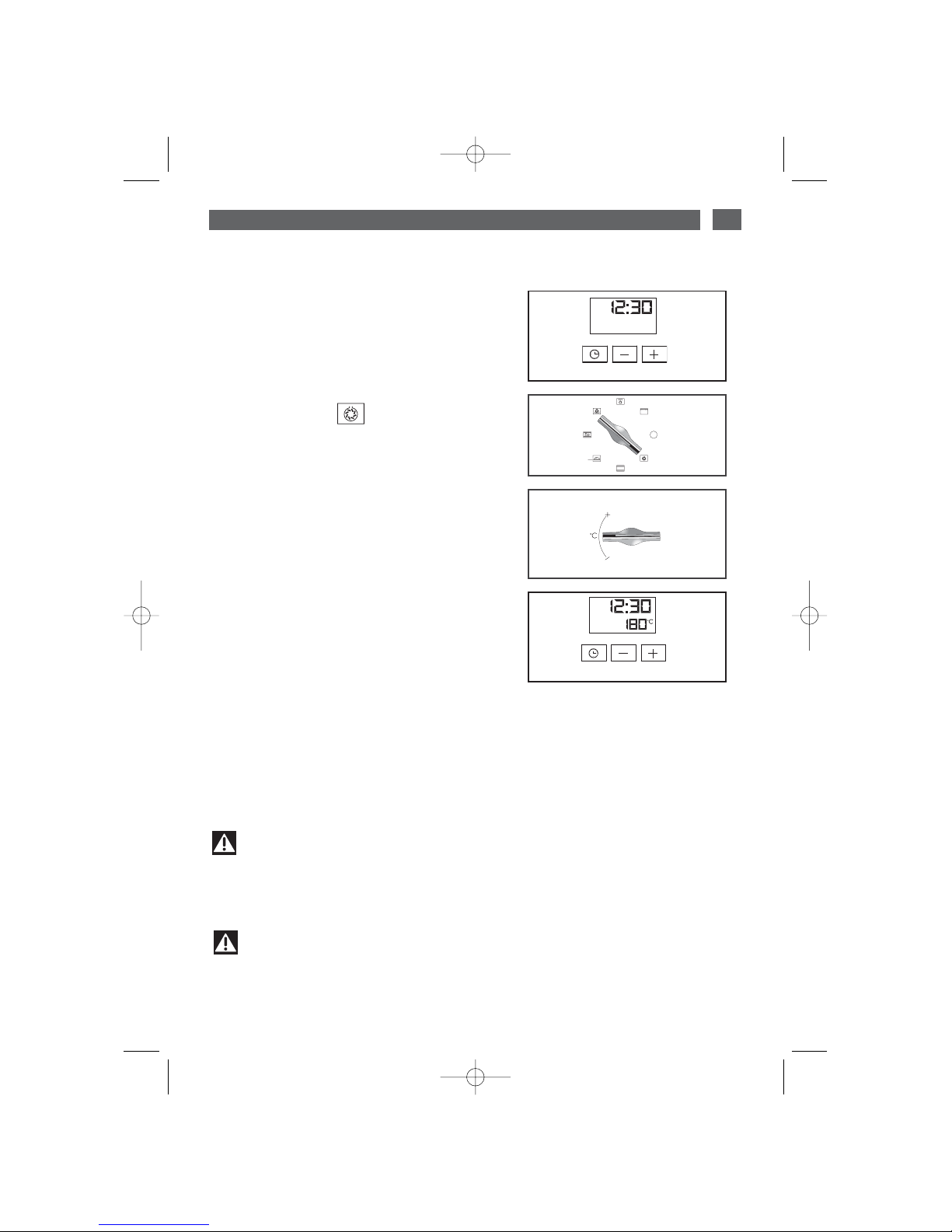

•Immediate cooking
— The programmer should display only the
time.
It should not be flashing (fig.1).
Turn the function selector to the position of
your choice.
Example: position (fig.2).
Your oven recommends the optimal
temperature for the chosen cooking mode.
It is, however, possible to adjust the
temperature by pushing the selection lever
towards ++or --(fig.3).
Example: temperature set to 180°C (fig.4).
PPllaacceeyyoouurrddiisshhiinntthheeoovveennbased on the
recommendations provided by the cook book.
After these steps, the oven heats up and the
temperature indicator flashes.
A series of beeps will sound when the oven
reaches the selected temperature.
The temperature stops flashing.
To stop this heating, return the function
selector to 0.
fig.2
fig.4
Warning
All types of cooking are done with the door closed.
Warning
After a cooking cycle, the cooling fan continues to operate for a period of time in order
to guarantee optimal oven reliability.
fig.1
fig.3
99641401_A_ML.qxp 12/04/2007 10:38 Page 51

52
2 / USING YOUR APPLIANCE
EN
--

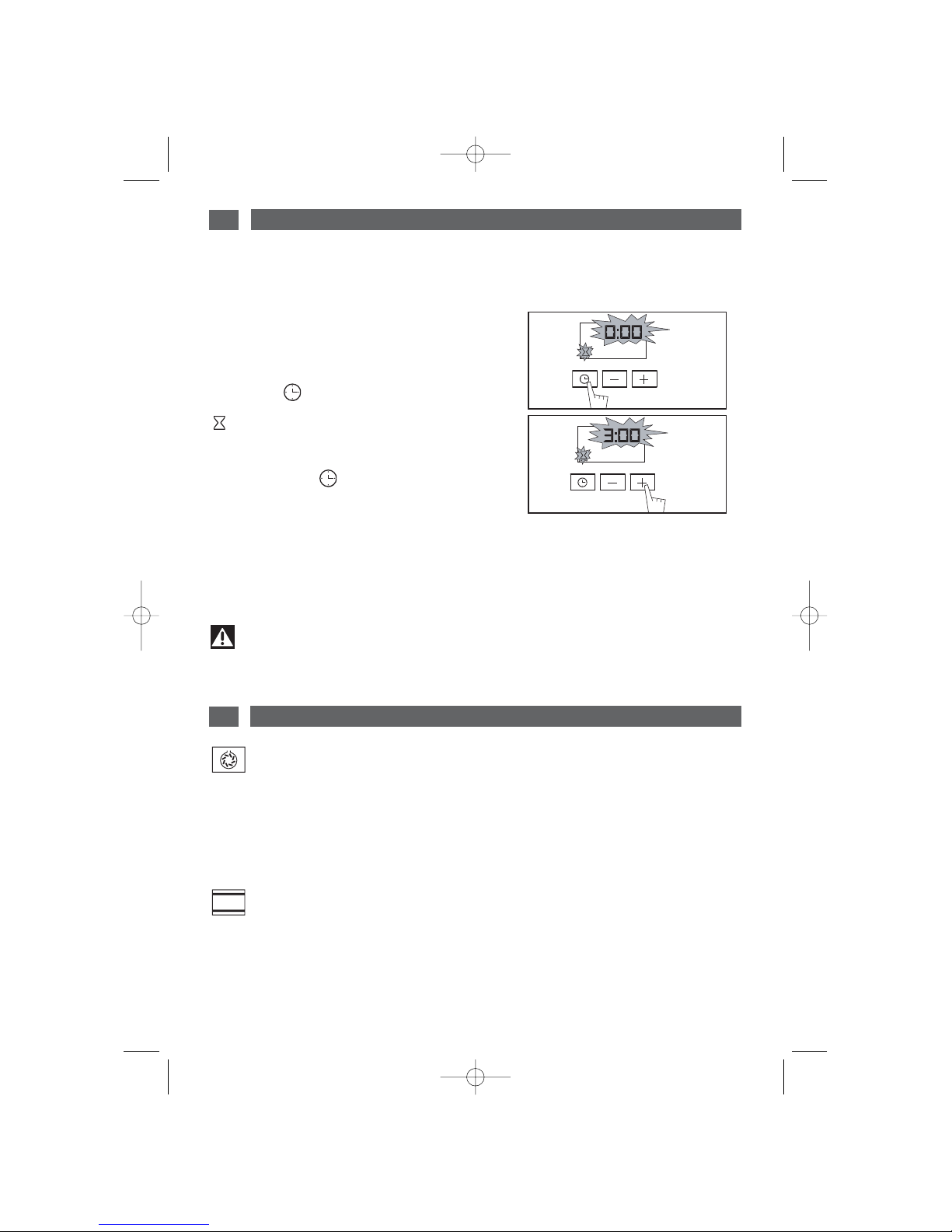

Cooking with immediate start and
programmed duration
- Select the desired cooking mode and adjust the
temperature (fig.1).
- Press the “ ” button until the cooking time
indicator starts to flash .
The display flashes 0:00 to indicate that you can
now adjust the setting (fig.2).
- Press the ++or --buttons to set the desired time.
Example: 30 mins cooking time (fig.3).
The cooking time is automatically recorded after a
few seconds.
The cooking time display stops flashing.
The countdown of the cooking time begins
immediately after it has been set.
AAfftteerrtthheesseetthhrreeeesstteeppss,,tthheeoovveennhheeaattssuupp::
A series of beeps will sound when the oven
reaches the selected temperature.
At the end of cooking (end of programmed time),
- the oven turns off,
- the cooking time indicator and 00:00 both flash
(fig.4),
- a series of beeps sounds for a few minutes.
Press any button to stop the beeping.
The display shows the time once again when the
function selector switch is returned to 0 (fig.5).
fig.2
fig.3
PROGRAMMED COOKING
••
fig.1
fig.4
fig.5
99641401_A_ML.qxp 12/04/2007 10:38 Page 52

53
2 / USING YOUR APPLIANCE EN
--
Cooking with delayed start and chosen
cooking end time
PPrroocceeeeddaasswwiitthhpprrooggrraammmmeeddccooookkiinngg..
- After setting the cooking time, press the “ ”
button until the end of cooking indicator flashes
“”.
The display flashes to indicate that you can
now adjust the setting (fig.1).
- Press the ++or --button to set the desired
cooking end time.
Example: end of cooking at 13:00 (fig.2).
The cooking end time is automatically
recorded after a few seconds.
The cooking end time display stops flashing.
AAfftteerrtthheessee33sstteeppss,,tthheeoovveennhheeaattiinnggiiss
ddeellaayyeeddssootthhaattccooookkiinnggeennddssaatt1133::0000..
At the end of cooking (end of programmed
time),
- the oven turns off,
- the cooking time indicator and 0:00 both
flash (fig.3),
- a series of beeps sounds for a few minutes.
Press any button to stop the beeping.
The display shows the time once again when
the function selector switch is returned to 0
(fig.4).
fig.1
fig.2
fig.3
fig.4
PROGRAMMED COOKING
••
When the cooking is delayed in a ccoollddoovveenn(by pulsed far or combined cooking), the
cavity lights up when cooking starts and stays lit until cooking ends. The fan keeps working
when the cooking has finished, until the oven has cooled down.
When the cooking is delayed in a hhoottoovveenn(by pulsed far or combined cooking), the
cavity lights up when cooking starts and stays lit until cooking ends. The fan starts working
when the programme starts and keeps working until the oven has cooled down.
99641401_A_ML.qxp 12/04/2007 10:38 Page 53

54
2 / USING YOUR APPLIANCE
EN
--YYoouurroovveenn’’sspprrooggrraammmmeerrccaannbbeeuusseeddaassaann
iinnddeeppeennddeennttttiimmeerrtthhaattaalllloowwssyyoouuttooccoouunntt
ddoowwnnaattiimmeewwiitthhoouuttooppeerraattiinnggtthheeoovveenn..
In this case, the timer display has priority over
the clock display.
- Press the “ ” button (fig.1) until the timer
symbol begins flashing.
-> 0.00 and a small hourglass both flash.
- Adjust the chosen time by pressing the
buttons ++or --(fig.2).
- Press the button “ ” to confirm, or wait for
a few seconds.
Warning
It is possible to change or cancel the timer at any time.
fig.1
fig.2
USING THE TIMER FUNCTION
••
The display stops flashing after a few seconds and the timer starts working, counting down the
time in seconds.
Once the time has expired, the timer emits a series of beeps to notify you.
Press any button to stop the beeping.
*
3 / OVEN COOKING MODES
EN
CCIIRRCCUULLAATTIINNGGHHEEAATT
(recommended temperature 118800°°CCmin 35°C max 235°C)
•
Cooking controlled by the heating element located at the back of the oven and by the
fan.
• Rapid temperature increase: Some dishes can be placed in the oven while it is still
cold.
• Recommended for keeping white meat, fish and vegetables moist.
For cooking multiple items on up to.3 levels.
CCOONNVVEENNTTIIOONNAALL
(recommended temperature 224400°°CCmin 35°C max 275°C)
• Cooking is done by the upper and lower element.
• After preheating, you can cook most dishes, recommended for keeping white meat,
fish and vegetables moist.
* Program(s) used to obtain the results indicated on the energy label in accordance with European
standard EN 50304 and European Directive 2002/40/CE.
99641401_A_ML.qxp 12/04/2007 10:39 Page 54

55
3 / OVEN COOKING MODES EN
* Program(s) used to obtain the results indicated on the energy label in accordance with European
standard EN 50304 and European Directive 2002/40/CE.
BBRREEAADD
(recommended temperature 220055°°CCmin 35°C max 275°C)
• Cooking sequence recommended for baking bread.
• Place the ball of dough on the pasty dish - 2nd shelf.
• Do not forget to place a ramekin of water on the bottom to get a crispy, shiny crust.
EECCOO
(recommended temperature 220000°°CCmin 35°C max 275°C)
• Cooking controlled by the upper and lower heating elements with no fan.
• This position allows for energy savings while preserving the quality of the cooking.
• The ECO position is used for energy label performance.
• All types of cooking are done wwiitthhoouuttpprreehheeaattiinngg..
KKEEEEPPIINNGGTTHHIINNGGSSWWAARRMMUUSSIINNGGTTHHEEFFAANNFFUUNNCCTTIIOONN
(recommended temperature 8800°°CCmin 35°C max 100°C)
• This position allows you to keep your dishes hot by occasional heating from the
bottom of the oven along with the fan.
• Recommended for letting dough rise for bread, brioche, kugelhopf... without
exceeding 40°C (plate warming, defrosting).
GGRRIILLLLMMEEDDIIUUMMWWIITTHHFFAANN
(recommended temperature 220000°°CCmin 180°C max 230°C)
• Cooking controlled, alternately, by the upper element and by the fan.
• Preheating is unnecessary. Roasts and poultry are juicy and crispy all over.
• Slide the drip tray onto the bottom shelf support.
• Recommended for all poultry and roasts on the spit, for cooking leg joints thoroughly,
and cuts of beef. To keep fish steaks moist.
HHIIGGHHTTEEMMPPEERRAATTUURREEGGRRIILLLL
(recommended positions 44min 1 max 4)
• Cooking done by the upper element.
• The double grill covers the entire grid surface.
• It is recommended for grilling chops, sausages, toast or prawns placed on the grid.
*
99641401_A_ML.qxp 12/04/2007 10:39 Page 55

4 / AFTER-SALES SERVICE
EN
Any repairs that are made to your appliance
must be handled by a qualified professional
authorised to work on the brand. When you
call, mention your appliance’s complete
reference (model, type, serial number). This
information appears on the manufacturer’s
nameplate
(fig.1).
GENUINE REPLACEMENT PARTS
During maintenance work, request that only
certified genuine replacement parts are
used.
•SERVICE CALLS
BBrraannddttAApppplliiaanncceess- simplified shareholder company with capital of 10,000,000 Euros RCS Nanterre 440,302,347.
BRANDT APPLIANCES SAS
7 rue Henri Becquerel
92500 RUEIL MALMAISON
230V ~ 50 Hz
MADE IN FRANCE
fig.1
56
99641401_A_ML.qxp 12/04/2007 10:39 Page 56
