deerdance JJ-5050ST-RGB-12-WIFI02 User manual

Use And Care Guide
Wi-Fi Flexible LED Strip Light Kit
EN
Model No.: JJ-5050ST-RGB-12-WIFI02
8M

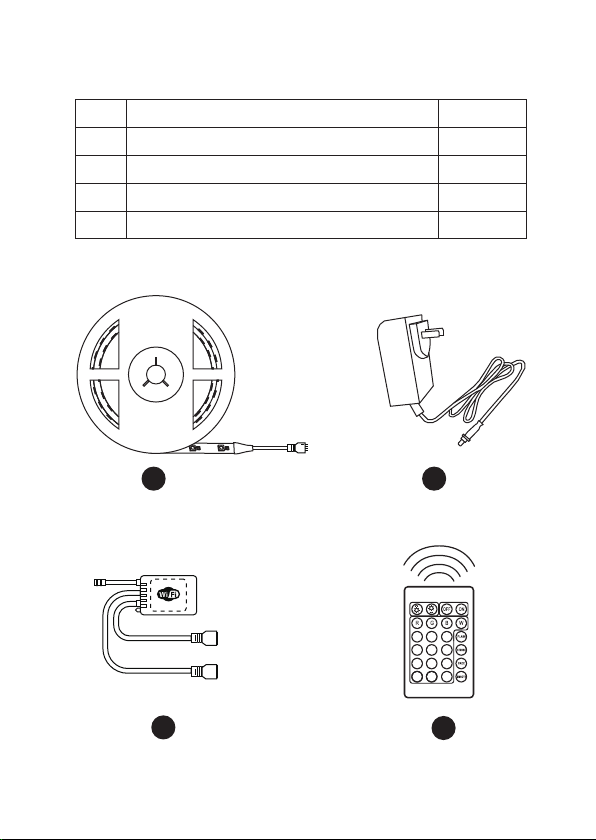

PACKAGE CONTENTS
Description
16.4 ft LED Light Strips (adhesive backs)
DC Adaptor
Wi-Fi controller + IR Receiver
Remote (batteries included)
Part
A
B
C
D
Quantity
2
1
1
1
A
D
B
C

WARNING
To avoid electrical shock or product failure, this lamp must be used in dry
locations and in open fixtures only.
This product is not a toy and should not be stored or left in locations
accessible to young children.
To avoid possible fire, product damage, or early lamp failure, this lamp
should not be used in heat-producing appliances.
To avoid possible fire hazard, only connect the strip to constant votage 12V
DC.
To prevent early lamp failure, lamp should only be installed in operating
environments ranging between: -14°F to +104°F (-10°C to +40°C).

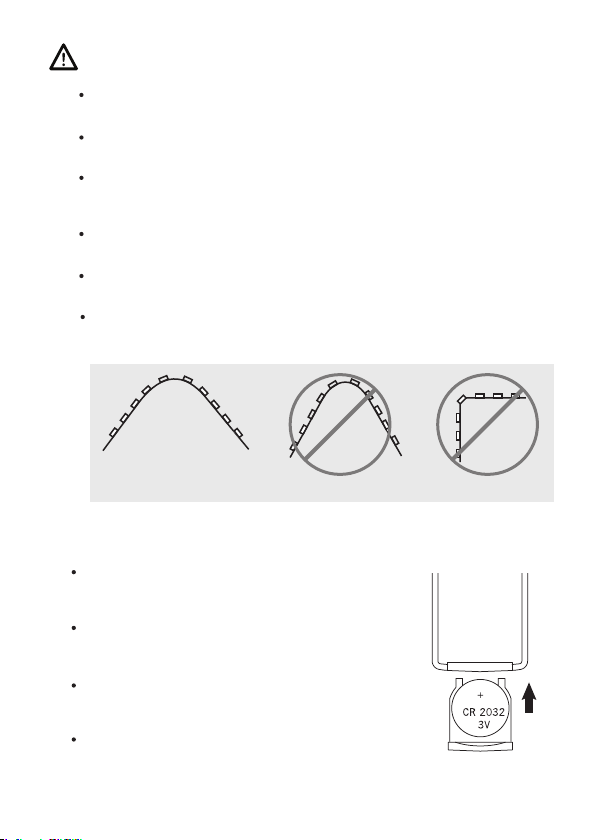

To prevent early lamp failure, lamp should not be bent roughly in the
position of LED chips. It is suggested that the bent angle should be greater
or equal than 90 degrees.
CAUTION
Pull out the plastic battery barrier sheet from the
battery compartment located on the bottom of the
remote.
When not using this product for extended periods,
remove batteries to prevent product damage due to
battery leakage.
Observe proper polarity when changing batteries.
Lamp may not light if batteries are inserted
incorrectly.
To prevent danger from explosion or leakage, do
not throw batteries into fire or expose them to
excessive heat.
Correct Incorrect Incorrect
Angle≥90° Angle<90°

SETTING UP
1.Select the location where the strip will be
mounted. Assure that all mounting areas
are free from debris and dust.
2.Stick the LED strip and press with force,
and then press the whole LED stirp
repeatedly.
3.
4.
5.
Remove the paper covering on the back of the
strip. Be sure to carefully place each strip in place
as the adhesive is permanent and cannot be
moved.
Press strip firmly in place and hold for 5 seconds
so that the tape adheres to the mounting surface.

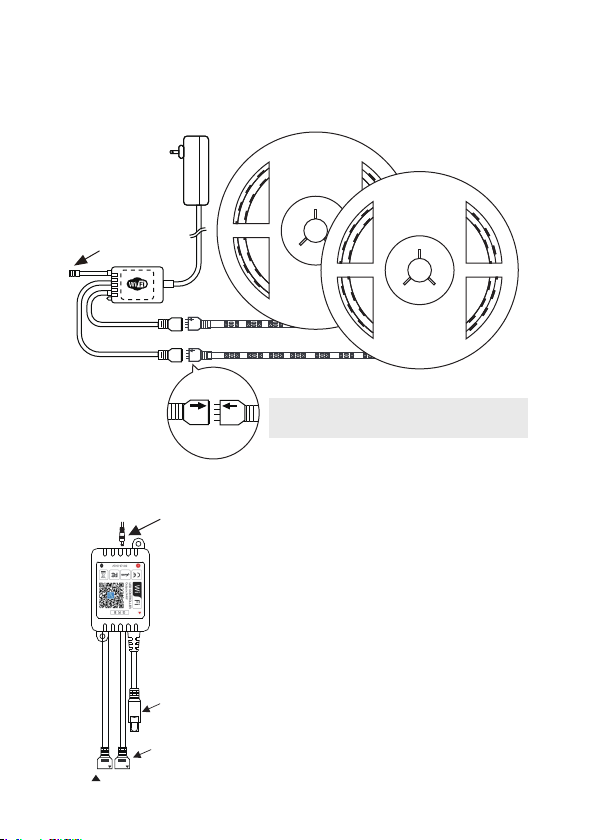

Connect controller to strip making sure the +RGB
on the end matches the connecting strip.
6. 7.
Connect DC Adaptor to Controller. Plug in DC Adaptor.
12V+
G
R
B
12V+
G
R
B
eye

8.On the remote, press the ON button aiming directly at the eye at the end of the
cord. For the lights to change or move, remote must be aimed at the eye – a black
tip at the end of the cord on the controller.
eye
8M
CONTROLLER
Power Input:
DC Connector
Infrared Sensor
LED Output
Positive Pole


󾋸󾋹
󾋽
󾋸󾋹





Category
Domination Principle
APP
Part Number
Operation Platform
Channels
Input Voltage
Max Output Power
Connect Method
Working Temperature
Control Distance
Certification
LED Controller
WiFi
Magic Home Pro
ZJ-WIRD-RGB-24K
Android 4.0 or IOS 9.0 or later
GRB
DC(12-24)V
144W
Common Anode
-14°F to +104°F (-10°C to +40°C)
Visible distance 196.8FT
CE, RoHS, FCC
I.Product Parameter
Note: When connect the strips to controller, please make
sure the arrows on same line. Otherwise, the lights
won't work.

24-key infrared control instruction: (For controllers
with infrared function)

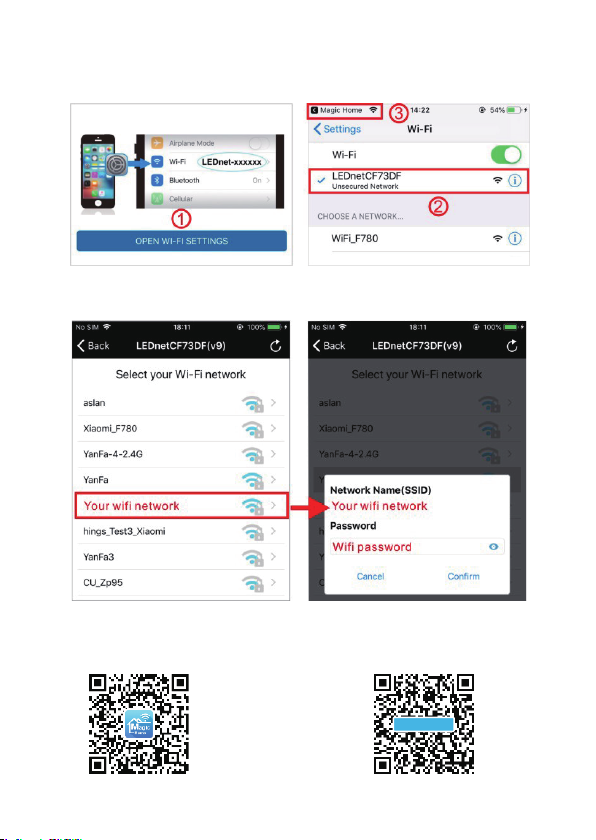

How to connect the controller to Wi-Fi network?
Before Setting(Install the APP):
Now Setting:
a) Search for “Magic Home Pro” on the App store or Google Play Store,or scan
the QR code to download it.
b) (Important)Connect your phone to home wifi network (2.4GHz wifi only).
c) Power on the device.
a) Register/Login your Magic Home account. b) Open the App and Click on “+” button
on top right corner.

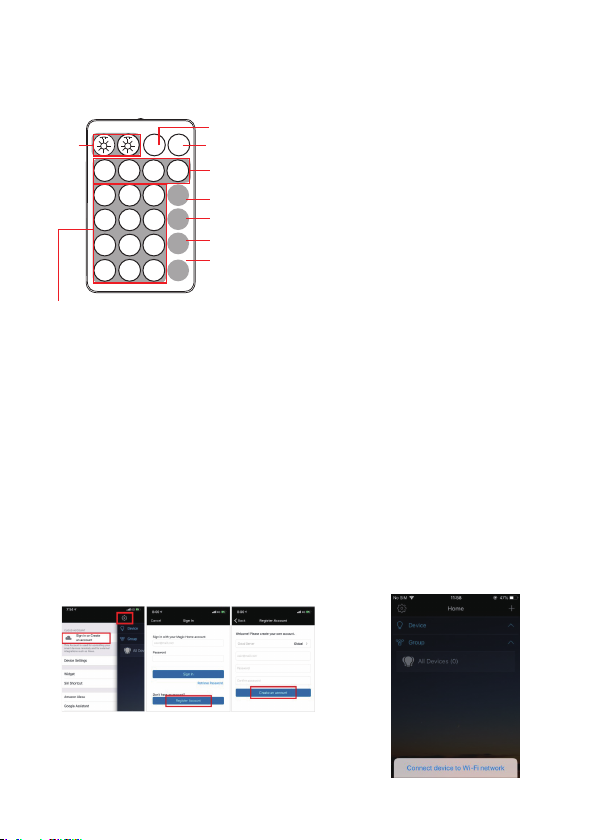

II.Instruction of Remote Controller
III.Instructions
1. The default setting of the WIFI controller is 3
channels in the sequence of GRB (sequence of
GRBW for RGBW version, GRBWC for RGBWC
version). If you want to change the output
channel,the steps are as follows: unplug the
controller power and then plug in again. When the
light up, long press the key B for 2 to 3s, the
flickering white light means you’ve successfully
changed the output channel to BRG; Similarly, long
press key G will change the channel to GRB
sequence; long press key R to RGB sequence.
2. In RGBW version, press W key for RGB and white
light; long press W key for 2 seconds will switch to
W channel.
SMOOTH
FLASH
STROBE
FADE
OFF ON
R G B W
Flash
Strobe
Fade
Smooth
Non-dynamic
RGBW
Brightness and
Speed button
Non
-
dynamic lighting
buttons with different colors
Switch on
Switch off

APP Instructions
Scan the below QR code to
download Magic Home free APP If there are any other questions, please scan the
below QR code to see more detail operations
c) Open phone Wi-Fi interface and connect to the “LEDnetxxxxx” signal. ( If can’t find, please
reset your controller, turn it on&off for 3 times). After successful connection, go back to the
Magic Home Pro APP.
d) Connect to your home network. Select your home network in the Wi-Fi list and enter the
correct WiFi password. Then enter the device name and click on “complete”.
WIRD-RGB-24K

FCC STATEMENT
CAUTION: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does not cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult an experienced radio/TV technician for help.
NOTE:
MADE IN CHINA
Email: [email protected]
Web: www.capetronix.com
WhatsApp: [phone]

Guía de Uso y Cuidado
Kit de Luz de Tira de LED RGB Wi-Fi
Núemro del Modelo.: JJ-5050ST-RGB-12-WIFI02
ES
8M

CONTENIDOS DEL PAQUETE
Descripción
Tiras de luces LED de 16,4 pies (dorso adhesivo)
Adaptador DC
Receptor Wi-Fi Controlador+ IR
Control remoto (baterías incluidas)
Parte
A
B
C
D
Cantidad
2
1
1
1
A
D
B
C

ADVERTENCIA
Para evitar descargas eléctricas o mal funcionamiento del producto, esta
lámpara debe usarse en lugares secos y en accesorios abierto.
Este producto no es un juguete y no debe guardarse ni dejarse en lugares
accesibles para niños pequeños.
Para evitar incendios posibles, daños al producto o fallas prematuras de
la lámpara, esta lámpara no debe usarse en aparatos que produzcan el
calor.
Para evitar un posible riesgo de incendio, sólo se conectará la banda de
aluminio a un voltaje constante de 12 V de corriente continua.
Para evitar fallas prematuras de la lámpara, sólo se debe instalar en
entornos de operación entre: -14°F a + 104°F (-10°C a + 40°C).
Paraevitar fallas prematuras de la lámpara, la posición de los chips
LEDno se debe doblar bruscamente. Se recomienda que el ángulo de
doblado sea mayor o igual a 90 grados.
CAUTION
Retire la lámina de barrera de la batería de plásticodel
compartimiento de la batería ubicado en la parte
inferior del control remoto.
Cuando no se usaráel producto por períodos
prolongados, retire las baterías para evitar daños al
producto debido a fugas.
Observe la polaridad apropiada al cambiar baterías. La
lámpara no podrá encenderse si las baterías se
insertan incorrectamente.
Para evitar el peligro de explosión o fugas, no arroje
las baterías al fuego ni las exponga a calor excesivo.
Correcto Incorrecto Incorrecto
Ángulo≥90° Ángulo<90°

INSTALACIÓN
1.Seleccioneel lugar donde se monta la cadena.
Asegúrese de que todas las áreas de montaje
estén libres de escombros y polvo.
2.Pegue la tira de LED y presione con fuerza, y
luego presione todo el LED agitar repetida-
mente.
3.
4.
5.
Retire el papel que cubre la parte posterior de la
cadena. Asegúrese de colocar cuidadosamente
cada cadena en su lugar porque el adhesivo es
permanente y no se puede mover.
Presionefirmamente la cadenaen su lugary
mentenga presionándolapor5segundos para que
la cinta se adhiera a la superficie de montaje.
Conecte el controlador a la cadena y asegúrese de
que el + RGB del extremo coincida con lacadena de
conexión.
6. 7.
Conecte el adaptador de CC
al controlador.
Enchufe el adaptador de CC.
12V+
G
R
B
12V+
G
R
B
ojo

8.En el control remoto, presione el botón ON apuntando directamente al ojo al final
del cable. Para que las luces cambien o se muevan, el control remoto debe
apuntar al ojo: una punta negra en el extremo del cable del controlador.
CONTROLLER
Entrada de alimentación:
Conector DC
Sensor infrarojo
Salida LED
Polo positivo


󾋸󾋹
󾋽
󾋸󾋹





Categoría
Principio de dominación
APP
Número de pieza
Plataforma de operación
Canales
Voltaje de entrada
Potencia máxima de salida
Método de conexión
Temperatura de trabajo
Distancia de control
Certi fi cación
Controlador LED
Wifi
Magic Home Pro
ZJ-WIRD-RGB-24K
Android 4.0 o IOS 9.0 o posterior
GRB
DC (12-24) V
144W
Ánodo común
-10°C to +40°C
Distancia visible 60 M
CE, RoHS, FCC
I.Parámetro del producto
ojo
8M
Note: When connect the strips to controller, please make
sure the arrows on same line. Otherwise, the lights
won't work.

Instrucción de control de infrarrojos de 24 teclas:
(para controladores con función de infrarrojos)
Antes de configurar (instalar la APP):
a) Busque "Magic Home Pro" en la App Store o Google Play Store, o escanee
el código QR para descargarlo.
b) (Importante) Conecte su teléfono a la red wifi doméstica (solo wifi de 2.4GHz).
c) Encienda el dispositivo.
Ahora configurando:
a) Regístrese/Inicie sesión en su cuenta
de Magic Home.
b) Abra la App y haga clic en el botón
"+" en la esquina superior derecha.
II.Instrucción del Control Remoto
III.Instrucciones
1.1. La configuración predeterminada del controla-
dor WIFI es de 3 canales en la secuencia de GRB
(secuencia de GRBW para la versión RGBW, GRBWC
para la versión RGBWC). Si desea cambiar el canal
de salida, los pasos son los siguientes: desenchufe
el alimentación del controlador y vuelva a conectar-
lo. Cuando se encienda, mantenga presionada la
tecla B durante 2 a 3 s, la luz blanca parpadeante
significa que ha cambiado con éxito el canal de
salida a BRG; Del mismo modo, si mantiene
pulsada la tecla G, el canal cambiará a la secuencia
GRB; mantenga presionada la tecla R para la
secuencia RGB.
2. En la versión RGBW, presione la tecla W para RGB
y luz blanca; Mantenga presionada la tecla W
durante 2 segundos para cambiar al canal W.
SMOOTH
FLASH
STROBE
FADE
OFF ON
R G B W
Flash
Estroboscópico
Desvanecer
Suave
No dinámicoc
RGBW
Botón de brillo
y velocidad
Iluminación no dinámica
-botones con diferentes colores
Switch on
Switch off

APP Instrucciones
Escanee el siguiente código QR para
descargar la APP gratuita Magic Home Si tiene alguna otra pregunta, escanee el siguiente
código QR para ver más operaciones detalladas
c) Abra la interfaz Wi-Fi del teléfono y conéctese a la señal “LEDnetxxxxx”. (Si no puede encontrarlo,
reinicie su controlador, enciéndalo y apáguelo 3 veces). Después de una conexión exitosa, vuelva
a la App Magic Home Pro.
d) Conéctese a su red doméstica. Seleccione su red doméstica en la lista de Wi-Fi e ingrese la
contraseña de WiFi correcta. Luego ingrese el nombre del dispositivo y haga clic en "completar".
WIRD-RGB-24K
