Lytespan®Track Lighting 9100
Page 1 of 4 Radius™Track 1 Circuit Track
Features
Radius Track Lytespan is a one circuit electrical distribution system designed to
support and supply all Lytespan lighting units in a flexible manner. The track is
available in 2', 4', 6' and 8' lengths. The track lengths may be combined with vari-
ous electrical fittings to create straight runs or patterns. The track may be field
cut at any location.
1. Toggle Bolts and Screws: furnished with track units.
2. Radius Track:.062" wall thickness. Aluminum extrusion.
3. Conductors: 20 amp. capacity. “U” shape provides reliable contact with
connectors.
4. Polarity Bead: identifies the neutral conductor.
5. Insulated liner: .032" wall high temperature extruded thermoplastic.
6. Insulated Washer: (Furnished with Track) Insulates mounting screw from
conductors.
7. Dead End Cap: molded thermoplastic.
Mounting
The track may be surface mounted to a ceiling or wall. The track may be stem
mounted or mounted to a grid ceiling with flat or regressed panels. The track is
not intended to be cable mounted.
Electrical
Capacity is 20 amps at 120V 60Hz per branch circuit (2400 watts max. per branch
circuit). Track units and electrical fittings are polarized and continuously ground-
ed throughout. The track must be wired in accordance with National Electric
Code and Local Codes.
Mechanical
The electrical fittings plug into the track units and lock securely creating an
electrical mechanical assembly. The aluminum track provides a rigid support that
supports Lytespan lighting fixtures. Lytespan lighting fixtures may be attached
at any point along the track.
Finish
All painted finishes are baked enamel. Raw Aluminum finish is clear anodized
and furnished with black conductors.
Labels
UL, I.B.E.W., cUL
Ordering Information
Finishes 2 ‘ Plain 4 ‘ Plain 6 ‘ Plain 8 ‘ Plain
Matte White 9102WH 9104WH 9106WH 9108WH
Matte Black 9102BK 9104BK 9106BK 9108BK
Raw Aluminum 9102RA 9104RA 9106RA 9108RA

Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • D0309
Lytespan®Track Lighting 9100
Page 2 of 4 Radius™Track 1 Circuit Track
Junction Box Cover
Mounts above "L" feed 9155WH,BK or
"T" 9151WH, BK. Mounts to a 4" or 3"
octagon outlet box. Direct mount track to
surface. Canopy is 3/32" thick and 4-1/2"
square.
9060WH Matte White
9060BK Matte Black
Direct Mounting
Toggle
Bolts and Nylon Insulators are
furnished
with the Track: 2 per 2', 4', and 6',
3
per 8'. Mount toggles through existing
holes
in track. Top of track is flush to ceiling.
R
ecommended for wall and ceiling mounting.
Additional
supports may be required when
wall
mounting or when using heavy lighting
fixtures
on the Radius track.
Suspended
Grid Ceiling Mounting Clips
Square
Edge Panels and 9/16" - 15/16" T-Bars
Clip
attaches at any point along a straight
section
of T-Bar by rotating the clip. Pass clip
stud
through existing holes in track and
secure
with nut.
Additional
supports may be required when
supporting
heavy lighting fixtures on the
Radius
track.
9189 (9) Clips
9/16" - 15/16"
Square
Edge Panel
T-Runner
Toggle Bolt
Nylon Spacer
Regressed
Edge Panel Mounting Clips
9/16"
- 15/16" T-Bars
Clip
attaches at any point along a straight
section
of T-Bar by rotating the clip. Pass clip
stud
through existing holes in track and
secure
with nut.
Additional
supports may be required when
supporting
heavy lighting fixtures on the
Radius
track.
9188 (9) Clips
9/16"-
15/16"
Regressed
Edge Panel
T-Runner
5/16" -
13/32
Live End Canopy
Mounts directly under a 4" or 3" octagonal
outlet box. Live End Canopy attaches
mechanically to the J-Box. The canopy is
polarized (meaning the connector goes into
the track one way, providing consistent
alignment of the neutral and hot wire
connections with the track
and lighting fixtures).
9160WH Matte White
9160BK Matte Black
Matte White
Saddle Canopy Kit
Mounts anywhere along the track (excluding
track mounting hole locations) for power feed
from a 4" or 3" octagon box. Track must be
mounted at 45 to the mounting holes when
using a 3" J-Box. Max load 20 amp. at 120V
60Hz.
9163WH
9163BK Matte Black
45
Track Unit
3" Octagon J-Box
(by others)
1-3/16"
Dead End Cover
Electrical Fitting
Canopy Cover
4-1/2"
square
3/16"
Centerline
J-Box
4 3/8"
Square
1/2"
Track Unit
Canopy
NEUT
GND
3/23"
4-1/2"
Slot
Outlet Box
(by others)
4-1/2"
Canopy
Supply Leads
Ground Wire
Screw

Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • D0309
Lytespan®Track Lighting 9100
Page 3 of 4 Radius™Track 1 Circuit Track


 









 


 









 





¡



¢





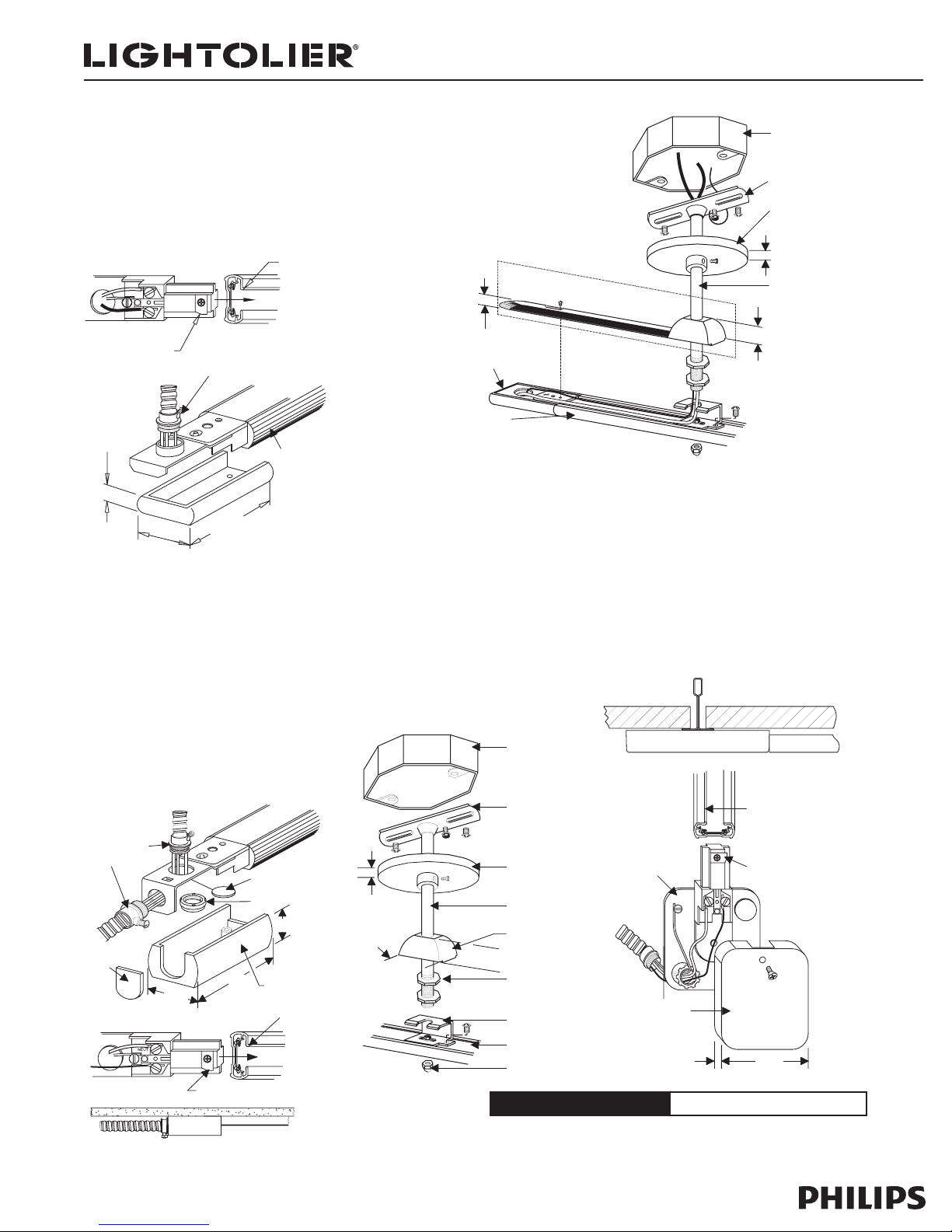

3" or 4" Octagon
Outlet Box
(by others)
Crossbar
Canopy
4-1/2" dia.
Nut
Bracket Cover
15/16"
Bracket
2-1/16"
13/32" Stem 1/2" Dia.
Nut
Track Unit
(Sold Separately)



13/32"
5/16"
15/16"
3" or 4" Octagon
Outlet Box
(by others)
Crossbar
Canopy
4-1/2" dia.
Electrical Connector
(Sold Separately)
Stem Kit
(Sold Separately)
Track Unit
(Sold Separately)






£



 
 
1/2"
1-3/8"
2-7/8"
Electrical Fitting (by others)
Track Unit
Polarity Tab
Track Bead


   
   
   



¤£

¡

£
£





Polarity Tab
Track Bea
d
KO
Nut
Bottom Cover
Plastic
Tab

Electrical Fitting
(by others)
Track Unit
1-1/8"
1-1/2"
3-1/8"



¡
£
£




Polarity Tab
Track Bead
5/8" 4-1/8"
Square
Metal Crossbar


Bottom Cover
 



 









 


 









 





¡



¢




3" or 4" Octagon
Outlet Box
(by others)
Crossbar
Canopy
4-1/2" dia.
Nut
Bracket Cover
15/16"
Bracket
2-1/16"
13/32" Stem 1/2" Dia.
Nut
Track Unit
(Sold Separately)



13/32"
5/16"
15/16"
3" or 4" Octagon
Outlet Box
(by others)
Crossbar
Canopy
4-1/2" dia.
Electrical Connector
(Sold Separately)
Stem Kit
(Sold Separately)
Track Unit
(Sold Separately)






£



 
 
1/2"
1-3/8"
2-7/8"
Electrical Fitting (by others)
Track Unit
Polarity Tab
Track Bead


   
   
   



¤£

¡

£
£





Polarity Tab
Track Bea
d
KO
Nut
Bottom Cover
Plastic
Tab

Electrical Fitting
(by others)
Track Unit
1-1/8"
1-1/2"
3-1/8"



¡
£
£




Polarity Tab
Track Bead
5/8" 4-1/8"
Square
Metal Crossbar


Bottom Cover
 



 









 


 









 





¡



¢




3" or 4" Octagon
Outlet Box
(by others)
Crossbar
Canopy
4-1/2" dia.
Nut
Bracket Cover
15/16"
Bracket
2-1/16"
13/32" Stem 1/2" Dia.
Nut
Track Unit
(Sold Separately)



13/32"
5/16"
15/16"
3" or 4" Octagon
Outlet Box
(by others)
Crossbar
Canopy
4-1/2" dia.
Electrical Connector
(Sold Separately)
Stem Kit
(Sold Separately)
Track Unit
(Sold Separately)






£



 
 
1/2"
1-3/8"
2-7/8"
Electrical Fitting (by others)
Track Unit
Polarity Tab
Track Bead


   
   
   



¤£

¡

£
£





Polarity Tab
Track Bea
d
KO
Nut
Bottom Cover
Plastic
Tab

Electrical Fitting
(by others)
Track Unit
1-1/8"
1-1/2"
3-1/8"



¡
£
£




Polarity Tab
Track Bead
5/8" 4-1/8"
Square
Metal Crossbar


Bottom Cover
 



 









 


 









 





¡



¢




3" or 4" Octagon
Outlet Box
(by others)
Crossbar
Canopy
4-1/2" dia.
Nut
Bracket Cover
15/16"
Bracket
2-1/16"
13/32" Stem 1/2" Dia.
Nut
Track Unit
(Sold Separately)



13/32"
5/16"
15/16"
3" or 4" Octagon
Outlet Box
(by others)
Crossbar
Canopy
4-1/2" dia.
Electrical Connector
(Sold Separately)
Stem Kit
(Sold Separately)
Track Unit
(Sold Separately)






£



 
 
1/2"
1-3/8"
2-7/8"
Electrical Fitting (by others)
Track Unit
Polarity Tab
Track Bead


   
   
   



¤£

¡

£
£





Polarity Tab
Track Bea
d
KO
Nut
Bottom Cover
Plastic
Tab

Electrical Fitting
(by others)
Track Unit
1-1/8"
1-1/2"
3-1/8"



¡
£
£




Polarity Tab
Track Bead
5/8" 4-1/8"
Square
Metal Crossbar


Bottom Cover
 


Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • D0309
Lytespan®Track Lighting 9100
Page 4 of 4 Radius™Track 1 Circuit Track
Feed Connectors for Surface amd Mounted Patterns – Use 12ga. or 14ga. solid wire when feeding track.
Track Beads must be
"In-Line" when track
patterns are used.
4-1/8"
Polarity Tab
Track Bead
Track Unit
2-13/16"
2-13/16"
1-1/2"
Electrical Fitting
(by others)
Connector
Rotates
11/16"
Knock Out
Connector
Rotates
1/2"
Knock Out
1-3/8"
CEILING TO WALL
WALL INSIDE CORNER
WALL OUTSIDE CORNER
WALL INSIDE CORNER
Track Bead
11/16"
Polarity Tab
Polarit
y
Tab
3/32"
Polarit
y
Tab
Track Bead
2-7/8" Cord and Plug
Connector
1-1/2"
Electrical Fitting
(by others)
11/16"
Knock Out
Cord and Plug
Energizes track from a polarized 120V
receptacle. Supplied with a 15' two conductor
18 ga. cord and in-line switch. The switch is
not supplied attached to the cord. The
connector is rated for 6 amps. Max.
Do not exceed 1200 watts on the track
without switch. Do not exceed 720 watts on
the track with switch.
9162WH Matte White 9162BK Matte Black
