HörnPac Productinformation / Quick Manual p. 1 / 3
HörnPac Quick Manual Art. No.: 2785 100 / 110
General
HörnPac consists of two parts, delivered as flatware.
HörnPac Corner:
HörnPac Side Part:
Ill. 1: shape at delivery
Ill. 2: shape at delivery
Assembly
For packaging one Picture, four corners plus four side parts are required.
Basic Tools:
Pencil
Cutter
Art. No. 4694 020
Tape (50 mm) z. B.
Art. No. 6318 025
Stretch film, with
Art. No. 2791 100
Hand Dispenser
Art. No. 2791 110

Deffner & Johann GmbH | Mühläckerstraße 13 | 97520 Röthlein/Schweinfurt
Telefon [phone] / 9350-0 | Telefax +49 (0) 9723 / 9350-25 | [e-mail] | www.deffner-johann.de
HörnPac Productinformation / Quick Manual p. 2 / 3
Step 1: Fold the corner parts of HörnPac (Art. No.: 2785 100)
Fold the HörnPac corners along the pre-marked lines. Secure each folded part with two pieces of
tapes. Text side downwards.
HörnPac Corner:
Ill. 3: place tape on the corners before folding
Ill. 4: assembled HörnPac corner
Step 2: Folding the HörnPac side part (Art. No.: 2785 110)
The HörnPac side panels are also folded and secured with adhesive tape.
Step 3: Length adjustment
Transfer the edge length of the frame/painting to the HörnPac sides. The dimension can be
5 - 6 cm shorter than the edge length of the frame/painting. Always cut two of the same length.
HörnPac side part:
Ill. 5:
preparation for assembly
Ill. 6:
assembled HörnPac side part
Ill. 7:
correct cross-section

Deffner & Johann GmbH | Mühläckerstraße 13 | 97520 Röthlein/Schweinfurt
Telefon [phone] / 9350-0 | Telefax +49 (0) 9723 / 9350-25 | [e-mail] | www.deffner-johann.de
HörnPac Productinformation / Quick Manual p. 3 / 3

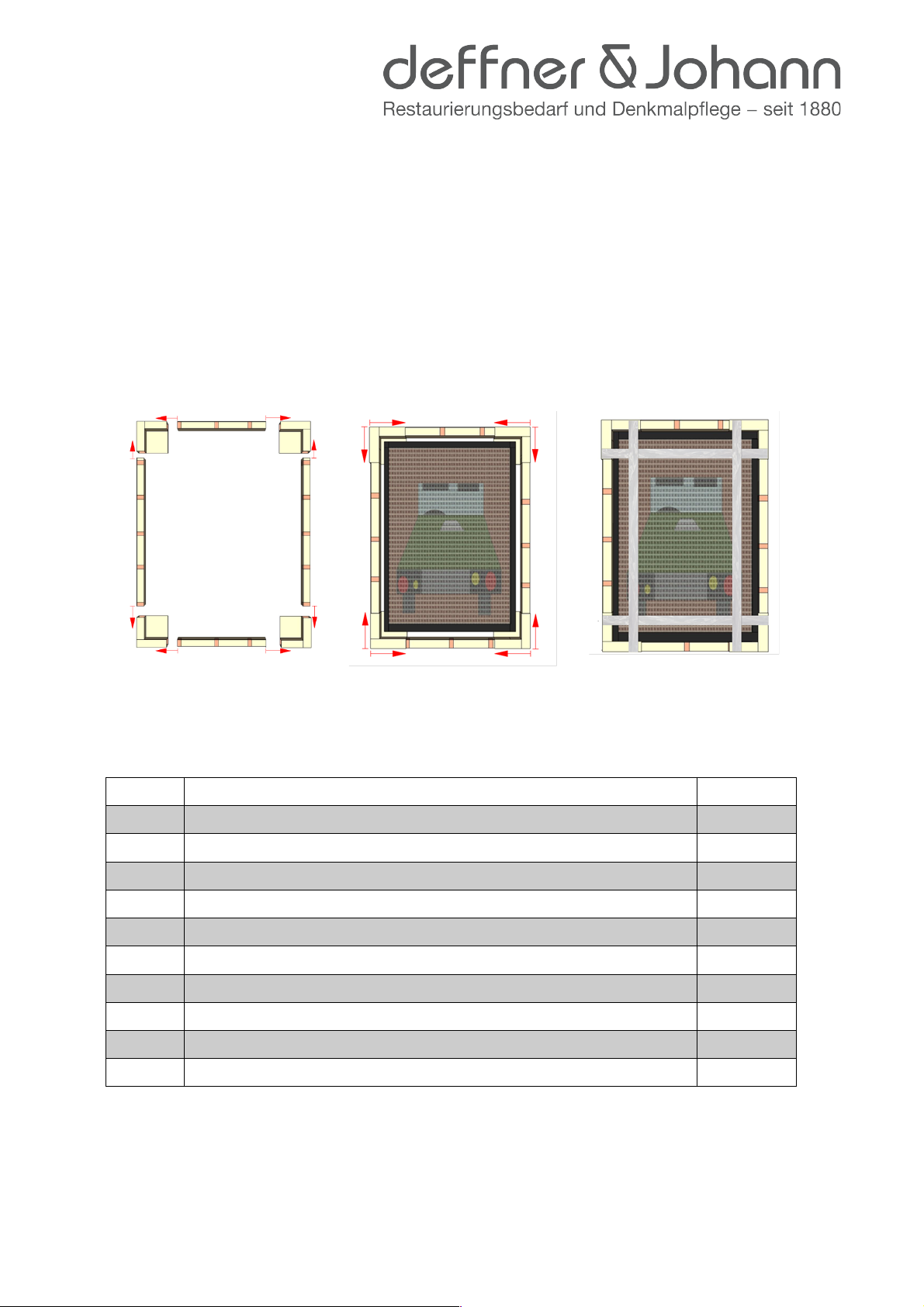

Step 4: Assemble HörnPac
A: Take the four HörnPac corner pieces and the corresponding adapted HörnPac sides and insert it
as shown in the illustrations (Ill. 8).
B: The frame/painting (wrapped in nonwoven and/or LDPE film) is added to the assembled
HörnPac transport frame (Ill. 9).
C: The HörnPac parts can now be pushed up to firmly touch the frame/painting. Secure the
HörnPac corners with stretch film (Ill. 10), or use one of the alternative methods mentioned
(see main manual).
Ill. 8: Step 4 A
Ill. 9: Step 4 B
Ill. 10: Step 4 C
Check-List. Available at: www.deffner-johann.com
Art.No.
Produkt
Amount
2785 100
HörnPac corner
2785 110
HörnPac side
2791 100
Stretch Film, 10 x 100 m
2791 110
Dispensers For Stretch Film
2219 045
Packing Nonwoven, Roll 500 x 120 cm
2219 050
Packing Nonwoven, 25 Sheets 70 x 100 cm
2702 152
Tyvek® Soft-PE-Fleece 1622 E, 41 g/m2, Roll 152,4 cm x 50 m
2702 100
Tyvek® Soft-PE-Fleece 1622 E, 41 g/m2, Roll 101 cm x 25 m
2724 100
Bubble Wrap, 70 µ, Bubble Ø ca. 10 mm, Roll 1 m x 100 m
2791 600
Lettering Pen, permanent twin tip (0,3 and 1,5 mm)
