Short Form
Specifications
Exterior body is constructed of
18-gauge stainless steel side panels and
14-gauge galvanized bottom. All exterior
side panels are reinforced with overlap-
ping corners and are welded in place.
All body cutouts are reinforced with
14-gauge galvanized channel supports.
Exterior top is constructed of 14-gauge
stainless steel, welded, ground and pol-
ished into one integral unit. Top is
fabricated with square exterior corners.
Top has two to six electrically heated,
recessed, die-stamped stainless steel hot
food warmers. Each warmer accommo-
dates one 12.75” x 20.75” x 6” (32.4cm
x 52.7cm x 15.2cm) pan.
Heated food warmers are constructed
of die-stamped stainless steel. Heated
food warmers are insulated on bottom.
Each heated food warmer is individu-
ally equipped with a heated element
rated at 1000 watts for 120 volt or
208/230 volt, 60 hertz, single phase
service and wired to an adjustable con-
trol switch and indicator light in the
control panel. Heated food warmers
are interwired to a maximum 10’ (3m)
long cord with a grounded plug for 120
volt or 208/230 volt, 60 hertz, single
phase electrical service.
Casters: Unit is mounted on 5”
(12.7cm) diameter swivel casters with
non-marking polyolefin tires and plate
brakes. Overall height of caster assem-
bly is 6.00” (15.2cm).
The following applies to
SH Series only.
All SH models have a one door heated
compartment. Compartment is constructed of
18-gauge stainless steel, is insulated with a
minimum of 2” (5.1cm) insulation and is pro-
vided with removable 16-gauge pan slides.
SH-2 comes with a single capacity heated
compartment; compartment that holds four
12.75” x 20.75” x 2.5” (32.4cm x 52.7c, x
6.4cm) pans. SH-3, SH-4, SH-5 and SH-6
units come with double capacity (single door)
heated compartment with a center partition;
compartment holds eight 12.75” x 20.75” x
2.5” (32.4cm x 52.7c, x 6.4cm) pans. With the
center partition removed the double capacity
compartment can hold four 18” x 26” (45.7cm
x 66cm) sheet pans. The internally mounted
heating element is rated at 890 watts, has a
louvered protective cover and is wired to a
temperature control thermostat and indicator
light in the stainless steel control panel. Doors
are built with double-wall construction, with
gaskets and stainless steel front panel.
Optional Accessories and
Modifications:
A) 12” (30.5cm) wide stainless steel
fold-down tray slide
C) 10” (25.4cm) wide three-bar fold-
down tray slide
D) 10” (25.4cm) wide composite fold-
down cutting boards
E) 10” (25.4cm) wide stainless steel
fold-down work shelf
F) Line-up interlock device
G) Glass-front counter protector
H) Two tier display with glass shelves
and sneezeguards
HD) Dual service two tier display with
sneezeguards
I) Three tier display with glass shelves
and sneezeguards
J) 12” (30.5cm) wide 18-gauge stain-
less steel overshelf
KS) Single service flip-up sneezeguard
KD) Double service flip-up sneezeguard
LI) *Incandescent light fixtures
LD) Laminate door panel insert (SC Series
only)
M) *Radiant heat lamps
MB) *Bullet-style heat lamps
P) Open understorage with shelf (SC-NU
Series only)
Q) *120V/60Hz/1ø, 10 amp convenience
outlet with breaker
QQ) Drains from food wells, plumbed to
common valve
SG5A) Single dry insert with door (SH-NU
units only)
SG5B) Double dry insert with doors (SH-NU
units only)
ST) Stainless steel trim strips
U) 14” x 30” (35.6cm x 76.2cm) stain-
less steel end drop shelf
V) 6” (15.2cm) high adjustable stainless
steel legs in lieu of casters
X) Laminate exterior panels in lieu of
stainless steel exterior panels
*Inclusion of these options will alter the elec-
trical specifications of unit.
Mobile Heated Serving Counters

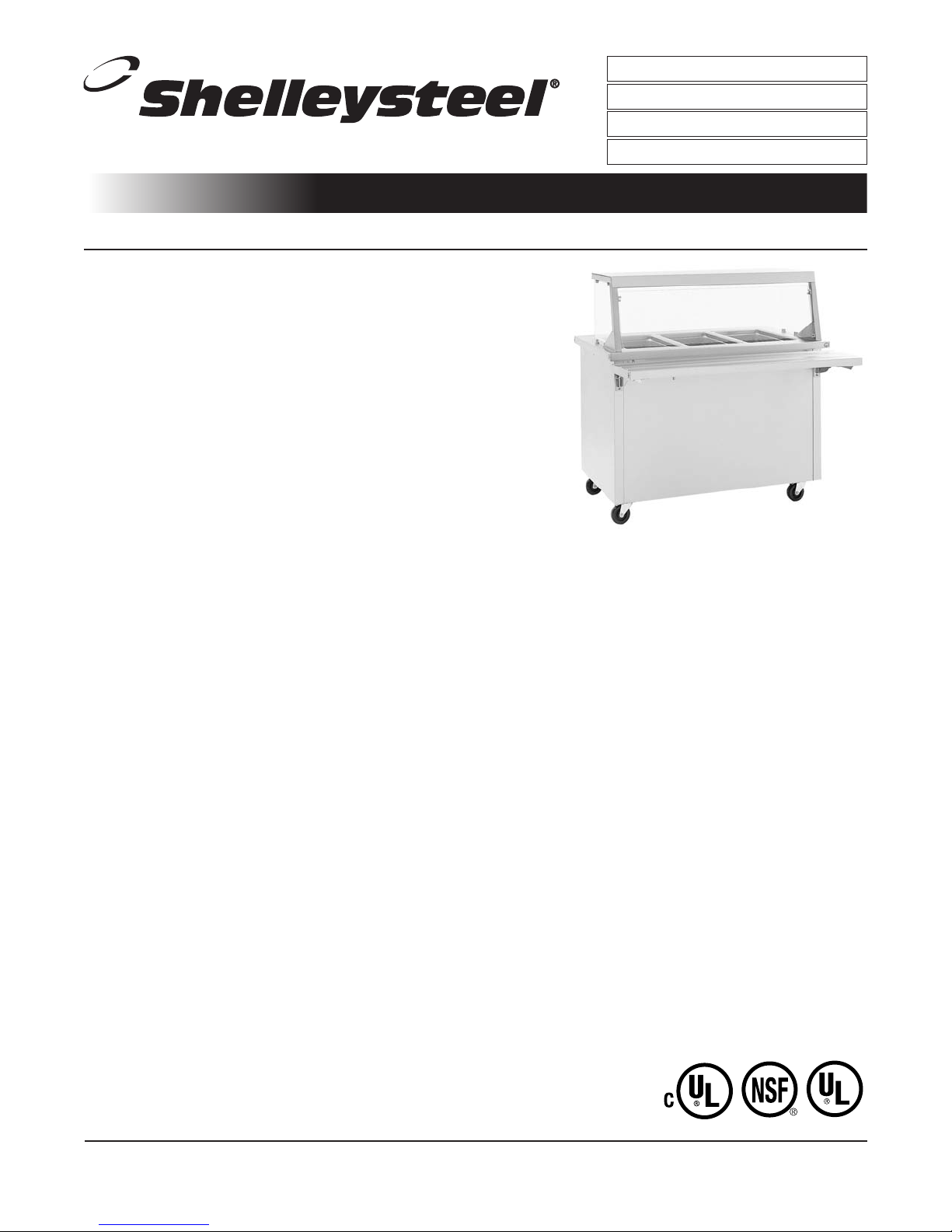

Model SH-3-NU
shown with option A and G
SH & SH-NU

The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
SSSH 02/02
SH & SH-NU
Mobile Heated Serving Counters
MODEL PAN CAP. PAN CAP. NEMA SHIP WEIGHT
NUMBER 12” X 20” 18” X 26” AMP PLUG LBS./KG.
SH-2 4 — 15.0 14-20P 380/172
SH-3 8 4 20.0 14-30P 460/209
SH-4 8 4 26.0 14-50P 550/250
SH-5 8 4 31.0 14-50P 660/299
SH-6 8 4 37.0 14-50P 720/327
Mechanical Data — Standard Unit
MODEL NEMA SHIP WEIGHT
NUMBER AMP PLUG LBS./KG.
SH-2-NU 11.0 14-20P 225/102
SH-3-NU 16.0 14-20P 275/125
SH-4-NU 22.0 14-30P 330/150
SH-5-NU 28.0 14-50P 420/191
SH-6-NU 32.0 14-50P 510/231
30"
76.2cm
50"
127cm
19.87"
50.5cm
11.87"
30.1cm
11.87"
30.1cm
30"
76.2cm
36"
91.4cm
19.87"
50.5cm 30"
76.2cm
60"
152.4cm
19.87"
50.5cm
30"
76.2cm
74"
188cm
19.87"
50.5cm
30"
76.2cm
96"
243.8cm
19.87"
50.5cm
PLAN VIEW
SH-2/SH-2-NU
PLAN VIEW
SH-3/SH-3-NU
PLAN VIEW
SH-4/SH-4-NU
PLAN VIEW
SH-5/SH-5-NU
PLAN VIEW
SH-6/SH-6-NU
1.62"
4.1 cm
36"
91.4cm
6"
15.2cm
13"
33cm
ELEVATION VIEW
SH-2
ELEVATION VIEW
ALL SH-NU MODELS
ELEVATION VIEW
SH-3/SH-4/SH5/SH-6 END VIEW
ALL MODELS
11.87"
30.1cm
11.87"
30.1cm
11.87"
30.1cm
HOT FOOD
WELL CONTROLS
HEATED
HEATED
STORAGE
CONTROL
HOT FOOD
WELL CONTROLS
CORD AND PLUG
(120/208/230V
60C-1PH)
CORD AND PLUG
(120/208/230V
60C-1PH)
CORD AND PLUG
(120/208/230V
60C-1PH)
HEATED
STORAGE
CONTROL
HOT FOOD
WELL CONTROLS
HEATED HEATED
1.62"
4.1cm
.093"
(.23cm)
.093"
(.23cm) .093"
(.23cm)
DOOR 28.38" L x 16.38" H
(72.1 cm x 41.6 cm)
DOOR 15.38" L
x 16.38" H
(39.1 cm x
41.6 cm)
All SH & SH-NU units use a 120/208-230 Voltage, 60 Hertz, single phase electrical system.
