Delfield F15PC48N User manual

F15 PASS-THROUGH SELF-CONTAINED REFRIGERATED DISPLAY CASES
Project __________________________
Item____________________________
Quantity _________________________
CSI Section 11400
F15 Serview
Pass-Through Self-Contained Refrigerated Display Cases
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.deleld.com
Phone: [phone]
Fax: [phone]
Email: info@deleld.com
Approval _________________
Date____________________

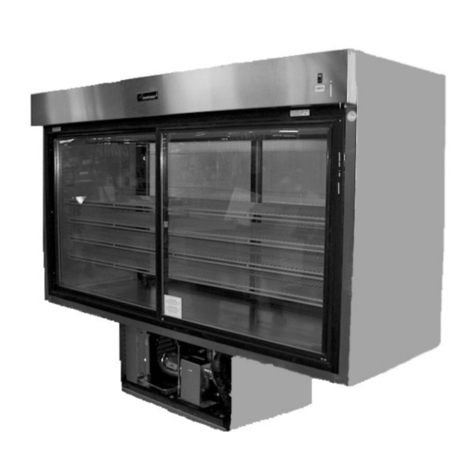

F15PC48N
SPECIFICATIONS
Top is constructed of 16-gauge stainless steel, with integral front
and rear nosing. Interior sub-top is made of ABS plastic and 2.00”
die foam is laminated between the interior and exterior top.
Refrigerated base interior back and bottom is constructed of a
22-gauge 2BF stainless steel. Exterior sides, bottom and back are
made of 22 gauge galvanized steel. Both left and right interior
sides are formed of ABS plastic. The base is injected with 2.00”
of high density polyurethane foam between the exterior and
interior. Refrigerated base fronts are made of .095” thick ABS
thermoformed plastic and backed up by ridged polyurethane
water blown injection molded frames. The frames are an excellent
thermo-break and superior structural material for fastening doors
and drawers. Unit is furnished with one epoxy coated shelf for
each door. Exterior machine compartment side is constructed
with18-gauge galvanized steel.
Exterior door fronts are made of 22- gauge stainless steel; and has
an interior made of ABS plastic with formed in channels to house
the snap-in dart style vinyl magnetic gasket. Each door front is
injected with 1.87” of high density polyurethane foam between the
exterior and interior. Handles are recessed black plastic and held
in with a positive lock system.
Display section exterior sides are made of 18-gauge stainless steel.
Exterior display section top to be 22-gauge galvanized metal. Interior
sides are made of .095” thick ABS plastic with molded shelf supports.
The interior bottom is constructed with stainless steel for long lasting
durability. Display section is fully insulated with high density polyure-
thane foam between the interior and exterior. Four adjustable epoxy
coated wire shelves are provided for the display section. An on/off
switch for the display section light(s) is located at the right end of the
front facing, above the display section doors.
Display case refrigeration system consists of a full-length top mounted
coil with multiple fans circulating the air throughout the cabinet utilizing
a thermostatic control. An ABS plastic drip pan is placed below the coil
with a clear drain hose for running the condensation to the lower base
mechanical section.
Front of the display section is equipped with two sliding and removable
self-closing .50” thick argon lled, low-e glass doors with a warm edge
spacer. The vertical outsides of each door tuck into an extruded channel
running vertically up each side. Front and rear nosing to be 20-gauge
stainless steel.
Unit is supported with two 14-gauge leg rails that run the entire
length of the unit. Leg rails are welded to the bottom side of the
unit and are tied together with two 12-gauge braces running front
to back. Caster/leg boxes are welded inside the leg rail and 6.12”
adjustable tapered legs are mounted as standard with (4) 5/16”
bolts.
Self-contained models have a pre-wired condensing unit housed in
a machine compartment, standard on right, with an easy removable
louver panel for quick access. Machine compartment also is supplied
with an 8’ cord and plug and electrical junction box.
Base interior cabinet is cooled with mullion style coated blower
coil(s) mounted between each door/drawer section for very even air
and temperature control. Blower coils encloses refrigeration lines,
evaporator coil, expansion valve, thermostat and fans. Interior
refrigerated base cabinet and display section to maintain 36º to 40º
temperatures at 100º ambient room temperature.
Back has (2) sliding and removable self-closing .50” thick argon
lled, low-e glass doors with a warm edge spacer.
MODELS:
 F15PC48N 24” Deep Upper
Display Section
 F15PC72N 24” Deep Upper
Display Section
STANDARD FEATURES
• Display exterior sides are made of 18-gauge stainless
steel
• ABS plastic interior sides with molded shelf supports
• (4) adjustable epoxy coated wire shelves
• On/off switch for the display section light(s)
• Top mount coil with multiple fans circulating the air
throughout the cabinet
• Display section runs off a thermostatic control
• Sliding and removable self-closing .50” thick argon
filled, low-E, warm edge insert, thermopane glass doors
with left and right vertical gasket
BASE
• Standard heavy duty units have unfinished base ends
• Base top is constructed of 16-gauge stainless steel
• High density polyurethane foam throughout unit
• Refrigerated base fronts are made of .095” thick
ABS plastic backed by rigid polyurethane water blown
injection molded frames (NO WOOD)
• Epoxy coated shelf for each door
• Exterior door fronts are stainless steel with ABS plastic
liner
• Snap-in dart style vinyl magnetic gasket
• Door handles are recessed black plastic and held in
with a positive lock system
• 14-gauge leg rails that run the entire length of the
unit
• 6.12” adjustable full stainless steel legs and bullet
feet
• Base interior cabinet is cooled with mullion style
coated blower coil(s)
• Environmentally friendly HFC-404A refrigerant
OPTIONS AND ACCESSORIES
 Stainless steel back
 Stainless steel end
 Laminate facing
 Laminate back
 Laminate end
 220 volt/50 cycle - inclusion of this option will
alter specications

F15 Serview Pass-Through Self-Contained Refrigerated Display Cases
Model #__________
CSI Section 11400
Printed in the USA.
01/04
DS15PCN
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.deleld.com
Phone: [phone]
Fax: [phone]
Email: info@deleld.com
MODEL DISPLAY SHELF DISPLAY STORAGE BASE STORAGE SHIP WEIGHT SYSTEM CAPACITY CABINET LOAD
NUMBER AREA SQ. FT. CU. FT. CU. FT. LBS/KG H.P. BTU/HOUR BTU/HOUR AMPS
F15PC48N 20.8 14.3 8.7 787/357 3/4 4978 2234 14.0
F15PC72N 32.8 22.2 15.4 1129/512 3/4 5758 3379 16.0
All models are 115 volt, 60 Hertz, single phase, and supplied with an 8’ (2.4m) long cord and NEMA 5-20P plug.
Mechanical Data–Standard Unit
17"
[43.1cm]
CLEARANCE 25"
[63.5cm]
CLEARANCE
30"
[76.2cm]
CLEARANCE
19" [48.3cm]
DOOR 27" [68.6cm]
DOOR 32" [81.3cm]
DOOR
FRONT OF UNIT
J=JUNCTION BOX
D=1/2" I.D. DRAIN
D
J
6.00"
15.2cm
17.00"
43.2cm
3.00"
7.6cm
MECHANICAL ACCESS
(PLAN VIEW) ALL MODELS
INSTALLATION NOTE:
Unobstructed airflow
must be maintained
to insure unit performance
and maintain warranty
42"
106.7cm
36"
91.4cm
36"
91.4cm
7.62"
19.4cm
6.12"
15.5cm
PLAN VIEW F15PC48N PLAN VIEW F15PC72N
ELEVATION VIEW F15PC48N ELEVATION VIEW F15PC72N
RIGHT END VIEW
ALL MODELS
27”
REF’G
27”
REF’G
24”
REF’G
48”
121.9cm 18”
45.72cm
30”
76.2cm
33.4”
84.8cm 33.4”
84.8cm
72”
182.9cm 18”
45.7cm
54”
137.2cm
HINGE LEFT
