Dell OPTIPLEX XE Series User manual

TECHNICAL GUIDEBOOK
INSIDE THE OPTIPLEX XE
TM
TM
DELL
OPTIPLEX XE

OVERVIEW
Desktop Computer (DT) View 3
Small Form Factor Computer (SFF) View 4
Desktop and Small Form Factor Computer (DT, SFF) View 5
MARKETING SYSTEM CONFIGURATIONS
Operating System, Chipset, Processor 6
Advanced System Manageability Modes, Memory 7
Drives and Removable Storage 8-9
System Board Connectors, Graphics/Video Controller/External Ports/Connectors 10
Communications—Integrated LAN, Wireless, Audio and Speakers, Keyboard and Mouse 11
Security, Service and Support, Software 12
DETAILED ENGINEERING SPECIFICATIONS
System Dimensions (Physical), System Board Connector Maximum Allowable Dimensions 13
System Level Environmental and Operating Conditions 14
Power, Compliance 15-16
Audio, Communications 17-19
Graphics/Video Controller 20
Hard Drives 21-27
Optical Drive 28-29
BIOS Defaults 30-31
Chassis Enclosure and Ventilation Requirements 32
Acoustic Noise Emission Information 33-34
TABLE OF CONTENTS

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
3

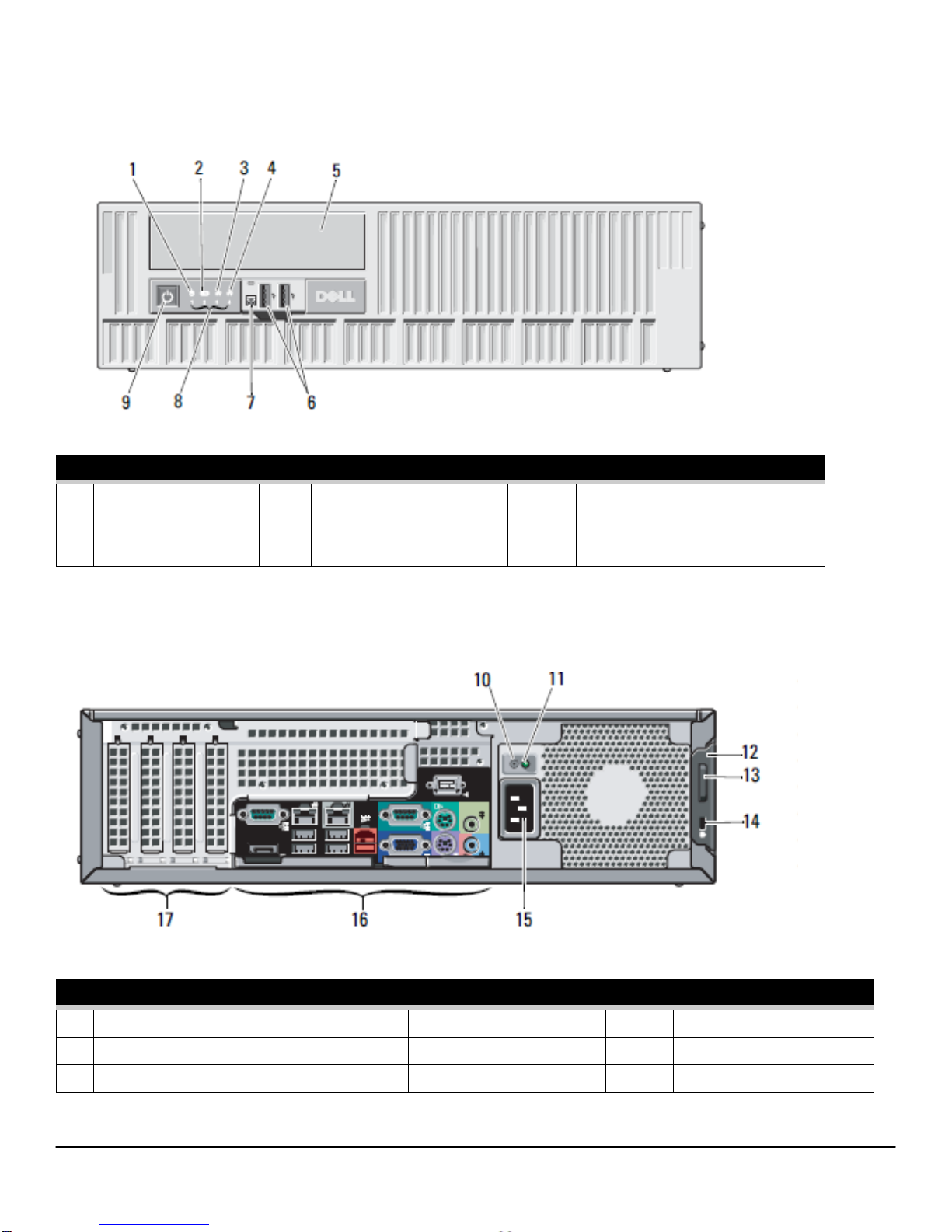

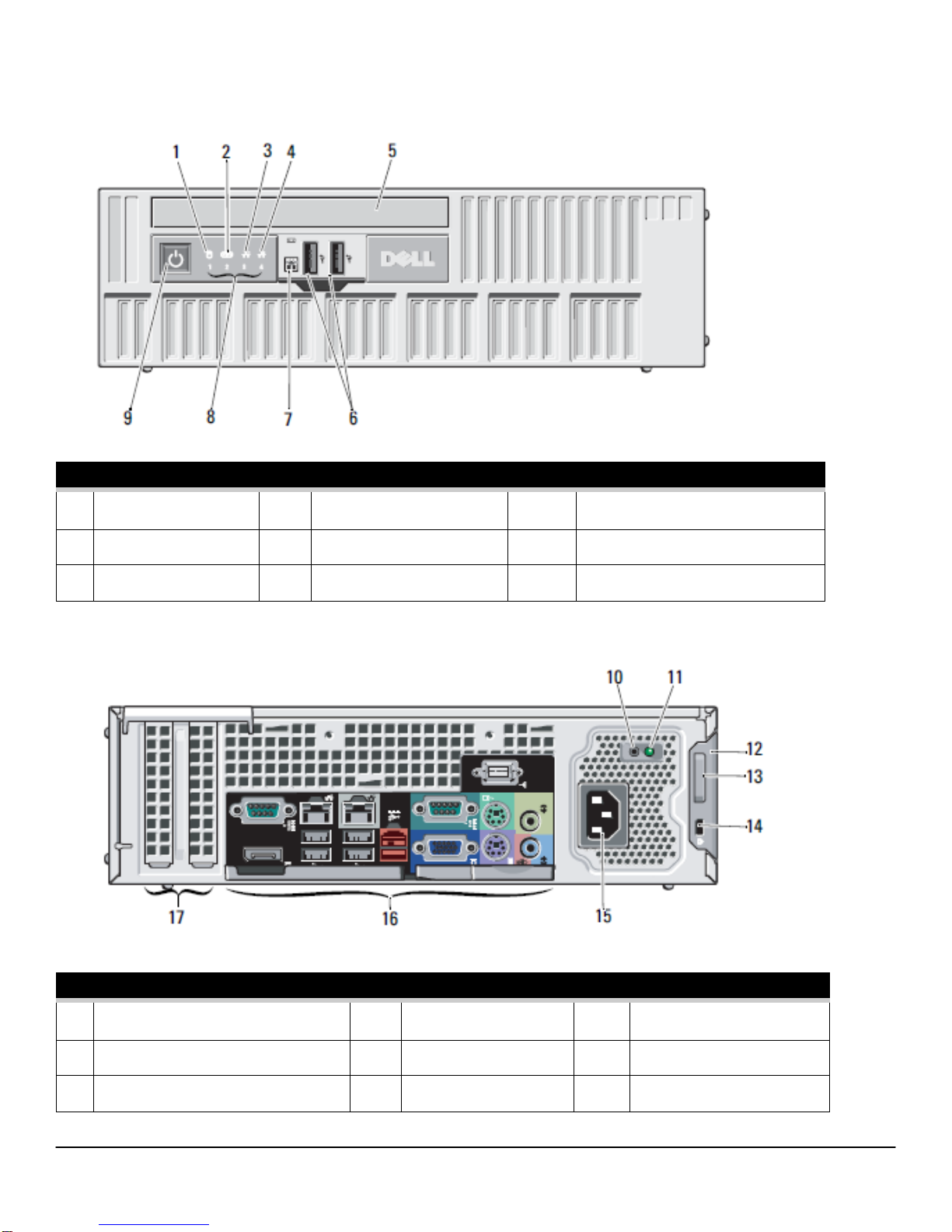

FRONT VIEW
1 Drive activity light 4 Network activity light 2 7 External power button connector
2 Wi-Fi activity light 5 DVD drive bay 8 Diagnostic Lights (4)
3 Network activity light 1 6 USB 2.0 connectors (2) 9 Power button, power light
DESKTOP COMPUTER (DT) VIEW
BACK VIEW
10 Power supply diagnostic button 13 Padlock ring 16 Back panel connectors
11 Power supply diagnostic light 14 Security cable slot 17 Expansion card slots (4)
12 Cover release latch 15 Power cable connector

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
4
FRONT VIEW
1 Drive activity light 4 Network activity light 2 7 External power button connector
2 Wi-Fi activity light 5 DVD drive bay 8 Diagnostic Lights (4)
3 Network activity light 1 6 USB 2.0 connectors (2) 9 Power button, power light
SMALL FORM FACTOR COMPUTER (SFF) VIEW
BACK VIEW
10 Power supply diagnostic button 13 Padlock ring 16 Back panel connectors
11 Power supply diagnostic light 14 Security cable slot 17 Expansion card slots (2)
12 Cover release latch 15 Power cable connector

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
5
BACK PANEL CONNECTORS
1 Serial Connector 1 7 Network Activity Light 1 13 PS/2 Keyboard Connector
2 Link Integrity Light 2 8 Serial Connector 2 14 VGA Connector
3 Network Adapter Connector 2 9 Wi-Fi Connector 15 24V Powered USB Connector
4 Network Activity Light 2 10 PS/2 Mouse Connector 16 USB 2.0 Connectors (4)
5 Link Integrity Light 1 11 Line-Out Connector 17 DisplayPort
6 Network Adapter Connector 1 12 Line-In/Mic Connector
DESKTOP AND SMALL FORM FACTOR COMPUTER (DT, SFF) VIEW

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
6
MARKETING SYSTEM CONFIGURATIONS
NOTE: Offerings may vary by region. For more information regarding the configuration of your computer, click
Start>Help and Support and select the option to view information about your computer.
OPERATING SYSTEM
NOTE: One of the following Operating Systems will be preinstalled.
DT SFF
Windows 7® operating system Microsoft® Windows 7® Professional (64 and 32 bit); Microsoft® Win-
dows 7® Home Premium (32 bit); Microsoft® Windows 7® Basic (32 bit)
Windows Vista® operating system
Windows Vista® Business (64 and 32 bit), Windows Vista® Home Basic
SP1 (32 bit), Windows Vista® Business SP1 (32 bit) via Windows 7 Pro-
fessional Downgrade Rights
Windows XP® operating system
Windows®XP Professional SP3 via Windows Vista® Business Down-
grade Rights (32 bit), Windows®XP Professional SP3 via Microsoft®
Windows 7® Professional Downgrade Rights (32 bit); Windows® XP
Home SP3 (China only)
Other Microsoft® Windows Embedded POSReady (target availability
May 2010); FreeDOS for (N-series), Ubuntu® Linux (China only)
OS Media Support X X
CHIPSET
NOTE: The OptiPlex XE uses a Chipset from Intel’s long lifecycle Embedded Roadmap
DT SFF
Chipset Intel Q45 Express Chipset w/ICH10DO
Non-volatile memory on chipset
BIOS Configuration SPI (Serial Peripheral Interface) 16Mbit (2MB) located at SPI_FLASH on chipset
NIC EEPROM 5761—8Mbit, 57780—OTP
PROCESSOR
NOTE: The OptiPlex XE uses CPUs from Intel’s long lifecycle Embedded Roadmap
NOTE: Processor numbers are not a measure of performance.
DT SFF
Intel® Core™ 2 Duo and Pentium® Dual Core Processors
Intel® Core™ 2 Duo E7400/2.83GHz, 3M, 1066FSB XX
Intel® Pentium® Dual-Core E5300/2.60GHz, 2M, 800FSB XX
Intel® Celeron® Processors
Intel® Celeron® 440/2.0GHz, 512K, 800FSB XX

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
7
MEMORY
Memory modules should be installed in pairs of matched memory size, speed, and technology. If the memory
modules are not installed in matched pairs, the computer will continue to operate, but with a slight reduction
in performance.
ADVANCED SYSTEM MANAGEABILITY MODES
NOTE: Hardware management mode options allow you to select the right systems management feature support
for your enterprise. Dell’s innovative approach to scalable remote client management offers you a choice of
built-in hardware management capabilities across platform offerings.
The latest generation of Broadcom® TruManage™ technology provides the capability to manage your install
base of systems regardless of the power or O/S state of the system.
This functionality allows IT to address many issues remotely rather than having to physically visit systems.
The OptiPlex™ XE supports Broadcom® TruManage™ technology which supports the following features:
BIOS Management, asset reporting, remote troubleshooting and repair, power on for remote patching/updating.
DT SFF
Broadcom® TruManage™ Systems Management Ready X X
DT SFF
Type: DDR3 Synch DRAM Non-ECC Memory 1066MHz
DIMM Slots 4 4
DIMM Capacities Up to 2GB Up to 2GB
Minimum Memory 1GB 1GB
Maximum System Memory (uses 2GB DIMMS) 8GB18GB1
1066MHz Memory configurations
8GB1DDR3 Non-ECC SDRAM, 1066MHz, (4 DIMM) X X
4GB1DDR3 Non-ECC SDRAM, 1066MHz, (4 DIMM) X X
4GB1DDR3 Non-ECC SDRAM, 1066MHz, (2 DIMM) X X
3GB DDR3 Non-ECC SDRAM, 1066MHz, (3 DIMM) X X
3GB DDR3 Non-ECC SDRAM, 1066MHz, (2 DIMM) X X
2GB DDR3 Non-ECC SDRAM, 1066MHz, (2 DIMM) X X
2GB DDR3 Non-ECC SDRAM, 1066MHz, (1 DIMM) X X
1GB DDR3 Non-ECC SDRAM, 1066MHz, (1 DIMM) X X
1 The total amount of available memory may be less than 4GB. The amount less depends on the actual system configuration. To fully utilize 4GB or
more of memory requires a 64-bit enabled processor and 64-bit operating system.

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
8
DRIVES AND REMOVABLE STORAGE
DT SFF
Bays:
5.25-inch bay (for External Optical) 1 1 (slim-line)
3.5” Hard Drives Supported (Internal) 2 1
2.5” Hard Drives Supported (Internal) 1 2
Interface:
SATA 3 3
3.5” Hard Drives:
500GB1,4 SATA 7200 RPM HDD X X
320GB1SATA 7200 RPM HDD X X
250GB1SATA 7200 RPM HDD X X
160GB1,4 SATA 7200 RPM HDD X X
2.5” Hard Drives:
250GB1SATA 7200 RPM HDD X X
160GB1,4 SATA 7200 RPM HDD X X
160GB1SATA Full Disk Encryption HDD X X
128GB1SATA Solid State Drive X X
64GB1SATA Solid State Drive X X
RAID 1 Data Protection: (includes two matching capacity/speed hard drives)
500GB1,4 SATA 7200 RPM HDD (3.5”) X
320GB1SATA 7200 RPM HDD (3.5”) X
250GB1SATA 7200 RPM HDD (3.5”) X
160GB1,4 SATA 7200 RPM HDD (3.5”) X
250GB1SATA 7200 RPM HDD (2.5’) X
160GB1,4 SATA 7200 RPM HDD (2.5”) X
1For hard drives, GB means 1 billion bytes; actual capacity varies with preloaded material and operating environment and will be less.
43.5” 160GB and 500GB and 2.5” 160GB 7200 RPM SATA 3.0Gb/s HDDs are expected to be offered during the entire system purchase lifecycle.

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
9
DRIVES AND REMOVABLE STORAGE
DT SFF
RAID 0 Performance: (includes two matching capacity/speed hard drives)
1TB1SATA 7200 RPM HDD (3.5”) X
640GB1SATA 7200 RPM HDD (3.5”) X
500GB1SATA 7200 RPM HDD (3.5”) X
320GB1SATA 7200 RPM HDD (3.5”) X
500GB1SATA 7200 RPM HDD (2.5”) X
320GB1SATA 7200 RPM HDD (2.5”) X
Optical Drive: (SFF requires a slim-line optical drive)
DVD+/-RW2SATA 1.5Gbit/s SATA 1.5Gbit/s
DVD-ROM3SATA 1.5Gbit/s SATA 1.5Gbit/s
1For hard drives, GB means 1 billion bytes; actual capacity varies with preloaded material and operating environment and will be less.
2Discs burned with this drive may not be compatible with some existing drives and players; using DVD+R media provides maximum compatibility.
3DVD-ROM drives may have write-capable hardware that has been disabled via firmware modifications.

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
10
DT SFF
Integrated Intel GMA 4500 Integrated on system board
Enhanced Graphic/Video Options
DVI (Digital) Adapter Card Optional card
SYSTEM BOARD CONNECTORS
NOTE: See Detailed Engineering Specifications for maximum card dimensions.
GRAPHICS/VIDEO CONTROLLER
NOTE: DT supports low profile card or full height card with optional combo riser. SFF supports low profile
DT SFF
PCI Slot(s): number of 2 1
PCIe x16 Slot: number of 1 1
PCIe x1 Slot: number of 1 0
Serial ATA (SATA) 3 3
See chassis diagrams section for port/connector locations DT SFF
USB 2.0 2 Front, 4 Rear, 2 Internal
24V Powered USB 2.0 1 Rear
Serial 2 rear with option for powered
Network Connector (RJ-45) 2 Rear
PS/2 2 Rear
Wireless Optional via add-in card
Routing for external power 1 Front
Video:
VGA 1 Rear
DVI-D Optional via add-in card or DP-to-DVI adapter
DisplayPort 1 Rear
Audio:
Line in/microphone 1 Rear
Line out 1 Rear
Risers: (replaces PCI slot and 1 PCIe slot on DT system board)
Combo full height riser with 1 PCI and 1 PCIe x16 connector X
Dual full height riser with 2 PCI connectors X
EXTERNAL PORTS/CONNECTORS
NOTE: DT supports low profile card or full height card with optional riser. SFF supports low profile card.

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
11
DT SFF
Broadcom® BCM5761 NetXtreme® Integrated on system board
Broadcom® BCM57780 NetLink® 10/100/1000 Integrated on system board
DT SFF
Dell Wireless 1520 PCIe WLAN card (802.11n) Optional via add-in card
COMMUNICATIONS – WIRELESS
DT SFF
Realtek ALC269 VB Integrated on system board
Internal Dell Business Audio Speaker Optional
Dell AX510/AX510PA Flat Panel Soundbar Speakers Optional
AUDIO AND SPEAKERS
DT SFF
Dell QuietKey Keyboard with optional palmrest Optional
Dell Multimedia Pro Keyboard Optional
Dell USB Optical Mouse Optional
Dell Laser Mouse Optional
Dell Logo Mouse Pad Optional
KEYBOARD AND MOUSE
COMMUNICATIONS - INTEGRATED LAN
NOTE: The OptiPlex XE supports 2 on-board LOMs (LAN On Motherboard) standard

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
12
SECURITY
SERVICE AND SUPPORT
NOTE: For more details on Dell Service Plans please to go to: www.dell.com/service/service_plans
SOFTWARE
DT SFF
Chassis Intrusion Switch Standard
Chassis lock slot and loop support Standard
DT SFF
3 Year Warranty1 Next Business Day On-site2(3-3-3) Standard
ProSupport Optional
1For a copy of our guarantees or limited warranties, please write Dell USA L.P., Attn: Warranties, One Dell Way, Round Rock, TX 78682. For more
information, visit www.dell.com/warranty.
2Service may be provided by third-party. Technician will be dispatched if necessary following phone-based troubleshooting. Subject to parts availabil-
ity, geographical restrictions and terms of service contract. Service timing dependent upon time of day call placed to Dell. U.S. only.
DT SFF
Dell Client Manager Available via Dell.com
Dell ControlPoint Available via Dell.com or with Full Disk Encryption HDD
Norton 2009 Internet Security 30 Day Trial or Optional Subscription
McAfee 10 SecurityCenter 30 Day Trial or Optional Subscription

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
13
DETAILED ENGINEERING SPECIFICATIONS
SYSTEM DIMENSIONS (PHYSICAL)
NOTE: System Weight and Shipping Weight is based on a typical configuration and may vary based on PC
configuration. A typical configuration includes: integrated graphics, one hard drive, one optical drive, and
one diskette drive.
SYSTEM BOARD CONNECTOR MAXIMUM ALLOWABLE DIMENSIONS
DT SFF
Chassis Volume (liters) 15L 8L
Chassis Weight (pounds/kilograms) 20.60lbs. /9.38kg 14.30lbs. /6.48kg
Chassis Dimensions: (HxWxD)
Height (inches/centimeters) 4.30in. /10.91cm 3.35in. /8.52cm
Width (inches/centimeters) 15.61in. /39.65cm 11.40in. /28.96cm
Depth (inches/centimeters) 13.75in. /34.91cm 12.74in. /32.36cm
Shipping Weight (pounds/kilograms - includes packaging materials) 27.0 lbs (12.25 kg) 20.0 lbs (9.07 kg)
Packaging Parameters (HxWxD)*
Height (inches/centimeters) 20.35in. (517cm)/
20.63in. (524cm)
20.75in. (527cm)/
20.88in. (530cm)
Width (inches/centimeters) 20.04in. (509cm)/
20.31in. (516cm)
16.38in. (416cm)/
19.38in. (492cm)
Depth (inches/centimeters) 11.96in. (304cm)/
11.88in. (302cm)
11.25in. (286cm)/
10.63in. (270cm)
DT SFF
PCI Slots 2 1
Height (inches/centimeters) 5.4cm/2.13 in
Length (inches/centimeters) 16.7cm/6.57in
PCIe x16 Slots 1 1
Height (inches/centimeters) 5.4cm/2.13 in
Length (inches/centimeters) 16.7cm/6.57in
PCIe x1 Slots 1
Height (inches/centimeters) 5.4cm/2.13 in
Length (inches/centimeters) 16.7cm/6.57in
Risers: (replaces 1 PCI slot and 1 PCIe slot on DT system board)
Combo Full Height Riser with 1 PCI and 1 PCIe connector (HxL) 1
Height (inches/centimeters) 9.6cm/3.78in
Length (inches/centimeters)**,*** 17.5cm/6.89in
Dual Full Height Riser with 2 PCI connectors (HxL) 1
Height (inches/centimeters) 9.6cm/3.78in
Length (inches/centimeters)**,*** 17.5cm/6.89in
* Shipping weights may vary slightly by region
**Card length can be longer than standard Half-Length Card but cannot be a Full-Length Card.
*** 6.9/17.53 in/cm is longer than the standard Half-Length Card

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
14
SYSTEM LEVEL ENVIRONMENTAL AND OPERATING CONDITIONS
DT SFF
Temperature
Operating 10° to 45° C (50° to 113° F)
Non-Operating (Storage) -40° to 60° C (-40° to 140° F)
Relative Humidity 20% to 80% (non-condensing)
Maximum vibration
Operating Random Vibe 5~500Hz, 0.26Grms, 2 sides
Non-Operating Random Vibe 5~500Hz, 2.2Grms, 6 sides
Maximum Shock
Operating HALF SN 40G/2ms, 2 sides
Non-Operating HALF SN 105G/2ms, 6 sides
Maximum Altitude
Operating TBD
Non-Operating TBD

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
15
POWER
NOTE: The OptiPlex XE utilizes wide-ranging power supplies. These power supplies do not require users to
switch or reconfigure the PSU when alternating between 100-240VAC electrical currents/sockets. The XE also uses a more effi-
cient Active Power Factor Correction (APFC) power supply. Dell recommends only Universal Power Supplies
(UPS) based on Sine Wave output for APFC PSUs, not an approximation of a Sine Wave, Square Wave, or
quasi-Square Wave. If you have questions, please contact the manufacture to confirm the output type.
DT (EPA) SFF (EPA
Power Supply Wattage 300W High Efficiency 280W High Efficiency
AC input Voltage Range 100 to 240Vac 100 to 240Vac
AC input current (low ac range/high AC range) 6.0A / 3.0A 5.0A / 2.5A
AC input Frequency 50HZ / 60HZ 50HZ / 60HZ
AC holdup time (80% load) 16MSEC 16MSEC
Average Efficiency (Energy Star 5.0 Compliant) 88% 88%
DC parameters
+3.3v output 6.0A 6.0A
+5.0v output 16A 16A
+12.0v output 18A 17A
+5.0v auxiliary output 4.0A 4.0A
-12.0v output 0.5A // 24.8Vdc/3.0A 0.5A // 24.8Vdc/3.0A
Max total power 300W 280W
Max combined +3.3v / +5.0v power 90watt 90watt
Max combined 12.0v power (note: only if more
than one 12v rail) TBD TBD
BTUs/h (based on PSU max wattage) 1163 1085
3.3v CMOS battery (type and estimated battery life)
Power Supply Fan 92*25mm 80*15mm
Compliance:
1watt requirement Yes Yes
Blue Angel Compliant No No
Climate Savers / 80Plus Compliant Yes Yes
FEMP (CECP) Standby Power Compliant Yes Yes
EnergyStar5.0 Yes (select configurations) Yes (select configurations)
EPEAT Gold Yes (select configurations) Yes (select configurations)
EuP Yes Yes

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
16
Compliance (CONT.):
TCO 05 Yes Yes
WEEE Yes Yes
Japan Energy Law Yes Yes
CEC Yes Yes
Japan Green PC Yes Yes
FEMP Yes Yes
South Korea Eco-Label Yes Yes
EU RoHS Yes Yes
China RoHS Yes Yes

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
17
AUDIO
COMMUNICATIONS - PRIMARY INTEGRATED LAN
NOTE: The OptiPlex XE supports 2 on-board LOMs (LAN On Motherboard) standard
INTEGRATED RELTECK ALC269 –VB3 HIGH DEFINITION AU-
DIO DT SFF
High Definition Stereo support X X
Number of channels 2
Number of Bits / Audio resolution 16, 20, and 24-bit resolution
Sampling rate (recording/playback) Independent 8, 11.025, 16, 22.05, 32, 44.1,
48, 88.2, 96, 176.4, and 192 kHz sample rates
Signal to Noise Ratio 96+ dB audio outputs, 90+ dB audio inputs
Analog Audio X X
Dolby Digital
THX
Digital out (S/PDIF)
Audio Jack Impedance
Microphone 50 kΩ
Line-In 50 kΩ
Line-Out 100 Ω
Headphone 2 Ω
Internal Speaker Power Rating 1W/8 Ohm
INTEGRATED BROADCOM® BCM5761 NETXTREME®
10/100/1000 GIGABIT ETHERNET (GBE) DT SFF
External Connector Type RJ45
Data Rates supported 10/100/1000 Mbps
Controller Details
Controller bus architecture PCIe 1.1 x1
Integrated memory 48-KB rx and 8-KB tx buffer
Data transfer mode (example Bus-Master DMA) DMA
Power consumption (full operation per data rate connection speed) 1023mW (+5% for 1.2V and 2.5V, nominal +10%
for 3.3VMax.)
Power consumption (standby operation) 203mW (D3cold with WOL enabled.)
IEEE standards compliance (example 802.1P) 802.3
Hardware Certifications (example FCC, B, GS mark…) RoHS
Boot ROM Support SPI flash
Network Transfer Mode (example Full Duplex, Half Duplex)
Network Transfer Rate (example 10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
10 Mb (full/half-duplex)
100 Mb (full/half-duplex)
1000 Mb (full-duplex)

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
18
COMMUNICATIONS - PRIMARY INTEGRATED LAN (CONT.)
COMMUNICATIONS – SECONDARY INTEGRATED LAN
INTEGRATED BROADCOM® BCM5761 NETXTREME®
10/100/1000 GIGABIT ETHERNET (GBE) DT SFF
Environmental
Operating temperature 0° C to 70° C (32° F to 158° F)
Operating humidity 20% to 80% (non-condensing)
Operating System Driver Support
Windows® XP, Windows Vista® Ultimate, Win-
dows Vista® Business 32 bit/64 bit, Windows Vista
Home Basic
Manageability (examples WOL, PXE) WOL, PXE 2.1
Management Capabilities Alerting Broadcom® TruManage™ (DASH1.1)
1This term does not connote an actual operating speed of 1 Gb/sec. For high speed transmission, connection to a Gigabit Ethernet server and network
infrastructure is required.
BROADCOM® BCM57780 NETLINK® 10/100/1000 GIGABIT
ETHERNET (GBE) DT SFF
Connector Type RJ45
Data Rates supported 10/100/1000 Mbps Half/Full duplex
Controller Details
Controller bus architecture (example PCIe 1.0a x1) PCIe 1.1 x1
Integrated memory 16KBytes RX, 8KBytes TX
Data transfer mode (example Bus-Master DMA) DMA
Power consumption (full operation per data rate connection speed) 804mW(+5% for 1.2V, nominal +10% for
3.3VMax.)
Power consumption (standby operation) 73mW(10Base-T,WOL enabled)
IEEE standards compliance (example 802.1P) 802.3, 802.3u,80.3ab, 802.3z, 802.1p
Hardware Certifications (example FCC, B, GS mark…) RoHS
Boot ROM Support No
Network Transfer Mode (example Full Duplex, Half Duplex) Full Duplex/Half Duplex
Network Transfer Rate (example 10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
10BASE-T (full-duplex) 20 Mbps Max*
100BASE-TX (half-duplex) 100 Mbps Max*
100BASE-TX (full-duplex) 200 MbpsMax*
1000BASE-T (full-duplex) 2000 Mbps Max*
* Depends on the system environment.
1This term does not connote an actual operating speed of 1 Gb/sec. For high speed transmission, connection to a Gigabit Ethernet server and network
infrastructure is required.

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
19
COMMUNICATIONS – SECONDARY INTEGRATED LAN (CONT.)
BROADCOM® BCM57780 NETLINK® 10/100/1000 GIGABIT
ETHERNET (GBE) DT SFF
Environmental
Operating temperature 0° C to 70° C (32° F to 158° F)
Operating humidity 5% ~ 85% (non-condensing)
Operating System Driver Support
Windows® 7, Windows® XP, Windows Vista®
Ultimate, Windows Vista® Business 32 bit/64 bit,
Windows Vista Home Basic, Linux
Manageability (examples WOL, PXE) WOL, PXE2.1, ACPI
Management Capabilities Alerting None
1This term does not connote an actual operating speed of 1 Gb/sec. For high speed transmission, connection to a Gigabit Ethernet server and network
infrastructure is required.
COMMUNICATIONS – WIRELESS
DELL WIRELESS 1520 PCIE WLAN CARD (802.11N
WITH REMOTE WAKE UP SUPPORT) DT SFF
External Connector Type Custom WLAN Antenna Connector
Controller Details
Controller bus architecture PCIe 1.0a x1
WLAN standards supported 802.11a, 802.11b, 802.11g, 802.11n
802.11b Data Rates supported 11, 5.5, 2, 1 Mbps
802.11a Data Rates supported 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11g Data Rates supported 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n Data Rates supported
450, 300, 270, 243, 240, 180, 150, 144, 135, 130, 120, 117,
115.5, 90, 86.667, 72.2, 65, 60, 57.8, 45, 43.3, 30, 28.9, 21.7,
15, 14.4, 7.2 Mbps
Encryption WEP 64-bit and 128-bit,
TKIP, AES-CCMP 128-bit
Operating temperature 0 - 80°C
Operating humidity 50% to 95% non-condensing (at temperatures of 25 ºC to 35 ºC)
Operating System Driver Support Windows 7, Windows XP 32, Vista 32/64

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0
20
GRAPHICS/VIDEO CONTROLLER
NOTE: DT supports low profile card or full height card with optional riser. SFF supports low profile card.
INTEGRATED INTEL GMA 4500 DT SFF
Bus Type
Integrated
GPU core clock Gen5 core @ 667 350 MHz Integrated and with
350MHz 24 bit RAMDAC
Frame Buffer Memory (onboard and shared) Size and Speed
XP: Up to 512MB with 1GB system memory; up to
1GB with 2GB system memory
Vista and Win7: Up to 272MB with 1GB system
memory; up to 784MB with 2GB system memory; up
to 1296MB with 3GB system memory; up to
1808MB with 4GB system memory; up to 3856MB
with 8GB system memory
Maximum power consumption 4 W
Overlay Planes Yes
Maximum Color Depth 32 bit
Maximum Vertical Refresh Rate 85 Hz
Multiple Display Support Yes
Operating Systems Graphics/ Video API Support OpenGL 2.0/DirectX 10.0
Supported Resolutions and Max Refresh Rates (Hz) (Note: Analog and/
or digital)
Up to 2560x1600 @ 60Hz (DP)
Up to 1920x1200 @ 60Hz (DVI & VGA)
Up to 1600x1200 @ 85Hz (VGA only)
External Connectors VGA, DisplayPort
Environmental Operating Conditions (Non-Condensing):
Operating Temperature Range 0° to 106° C (32° to 223° F)
Relative Humidity Range 20% to 80% (non-condensing)
Altitude Range –15.2 to 3048 m (–50 to 10,000 ft)
DisplayPort
Bus Type AUX 1, 2, 4 lanes
Maximum supported resolution Up to 2560x1600 @ 60Hz
Maximum power consumption N/A
External connectors DisplayPort
DVI (Digital) Add Card
Bus Type sDVO
Maximum supported resolution Up to 1920x1566 @ 60 Hz
Dimensions of full height card inches/centimeters (L x H) 5.75 x 2.75 /
14.61 x 6.99
Dimensions of low profile card inches/centimeters (L x H) 5.75 x 2.75 /
14.61 x 6.99
Maximum power consumption N/A
External connectors DVI
1 Up to 1.7 GB of system memory may be allocated to support integrated graphics, depending on operating system, system memory size and other factors.
2DVI and VGA can be used concurrently for multi-monitor display in DOS. The DisplayPort controller does not support multi-monitor display in DOS
3Populating a discrete graphics card in the x16 slot disables onboard video.
